H263 - Futurama
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 475.99 475.99 File size byte 2.4e+06 2.4e+06 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30016.00 5329.00 mean frame size byte 79.87 449.86 var frame size - 52330.83 128325.31 CoV of frame size - 2.86 0.80 min frame size byte 0.00 26.00 max frame size byte 5421.00 5421.00 Peak/Mean frame - 67.87 12.05 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.6e+04 Peak/Mean of bit rate - 6 CoV of bit rate - 0.39 max inter frame space frames 1.00 67.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

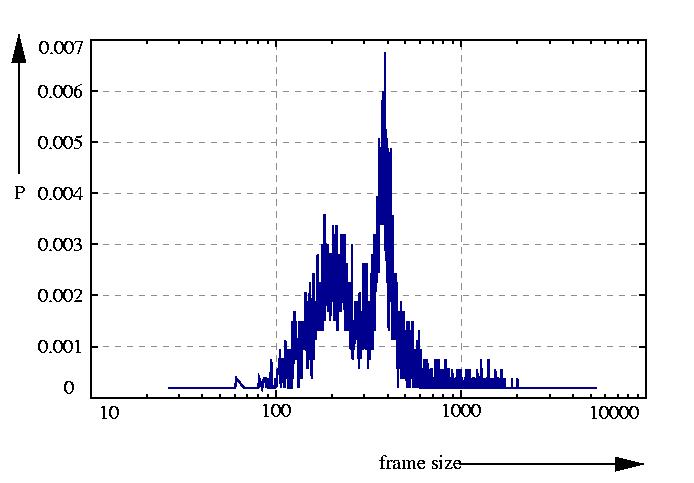

probability density function p

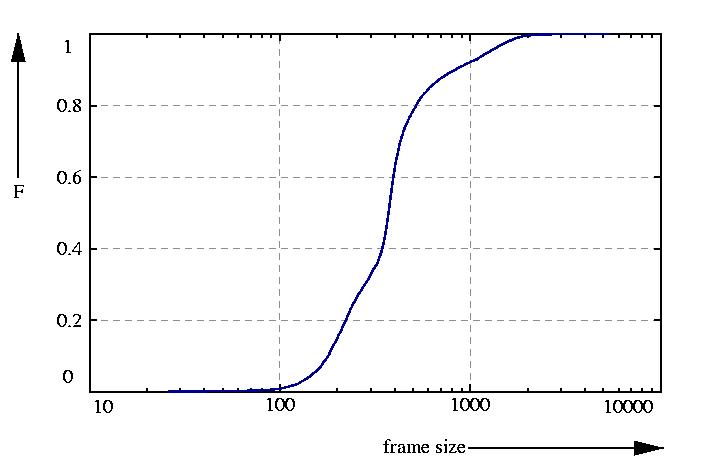

probability function F = sum p
inverse probability function G = 1 - F

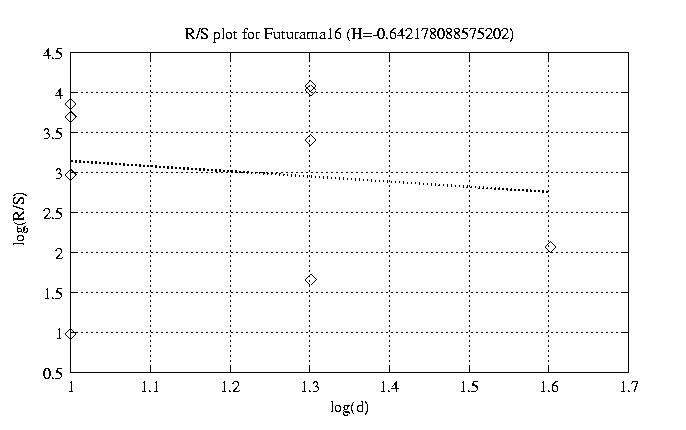

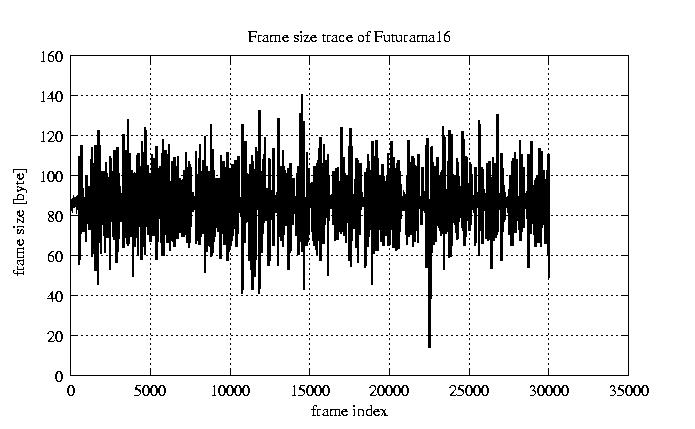

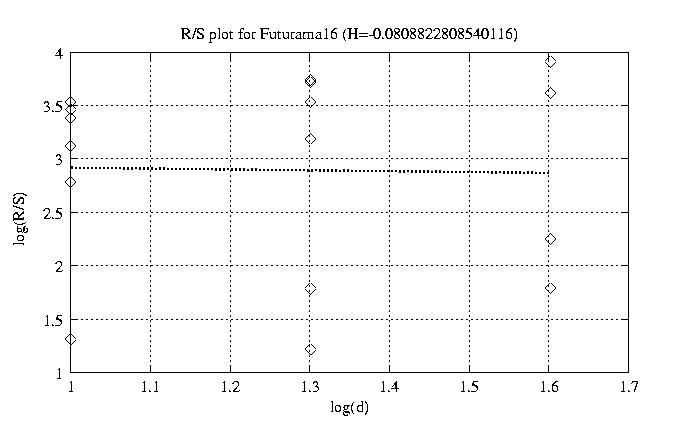

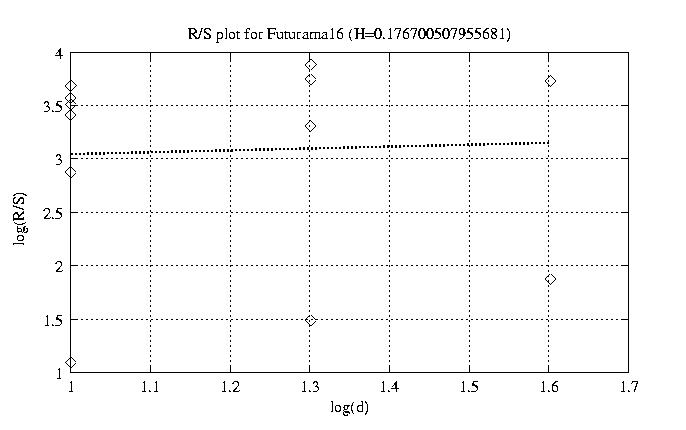

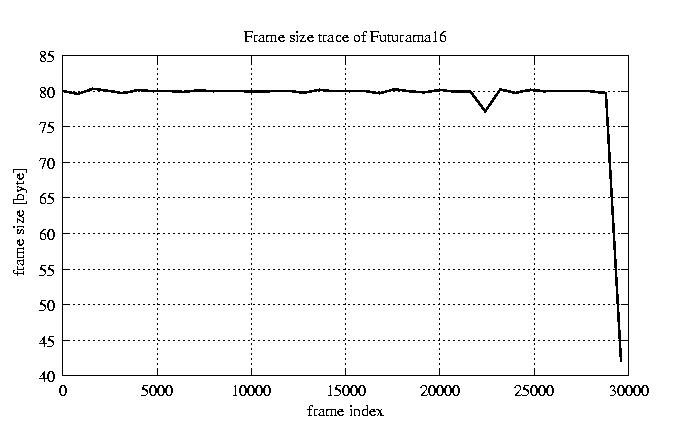

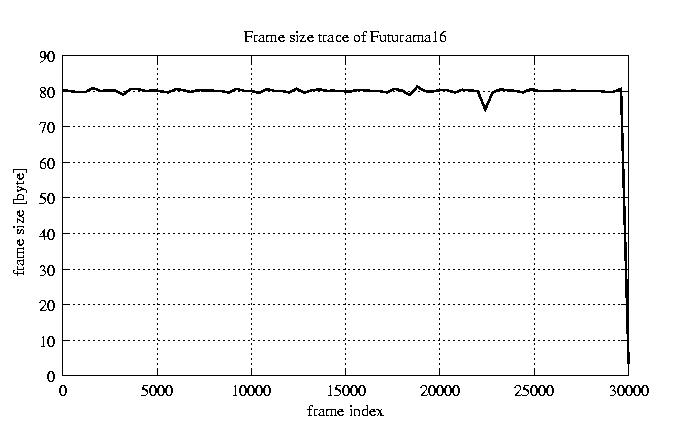

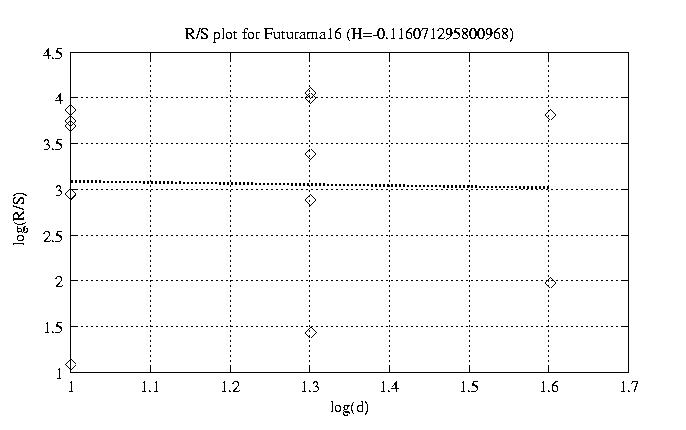

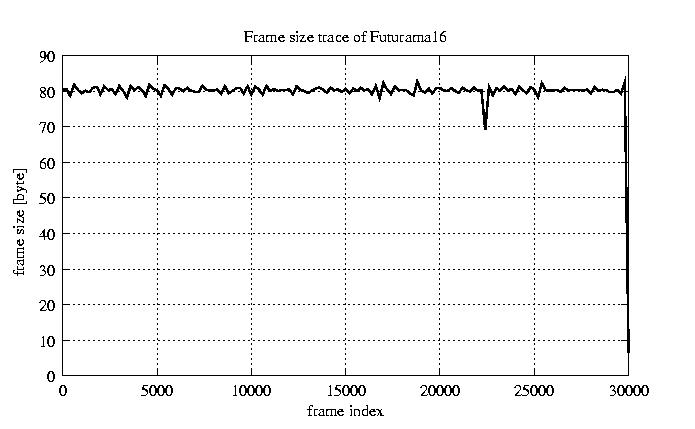

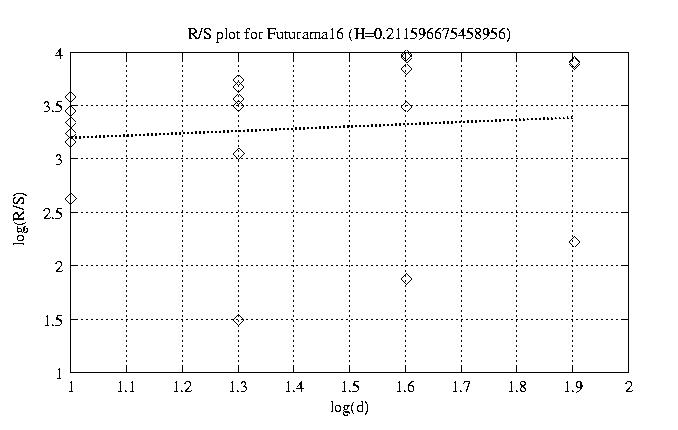

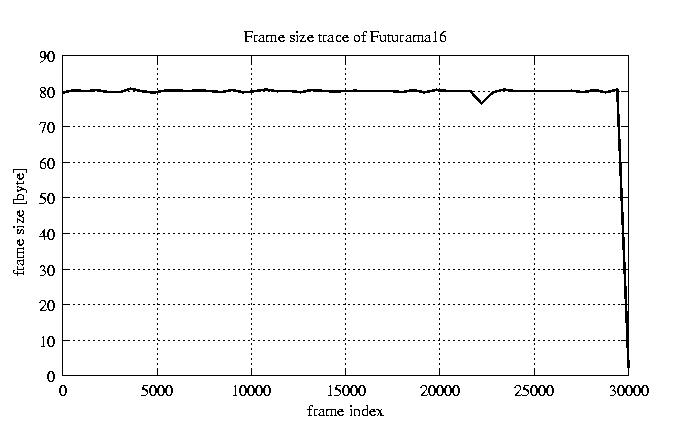

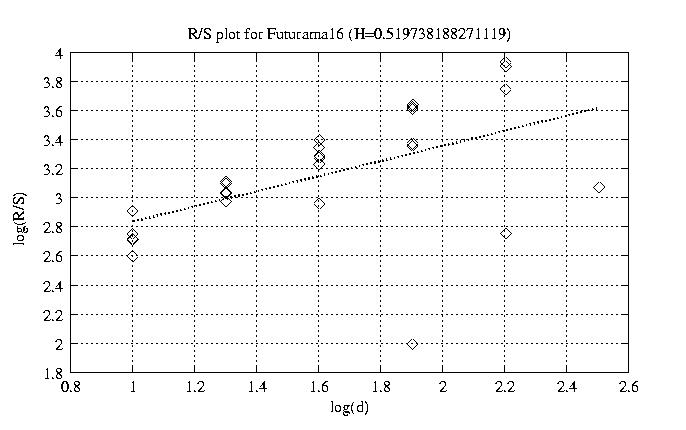

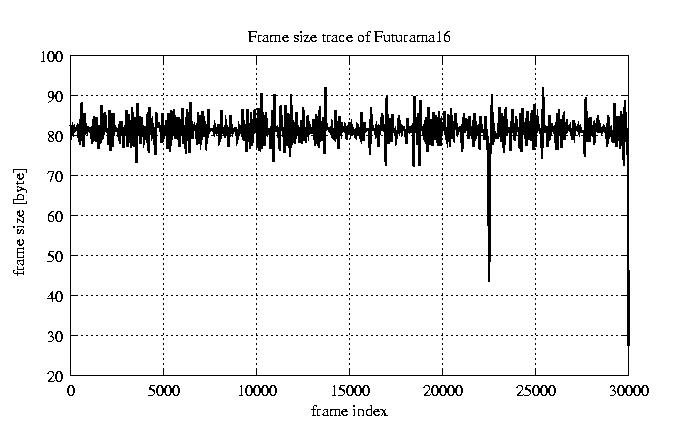

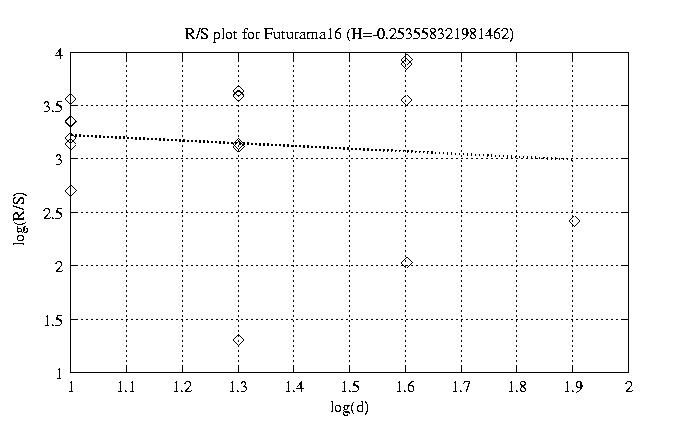

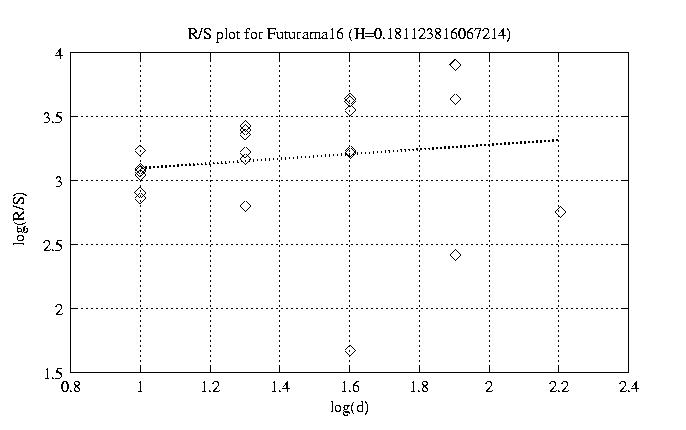

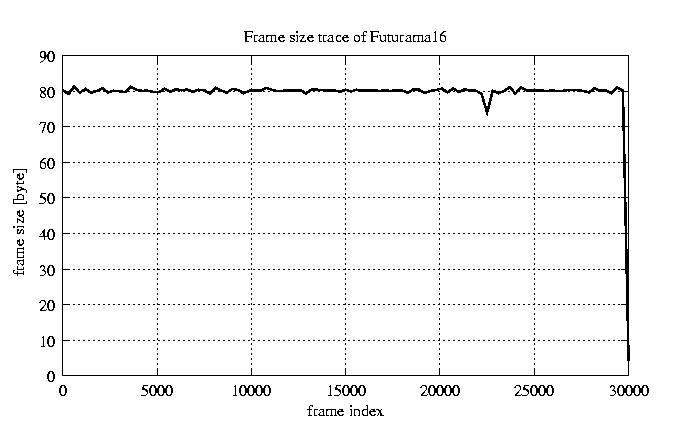

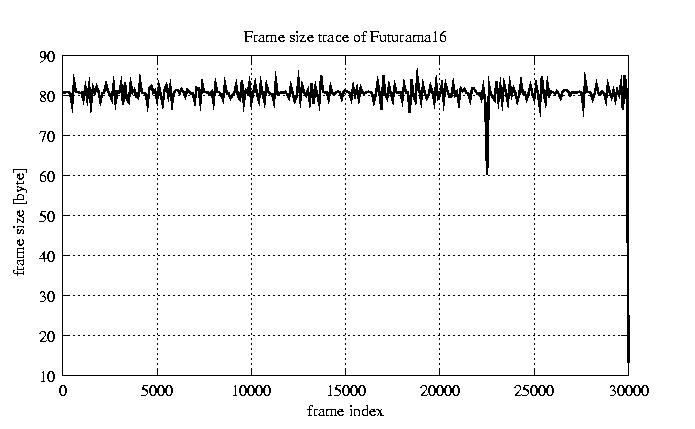

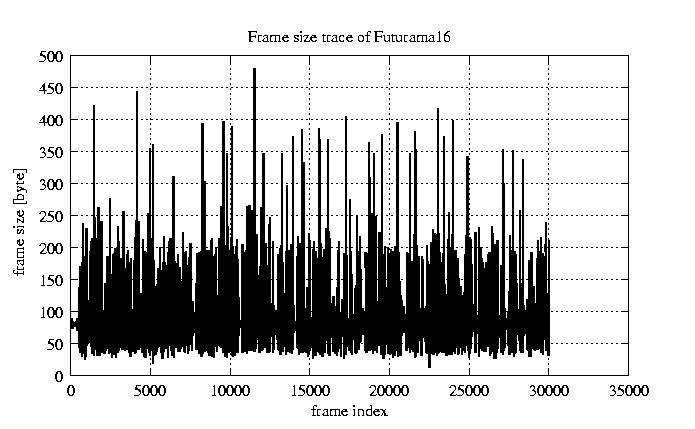

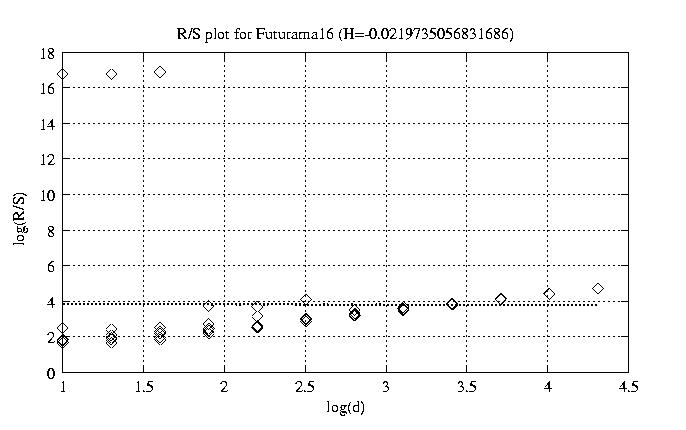

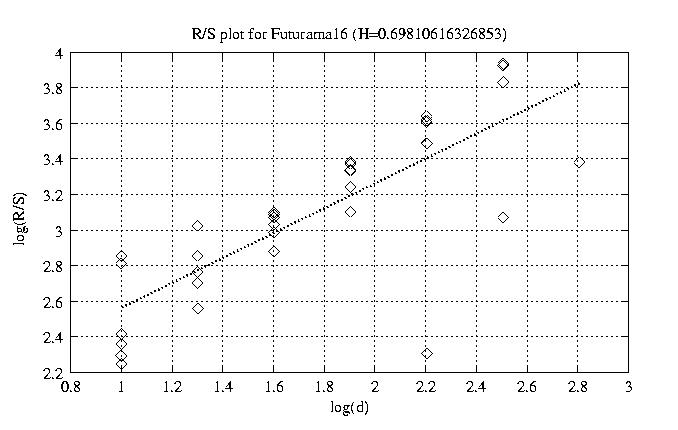

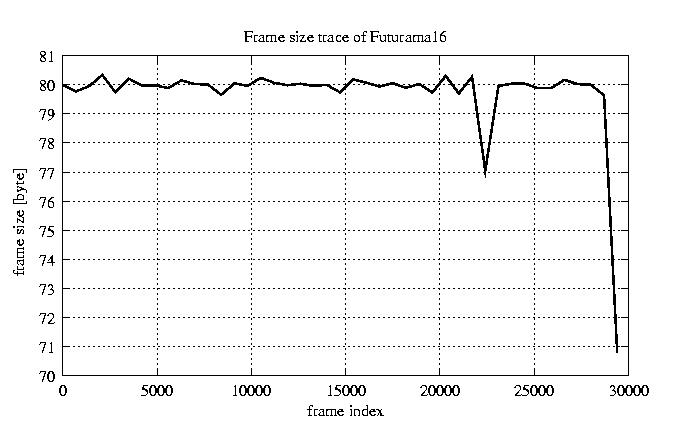

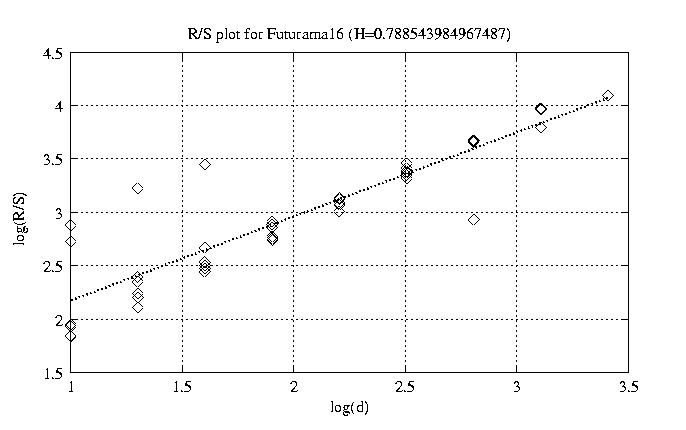

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 -0.022 view view 12 0.789 view view 50 0.698 view view 100 0.520 view view 200 0.181 view view 300 0.212 view view 400 -0.254 view view 500 -0.081 view view 600 0.177 view view 700 -0.116 view view 800 -0.642 view view

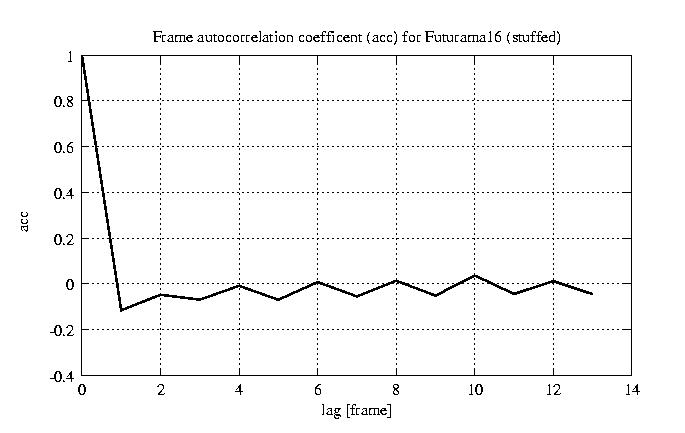

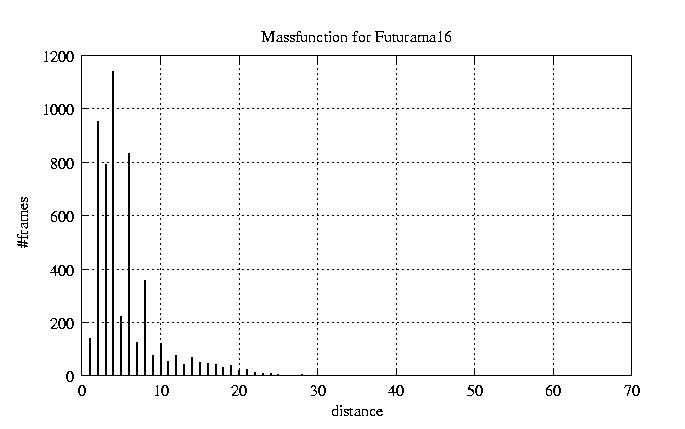

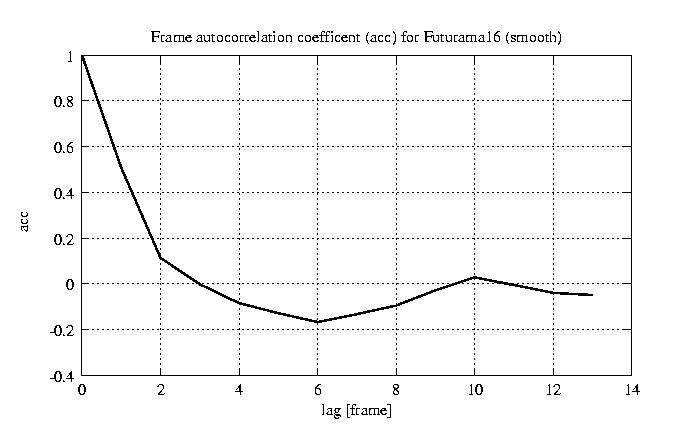

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
