H263 - Susi und Strolch
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.38 476.38 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 23937.00 mean frame size byte 79.80 300.33 var frame size - 26145.52 32163.41 CoV of frame size - 2.03 0.60 min frame size byte 0.00 22.00 max frame size byte 4047.00 4047.00 Peak/Mean frame - 50.71 13.48 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.1e+04 Peak/Mean of bit rate - 5.7 CoV of bit rate - 0.36 max inter frame space frames 1.00 49.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

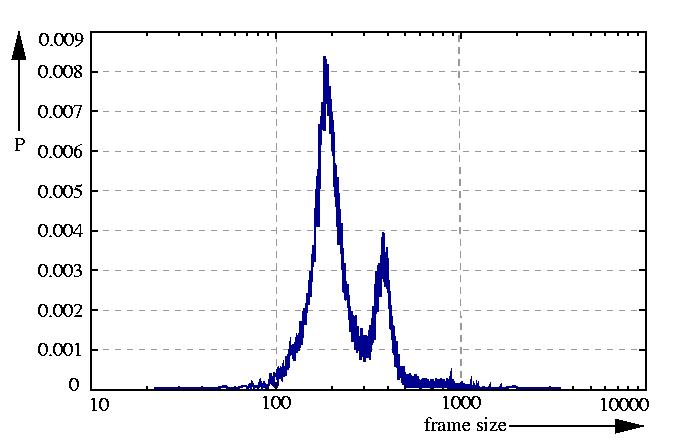

probability density function p

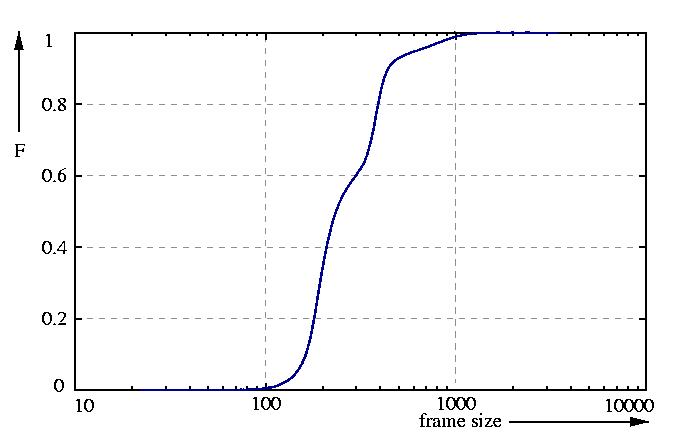

probability function F = sum p

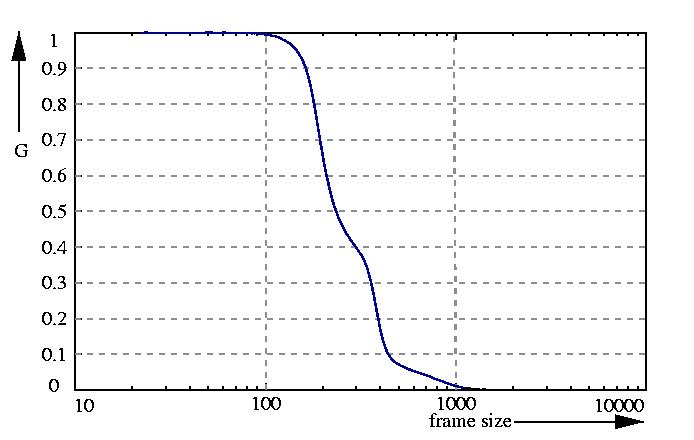

inverse probability function G = 1 - F

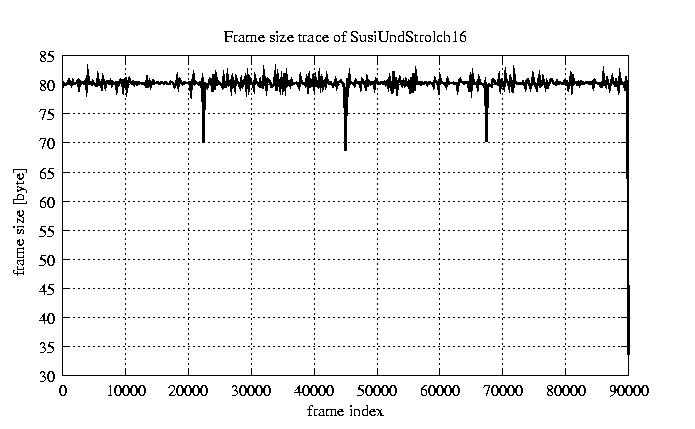

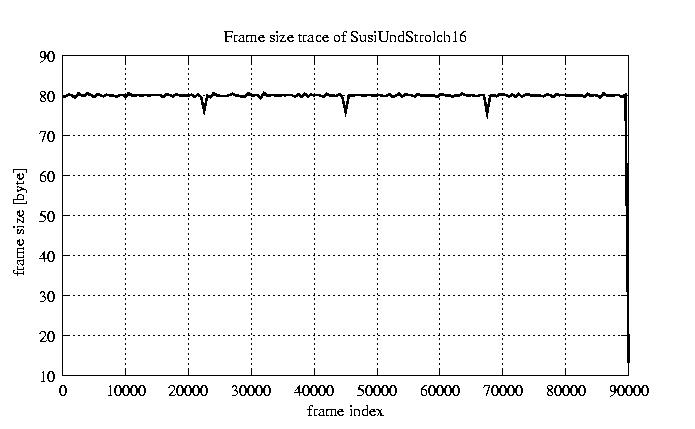

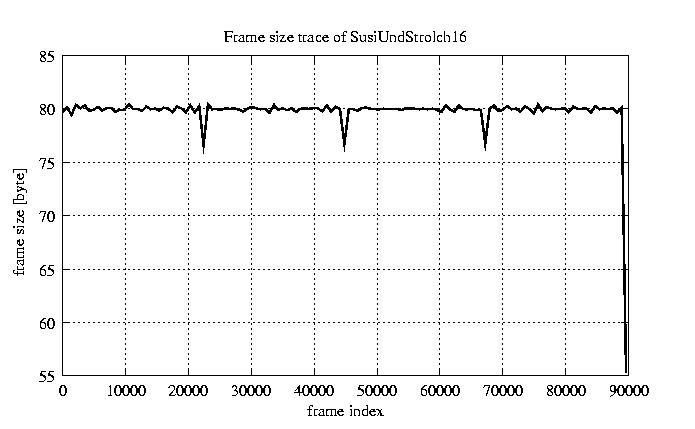

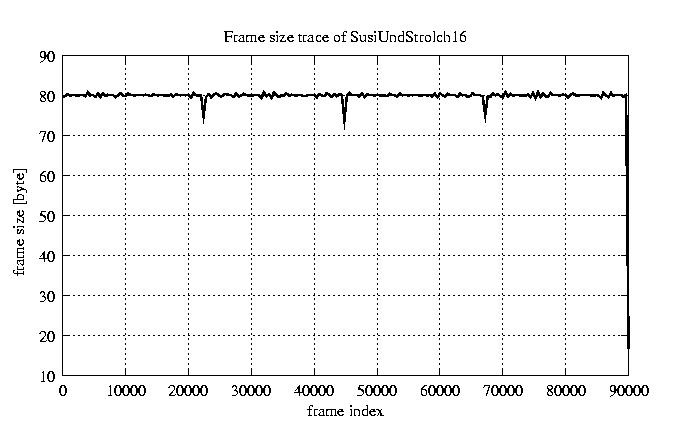

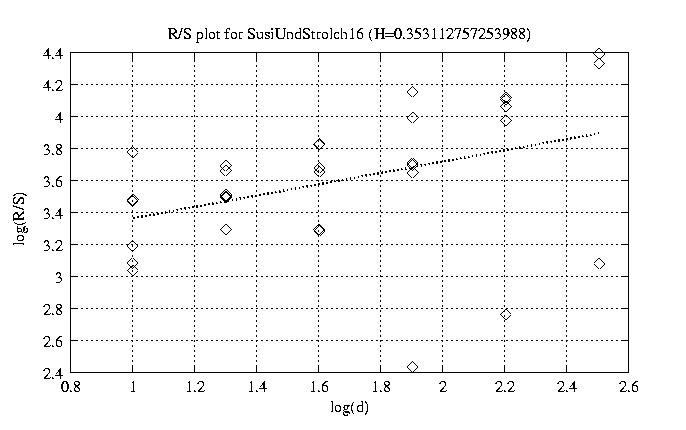

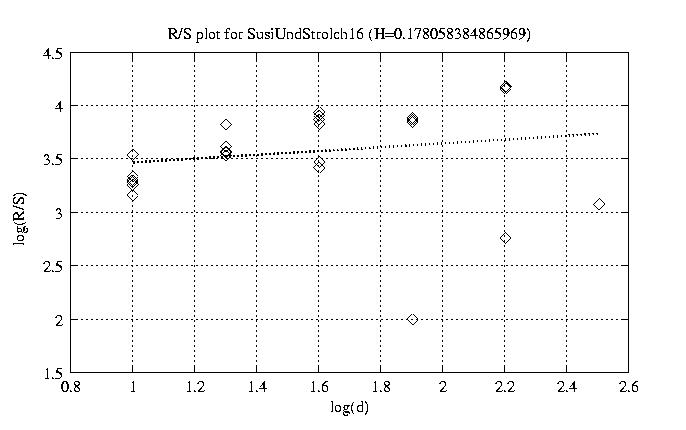

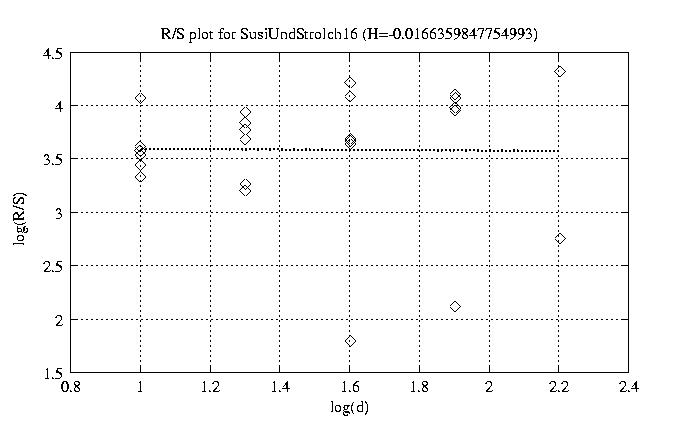

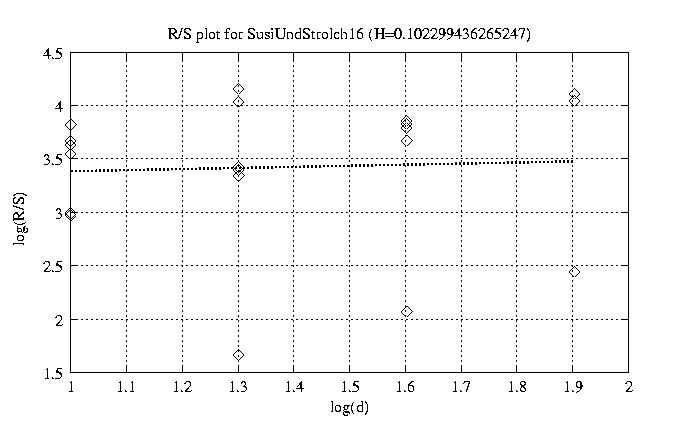

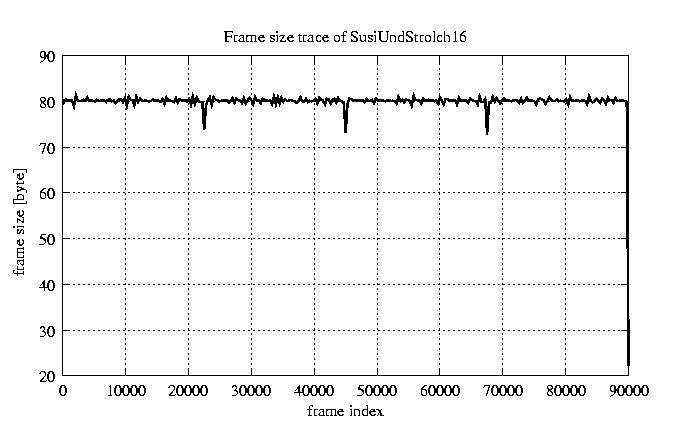

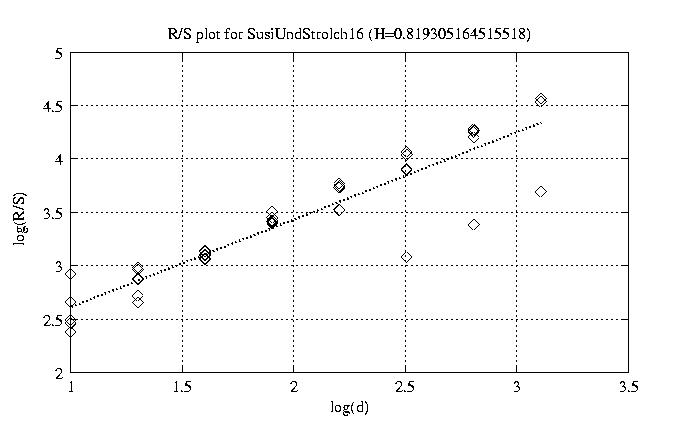

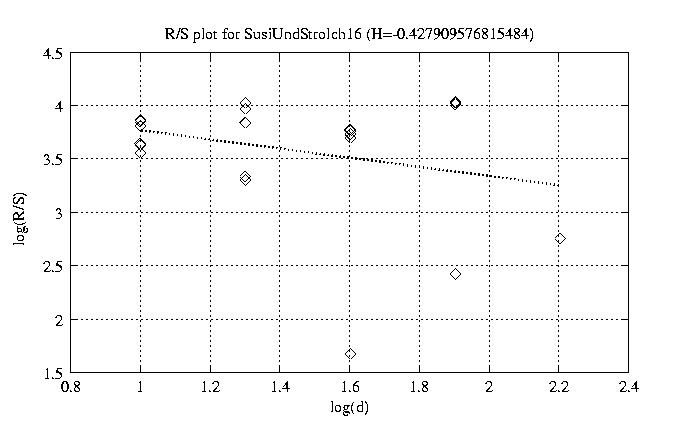

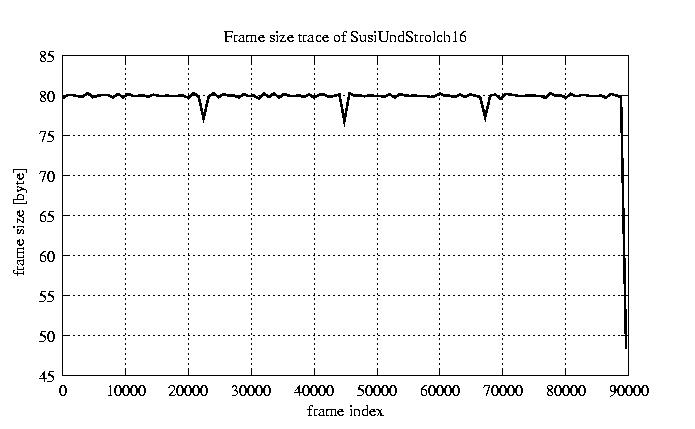

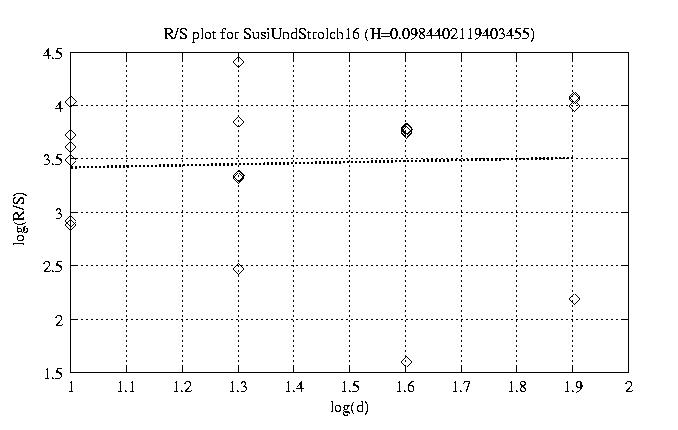

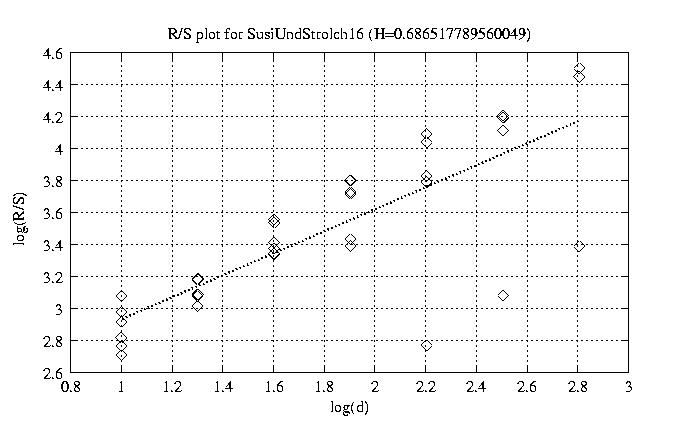

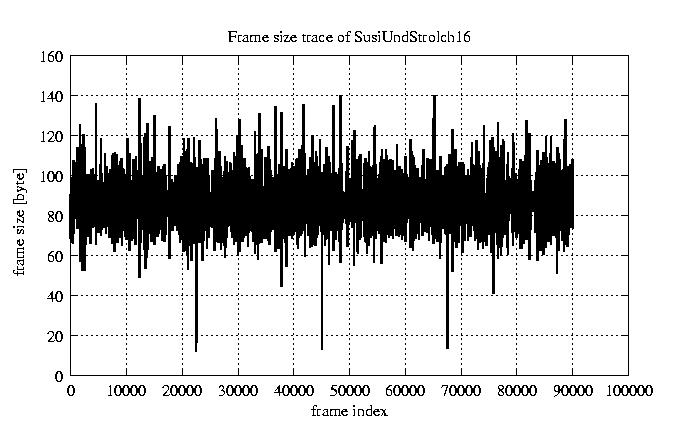

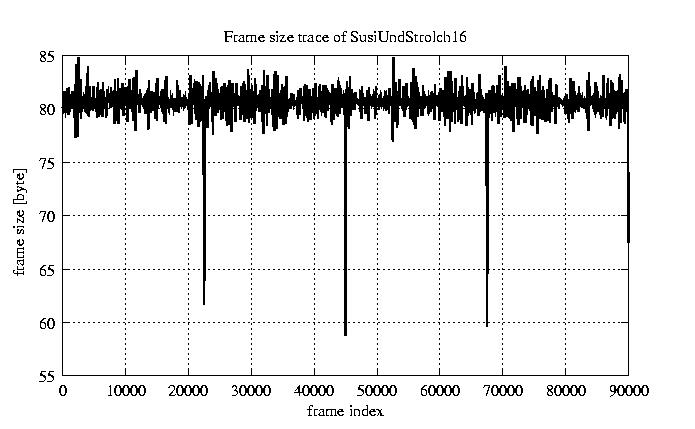

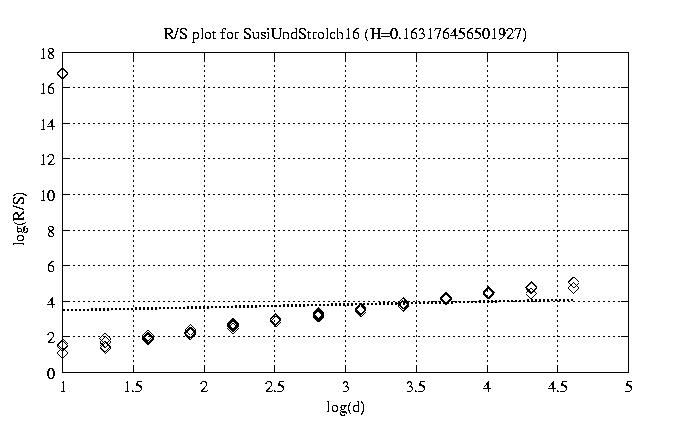

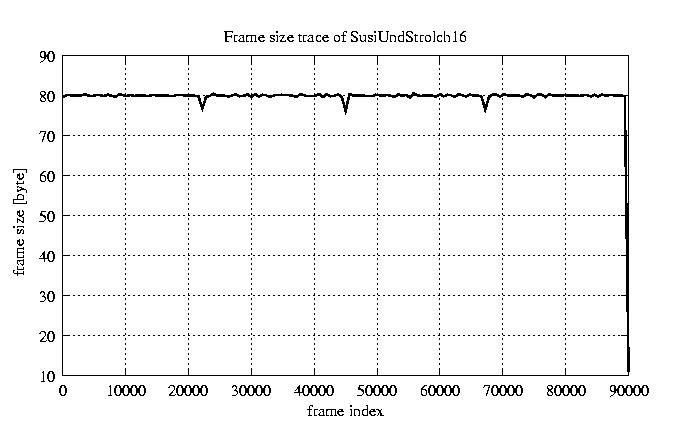

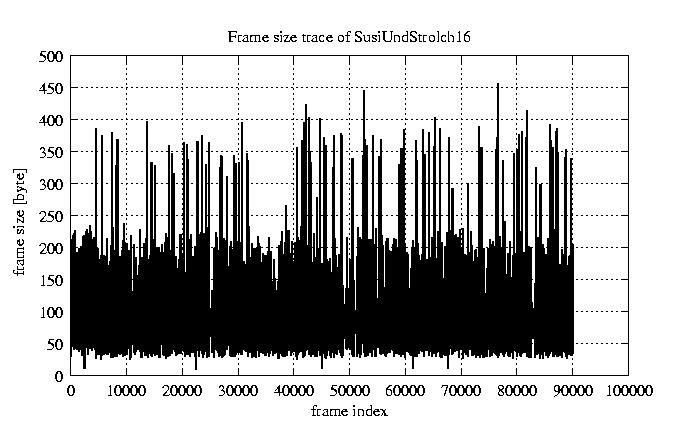

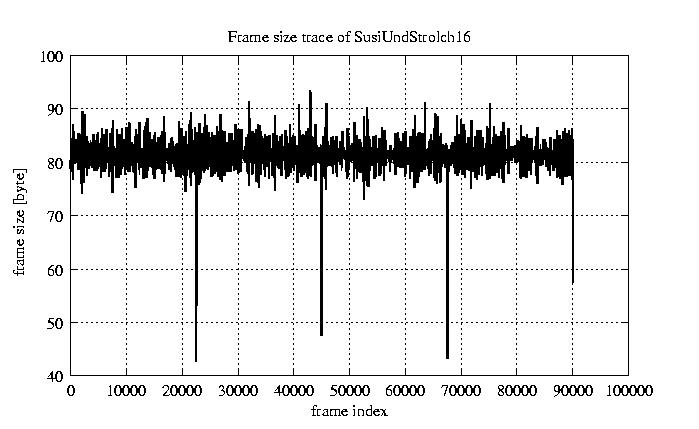

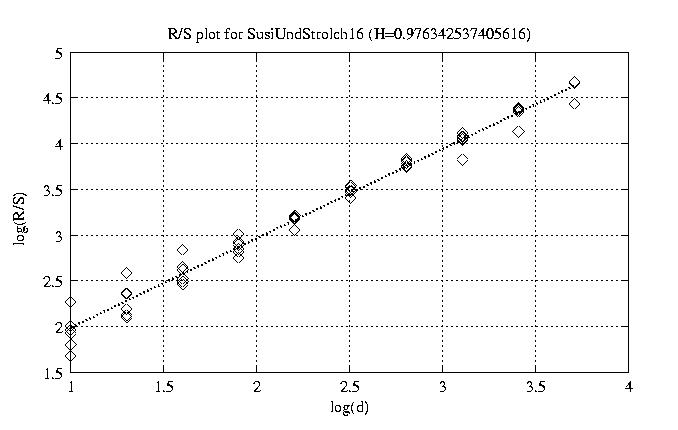

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.163 view view 12 0.976 view view 50 0.819 view view 100 0.687 view view 200 0.353 view view 300 0.178 view view 400 0.194 view view 500 -0.017 view view 600 -0.428 view view 700 0.098 view view 800 0.102 view view

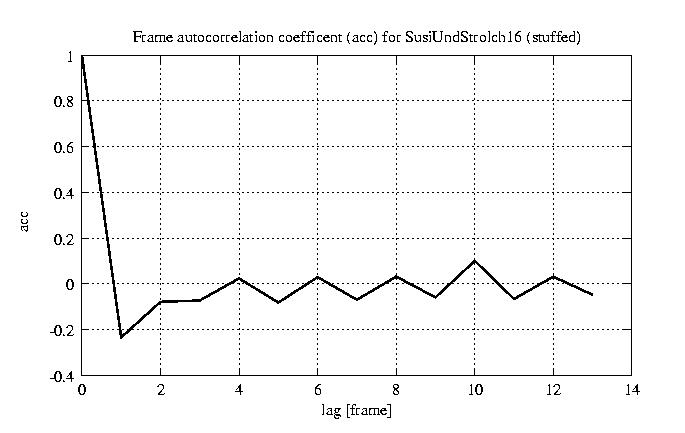

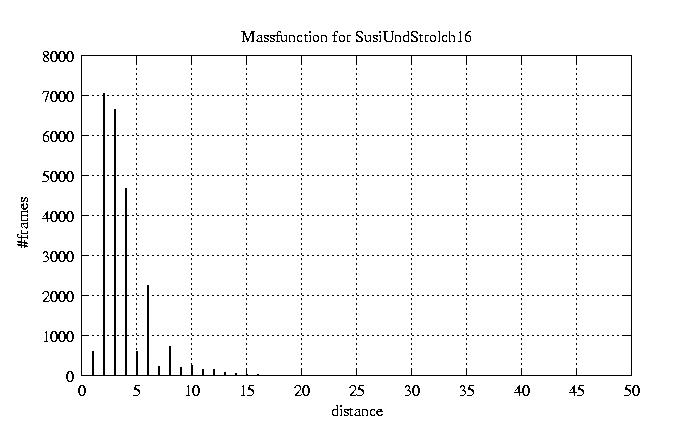

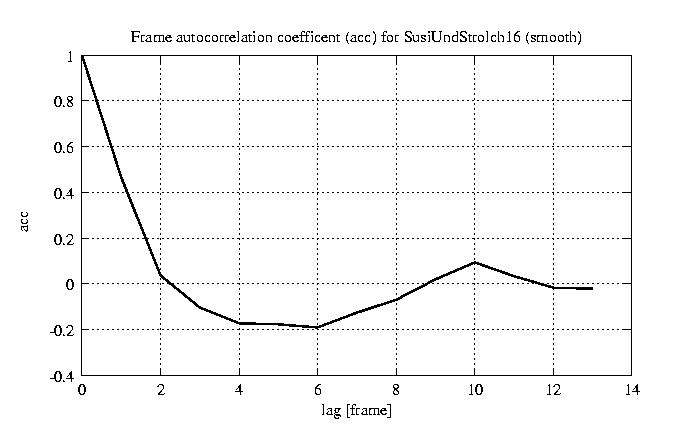

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
