H261 - Starship Troopers
unspecified target bitrate, VBR

frame statistics parameter list	Frames Rates compression ratio YUV:H261 17.47 File size byte 2e+08 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 2176.39 var frame size - 1192171.42 CoV of frame size - 0.50 min frame size byte 163.00 max frame size byte 10227.00 Peak/Mean frame - 4.70 Mean bit rate bit/sec 4.4e+05 Peak bit rate bit/sec 2e+06 Peak/Mean of bit rate - 4.7 CoV of bit rate - 0.5 max inter frame space frames 1.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

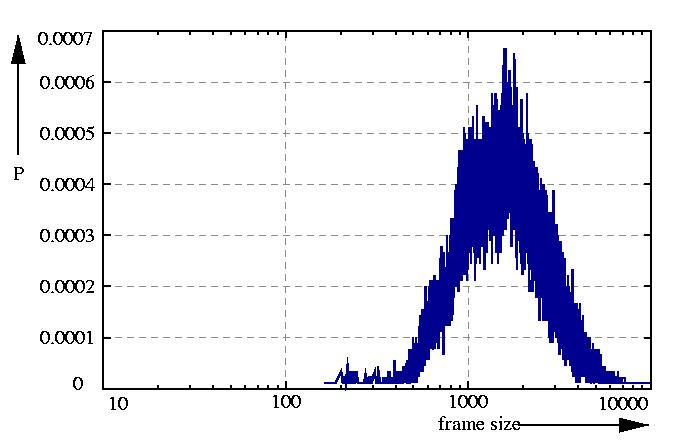

probability density function p

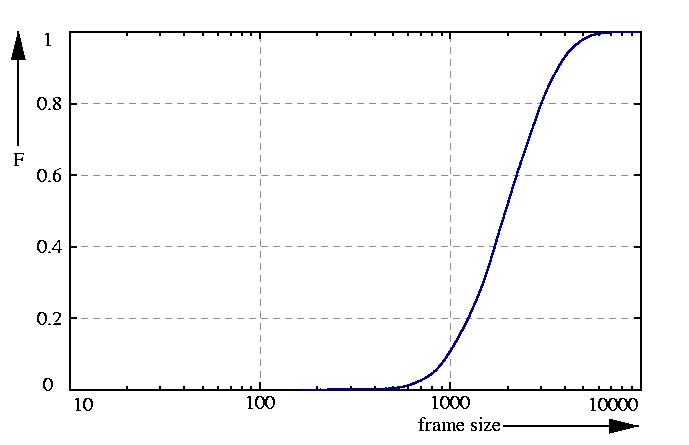

probability function F = sum p

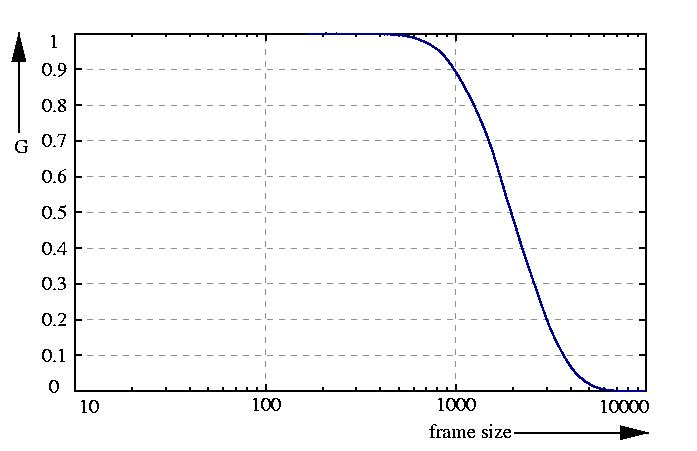

inverse probability function G = 1 - F

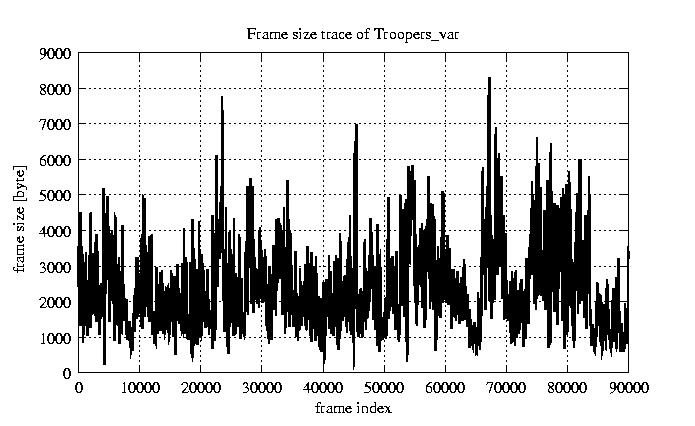

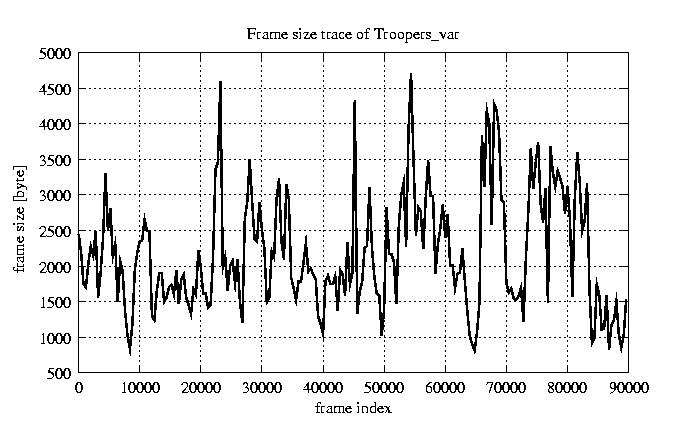

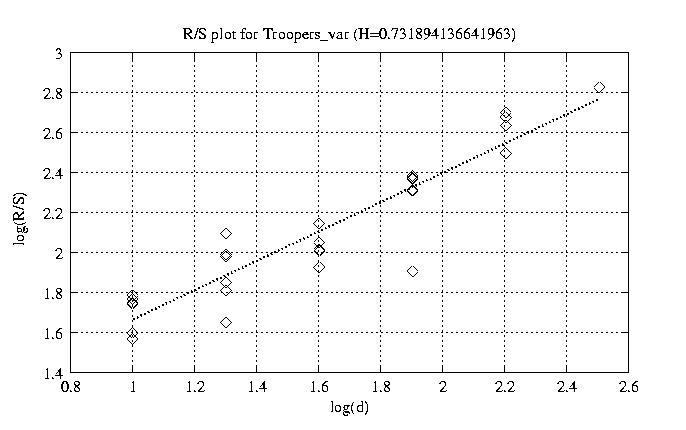

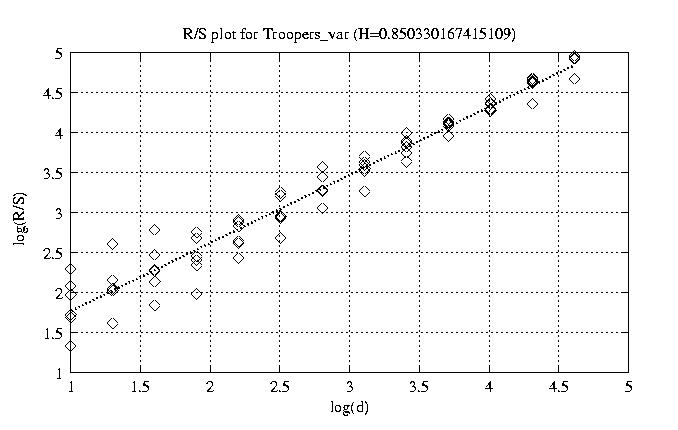

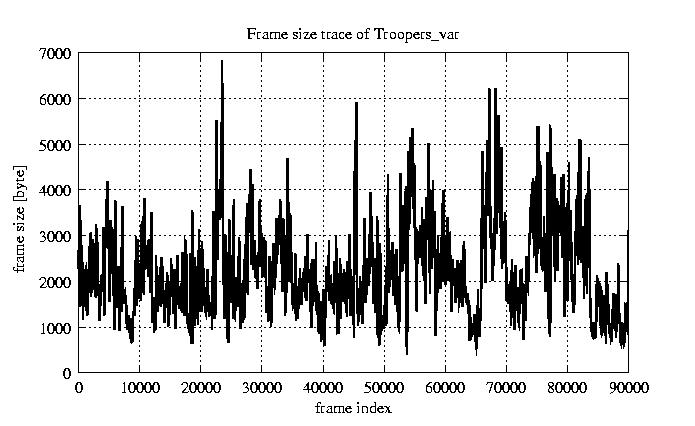

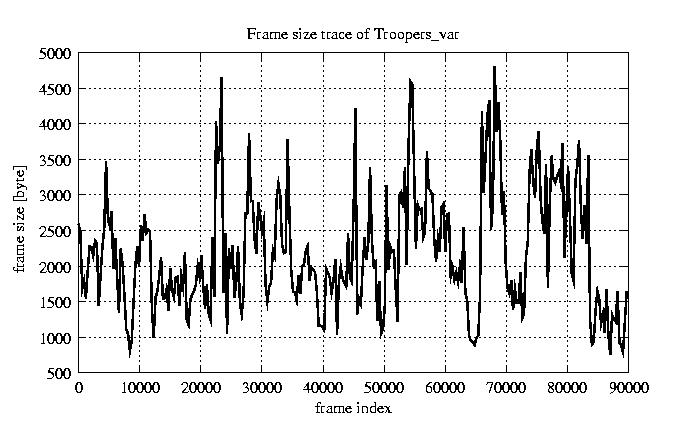

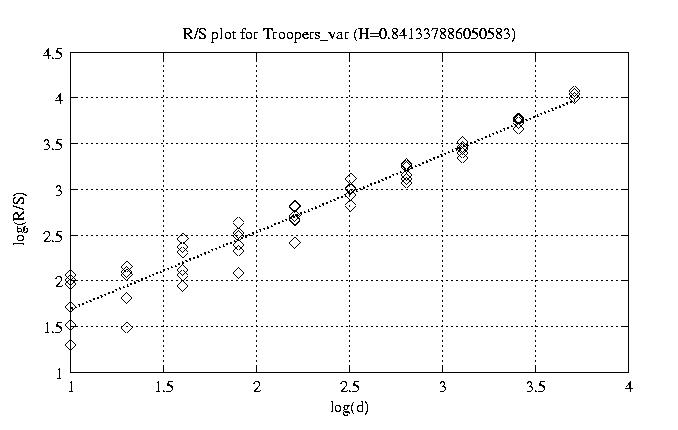

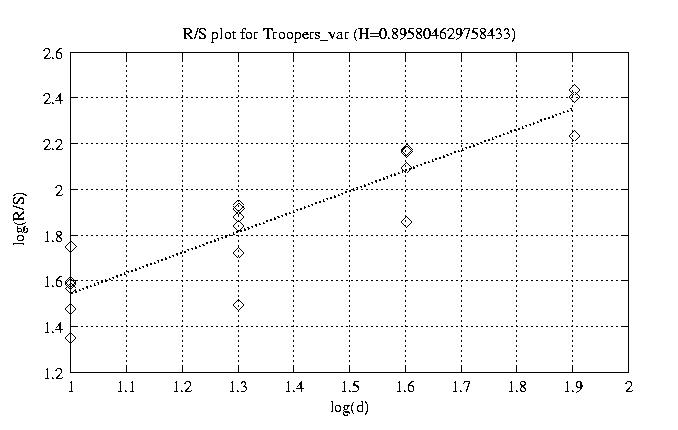

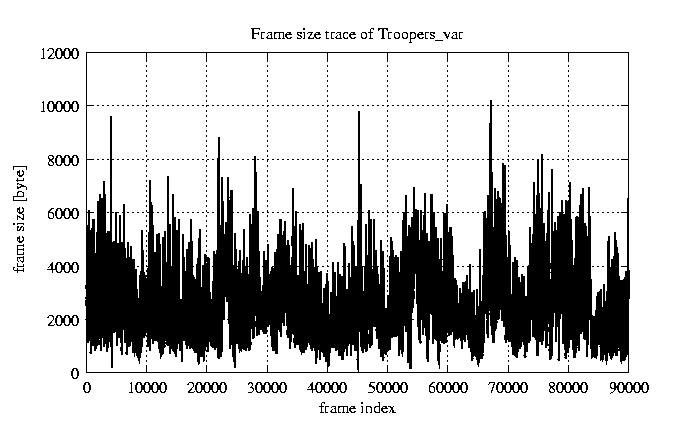

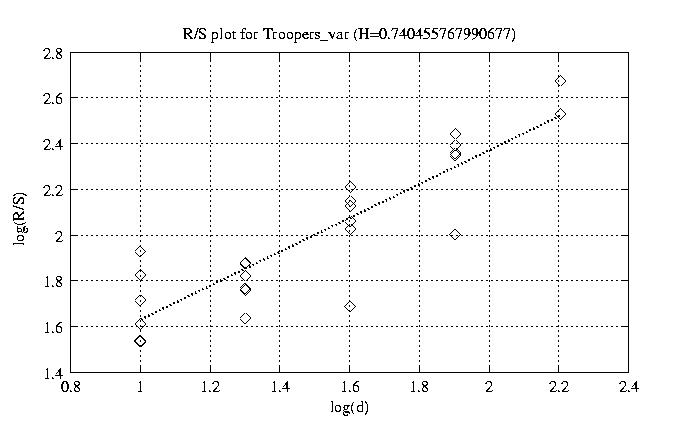

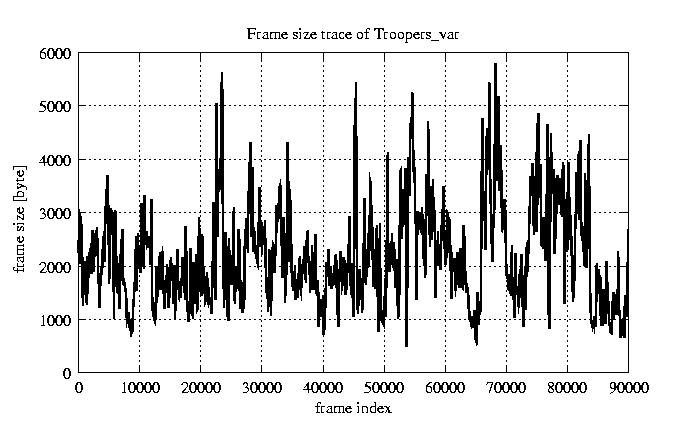

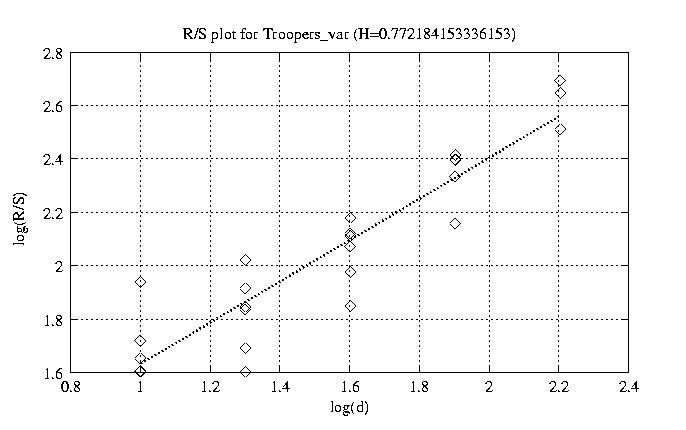

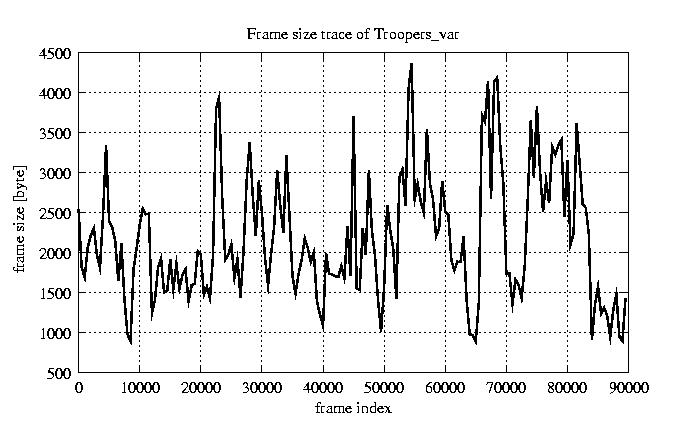

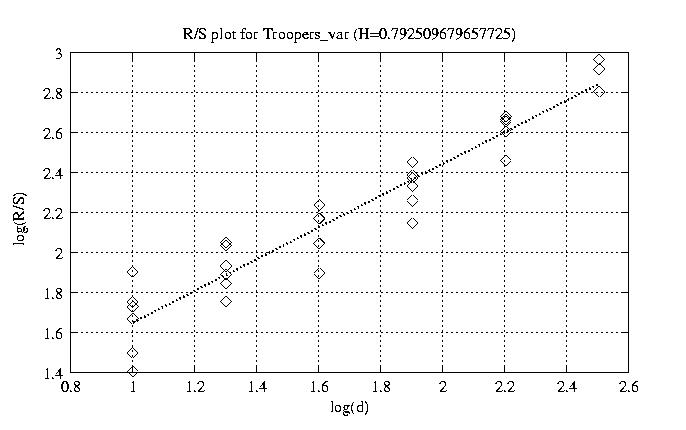

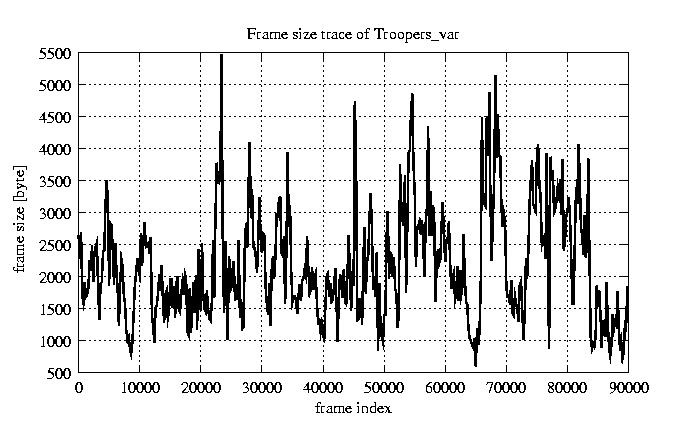

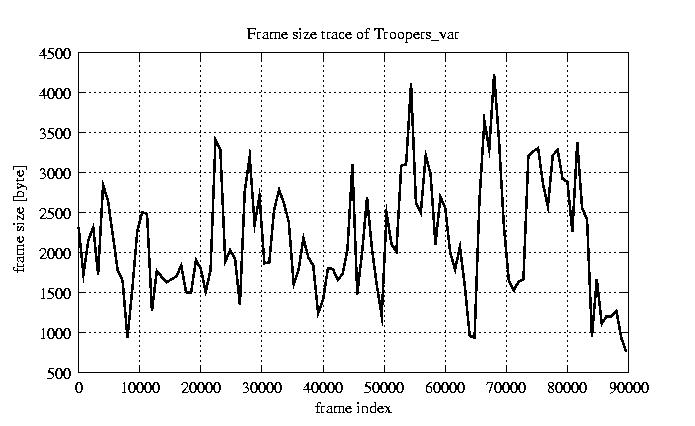

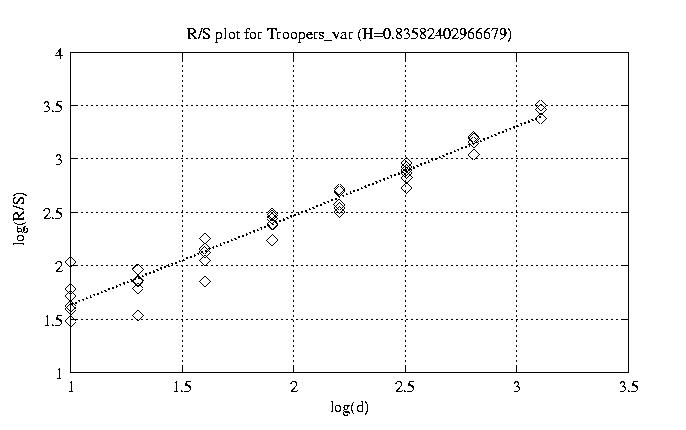

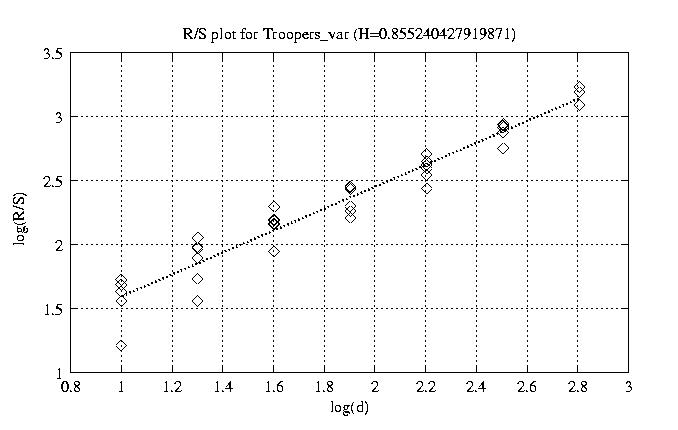

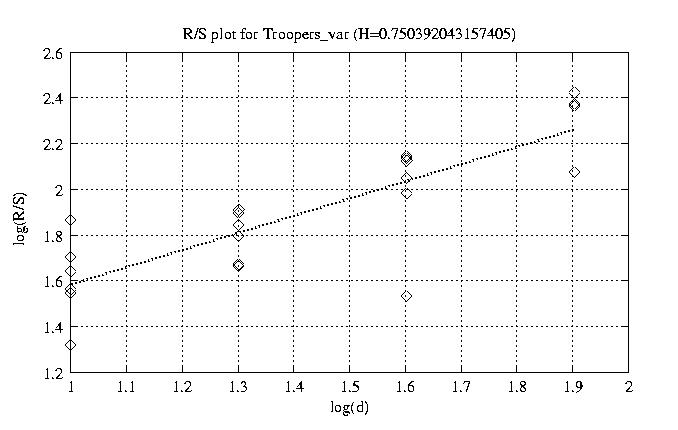

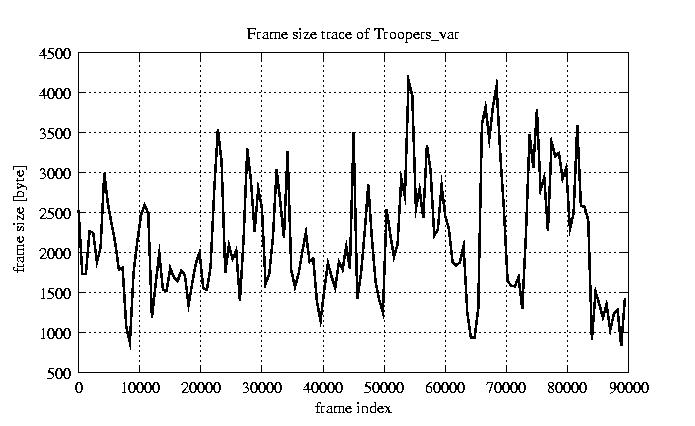

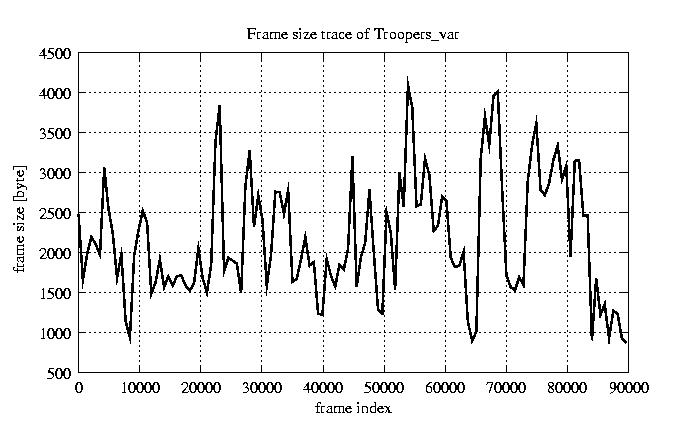

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.850 view view 12 0.841 view view 50 0.836 view view 100 0.855 view view 200 0.793 view view 300 0.732 view view 400 0.772 view view 500 0.740 view view 600 0.735 view view 700 0.750 view view 800 0.896 view view

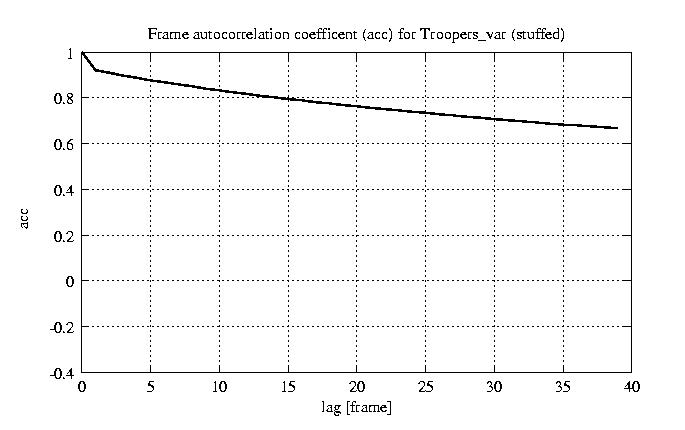

other plots	autocorrelation function of frames
