H263 - Parking Lot Cam
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 1.2e+08 1.2e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 18252.00 mean frame size byte 1278.71 6311.17 var frame size - 6452497.19 85701.75 CoV of frame size - 1.99 0.05 min frame size byte 0.00 19.00 max frame size byte 18961.00 18961.00 Peak/Mean frame - 14.83 3.00 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.3e+06 Peak/Mean of bit rate - 4.9 CoV of bit rate - 0.48 max inter frame space frames 1.00 33.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

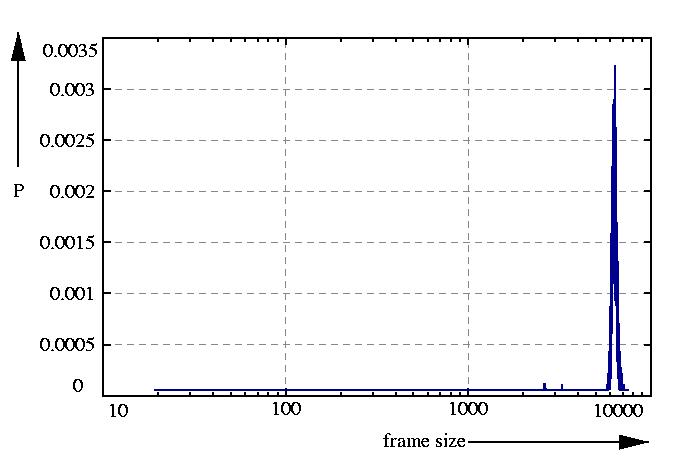

probability density function p

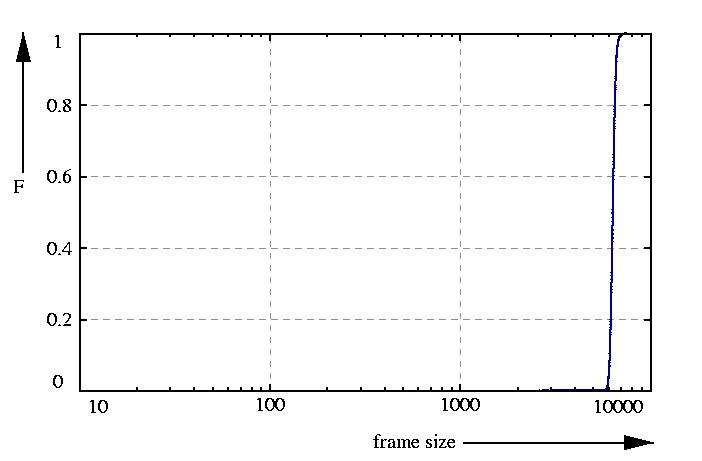

probability function F = sum p
inverse probability function G = 1 - F

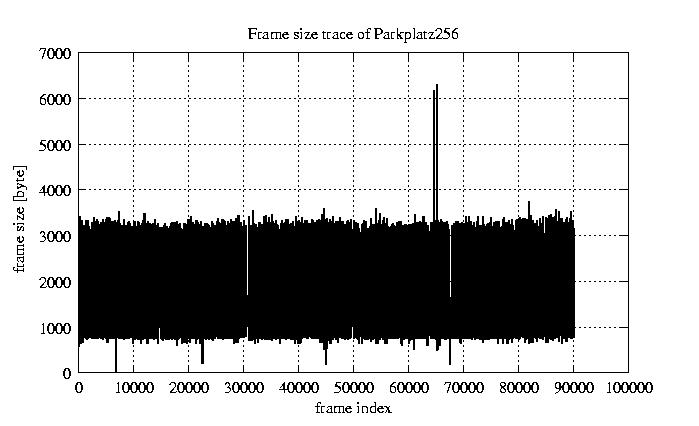

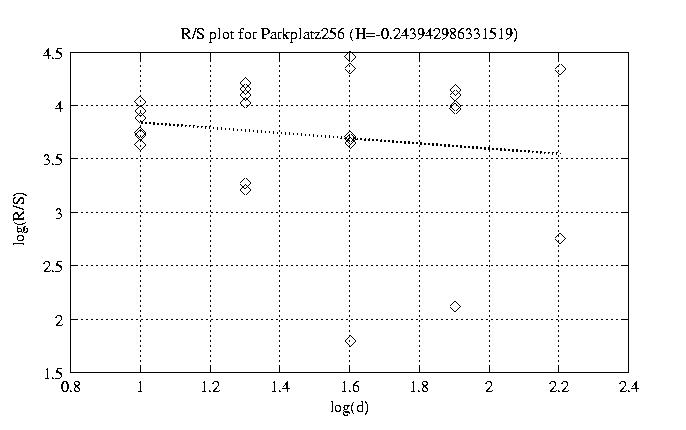

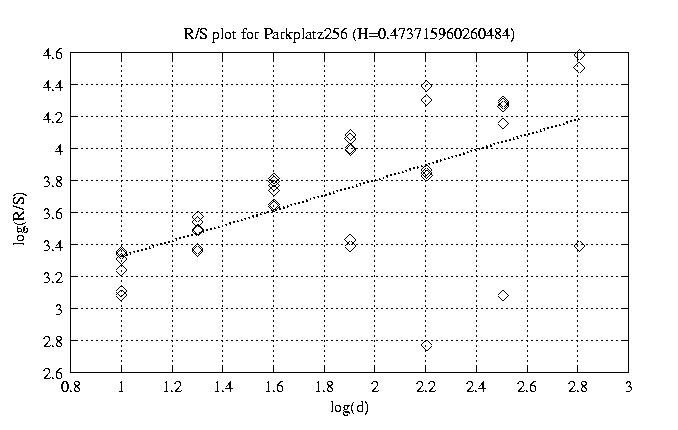

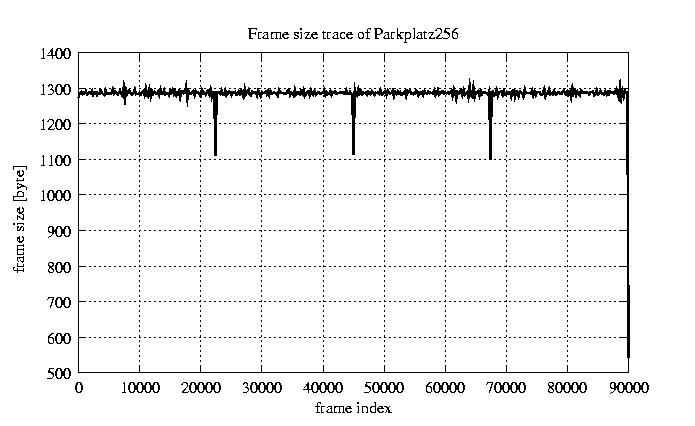

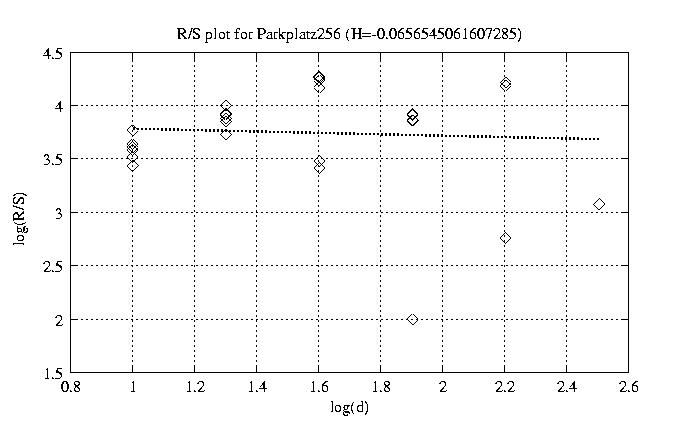

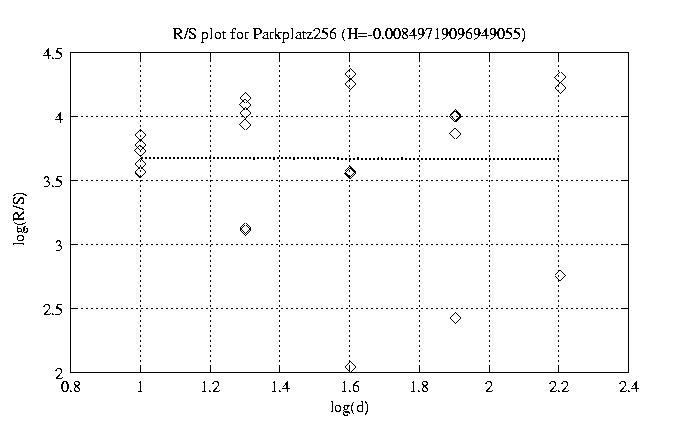

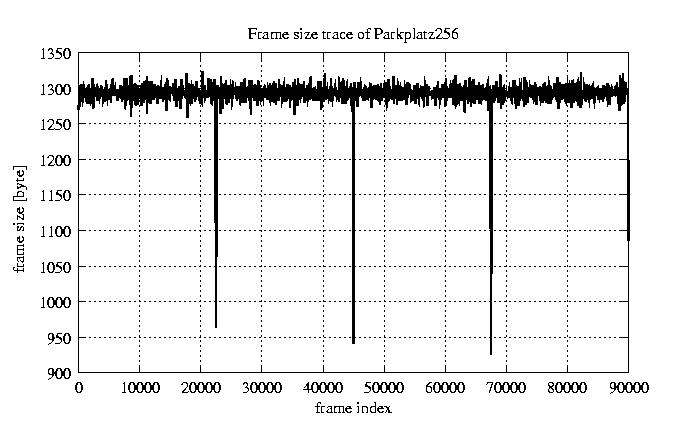

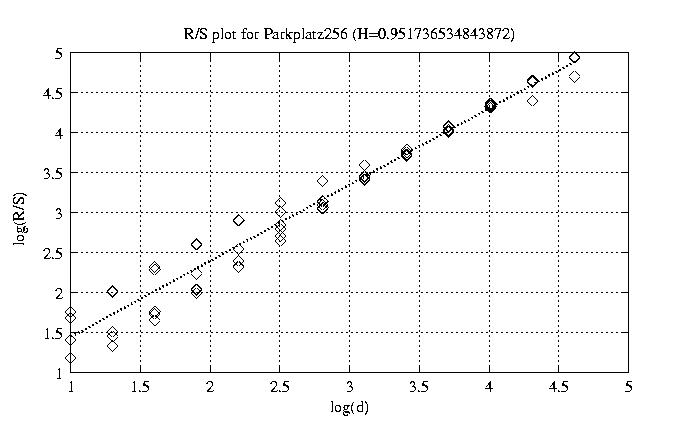

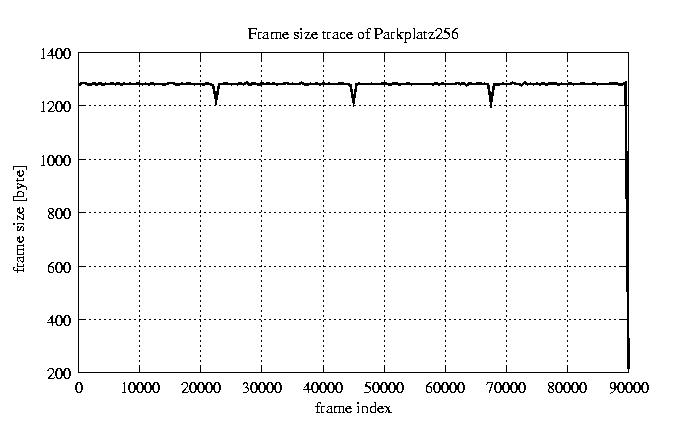

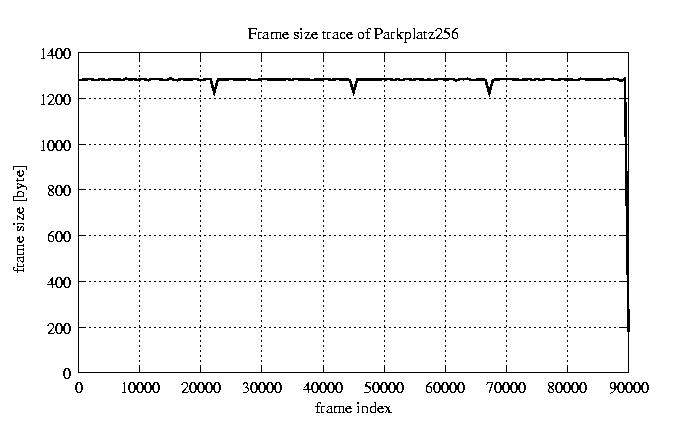

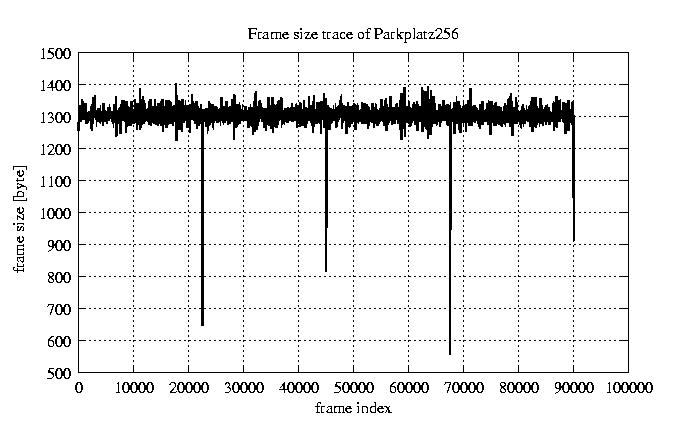

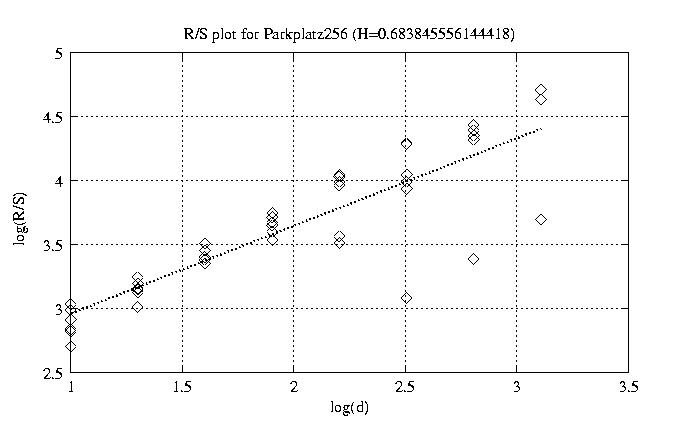

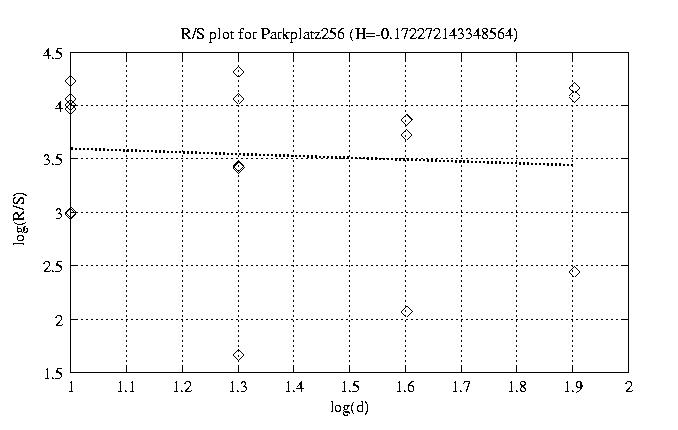

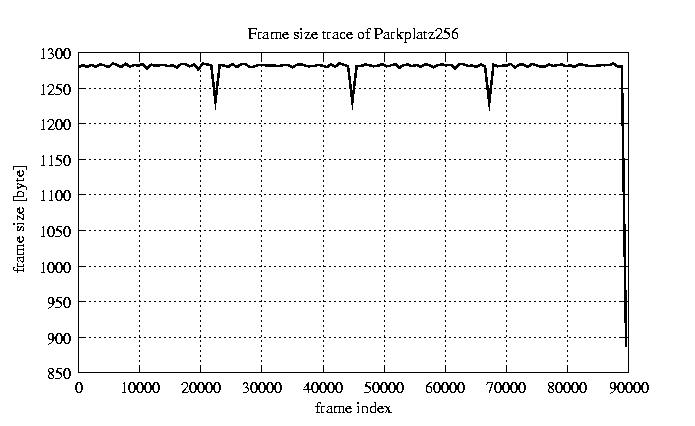

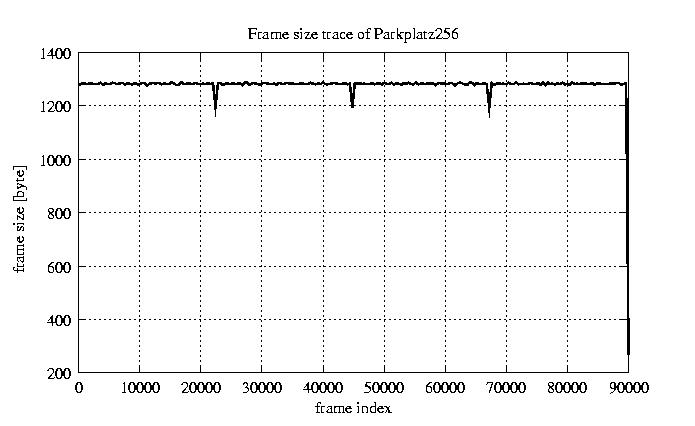

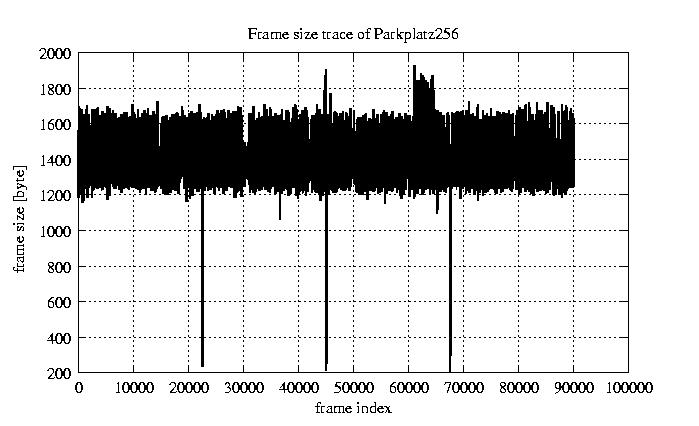

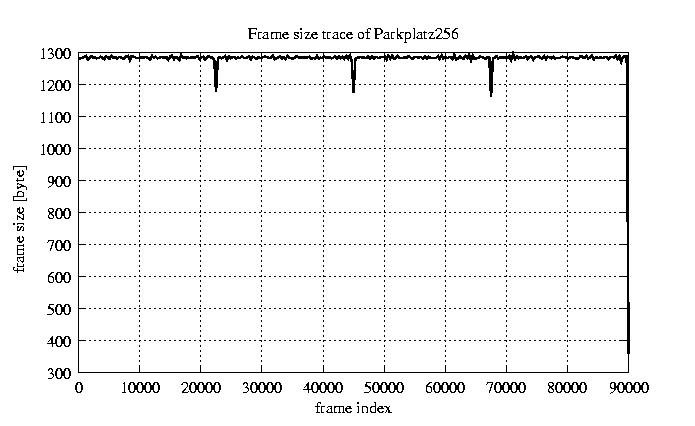

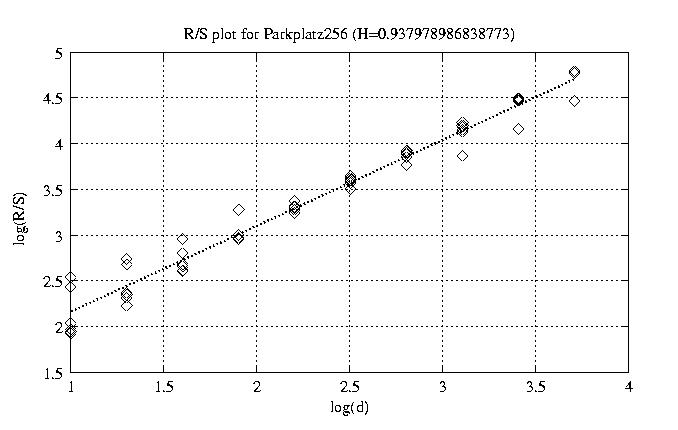

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.952 view view 12 0.938 view view 50 0.684 view view 100 0.474 view view 200 0.292 view view 300 -0.066 view view 400 -0.008 view view 500 -0.244 view view 600 -0.607 view view 700 -0.061 view view 800 -0.172 view view

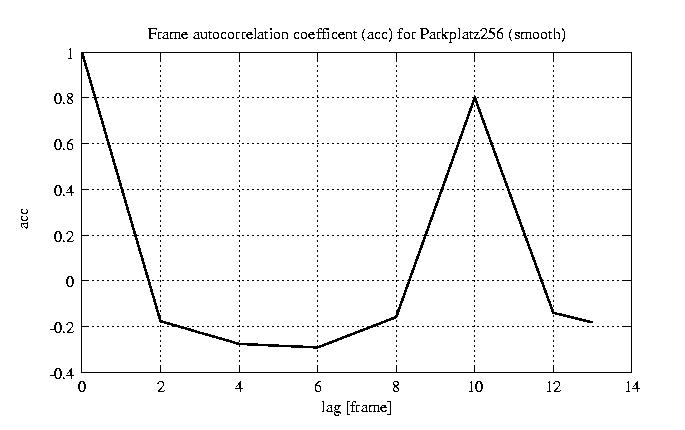

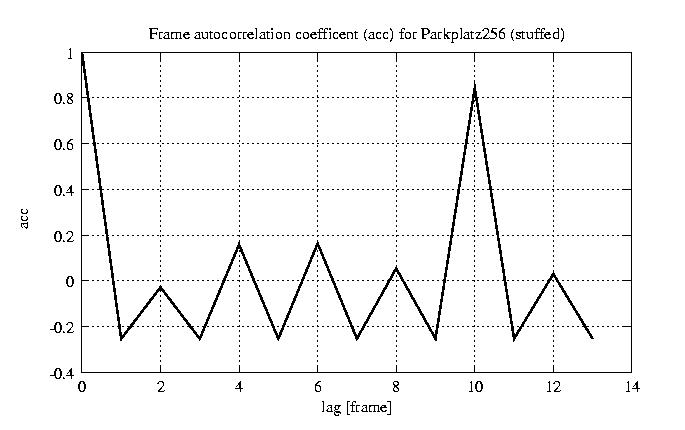

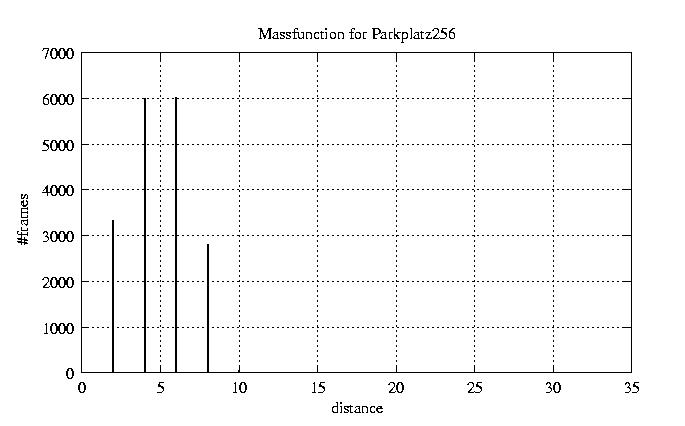

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
