H263 - Mr Bean
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.38 476.38 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90085.00 17865.00 mean frame size byte 79.80 402.41 var frame size - 38576.50 64701.65 CoV of frame size - 2.46 0.63 min frame size byte 0.00 24.00 max frame size byte 3265.00 3265.00 Peak/Mean frame - 40.91 8.11 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.7e+04 Peak/Mean of bit rate - 6.1 CoV of bit rate - 0.34 max inter frame space frames 1.00 40.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

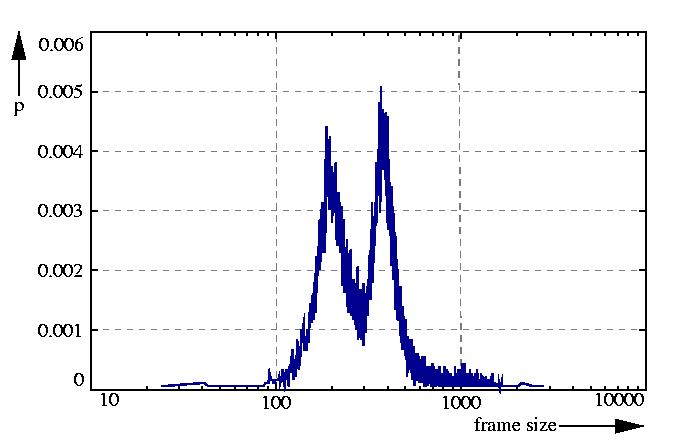

probability density function p

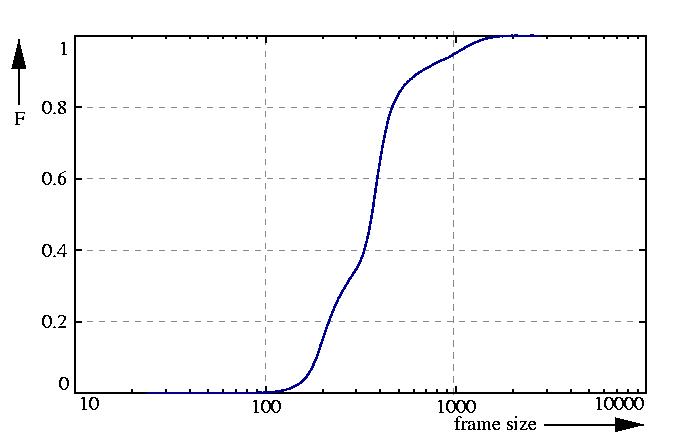

probability function F = sum p

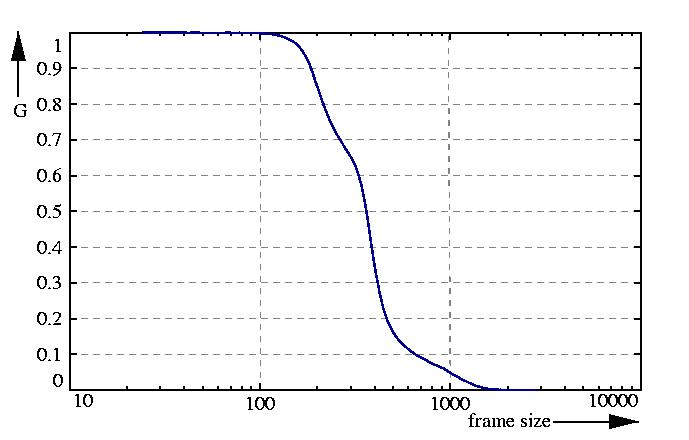

inverse probability function G = 1 - F

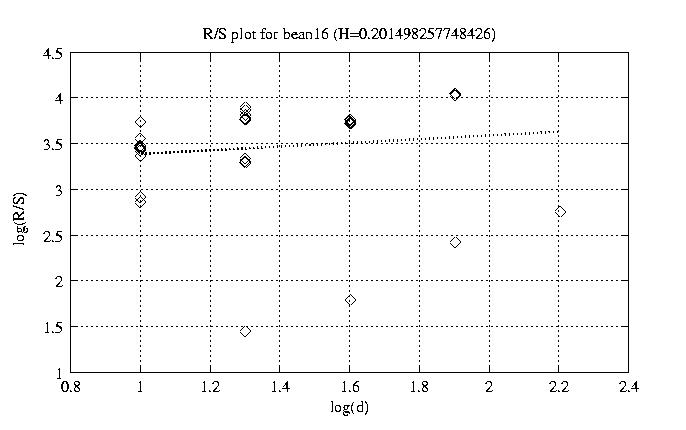

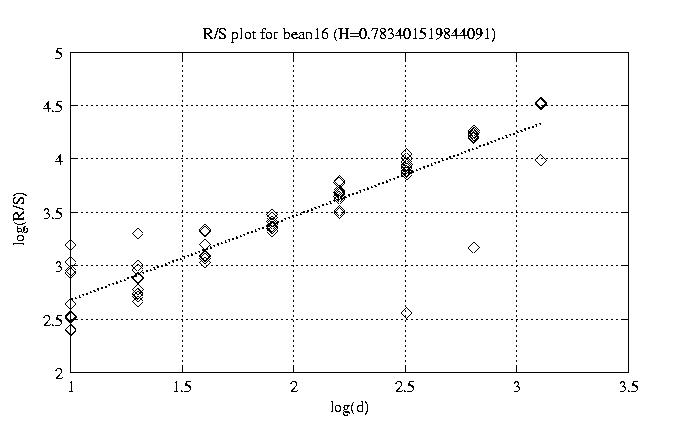

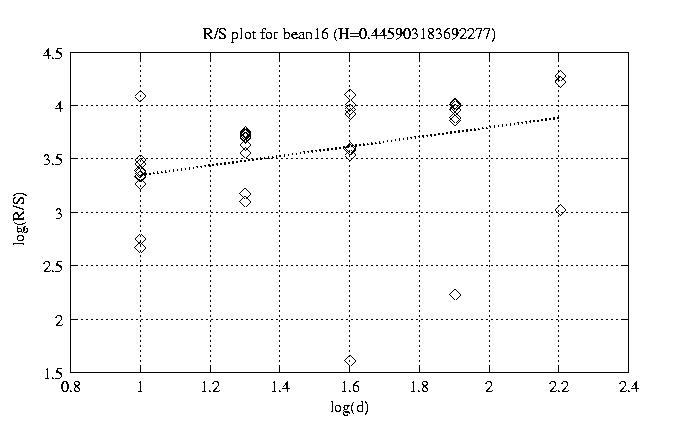

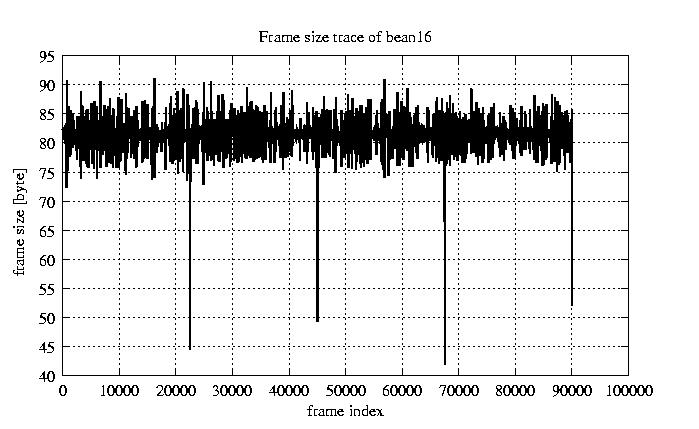

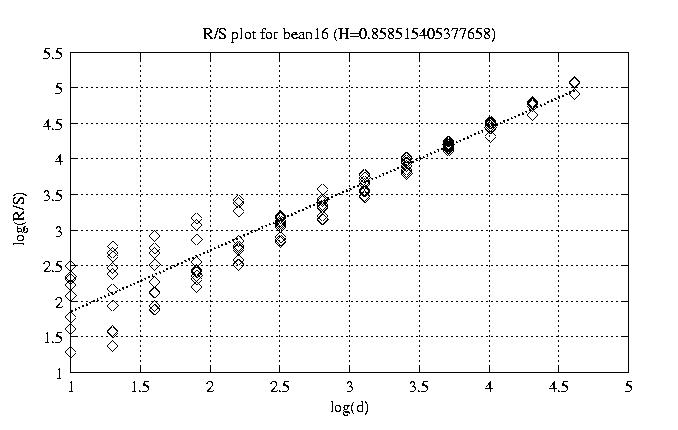

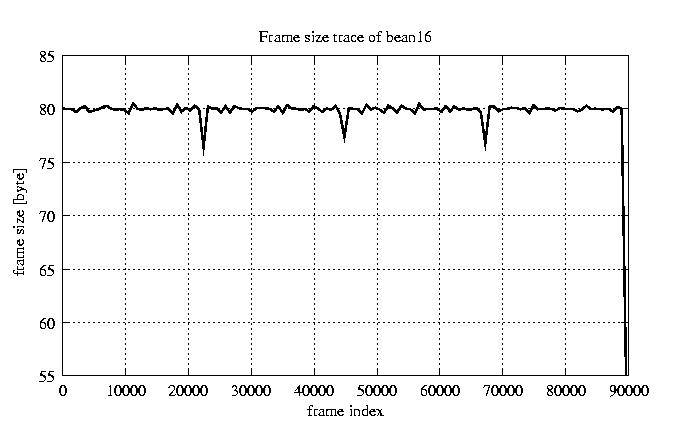

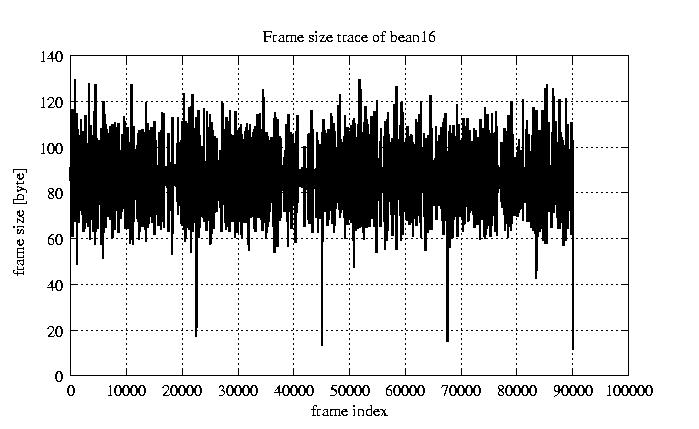

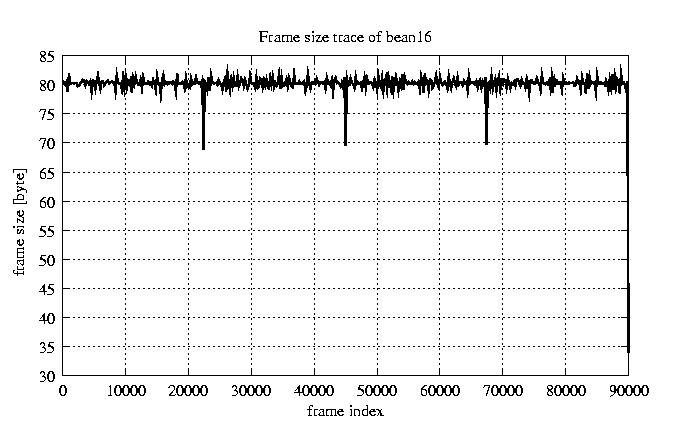

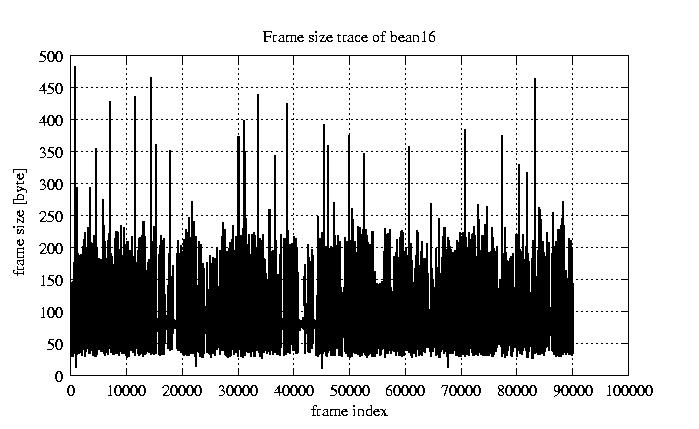

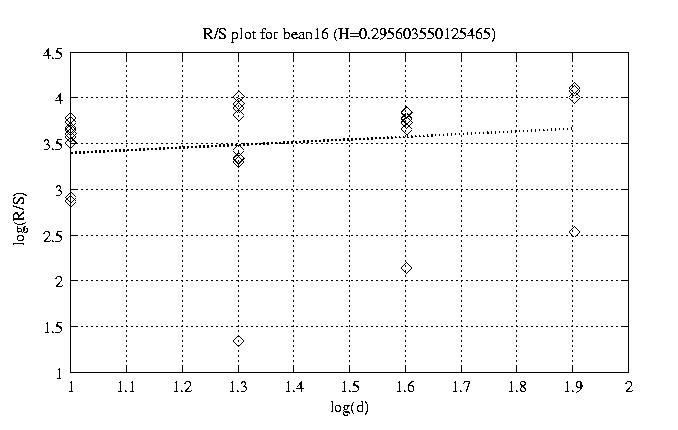

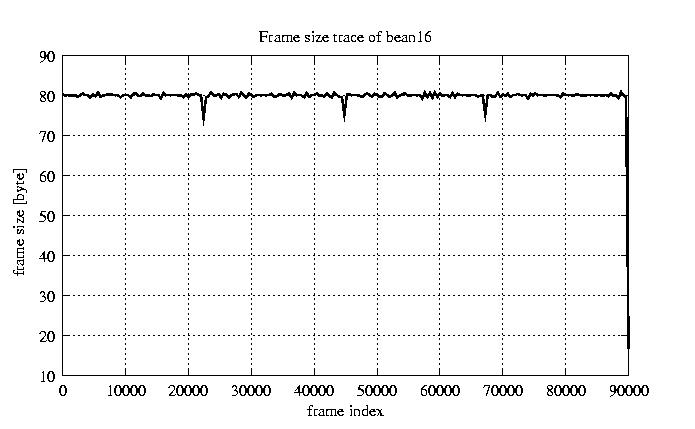

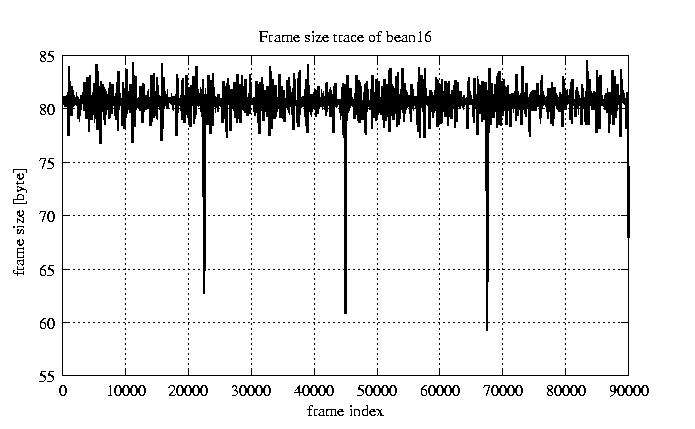

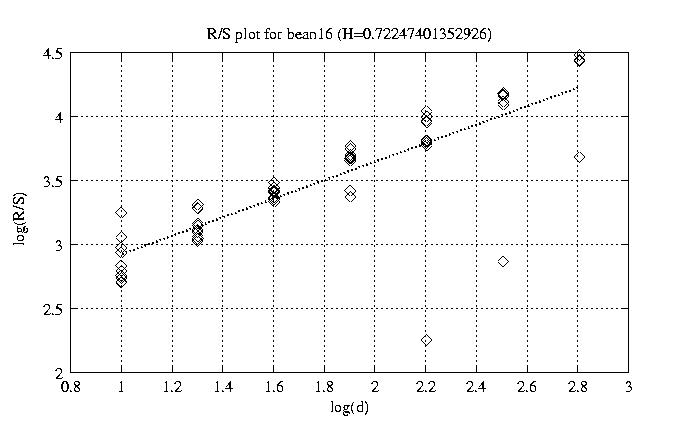

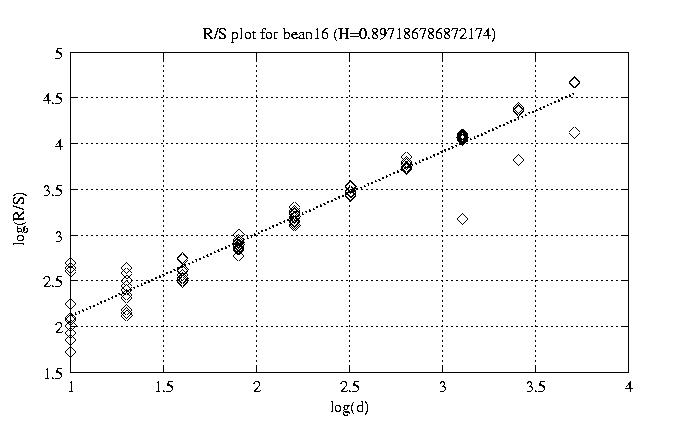

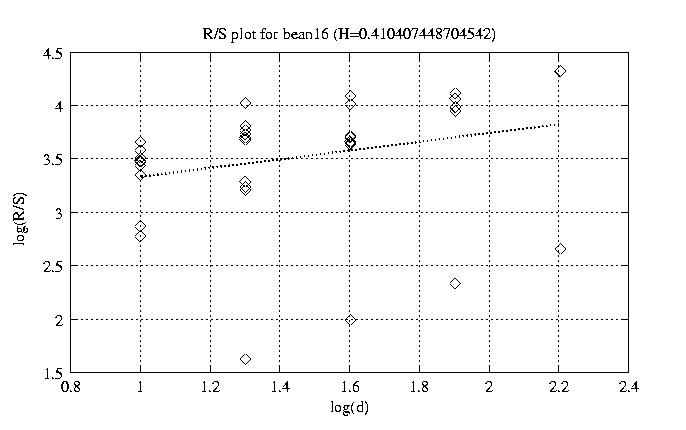

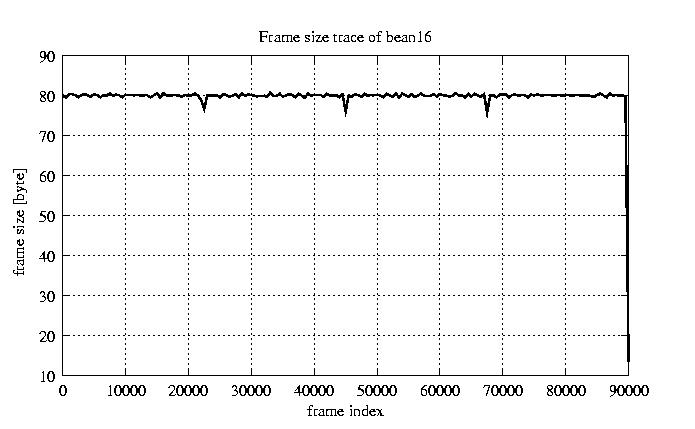

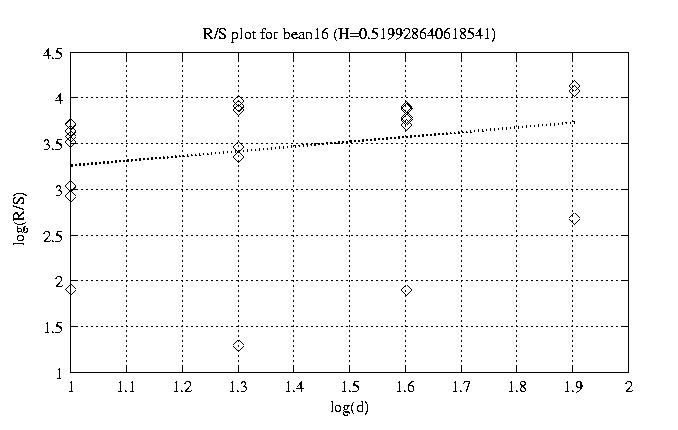

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.859 view view 12 0.897 view view 50 0.783 view view 100 0.722 view view 200 0.571 view view 300 0.439 view view 400 0.446 view view 500 0.410 view view 600 0.201 view view 700 0.296 view view 800 0.520 view view

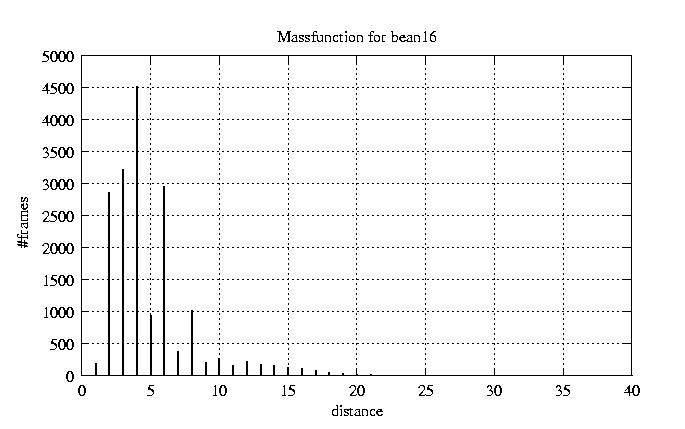

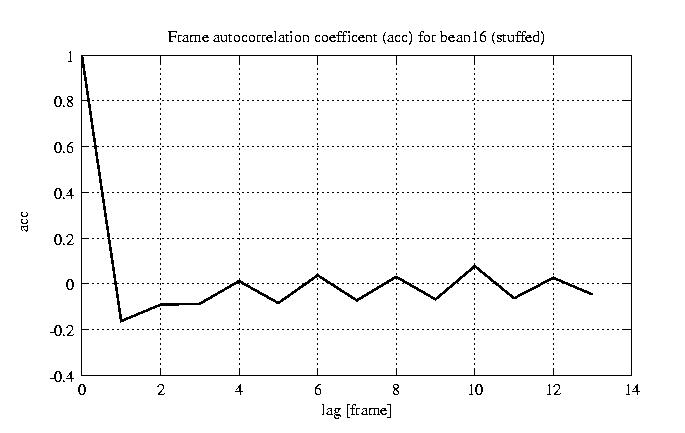

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
	HOME BACK

Frank Fitzek
