H261 - Die Hard III
unspecified target bitrate, VBR

frame statistics parameter list	Frames Rates compression ratio YUV:H261 14.86 File size byte 2.3e+08 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 2557.67 var frame size - 2289858.29 CoV of frame size - 0.59 min frame size byte 216.00 max frame size byte 11535.00 Peak/Mean frame - 4.51 Mean bit rate bit/sec 5.1e+05 Peak bit rate bit/sec 2.3e+06 Peak/Mean of bit rate - 4.5 CoV of bit rate - 0.59 max inter frame space frames 1.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

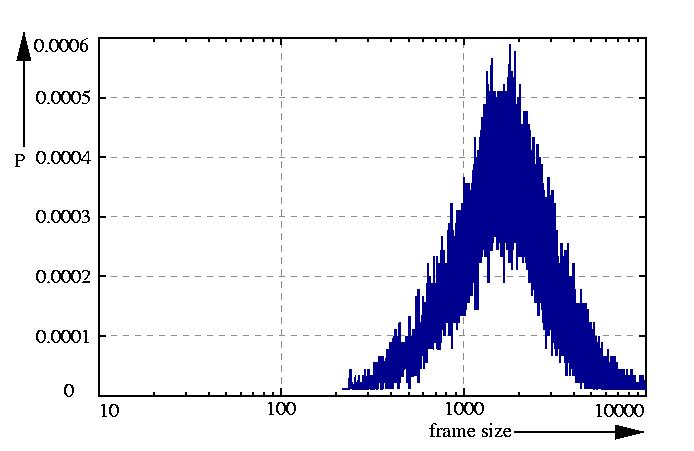

probability density function p

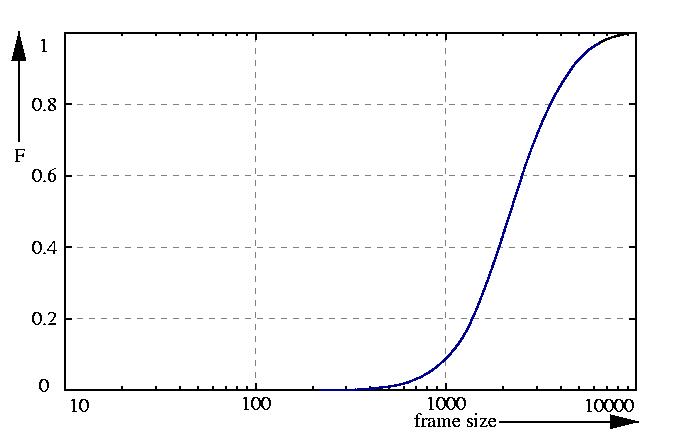

probability function F = sum p

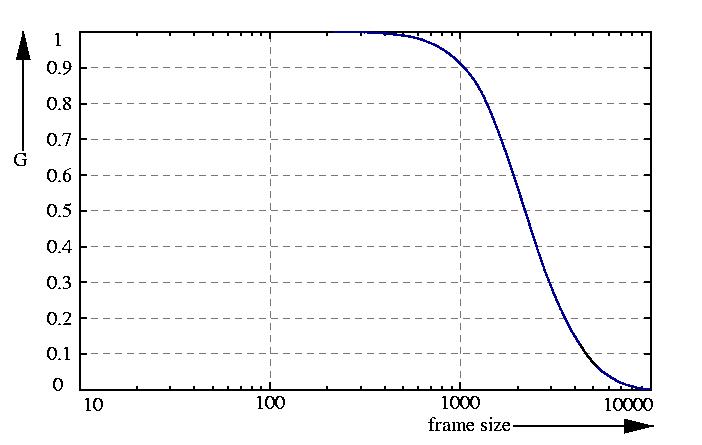

inverse probability function G = 1 - F

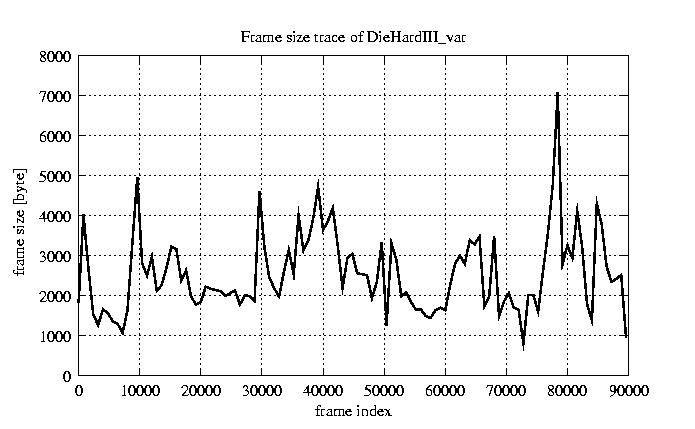

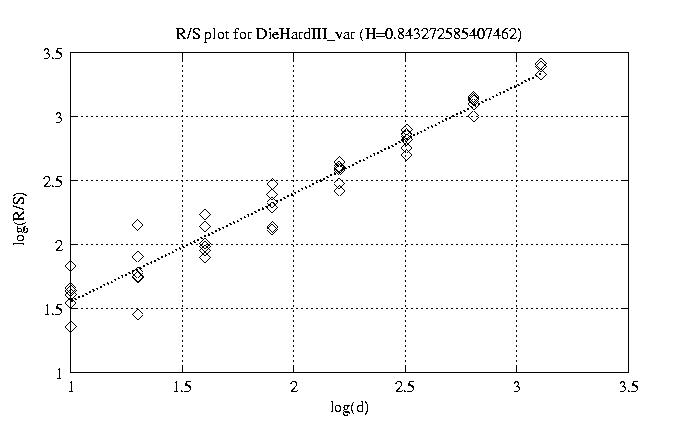

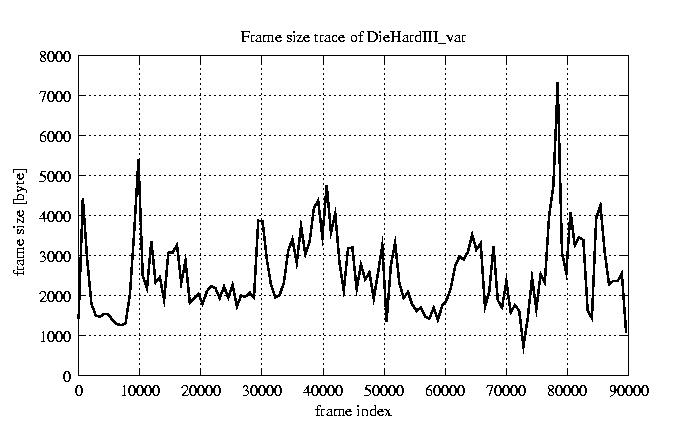

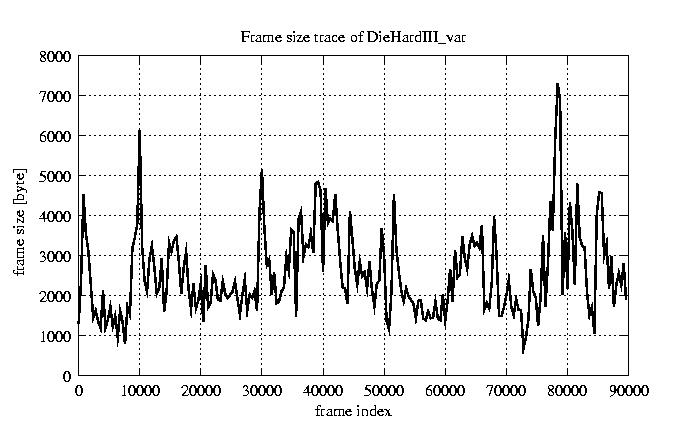

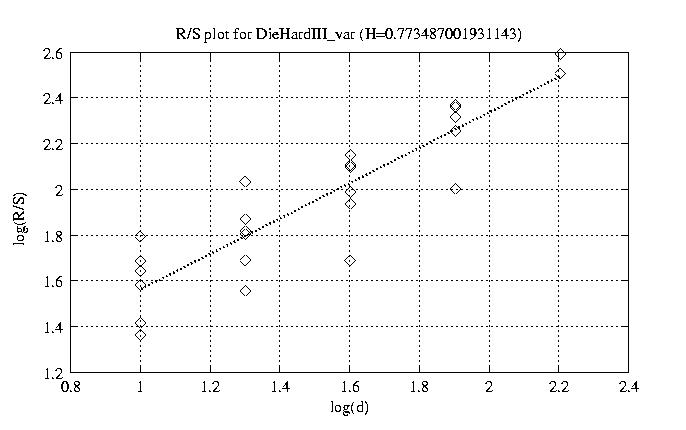

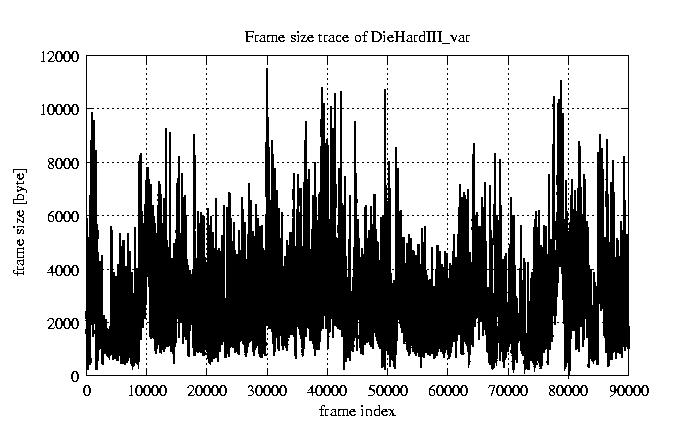

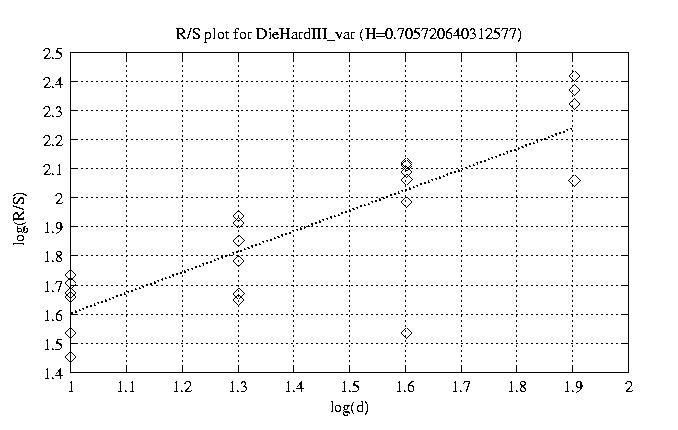

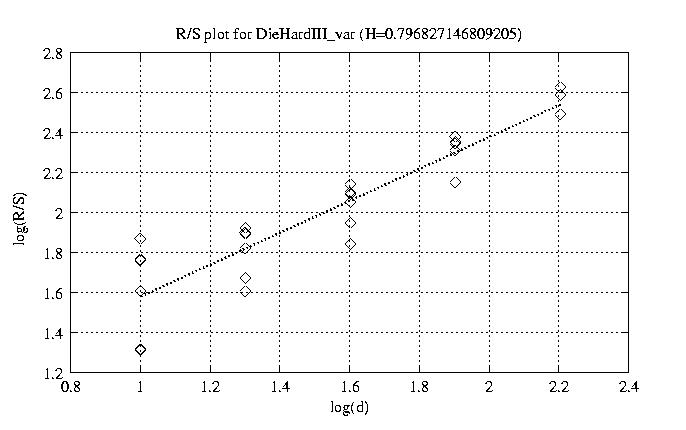

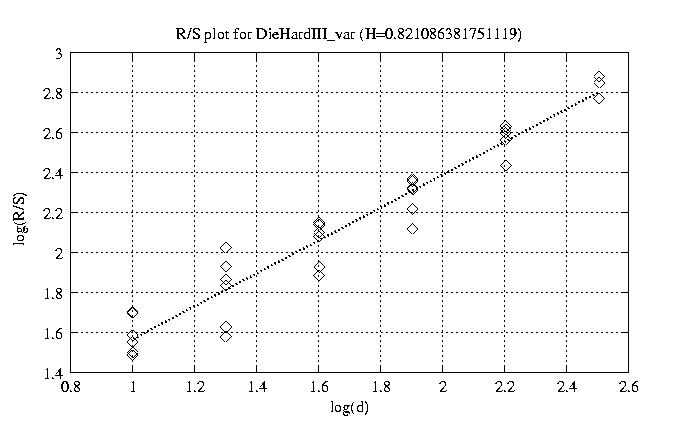

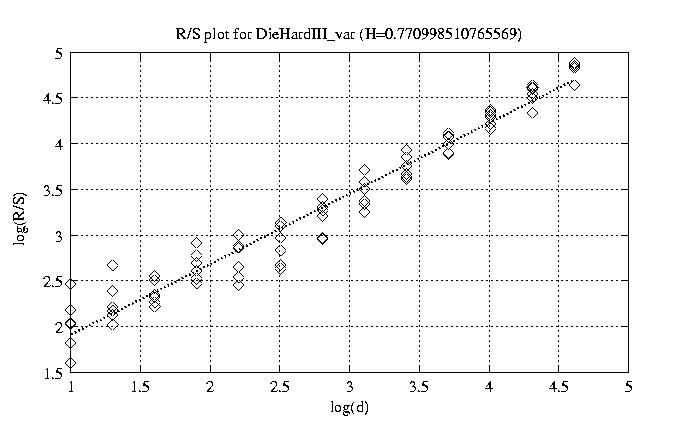

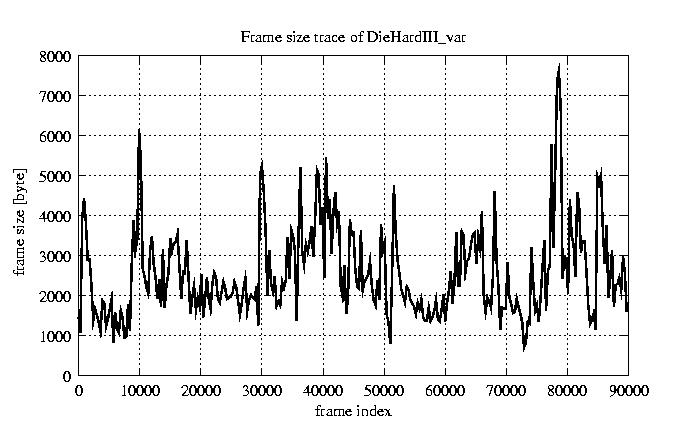

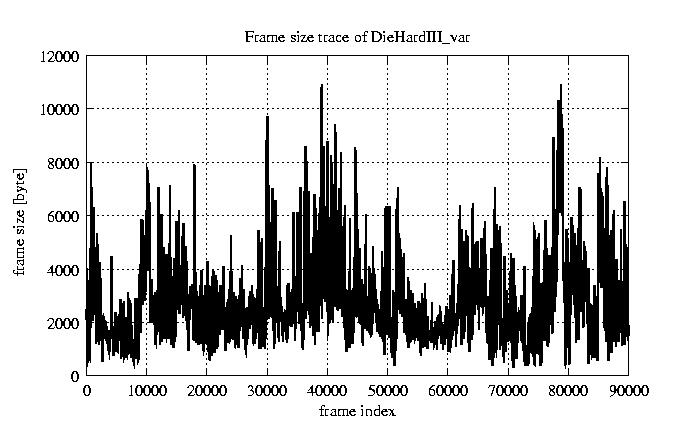

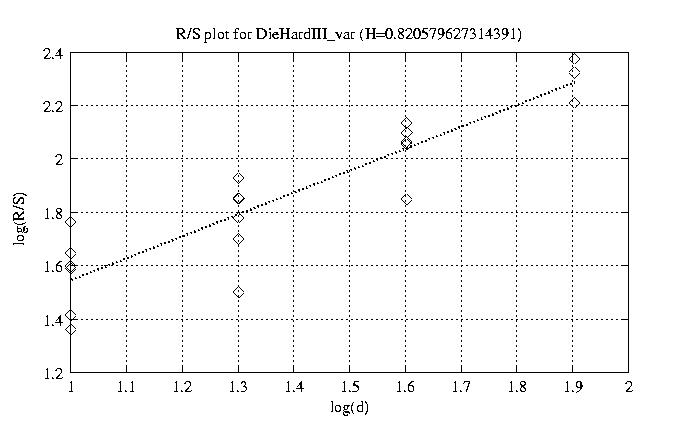

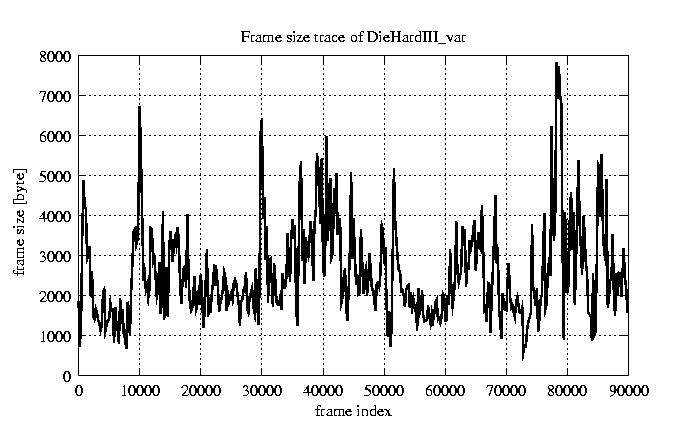

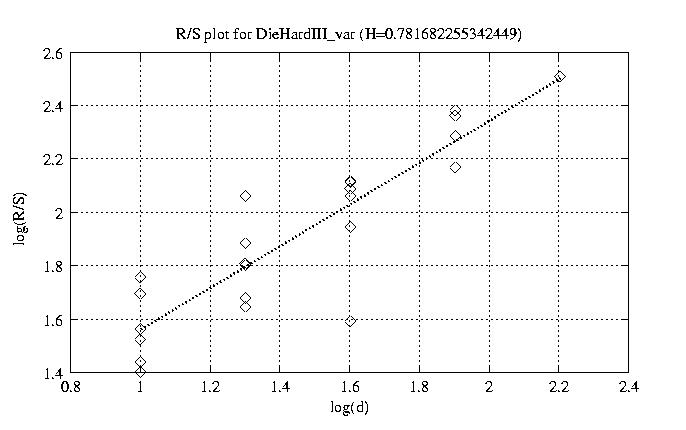

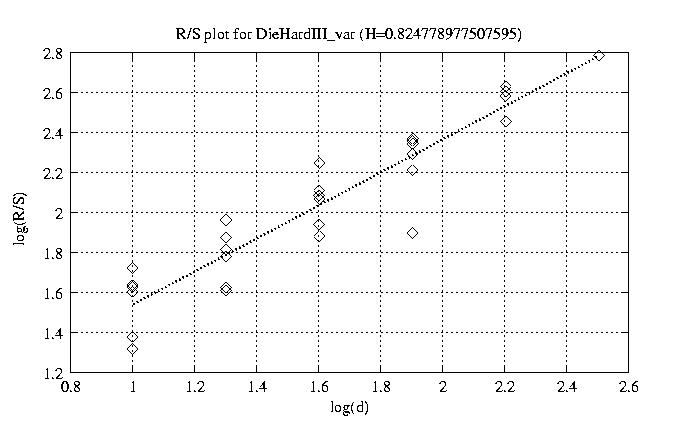

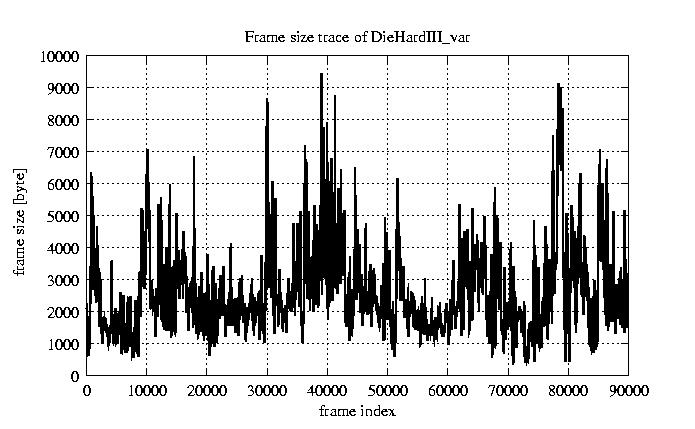

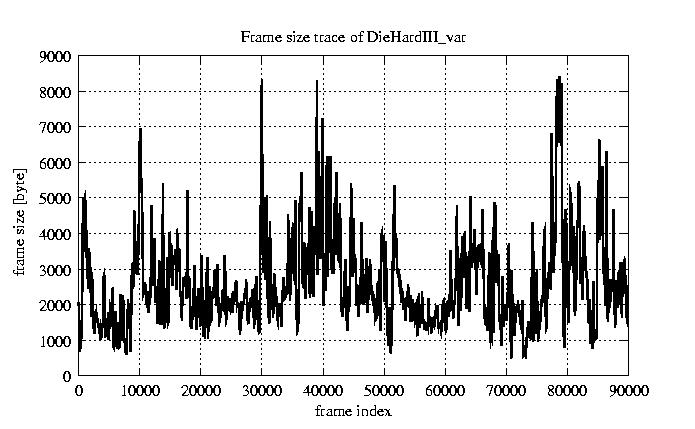

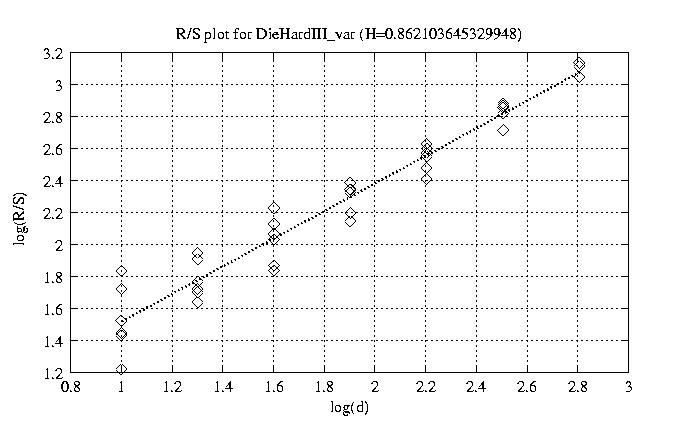

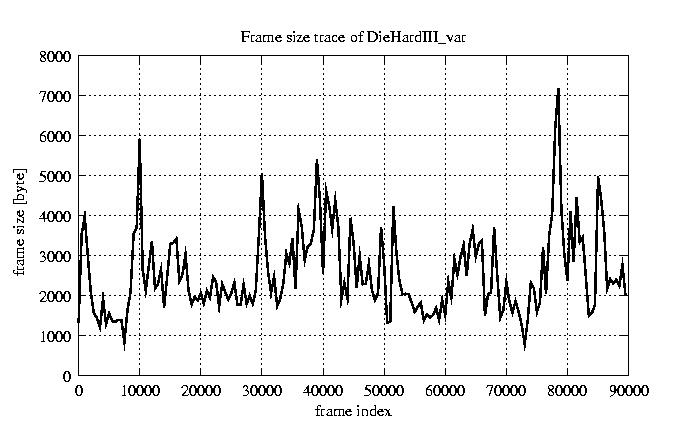

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.771 view view 12 0.872 view view 50 0.843 view view 100 0.862 view view 200 0.821 view view 300 0.825 view view 400 0.797 view view 500 0.773 view view 600 0.782 view view 700 0.706 view view 800 0.821 view view

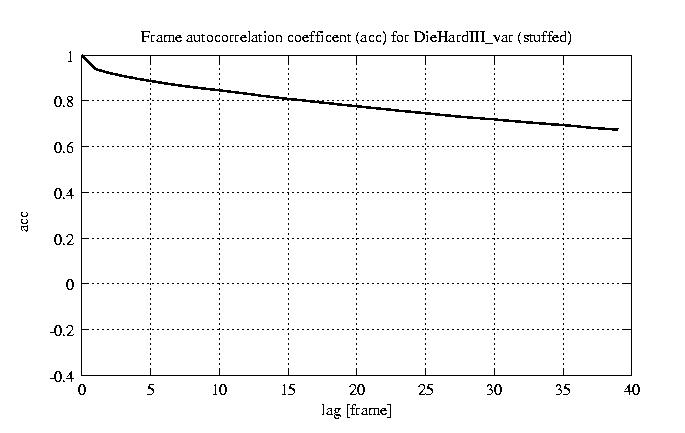

other plots	autocorrelation function of frames
