H263 - Aladdin
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 1.2e+08 1.2e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 31226.00 mean frame size byte 1278.80 3689.22 var frame size - 3684906.98 1737998.79 CoV of frame size - 1.50 0.36 min frame size byte 0.00 687.00 max frame size byte 19303.00 19303.00 Peak/Mean frame - 15.09 5.23 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 5.6 CoV of bit rate - 0.35 max inter frame space frames 1.00 30.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p

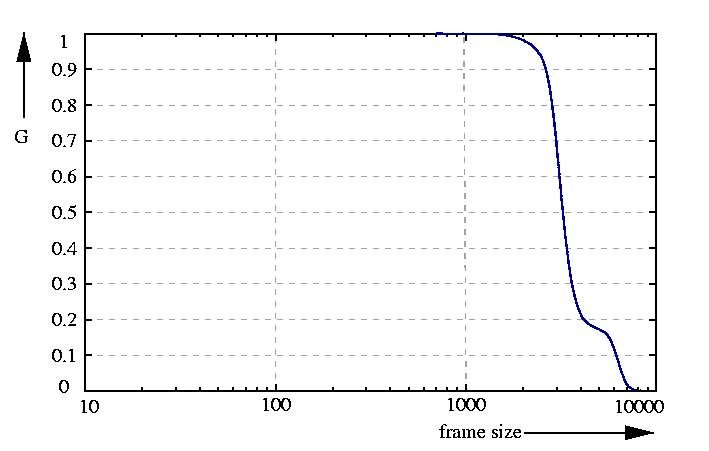

inverse probability function G = 1 - F

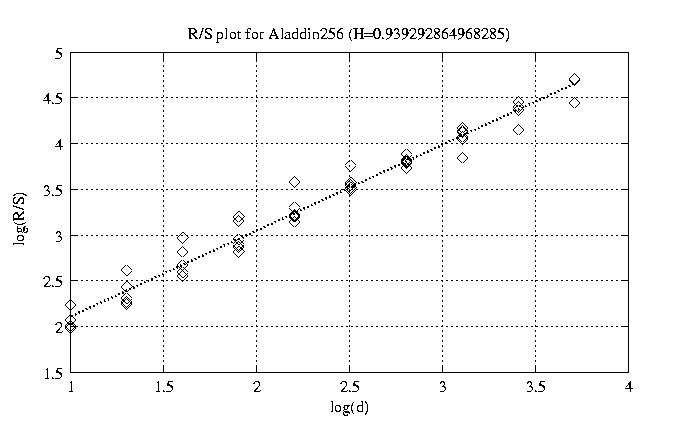

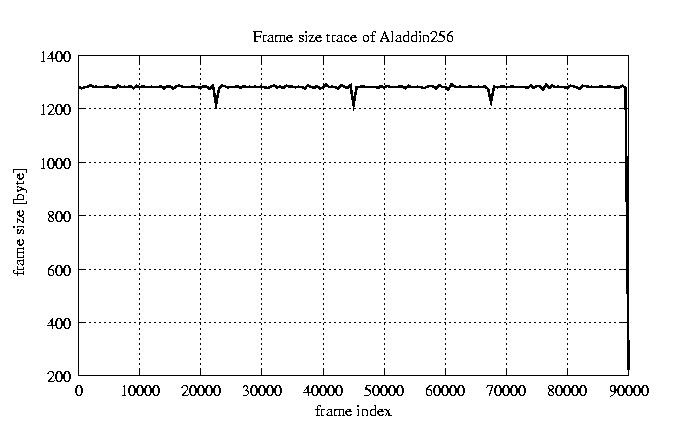

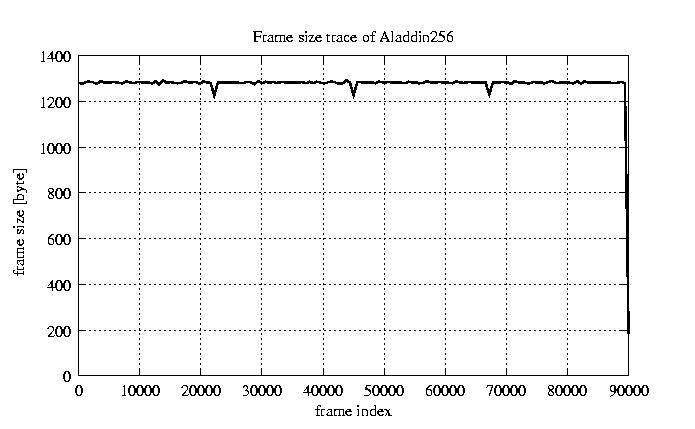

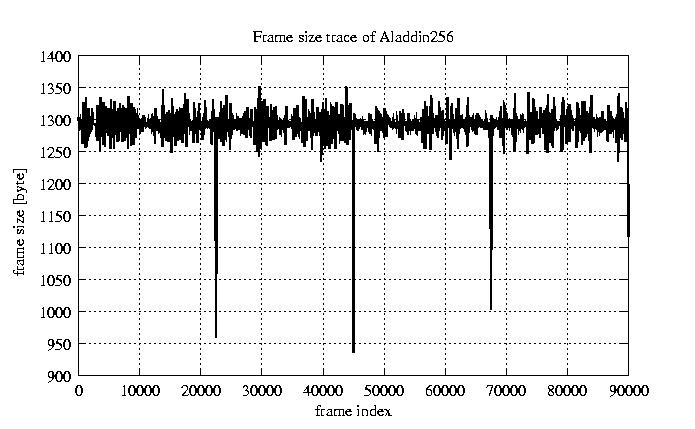

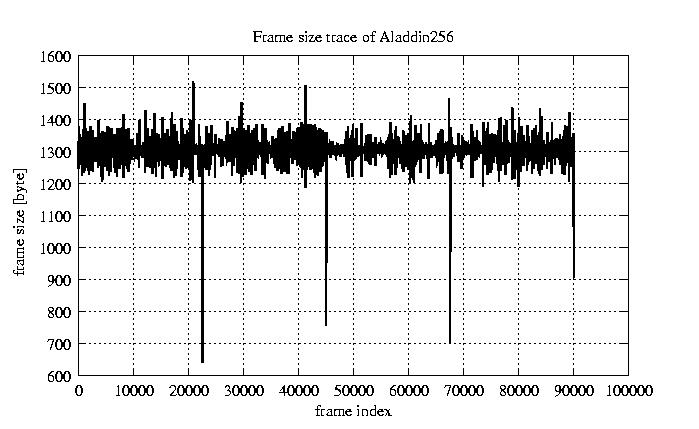

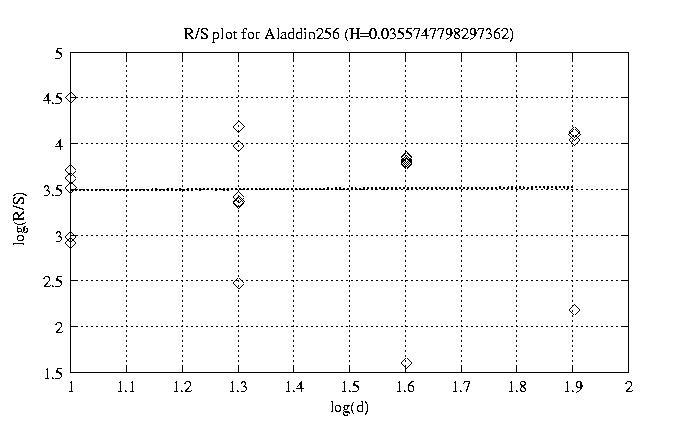

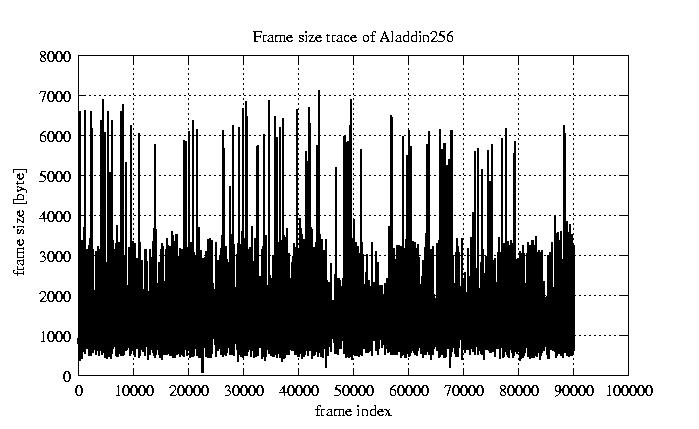

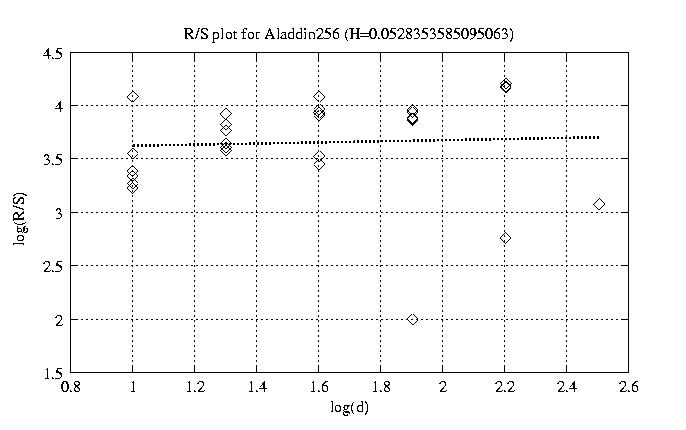

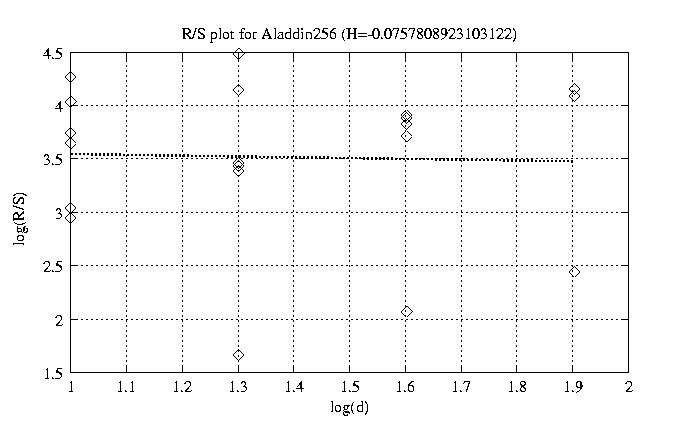

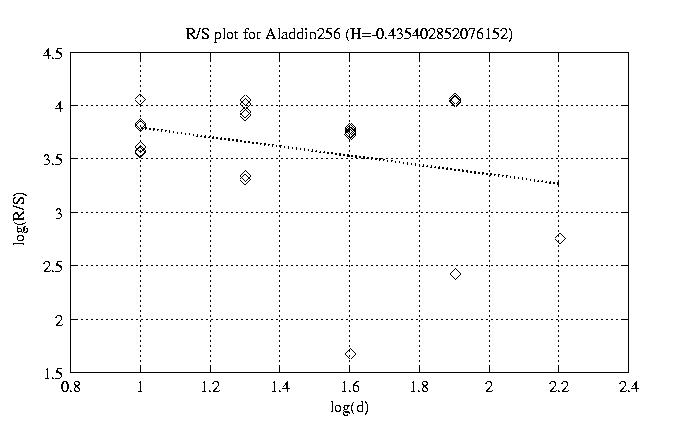

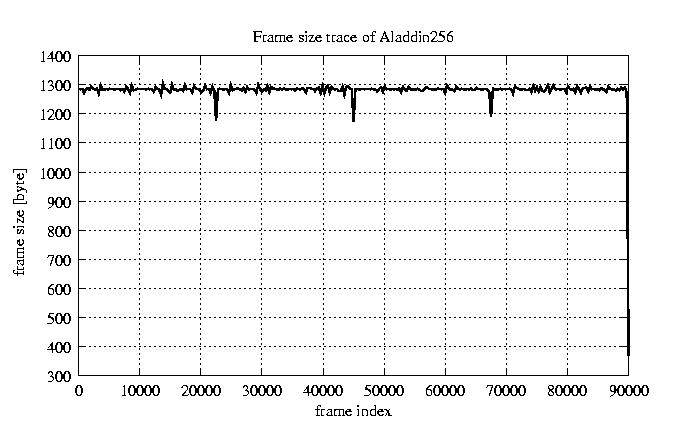

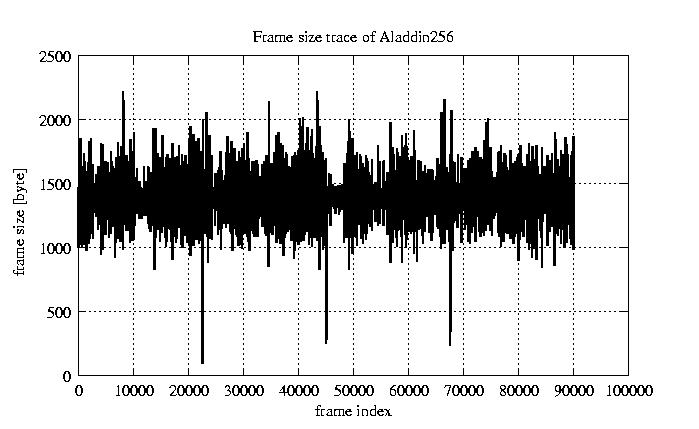

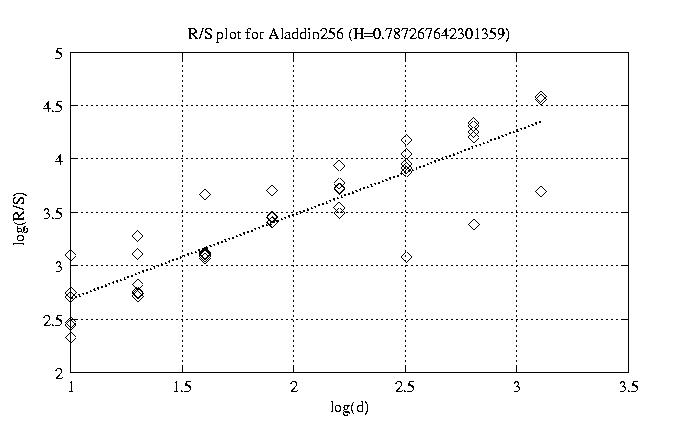

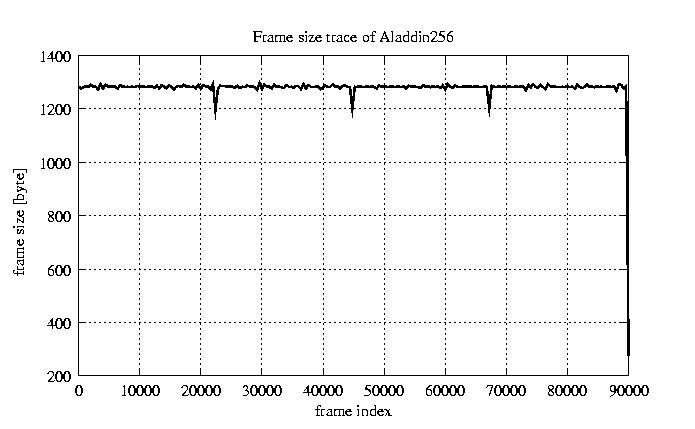

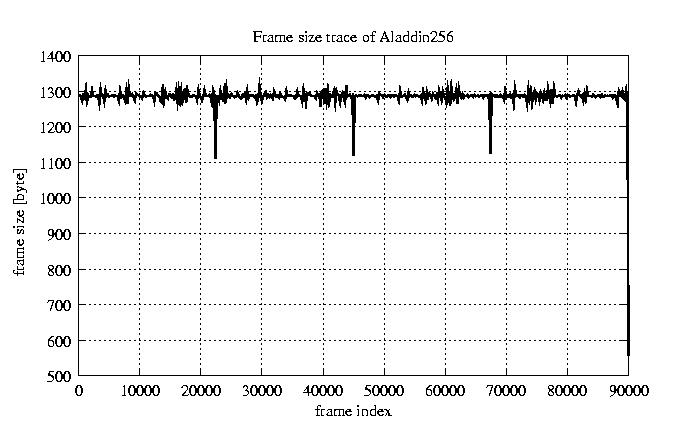

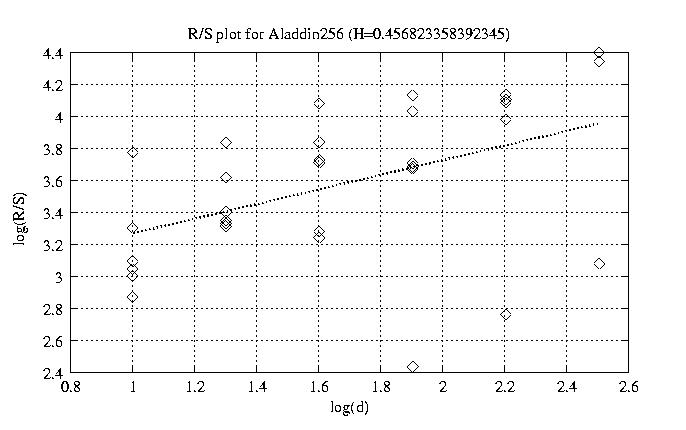

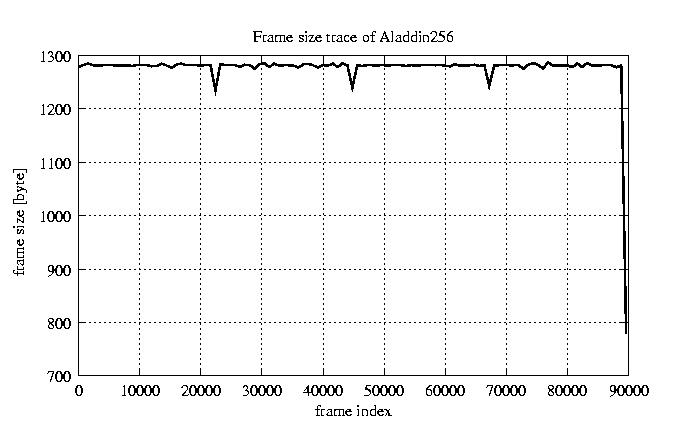

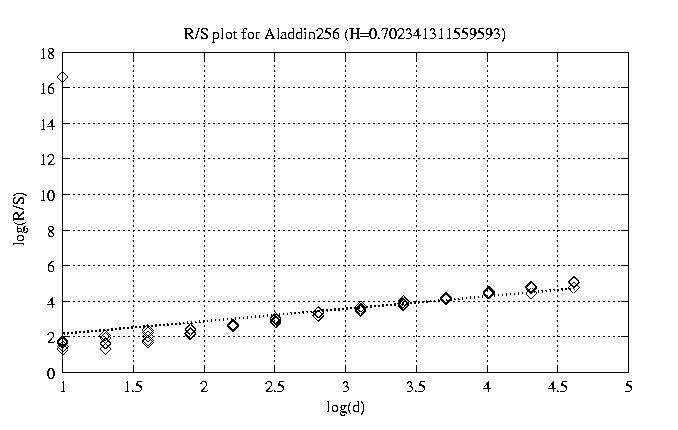

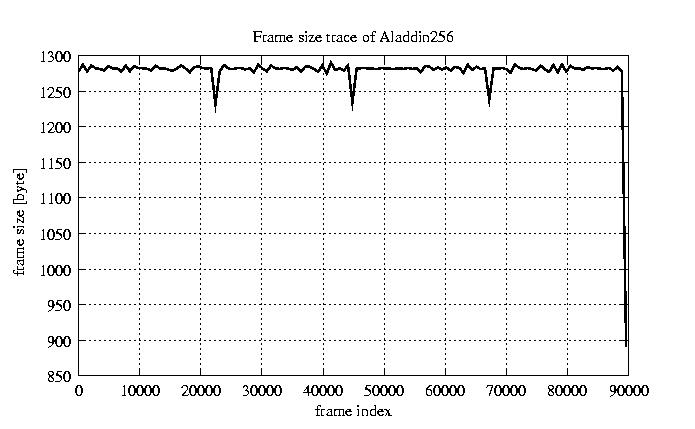

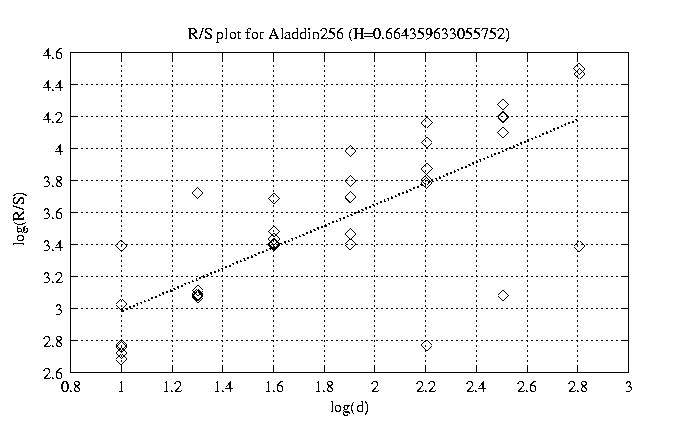

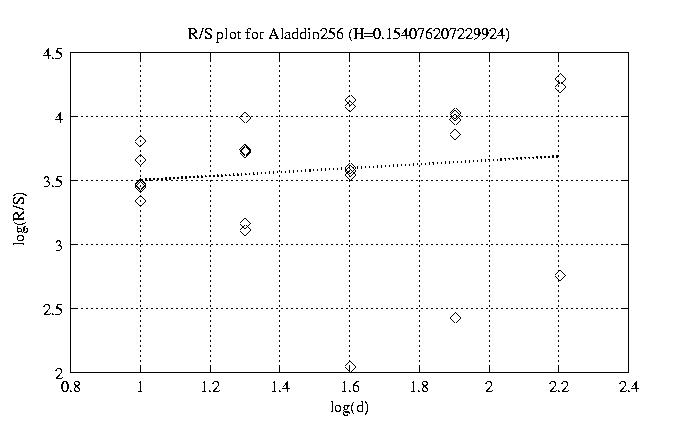

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.702 view view 12 0.939 view view 50 0.787 view view 100 0.664 view view 200 0.457 view view 300 0.053 view view 400 0.154 view view 500 -0.063 view view 600 -0.435 view view 700 0.036 view view 800 -0.076 view view

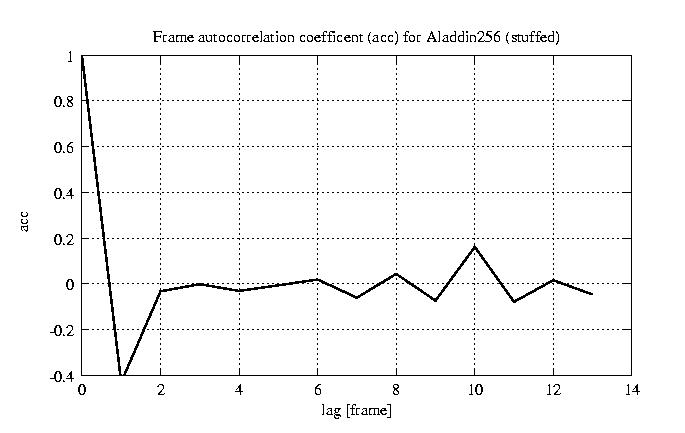

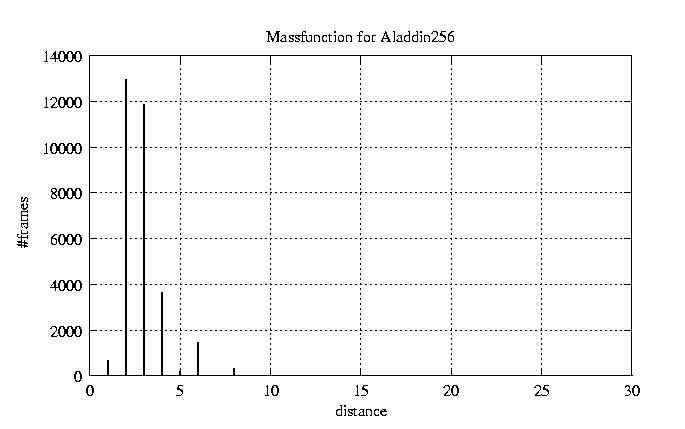

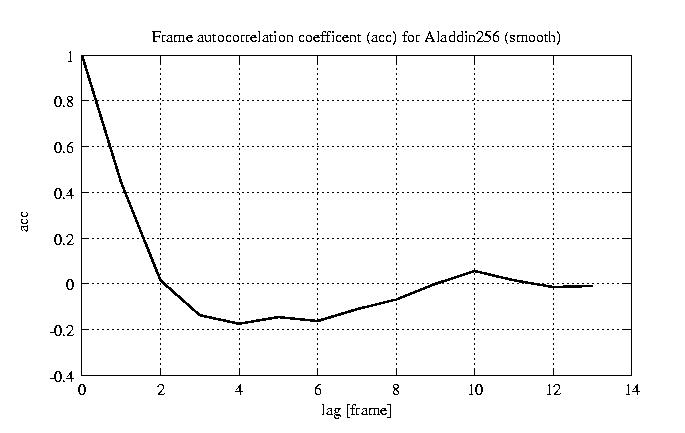

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
