MP4 - Die Hard III
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 49.48 File Size byte 6.9e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 7.7e+02 var frame size - 8.6e+05 CoV of frame size - 1.21 min frame size byte 26 max frame size byte 8161 Mean bit rate bit/sec 1.5e+05 Peak bit rate bit/sec 1.6e+06 Peak/Mean of bit rate - 10.62 GoP statistics # of GoPs - 7499 mean GoP size byte 9.2e+03 var GoP size - 2.7e+07 CoV of GoP size - 0.56 min GoP size byte 799 max GoP size byte 39516 Mean bit rate bit/sec 1.5e+05 Peak bit rate bit/sec 6.6e+05 Peak/Mean of bit rate - 4.29 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

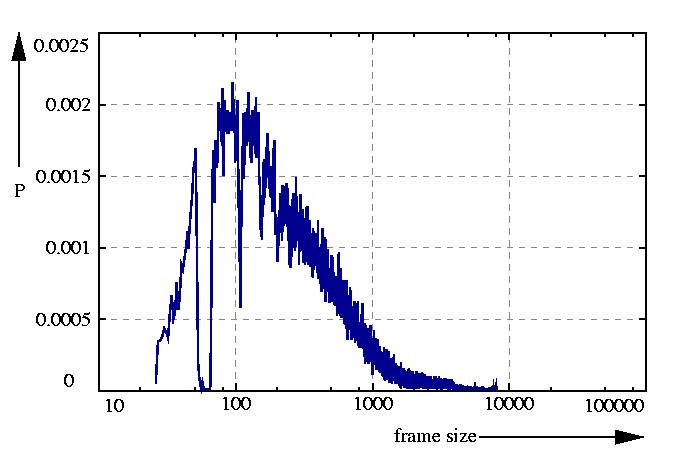

probability density function p
probability function F = sum p

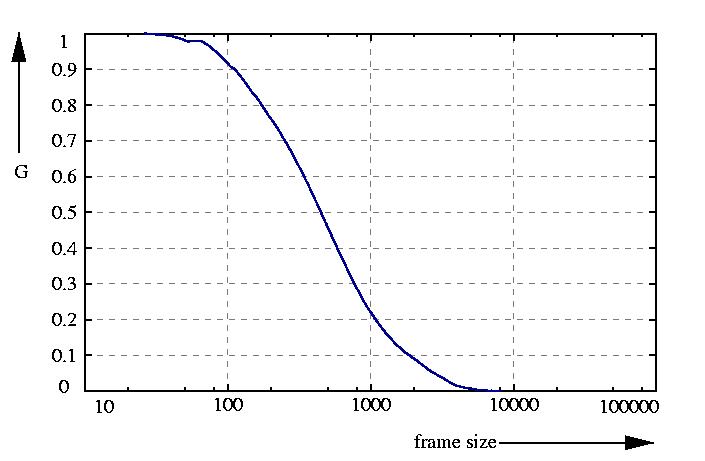

inverse probability function G = 1 - F

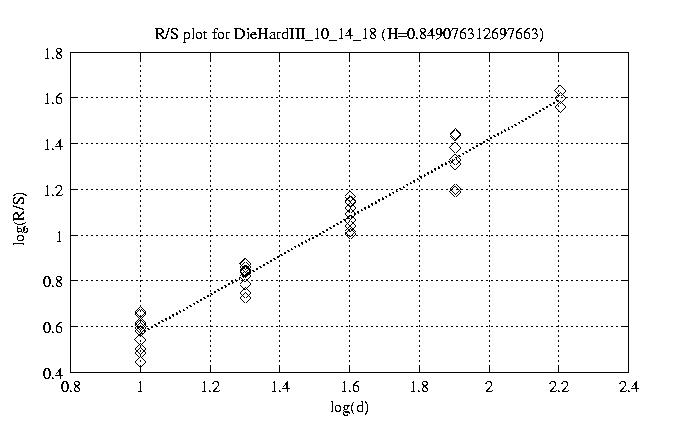

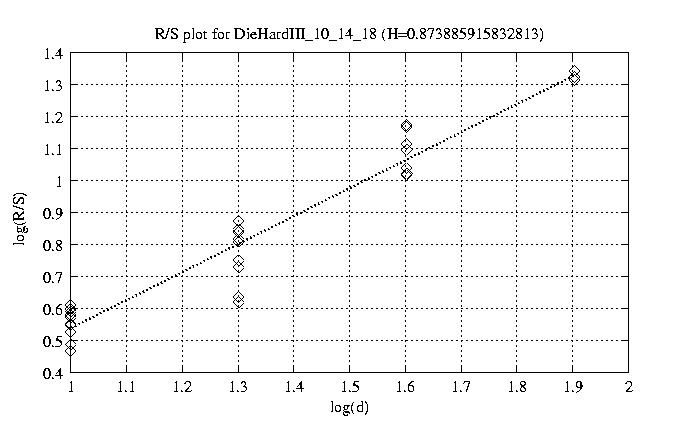

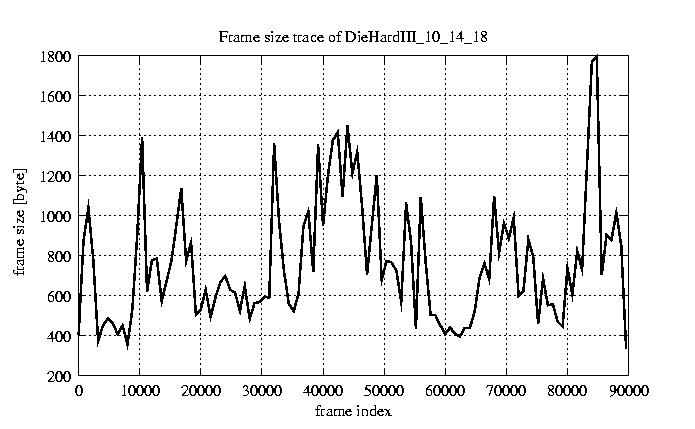

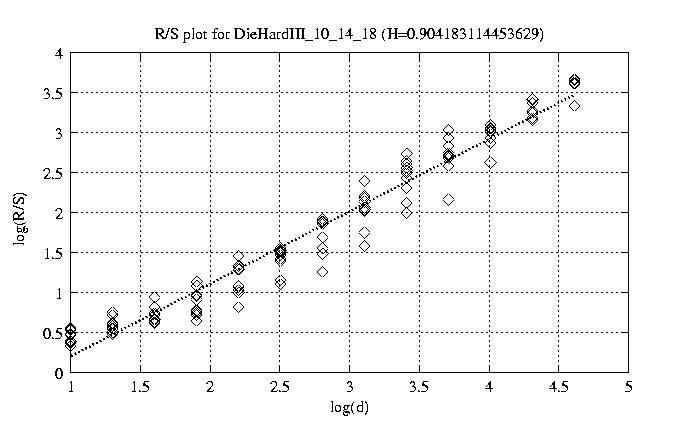

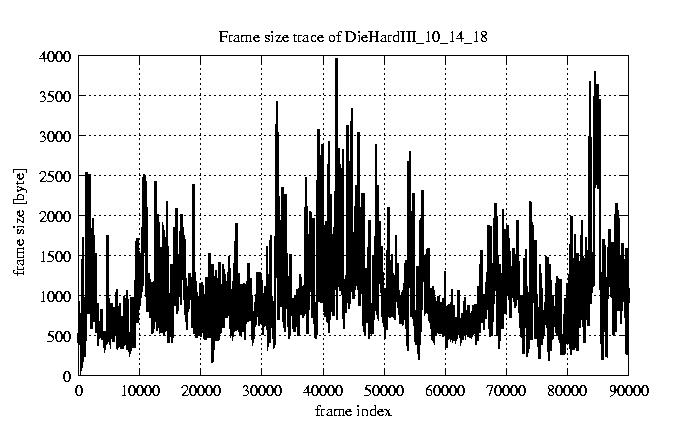

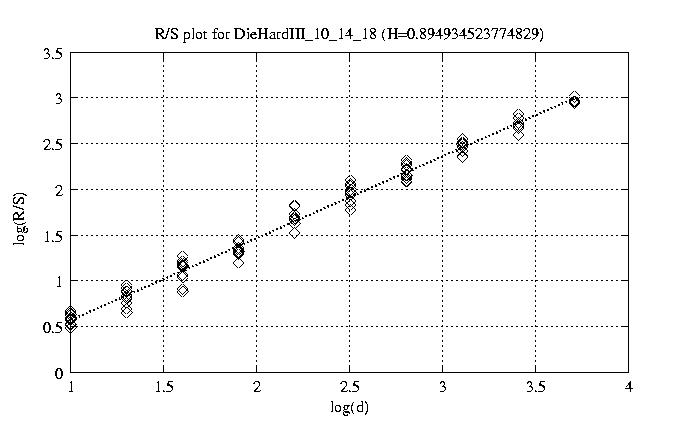

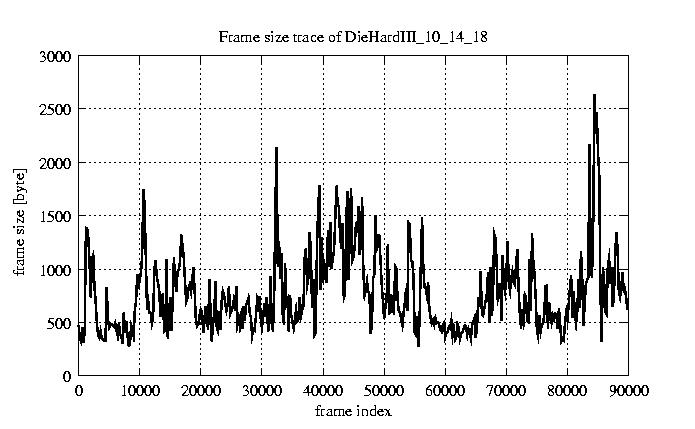

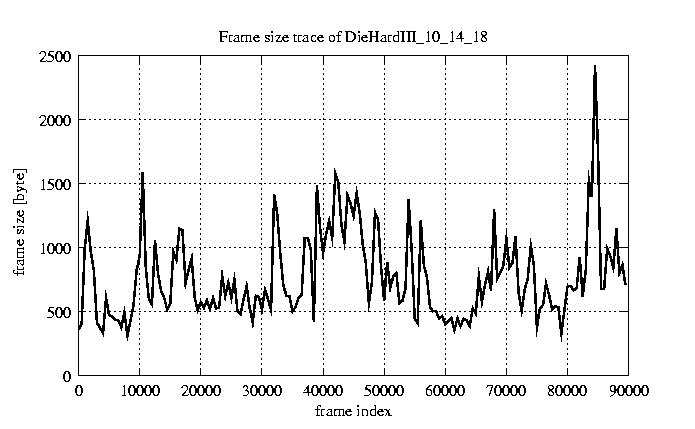

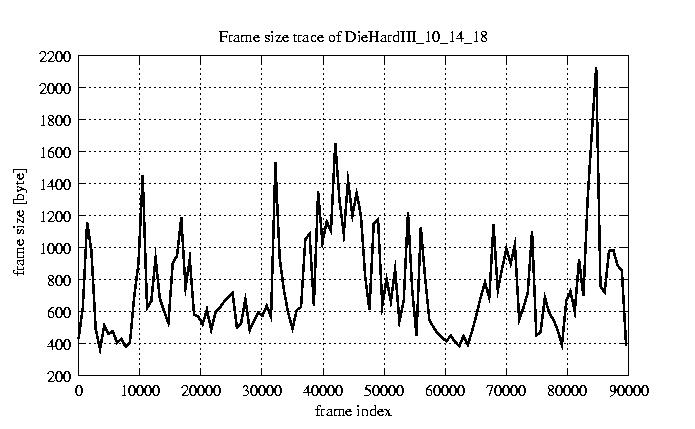

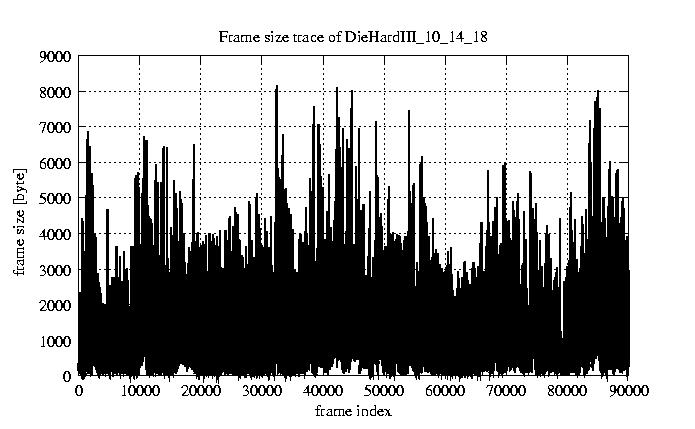

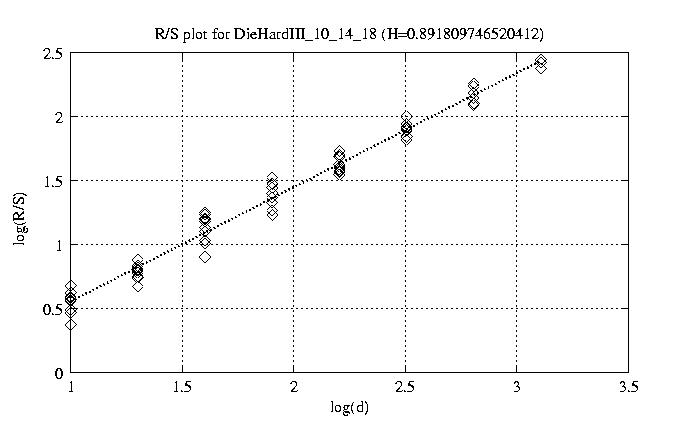

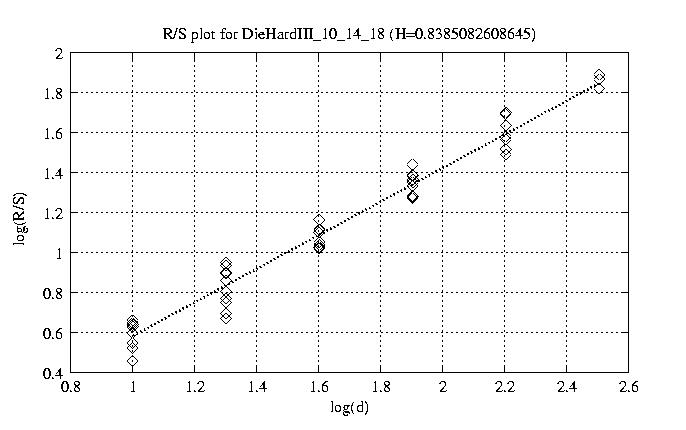

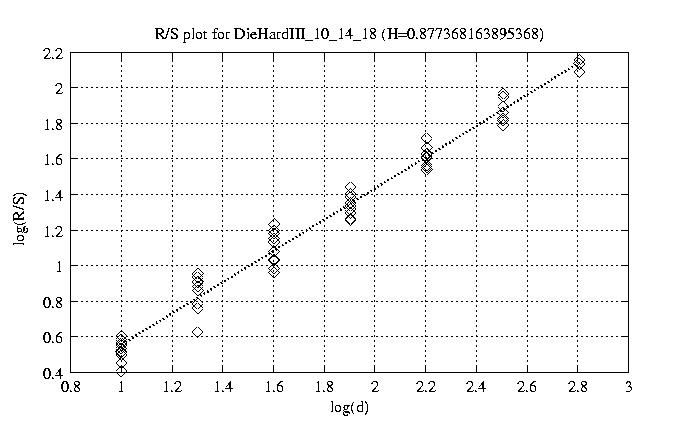

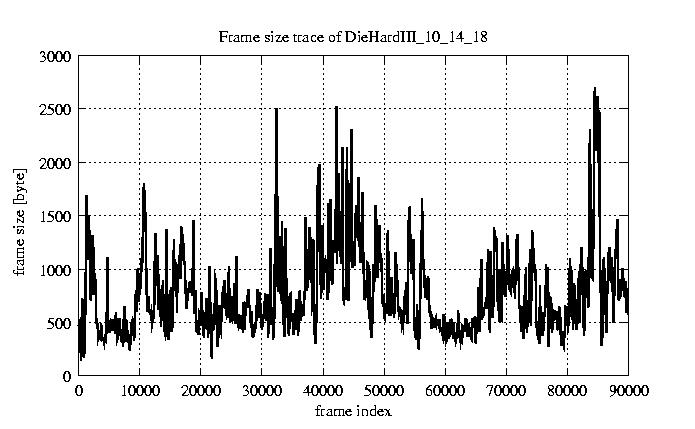

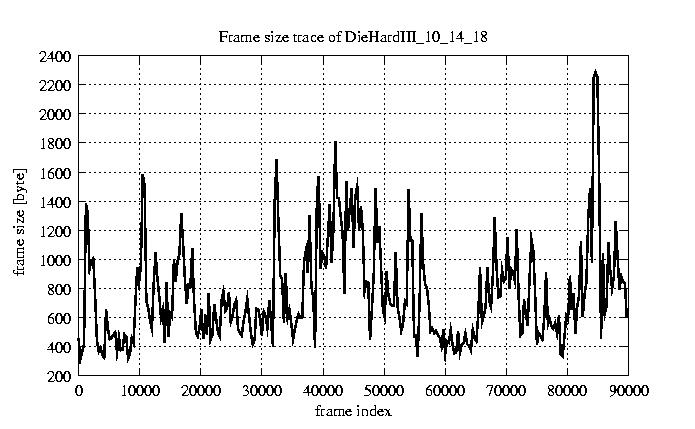

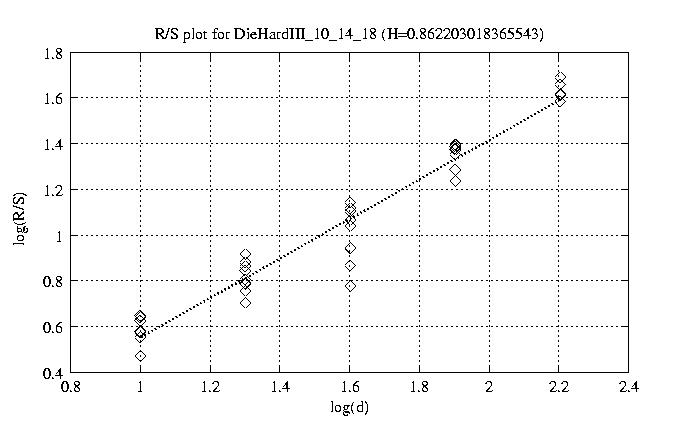

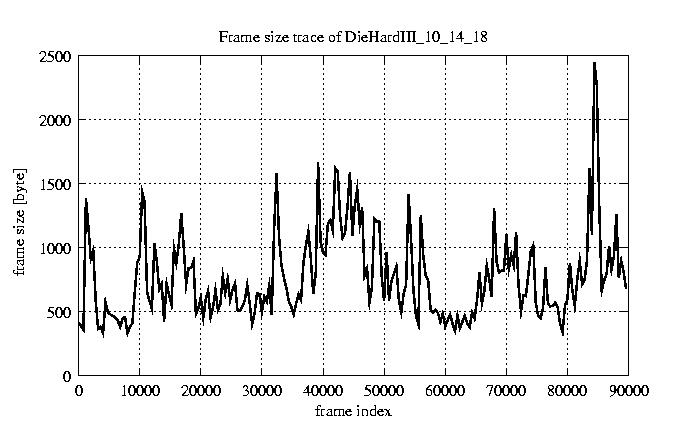

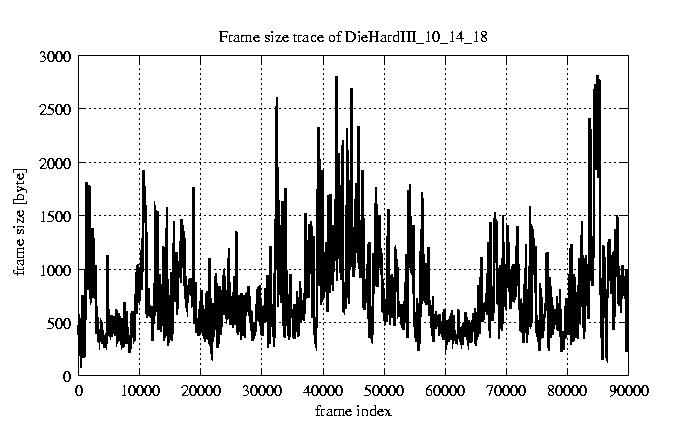

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.904 view view 12 0.895 view view 50 0.892 view view 100 0.877 view view 200 0.839 view view 300 0.862 view view 400 0.849 view view 500 0.856 view view 600 0.915 view view 700 0.874 view view 800 0.835 view view

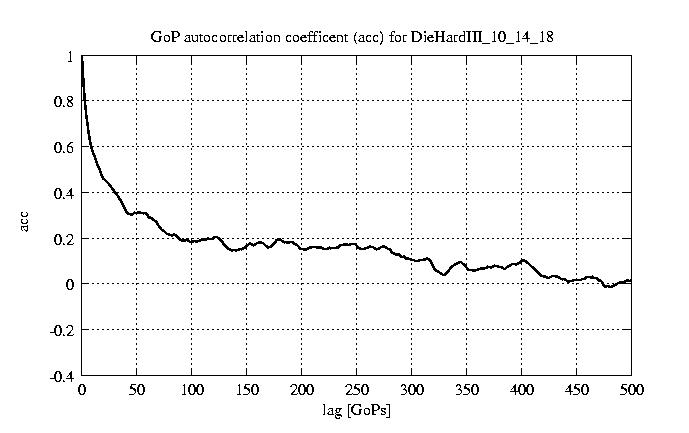

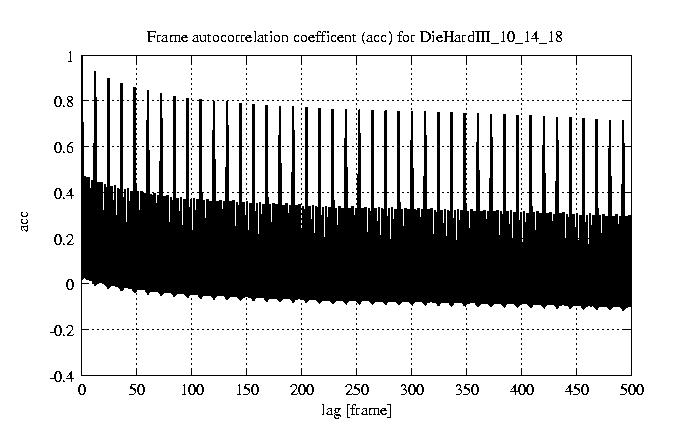

other plots	autocorrelation function of frames autocorrelation function of GoPs
