MP4 - Lecture Room Cam
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 179.62 File Size byte 1.9e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 2.1e+02 var frame size - 2.3e+05 CoV of frame size - 2.29 min frame size byte 26 max frame size byte 3432 Mean bit rate bit/sec 4.2e+04 Peak bit rate bit/sec 6.9e+05 Peak/Mean of bit rate - 16.22 GoP statistics # of GoPs - 7499 mean GoP size byte 2.5e+03 var GoP size - 2.5e+05 CoV of GoP size - 0.20 min GoP size byte 1810 max GoP size byte 8632 Mean bit rate bit/sec 4.2e+04 Peak bit rate bit/sec 1.4e+05 Peak/Mean of bit rate - 3.40 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

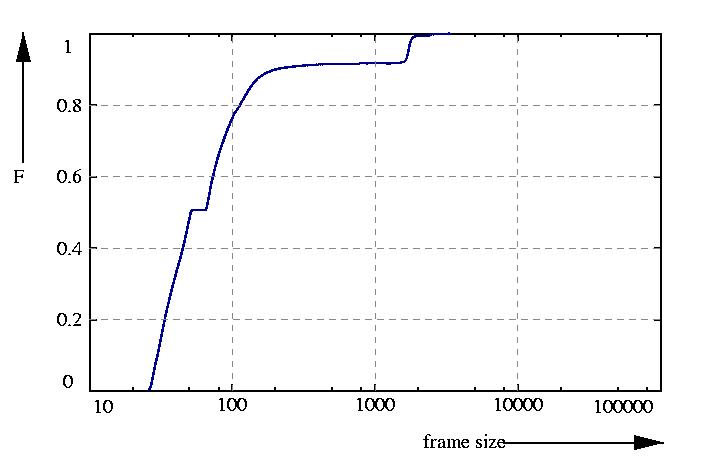

probability function F = sum p
inverse probability function G = 1 - F

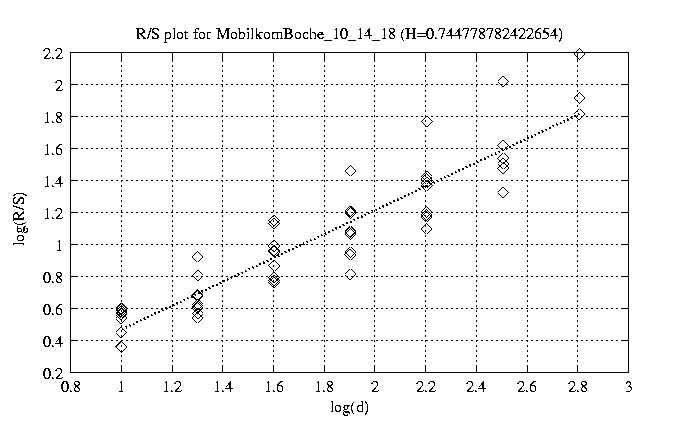

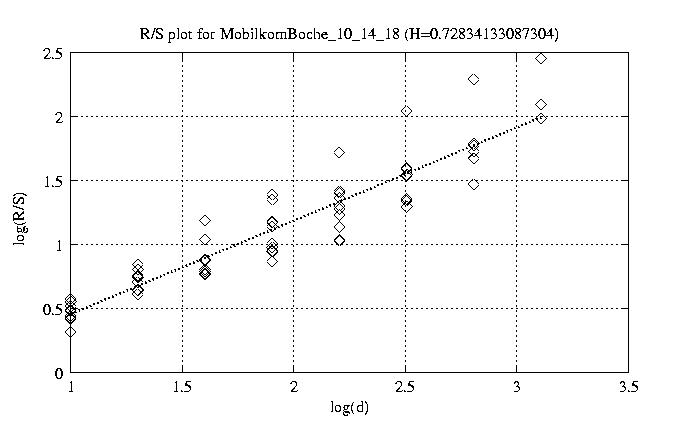

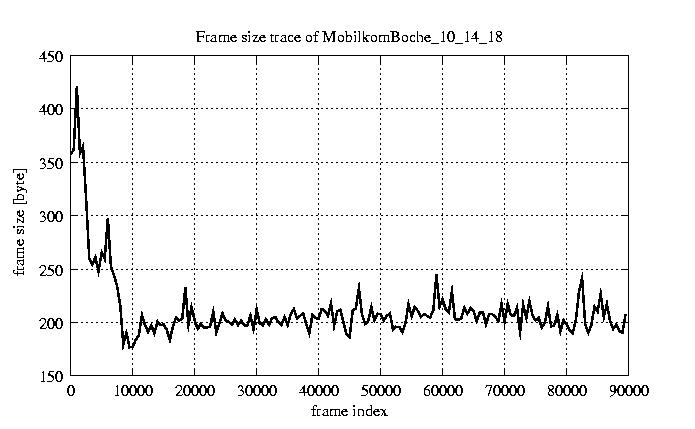

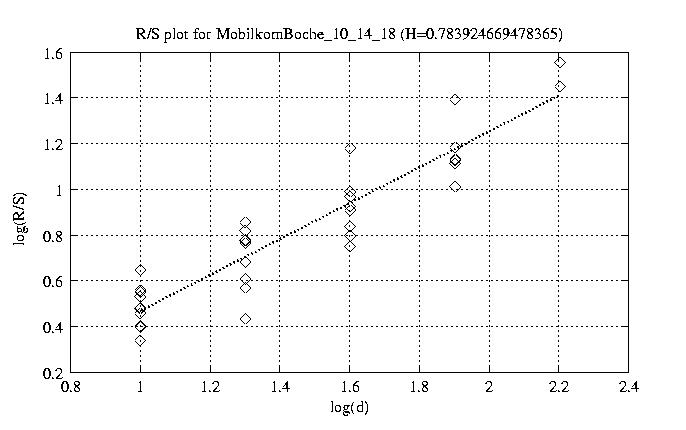

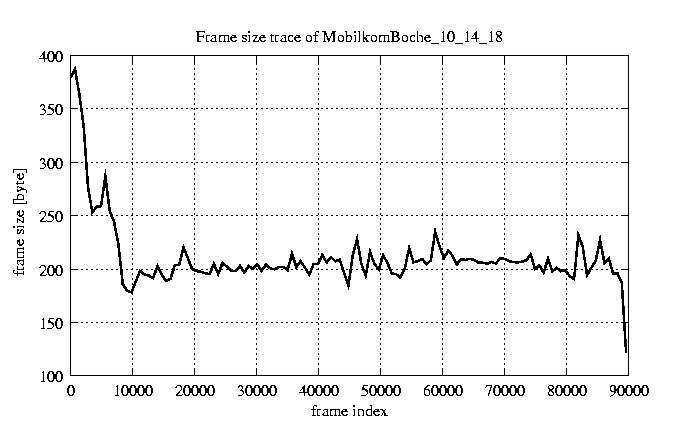

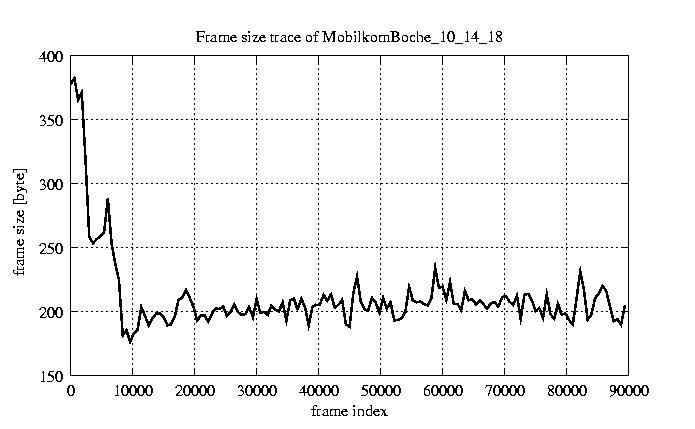

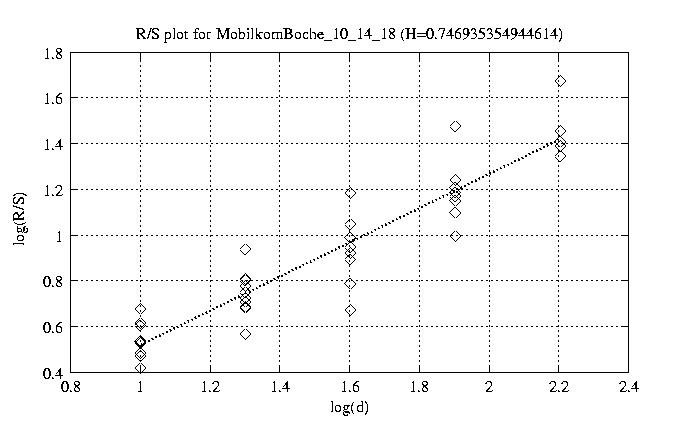

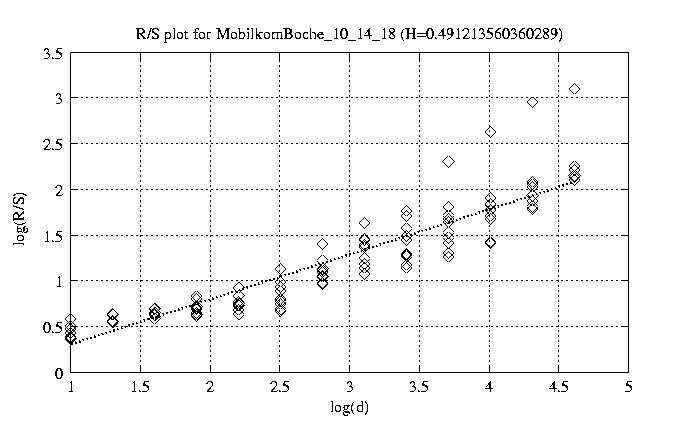

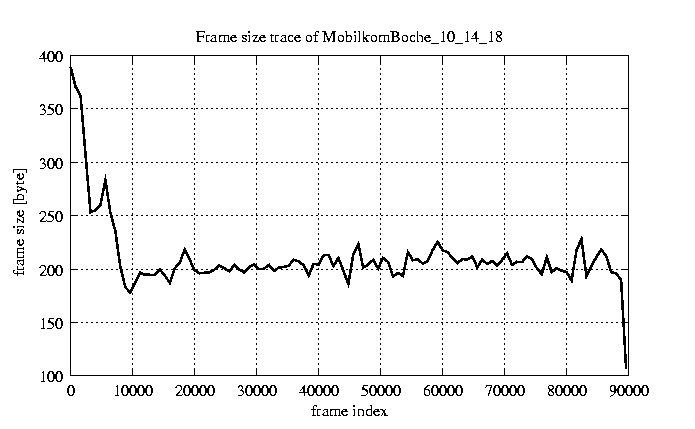

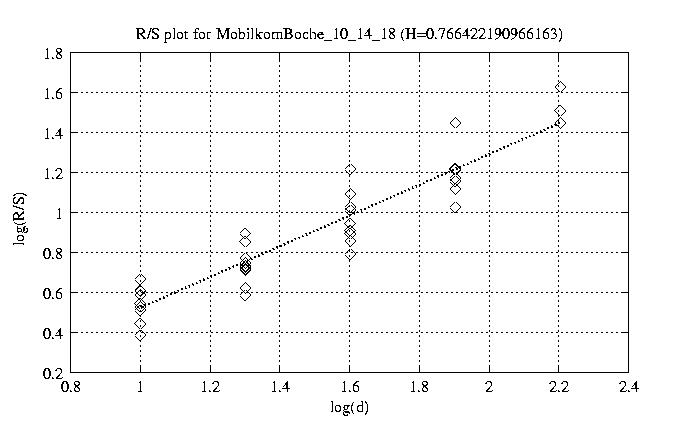

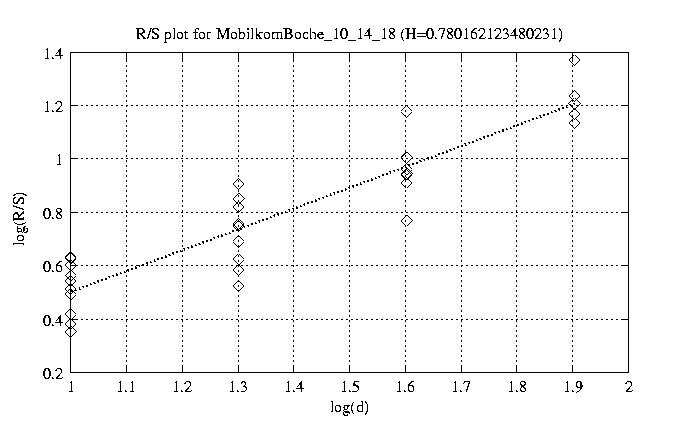

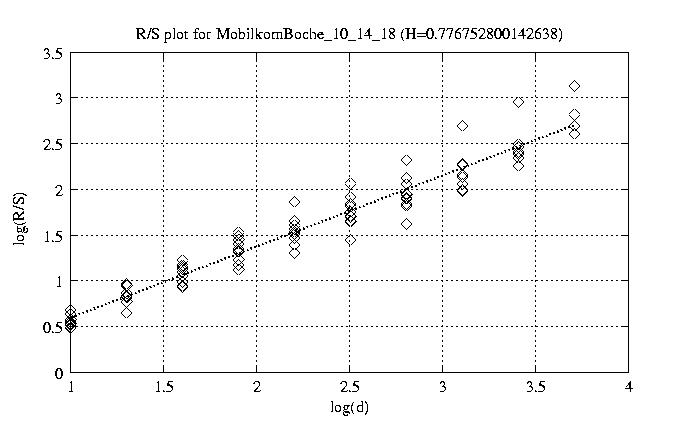

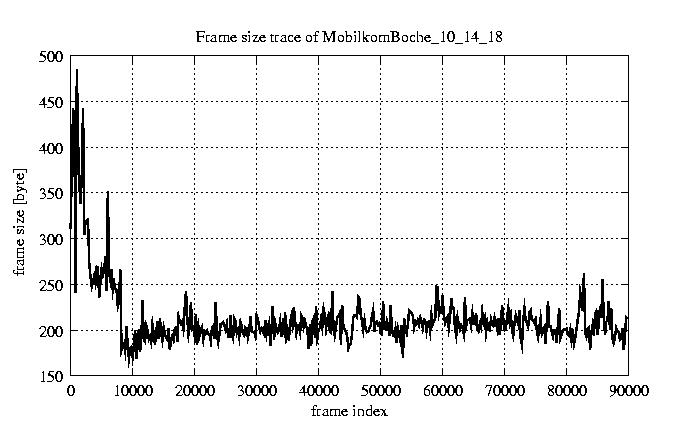

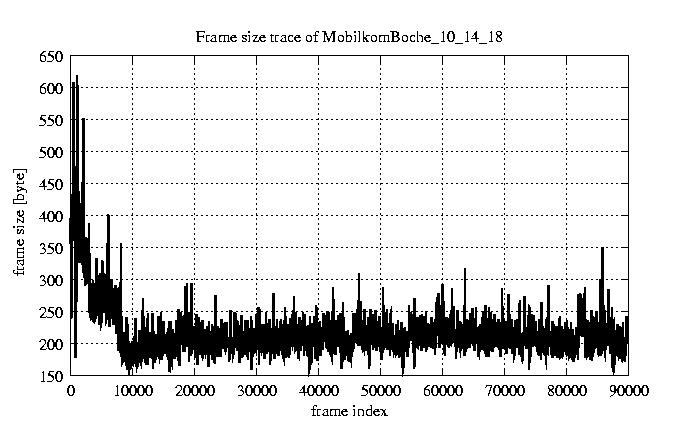

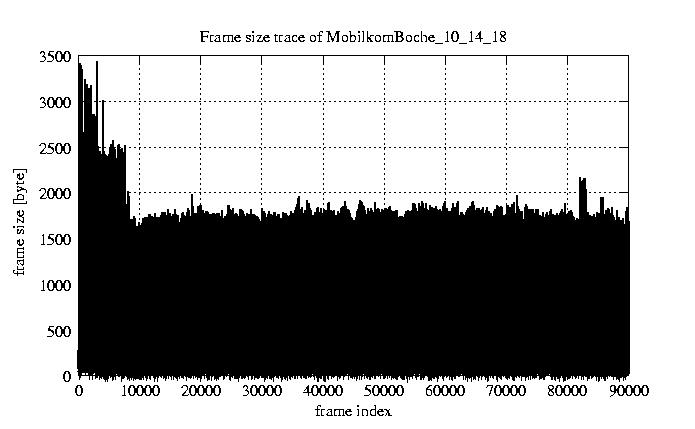

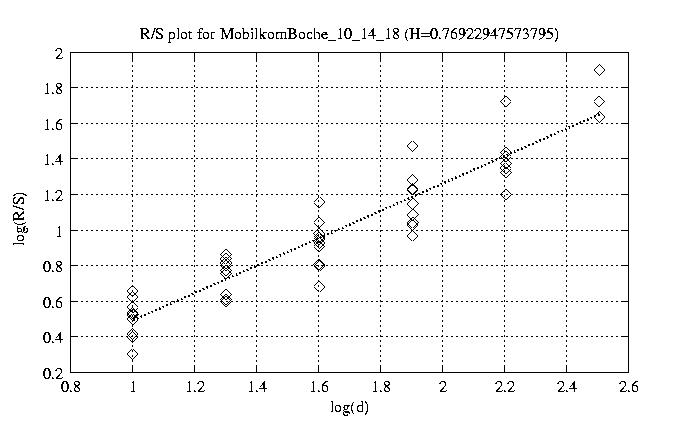

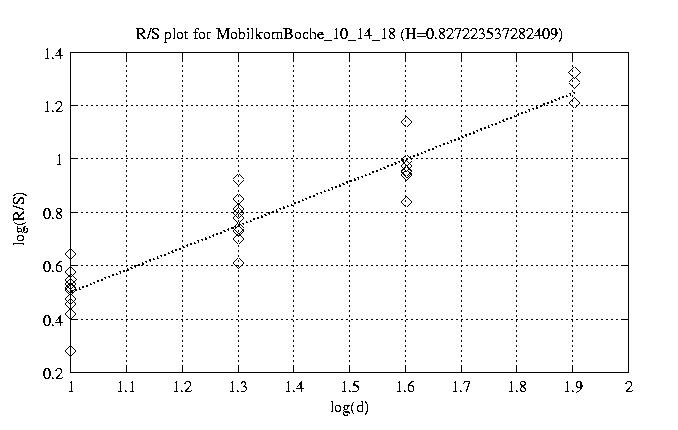

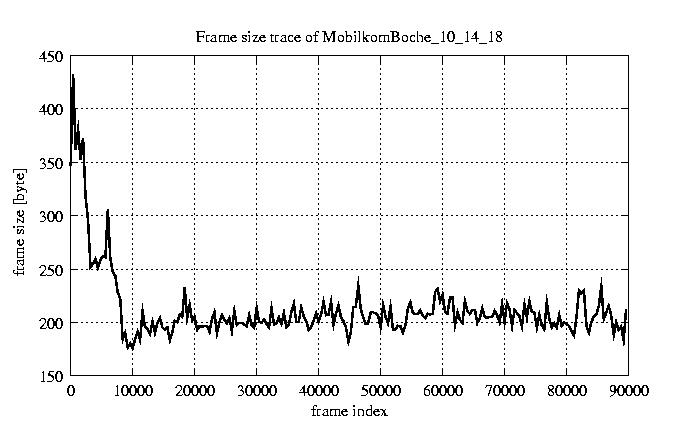

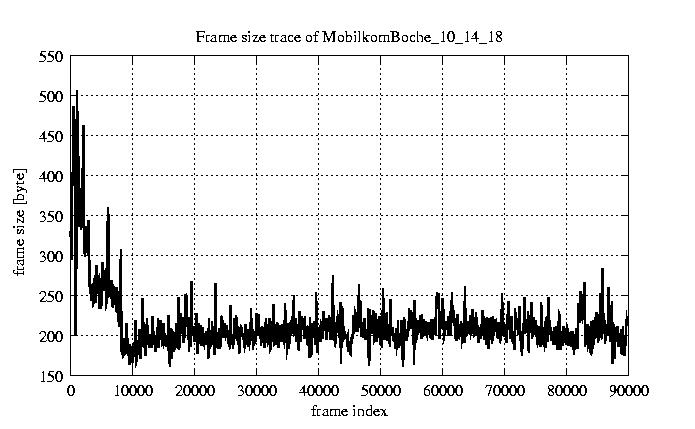

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.491 view view 12 0.777 view view 50 0.728 view view 100 0.745 view view 200 0.769 view view 300 0.747 view view 400 0.766 view view 500 0.784 view view 600 0.780 view view 700 0.815 view view 800 0.827 view view

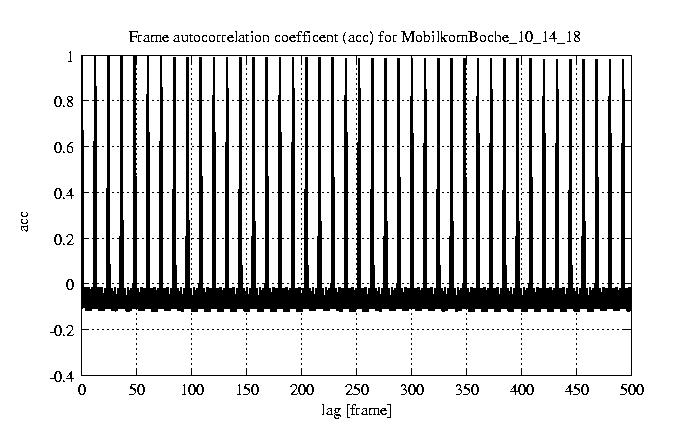

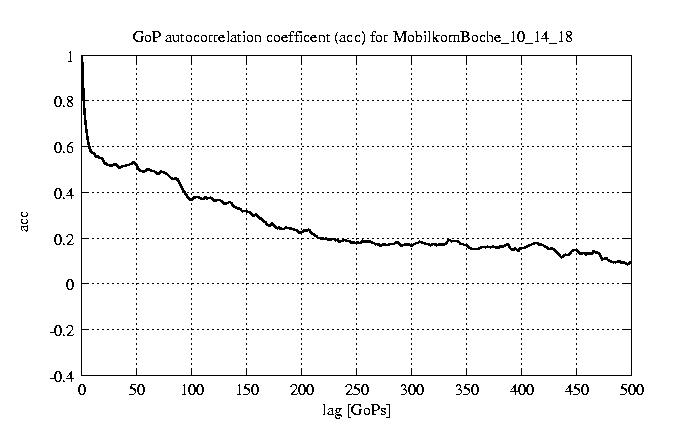

other plots	autocorrelation function of frames autocorrelation function of GoPs
