MP4 - Mr Bean
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 13.06 File Size byte 2.6e+08 Video run time msec 3.6e+06 # of Frames - 89113 mean frame size byte 2.9e+03 var frame size - 3.2e+06 CoV of frame size - 0.62 min frame size byte 93 max frame size byte 15251 Mean bit rate bit/sec 5.8e+05 Peak bit rate bit/sec 3.1e+06 Peak/Mean of bit rate - 5.24 GoP statistics # of GoPs - 7426 mean GoP size byte 3.5e+04 var GoP size - 2e+08 CoV of GoP size - 0.40 min GoP size byte 2294 max GoP size byte 130332 Mean bit rate bit/sec 5.8e+05 Peak bit rate bit/sec 2.2e+06 Peak/Mean of bit rate - 3.73 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

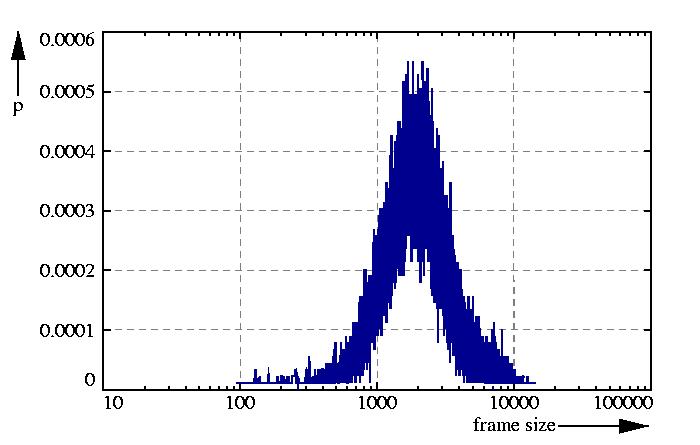

probability density function p

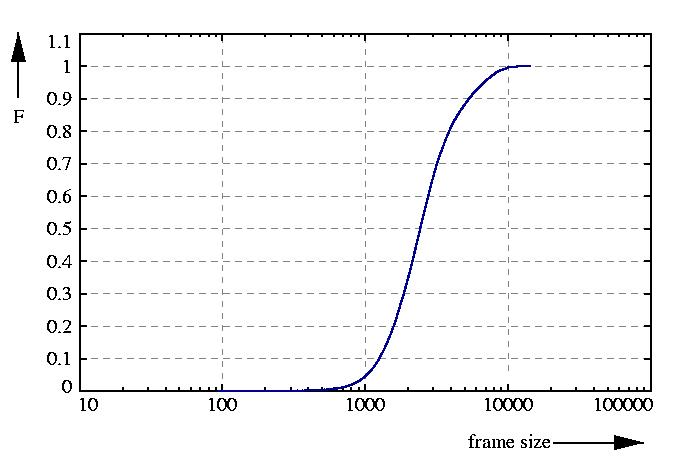

probability function F = sum p

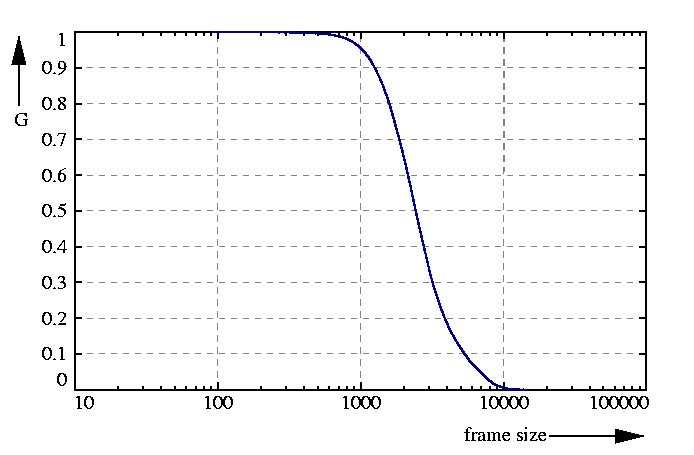

inverse probability function G = 1 - F

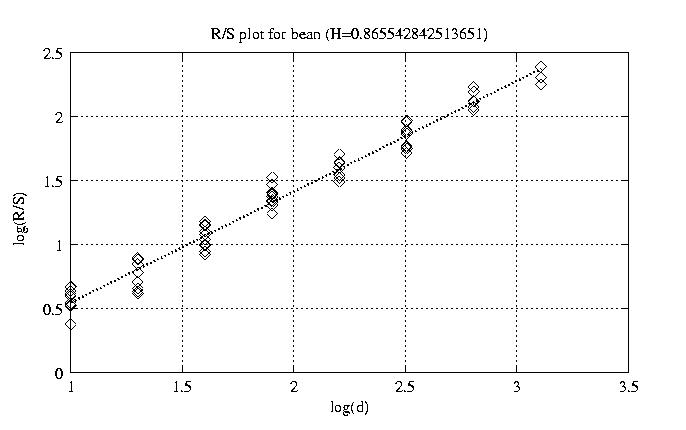

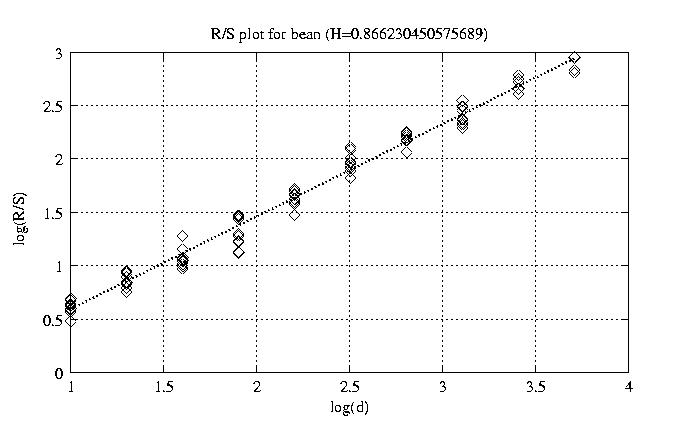

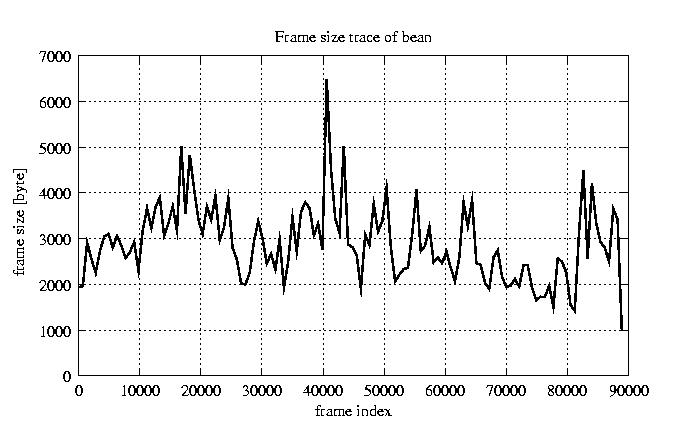

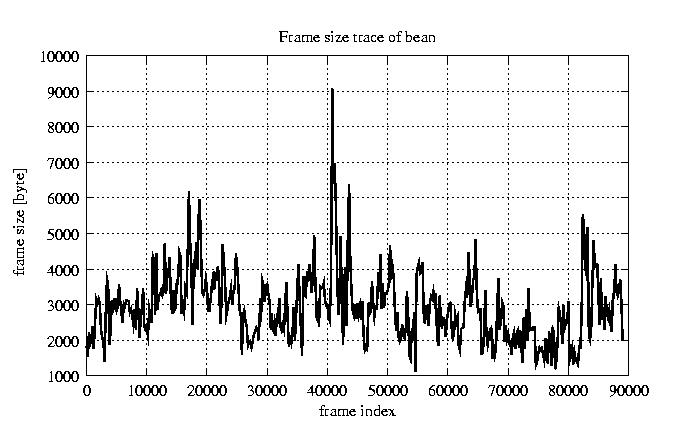

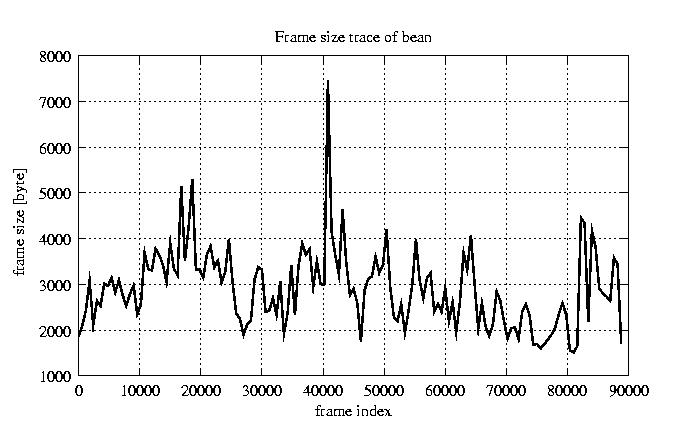

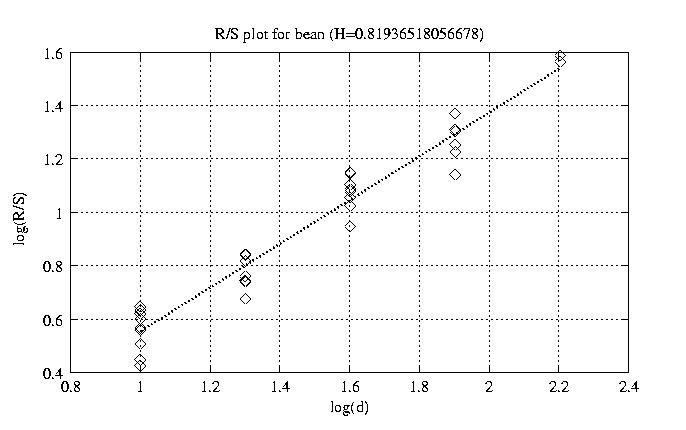

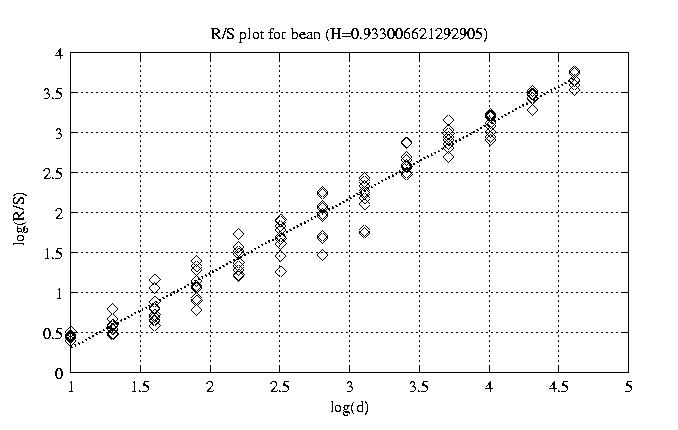

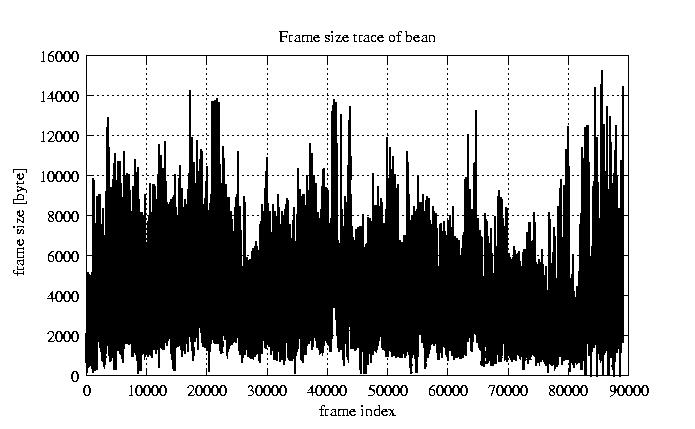

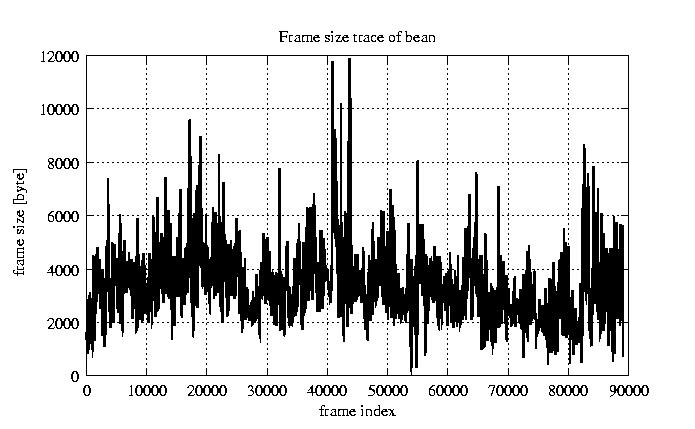

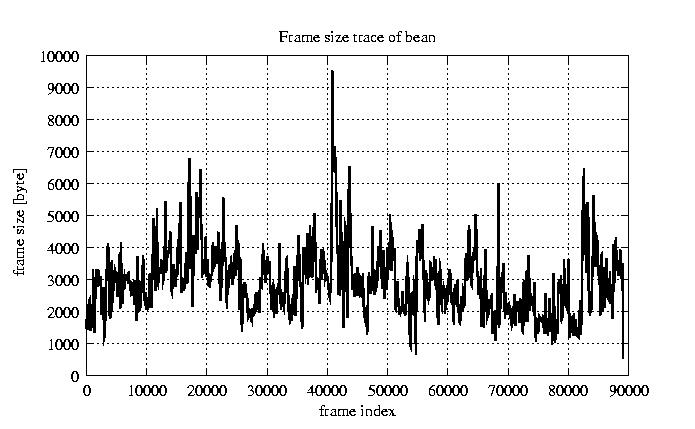

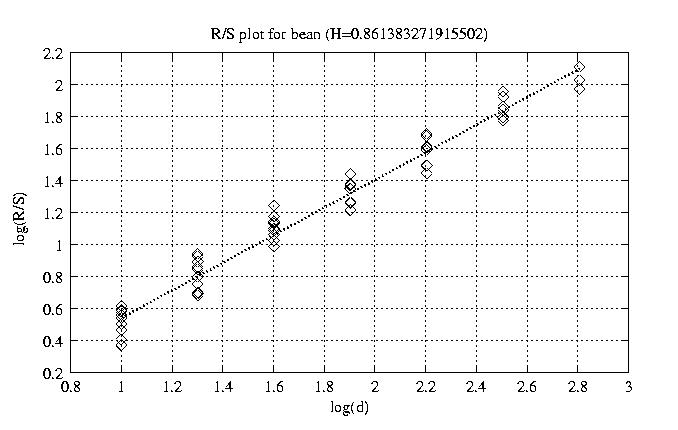

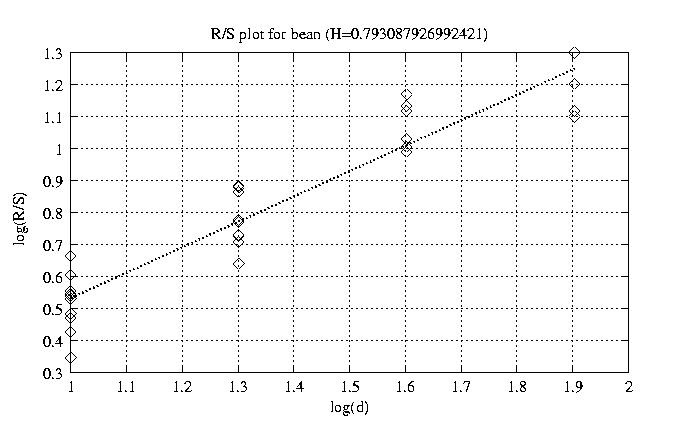

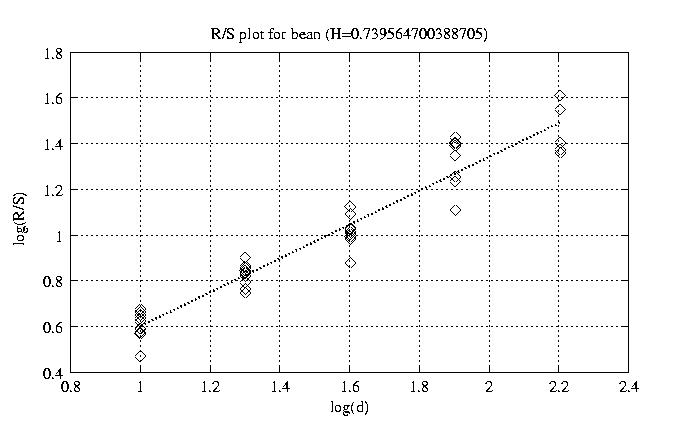

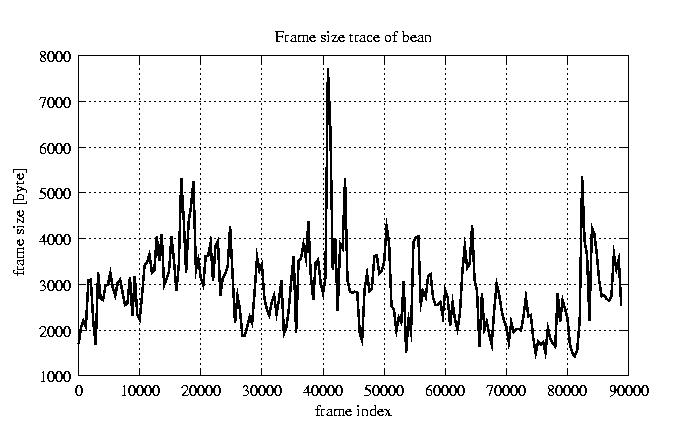

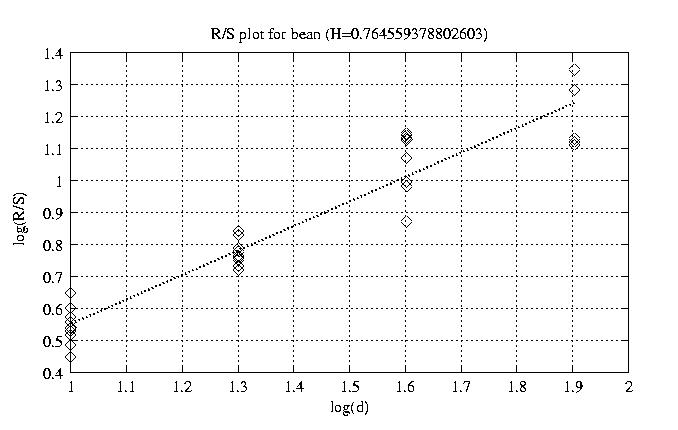

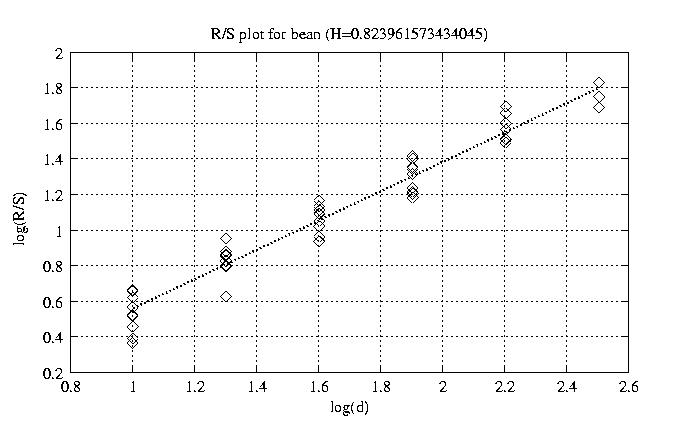

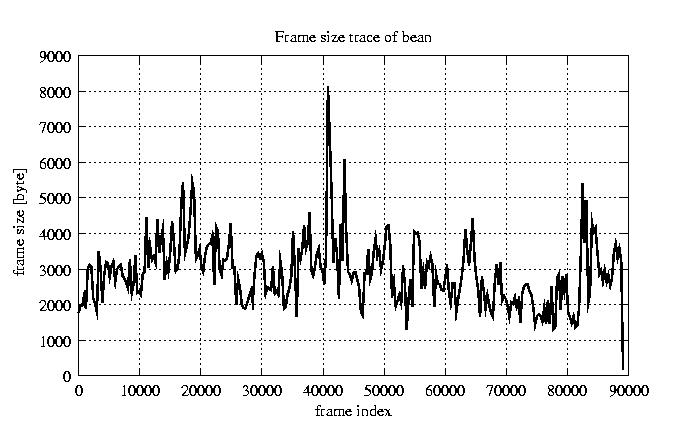

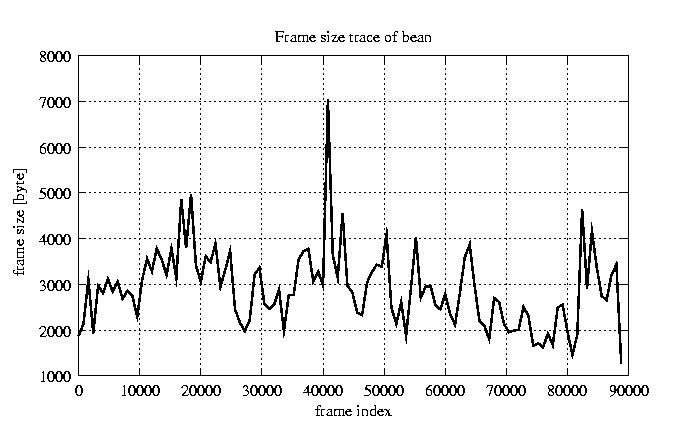

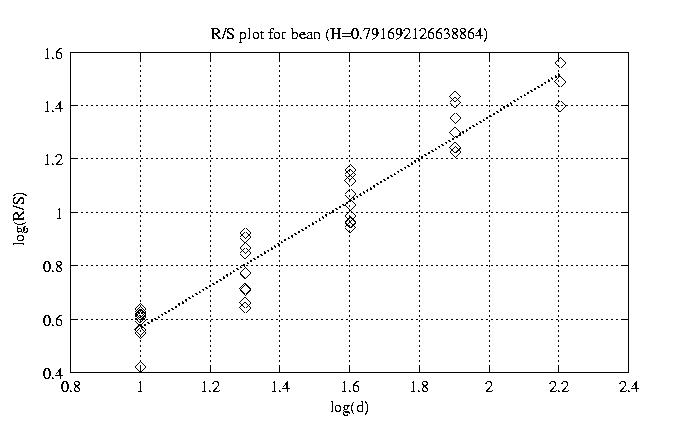

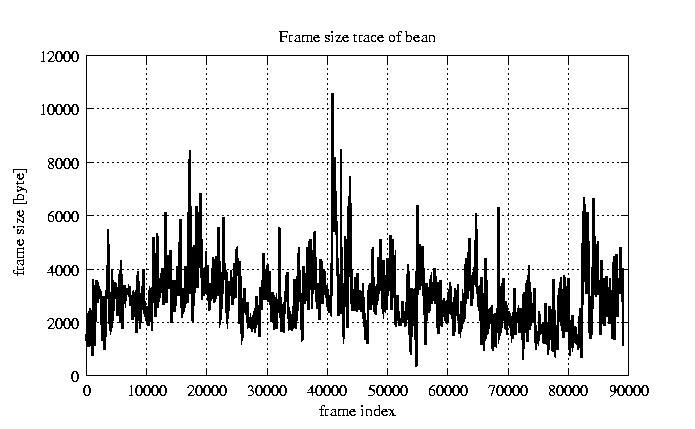

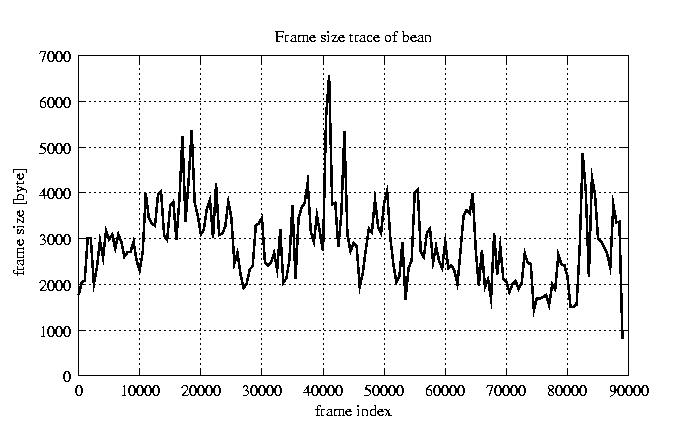

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.933 view view 12 0.866 view view 50 0.866 view view 100 0.861 view view 200 0.824 view view 300 0.740 view view 400 0.792 view view 500 0.819 view view 600 0.765 view view 700 0.793 view view 800 0.810 view view

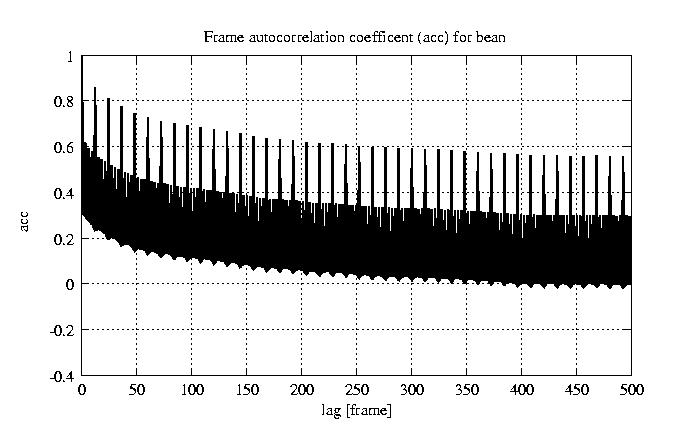

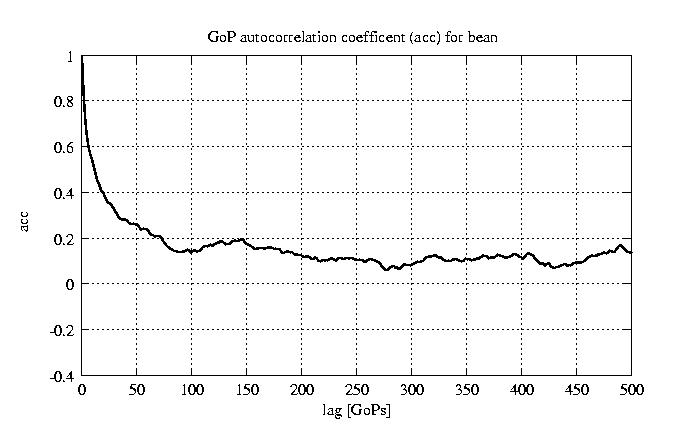

other plots	autocorrelation function of frames autocorrelation function of GoPs
