H263 - N3Talk
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.45 476.45 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90085.00 21371.00 mean frame size byte 79.79 336.35 var frame size - 28547.69 34044.96 CoV of frame size - 2.12 0.55 min frame size byte 0.00 51.00 max frame size byte 4063.00 4063.00 Peak/Mean frame - 50.92 12.08 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.2e+04 Peak/Mean of bit rate - 5.8 CoV of bit rate - 0.38 max inter frame space frames 1.00 59.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

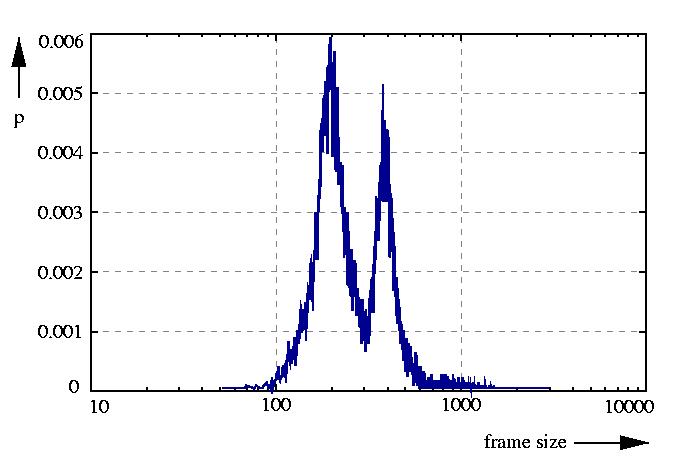

probability density function p

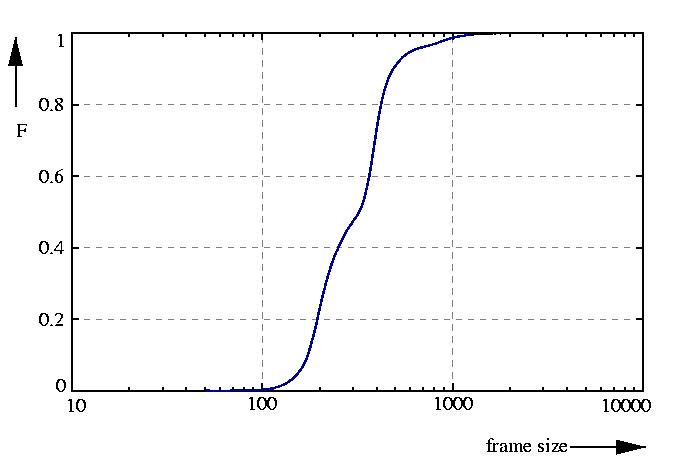

probability function F = sum p

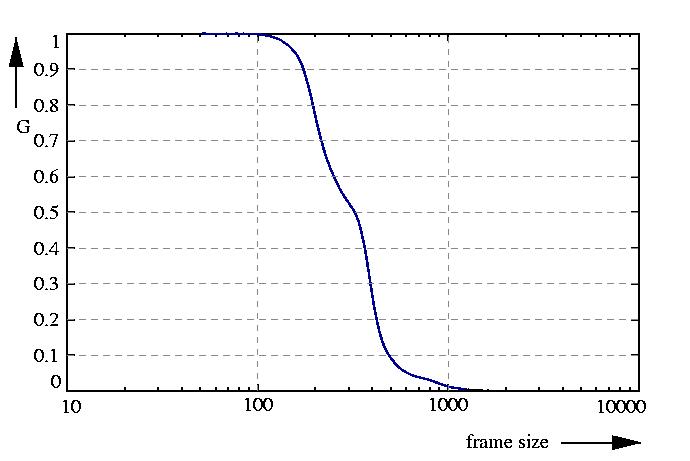

inverse probability function G = 1 - F

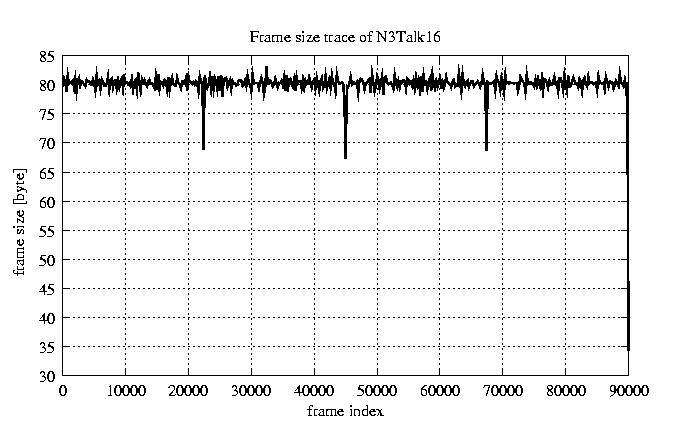

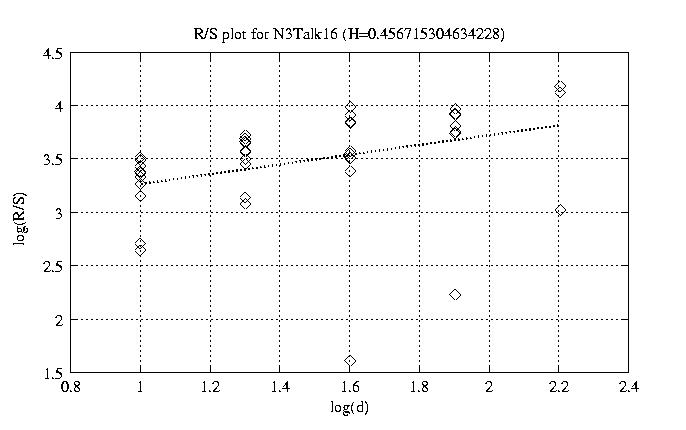

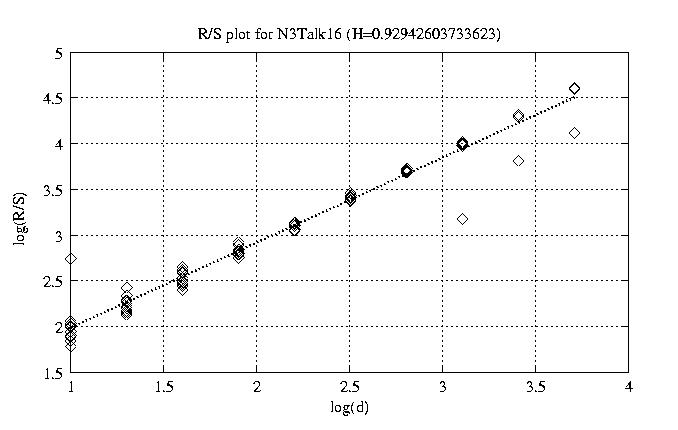

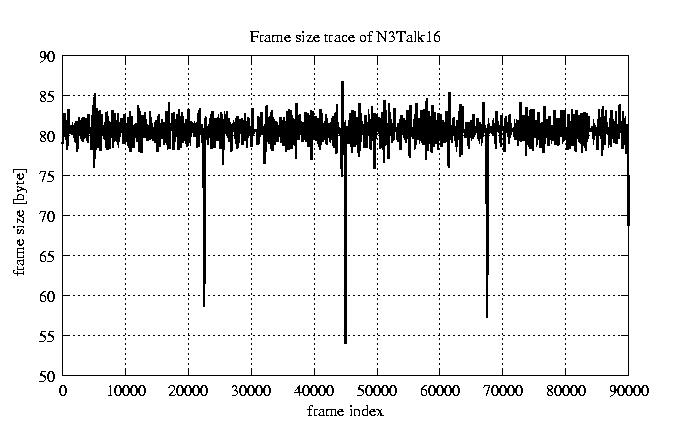

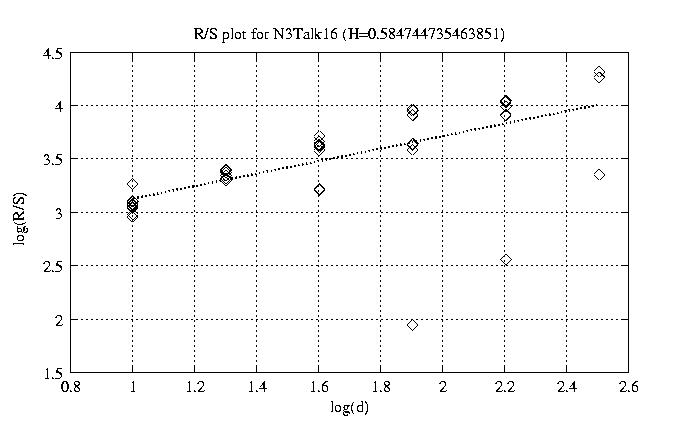

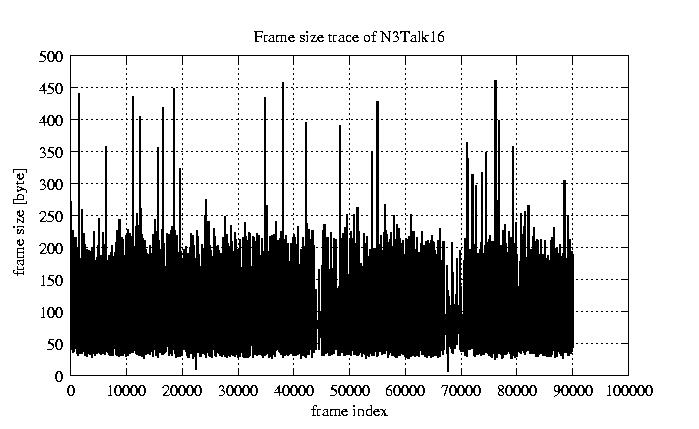

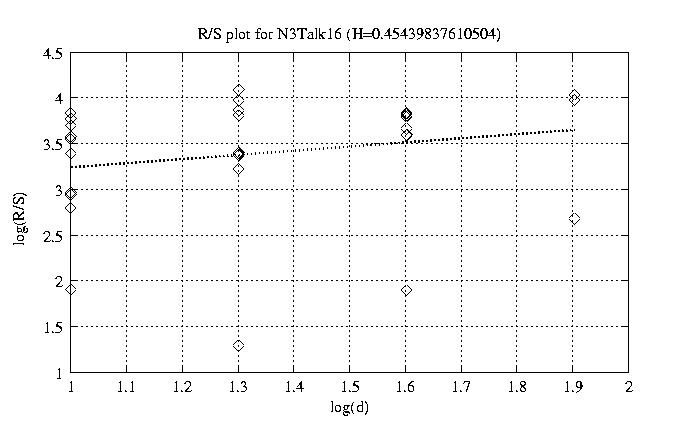

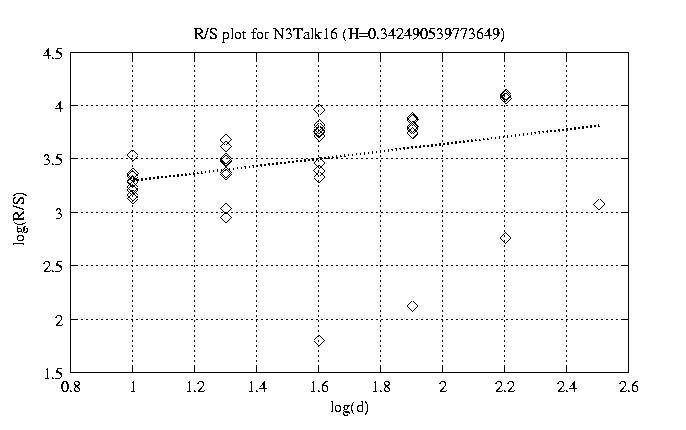

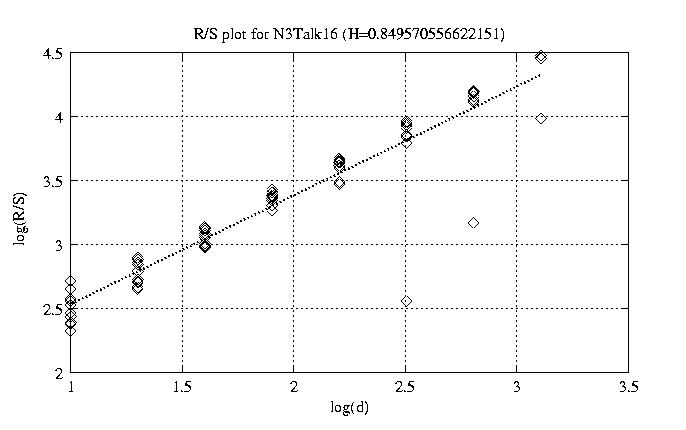

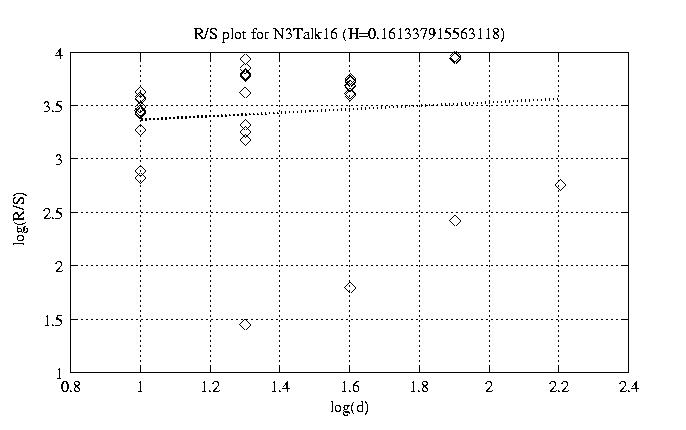

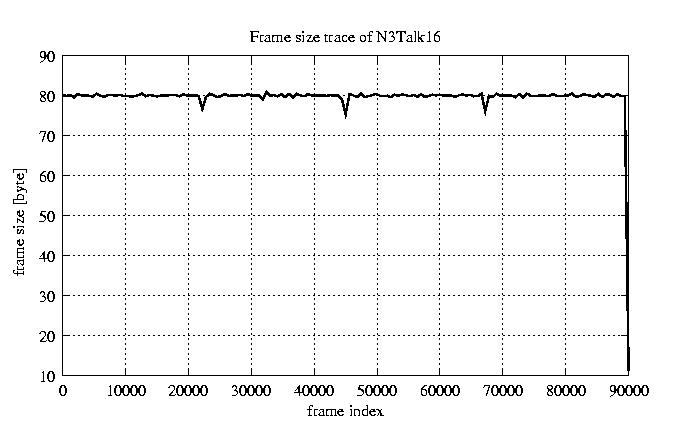

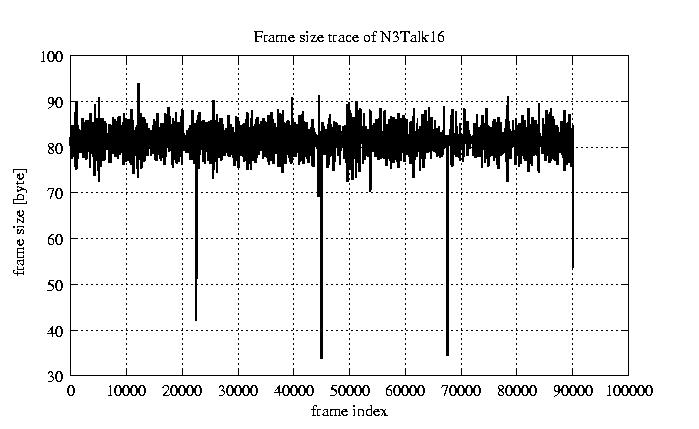

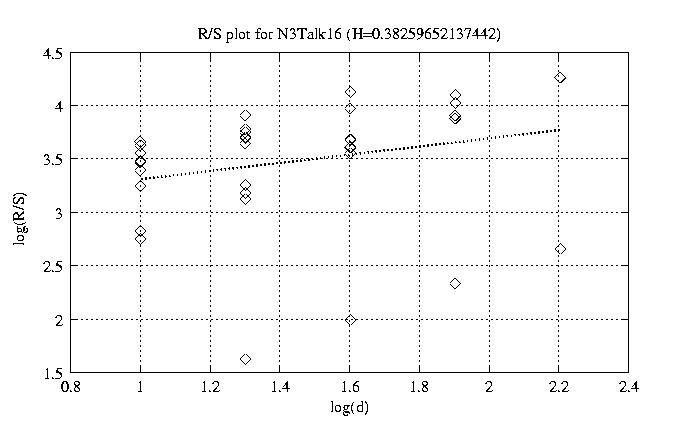

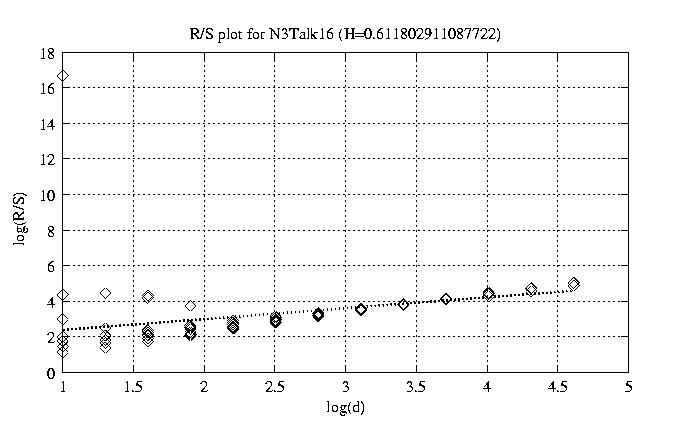

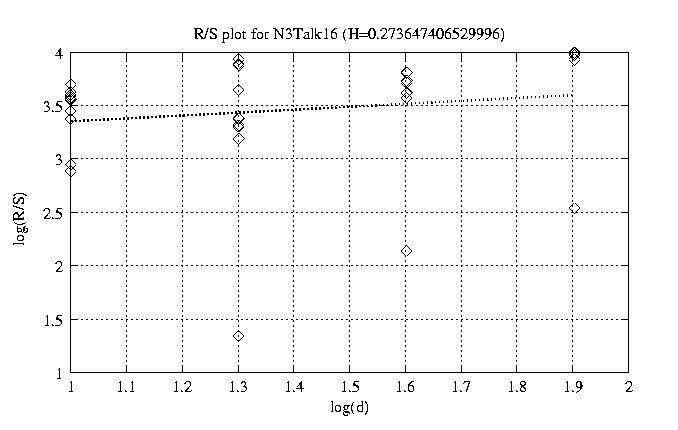

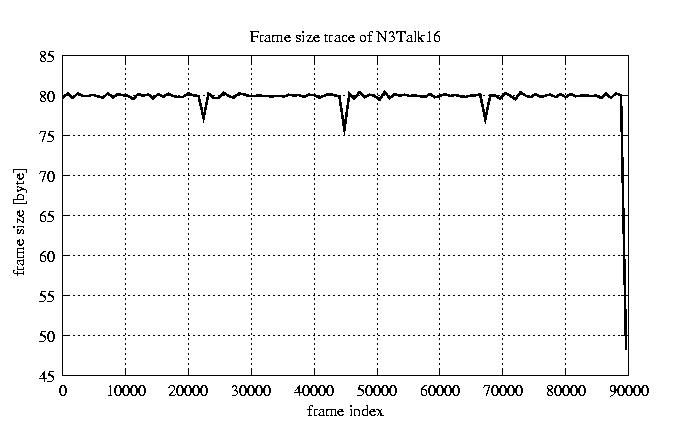

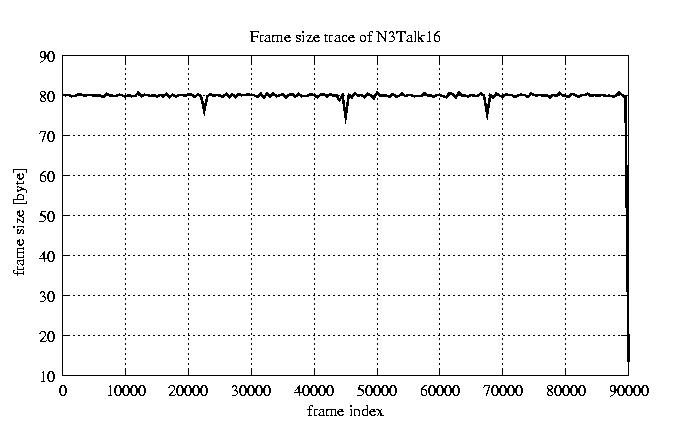

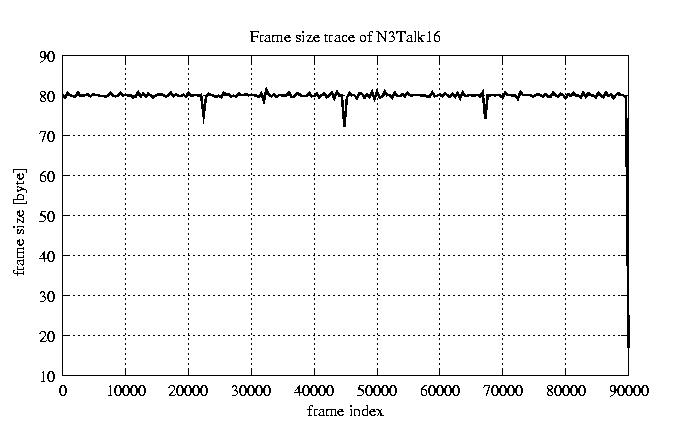

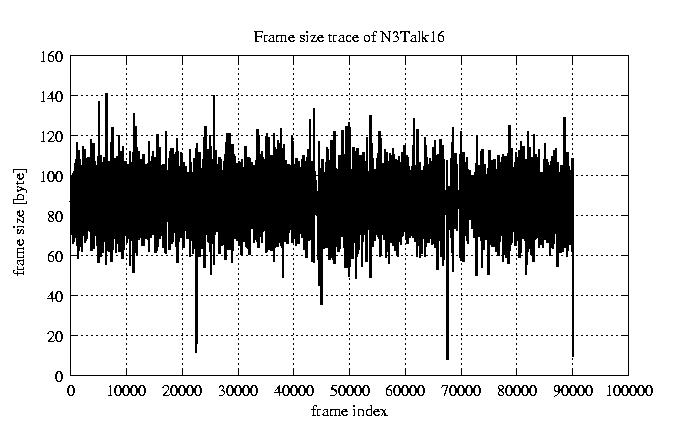

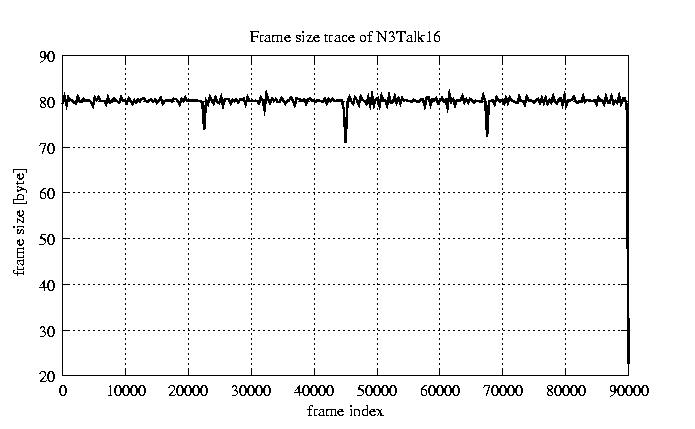

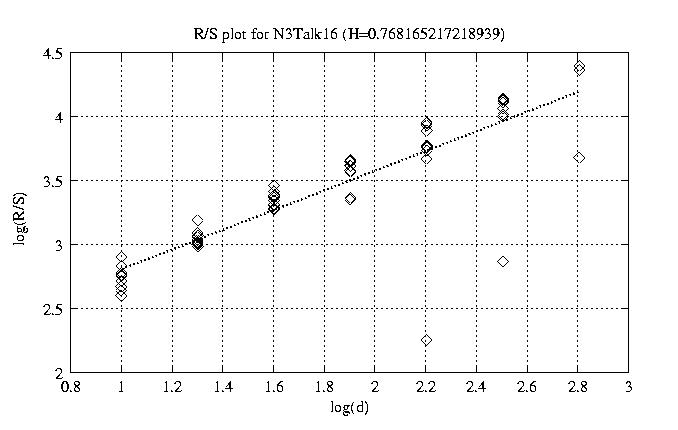

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.612 view view 12 0.929 view view 50 0.850 view view 100 0.768 view view 200 0.585 view view 300 0.342 view view 400 0.457 view view 500 0.383 view view 600 0.161 view view 700 0.274 view view 800 0.454 view view

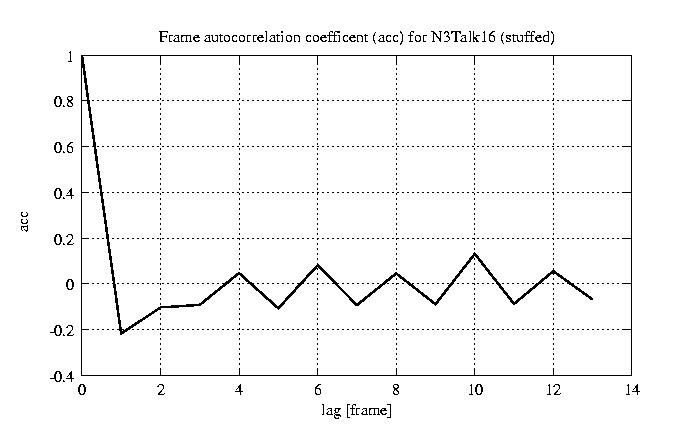

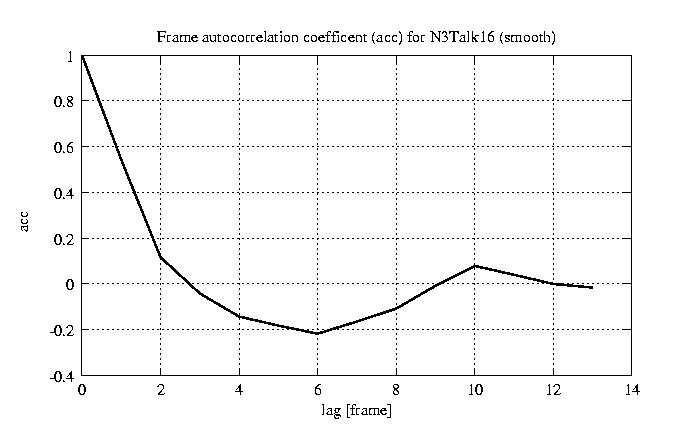

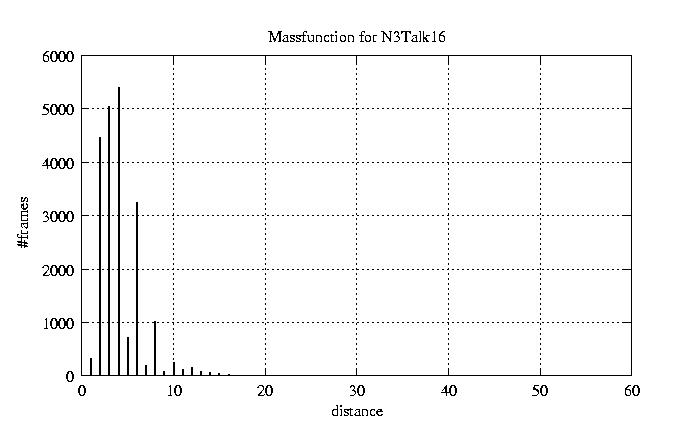

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
