H263 - Futurama
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 3.8e+07 3.8e+07 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30026.00 8295.00 mean frame size byte 1278.89 4629.27 var frame size - 5043907.77 2747663.82 CoV of frame size - 1.76 0.36 min frame size byte 0.00 817.00 max frame size byte 17747.00 17747.00 Peak/Mean frame - 13.88 3.83 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 5.7 CoV of bit rate - 0.46 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

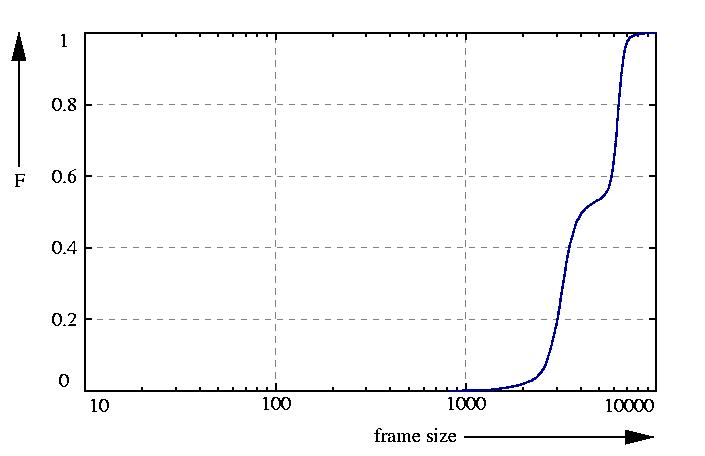

probability function F = sum p

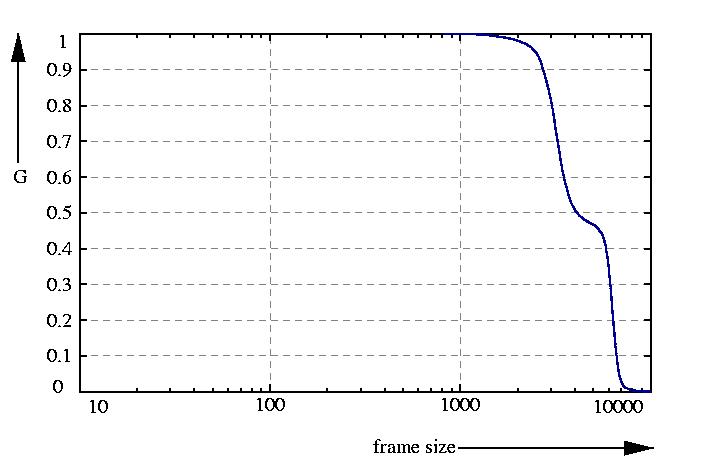

inverse probability function G = 1 - F

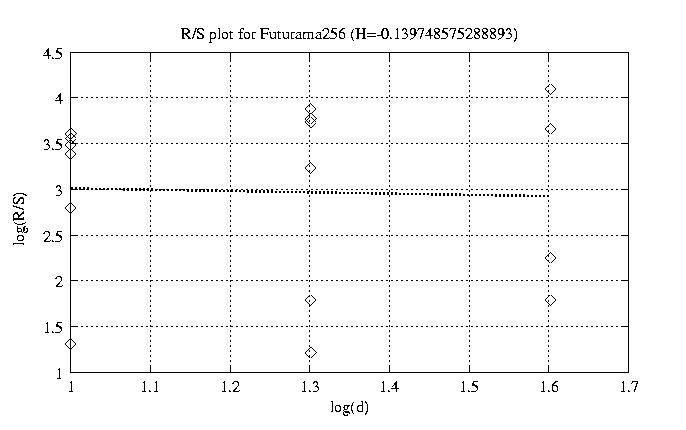

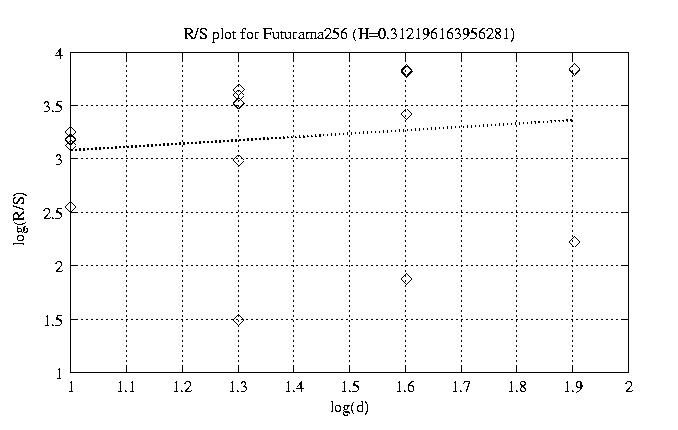

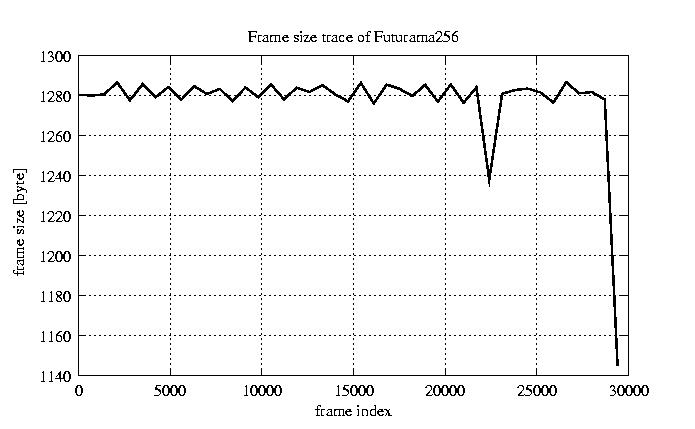

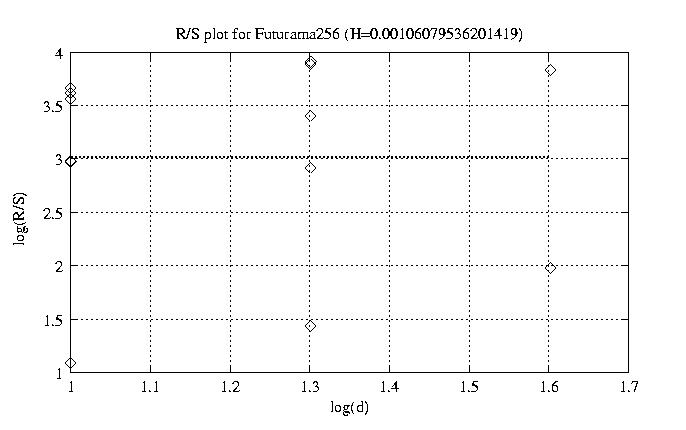

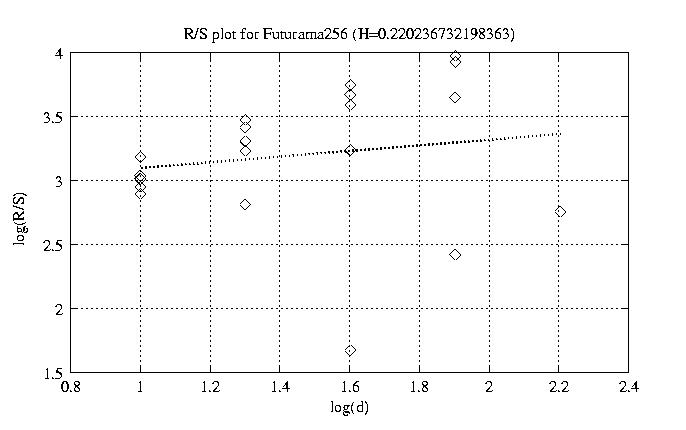

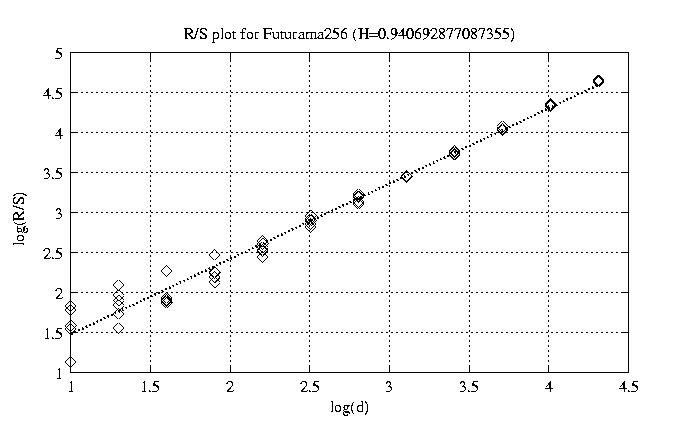

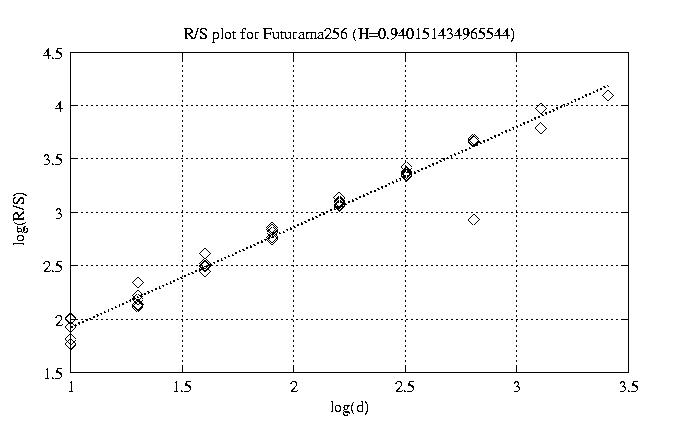

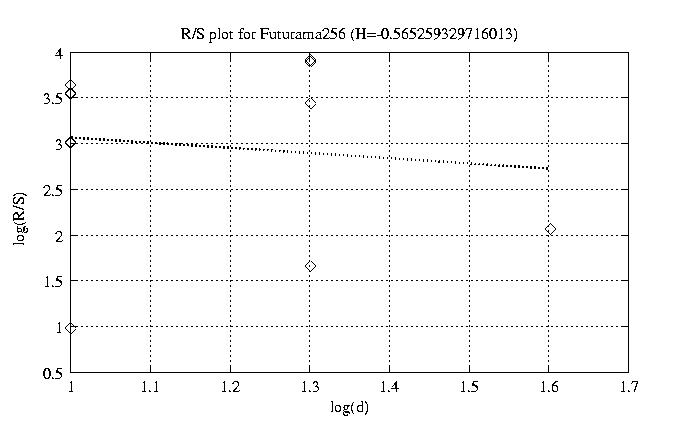

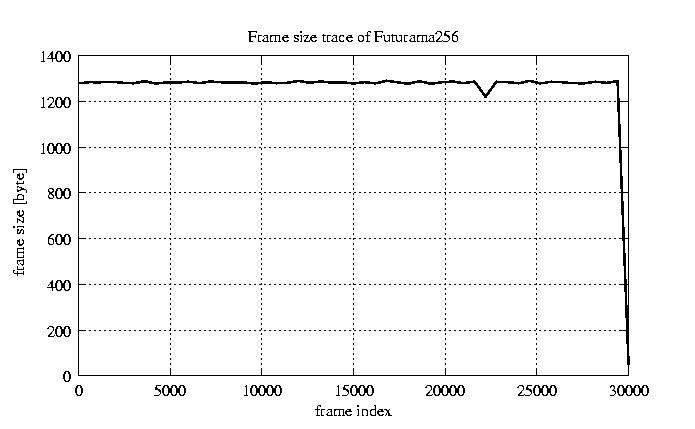

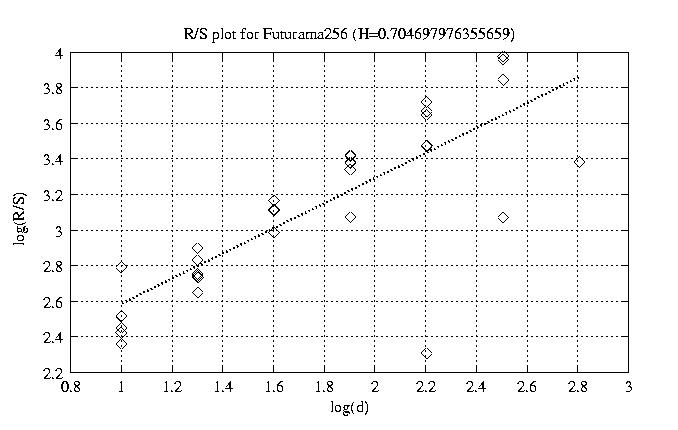

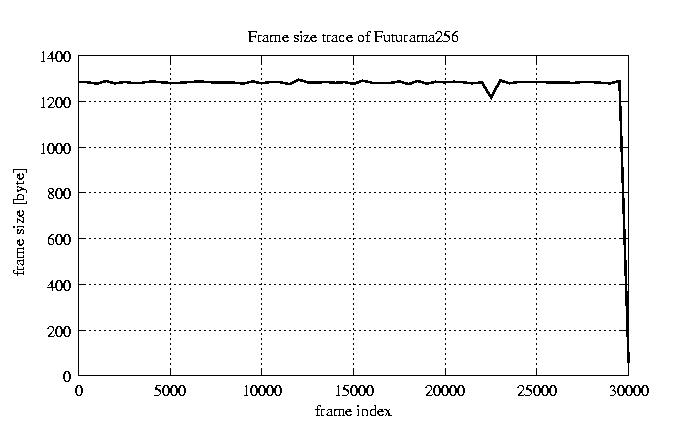

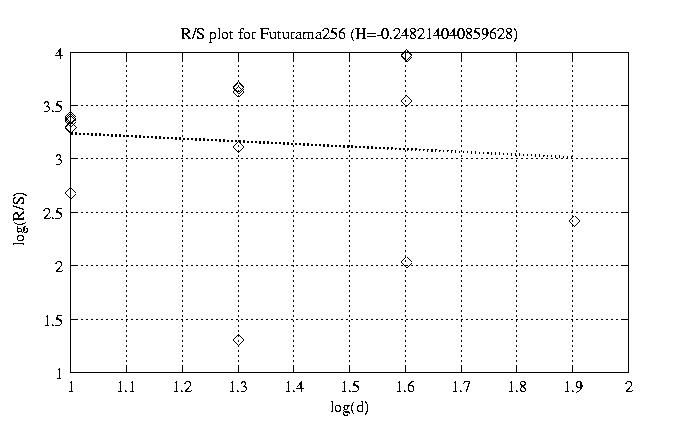

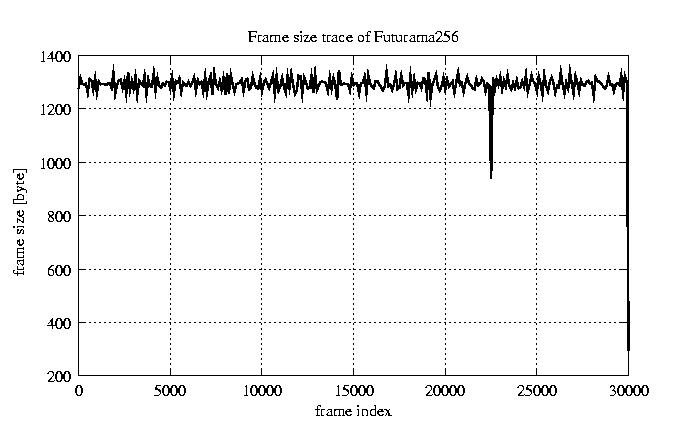

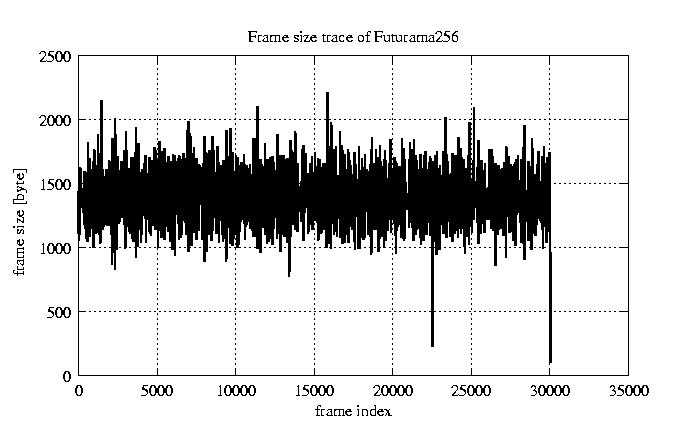

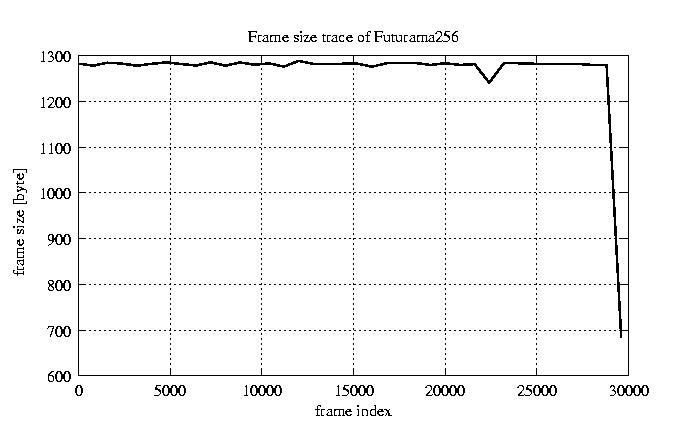

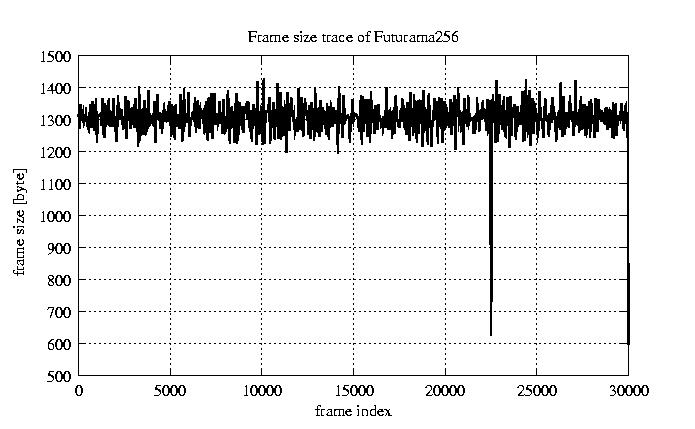

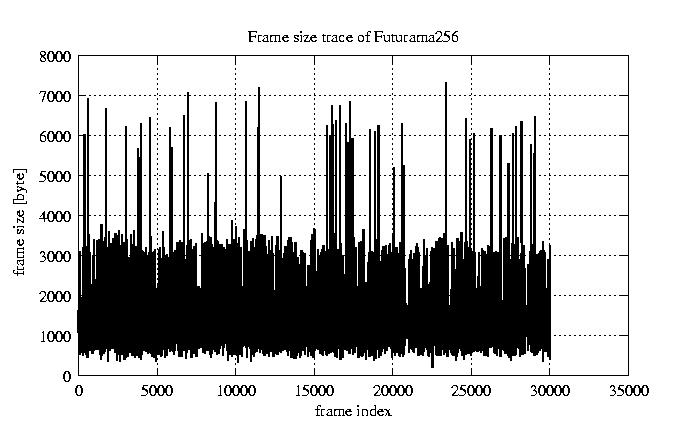

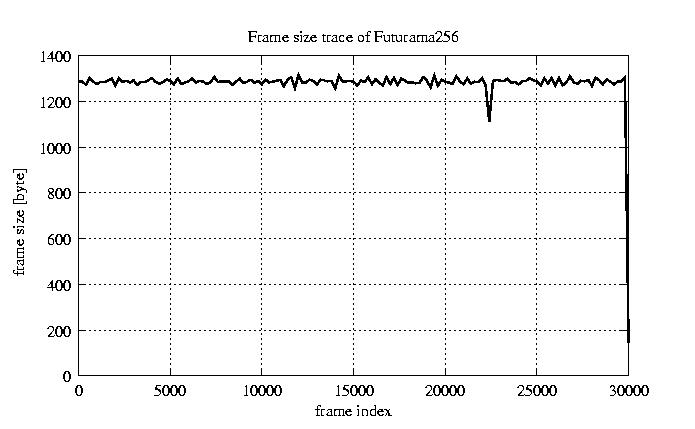

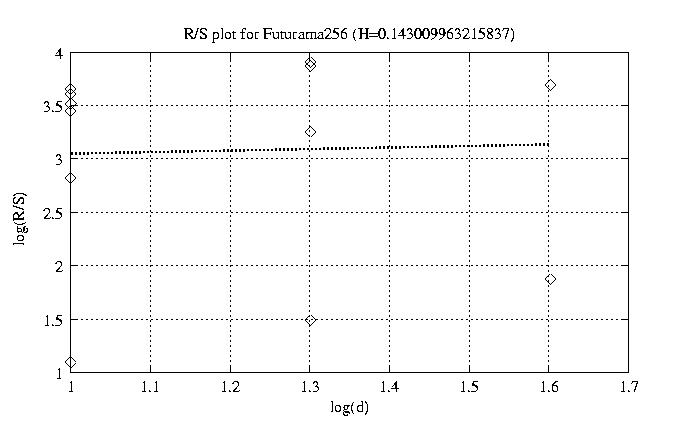

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.941 view view 12 0.940 view view 50 0.705 view view 100 0.478 view view 200 0.220 view view 300 0.312 view view 400 -0.248 view view 500 -0.140 view view 600 0.143 view view 700 0.001 view view 800 -0.565 view view

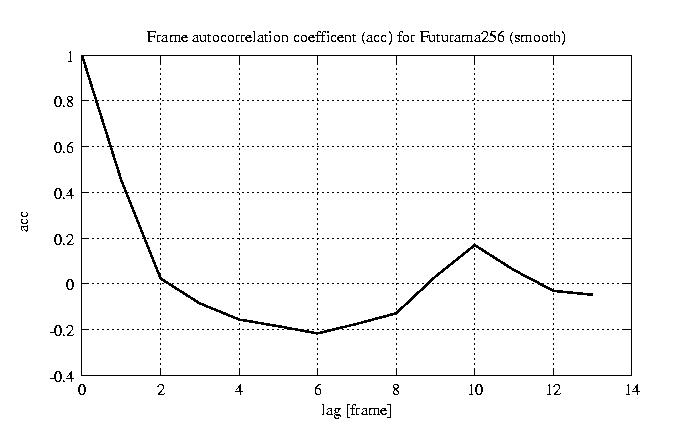

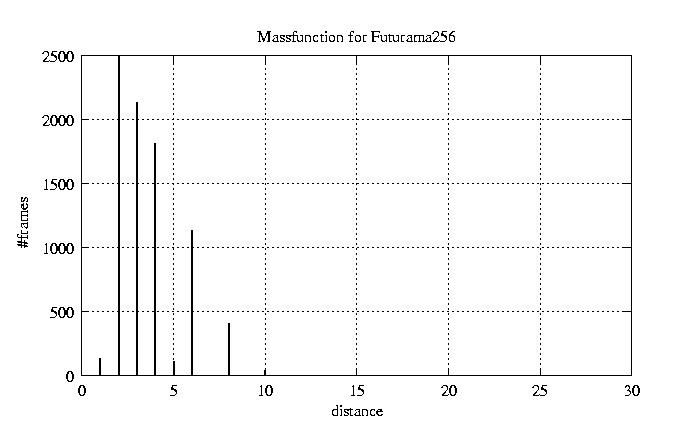

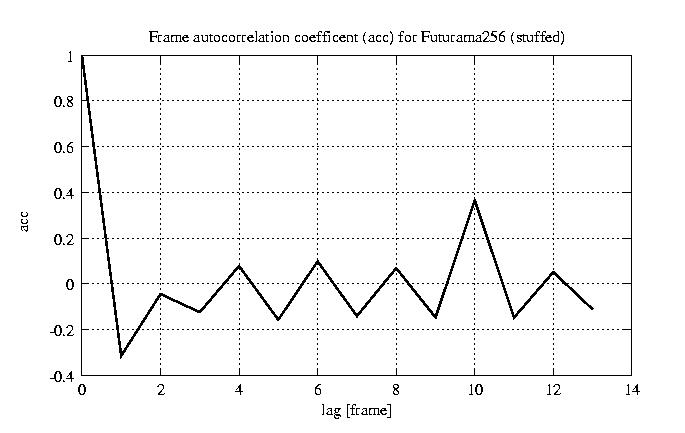

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
