MP4 - Die Hard III
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 30.85 File Size byte 1.1e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 1.2e+03 var frame size - 1.1e+06 CoV of frame size - 0.84 min frame size byte 26 max frame size byte 8161 Mean bit rate bit/sec 2.5e+05 Peak bit rate bit/sec 1.6e+06 Peak/Mean of bit rate - 6.62 GoP statistics # of GoPs - 7499 mean GoP size byte 1.5e+04 var GoP size - 8.4e+07 CoV of GoP size - 0.62 min GoP size byte 839 max GoP size byte 70490 Mean bit rate bit/sec 2.5e+05 Peak bit rate bit/sec 1.2e+06 Peak/Mean of bit rate - 4.77 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

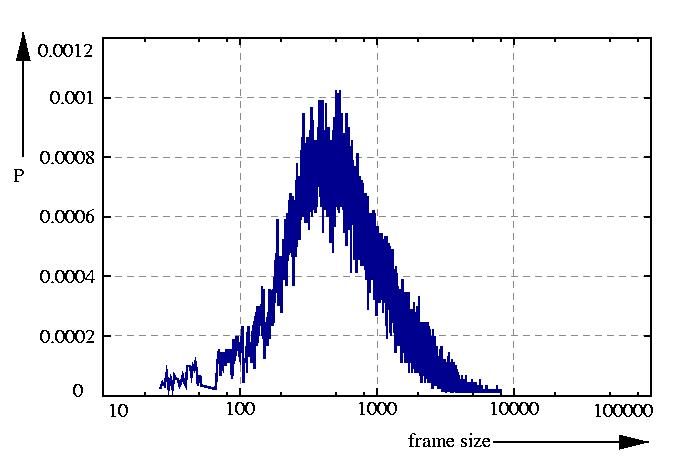

probability density function p

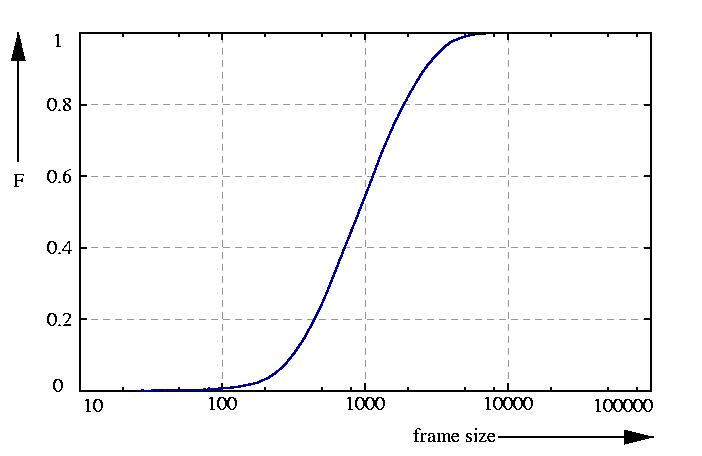

probability function F = sum p

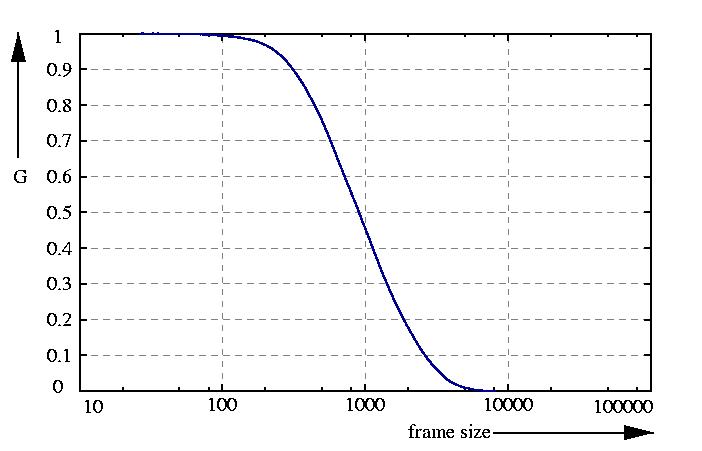

inverse probability function G = 1 - F

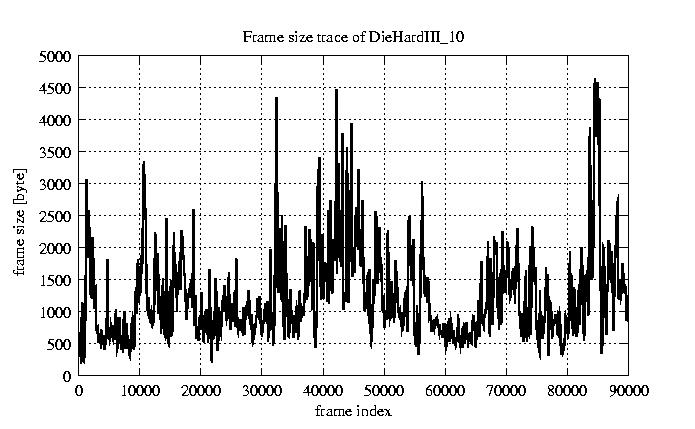

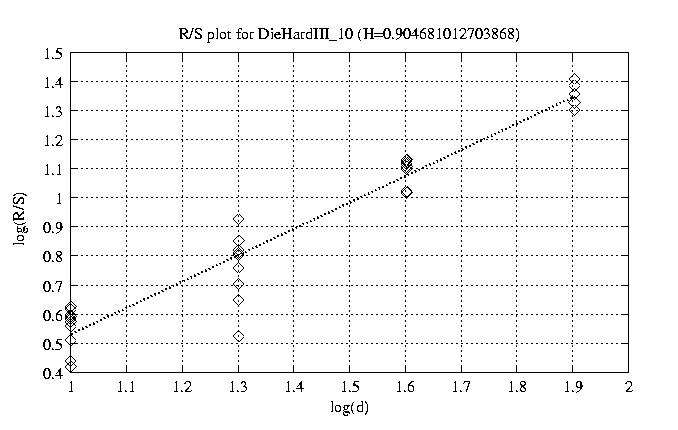

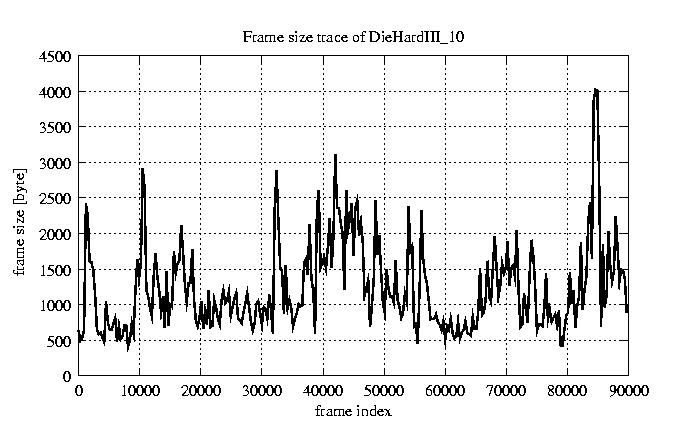

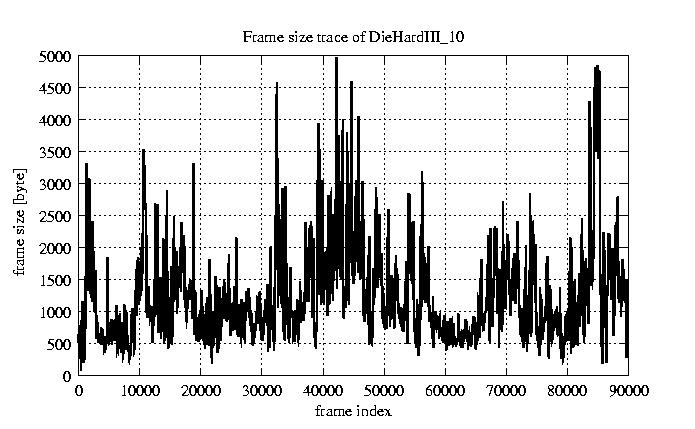

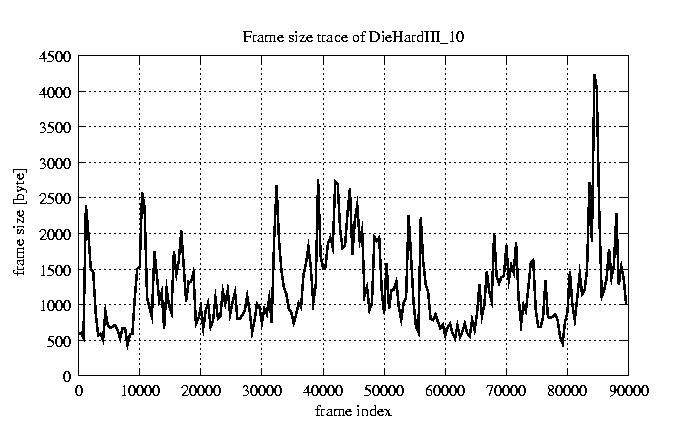

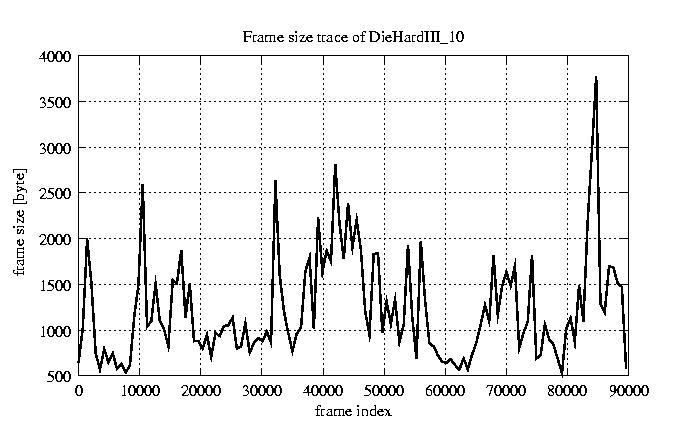

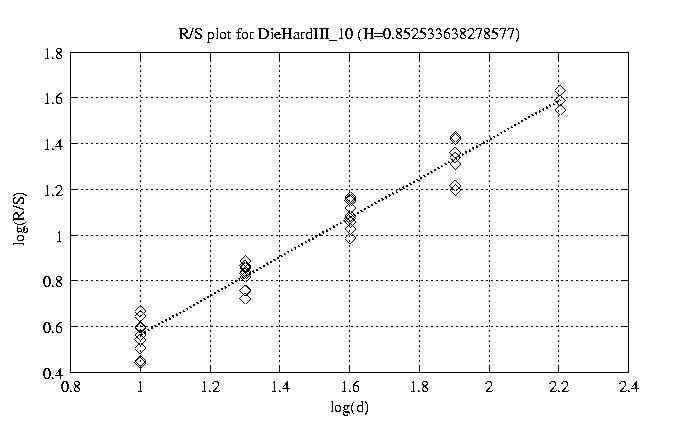

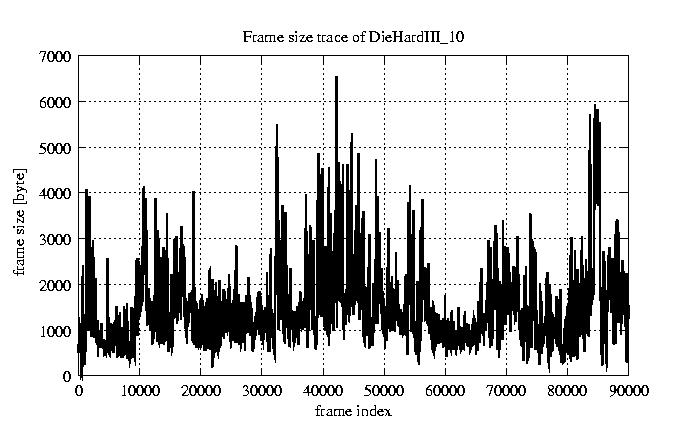

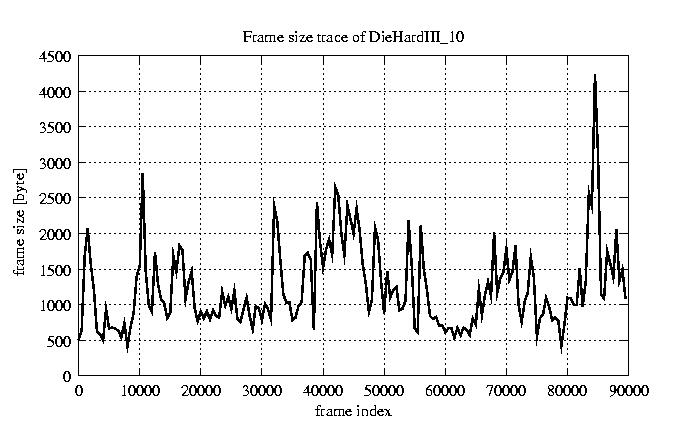

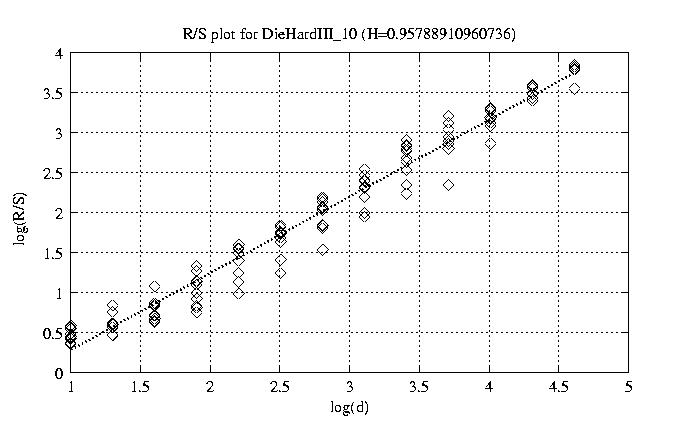

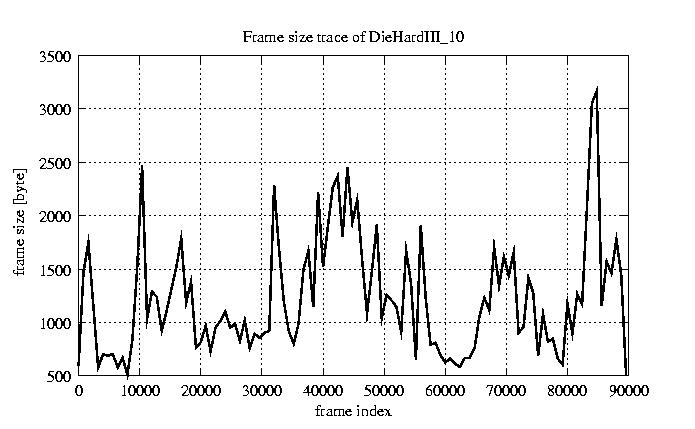

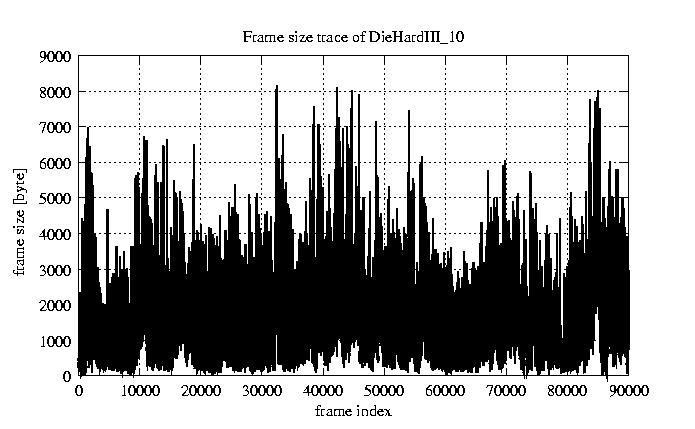

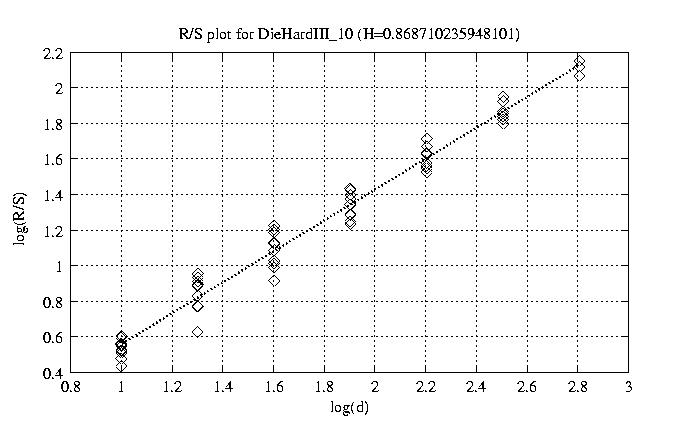

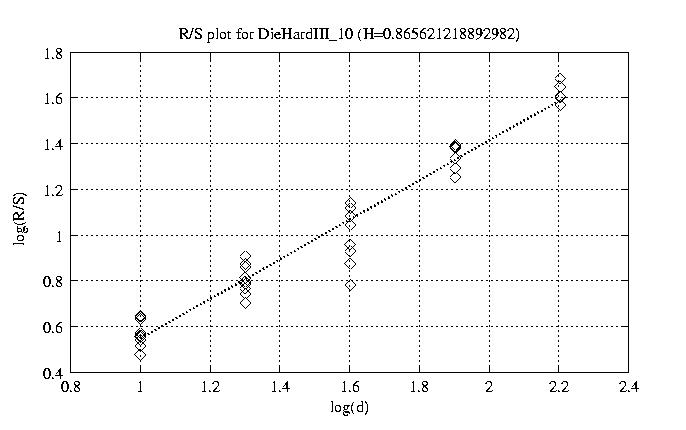

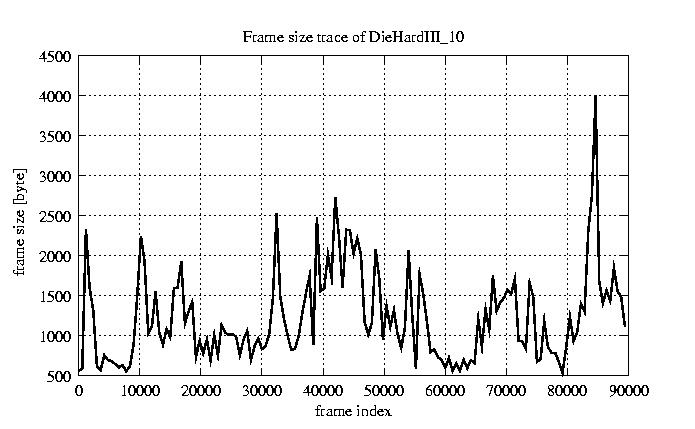

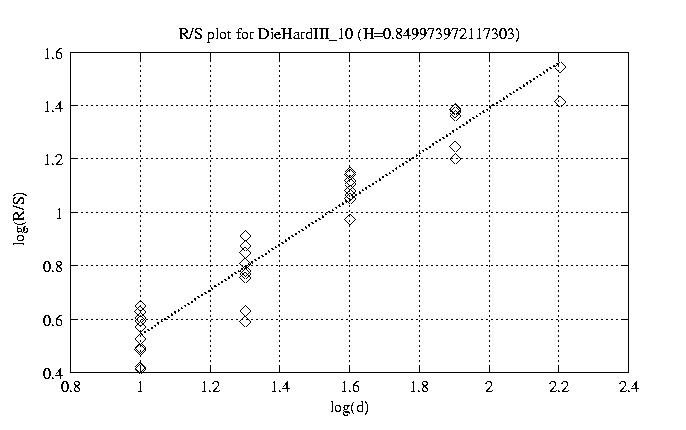

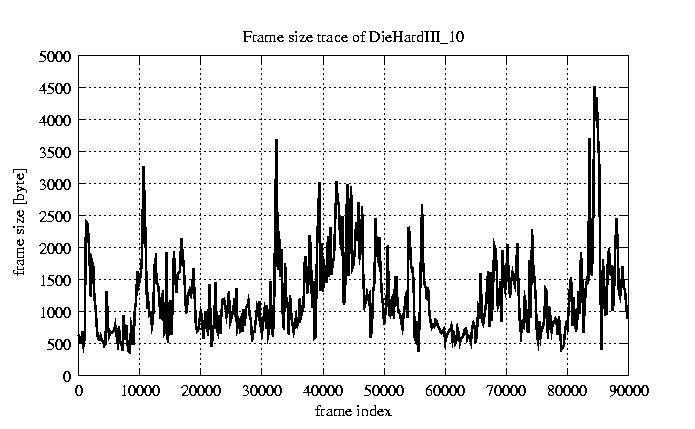

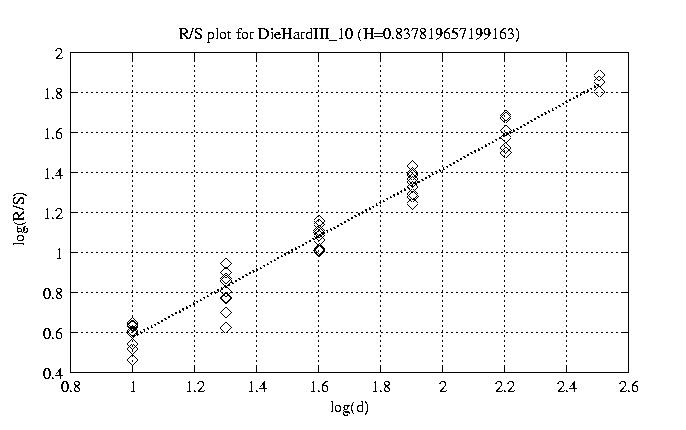

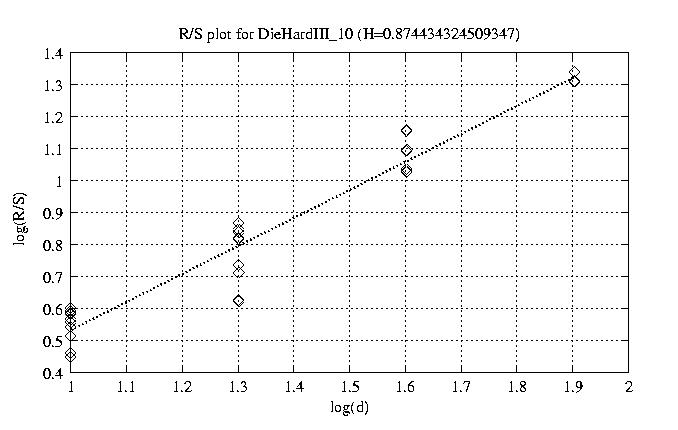

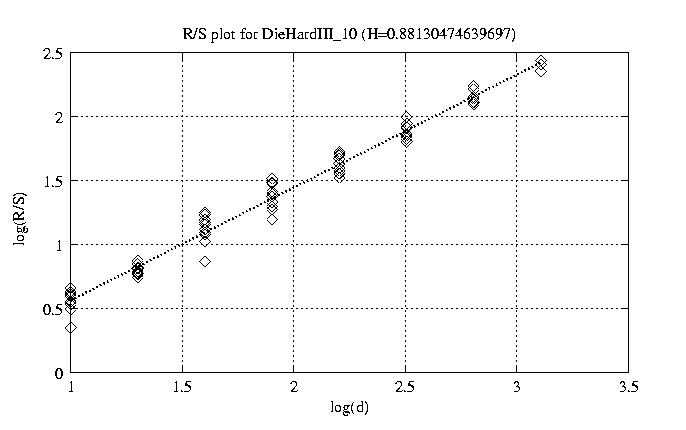

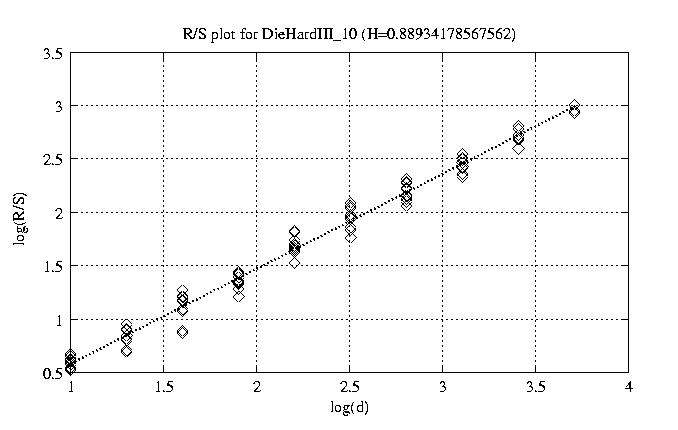

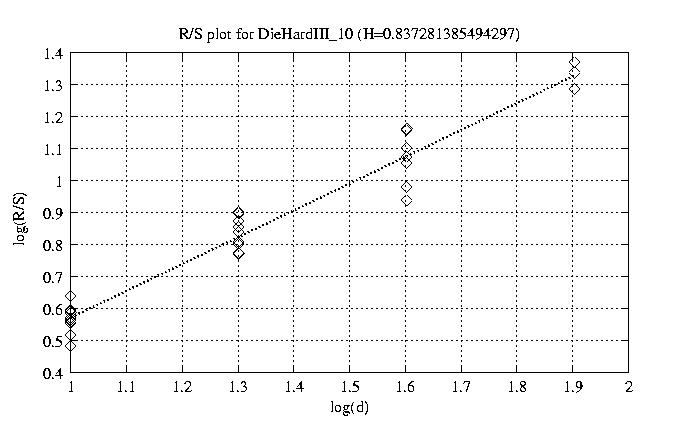

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.958 view view 12 0.889 view view 50 0.881 view view 100 0.869 view view 200 0.838 view view 300 0.866 view view 400 0.853 view view 500 0.850 view view 600 0.905 view view 700 0.874 view view 800 0.837 view view

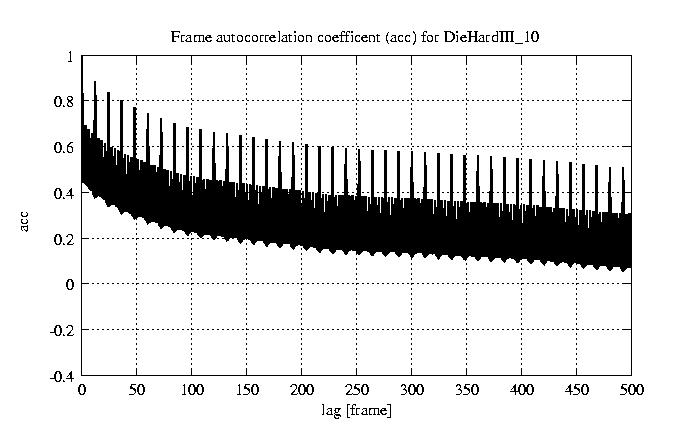

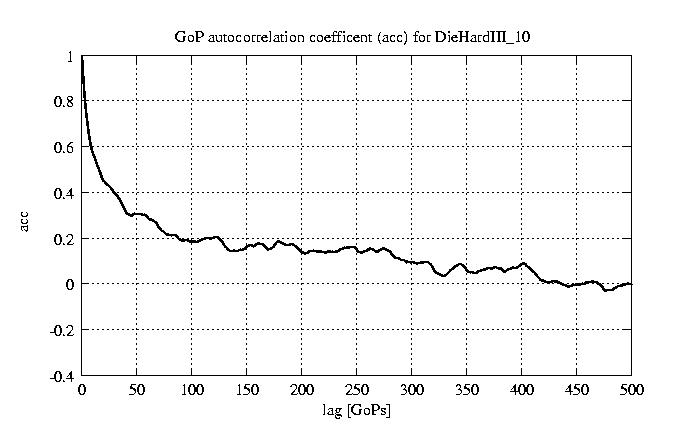

other plots	autocorrelation function of frames autocorrelation function of GoPs
