H263 - Parking Lot Cam
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 28.34 28.34 File size byte 1.2e+08 1.2e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 45061.00 mean frame size byte 1341.35 2681.57 var frame size - 1923627.11 251714.61 CoV of frame size - 1.03 0.19 min frame size byte 0.00 19.00 max frame size byte 19680.00 19680.00 Peak/Mean frame - 14.67 7.34 Mean bit rate bit/sec 2.7e+05 Peak bit rate bit/sec 2e+06 Peak/Mean of bit rate - 7.3 CoV of bit rate - 0.19 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

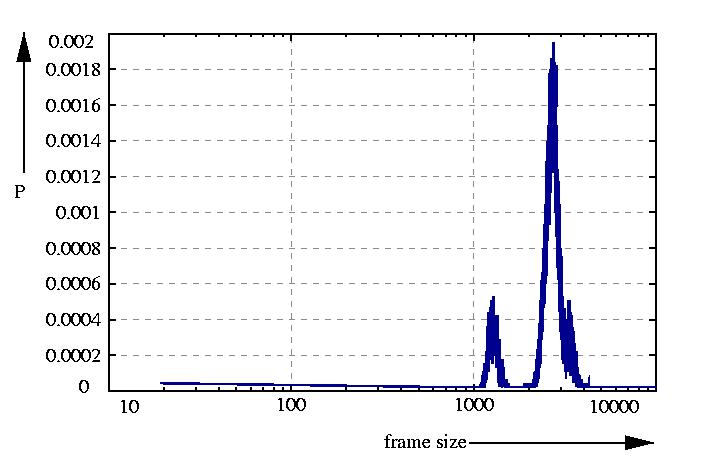

probability density function p

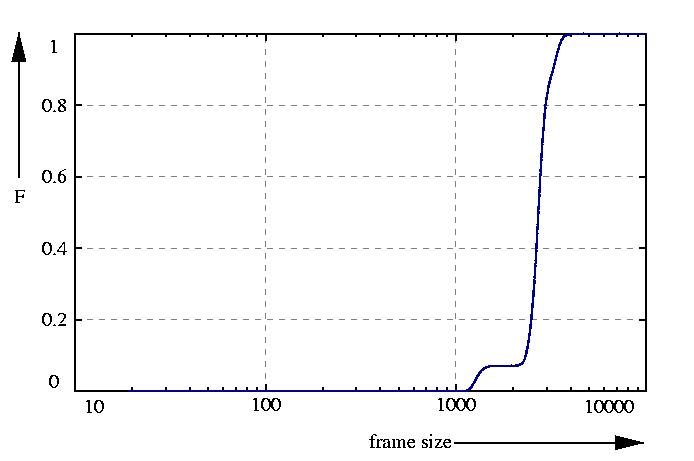

probability function F = sum p

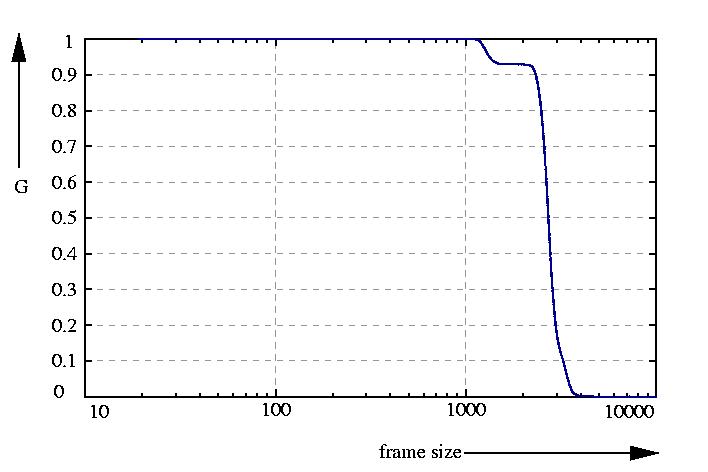

inverse probability function G = 1 - F

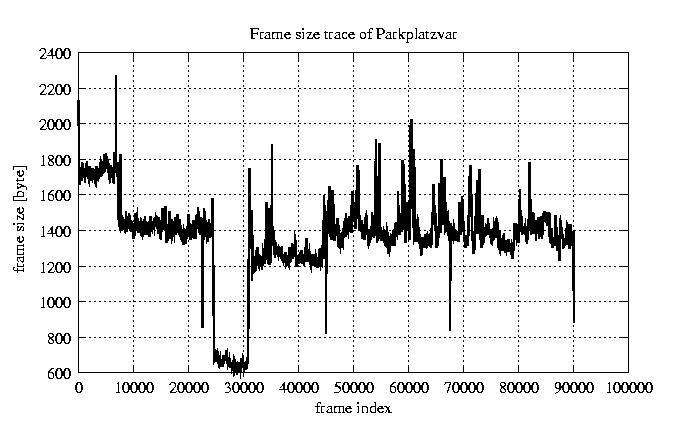

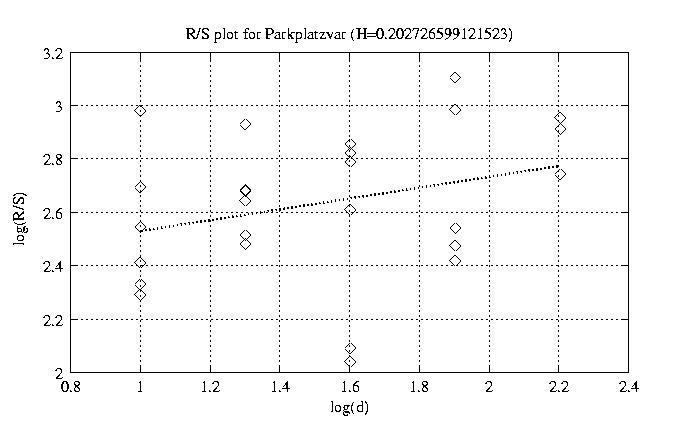

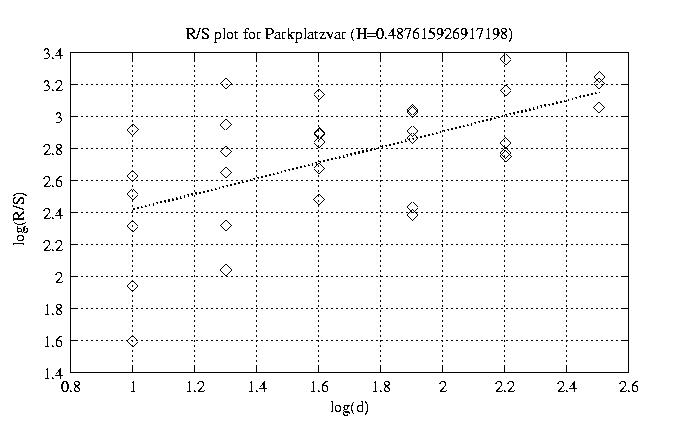

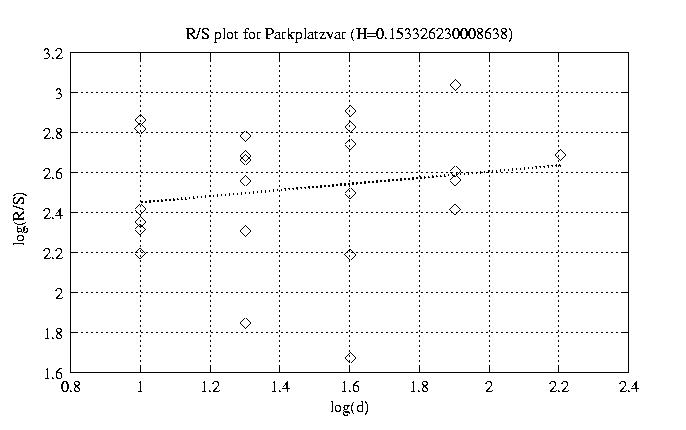

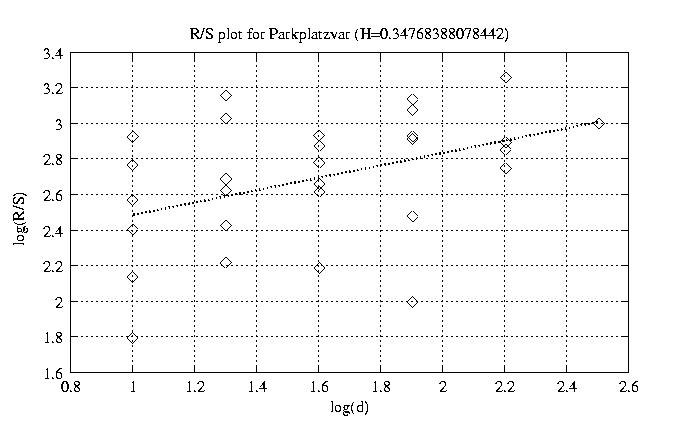

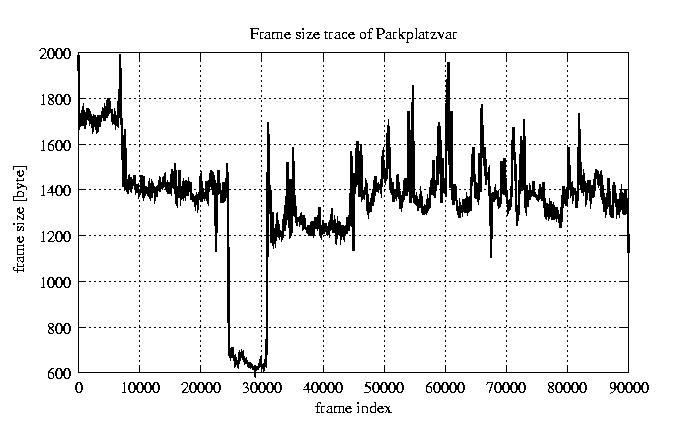

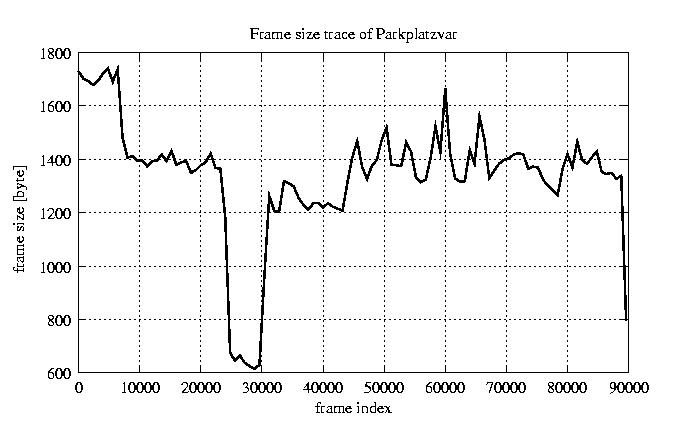

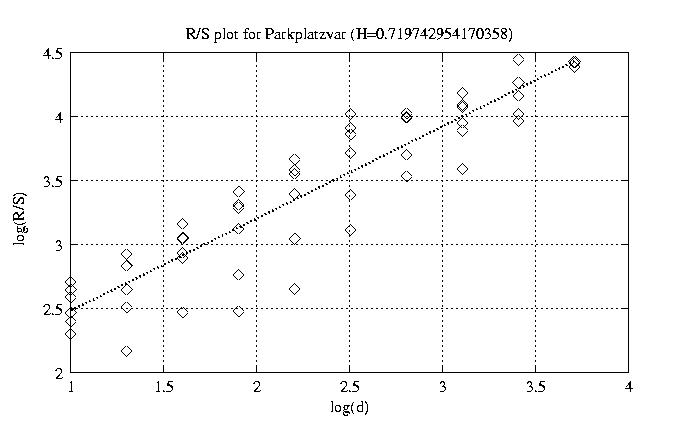

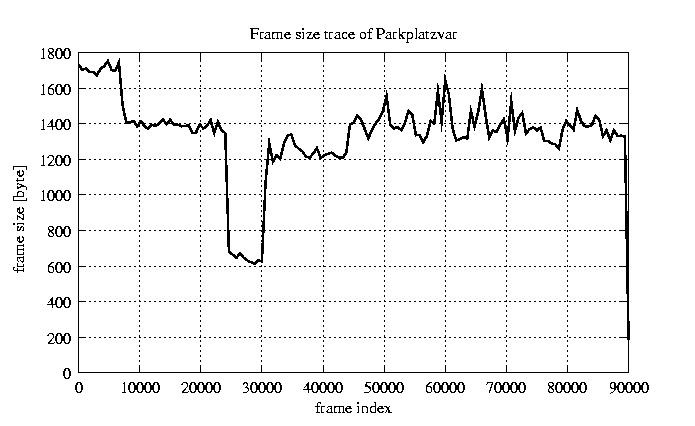

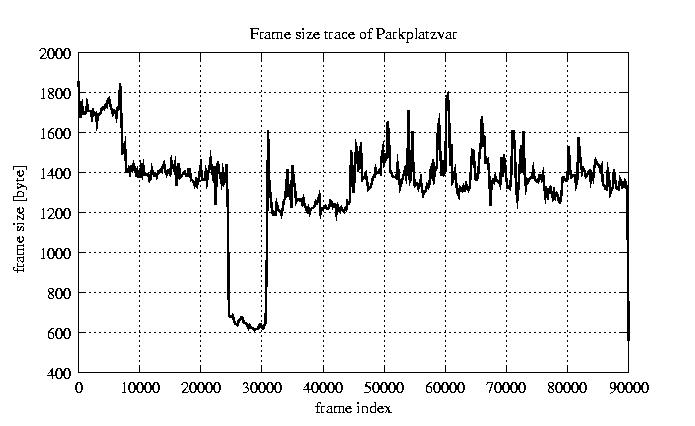

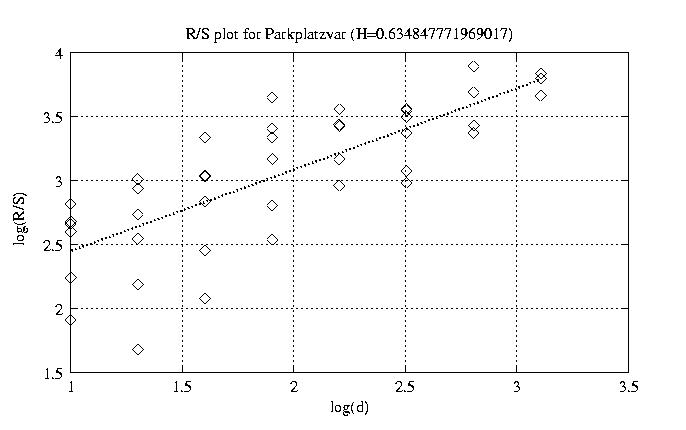

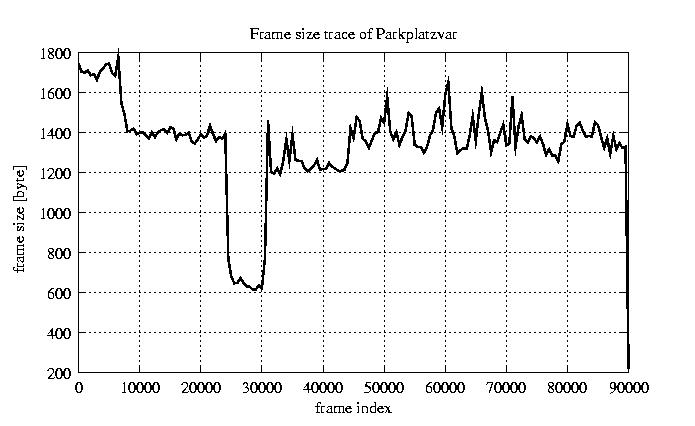

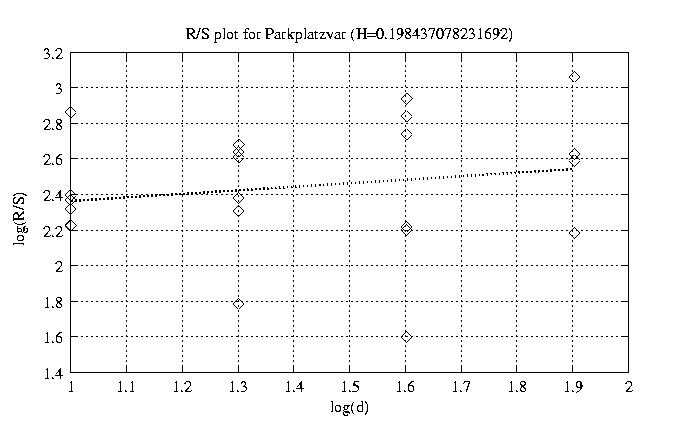

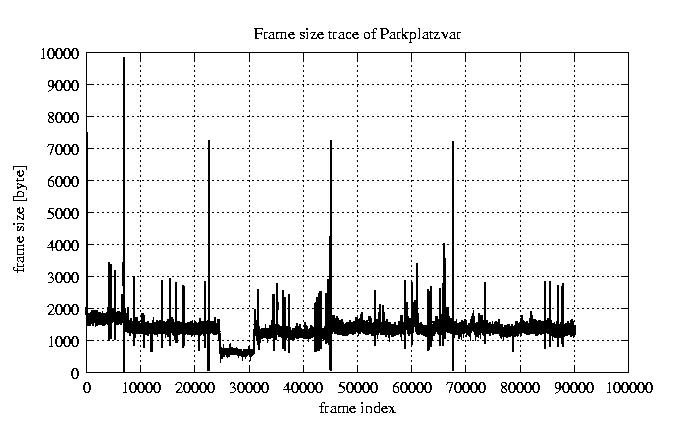

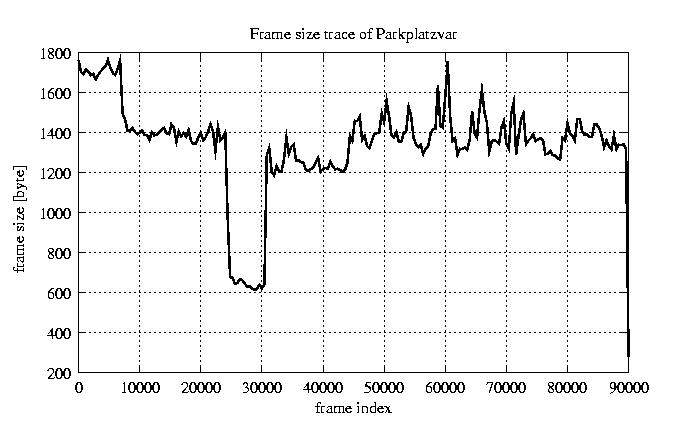

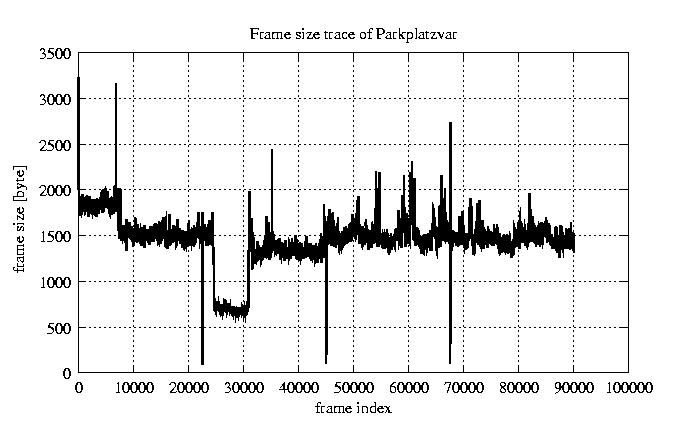

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.609 view view 12 0.720 view view 50 0.635 view view 100 0.624 view view 200 0.488 view view 300 0.348 view view 400 0.203 view view 500 0.241 view view 600 0.153 view view 700 0.198 view view 800 0.173 view view

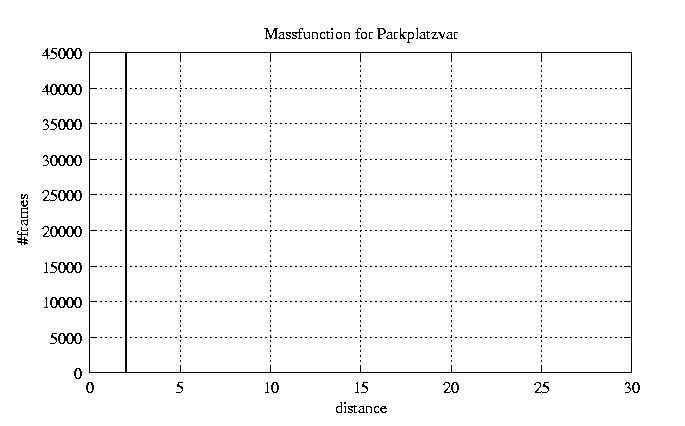

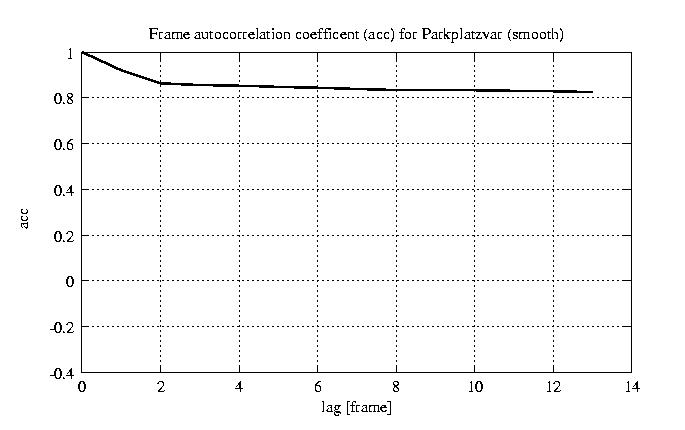

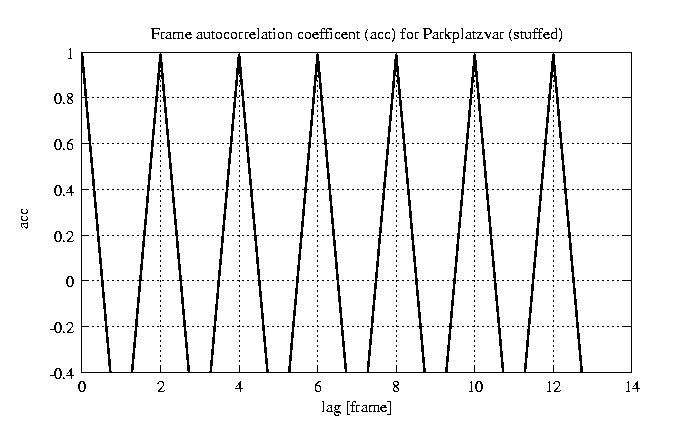

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
