H263 - ARD Talk
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 8.6e+07 8.6e+07 Video run time msec 2.7e+06 2.7e+06 2.7e+06 # of Frames - 67557.00 17067.00 mean frame size byte 1278.89 5062.28 var frame size - 5589937.68 2974104.07 CoV of frame size - 1.85 0.34 min frame size byte 0.00 636.00 max frame size byte 10330.00 10330.00 Peak/Mean frame - 8.08 2.04 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 5.8 CoV of bit rate - 0.43 max inter frame space frames 1.00 31.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

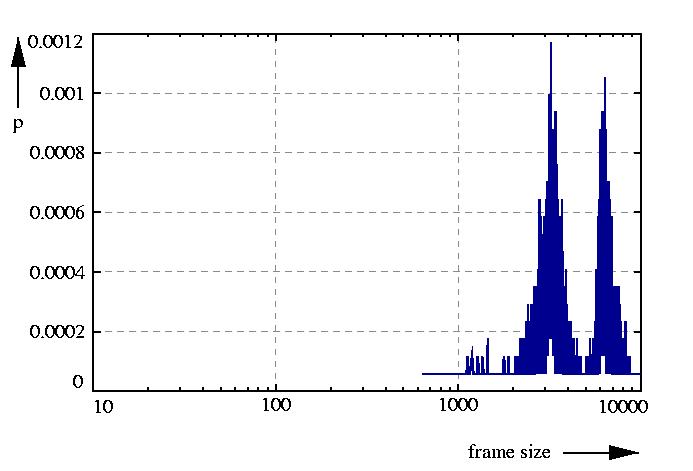

probability density function p

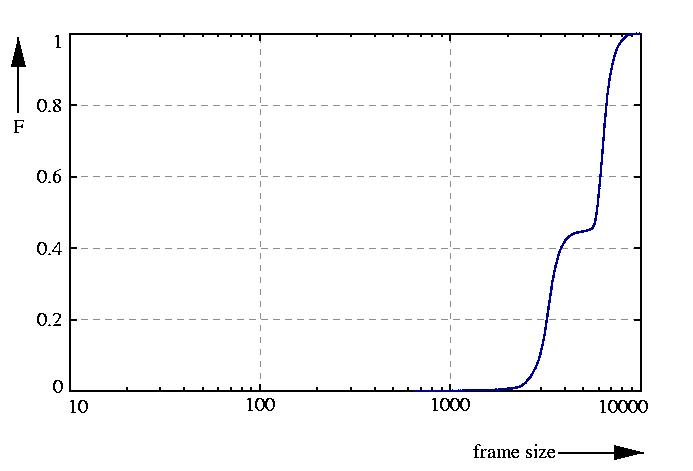

probability function F = sum p

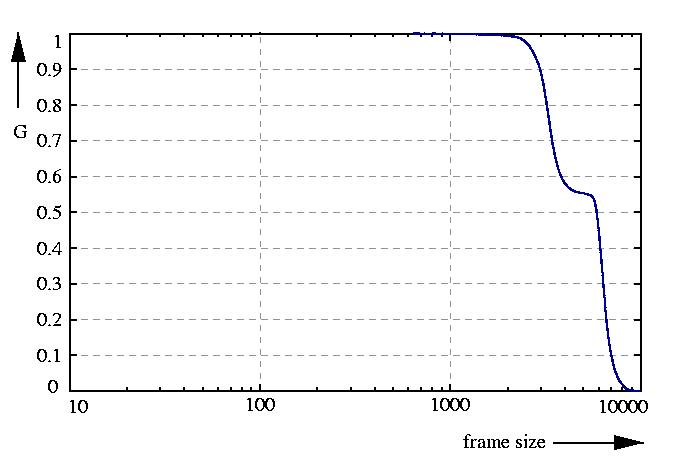

inverse probability function G = 1 - F

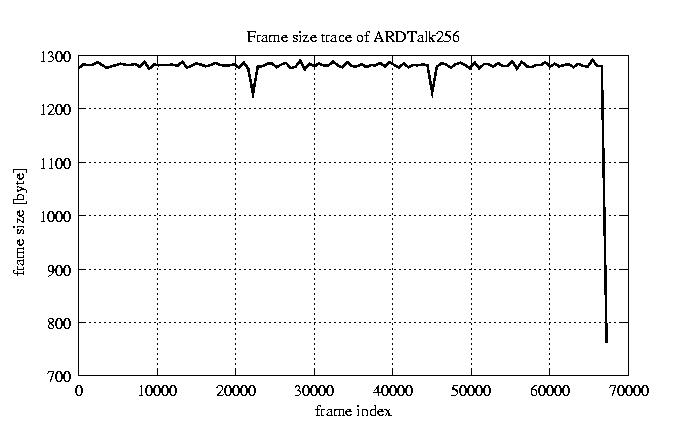

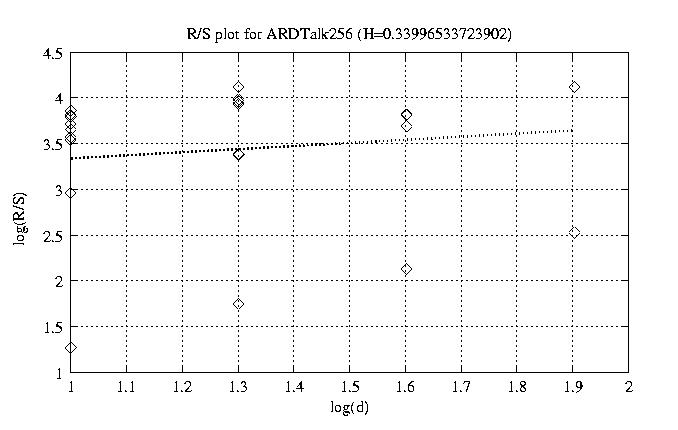

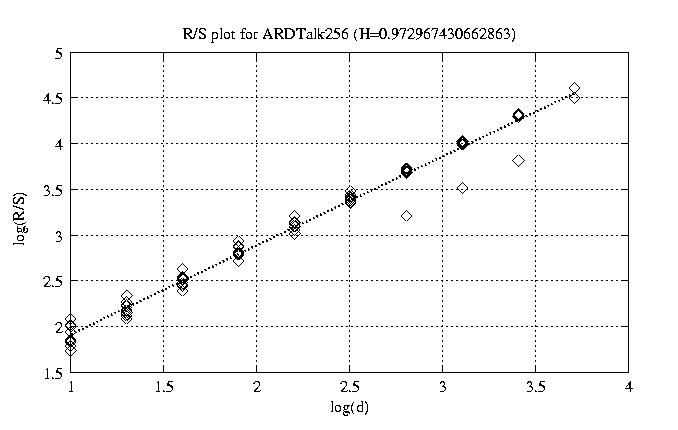

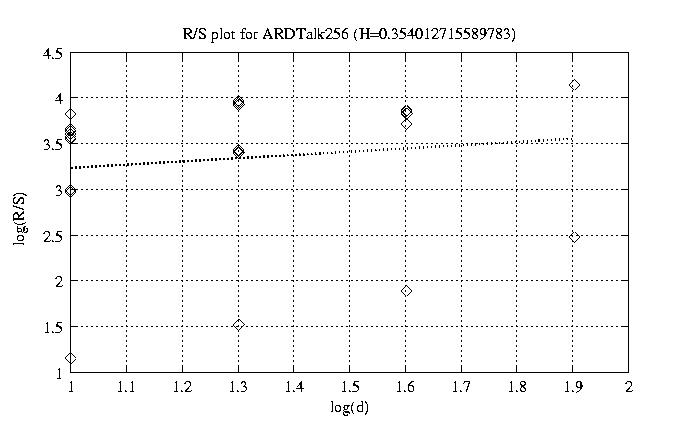

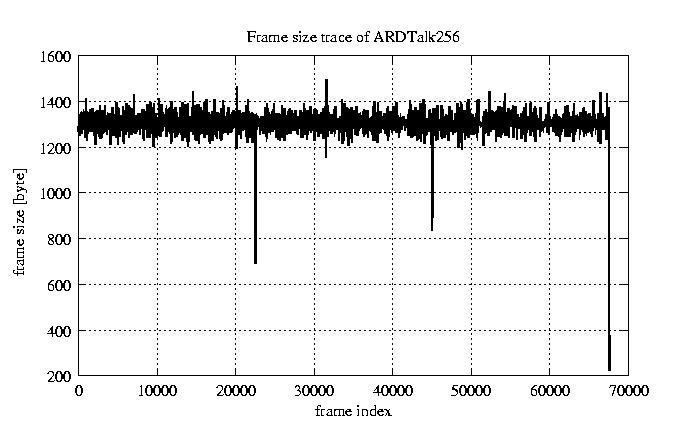

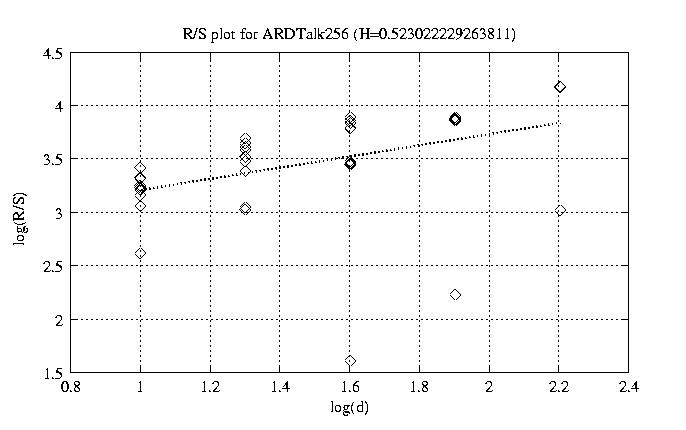

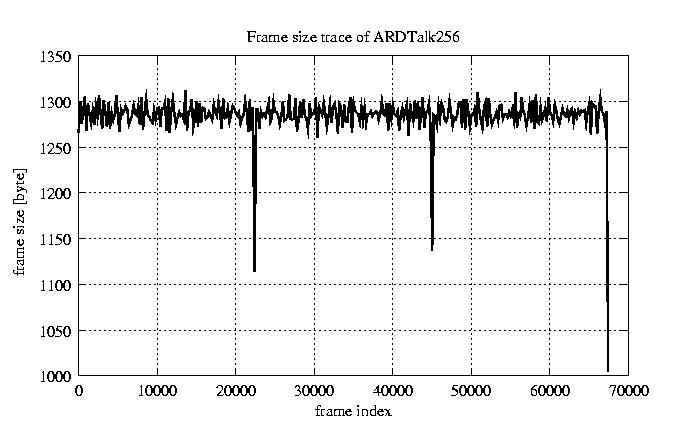

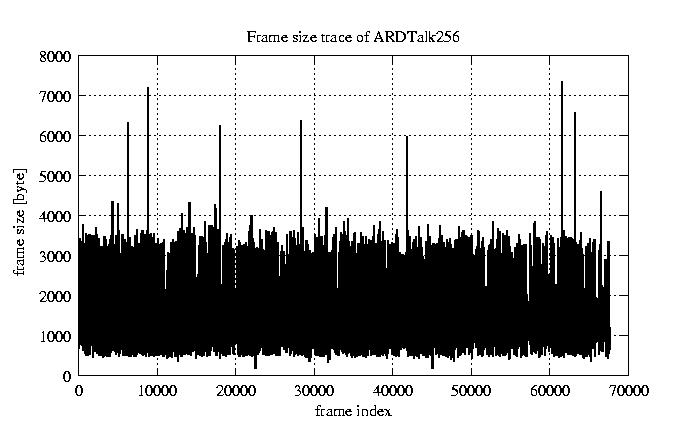

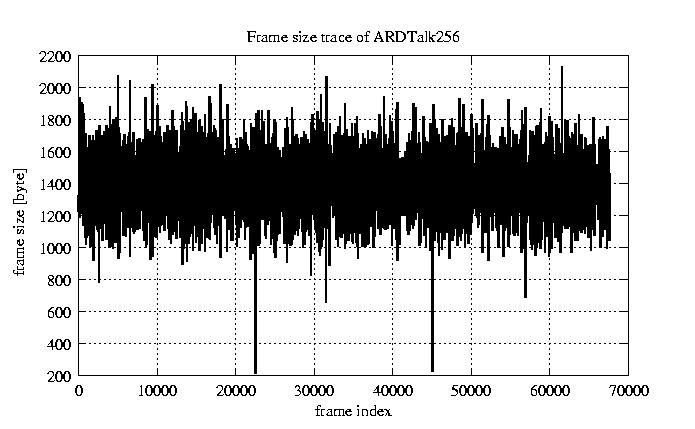

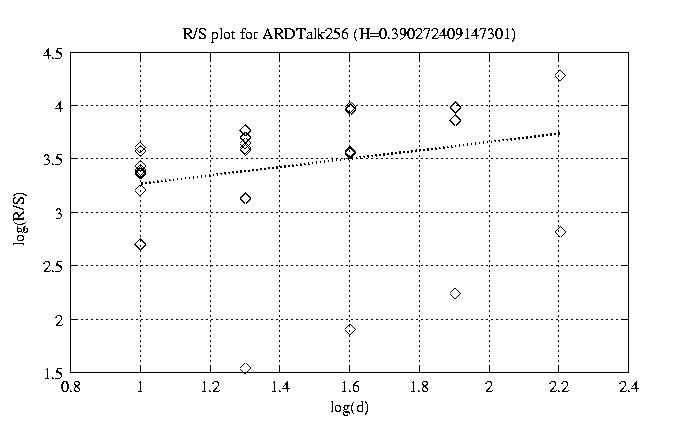

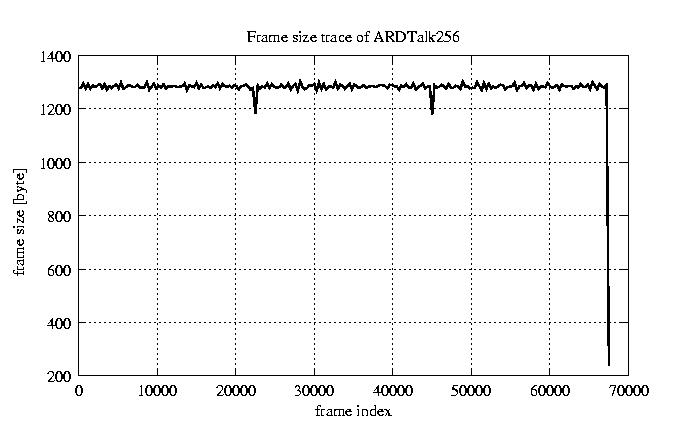

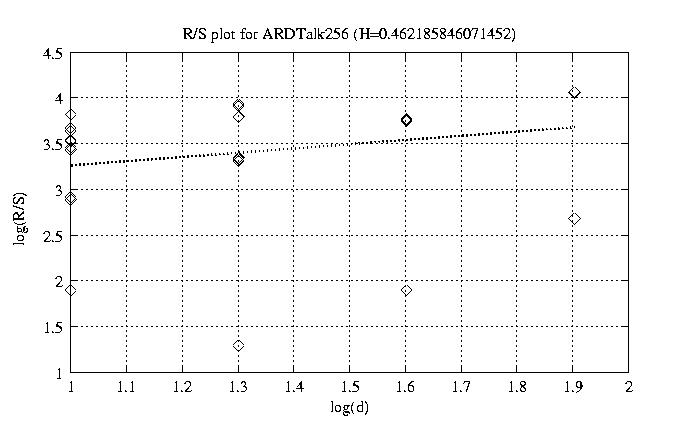

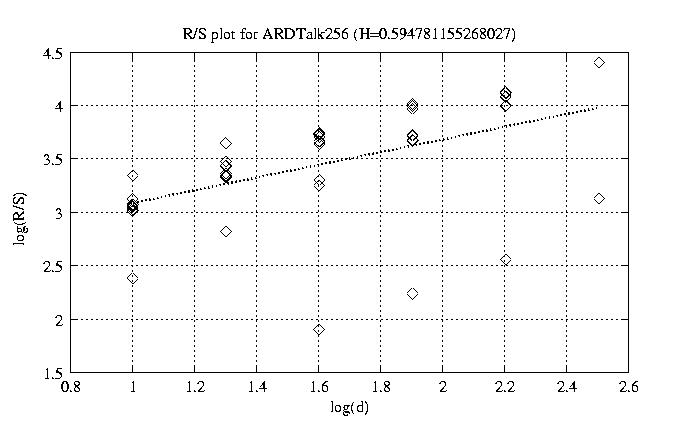

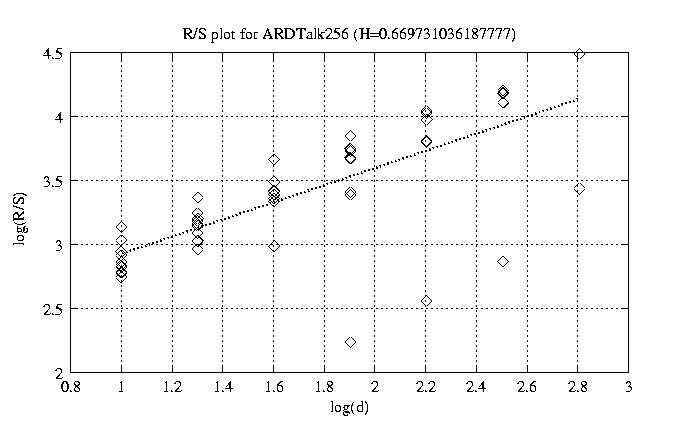

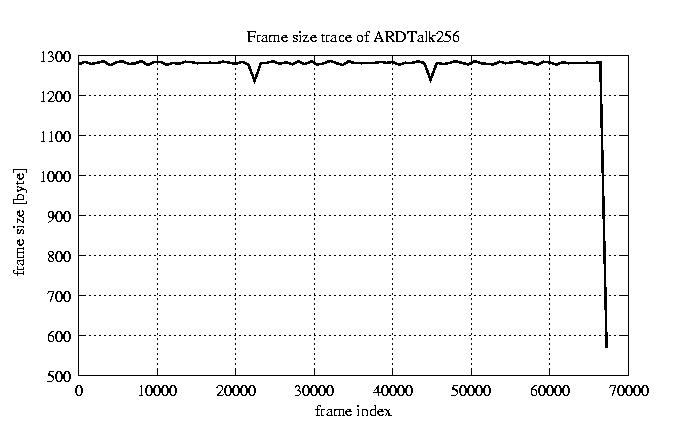

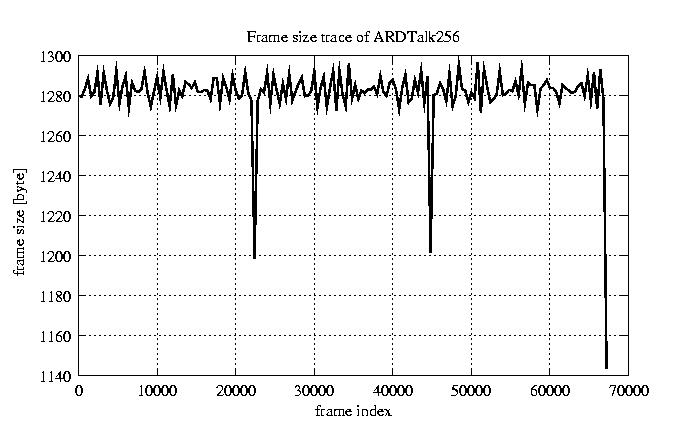

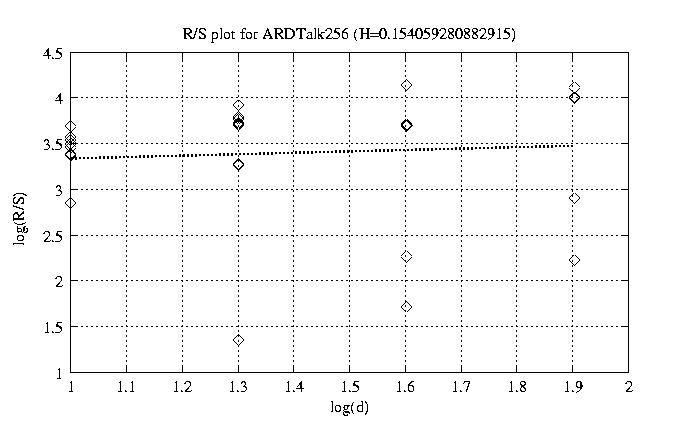

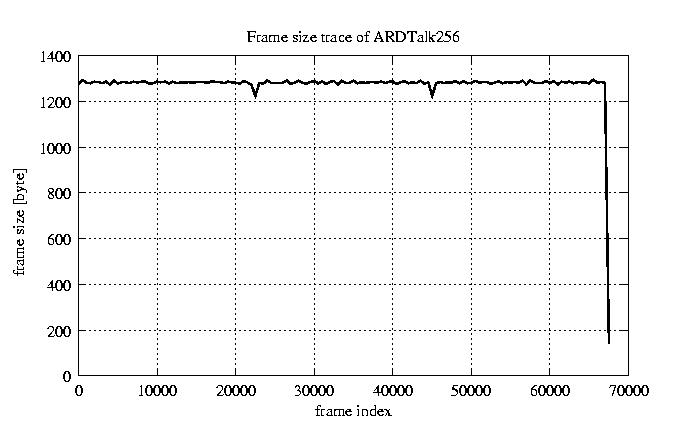

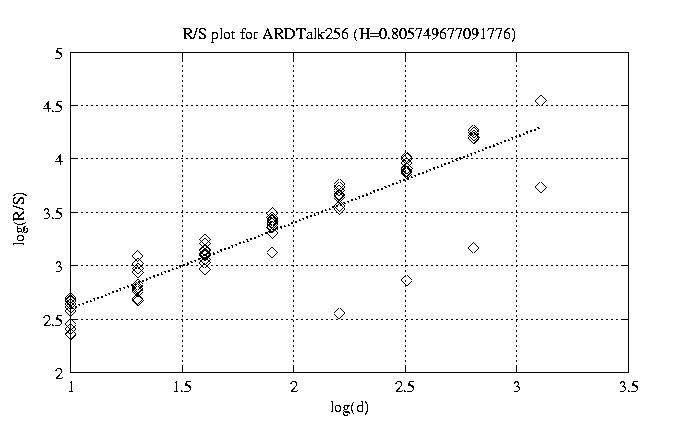

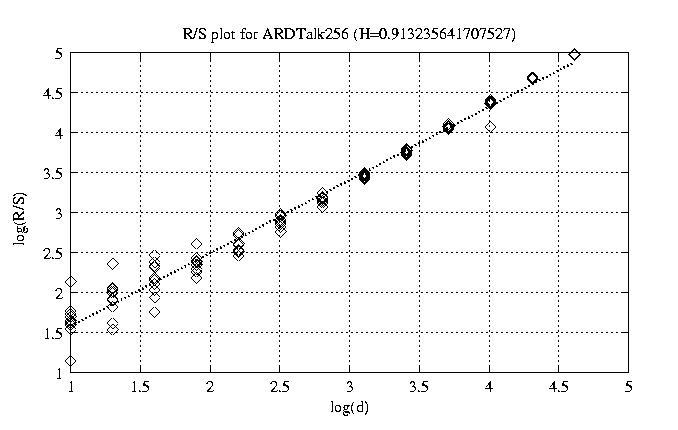

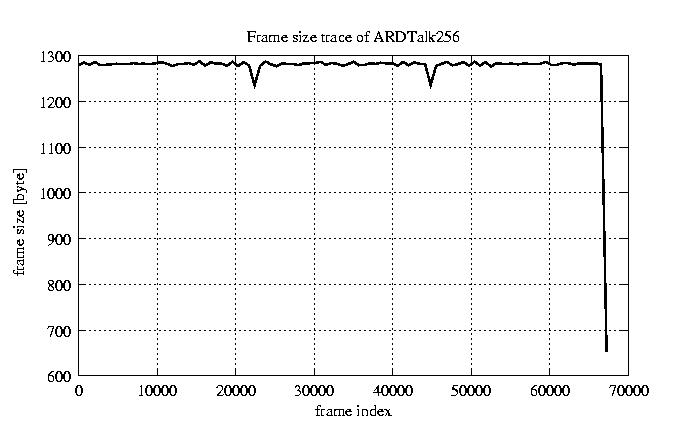

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.913 view view 12 0.973 view view 50 0.806 view view 100 0.670 view view 200 0.595 view view 300 0.523 view view 400 0.390 view view 500 0.154 view view 600 0.462 view view 700 0.340 view view 800 0.354 view view

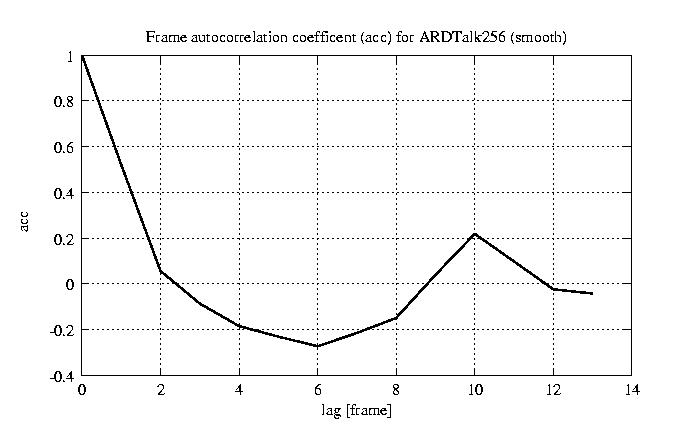

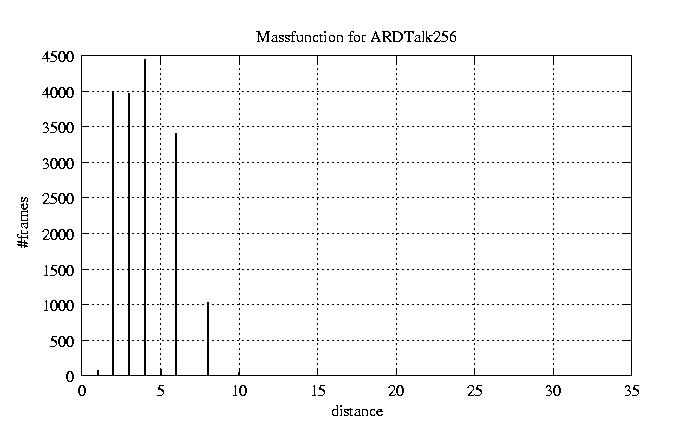

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
