MP4 - The Firm
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 90.00 File Size byte 3.8e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 4.2e+02 var frame size - 2.7e+05 CoV of frame size - 1.23 min frame size byte 27 max frame size byte 4738 Mean bit rate bit/sec 8.4e+04 Peak bit rate bit/sec 9.5e+05 Peak/Mean of bit rate - 11.22 GoP statistics # of GoPs - 7499 mean GoP size byte 5.1e+03 var GoP size - 1.1e+07 CoV of GoP size - 0.65 min GoP size byte 1018 max GoP size byte 29554 Mean bit rate bit/sec 8.4e+04 Peak bit rate bit/sec 4.9e+05 Peak/Mean of bit rate - 5.83 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

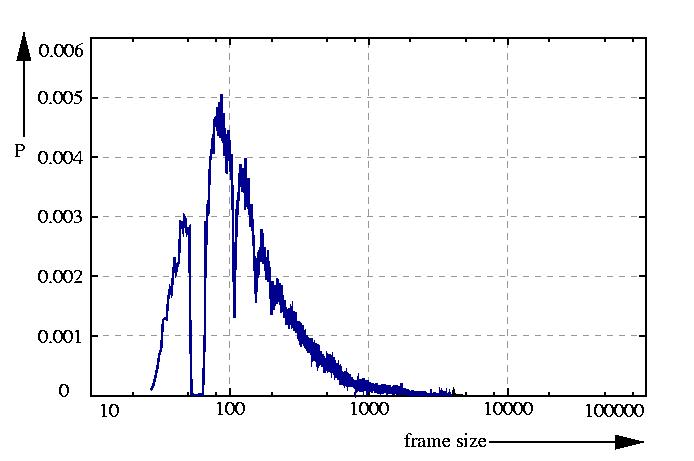

probability density function p

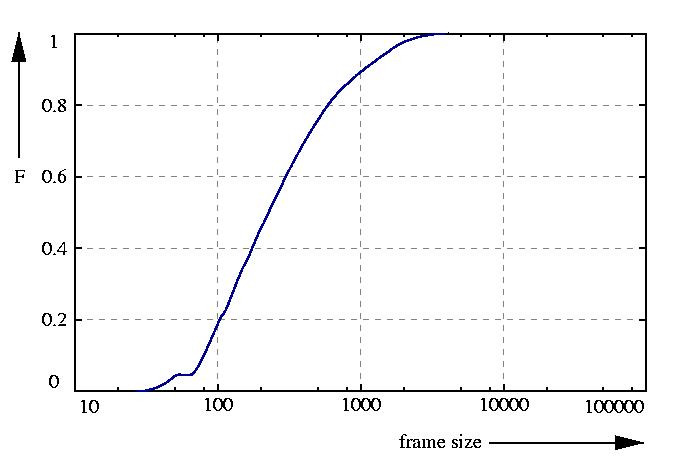

probability function F = sum p

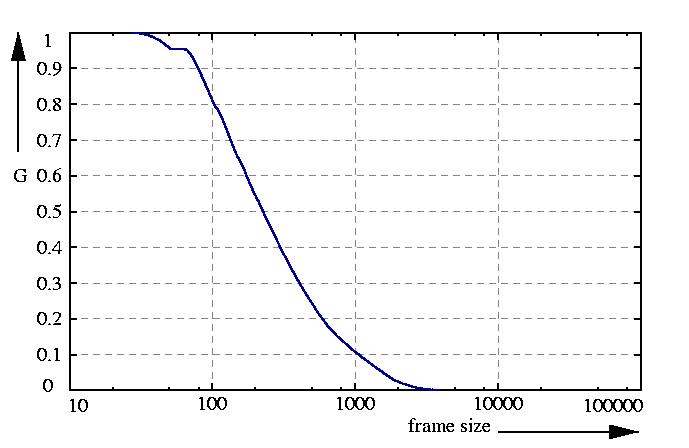

inverse probability function G = 1 - F

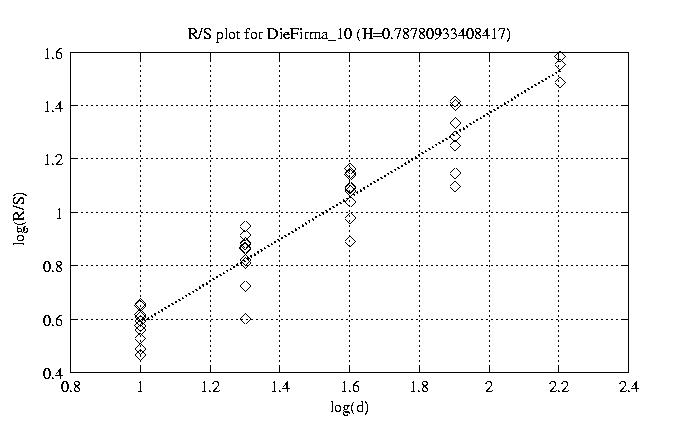

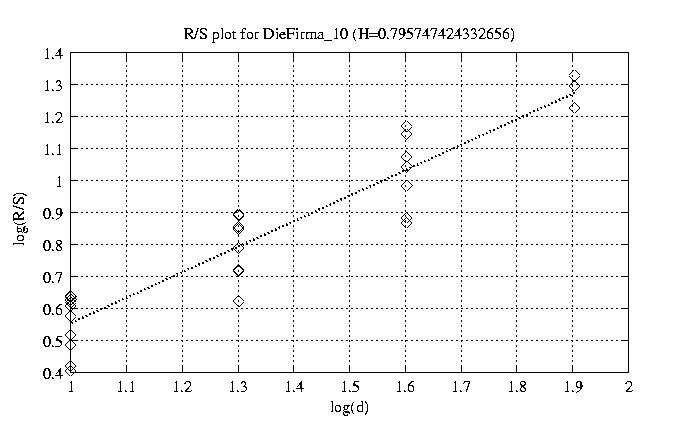

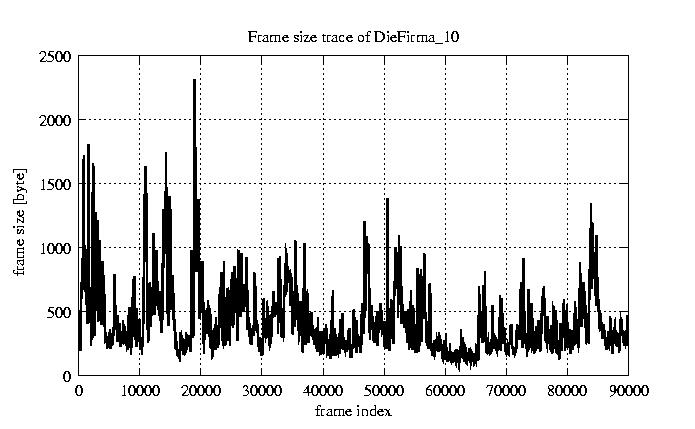

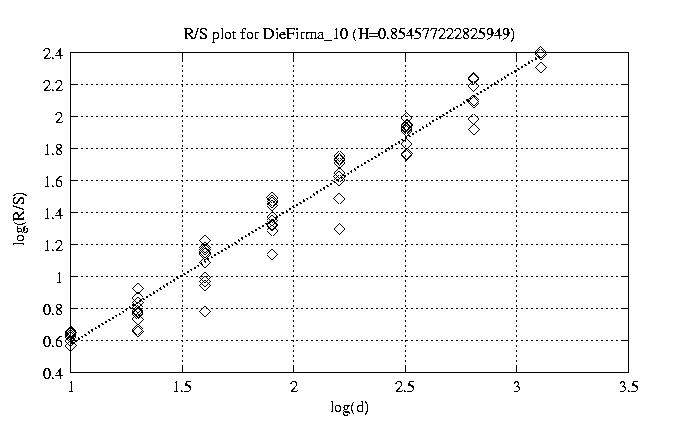

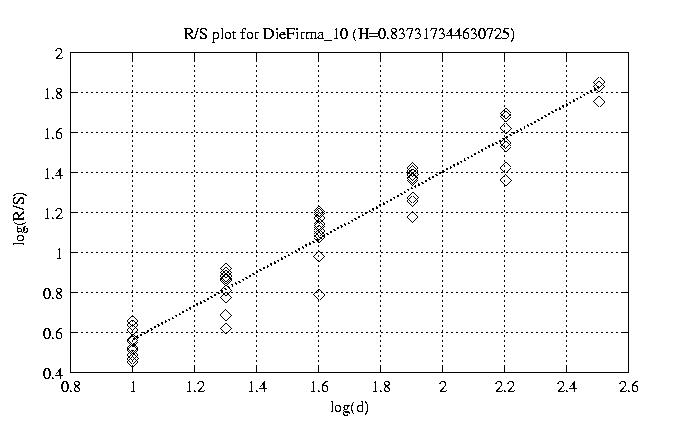

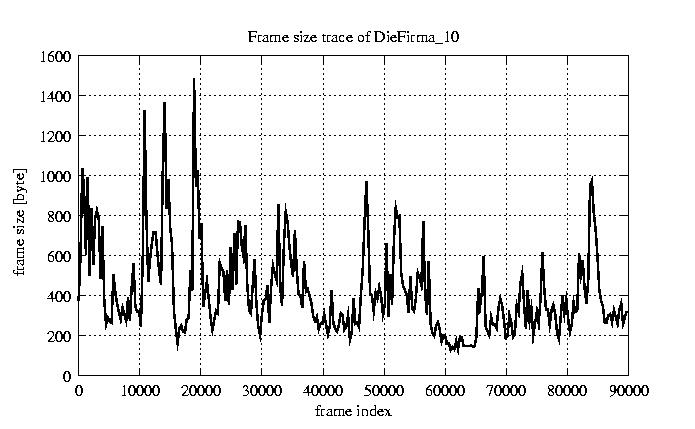

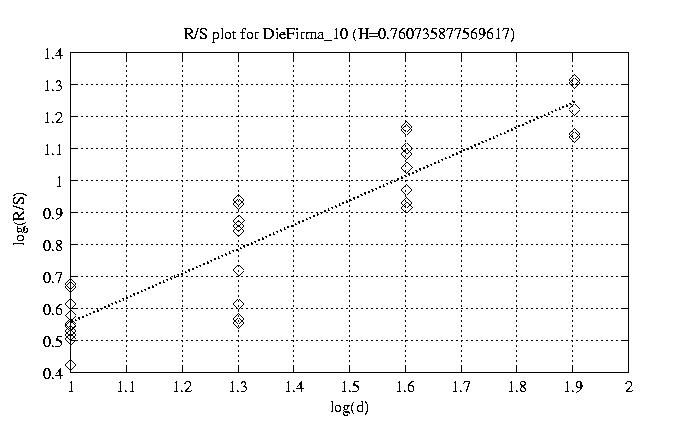

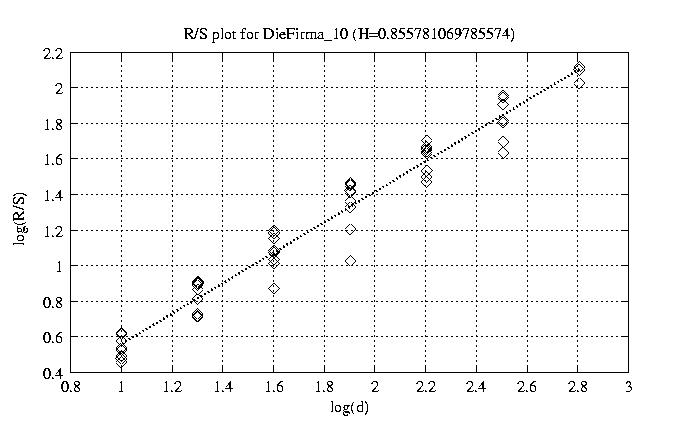

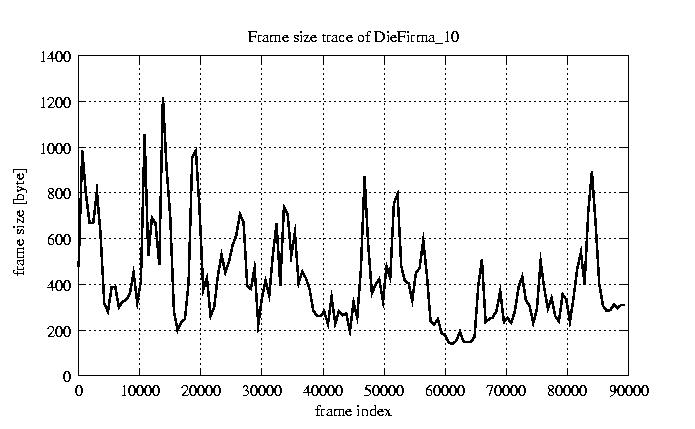

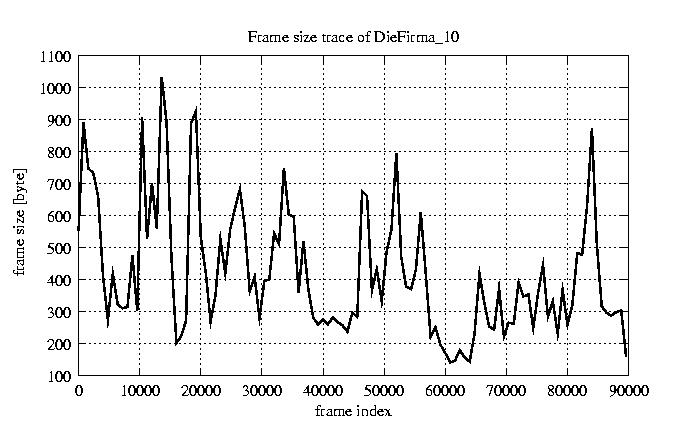

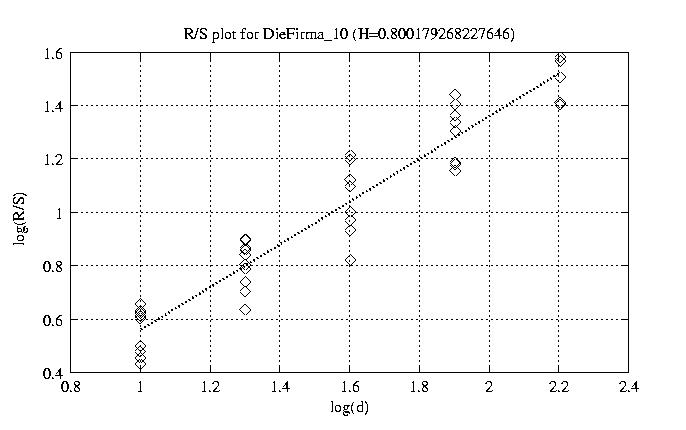

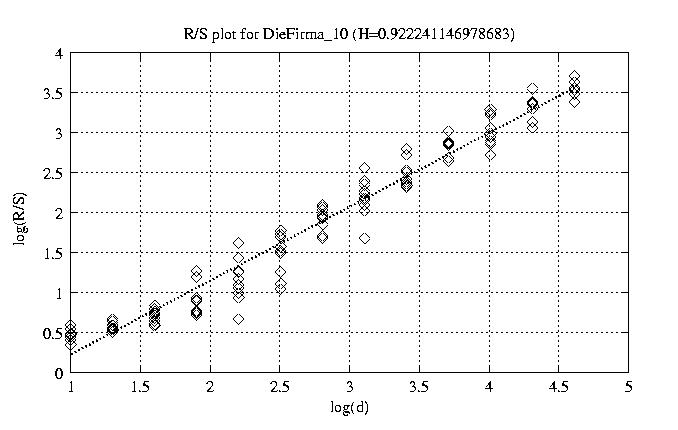

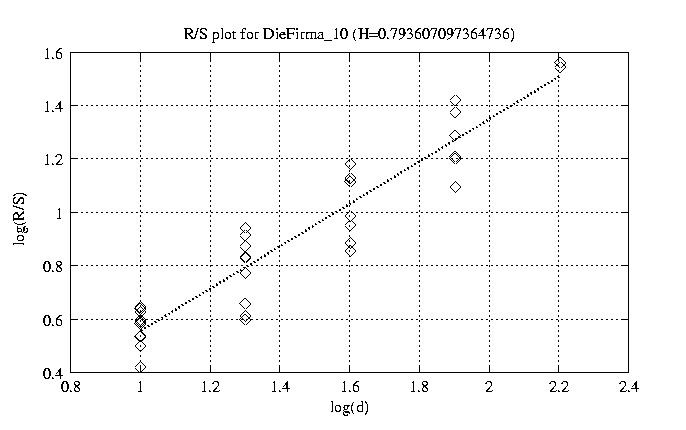

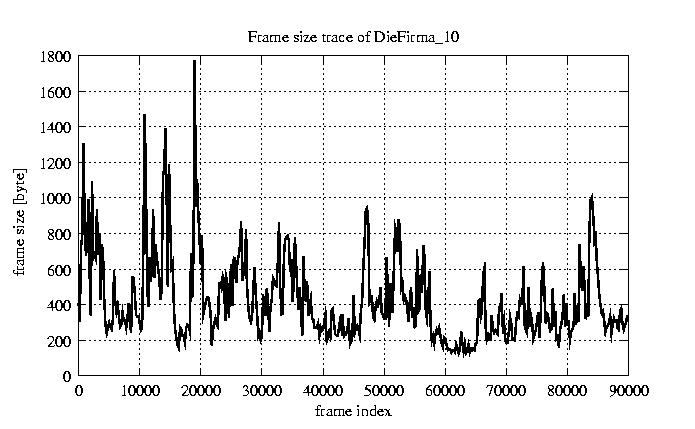

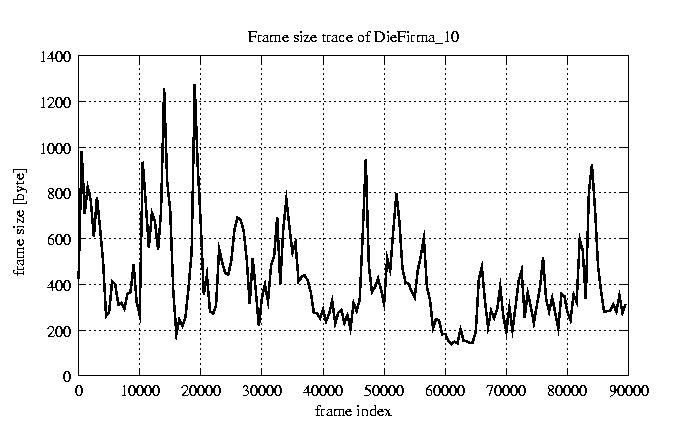

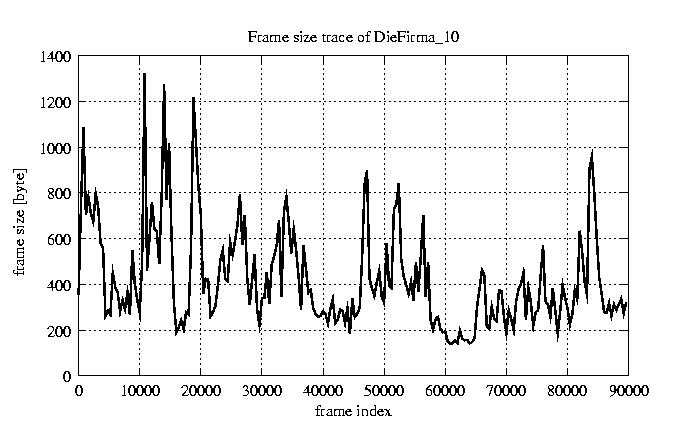

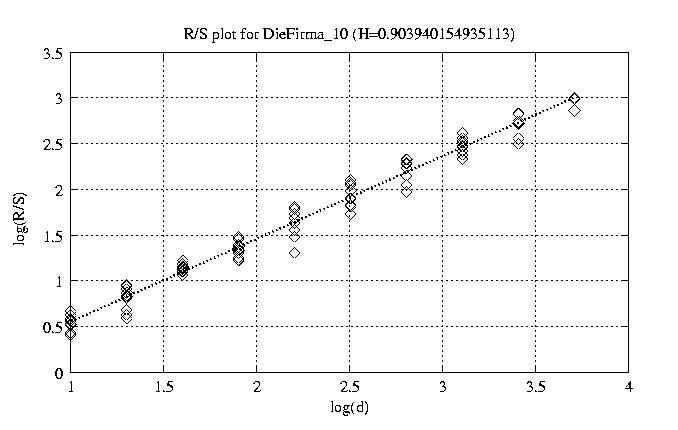

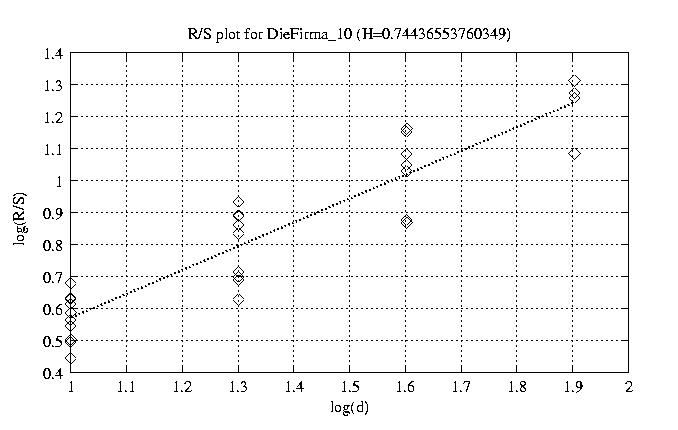

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.922 view view 12 0.904 view view 50 0.855 view view 100 0.856 view view 200 0.837 view view 300 0.800 view view 400 0.788 view view 500 0.794 view view 600 0.761 view view 700 0.744 view view 800 0.796 view view

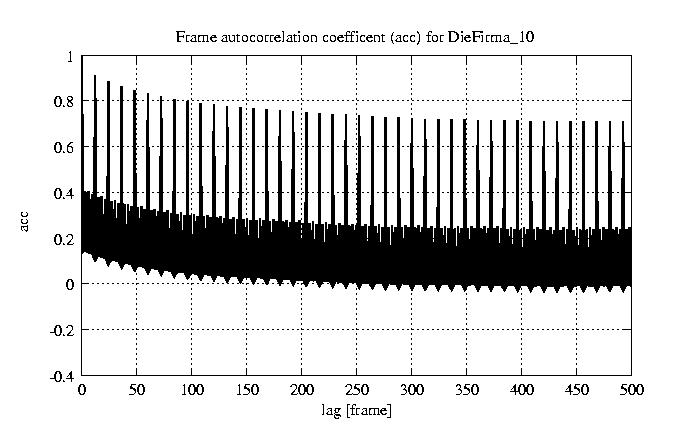

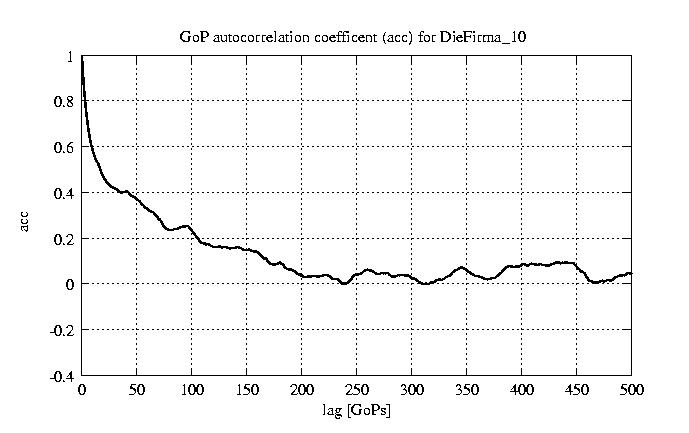

other plots	autocorrelation function of frames autocorrelation function of GoPs
