MP4 - Susi und Strolch
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 96.78 File Size byte 3.5e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 3.9e+02 var frame size - 3.6e+05 CoV of frame size - 1.52 min frame size byte 26 max frame size byte 6300 Mean bit rate bit/sec 7.9e+04 Peak bit rate bit/sec 1.3e+06 Peak/Mean of bit rate - 16.04 GoP statistics # of GoPs - 7499 mean GoP size byte 4.7e+03 var GoP size - 5.4e+06 CoV of GoP size - 0.49 min GoP size byte 828 max GoP size byte 36222 Mean bit rate bit/sec 7.9e+04 Peak bit rate bit/sec 6e+05 Peak/Mean of bit rate - 7.68 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p
inverse probability function G = 1 - F

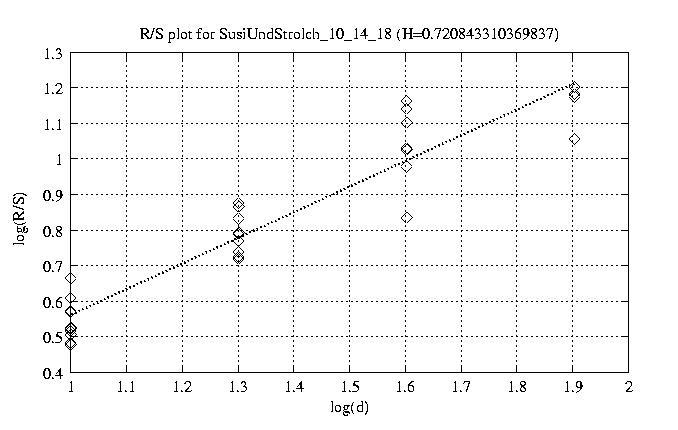

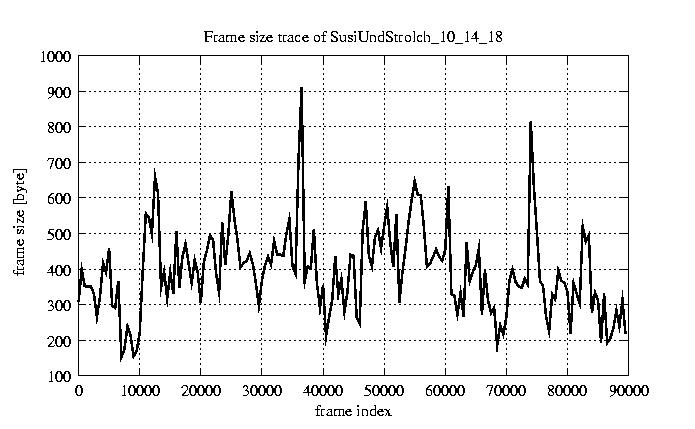

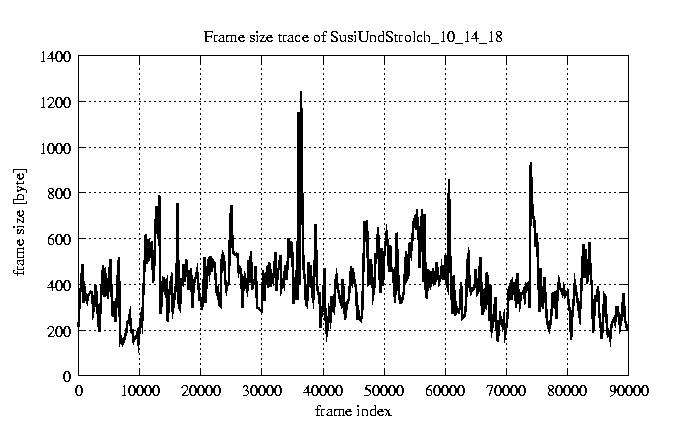

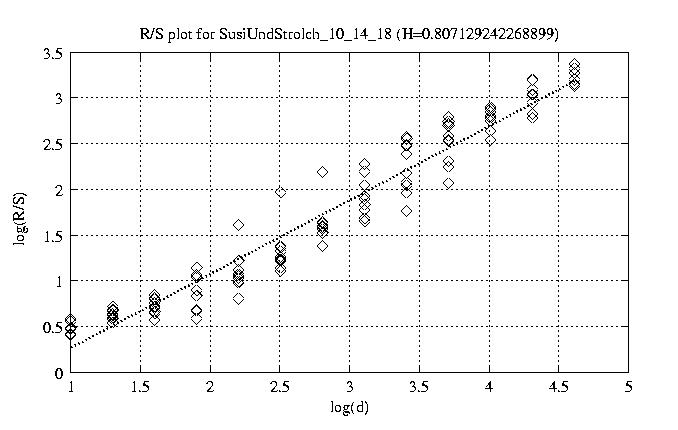

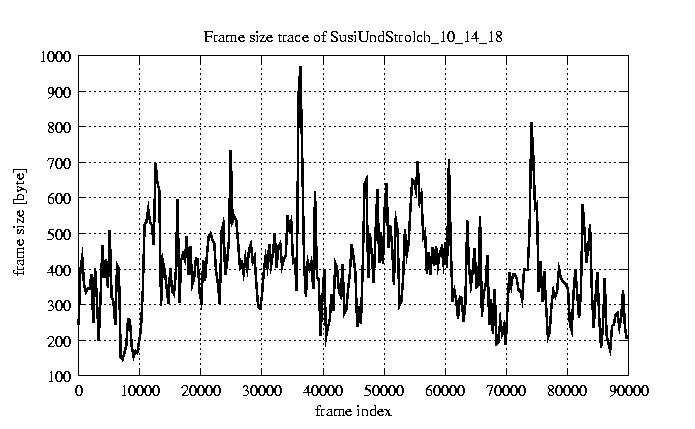

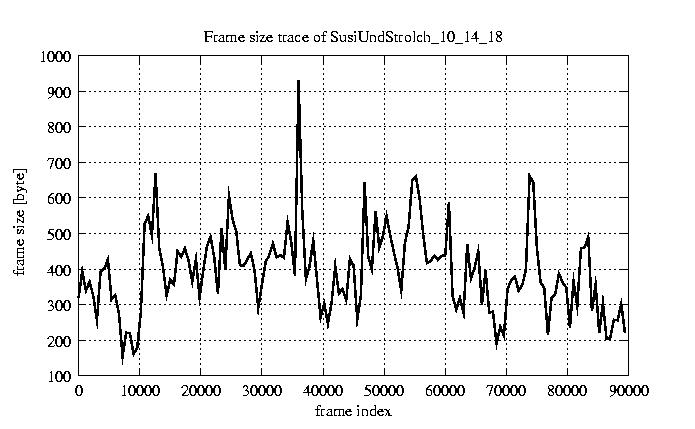

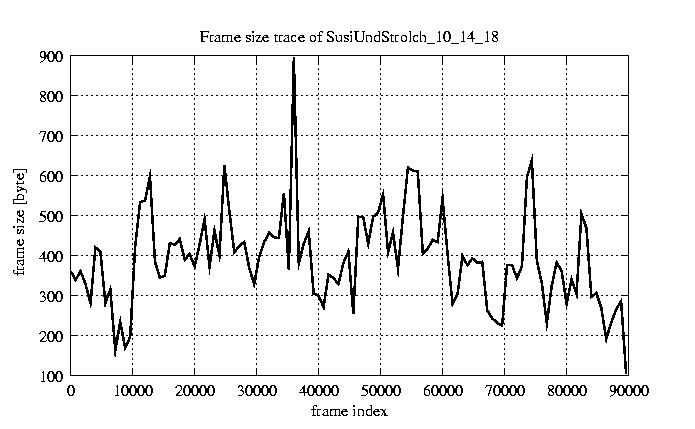

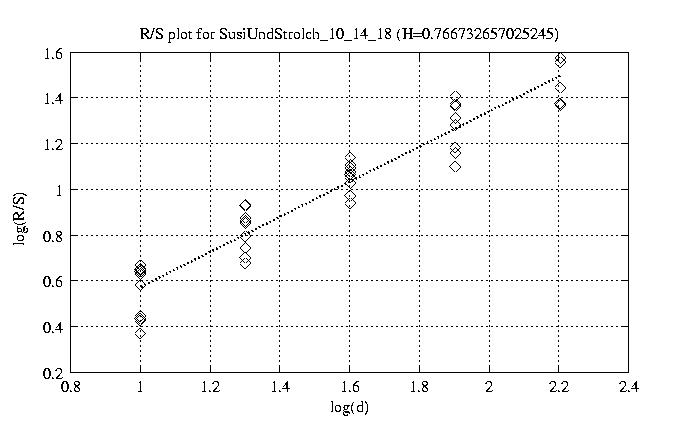

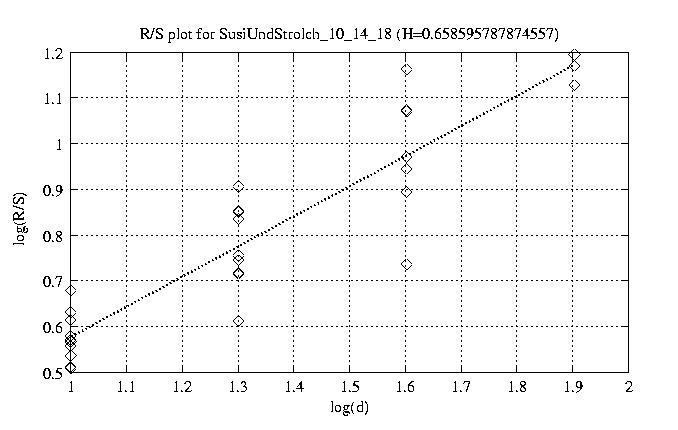

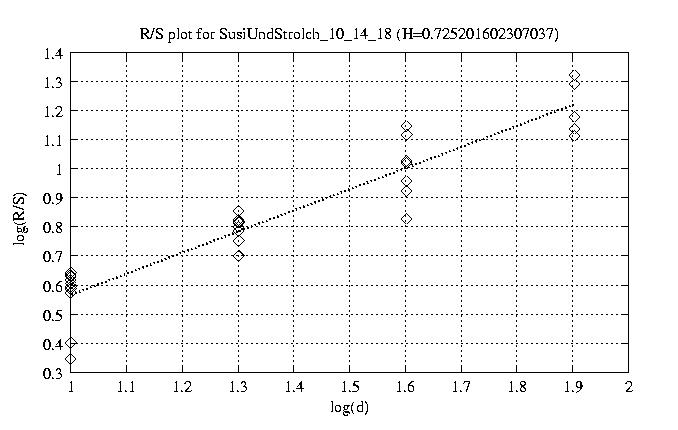

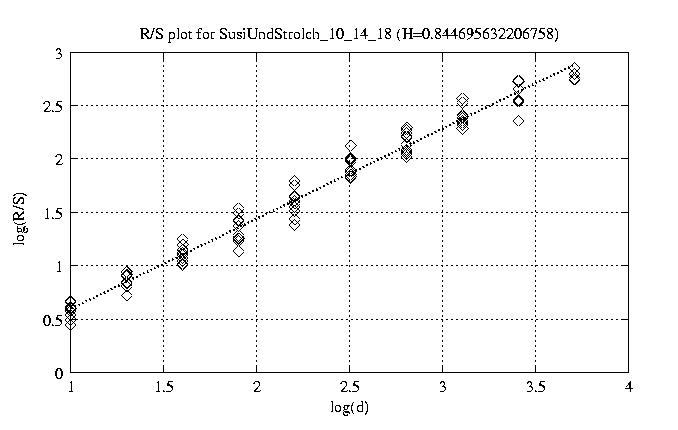

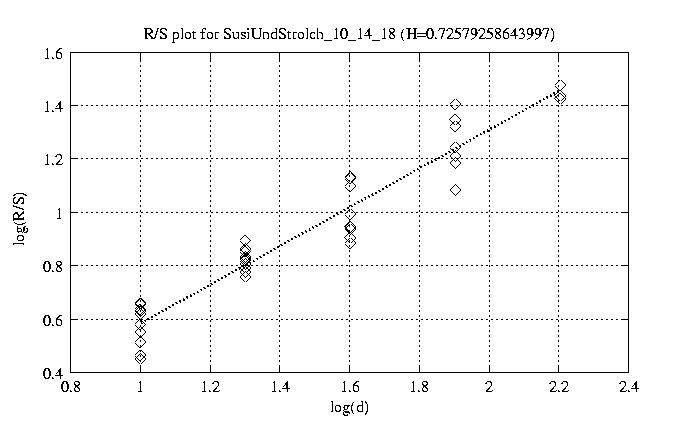

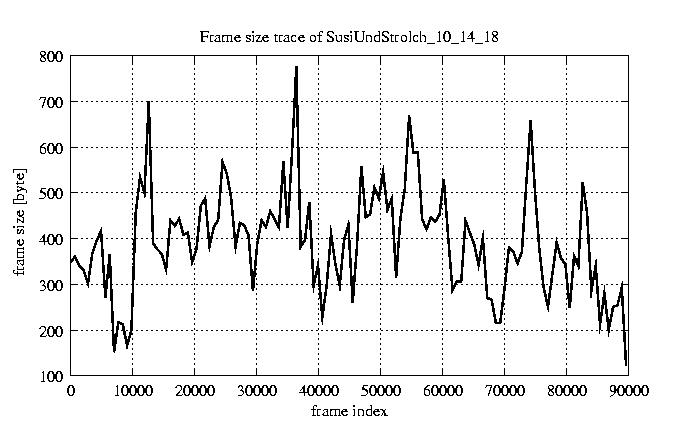

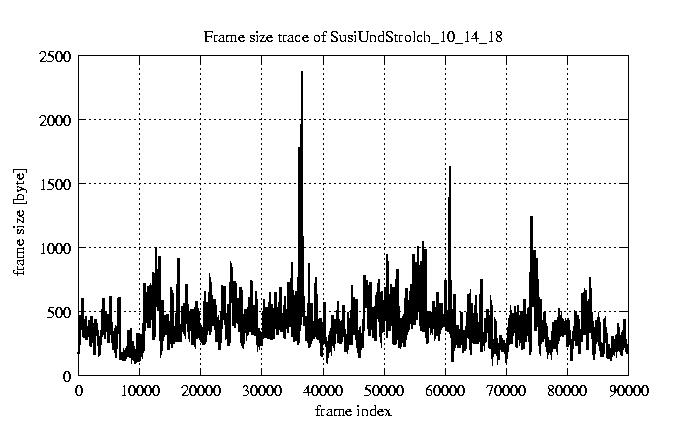

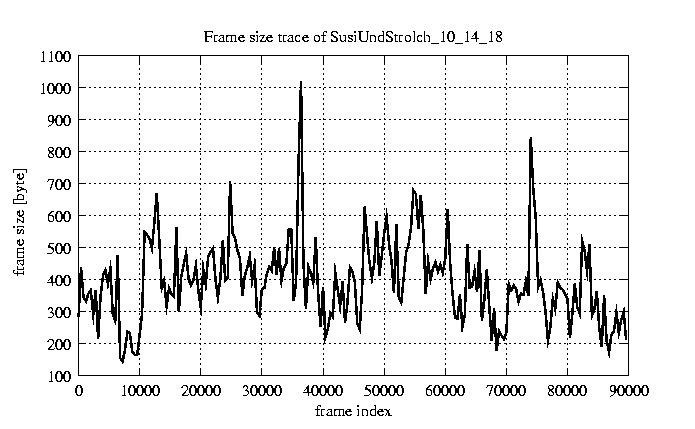

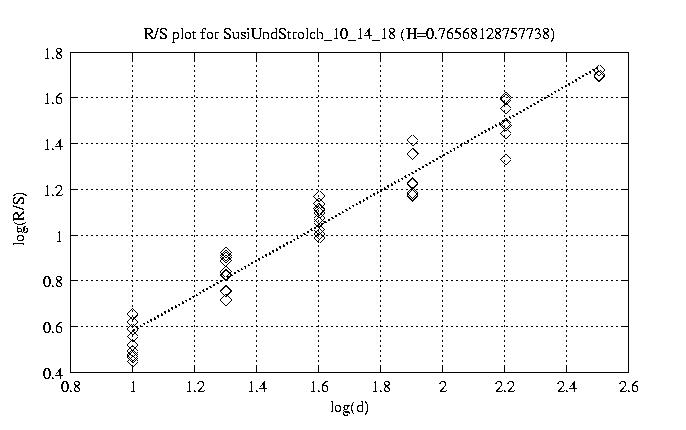

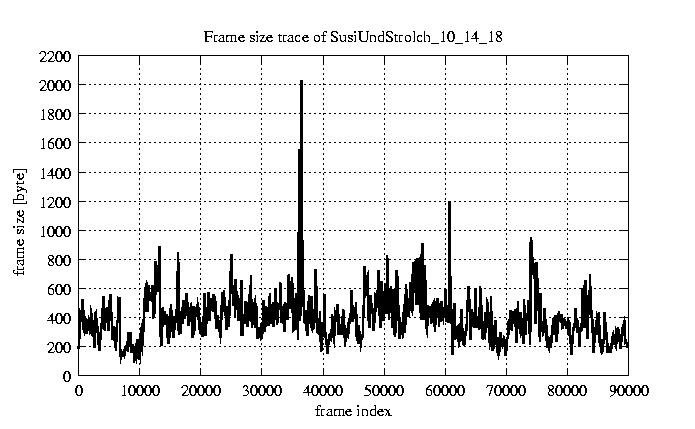

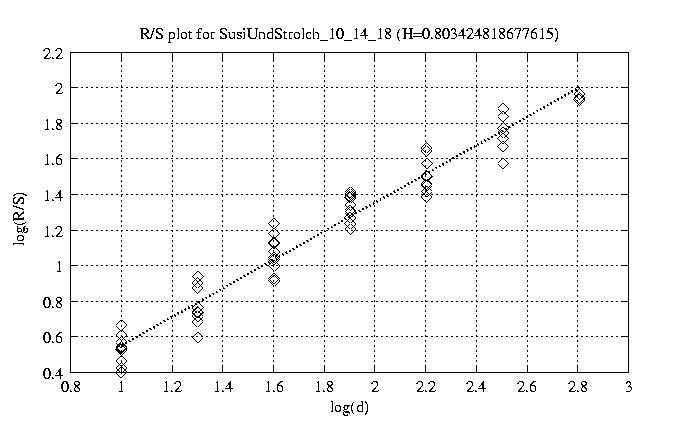

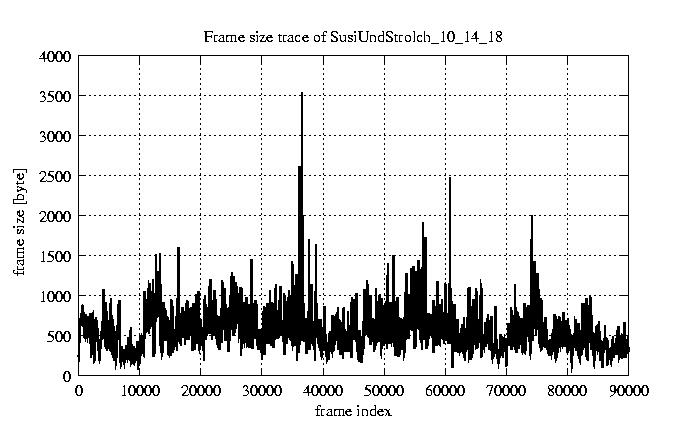

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.807 view view 12 0.845 view view 50 0.829 view view 100 0.803 view view 200 0.766 view view 300 0.767 view view 400 0.726 view view 500 0.776 view view 600 0.725 view view 700 0.721 view view 800 0.659 view view

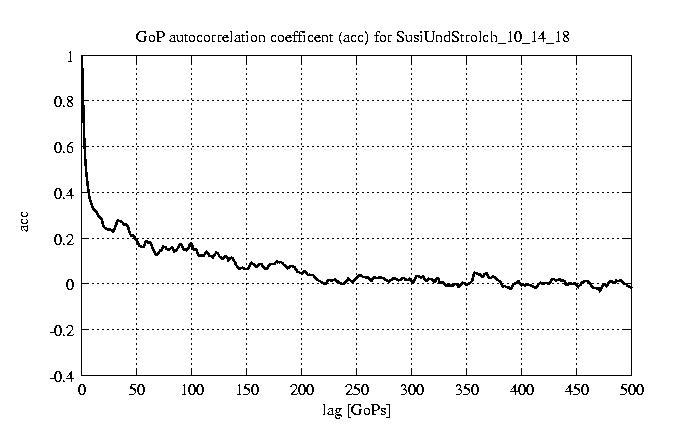

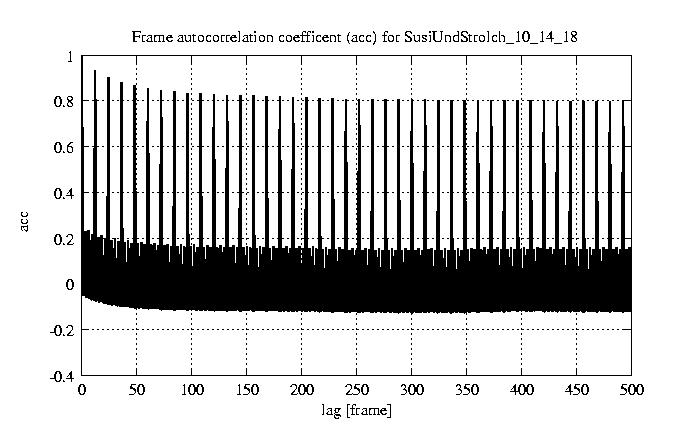

other plots	autocorrelation function of frames autocorrelation function of GoPs
