H263 - Robin Hood
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.35 476.35 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90075.00 17189.00 mean frame size byte 79.81 418.22 var frame size - 40191.87 69085.27 CoV of frame size - 2.51 0.63 min frame size byte 0.00 26.00 max frame size byte 5779.00 5779.00 Peak/Mean frame - 72.41 13.82 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 1e+05 Peak/Mean of bit rate - 6.5 CoV of bit rate - 0.29 max inter frame space frames 1.00 72.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

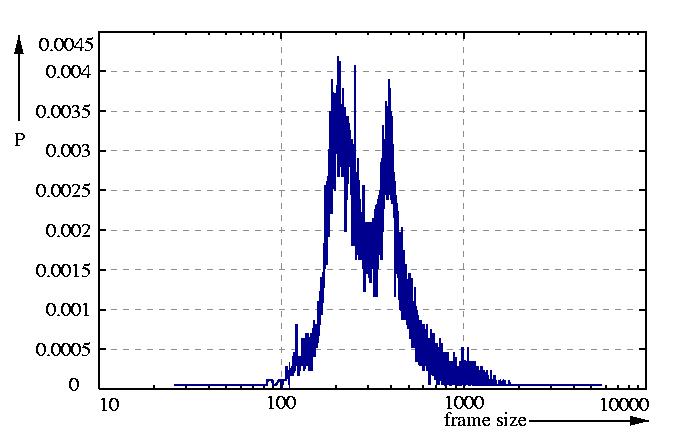

probability density function p

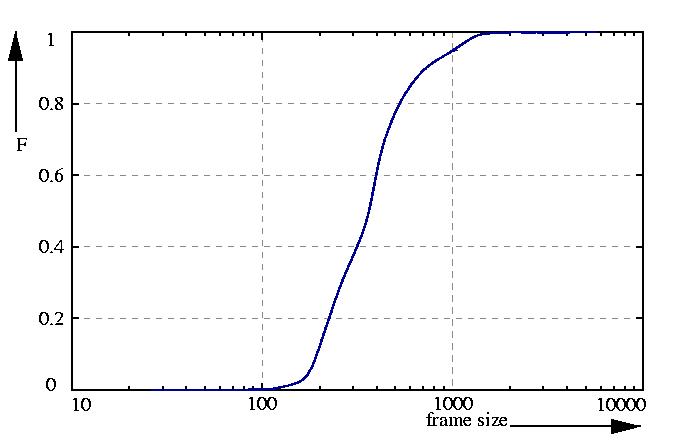

probability function F = sum p

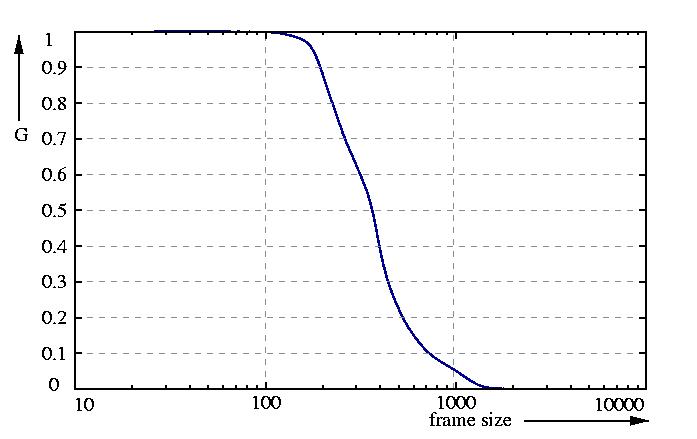

inverse probability function G = 1 - F

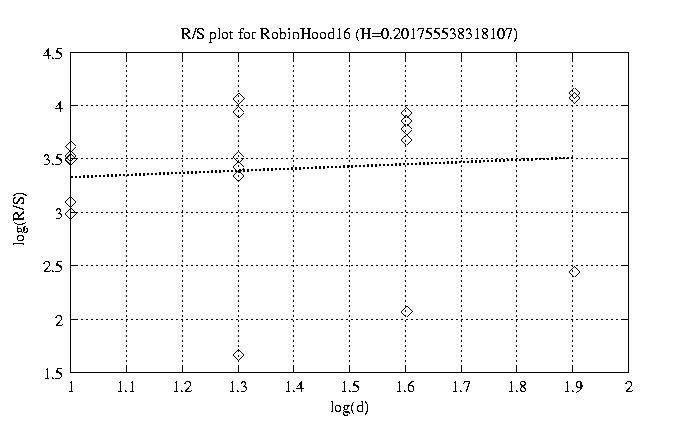

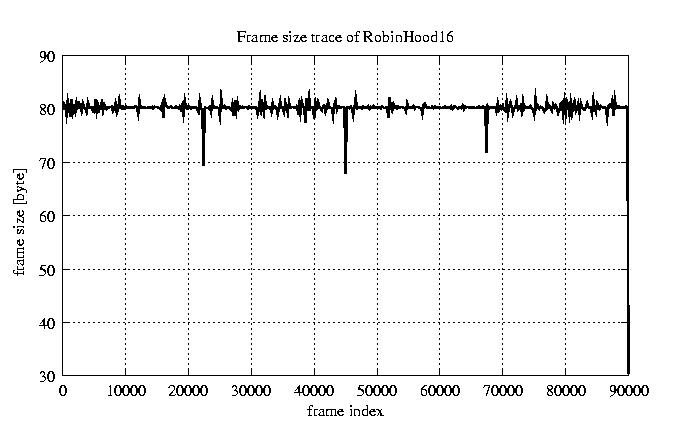

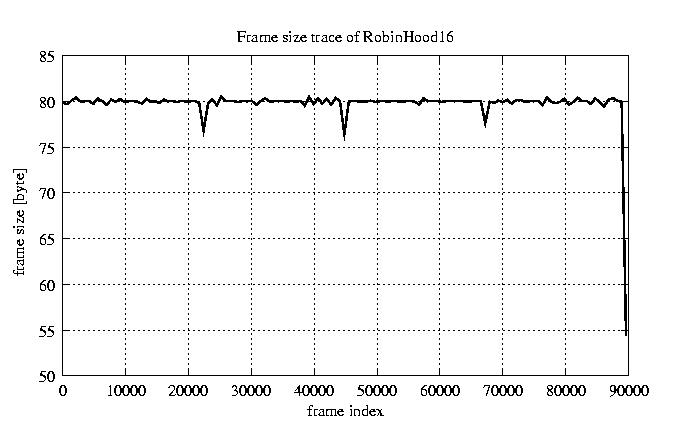

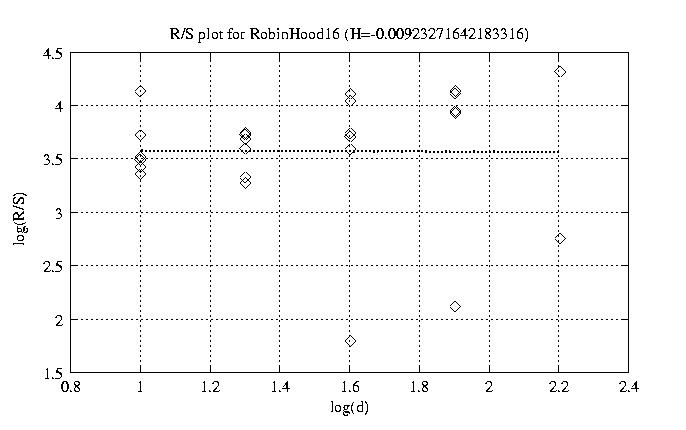

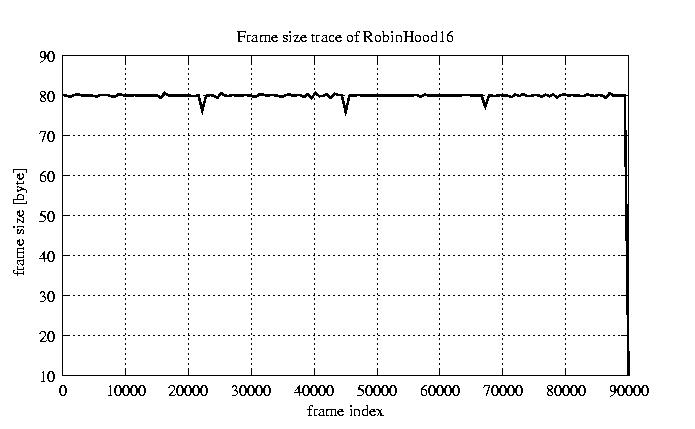

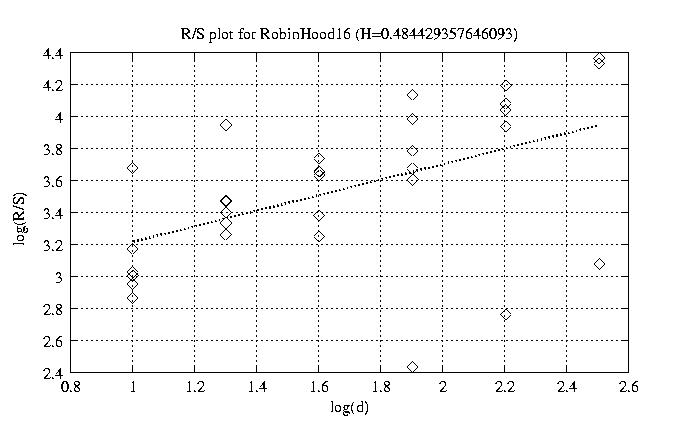

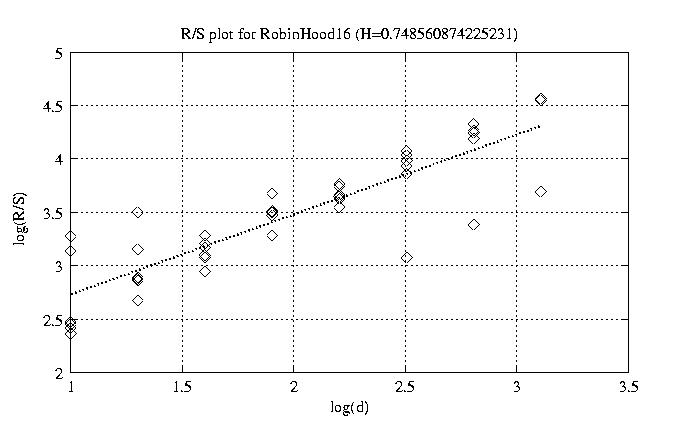

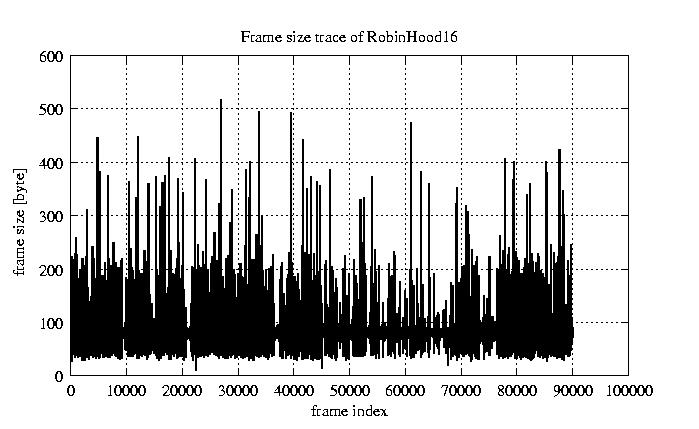

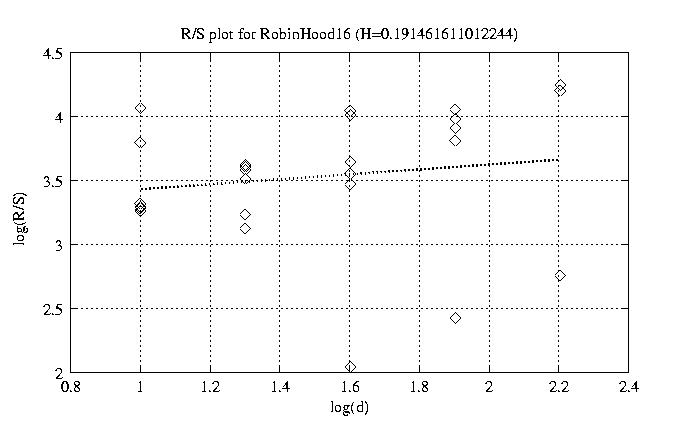

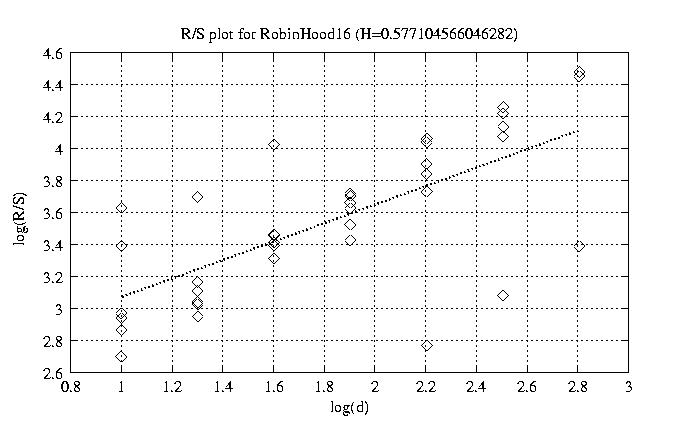

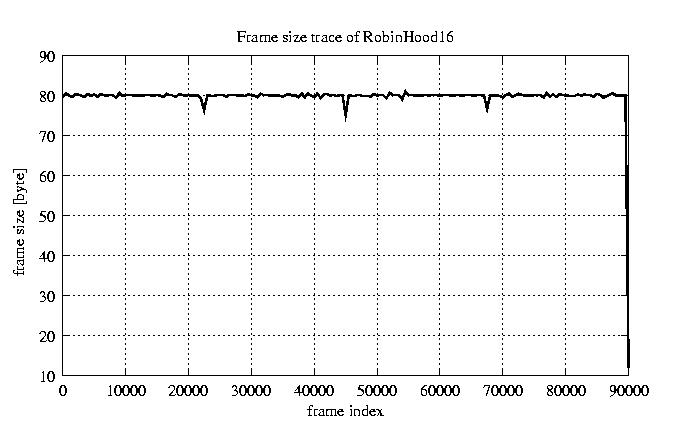

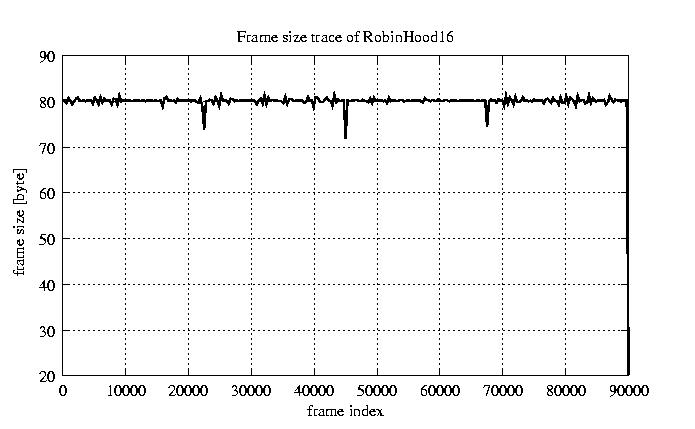

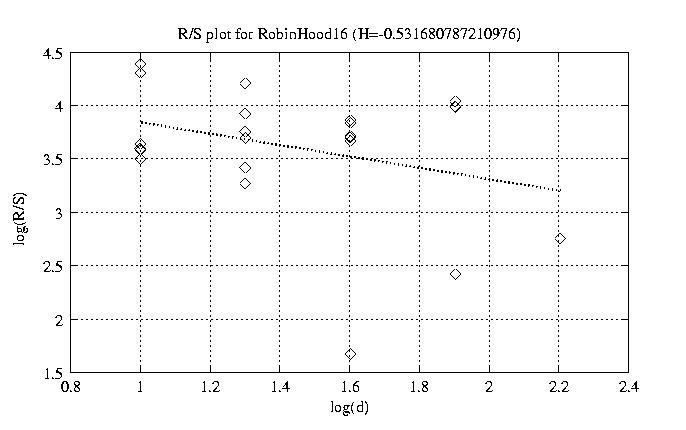

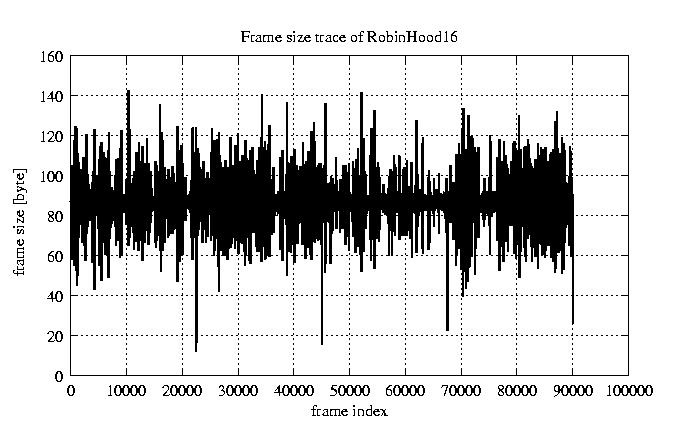

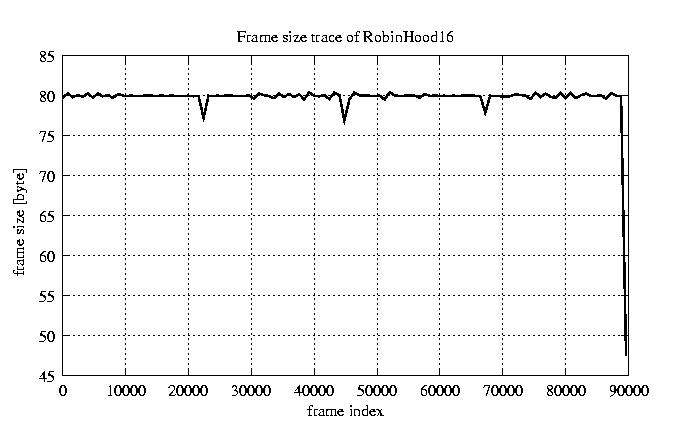

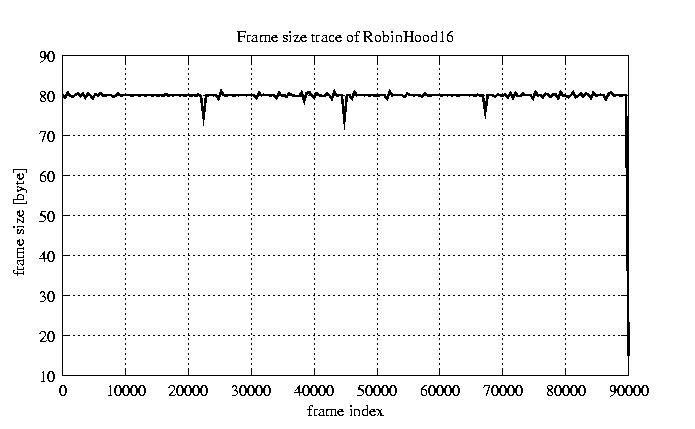

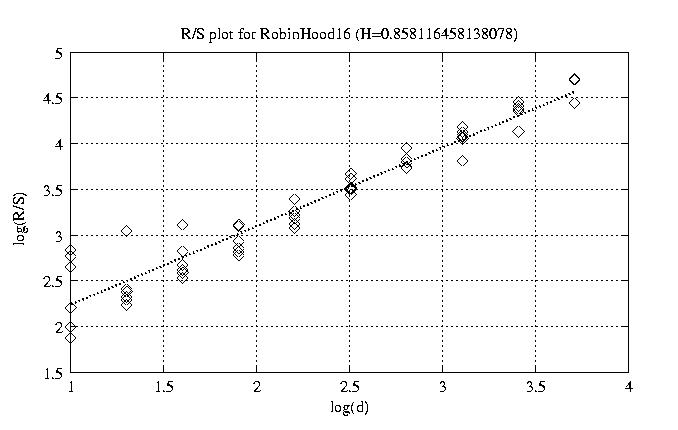

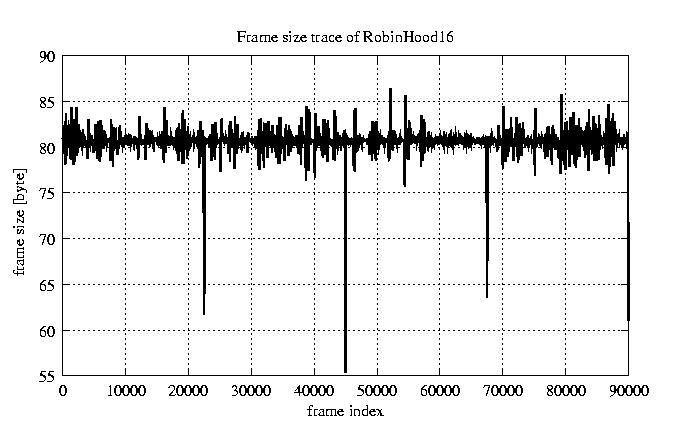

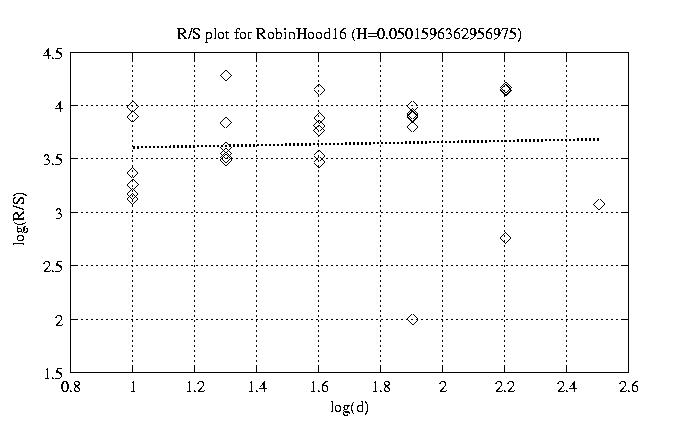

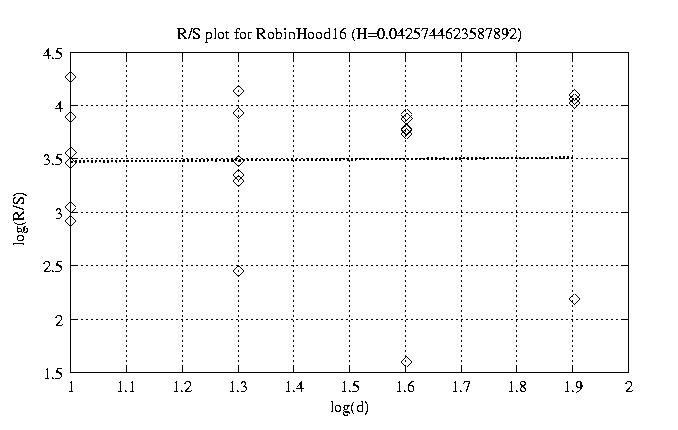

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 -0.172 view view 12 0.858 view view 50 0.749 view view 100 0.577 view view 200 0.484 view view 300 0.050 view view 400 0.191 view view 500 -0.009 view view 600 -0.532 view view 700 0.043 view view 800 0.202 view view

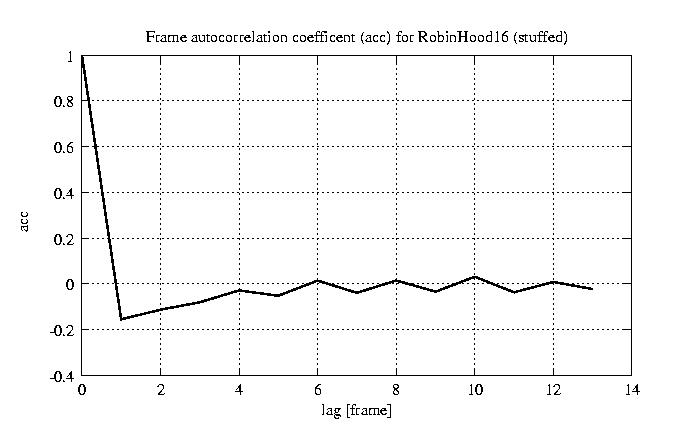

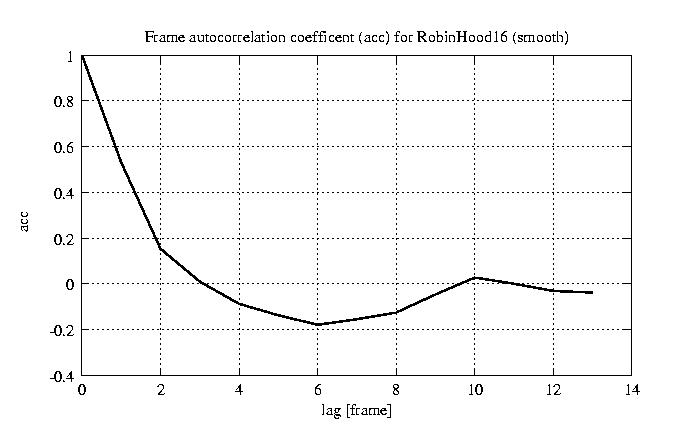

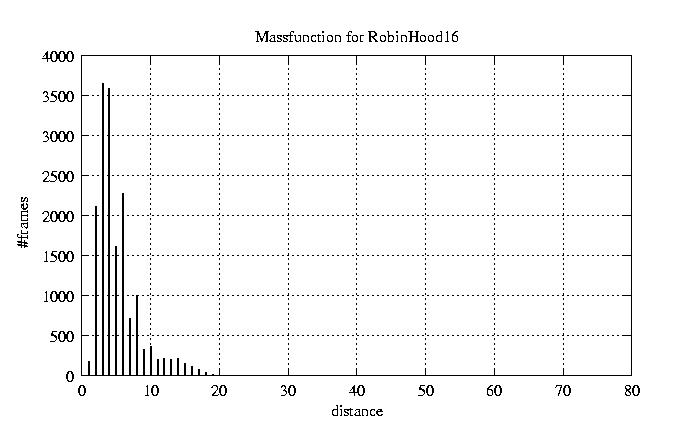

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
