H263 - Office Cam
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 84.01 84.01 File size byte 3.1e+07 3.1e+07 Video run time msec 2.7e+06 2.7e+06 2.7e+06 # of Frames - 67556.00 33825.00 mean frame size byte 452.52 903.78 var frame size - 257858.86 107157.07 CoV of frame size - 1.12 0.36 min frame size byte 0.00 254.00 max frame size byte 5191.00 5191.00 Peak/Mean frame - 11.47 5.74 Mean bit rate bit/sec 9.1e+04 Peak bit rate bit/sec 1e+06 Peak/Mean of bit rate - 11 CoV of bit rate - 0.38 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

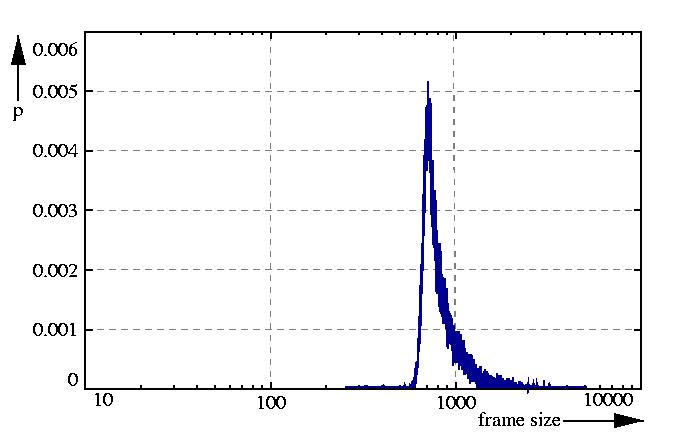

probability density function p

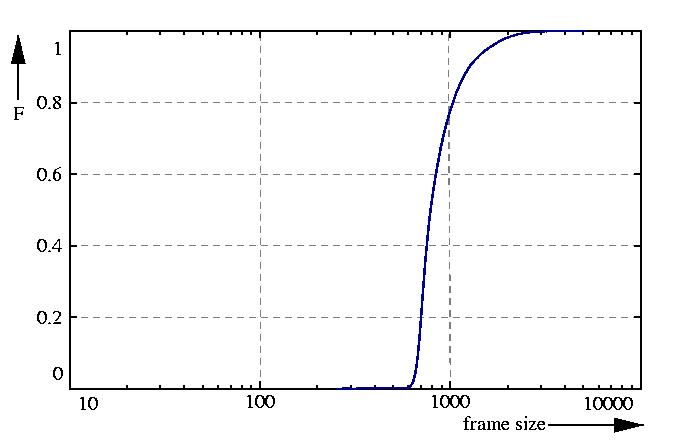

probability function F = sum p
inverse probability function G = 1 - F

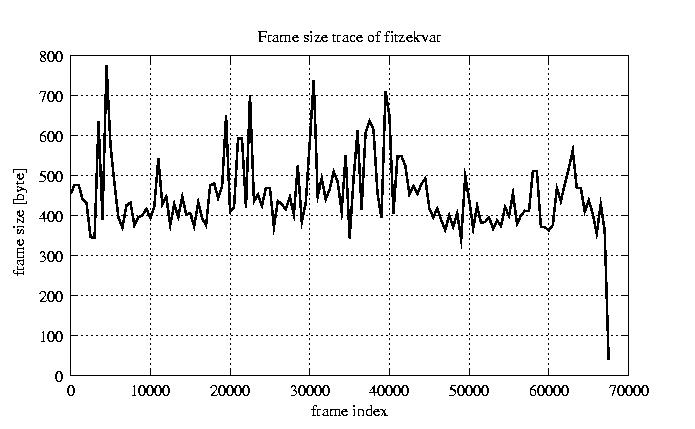

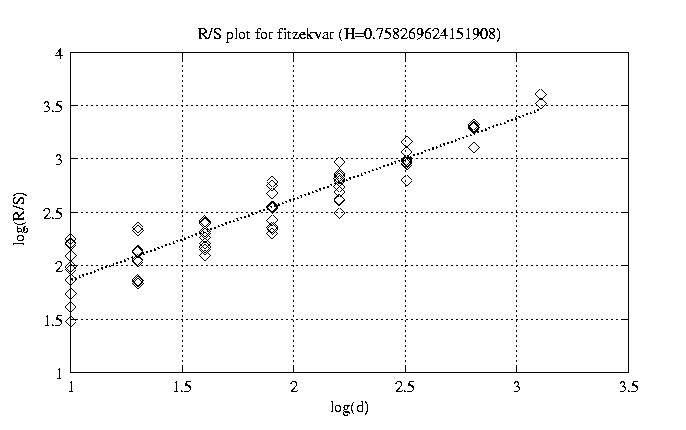

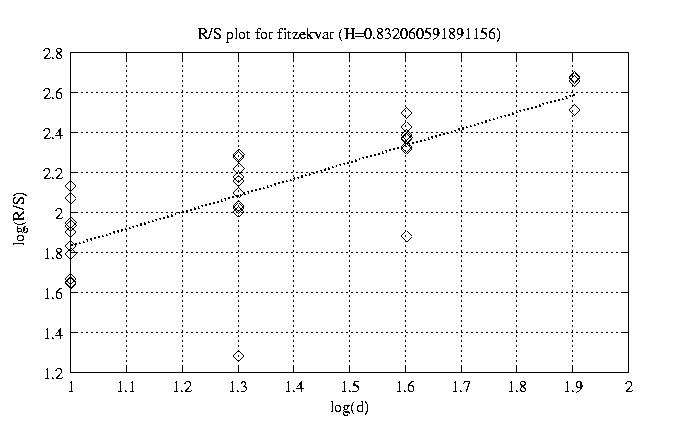

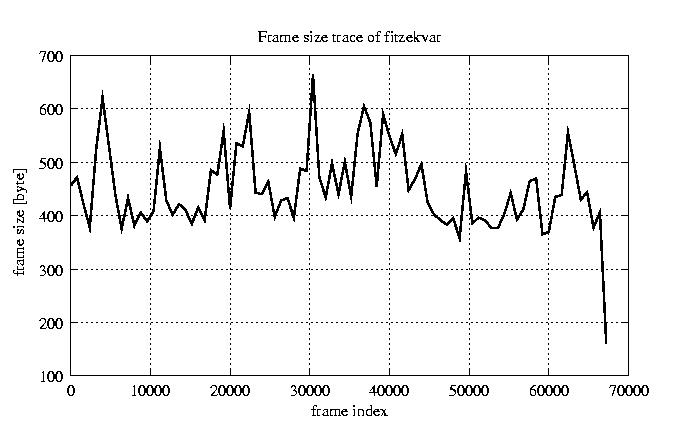

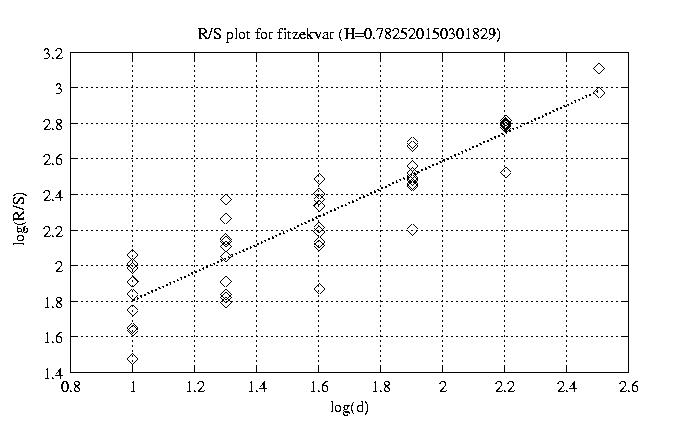

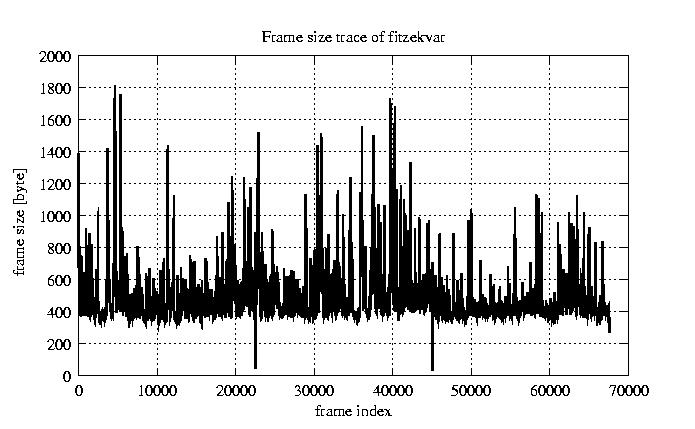

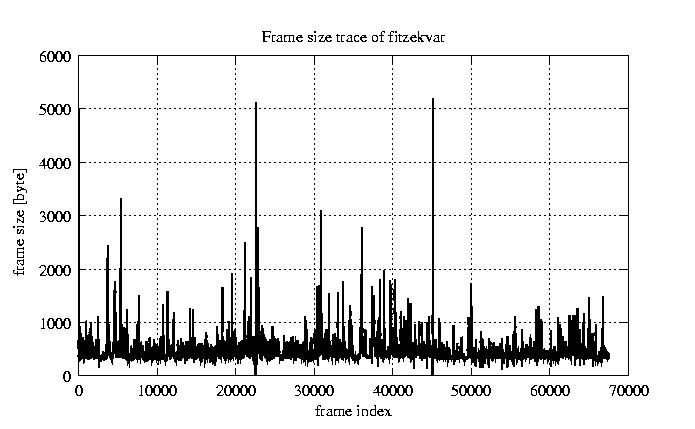

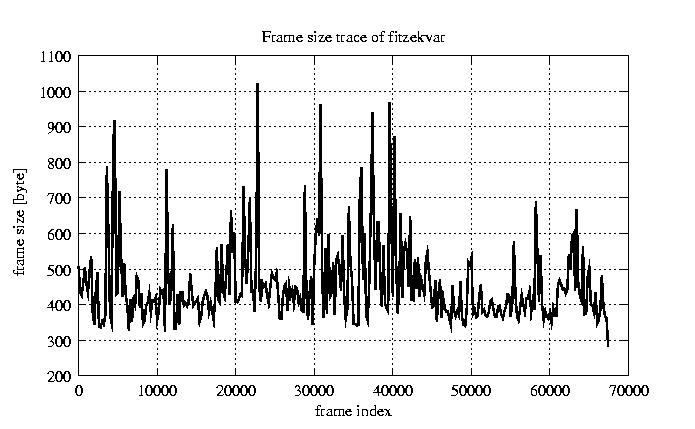

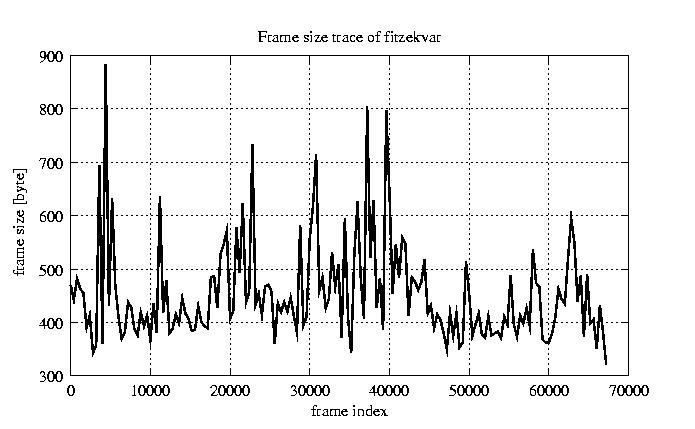

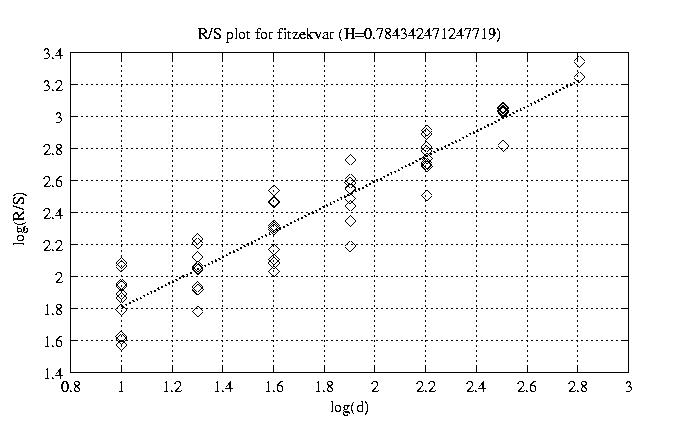

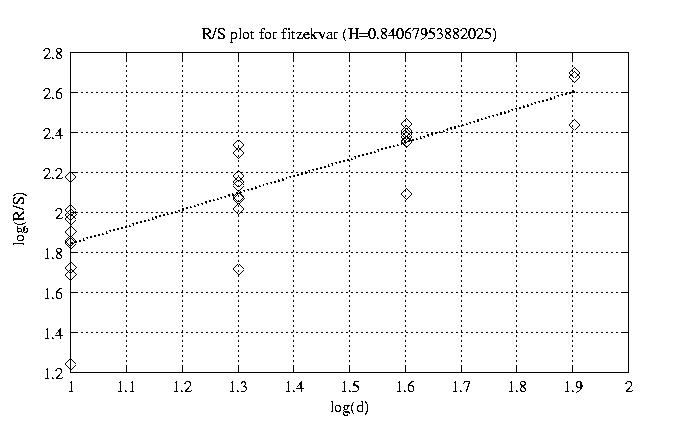

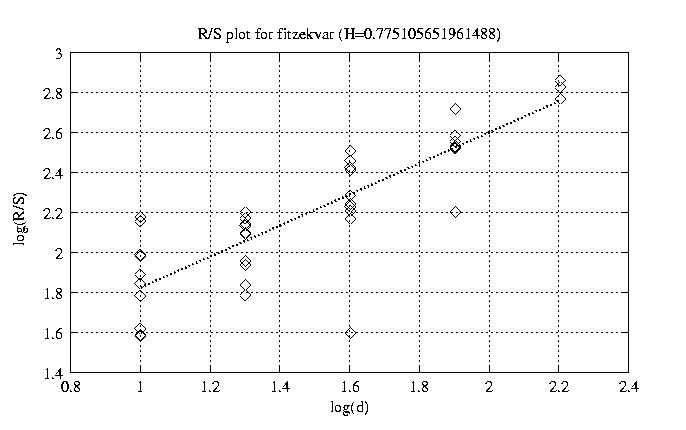

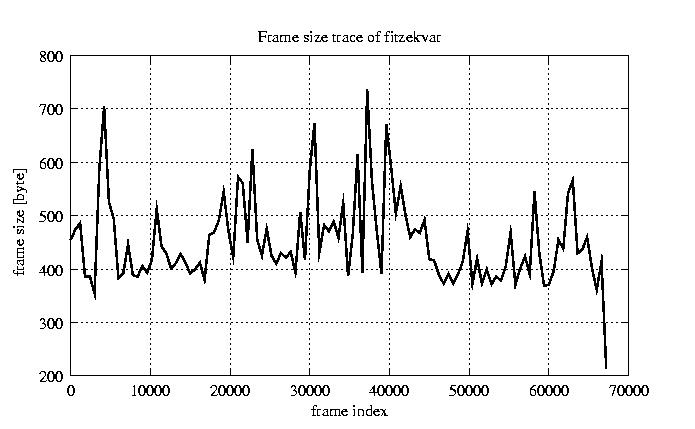

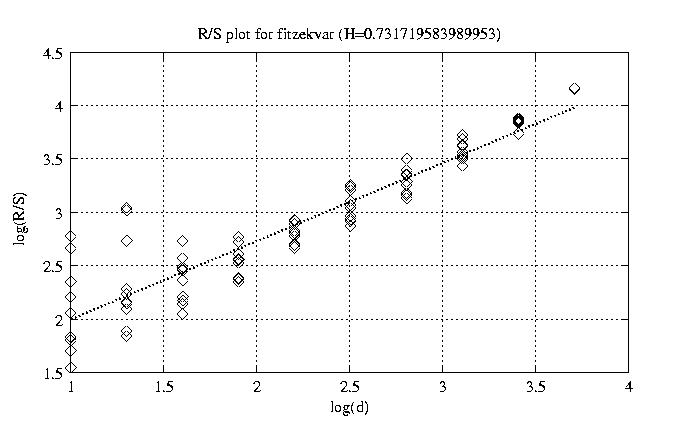

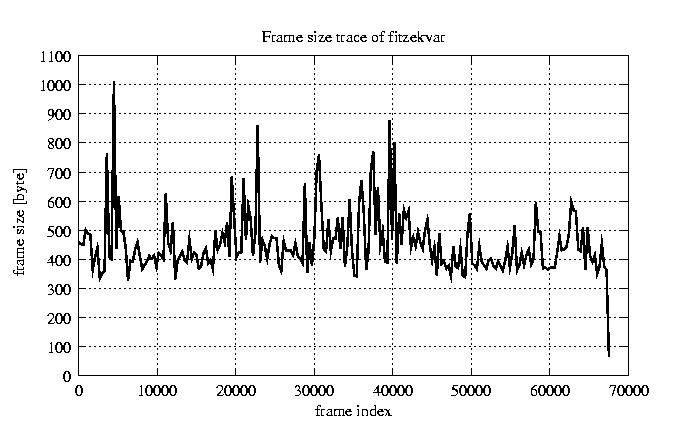

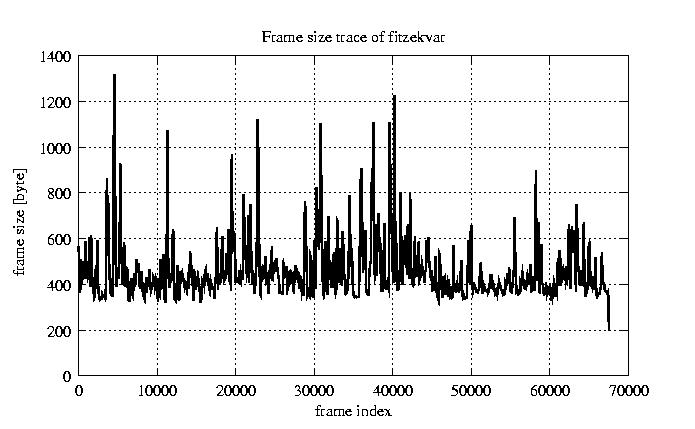

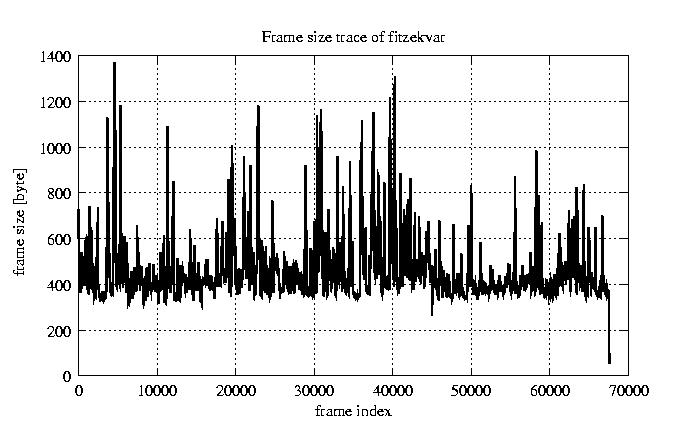

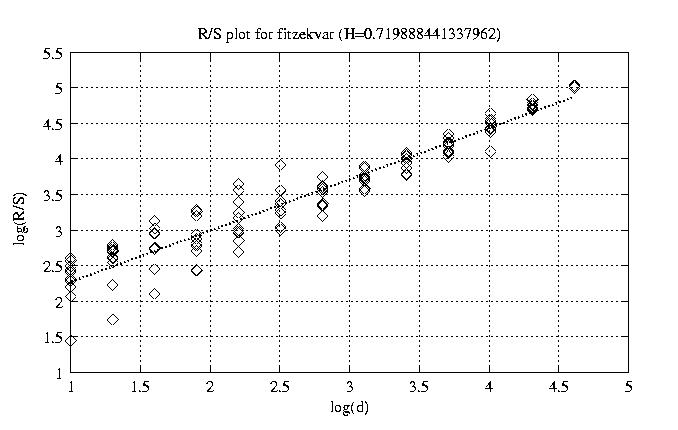

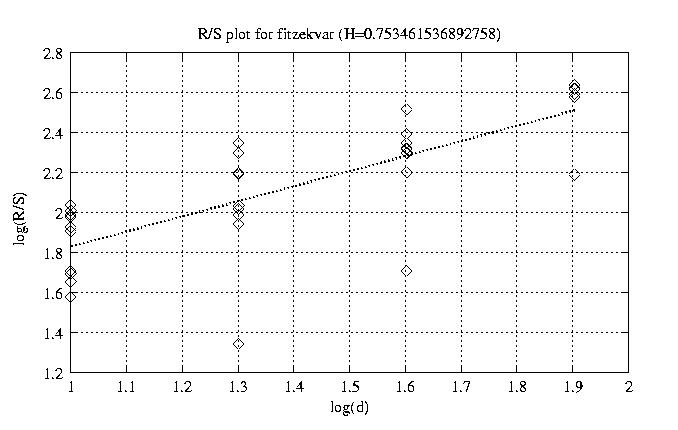

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.720 view view 12 0.732 view view 50 0.758 view view 100 0.784 view view 200 0.783 view view 300 0.775 view view 400 0.778 view view 500 0.753 view view 600 0.832 view view 700 0.841 view view 800 0.820 view view

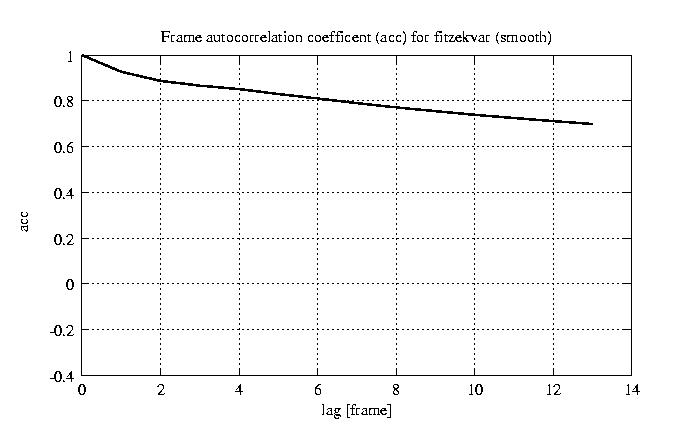

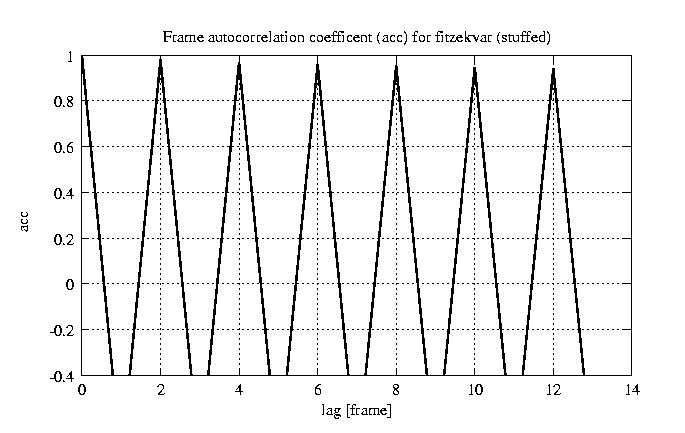

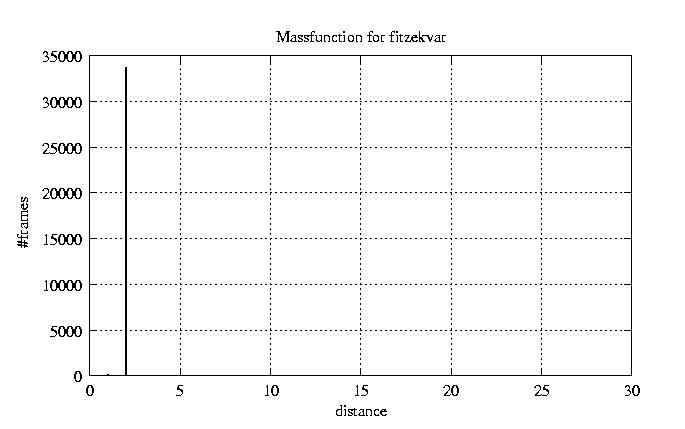

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
