MP4 - VIVA - Video Clips
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 21.90 File Size byte 1.6e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 1.7e+03 var frame size - 1.6e+06 CoV of frame size - 0.73 min frame size byte 48 max frame size byte 9392 Mean bit rate bit/sec 3.5e+05 Peak bit rate bit/sec 1.9e+06 Peak/Mean of bit rate - 5.41 GoP statistics # of GoPs - 7499 mean GoP size byte 2.1e+04 var GoP size - 1.4e+08 CoV of GoP size - 0.57 min GoP size byte 1719 max GoP size byte 84054 Mean bit rate bit/sec 3.5e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 4.03 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

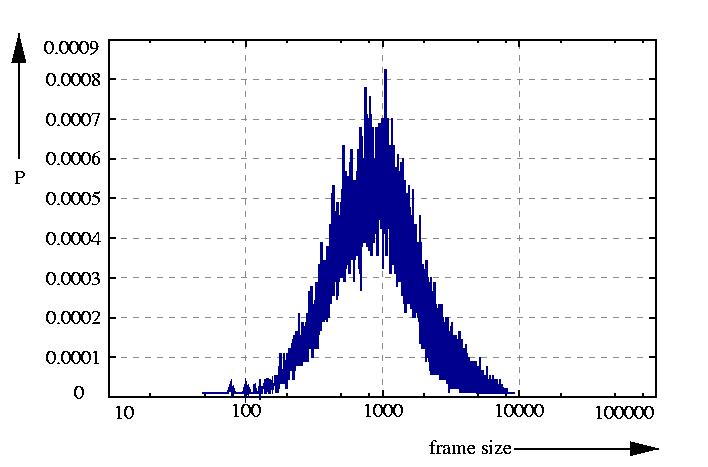

probability density function p

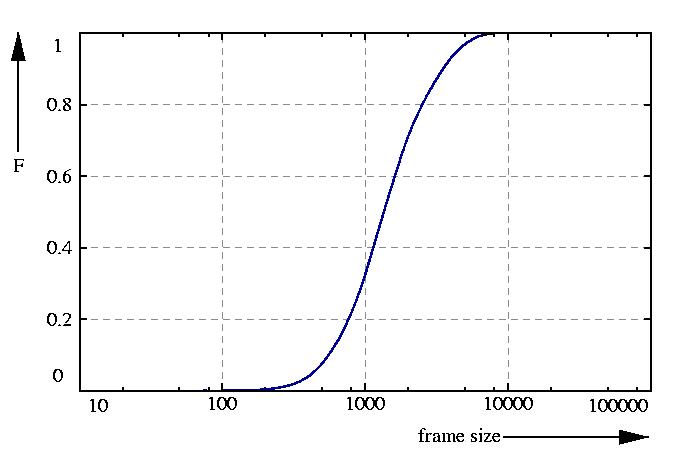

probability function F = sum p

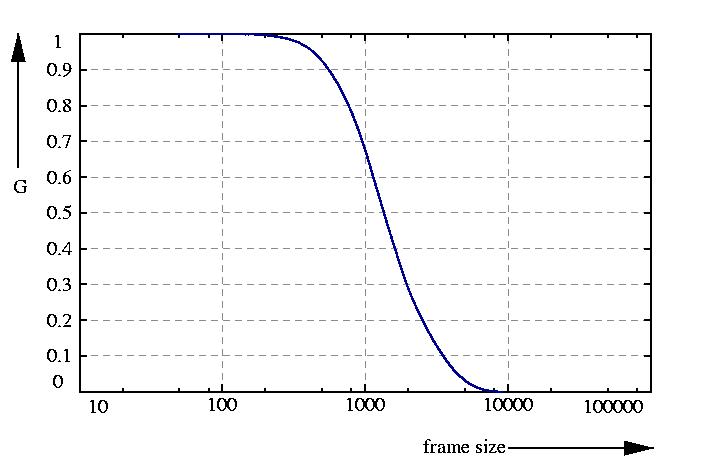

inverse probability function G = 1 - F

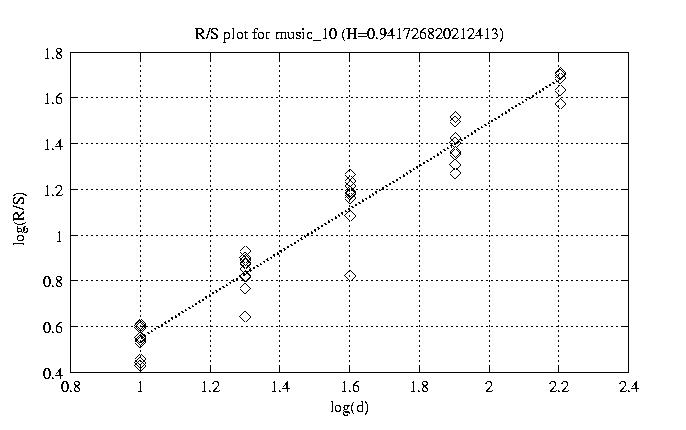

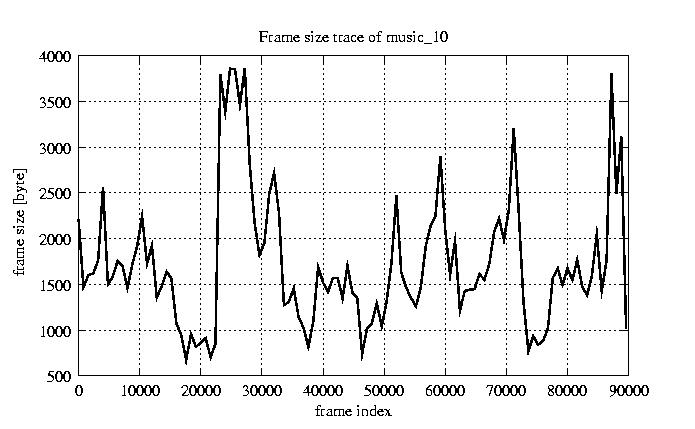

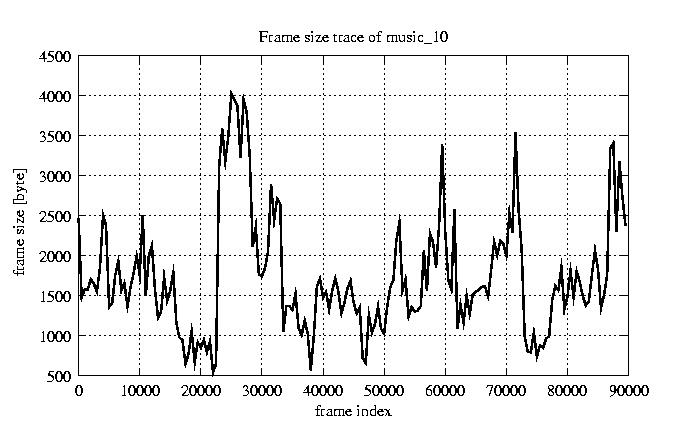

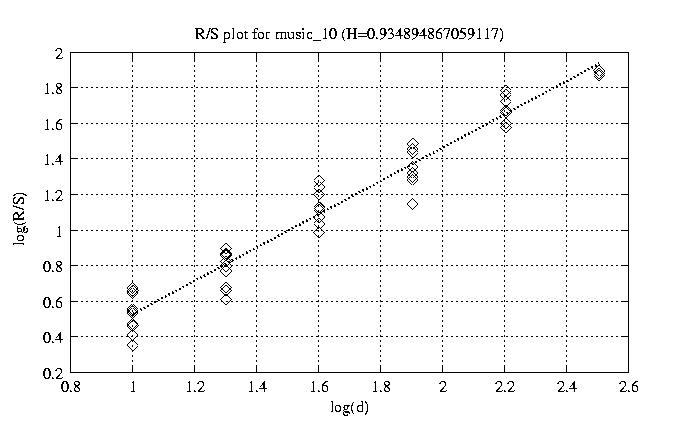

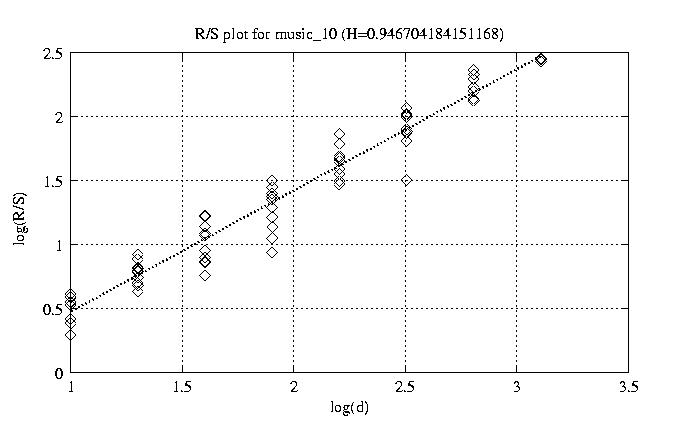

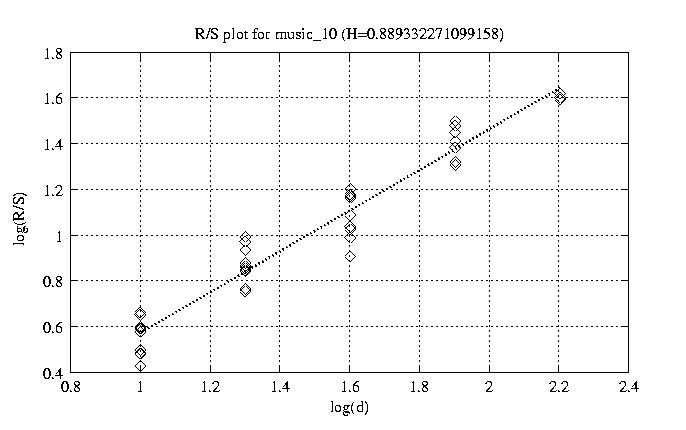

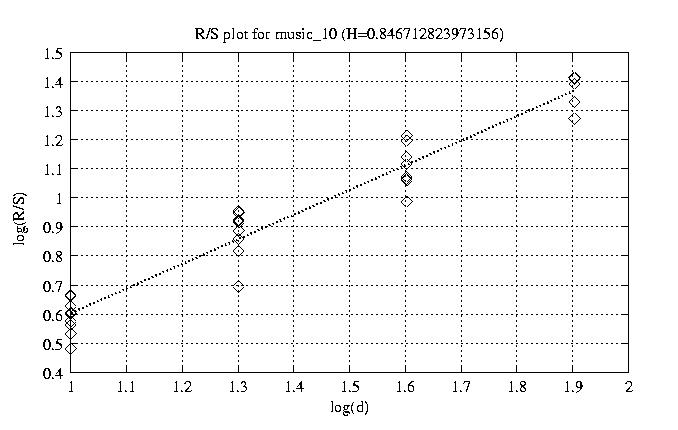

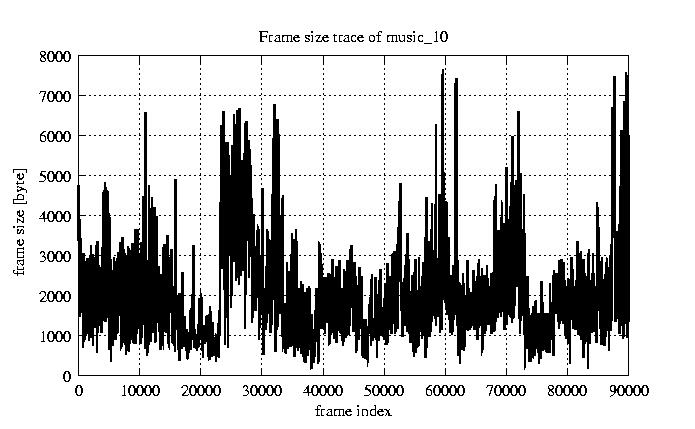

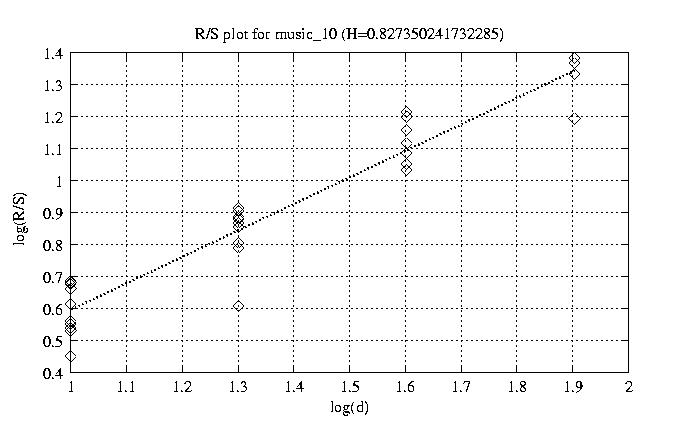

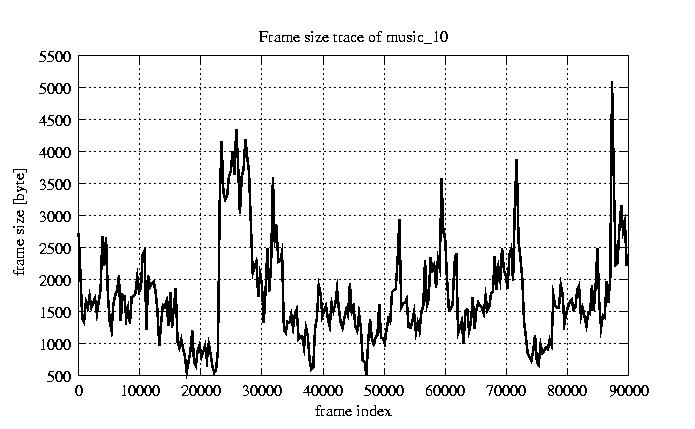

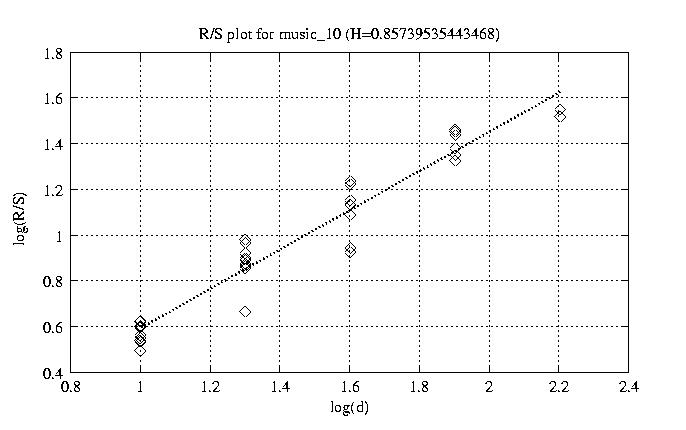

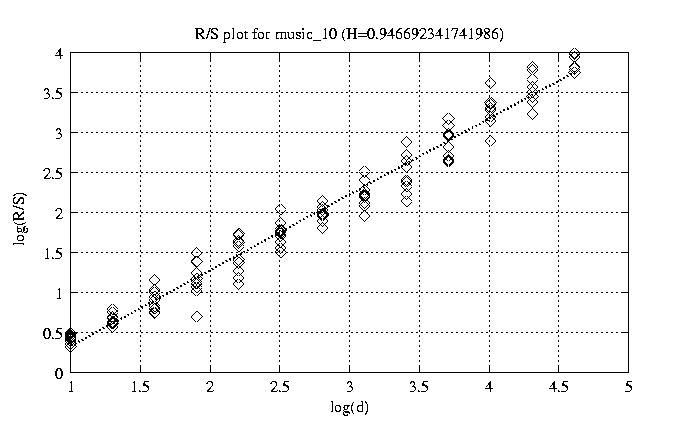

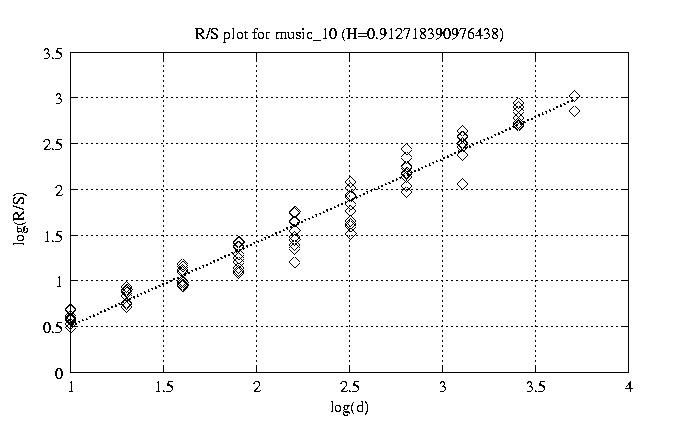

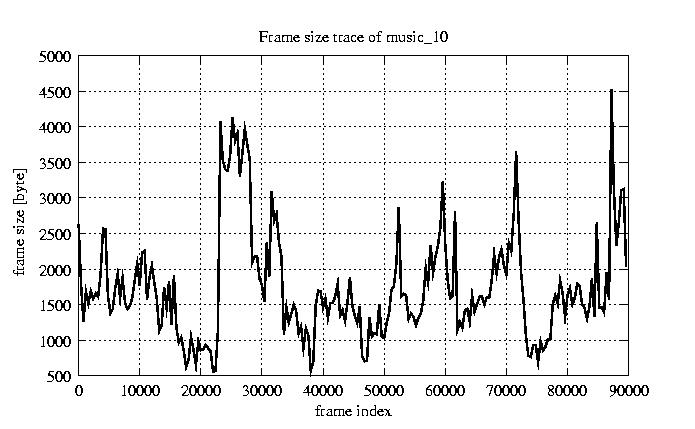

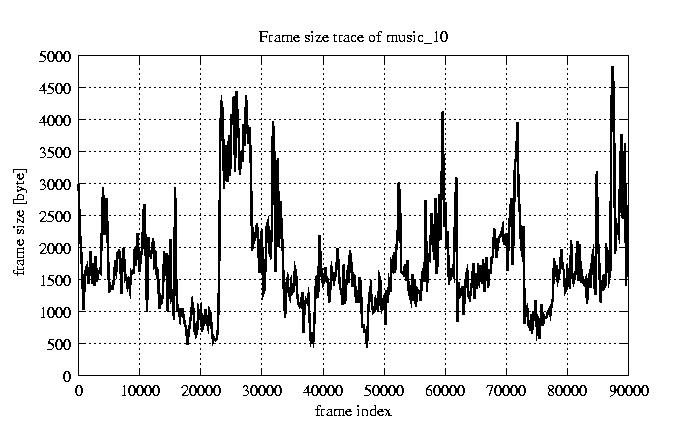

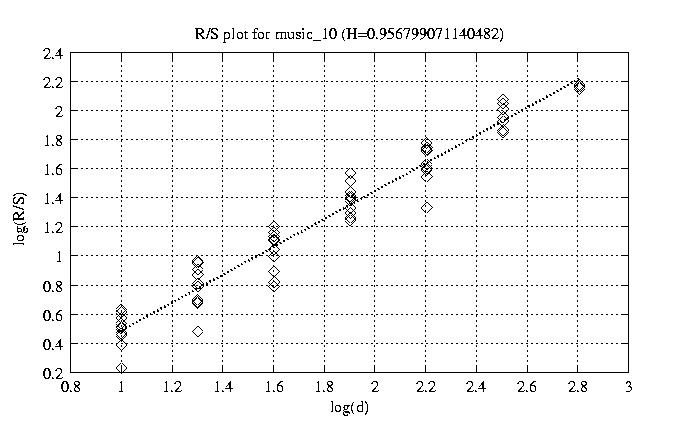

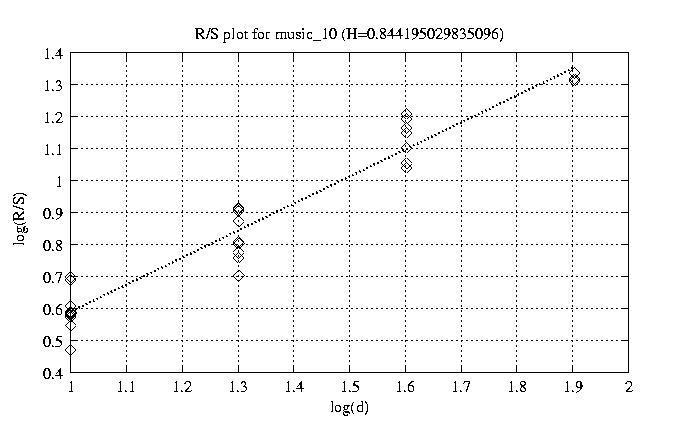

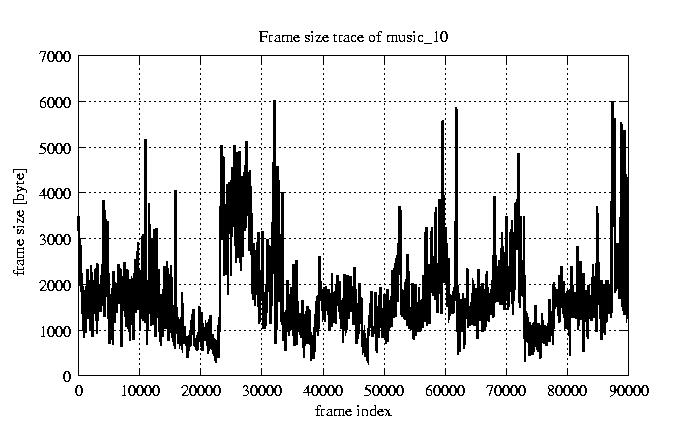

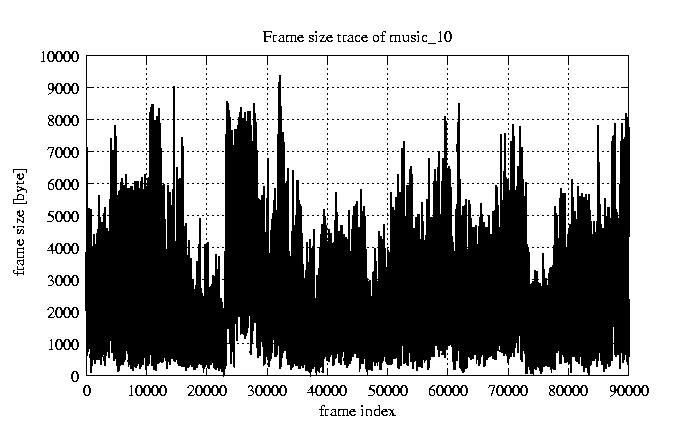

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.947 view view 12 0.913 view view 50 0.947 view view 100 0.957 view view 200 0.935 view view 300 0.942 view view 400 0.889 view view 500 0.857 view view 600 0.847 view view 700 0.827 view view 800 0.844 view view

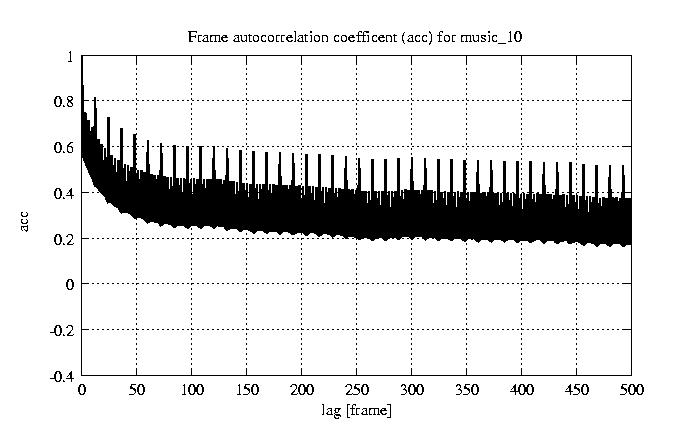

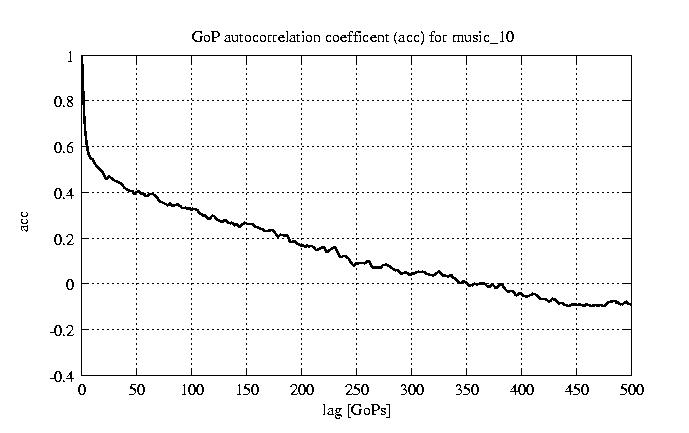

other plots	autocorrelation function of frames autocorrelation function of GoPs
