MP4 - Boulevard Bio
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 11.75 File Size byte 2.9e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 3.2e+03 var frame size - 3.4e+06 CoV of frame size - 0.57 min frame size byte 38 max frame size byte 13195 Mean bit rate bit/sec 6.5e+05 Peak bit rate bit/sec 2.6e+06 Peak/Mean of bit rate - 4.08 GoP statistics # of GoPs - 7499 mean GoP size byte 3.9e+04 var GoP size - 1.6e+08 CoV of GoP size - 0.33 min GoP size byte 1897 max GoP size byte 90090 Mean bit rate bit/sec 6.5e+05 Peak bit rate bit/sec 1.5e+06 Peak/Mean of bit rate - 2.32 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

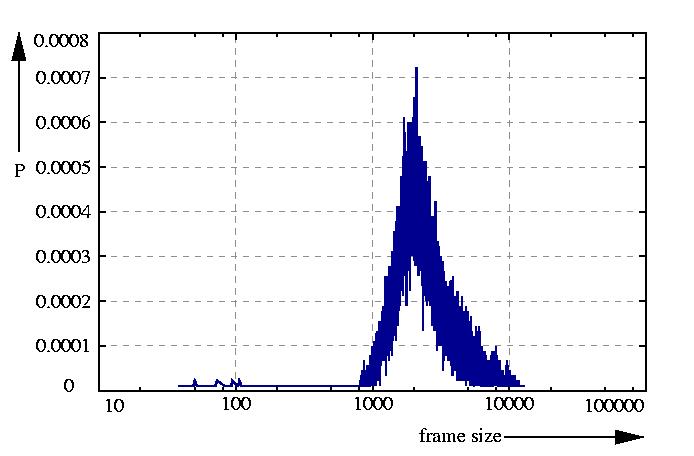

probability density function p
probability function F = sum p

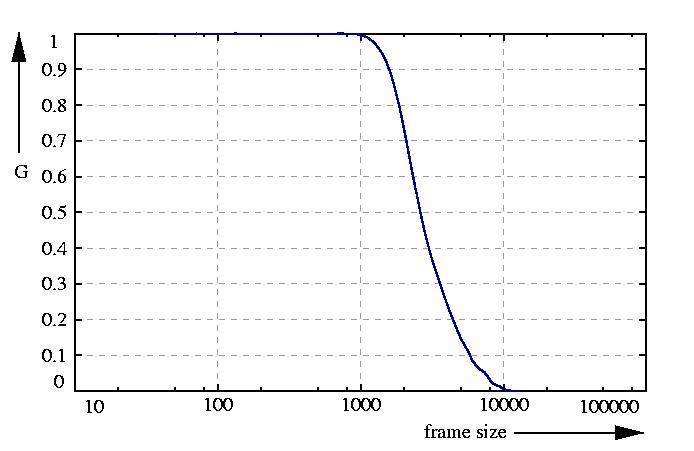

inverse probability function G = 1 - F

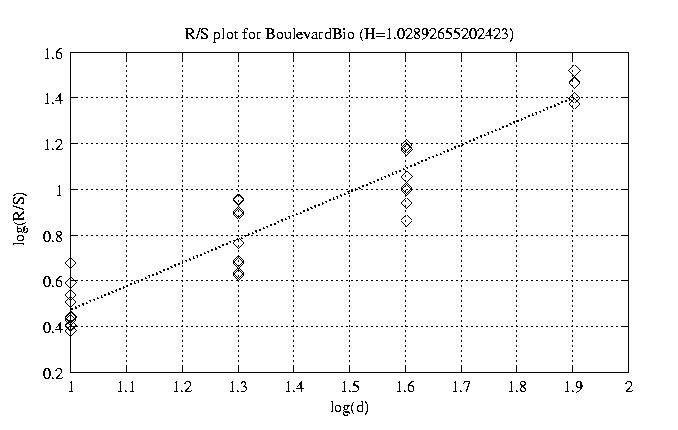

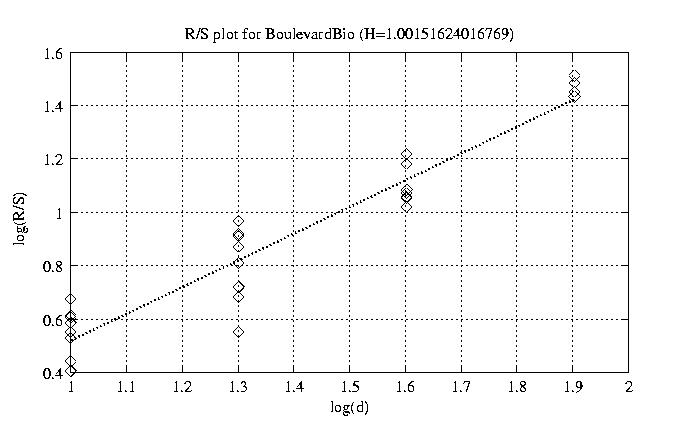

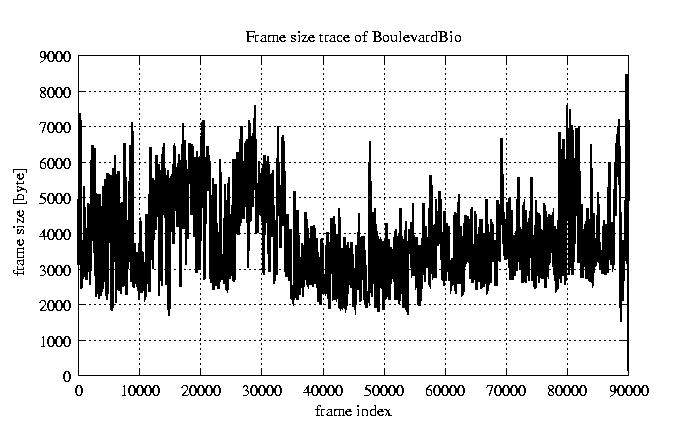

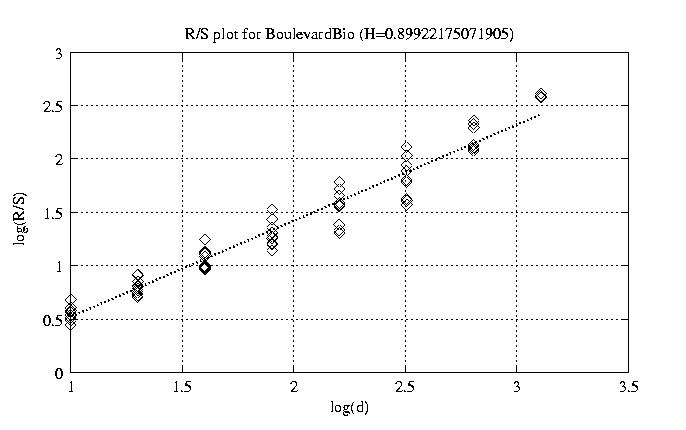

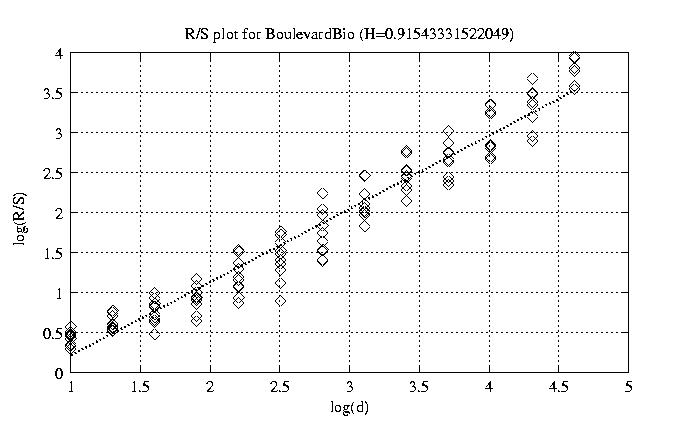

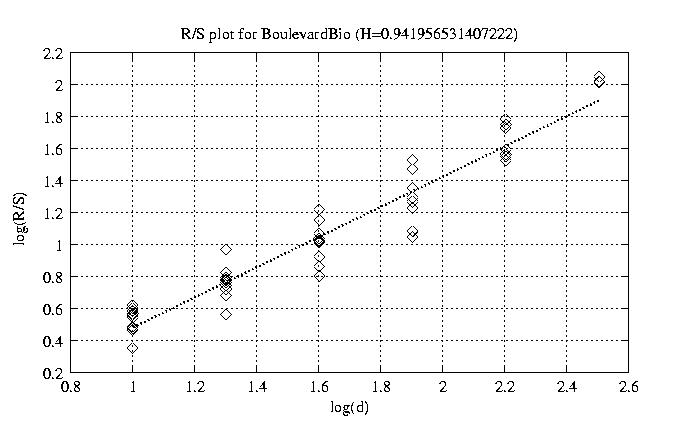

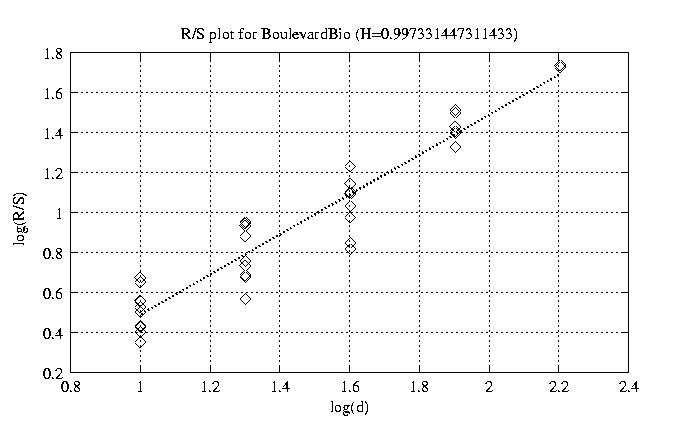

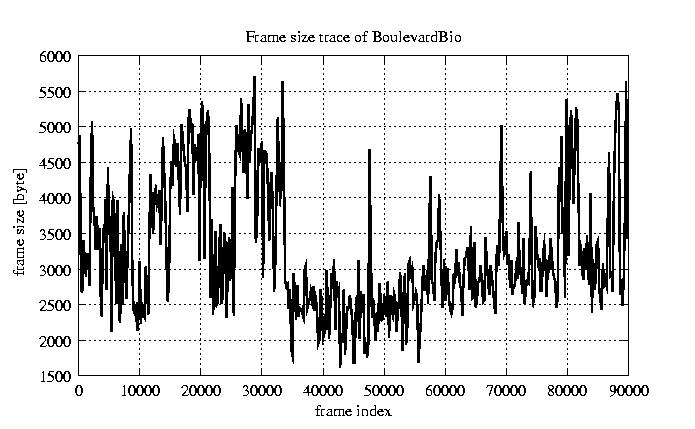

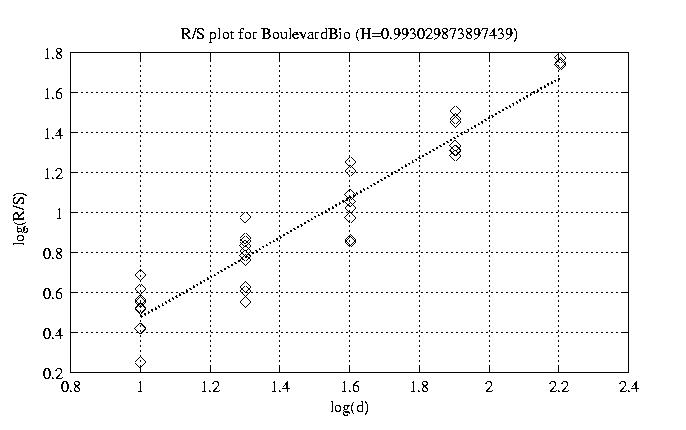

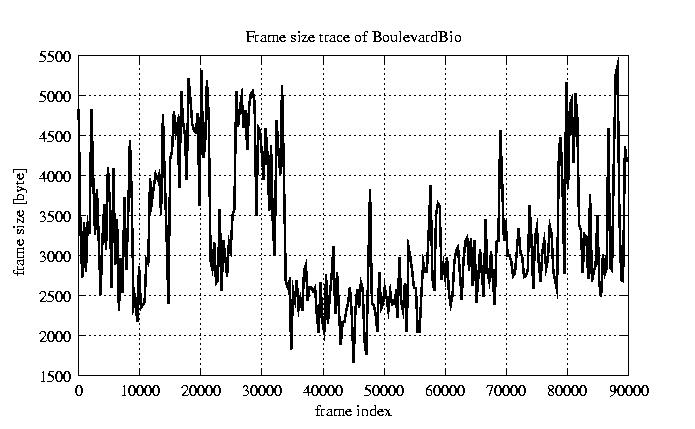

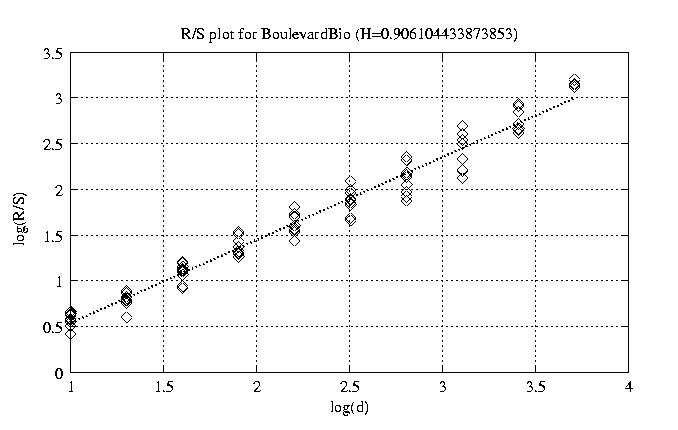

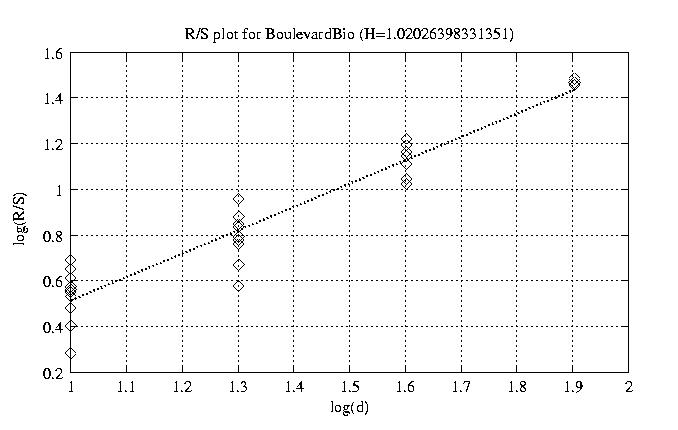

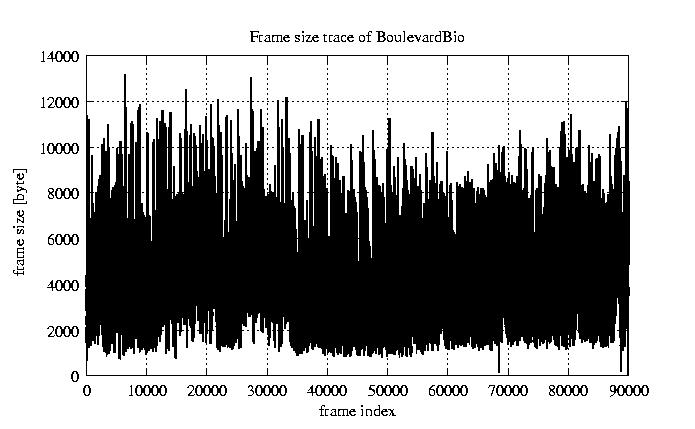

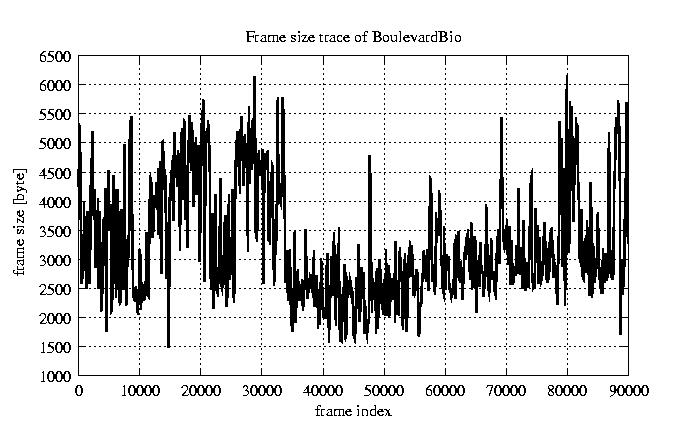

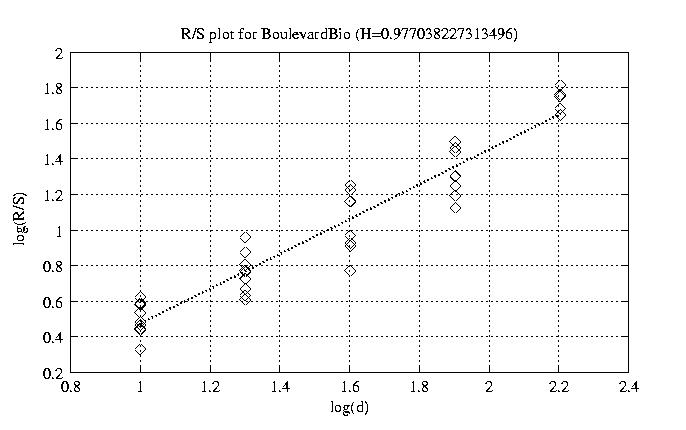

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.915 view view 12 0.906 view view 50 0.899 view view 100 0.921 view view 200 0.942 view view 300 0.977 view view 400 0.993 view view 500 0.997 view view 600 1.029 view view 700 1.002 view view 800 1.020 view view

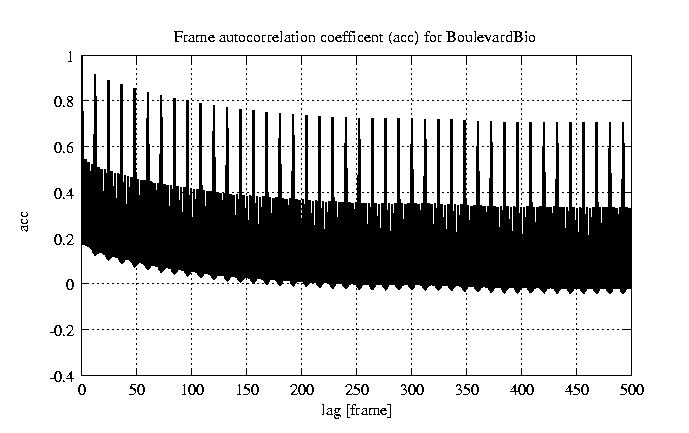

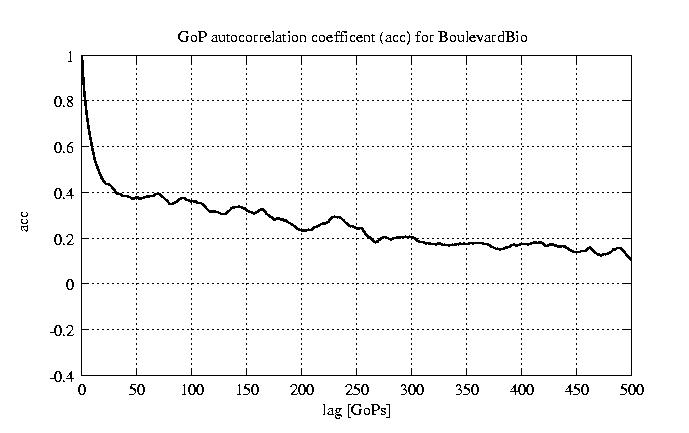

other plots	autocorrelation function of frames autocorrelation function of GoPs
