H263 - VIVA - Video Clips
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.17 476.17 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90066.00 13362.00 mean frame size byte 79.84 538.16 var frame size - 60120.03 158596.25 CoV of frame size - 3.07 0.74 min frame size byte 0.00 44.00 max frame size byte 7095.00 7095.00 Peak/Mean frame - 88.87 13.18 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 1e+05 Peak/Mean of bit rate - 6.3 CoV of bit rate - 0.24 max inter frame space frames 1.00 87.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

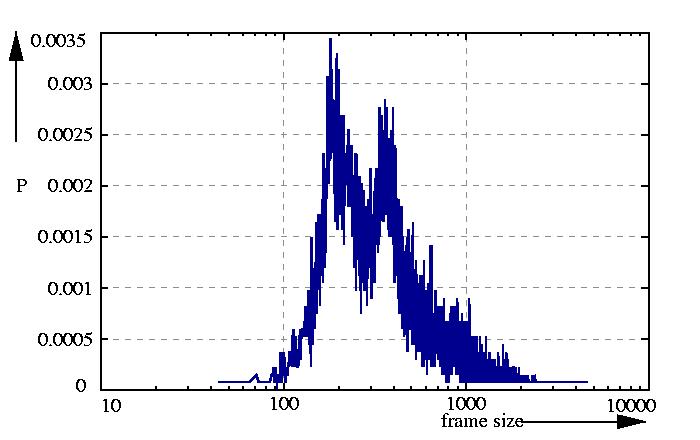

probability density function p
probability function F = sum p

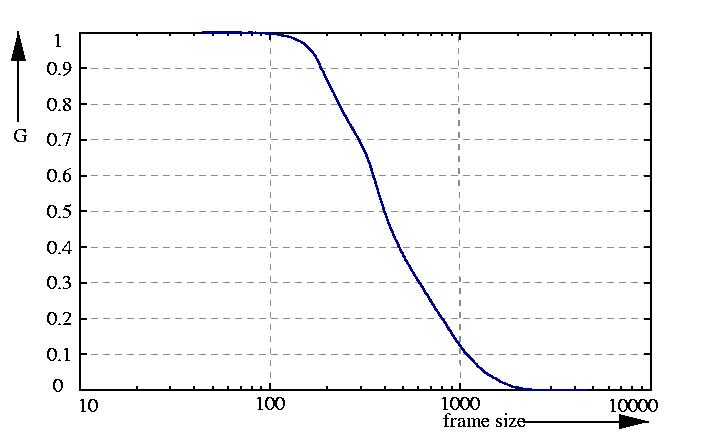

inverse probability function G = 1 - F

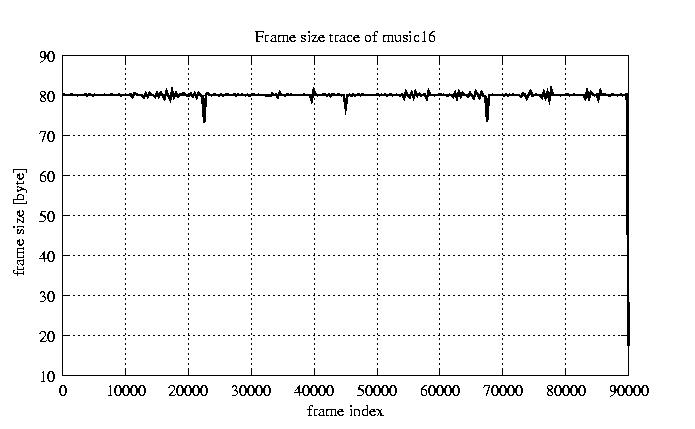

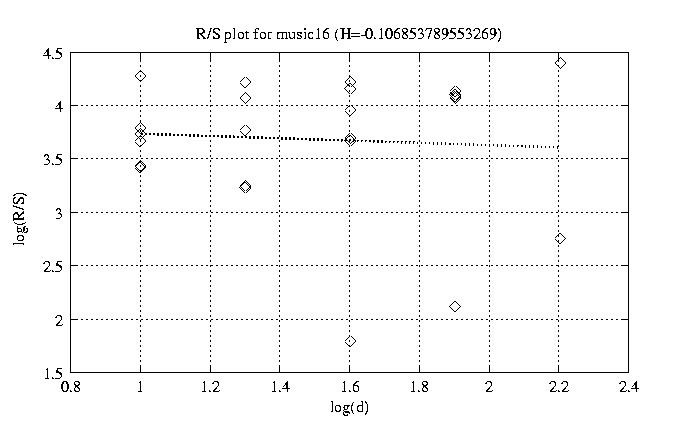

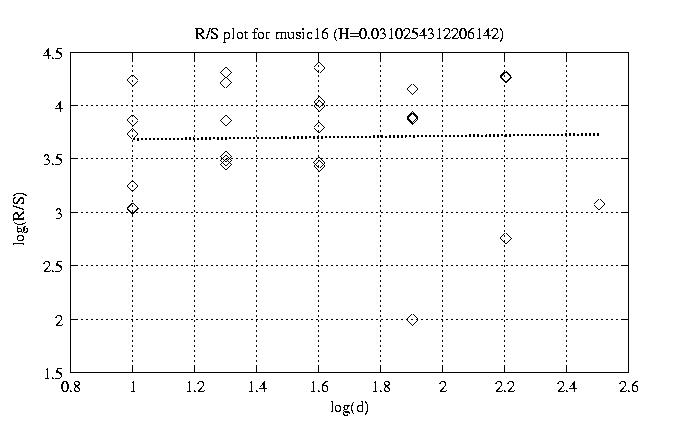

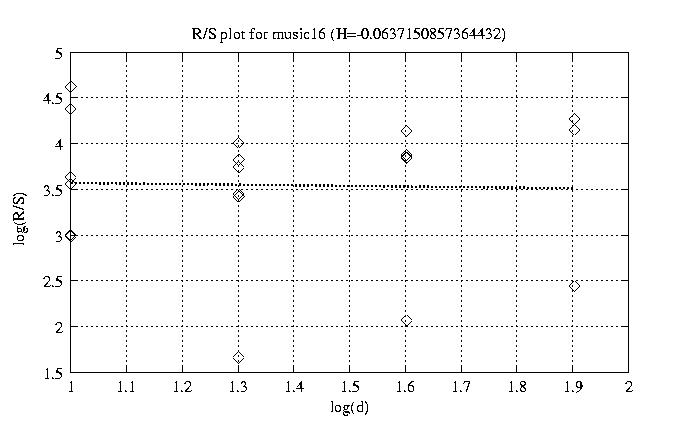

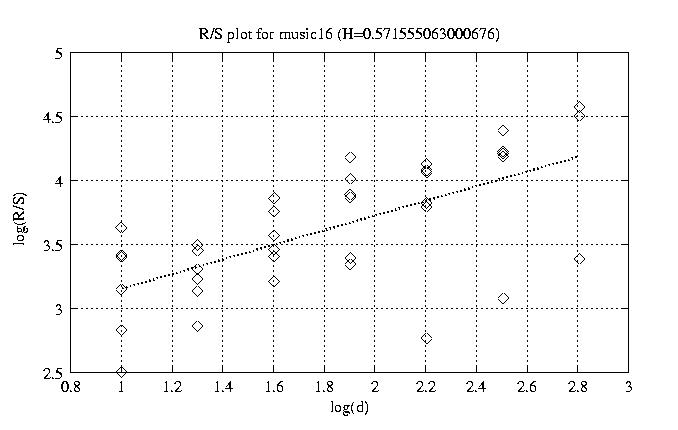

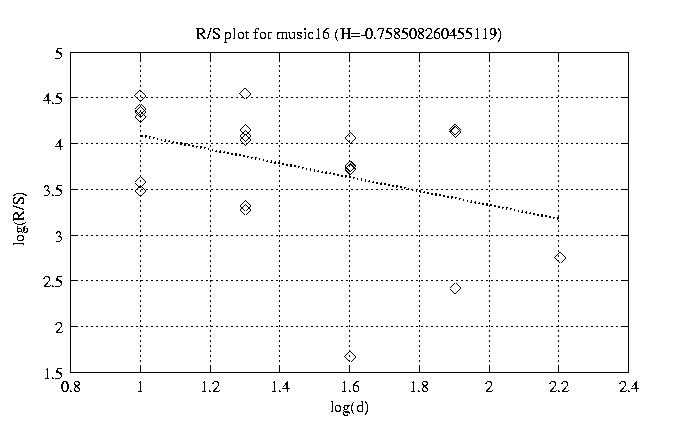

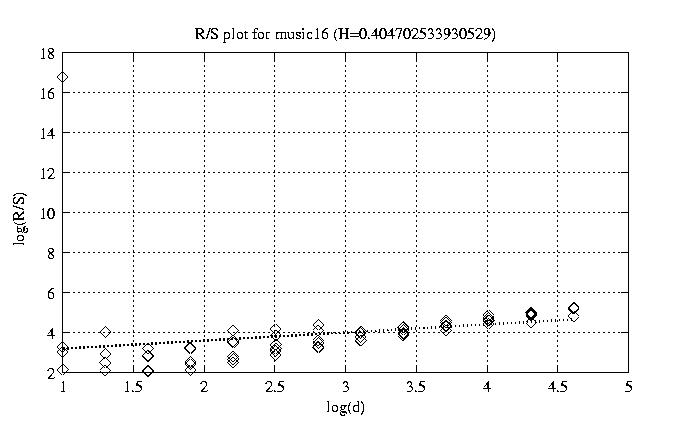

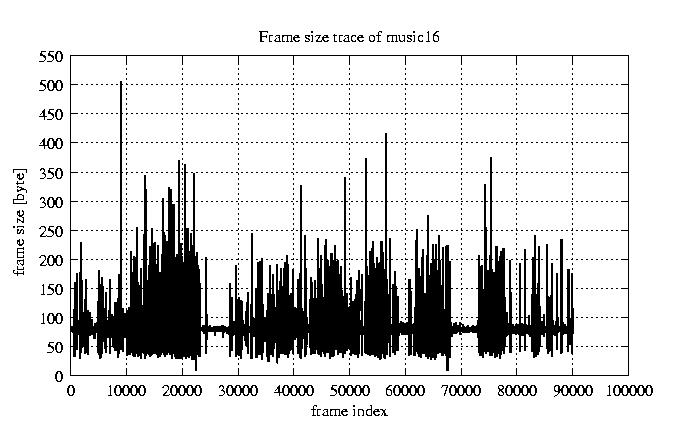

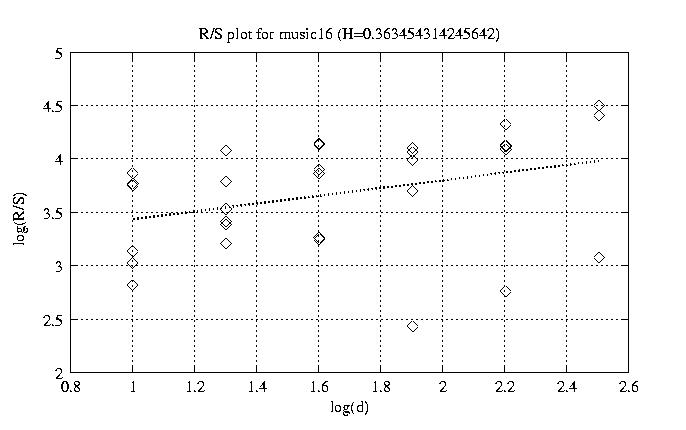

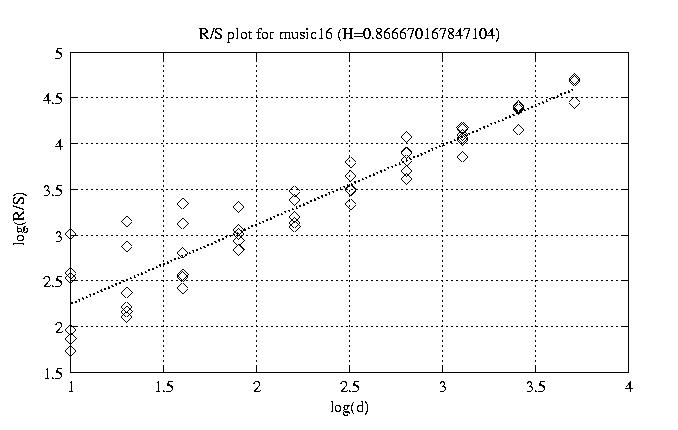

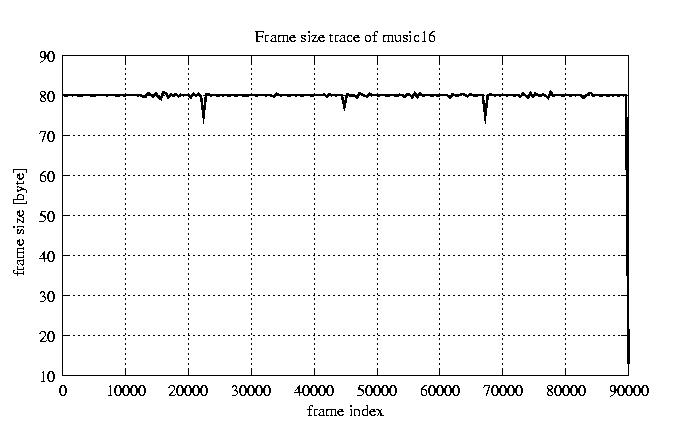

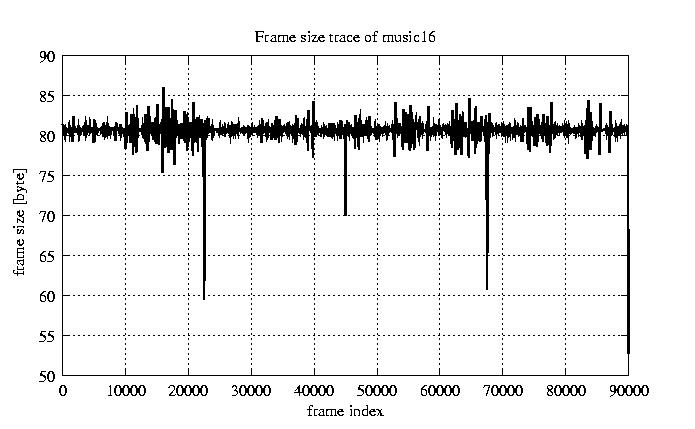

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.405 view view 12 0.867 view view 50 0.699 view view 100 0.572 view view 200 0.363 view view 300 0.031 view view 400 0.142 view view 500 -0.107 view view 600 -0.759 view view 700 -0.043 view view 800 -0.064 view view

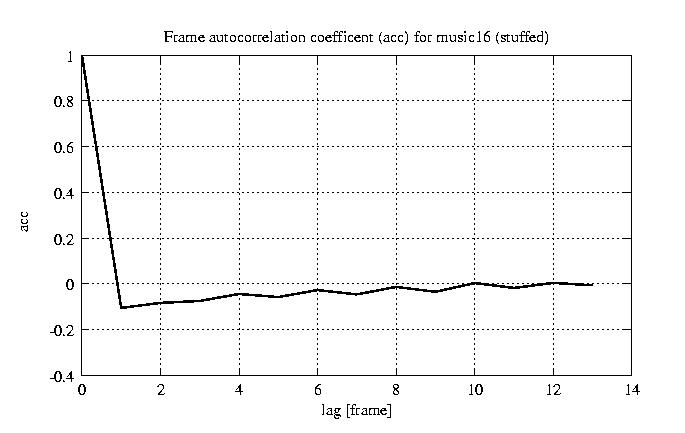

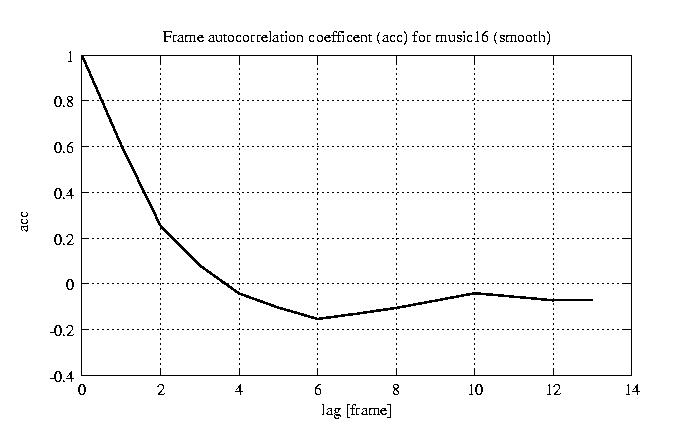

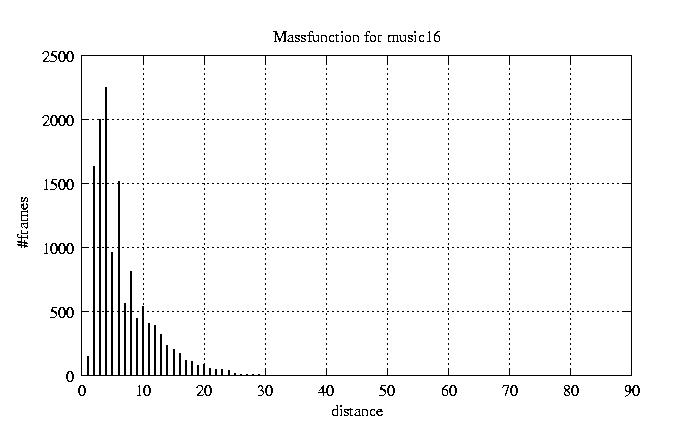

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
