H263 - Robin Hood
64 kbit/s target bit rate

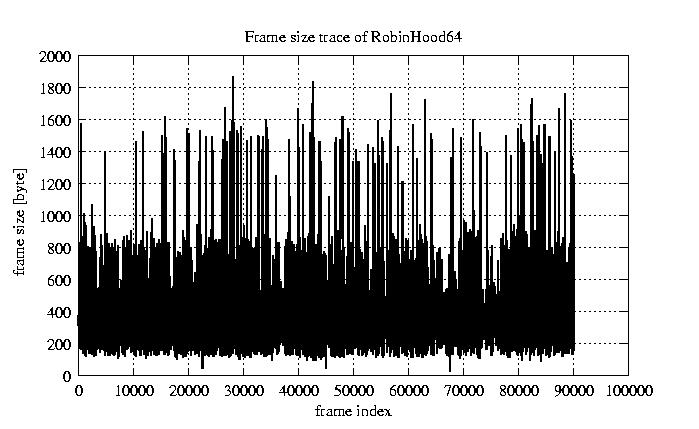

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.95 118.95 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90079.00 29698.00 mean frame size byte 319.61 969.43 var frame size - 252121.65 134764.24 CoV of frame size - 1.57 0.38 min frame size byte 0.00 147.00 max frame size byte 6321.00 6321.00 Peak/Mean frame - 19.78 6.52 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.7e+05 Peak/Mean of bit rate - 5.9 CoV of bit rate - 0.38 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

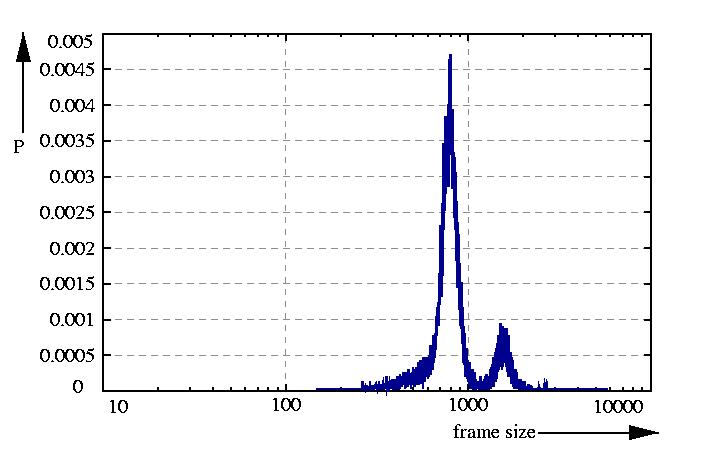

probability density function p

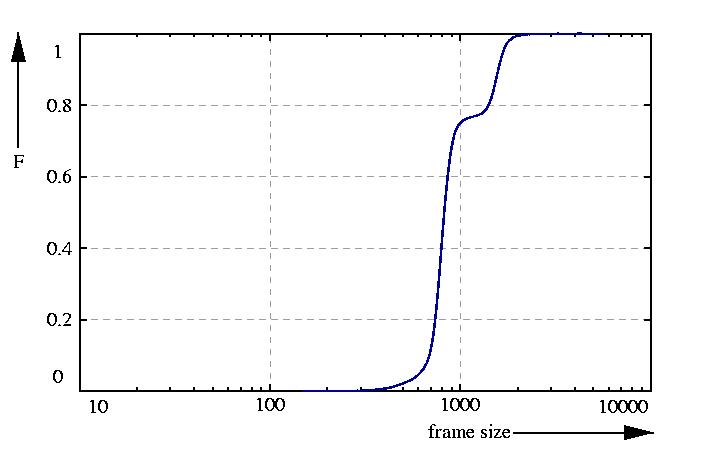

probability function F = sum p

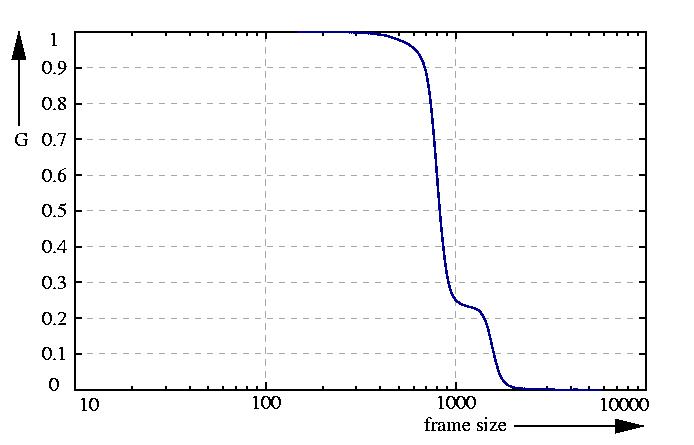

inverse probability function G = 1 - F

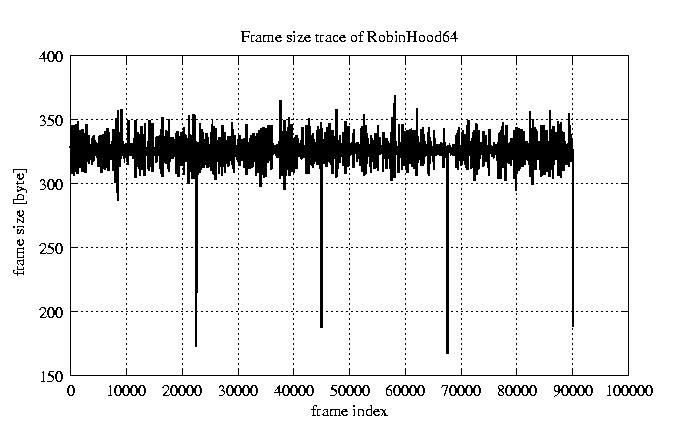

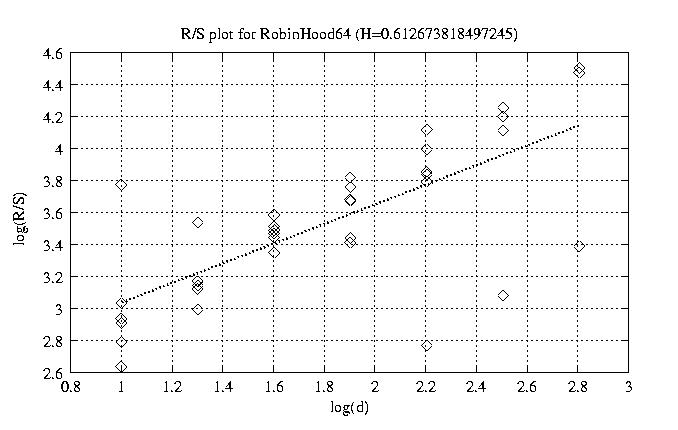

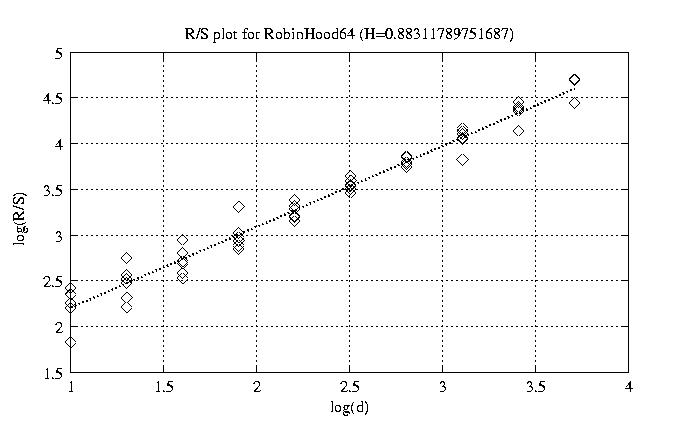

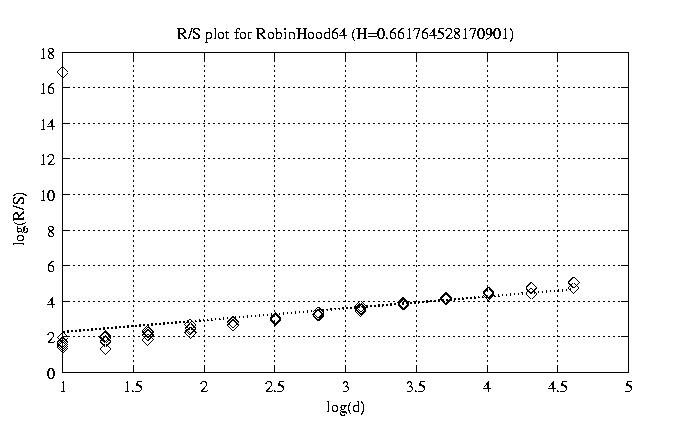

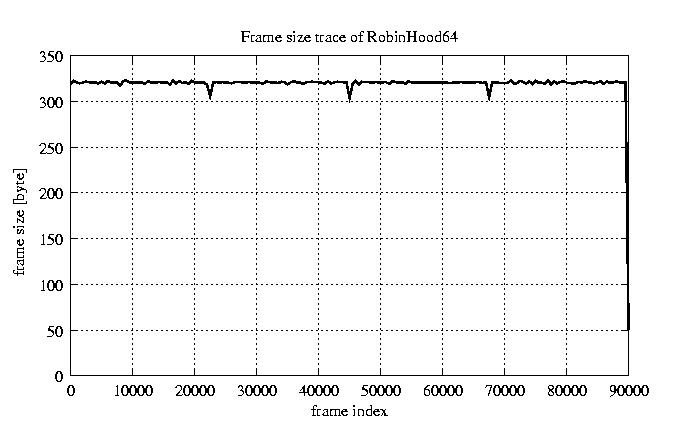

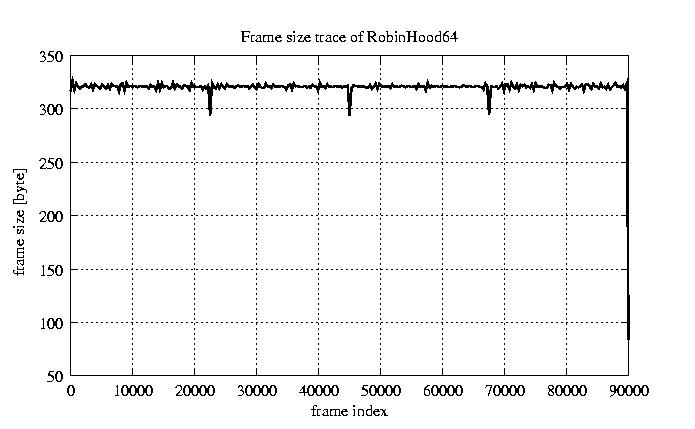

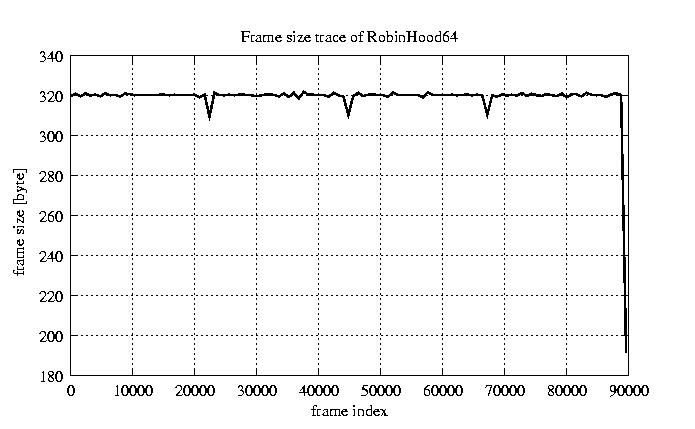

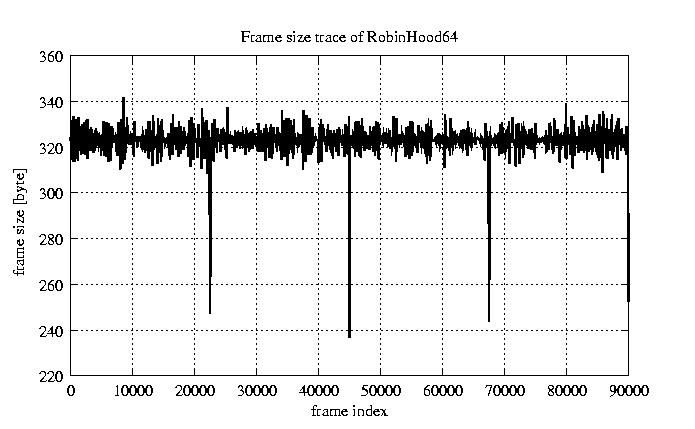

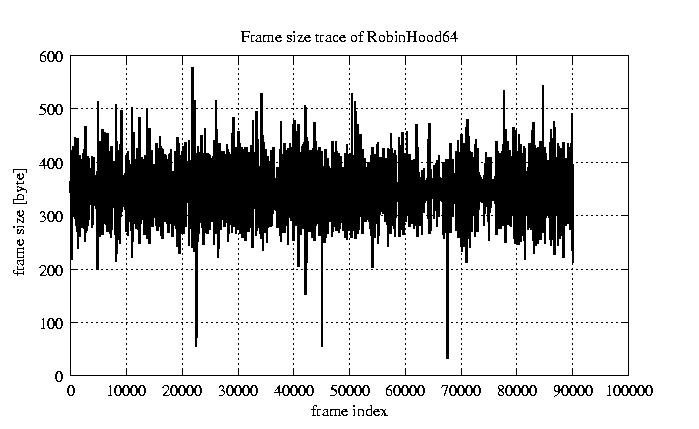

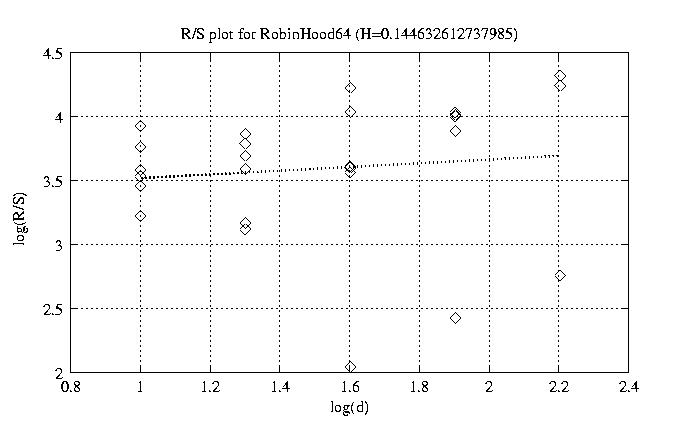

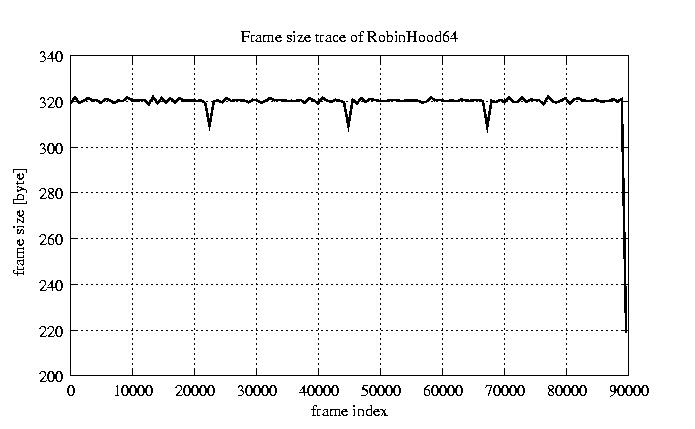

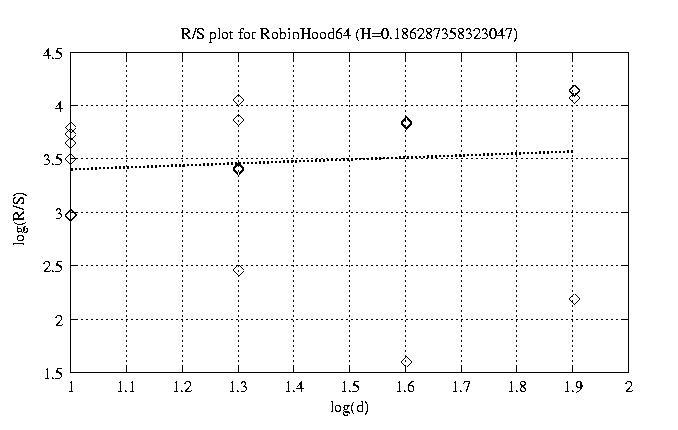

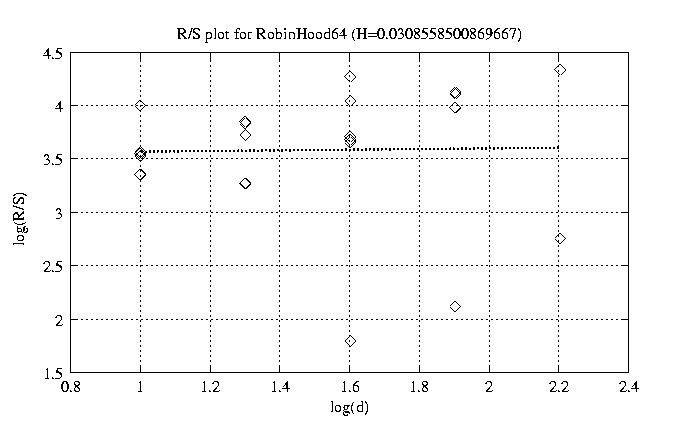

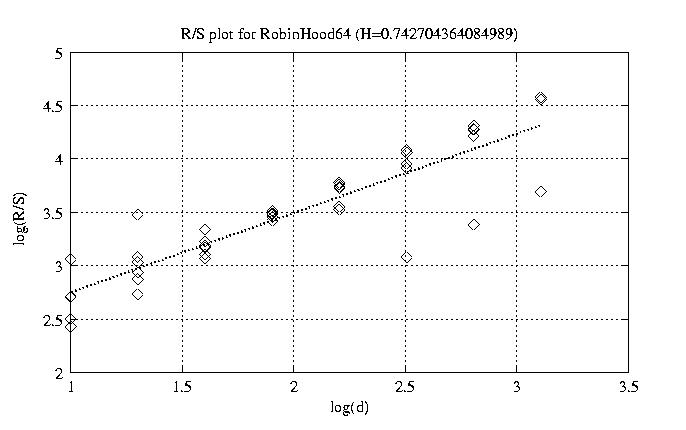

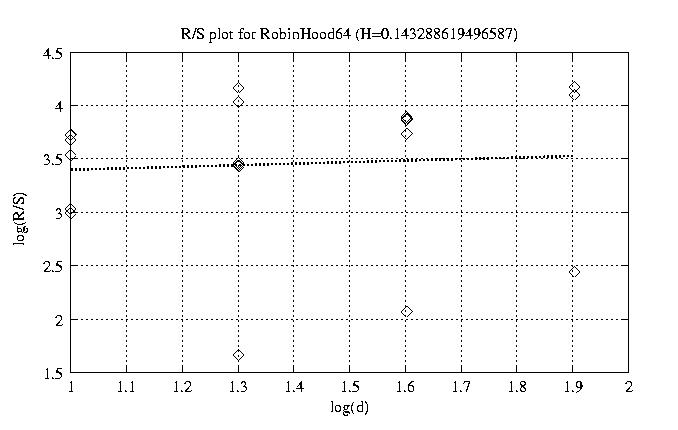

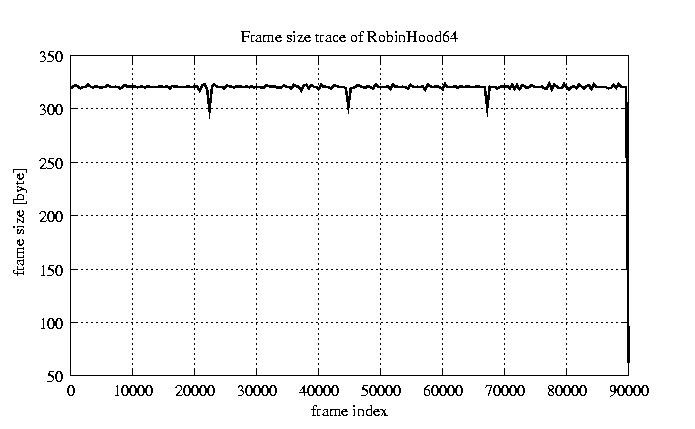

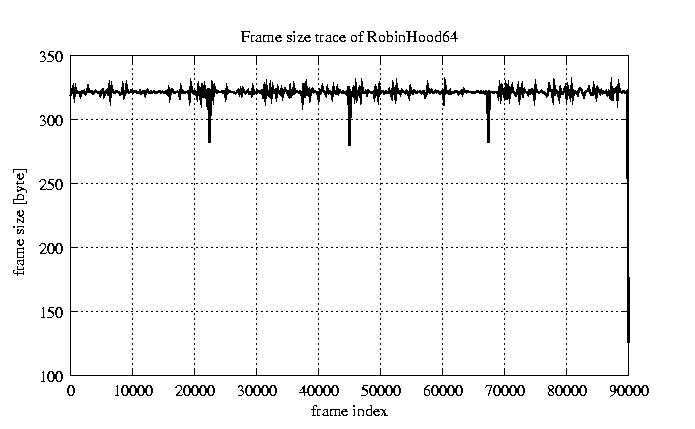

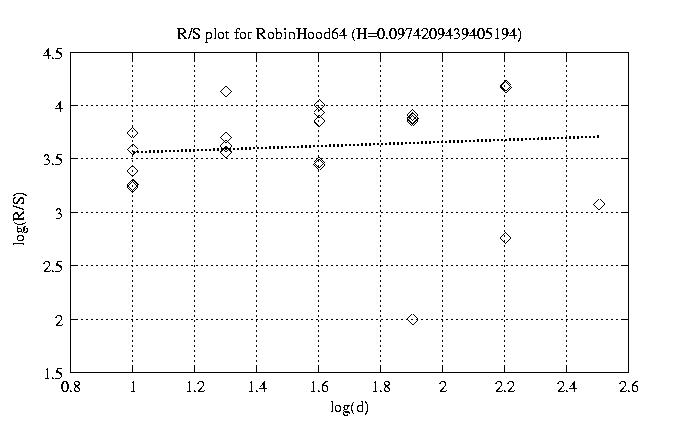

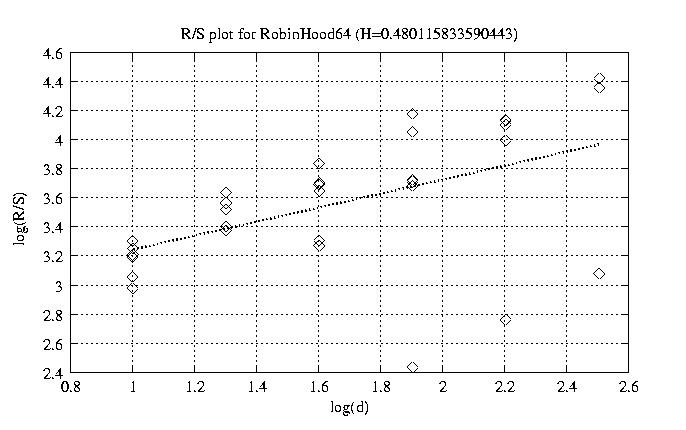

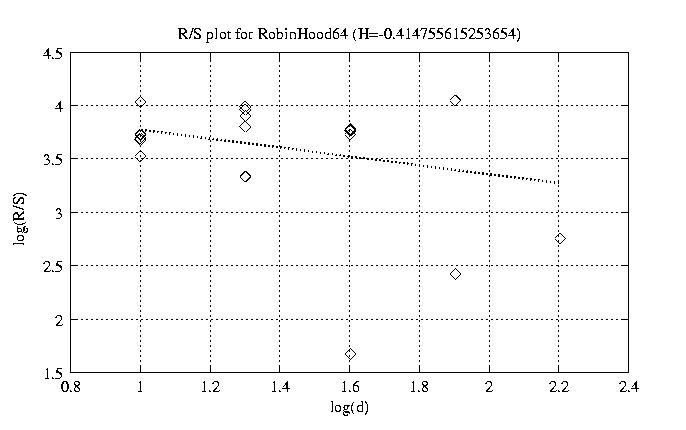

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.662 view view 12 0.883 view view 50 0.743 view view 100 0.613 view view 200 0.480 view view 300 0.097 view view 400 0.145 view view 500 0.031 view view 600 -0.415 view view 700 0.186 view view 800 0.143 view view

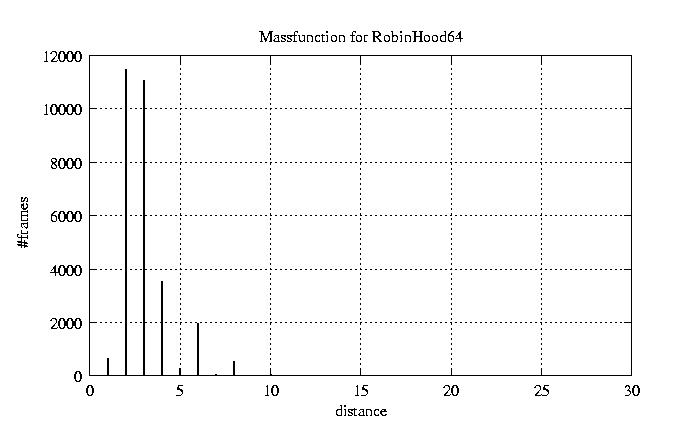

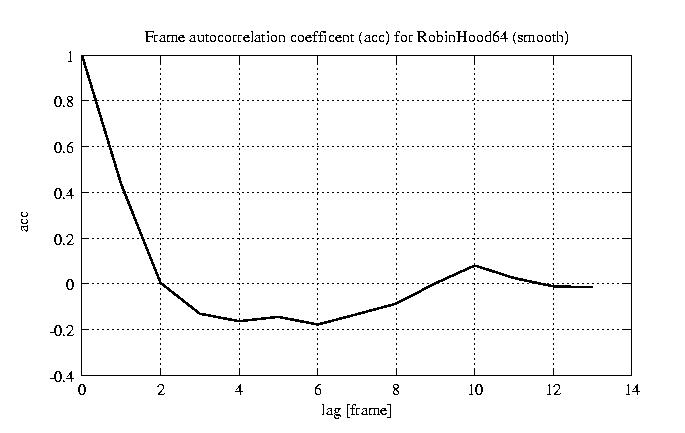

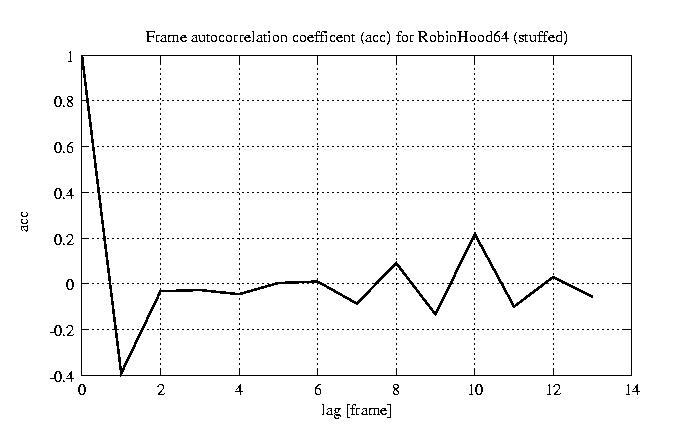

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
