MP4 - Alpin Ski
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 40.65 File Size byte 8.4e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 9.4e+02 var frame size - 1.1e+06 CoV of frame size - 1.12 min frame size byte 26 max frame size byte 9127 Mean bit rate bit/sec 1.9e+05 Peak bit rate bit/sec 1.8e+06 Peak/Mean of bit rate - 9.76 GoP statistics # of GoPs - 7499 mean GoP size byte 1.1e+04 var GoP size - 2.8e+07 CoV of GoP size - 0.47 min GoP size byte 1950 max GoP size byte 35270 Mean bit rate bit/sec 1.9e+05 Peak bit rate bit/sec 5.9e+05 Peak/Mean of bit rate - 3.14 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

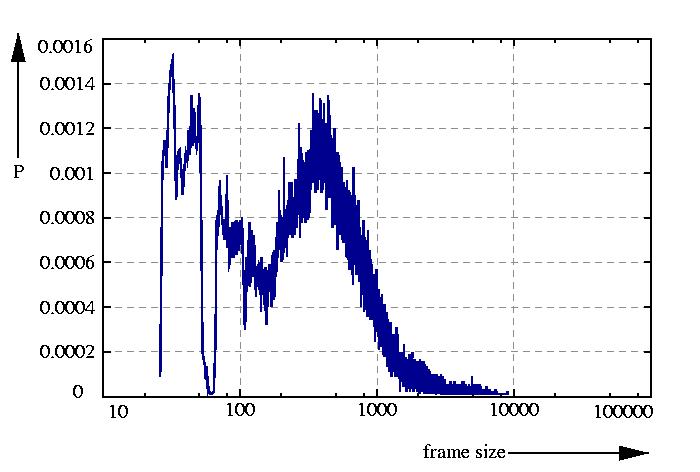

probability density function p

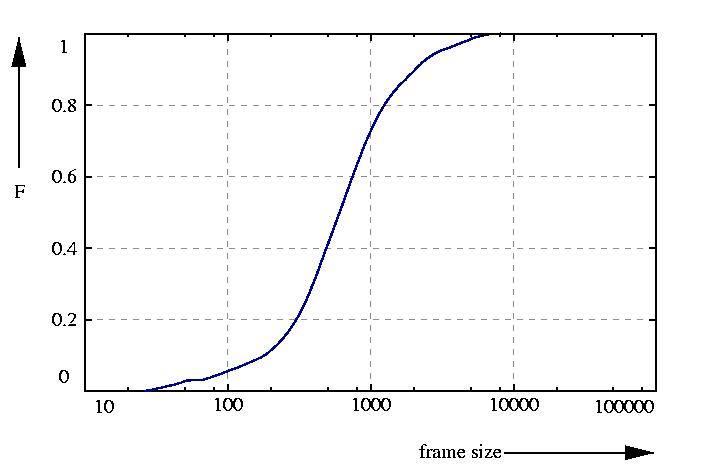

probability function F = sum p

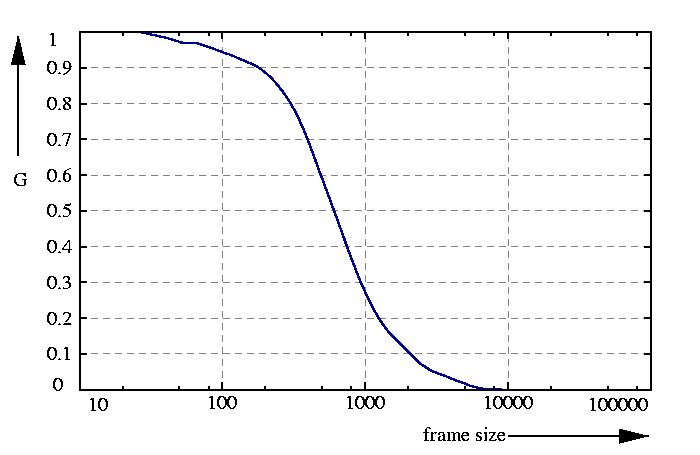

inverse probability function G = 1 - F

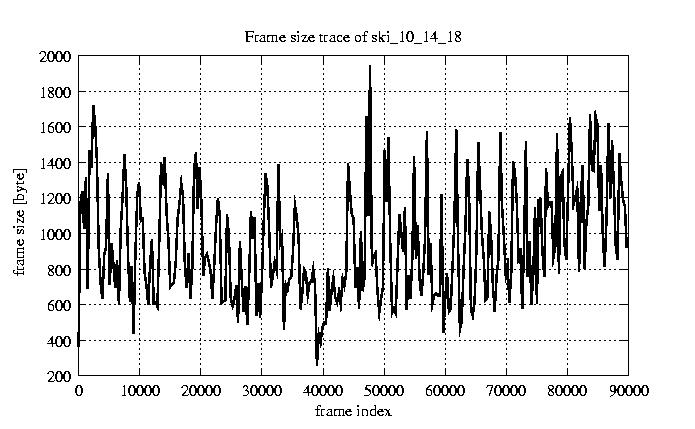

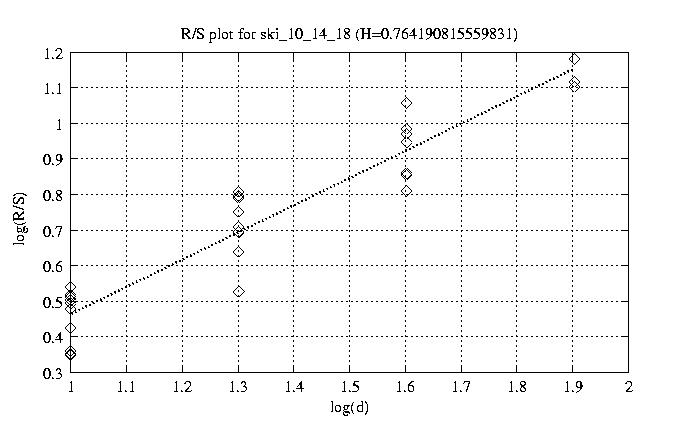

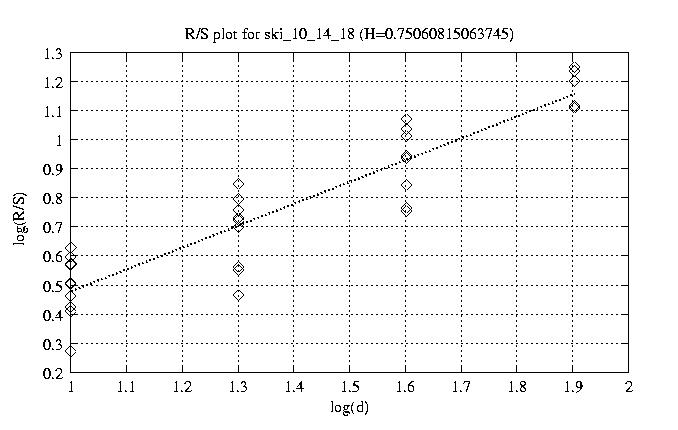

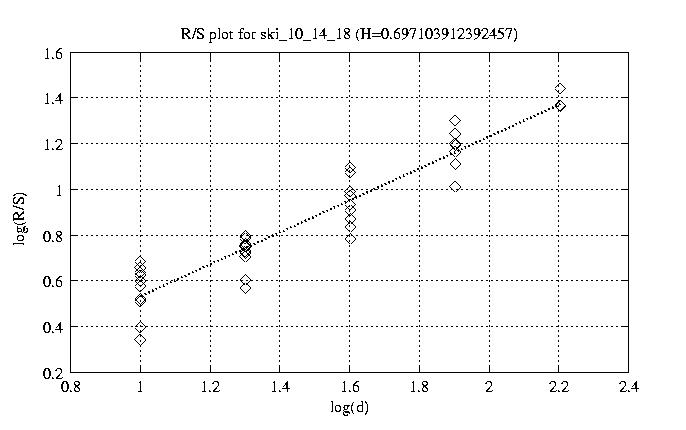

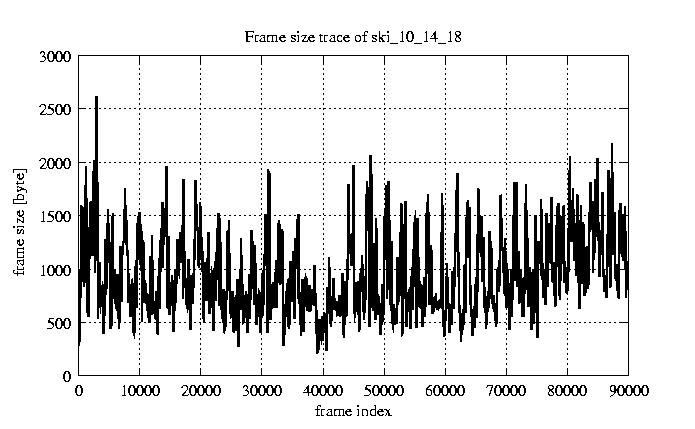

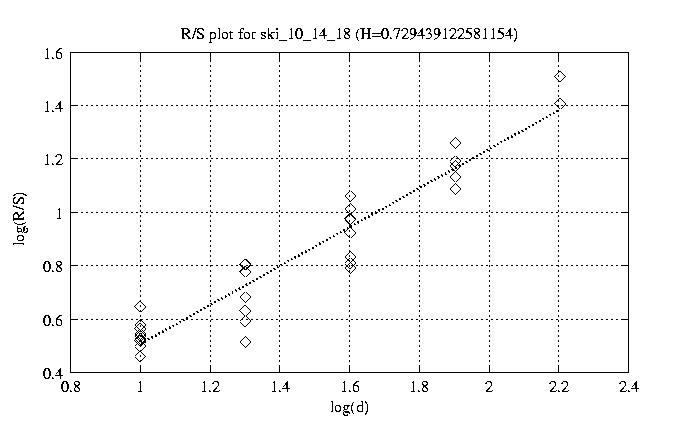

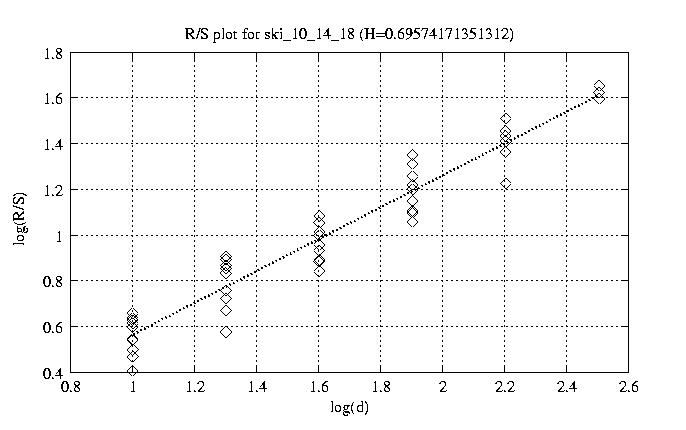

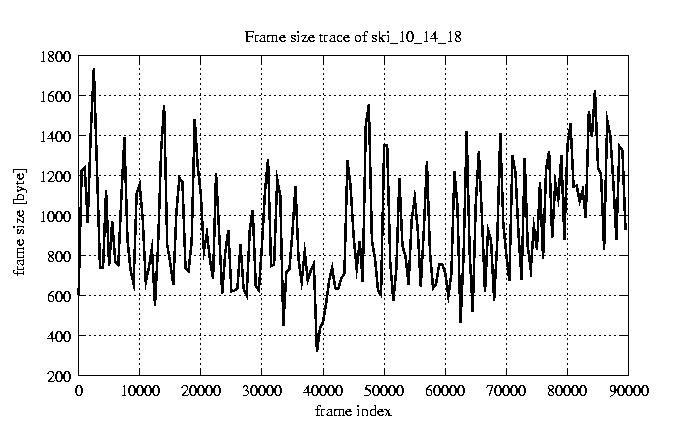

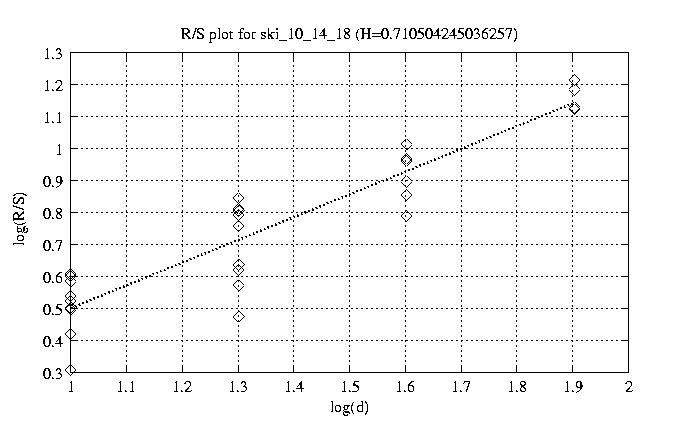

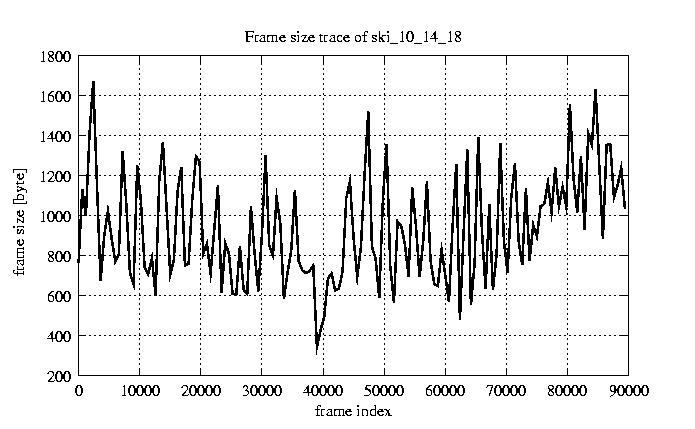

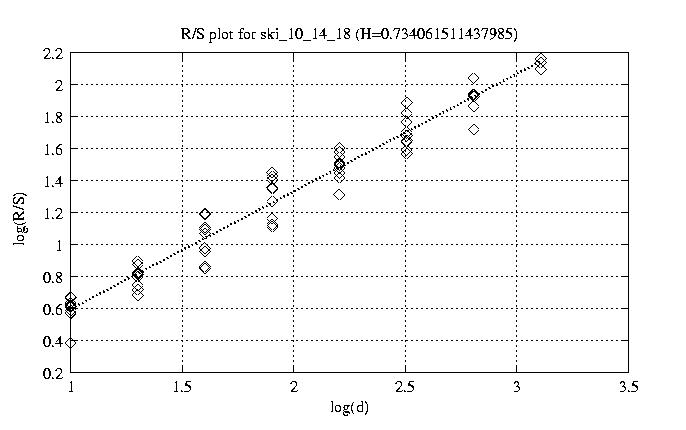

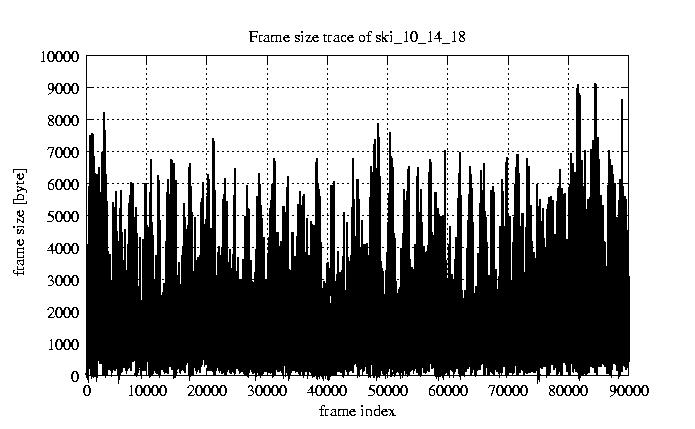

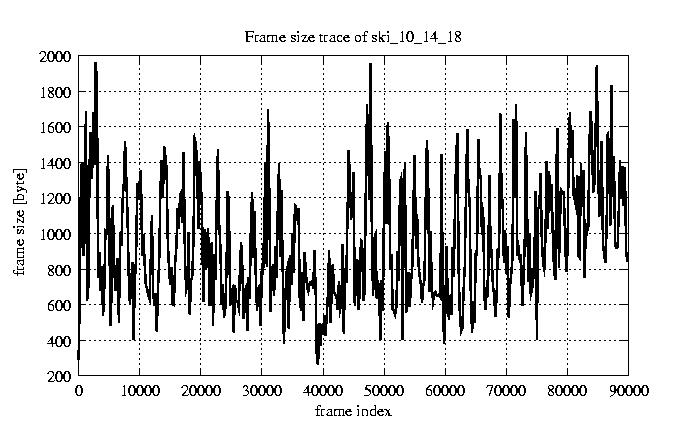

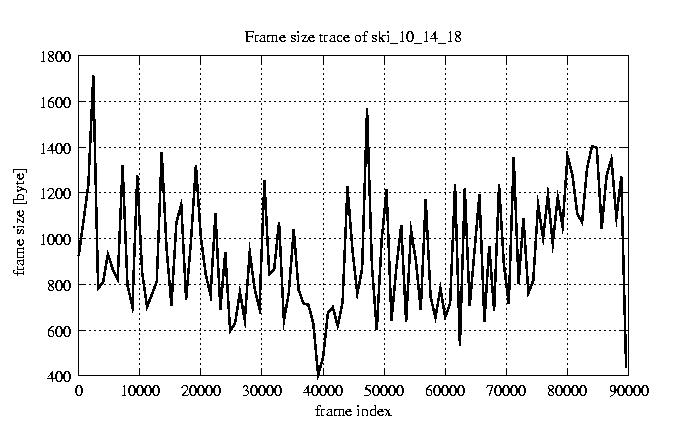

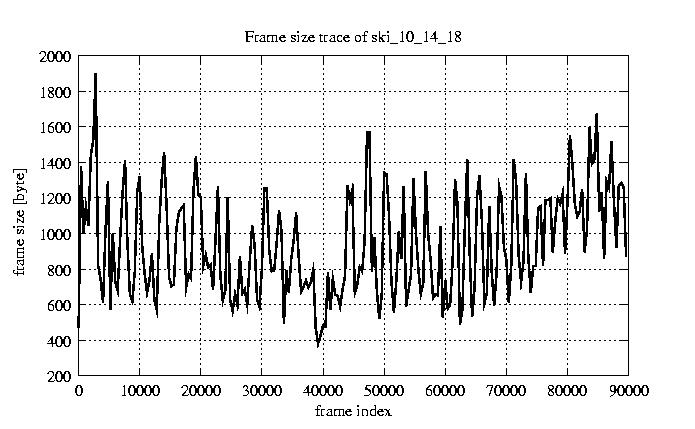

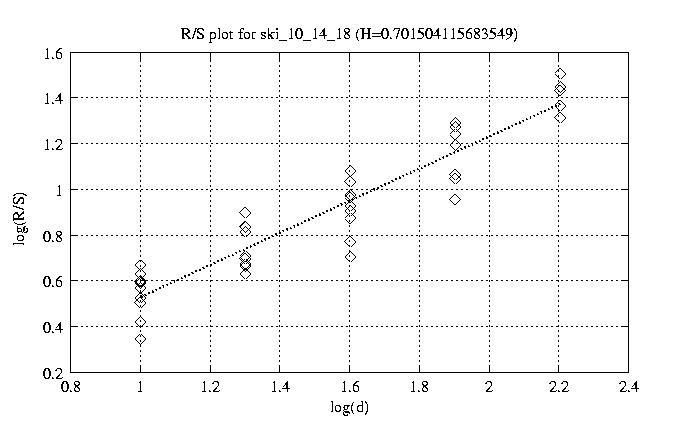

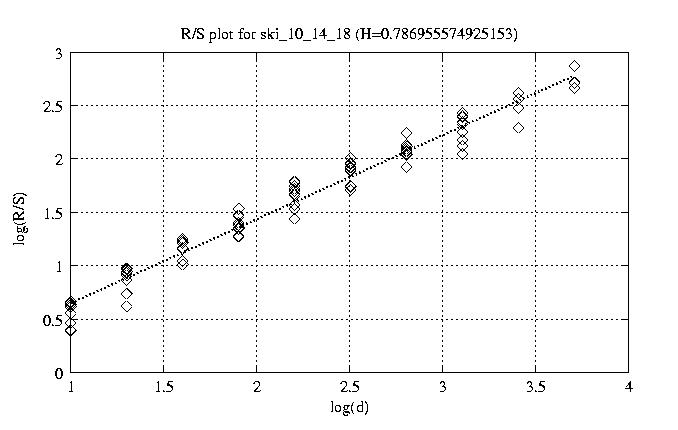

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.848 view view 12 0.787 view view 50 0.734 view view 100 0.727 view view 200 0.696 view view 300 0.702 view view 400 0.697 view view 500 0.729 view view 600 0.751 view view 700 0.711 view view 800 0.764 view view

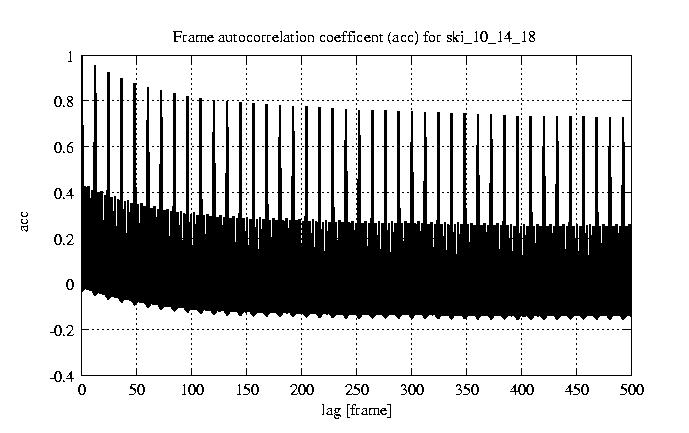

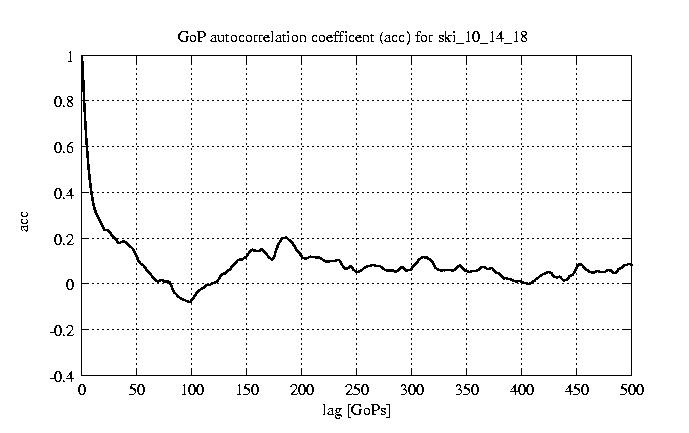

other plots	autocorrelation function of frames autocorrelation function of GoPs
