H261 - Die Hard III
64 kbit/s target bit rate

frame statistics parameter list	Frames Rates compression ratio YUV:H261 118.94 File size byte 2.9e+07 Video run time msec 3.6e+06 3.6e+06 # of Frames - 90000.00 mean frame size byte 319.64 var frame size - 5151.58 CoV of frame size - 0.22 min frame size byte 173.00 max frame size byte 2188.00 Peak/Mean frame - 6.85 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 4.4e+05 Peak/Mean of bit rate - 6.8 CoV of bit rate - 0.22 max inter frame space frames 1.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

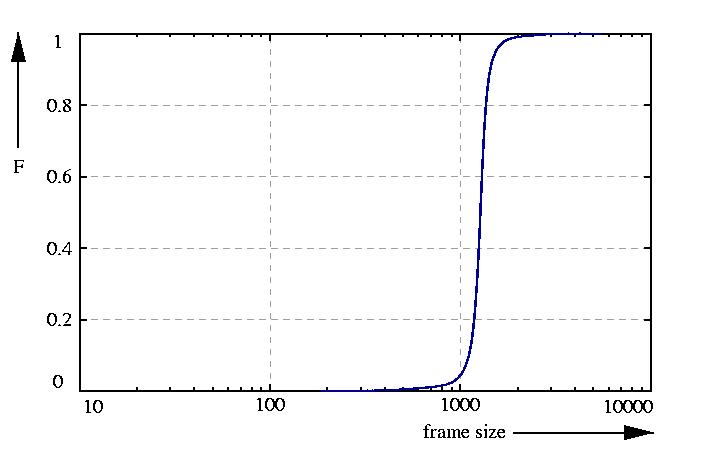

probability function F = sum p

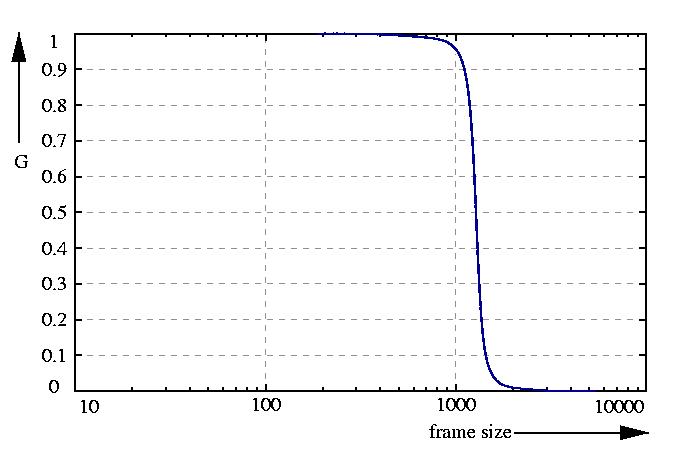

inverse probability function G = 1 - F

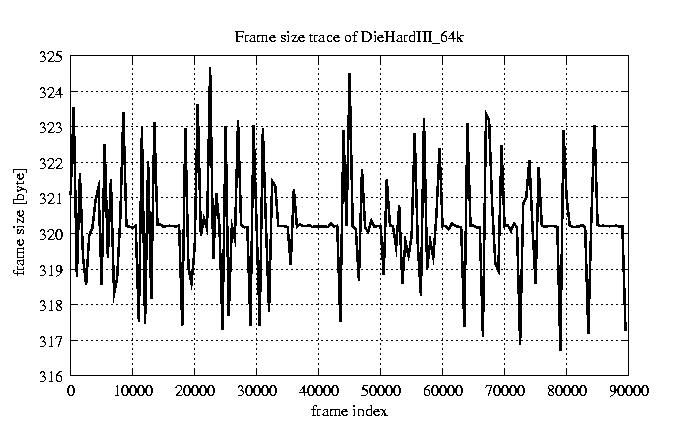

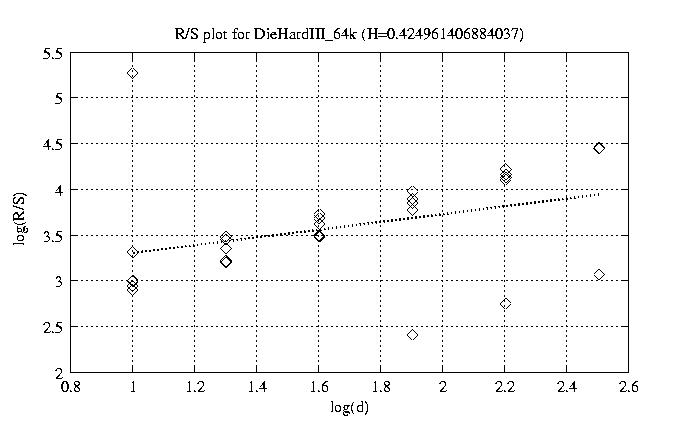

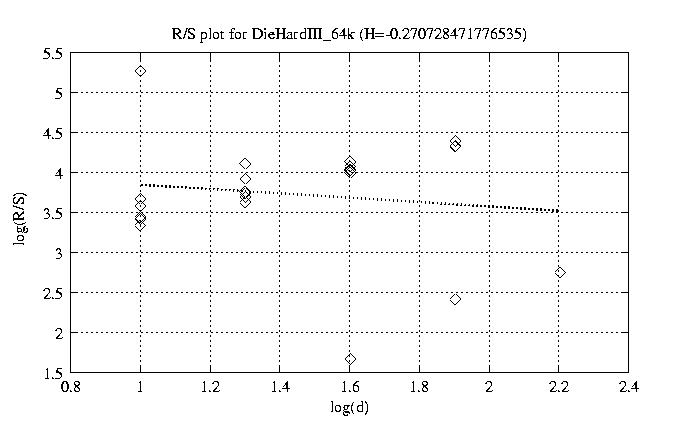

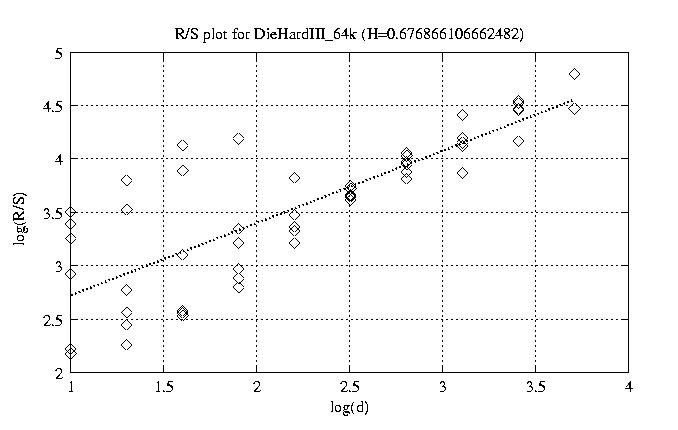

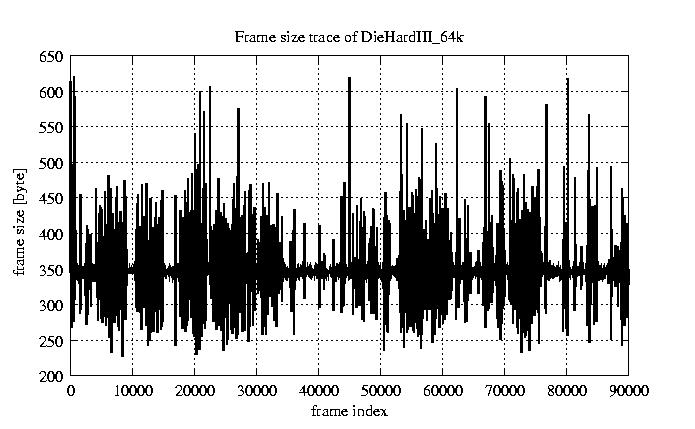

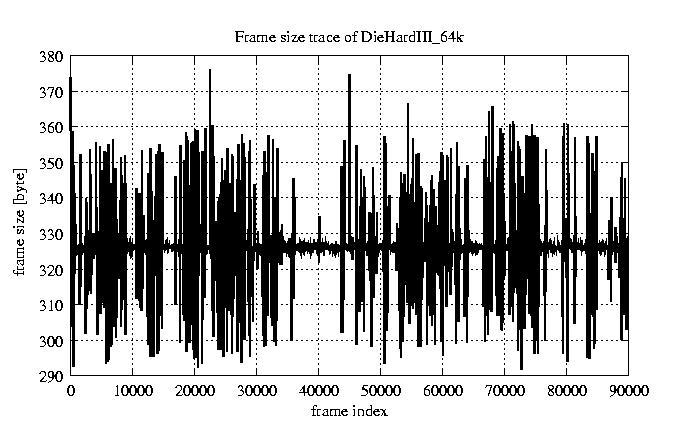

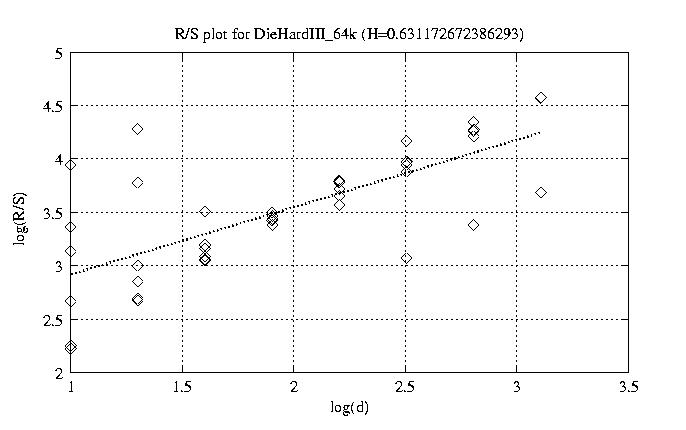

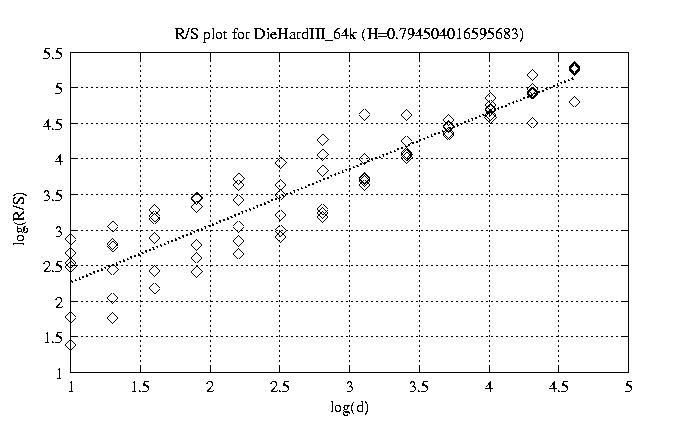

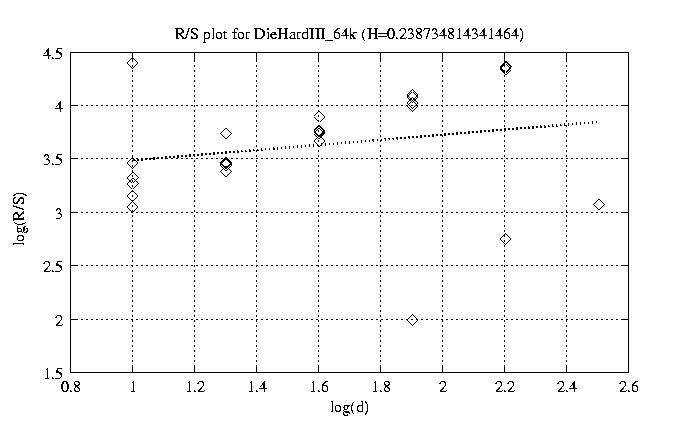

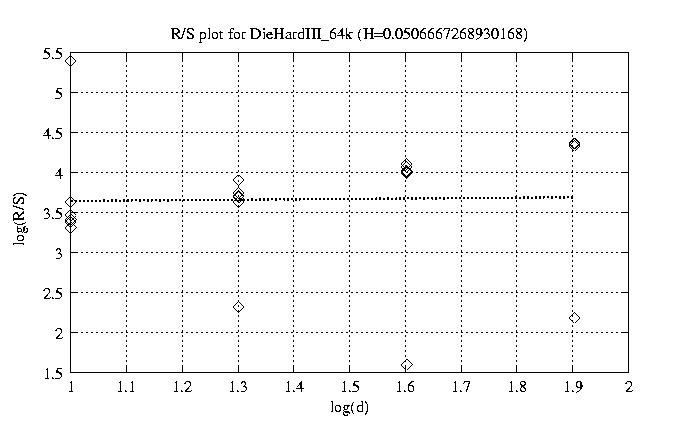

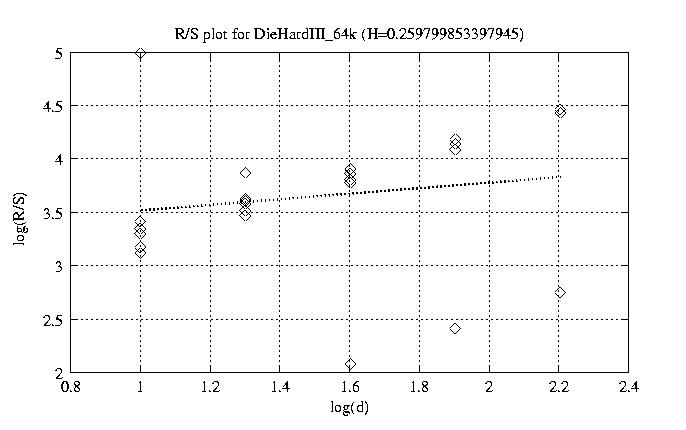

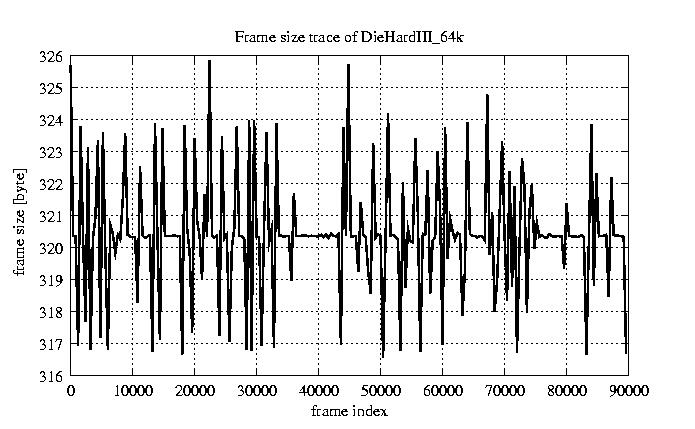

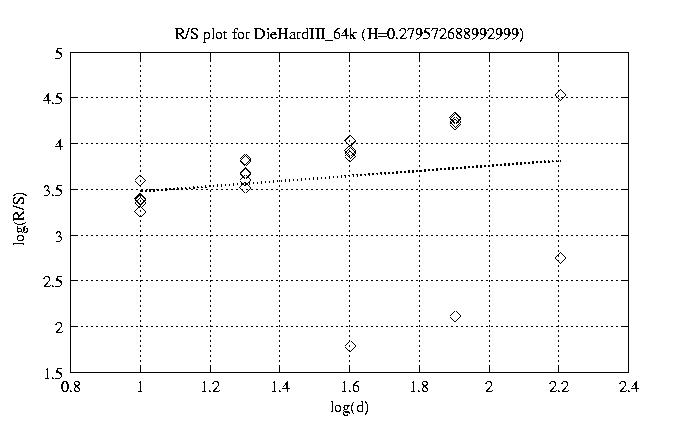

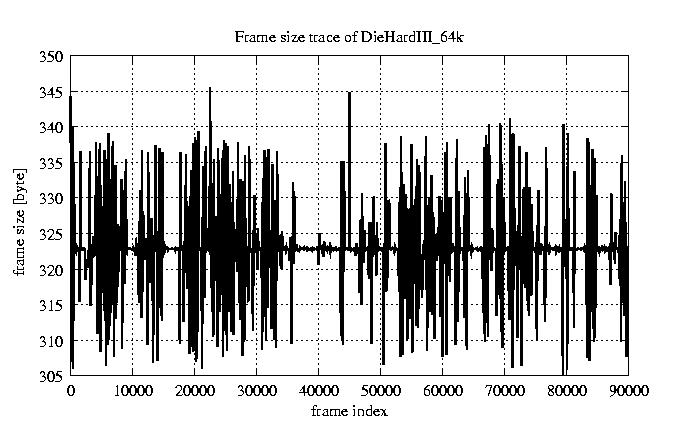

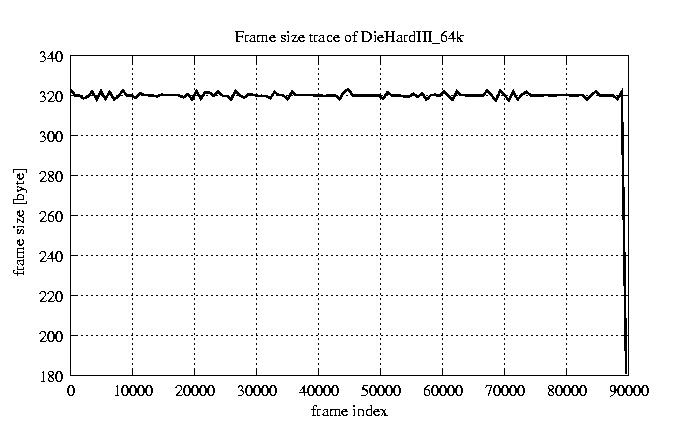

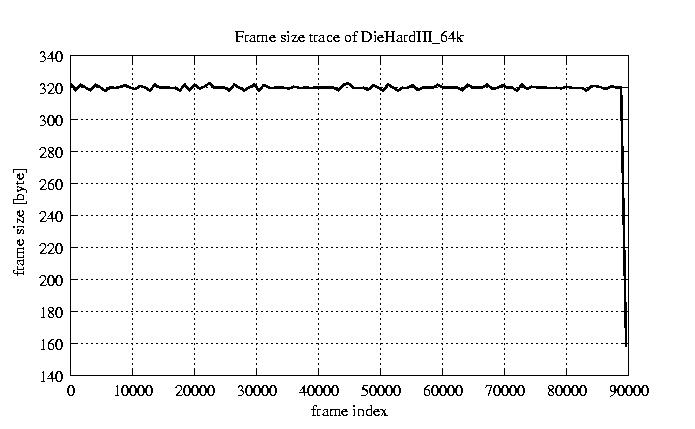

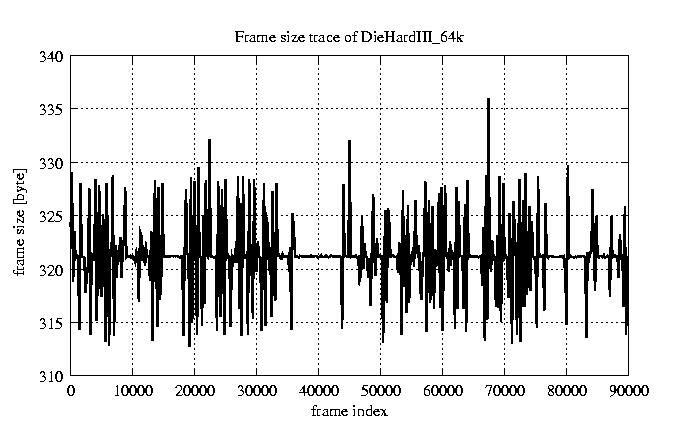

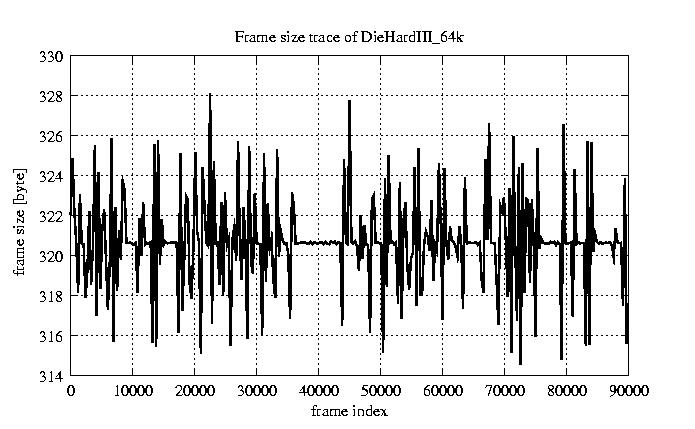

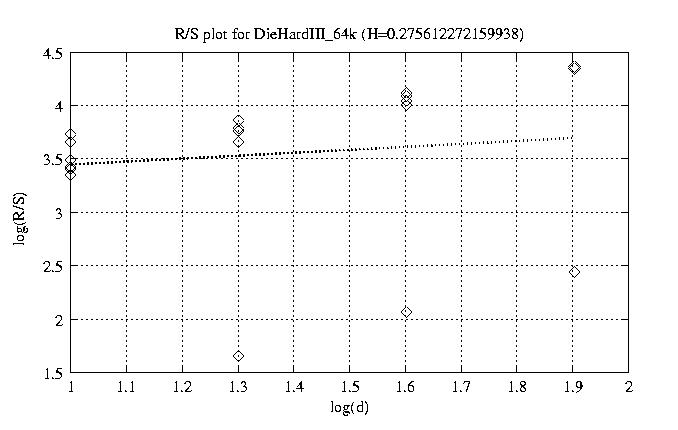

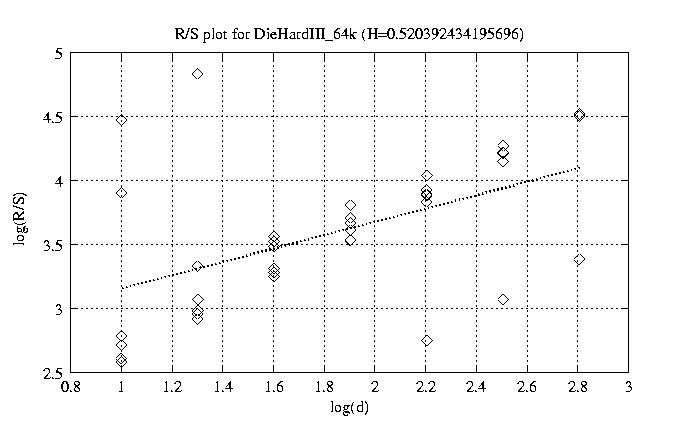

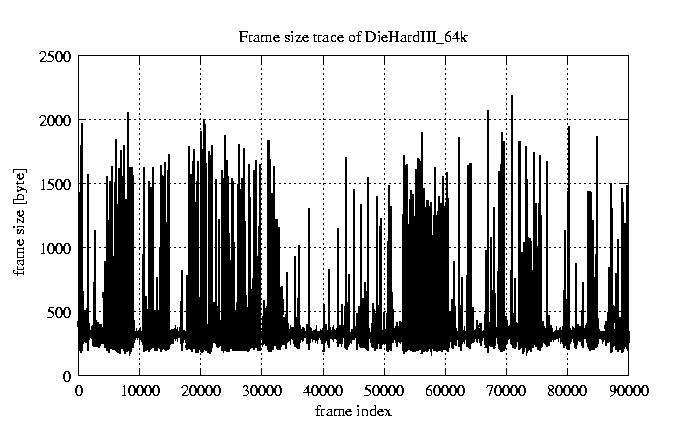

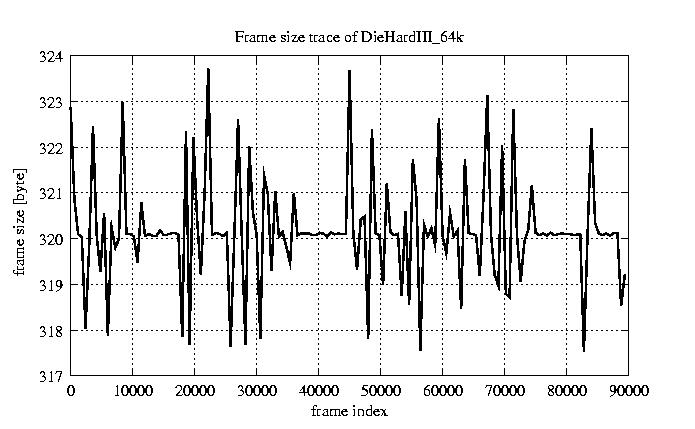

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.795 view view 12 0.677 view view 50 0.631 view view 100 0.520 view view 200 0.425 view view 300 0.239 view view 400 0.260 view view 500 0.280 view view 600 -0.271 view view 700 0.051 view view 800 0.276 view view

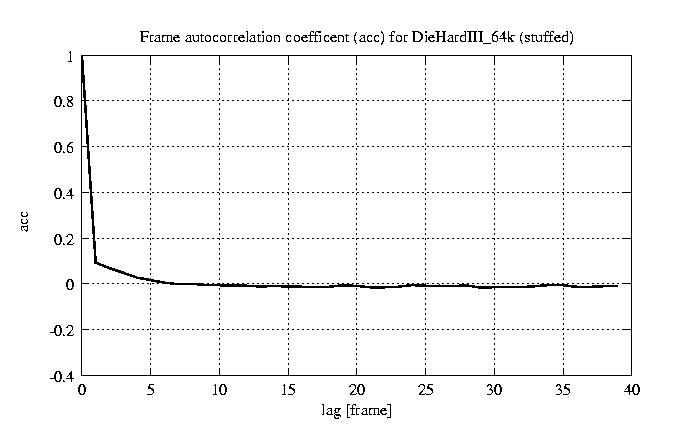

other plots	autocorrelation function of frames
