MP4 - Formula 1
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 26.11 File Size byte 6.6e+07 Video run time msec 1.8e+06 # of Frames - 44998 mean frame size byte 1.5e+03 var frame size - 8.6e+05 CoV of frame size - 0.64 min frame size byte 47 max frame size byte 7032 Mean bit rate bit/sec 2.9e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 4.83 GoP statistics # of GoPs - 3749 mean GoP size byte 1.7e+04 var GoP size - 3.7e+07 CoV of GoP size - 0.35 min GoP size byte 4682 max GoP size byte 50001 Mean bit rate bit/sec 2.9e+05 Peak bit rate bit/sec 8.3e+05 Peak/Mean of bit rate - 2.86 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p

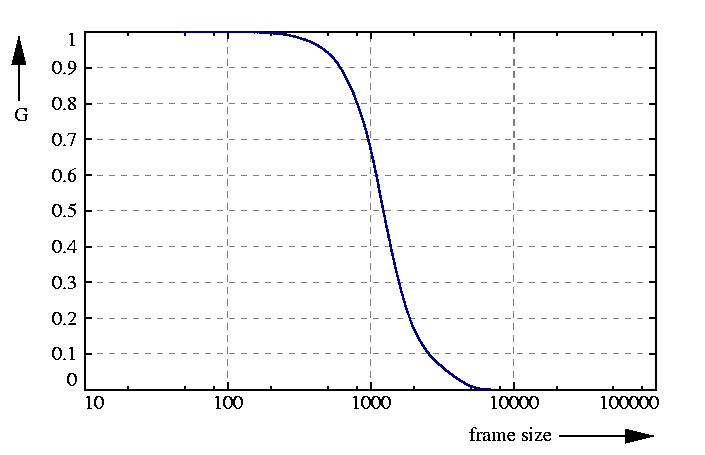

inverse probability function G = 1 - F

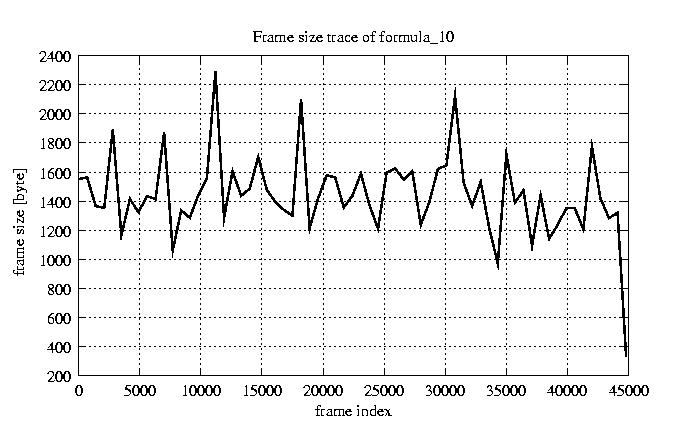

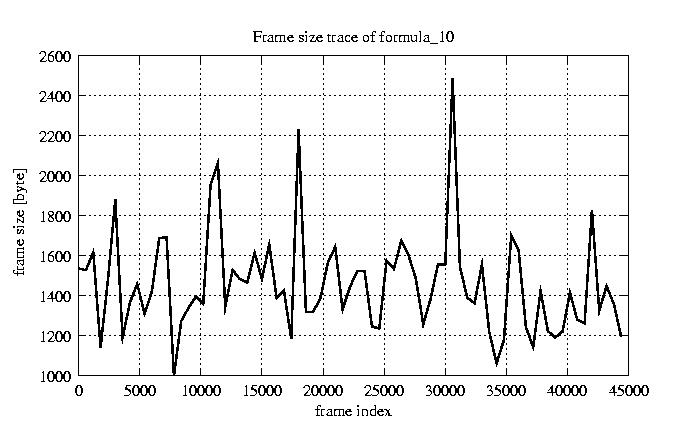

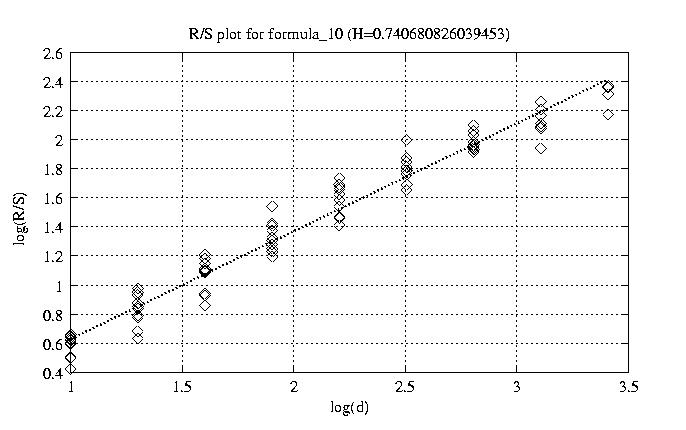

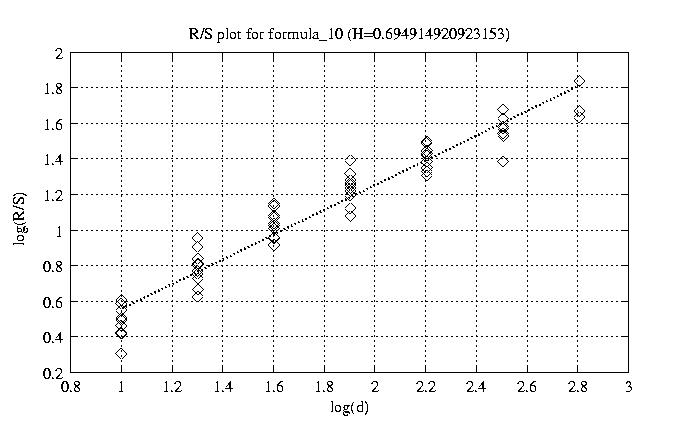

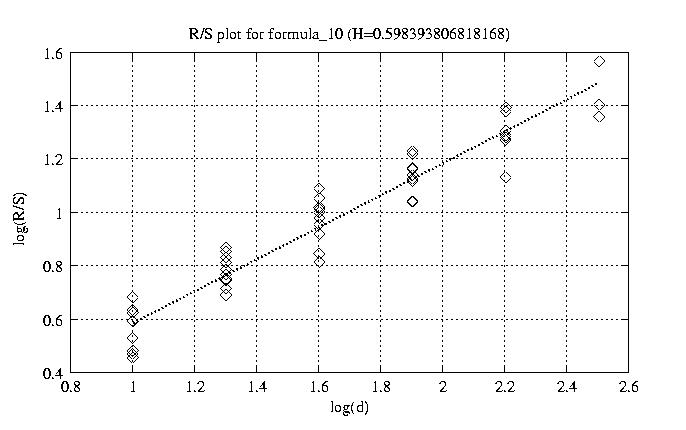

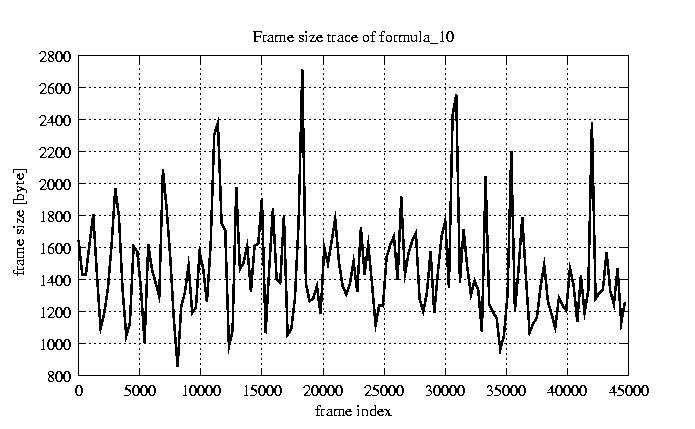

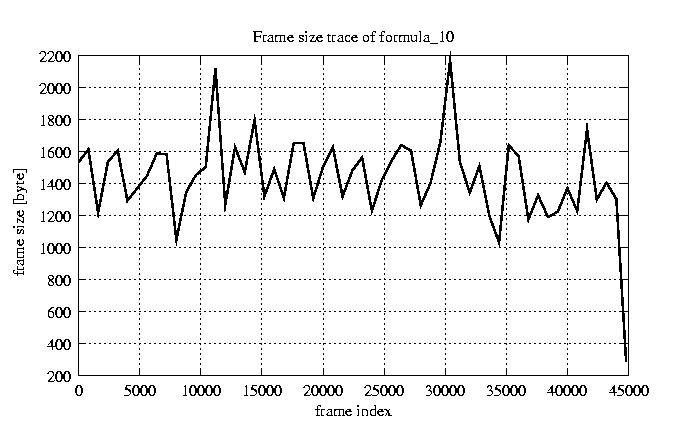

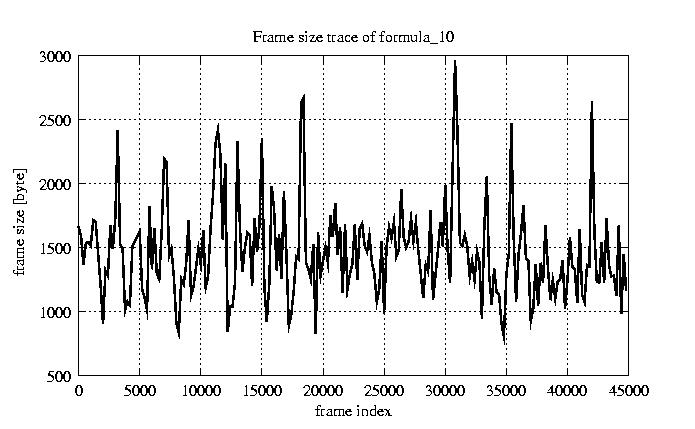

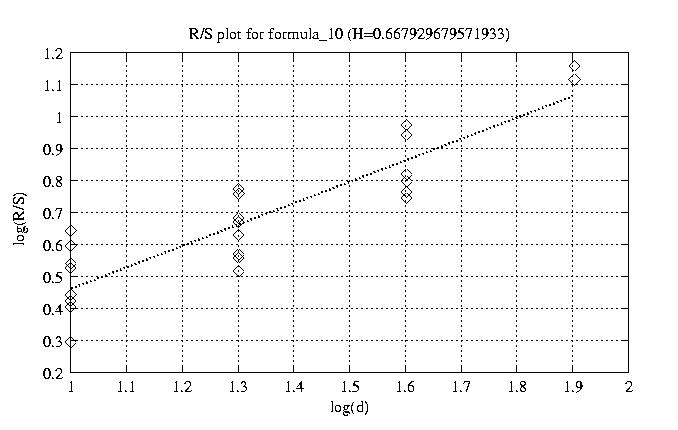

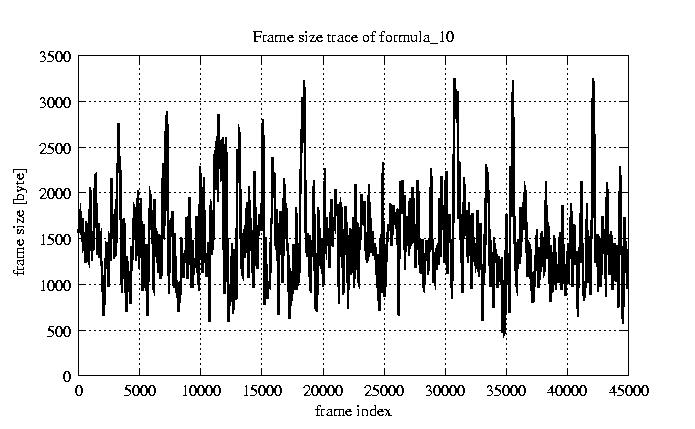

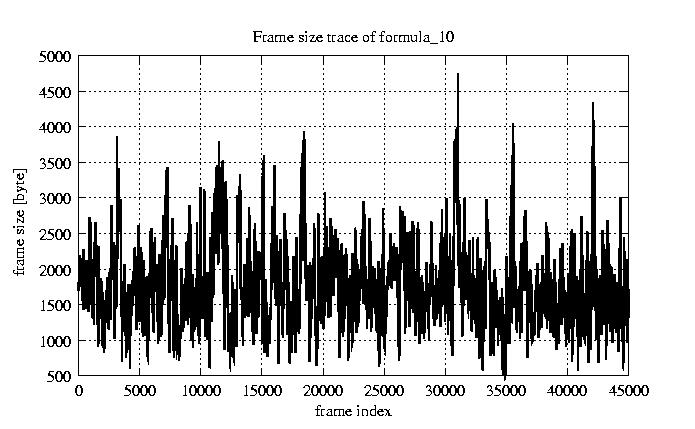

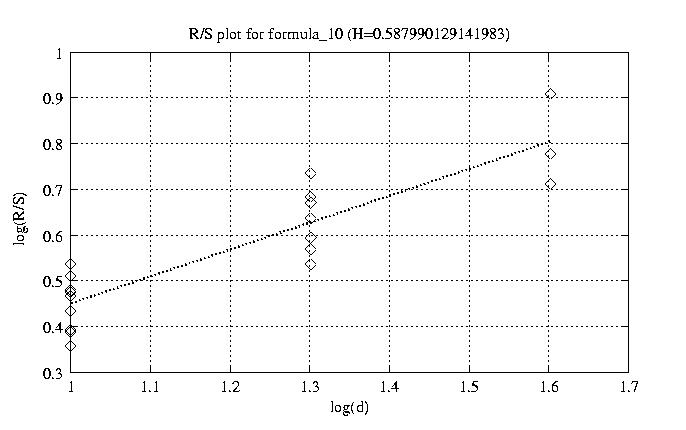

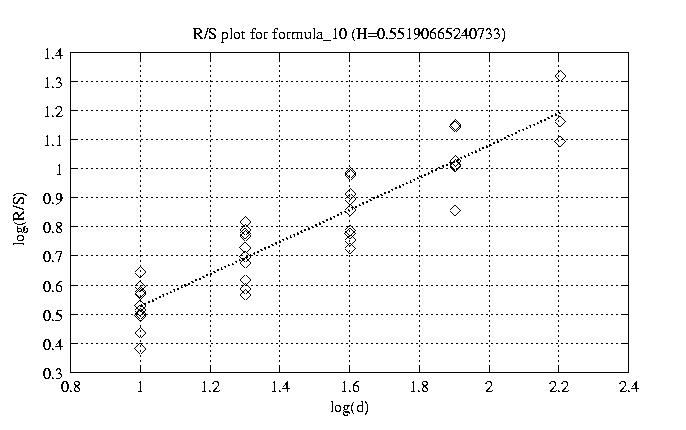

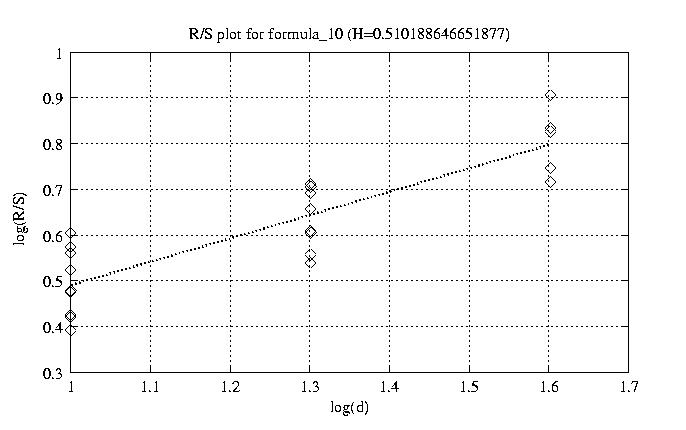

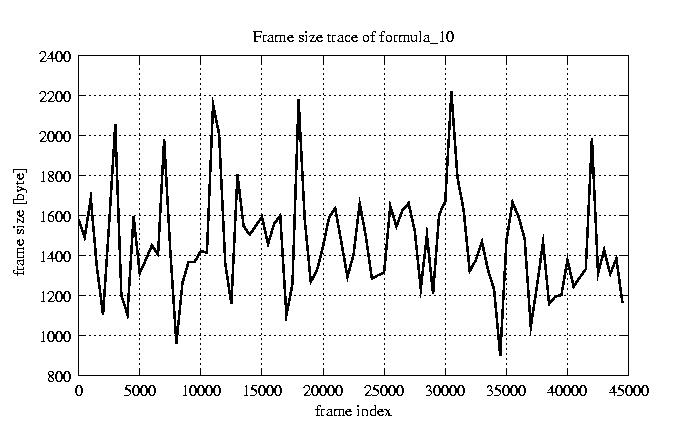

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.826 view view 12 0.741 view view 50 0.695 view view 100 0.598 view view 200 0.552 view view 300 0.521 view view 400 0.585 view view 500 0.668 view view 600 0.510 view view 700 0.502 view view 800 0.588 view view

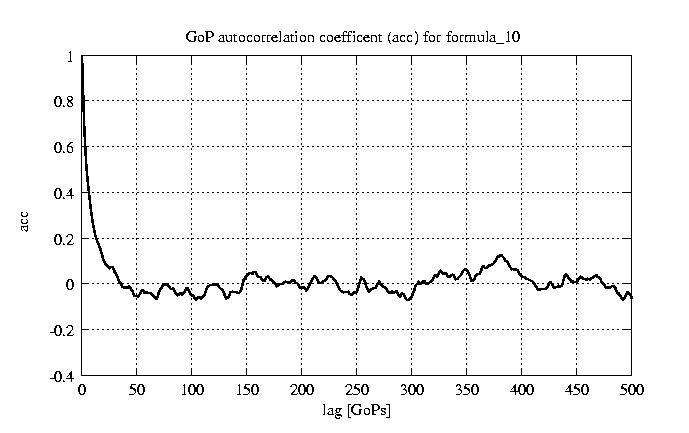

other plots	autocorrelation function of frames autocorrelation function of GoPs
