H263 - Simpsons
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.05 476.05 File size byte 2.4e+06 2.4e+06 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30023.00 4276.00 mean frame size byte 79.86 560.70 var frame size - 67524.13 204526.34 CoV of frame size - 3.25 0.81 min frame size byte 0.00 27.00 max frame size byte 6806.00 6806.00 Peak/Mean frame - 85.23 12.14 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 1.4e+05 Peak/Mean of bit rate - 8.7 CoV of bit rate - 0.33 max inter frame space frames 1.00 85.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

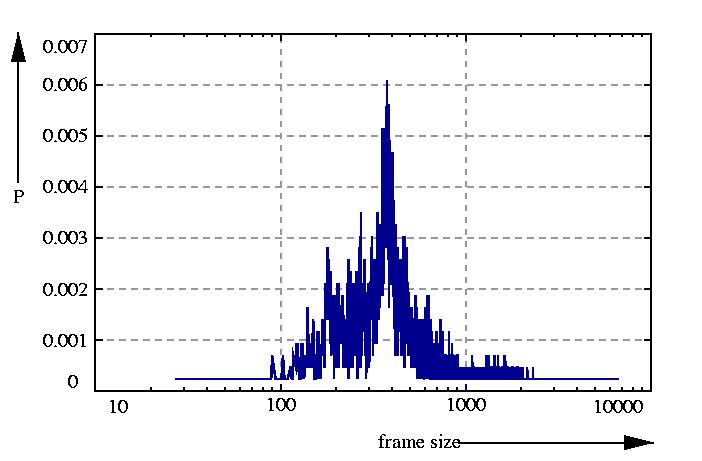

probability density function p

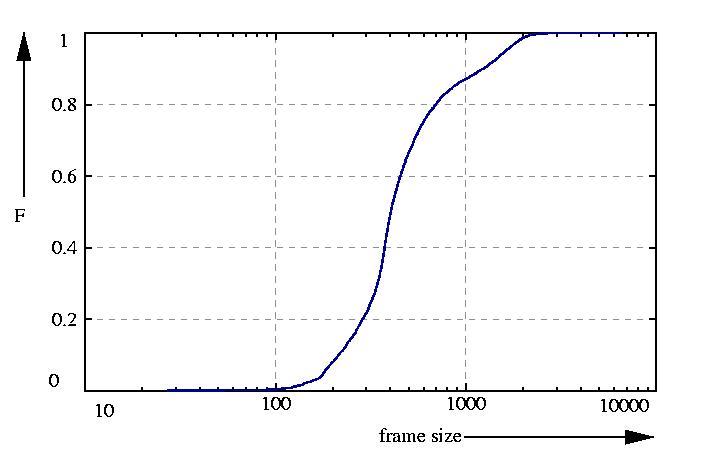

probability function F = sum p
inverse probability function G = 1 - F

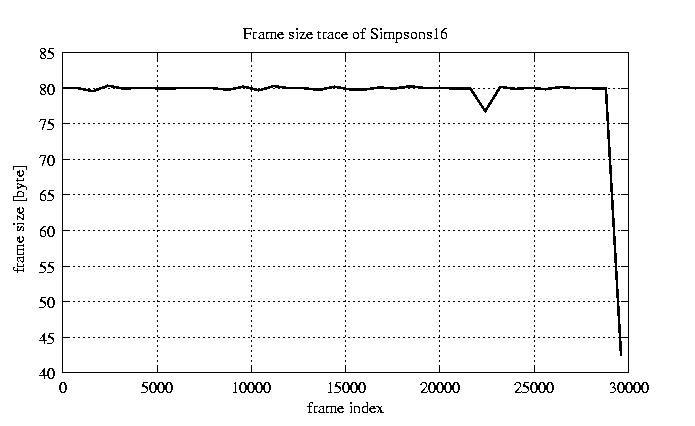

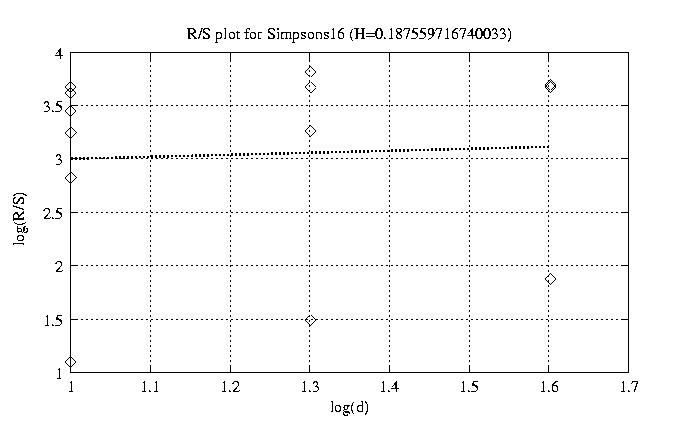

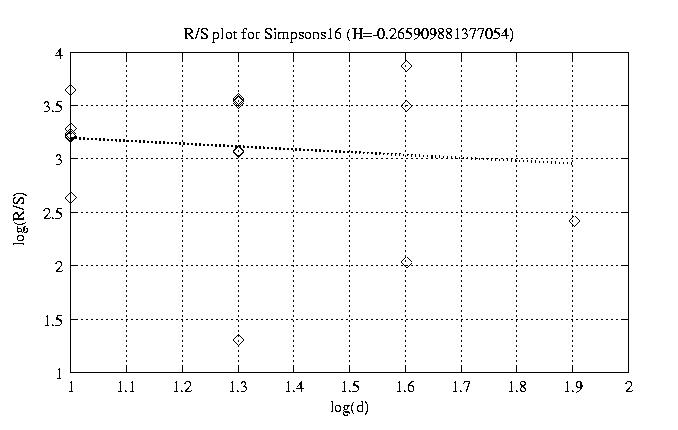

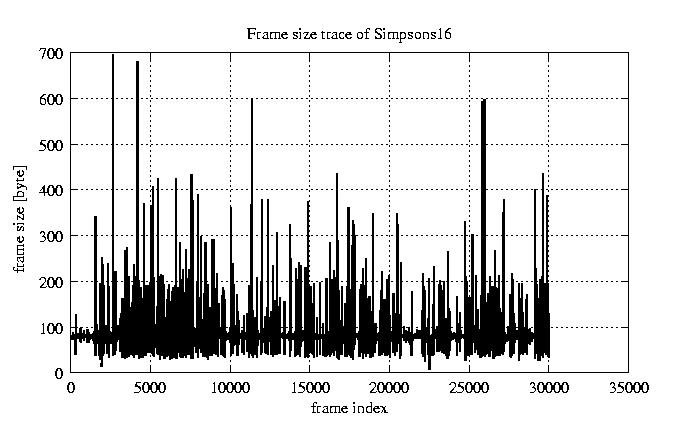

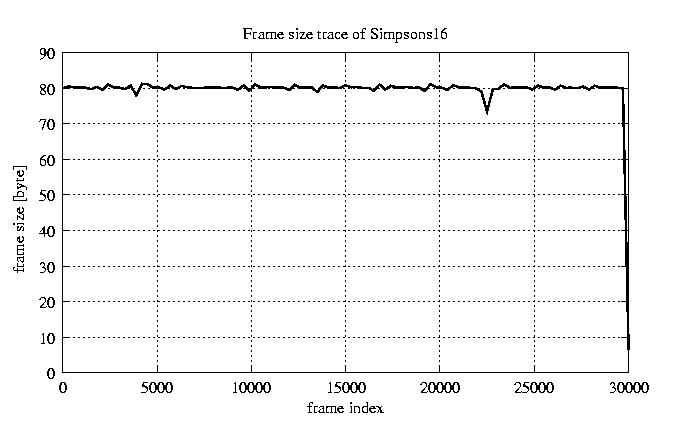

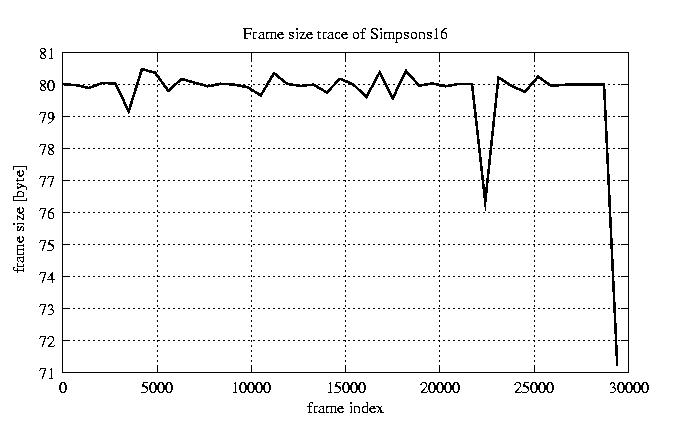

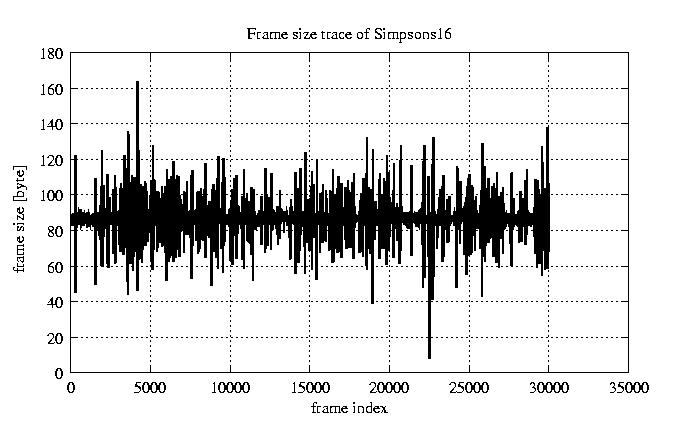

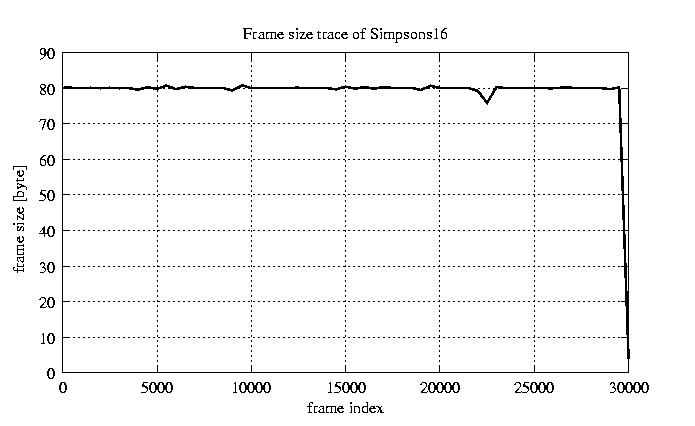

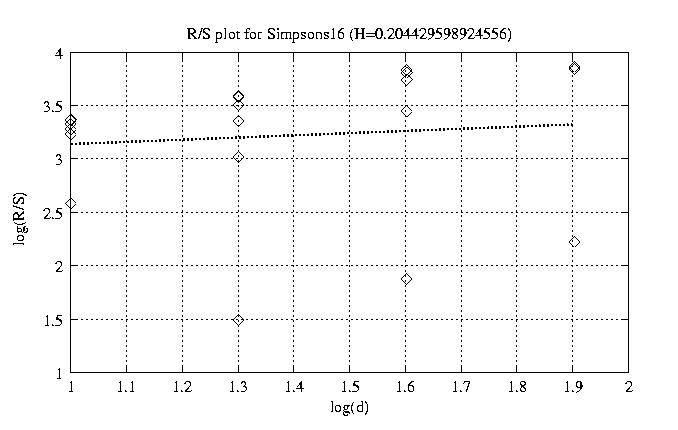

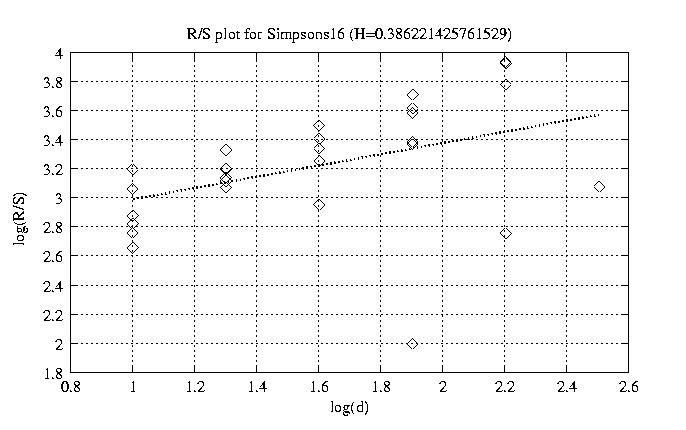

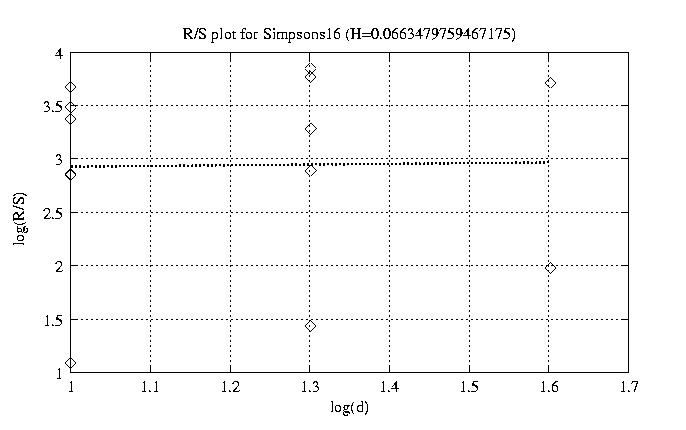

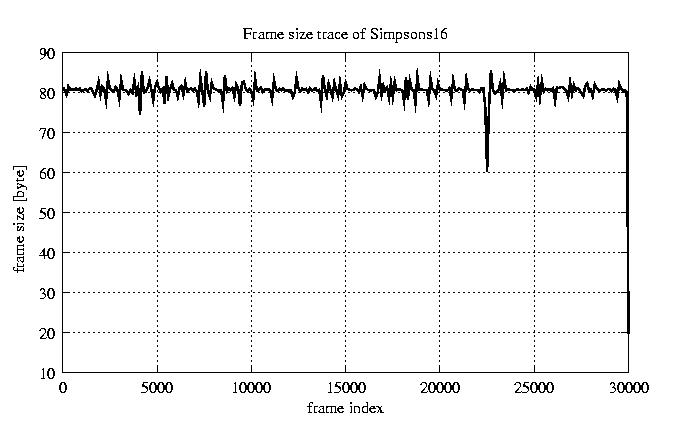

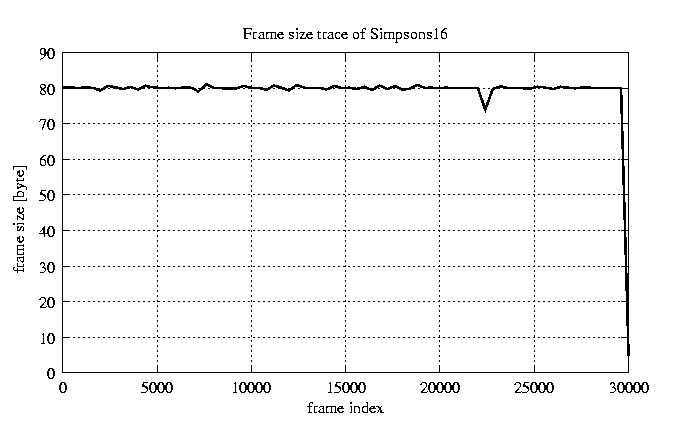

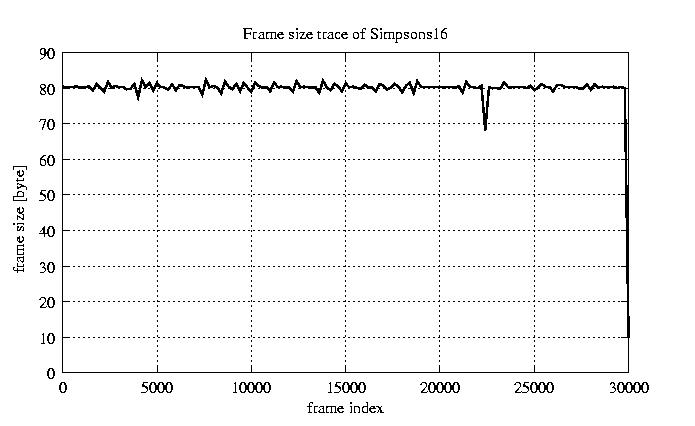

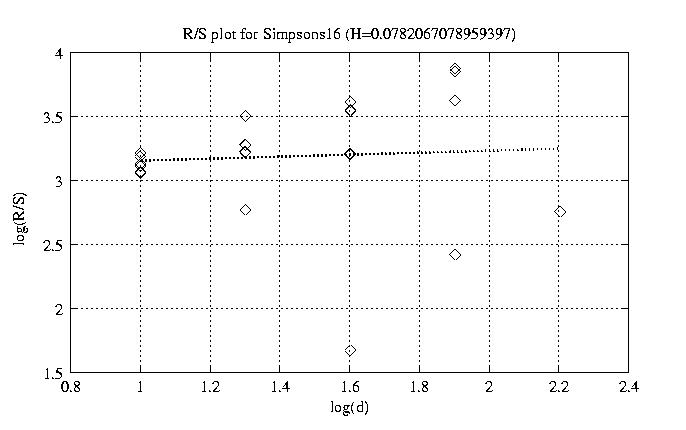

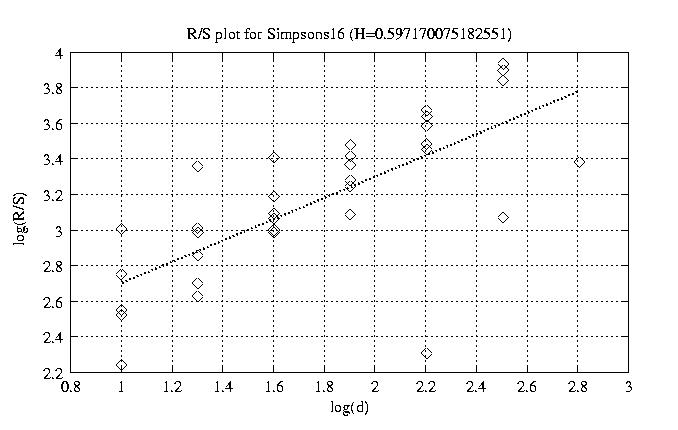

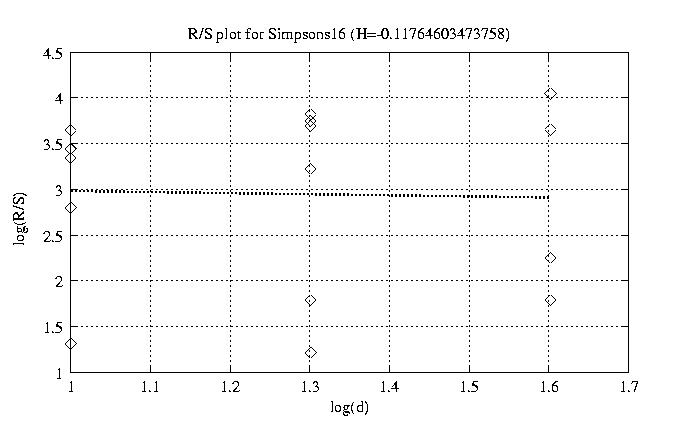

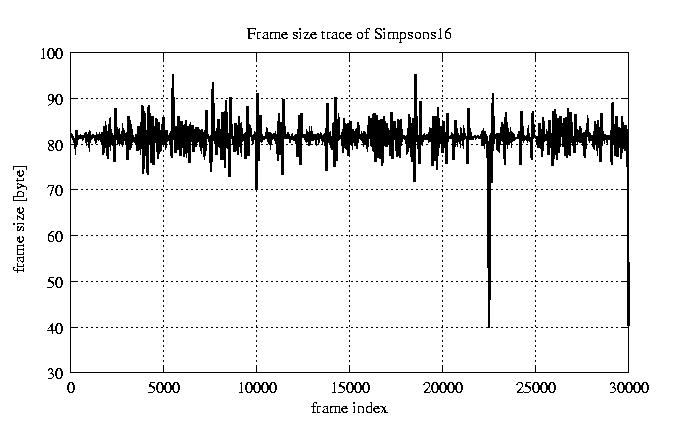

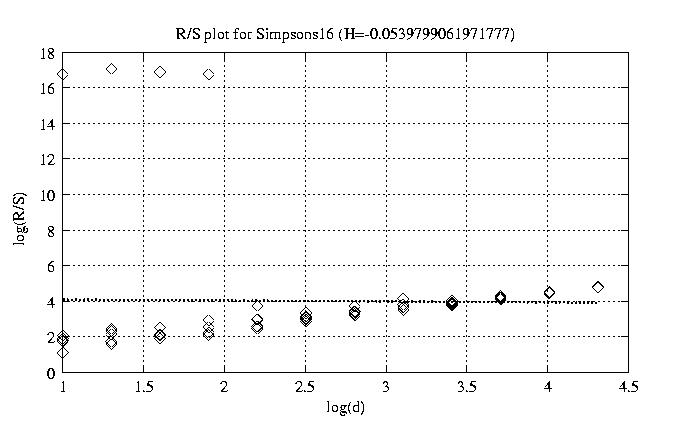

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 -0.054 view view 12 0.891 view view 50 0.597 view view 100 0.386 view view 200 0.078 view view 300 0.204 view view 400 -0.266 view view 500 -0.118 view view 600 0.188 view view 700 0.066 view view 800 -0.554 view view

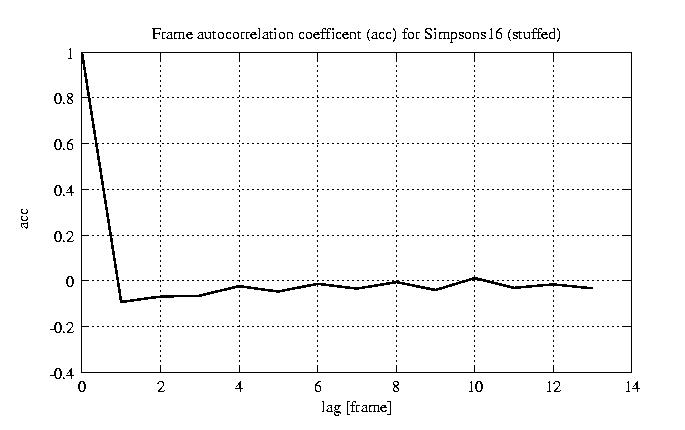

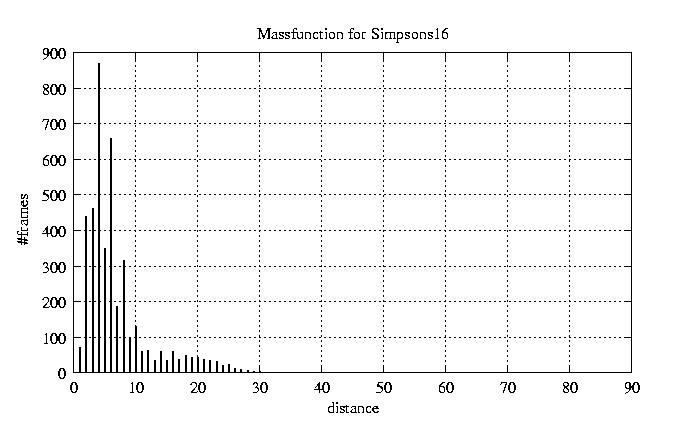

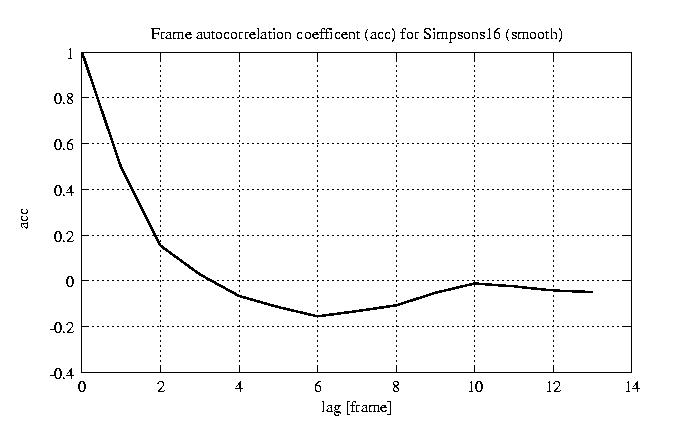

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
