H263 - South Park
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 24.65 24.65 File size byte 4.6e+07 4.6e+07 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30028.00 19678.00 mean frame size byte 1542.39 2353.64 var frame size - 2272668.92 1558602.16 CoV of frame size - 0.98 0.53 min frame size byte 0.00 167.00 max frame size byte 13387.00 13387.00 Peak/Mean frame - 8.68 5.69 Mean bit rate bit/sec 3.1e+05 Peak bit rate bit/sec 2.5e+06 Peak/Mean of bit rate - 8.2 CoV of bit rate - 0.71 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

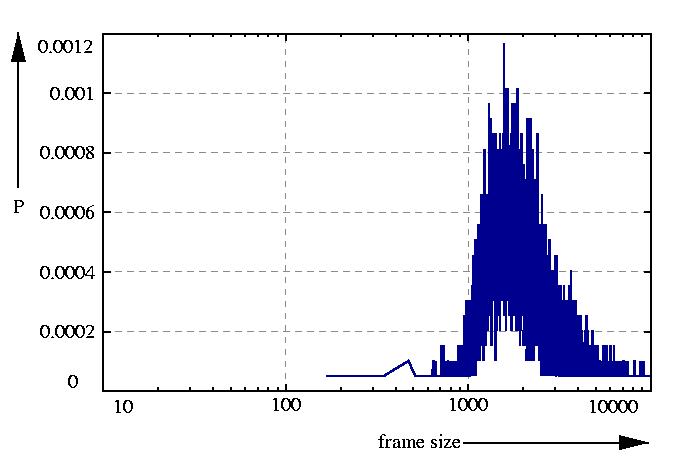

probability density function p

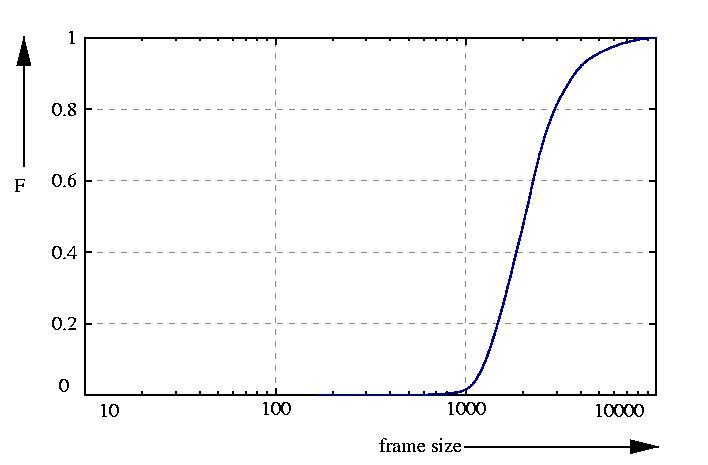

probability function F = sum p

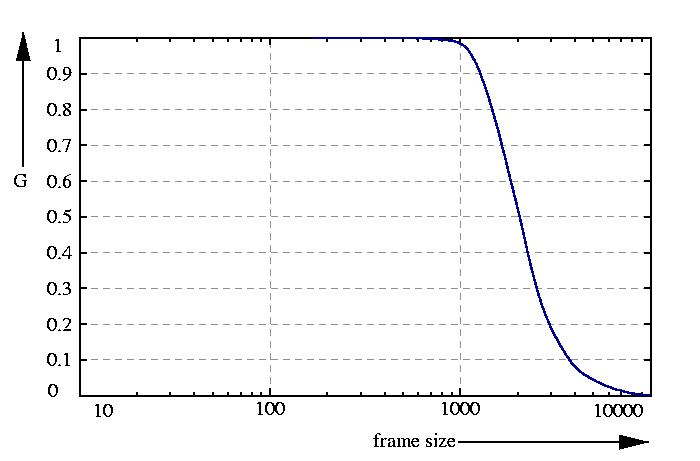

inverse probability function G = 1 - F

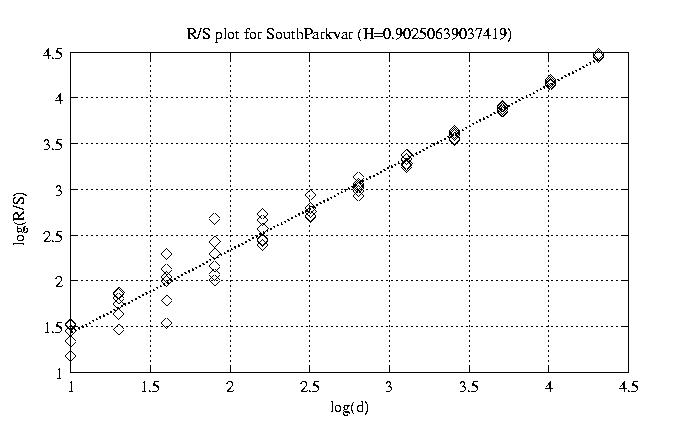

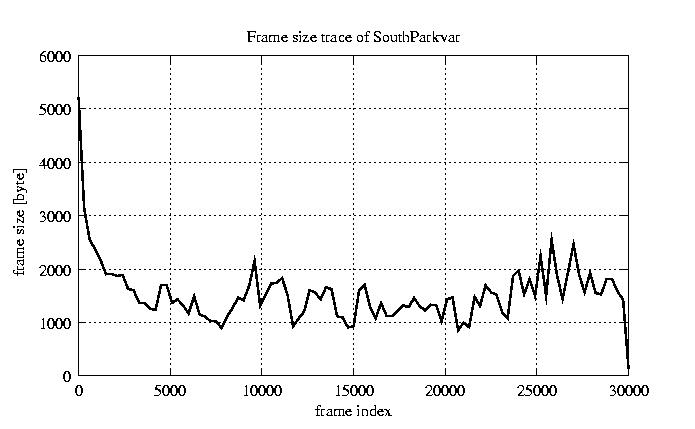

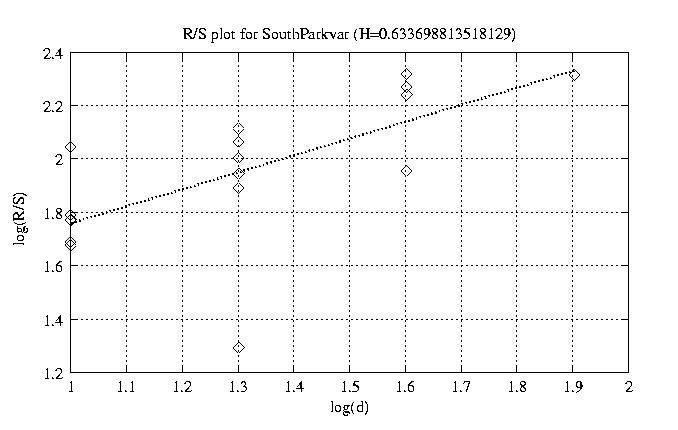

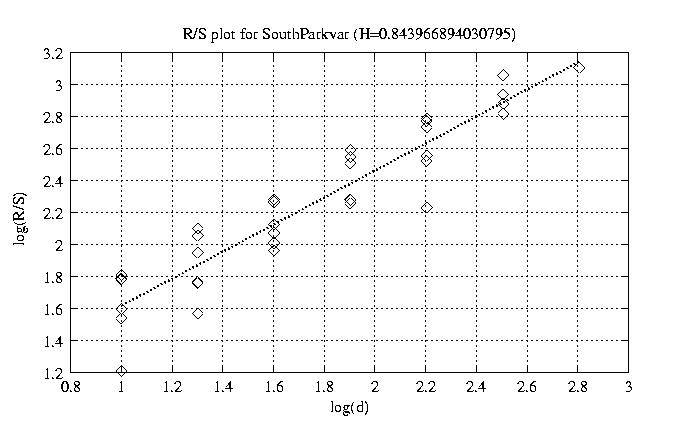

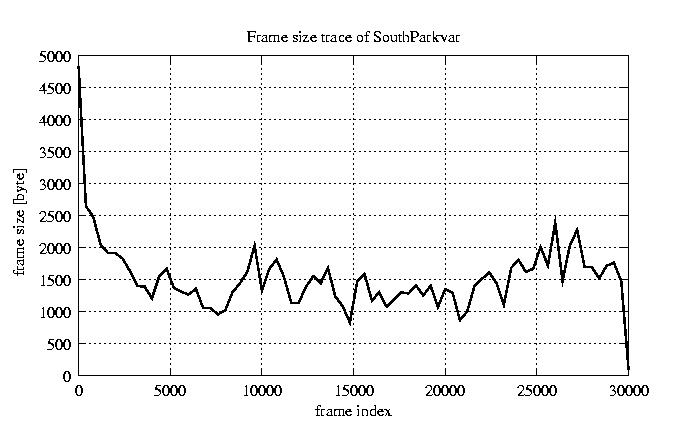

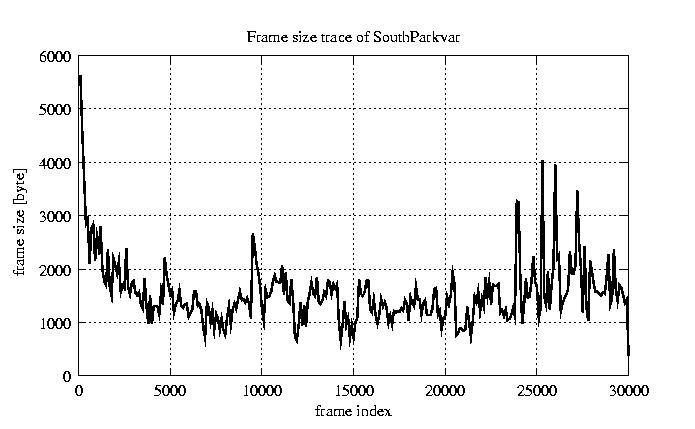

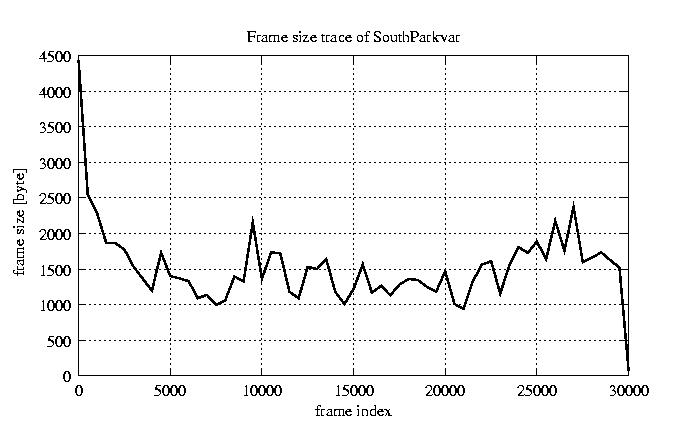

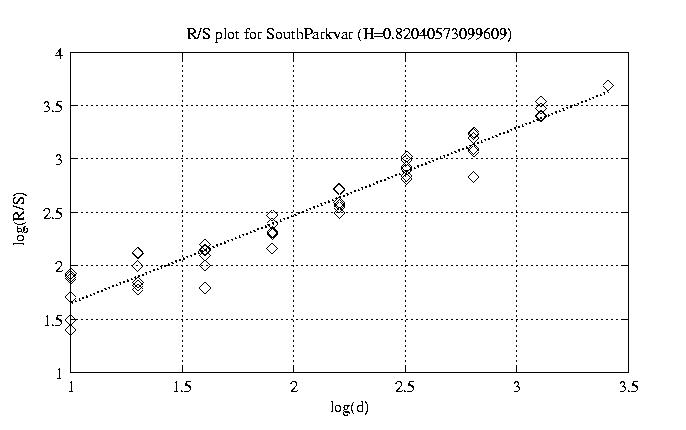

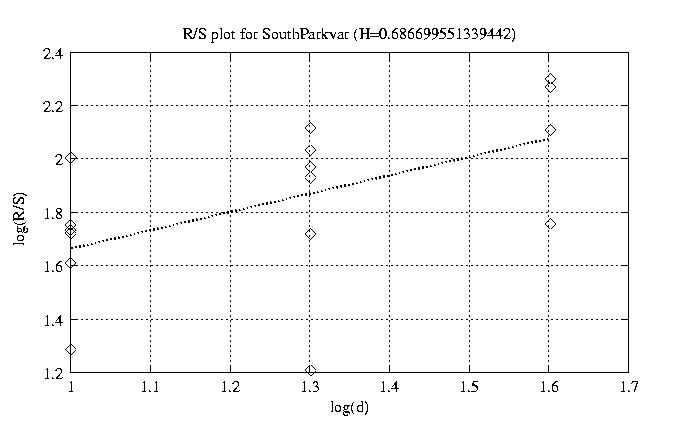

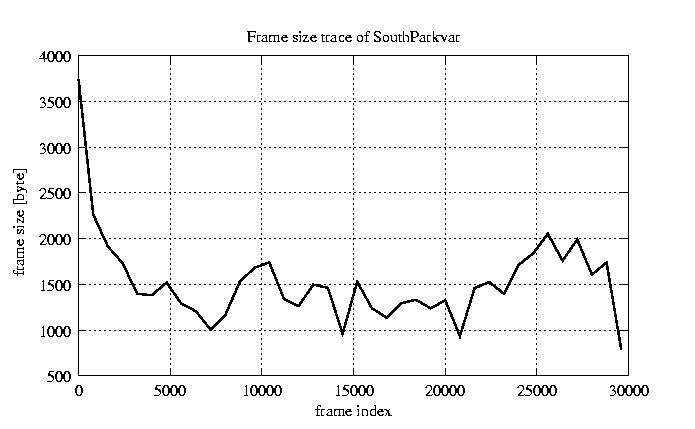

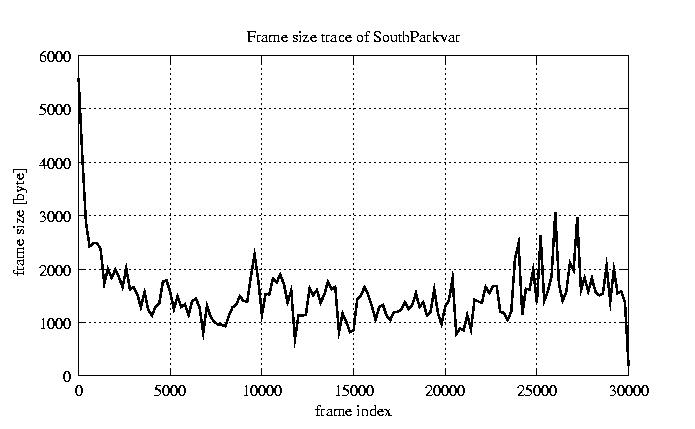

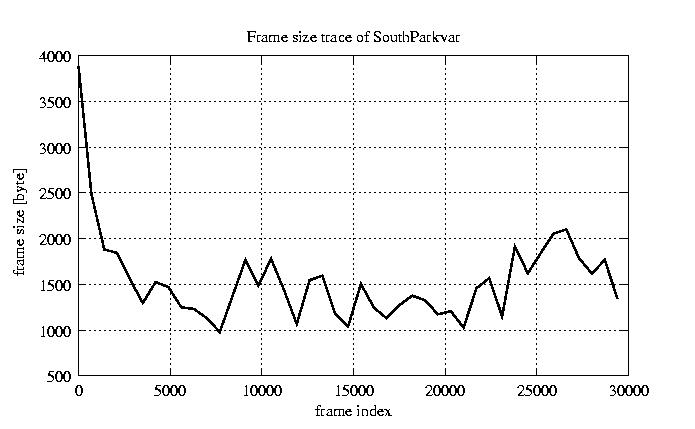

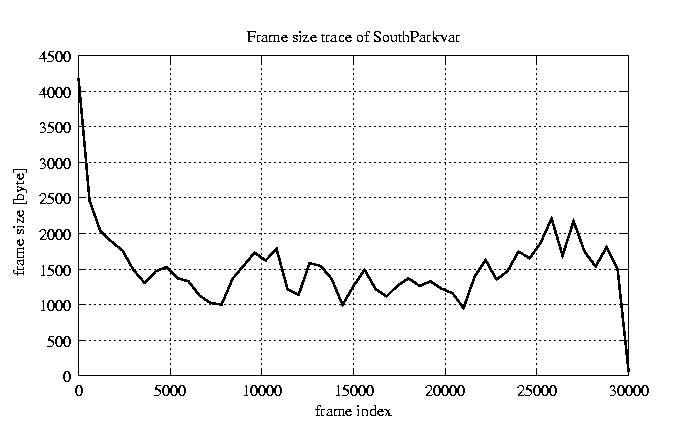

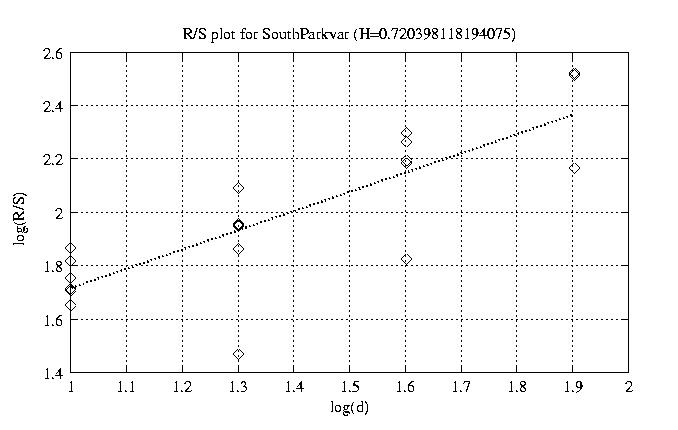

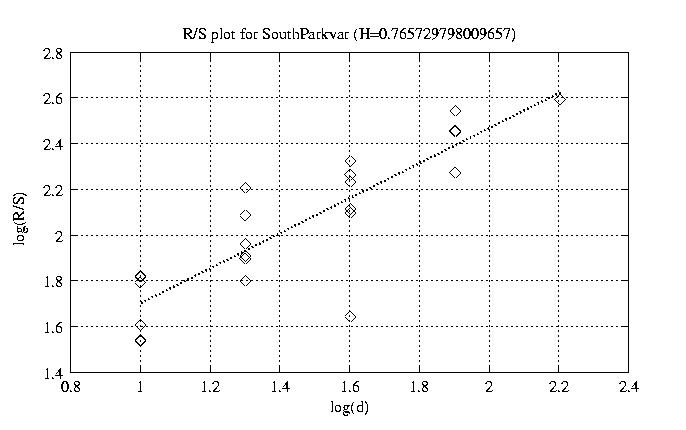

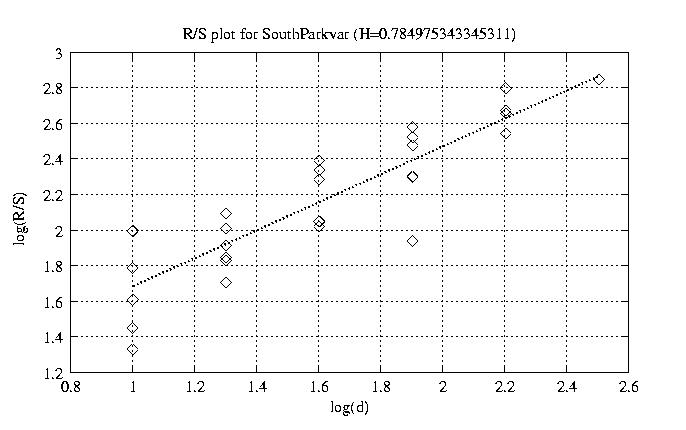

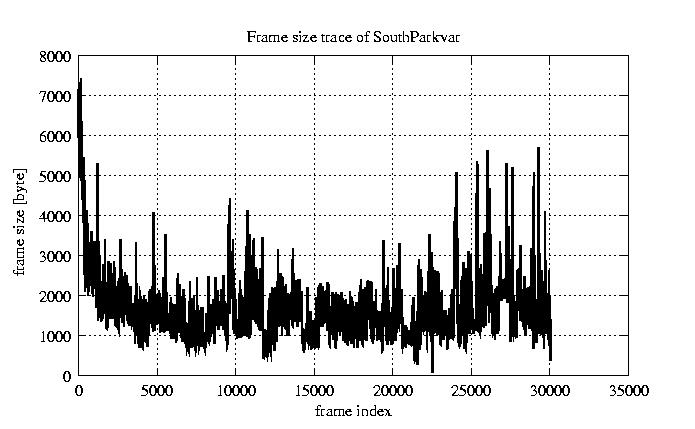

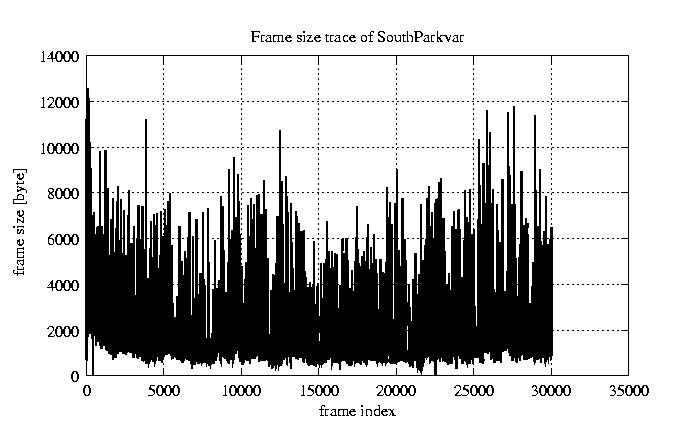

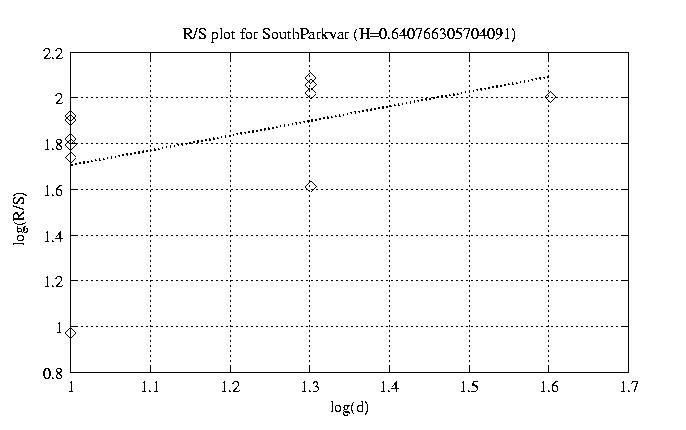

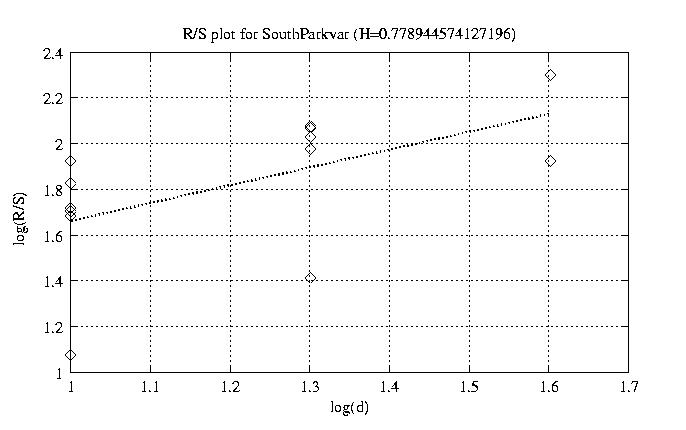

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.903 view view 12 0.820 view view 50 0.844 view view 100 0.785 view view 200 0.766 view view 300 0.720 view view 400 0.634 view view 500 0.687 view view 600 0.770 view view 700 0.779 view view 800 0.641 view view

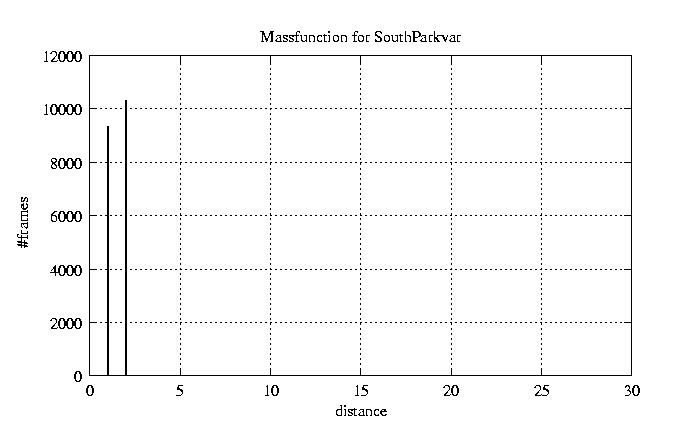

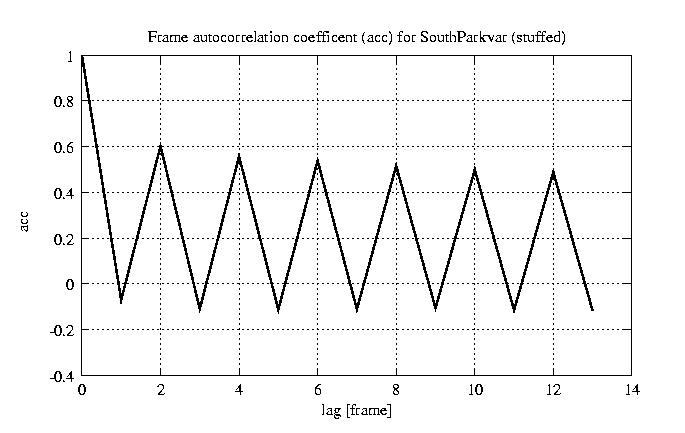

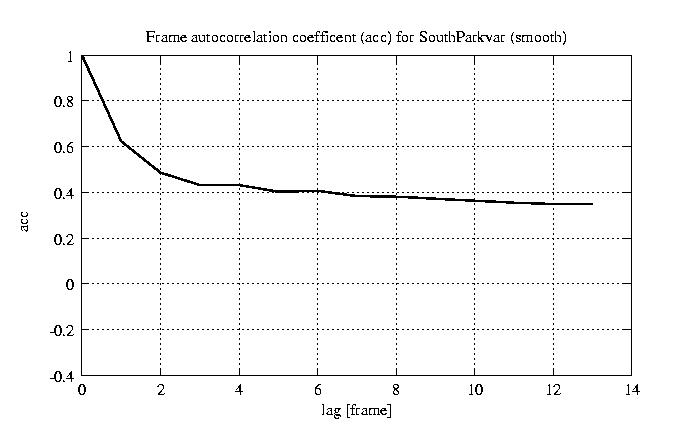

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
	HOME BACK

Frank Fitzek
