H263 - Susi und Strolch
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 38.84 38.84 File size byte 8.8e+07 8.8e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 65945.00 mean frame size byte 978.69 1336.94 var frame size - 1060519.61 969762.55 CoV of frame size - 1.05 0.74 min frame size byte 0.00 31.00 max frame size byte 12510.00 12510.00 Peak/Mean frame - 12.78 9.36 Mean bit rate bit/sec 2e+05 Peak bit rate bit/sec 2.5e+06 Peak/Mean of bit rate - 13 CoV of bit rate - 0.87 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

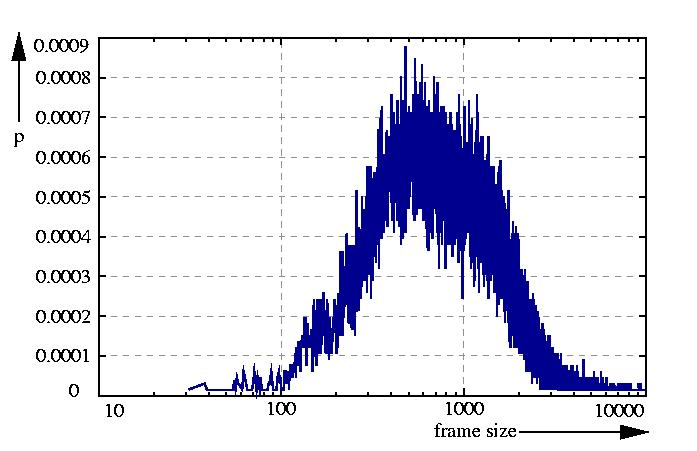

probability density function p

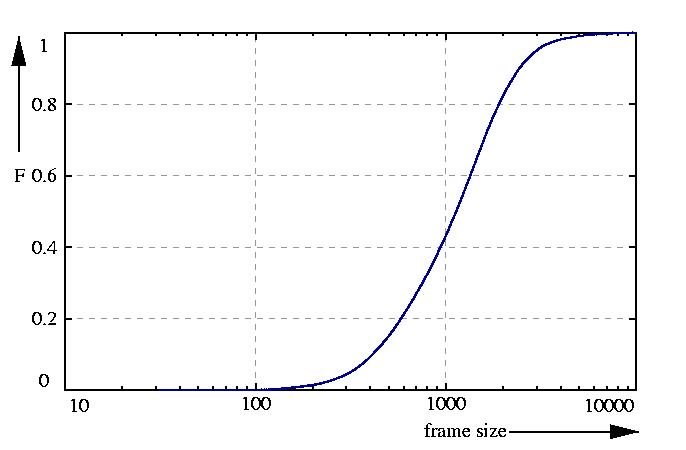

probability function F = sum p

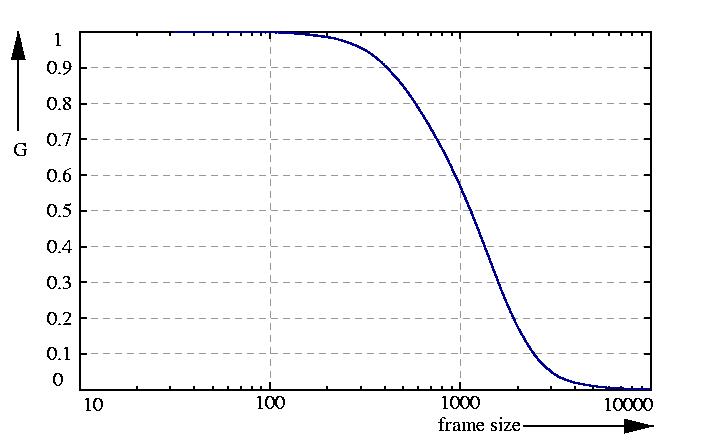

inverse probability function G = 1 - F

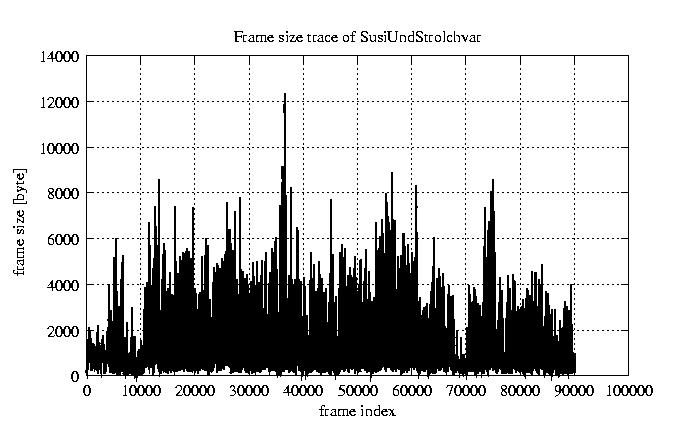

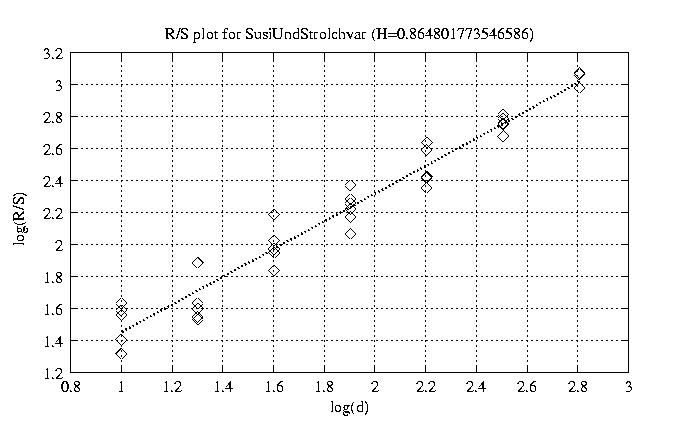

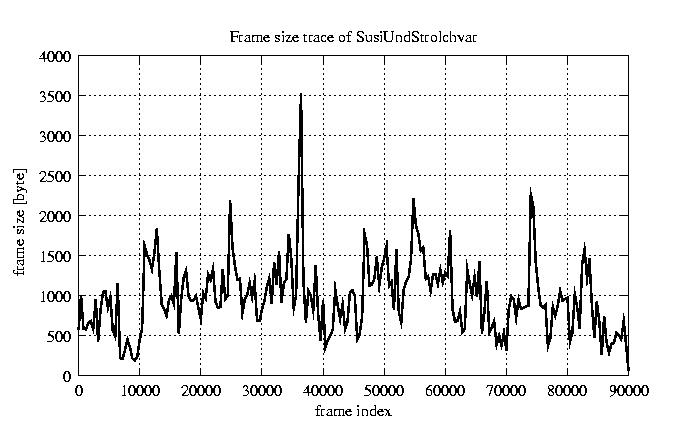

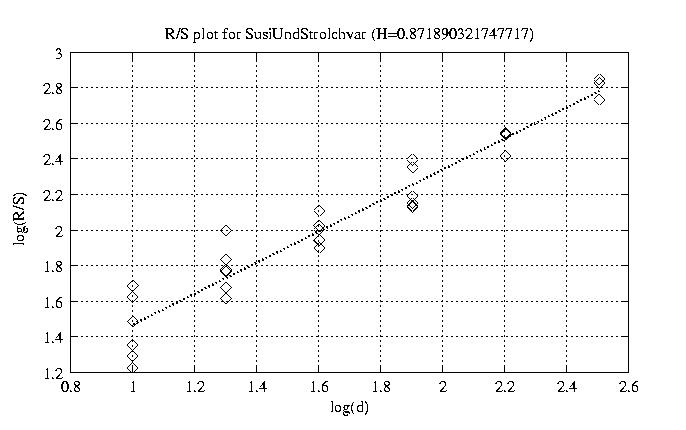

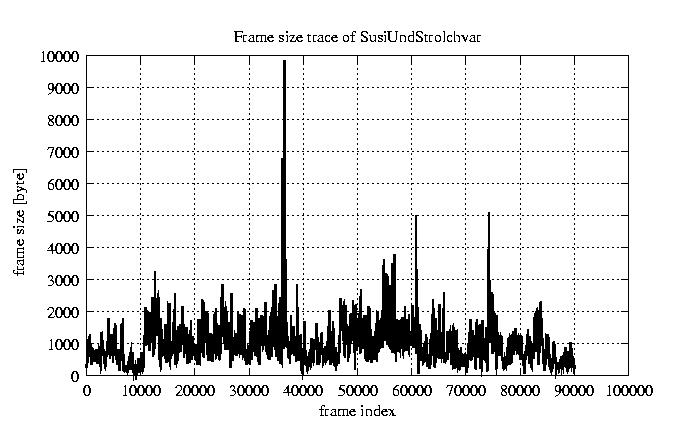

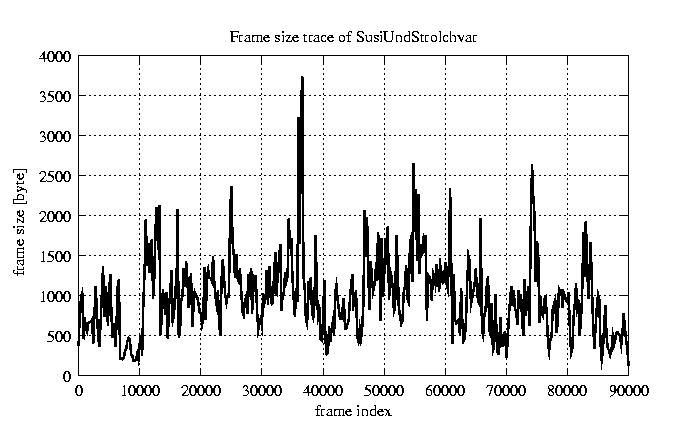

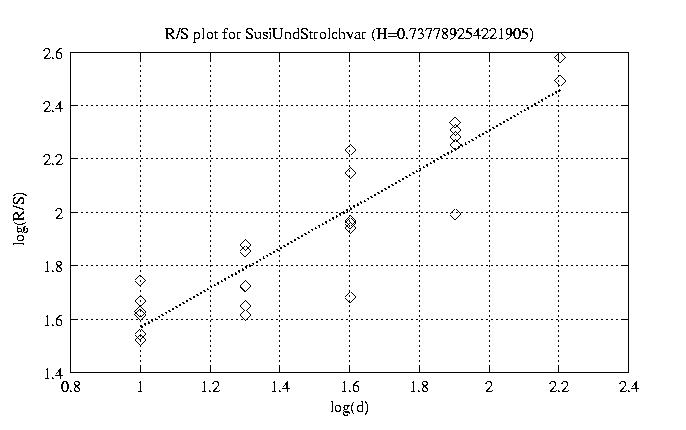

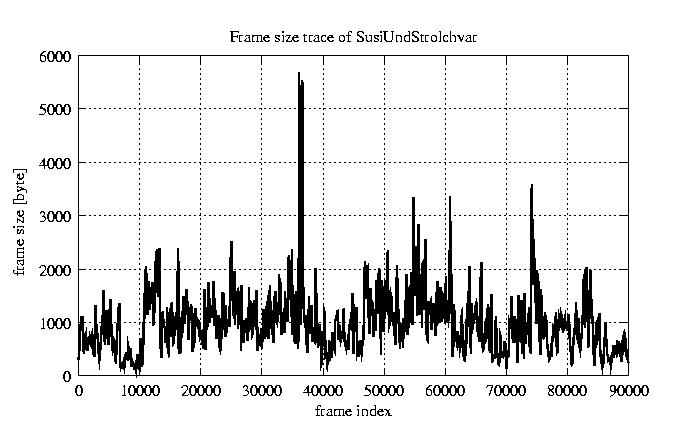

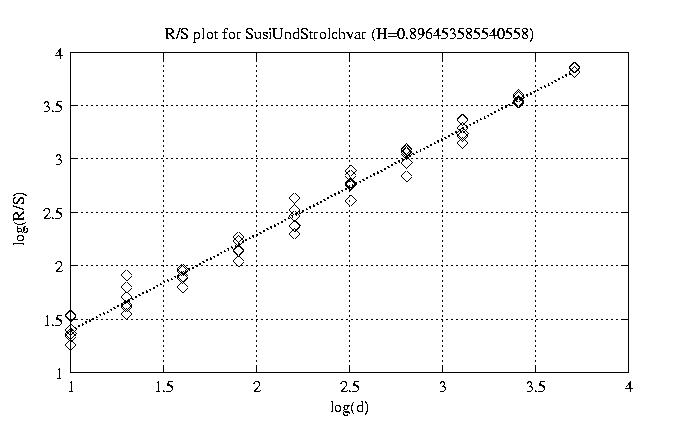

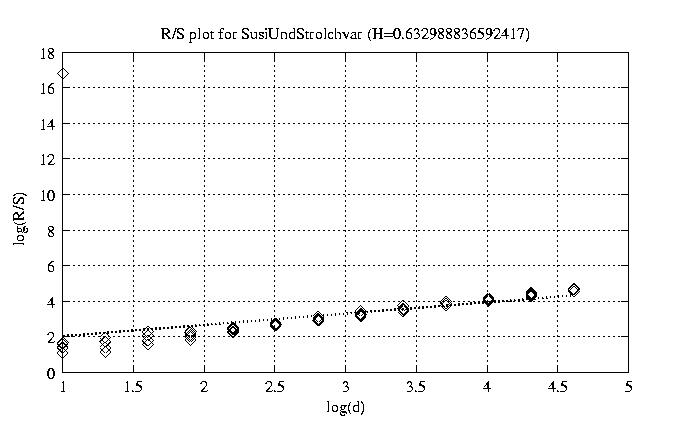

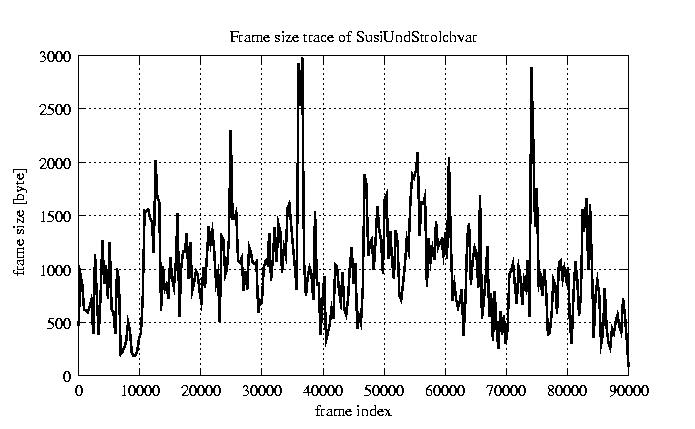

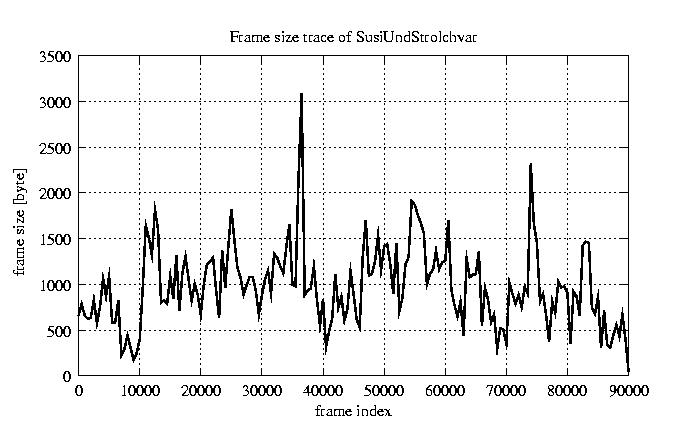

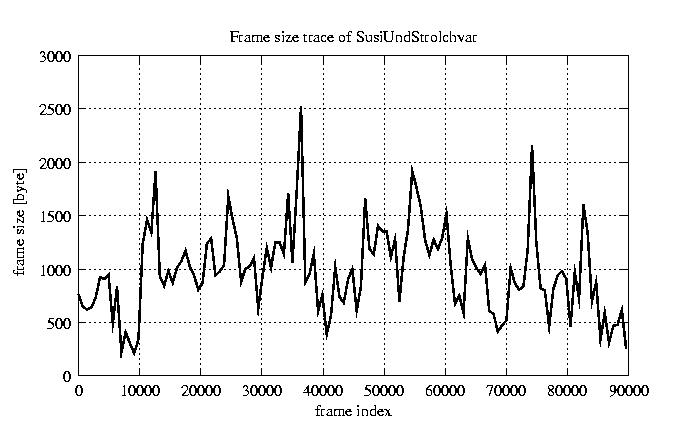

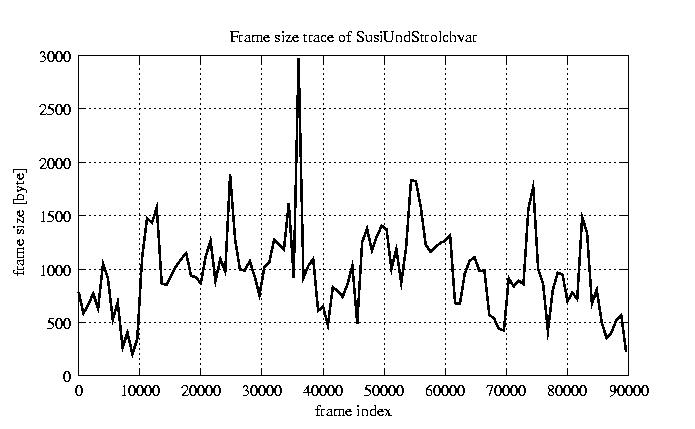

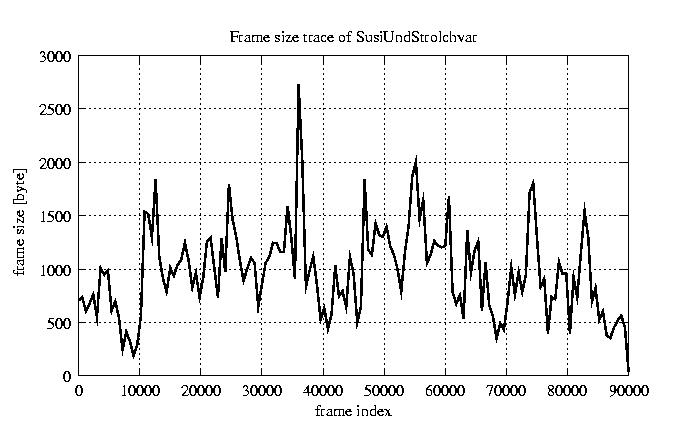

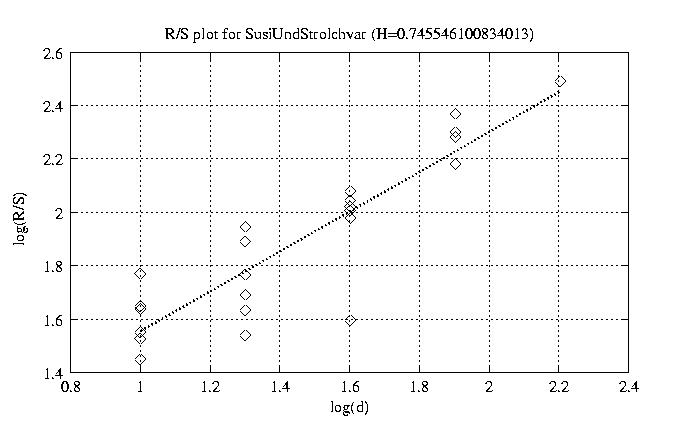

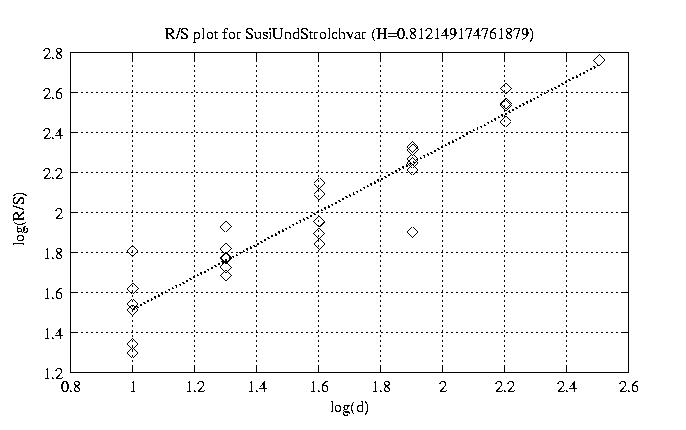

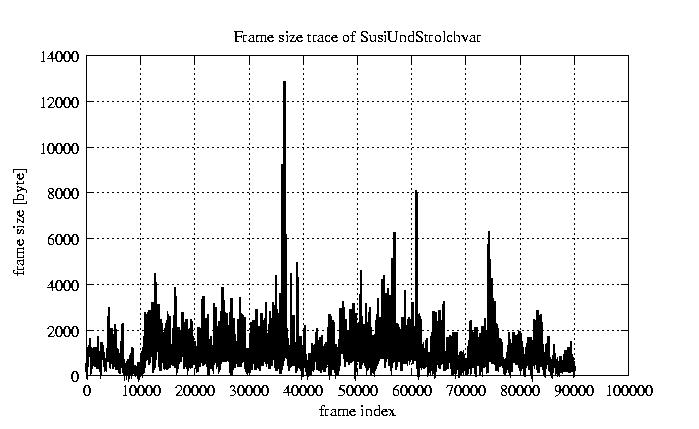

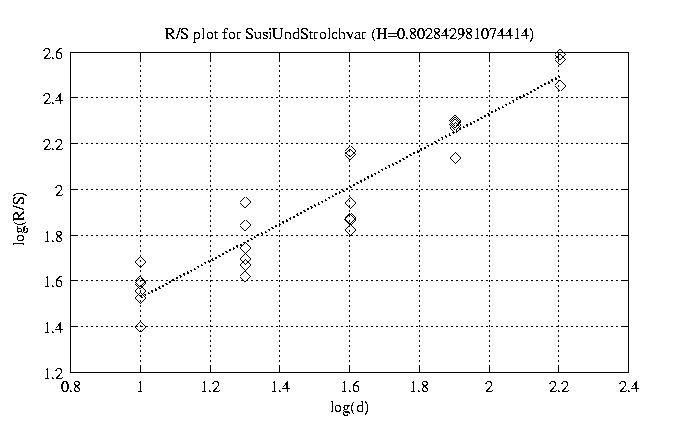

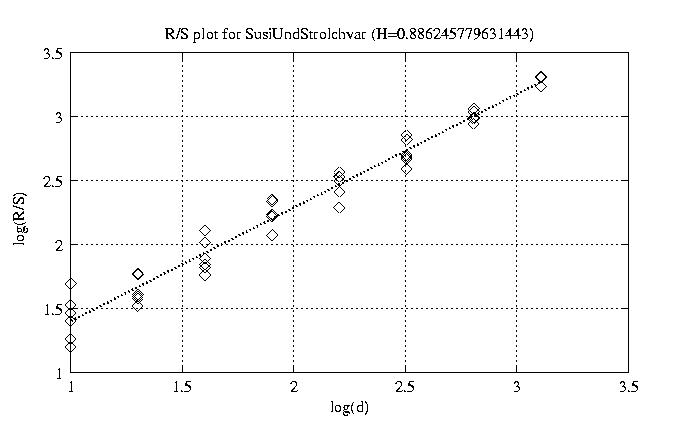

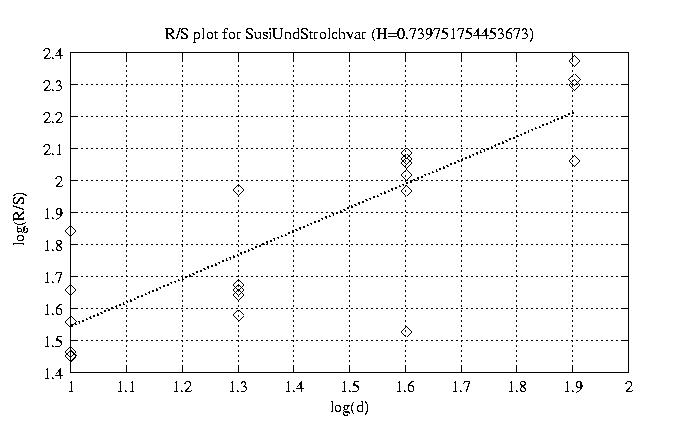

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.633 view view 12 0.896 view view 50 0.886 view view 100 0.865 view view 200 0.872 view view 300 0.812 view view 400 0.803 view view 500 0.738 view view 600 0.746 view view 700 0.740 view view 800 0.763 view view

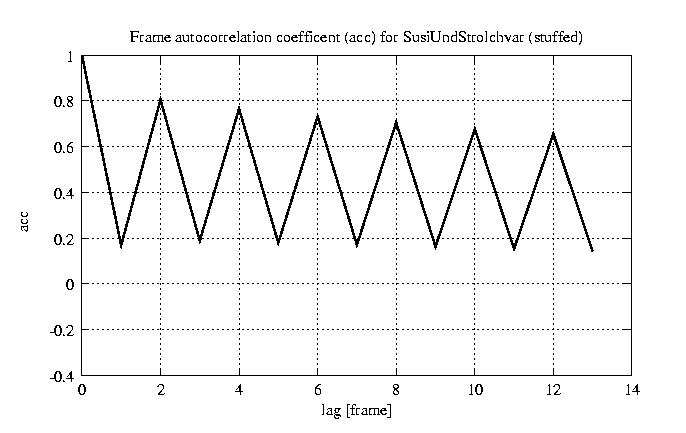

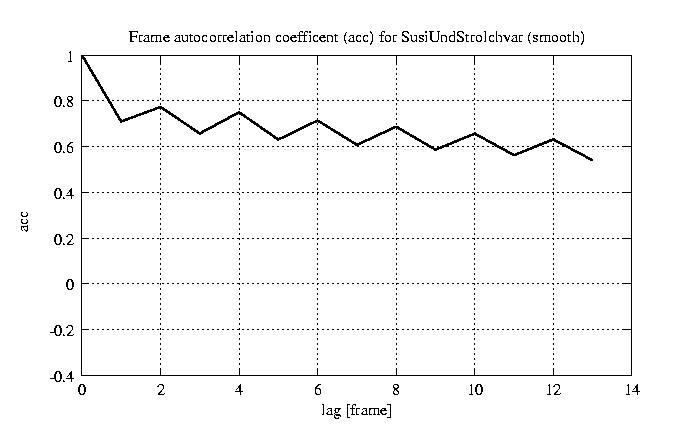

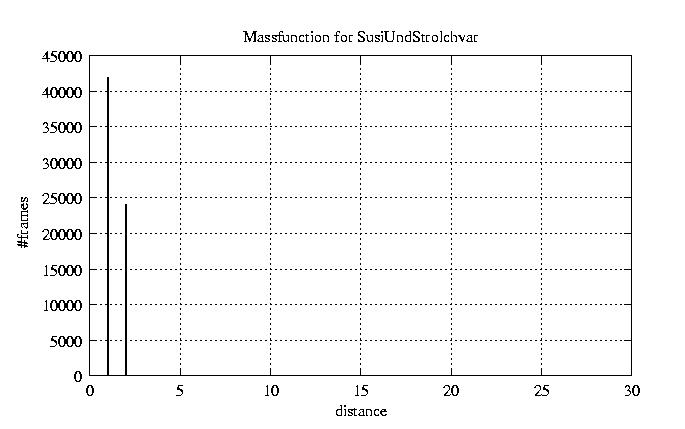

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
	HOME BACK

Frank Fitzek
