H263 - Jurassic Park
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.36 476.36 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90085.00 16763.00 mean frame size byte 79.81 428.89 var frame size - 39302.45 61497.86 CoV of frame size - 2.48 0.58 min frame size byte 0.00 36.00 max frame size byte 8935.00 8935.00 Peak/Mean frame - 111.96 20.83 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.2e+04 Peak/Mean of bit rate - 5.8 CoV of bit rate - 0.35 max inter frame space frames 1.00 111.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

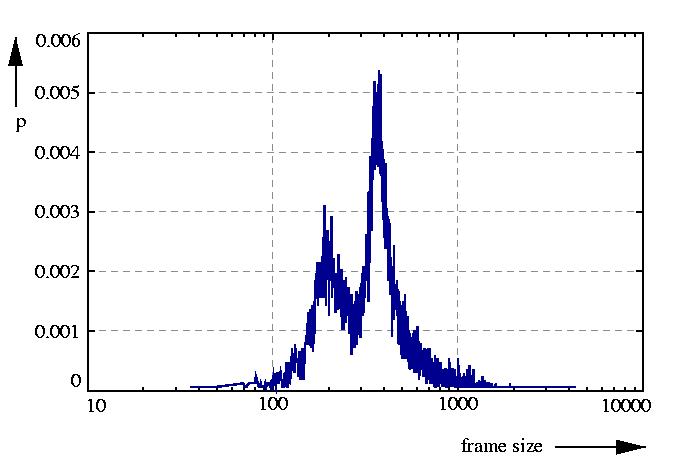

probability density function p

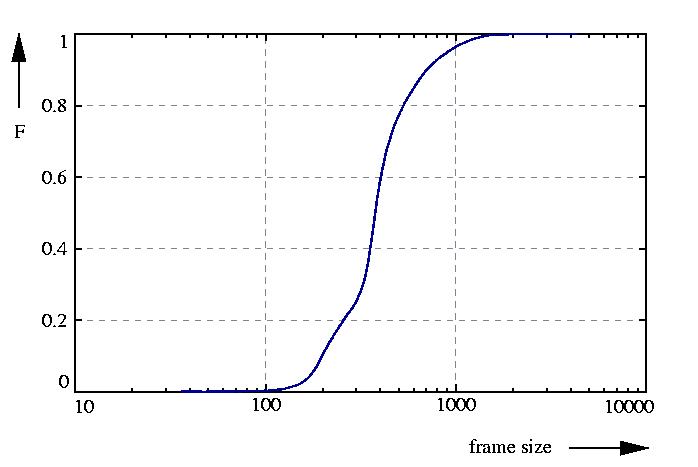

probability function F = sum p

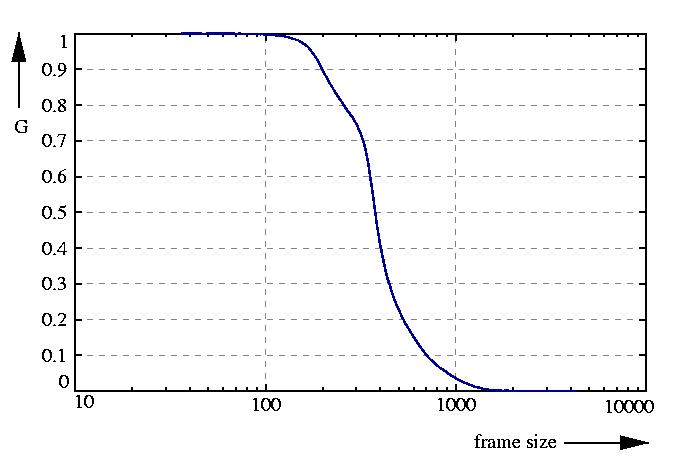

inverse probability function G = 1 - F

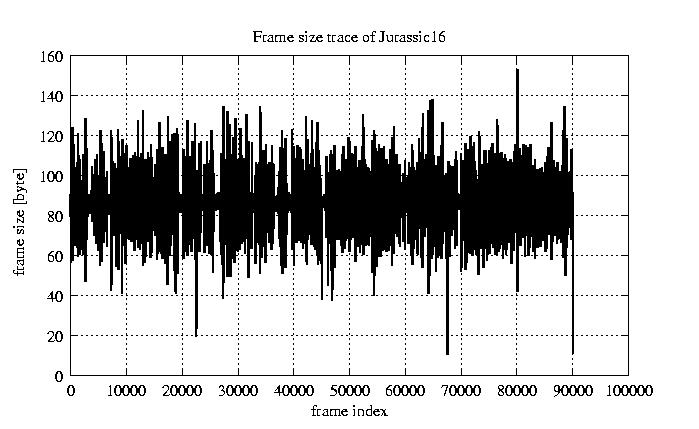

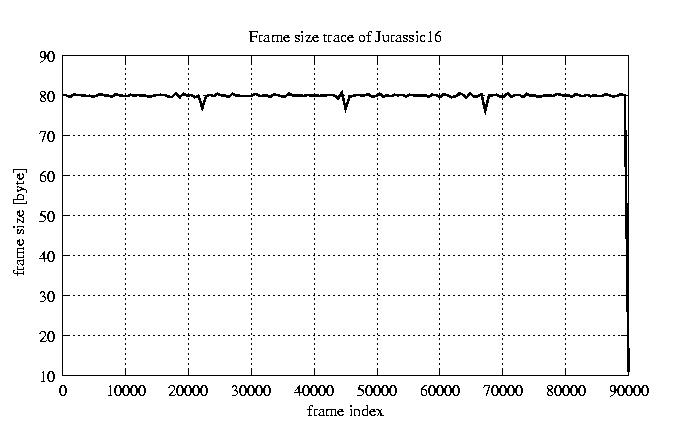

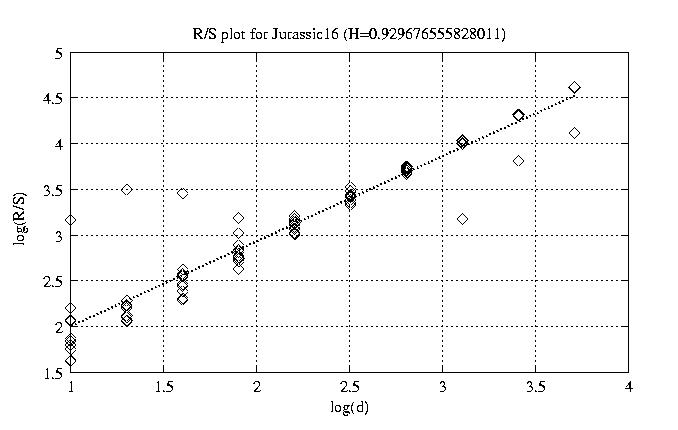

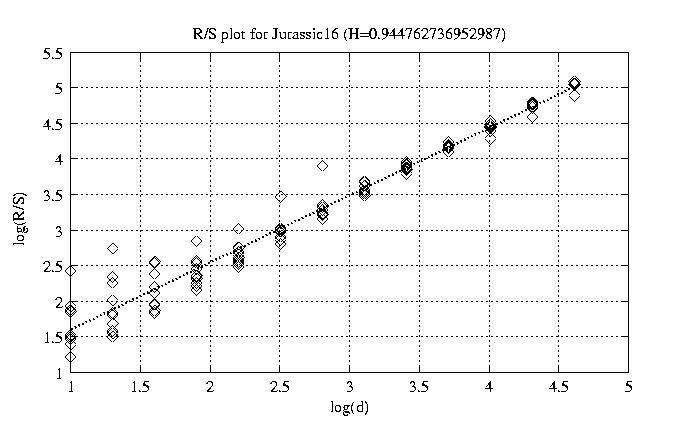

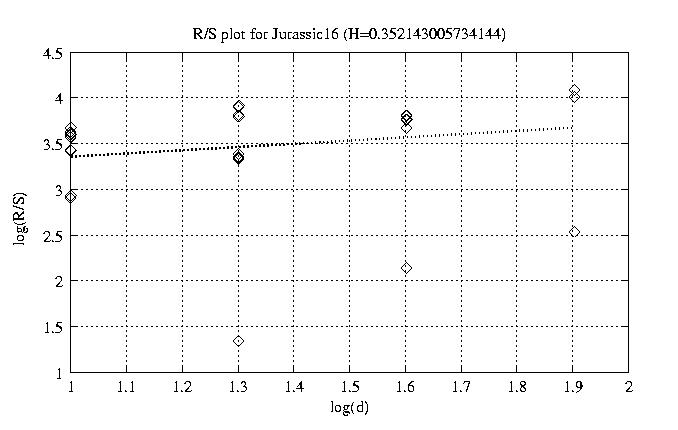

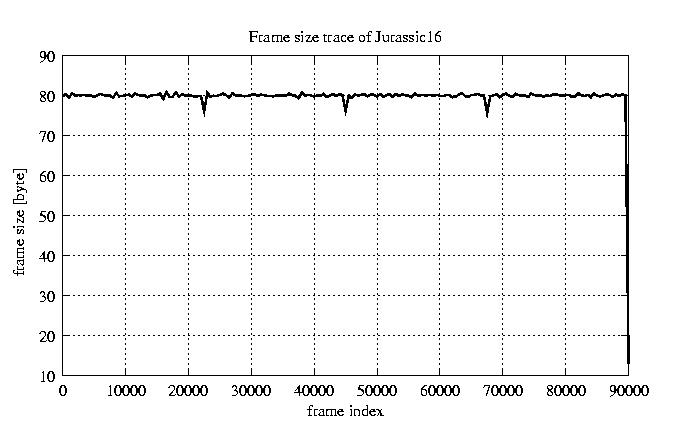

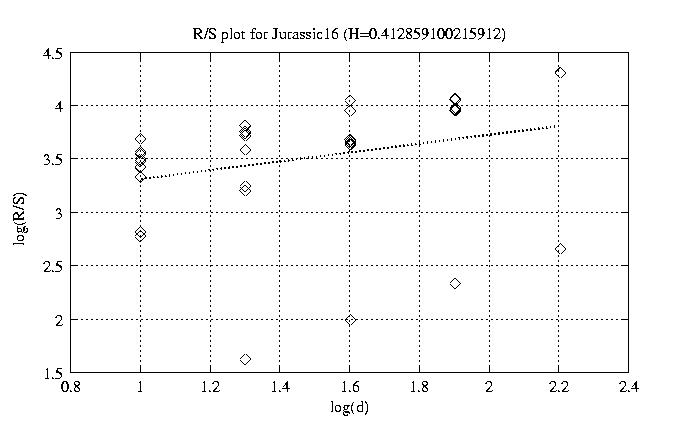

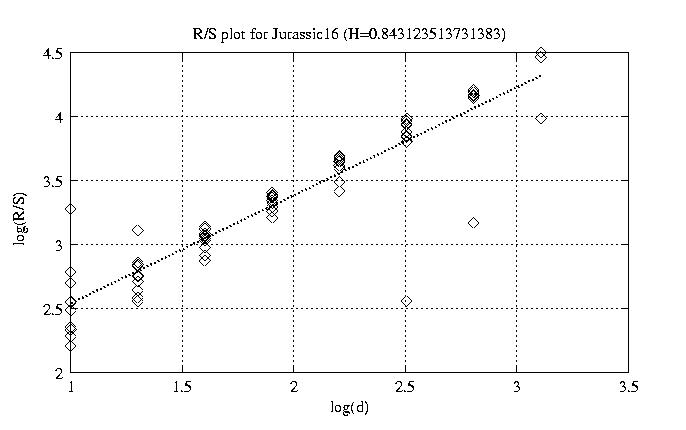

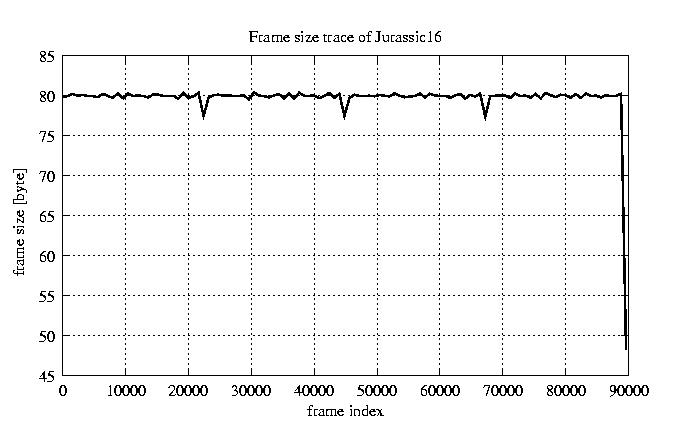

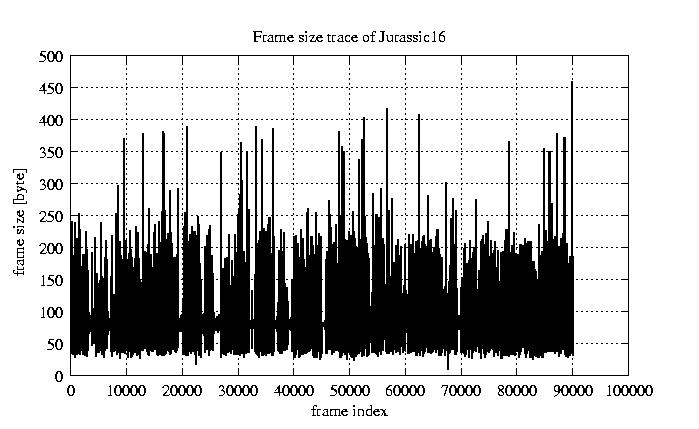

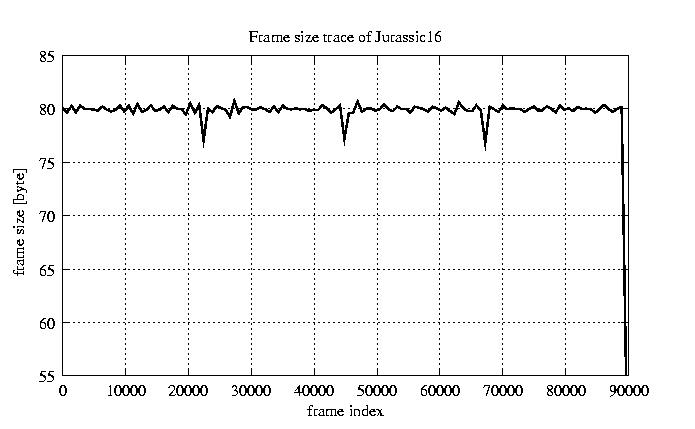

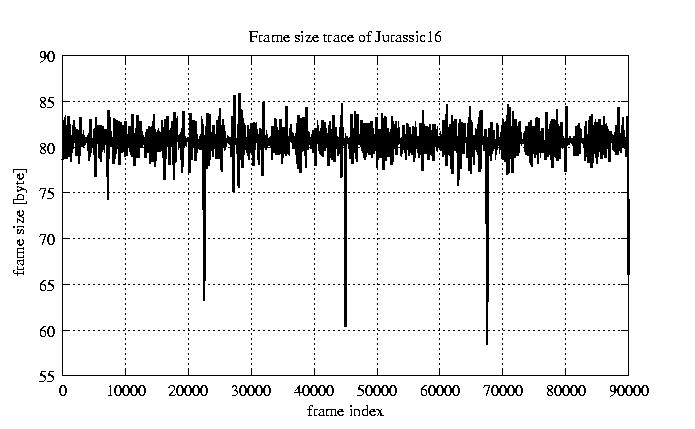

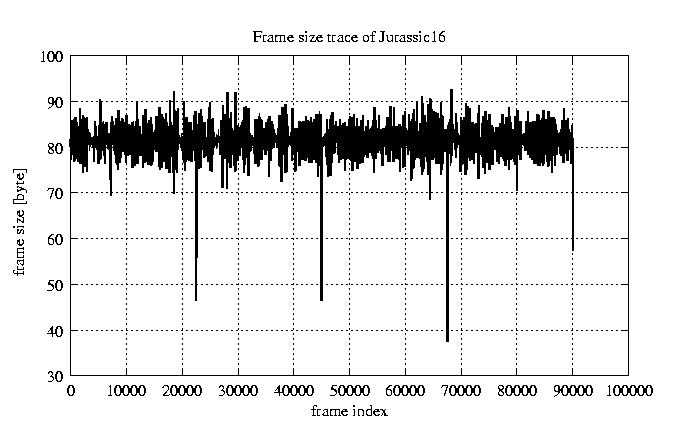

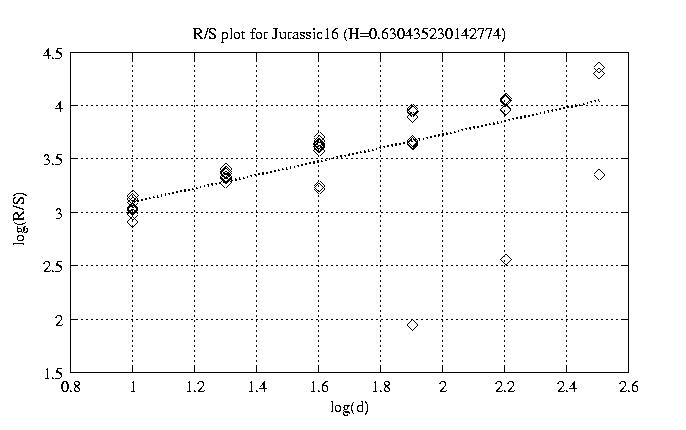

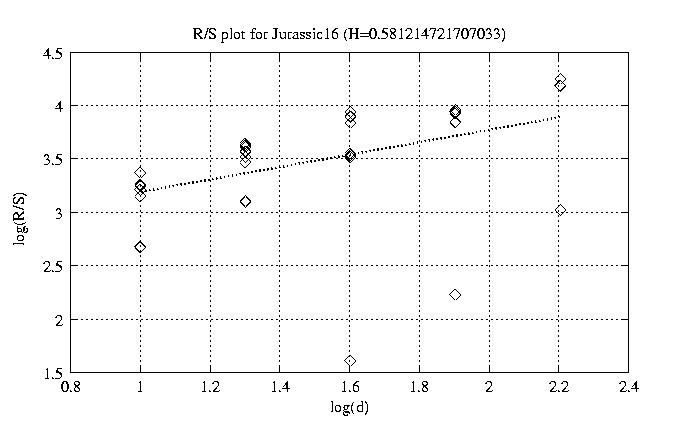

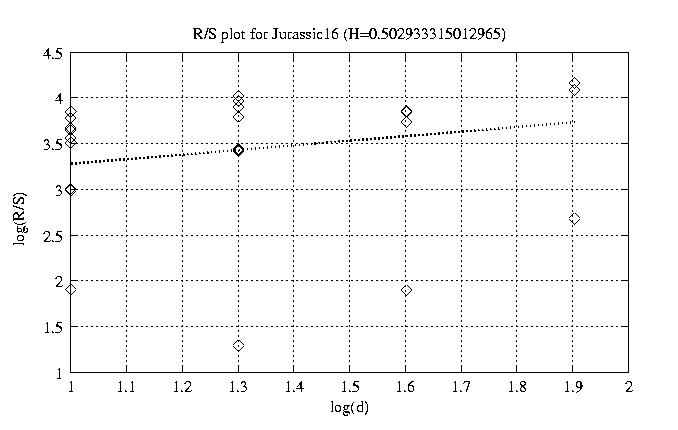

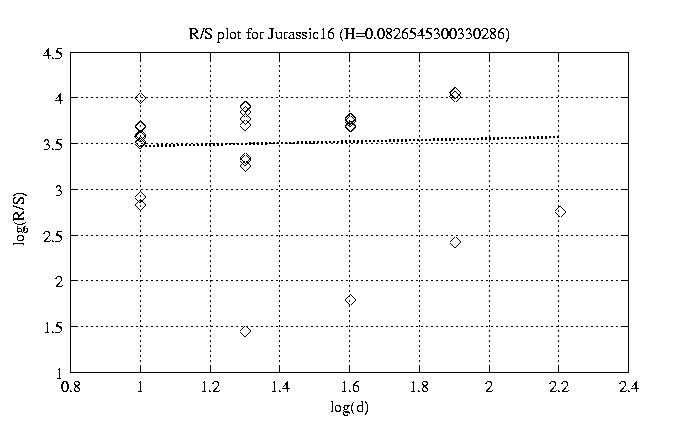

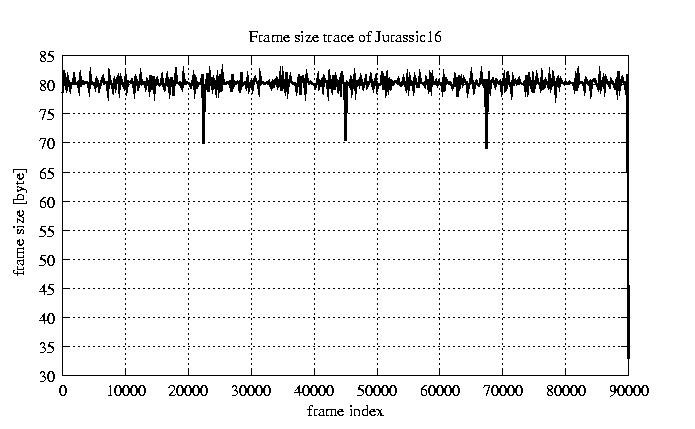

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.945 view view 12 0.930 view view 50 0.843 view view 100 0.770 view view 200 0.630 view view 300 0.409 view view 400 0.581 view view 500 0.413 view view 600 0.083 view view 700 0.352 view view 800 0.503 view view

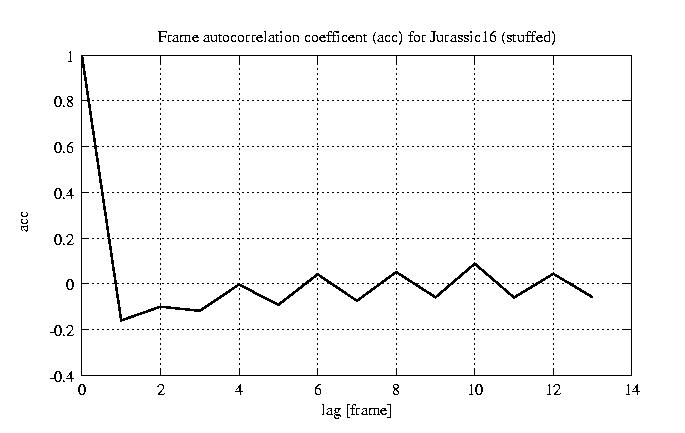

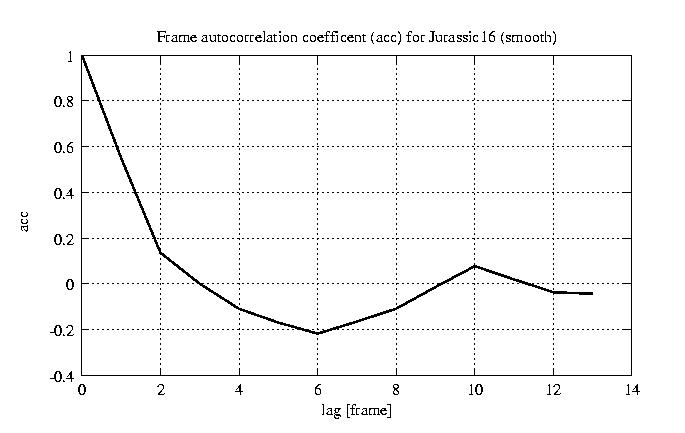

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
