H263 - Mr Bean
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 25.00 25.00 File size byte 1.4e+08 1.4e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 51449.00 mean frame size byte 1520.68 2662.61 var frame size - 3175103.94 2518871.08 CoV of frame size - 1.17 0.60 min frame size byte 0.00 40.00 max frame size byte 16221.00 16221.00 Peak/Mean frame - 10.67 6.09 Mean bit rate bit/sec 3e+05 Peak bit rate bit/sec 3.2e+06 Peak/Mean of bit rate - 11 CoV of bit rate - 0.7 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

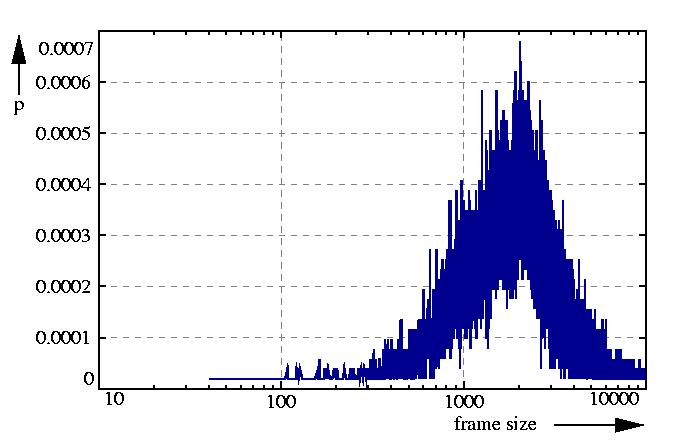

probability density function p

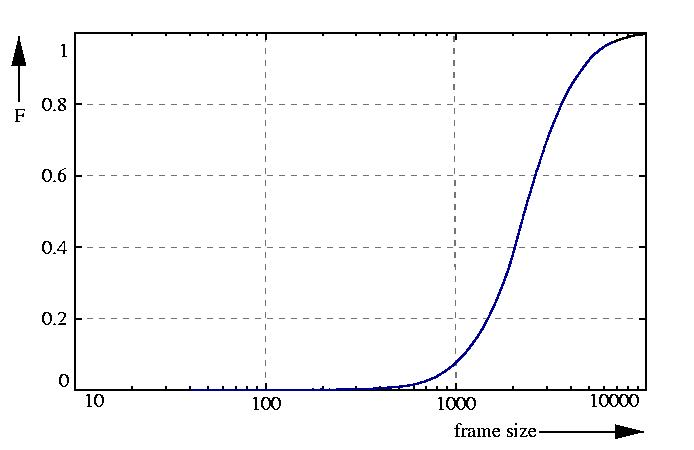

probability function F = sum p

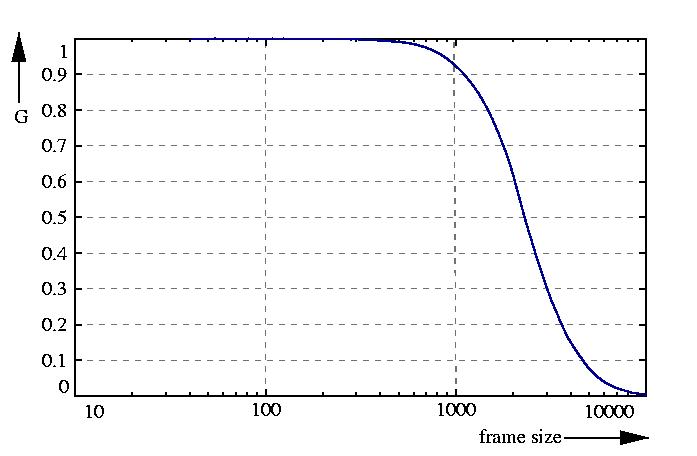

inverse probability function G = 1 - F

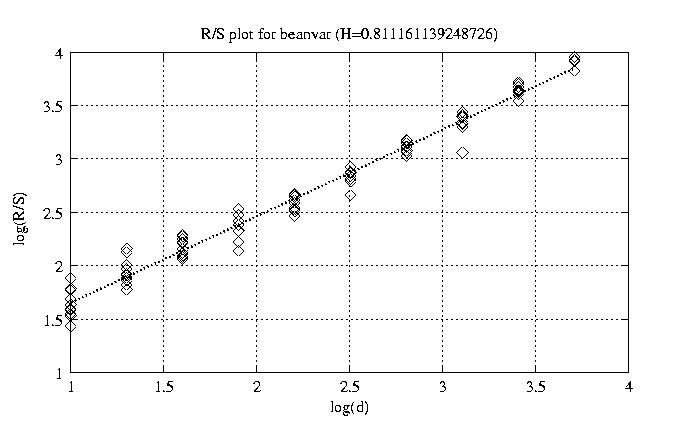

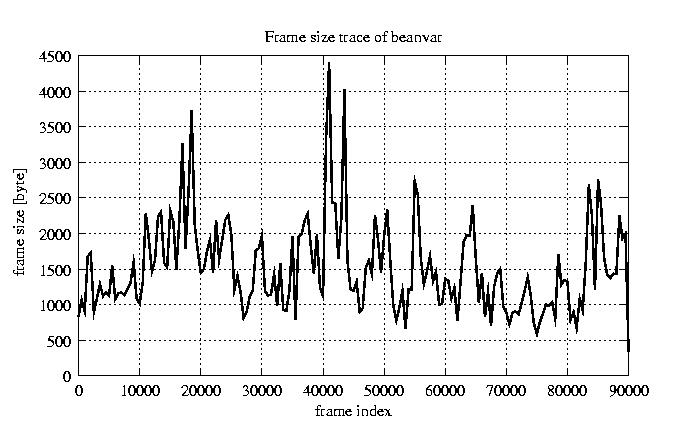

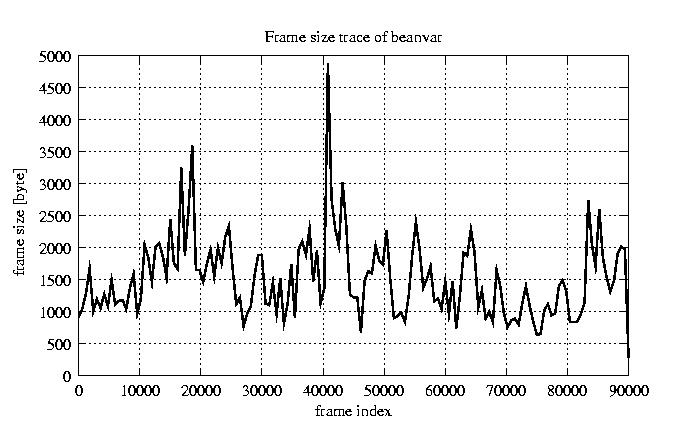

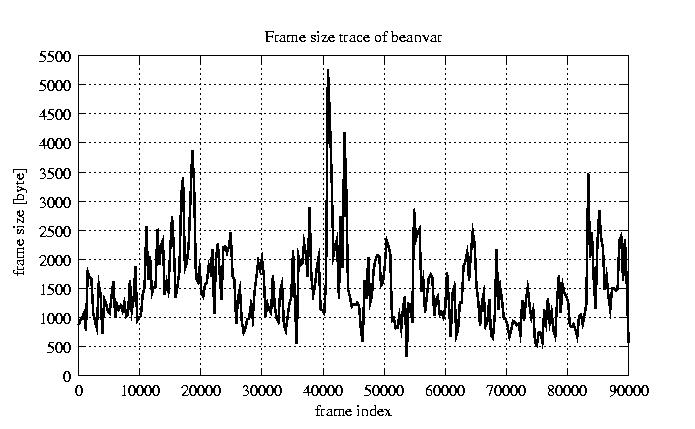

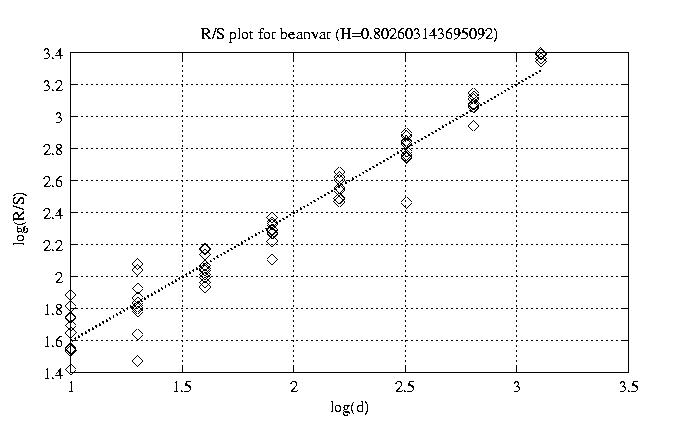

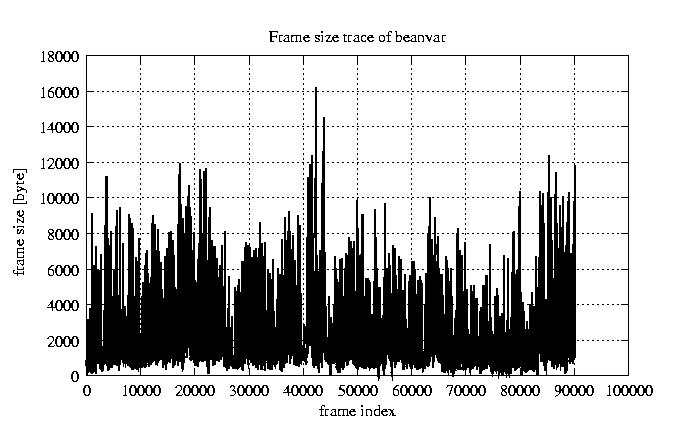

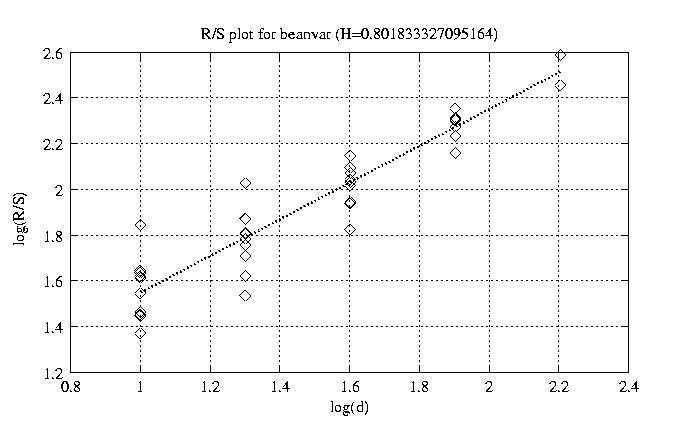

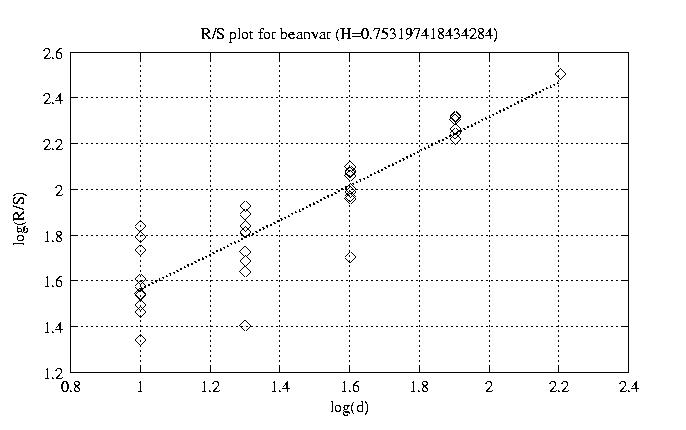

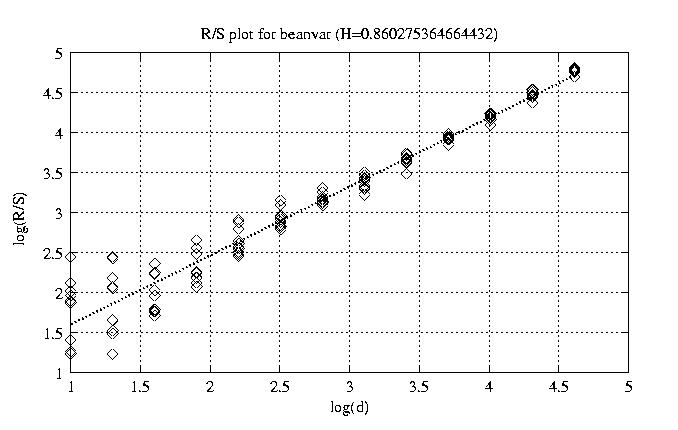

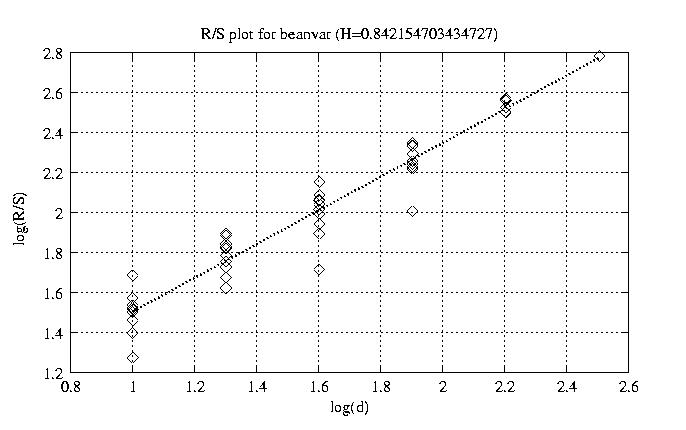

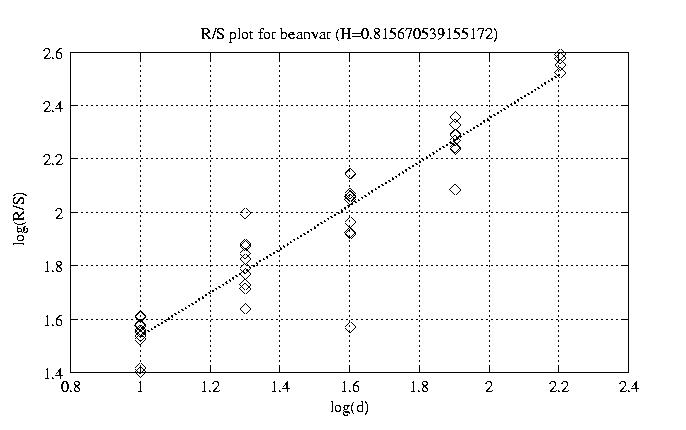

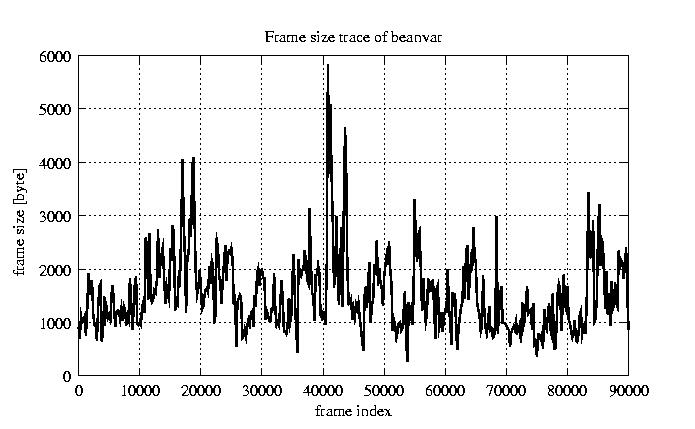

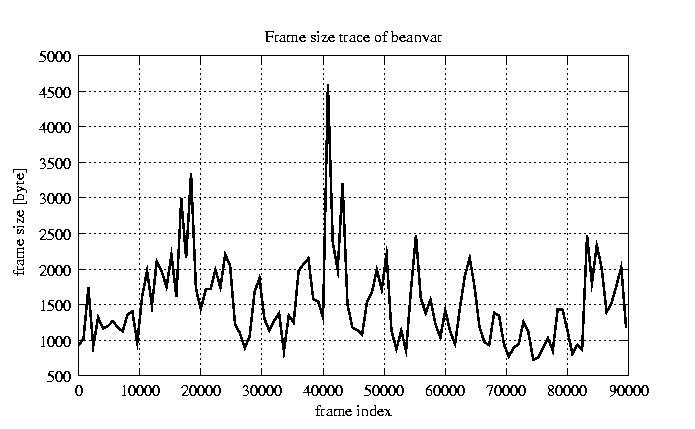

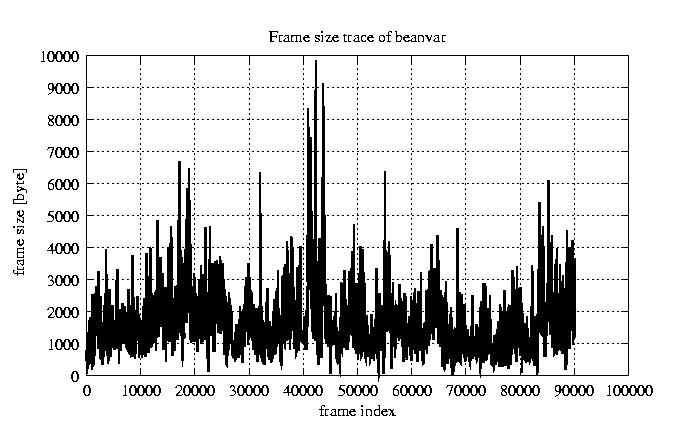

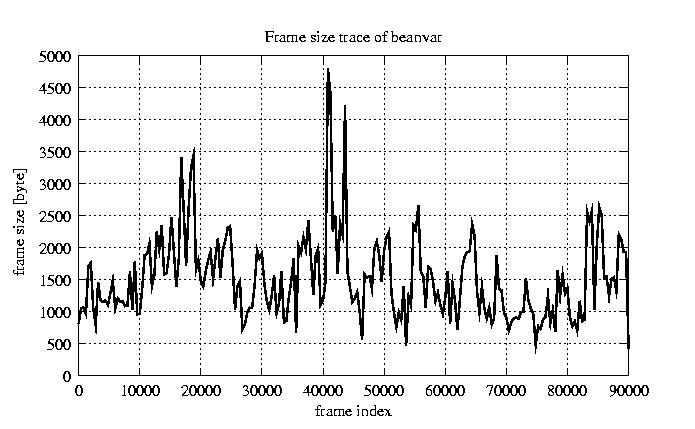

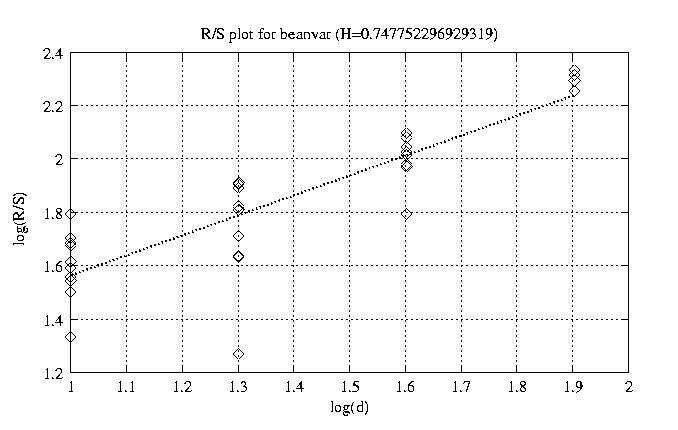

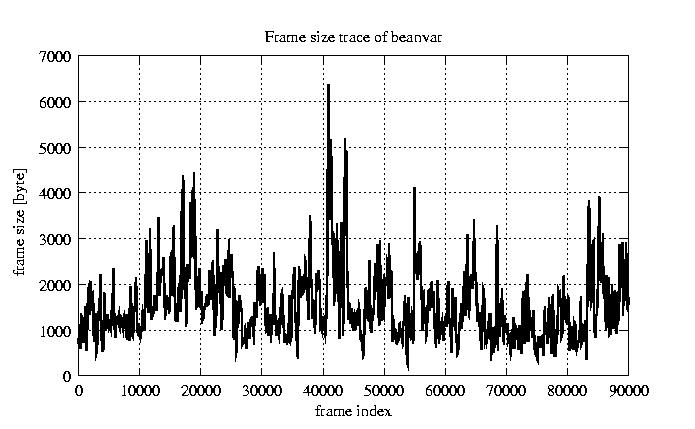

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.860 view view 12 0.811 view view 50 0.803 view view 100 0.816 view view 200 0.836 view view 300 0.842 view view 400 0.816 view view 500 0.802 view view 600 0.753 view view 700 0.765 view view 800 0.748 view view

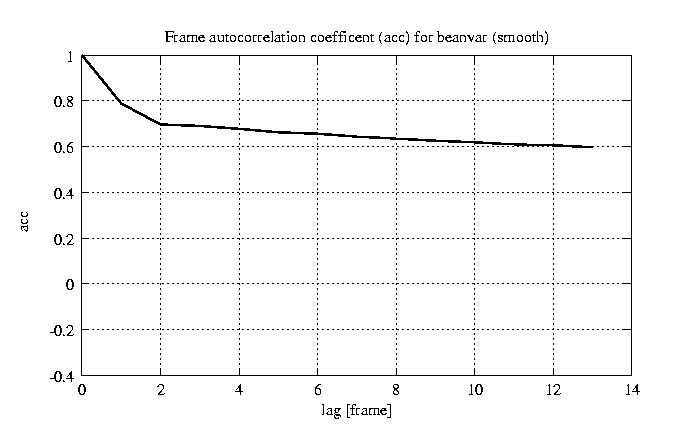

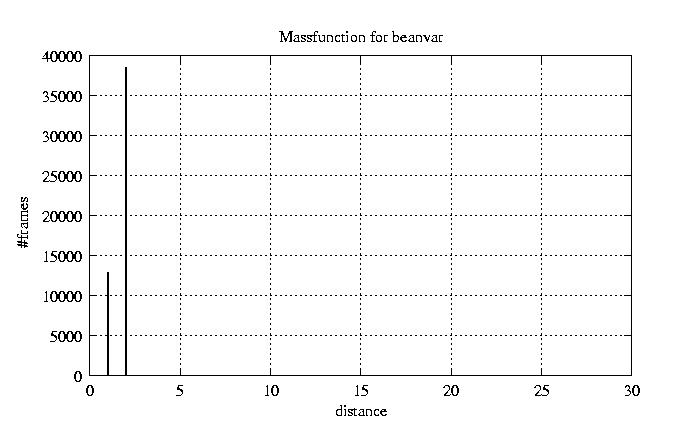

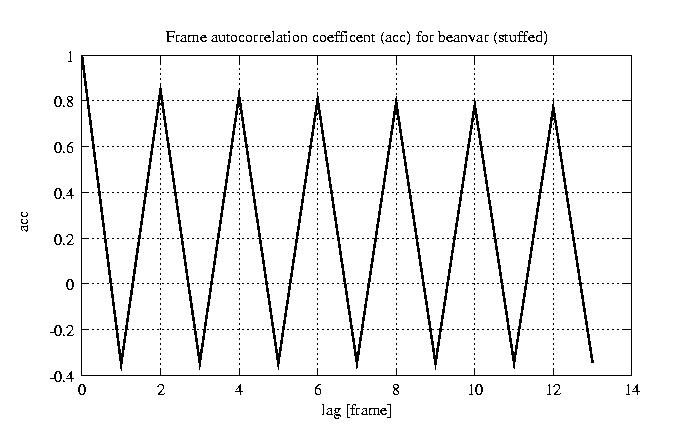

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
