MP4 - Simpsons
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 5.84 File Size byte 2e+08 Video run time msec 1.2e+06 # of Frames - 30334 mean frame size byte 6.5e+03 var frame size - 7.2e+06 CoV of frame size - 0.41 min frame size byte 49 max frame size byte 43986 Mean bit rate bit/sec 1.3e+06 Peak bit rate bit/sec 8.8e+06 Peak/Mean of bit rate - 6.75 GoP statistics # of GoPs - 2527 mean GoP size byte 7.8e+04 var GoP size - 4.8e+08 CoV of GoP size - 0.28 min GoP size byte 1630 max GoP size byte 271317 Mean bit rate bit/sec 1.3e+06 Peak bit rate bit/sec 4.5e+06 Peak/Mean of bit rate - 3.47 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

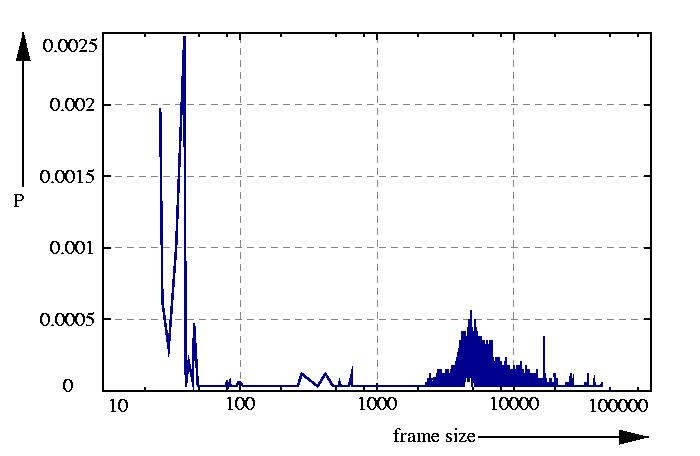

probability density function p

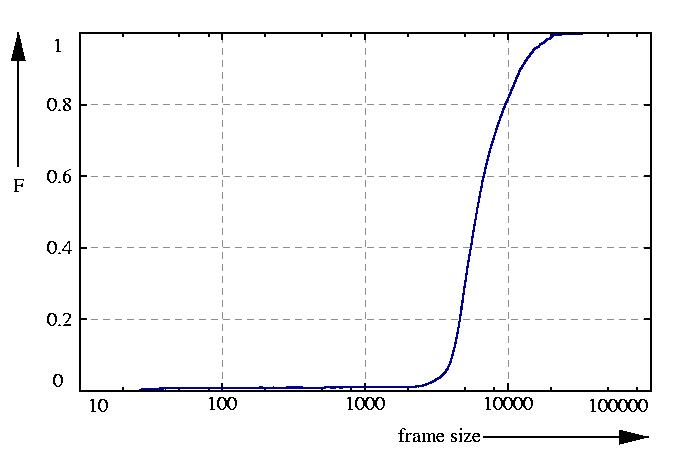

probability function F = sum p

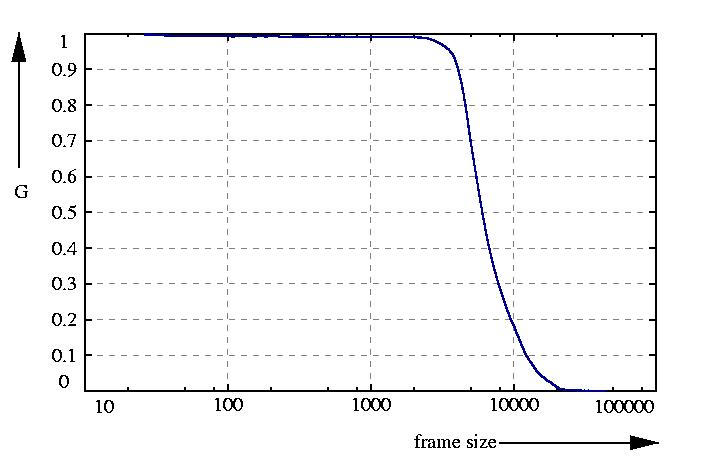

inverse probability function G = 1 - F

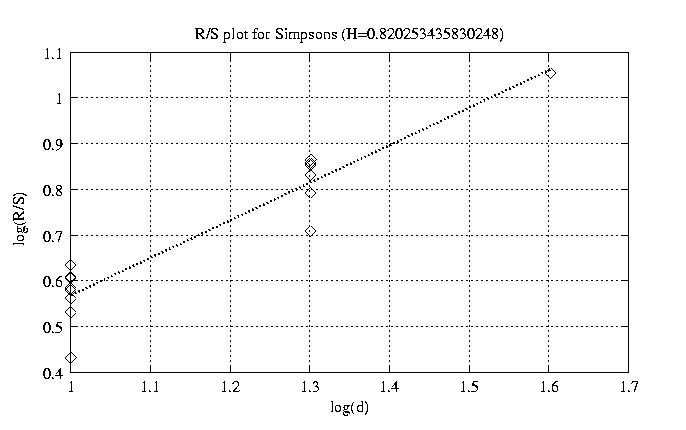

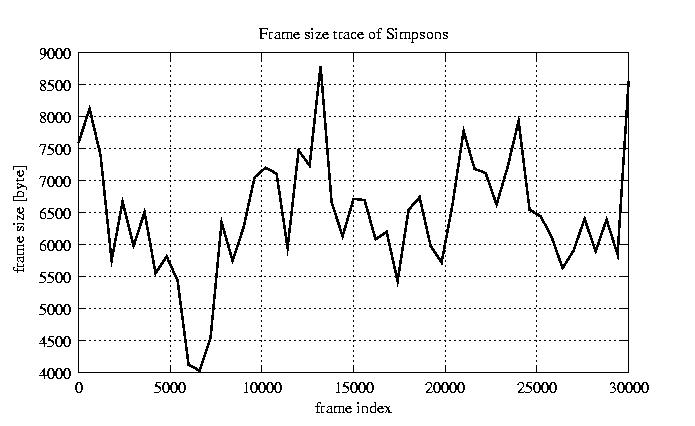

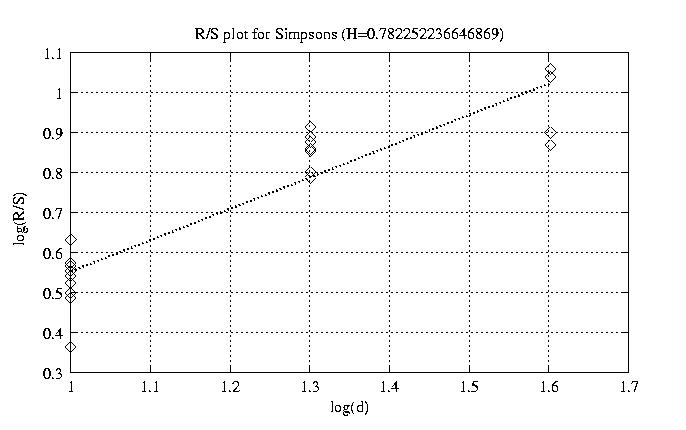

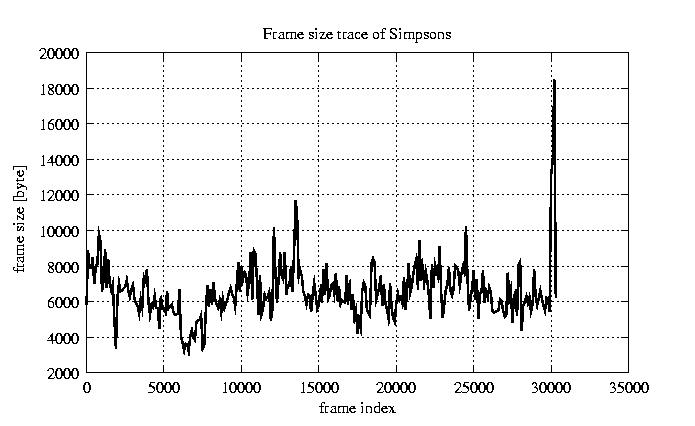

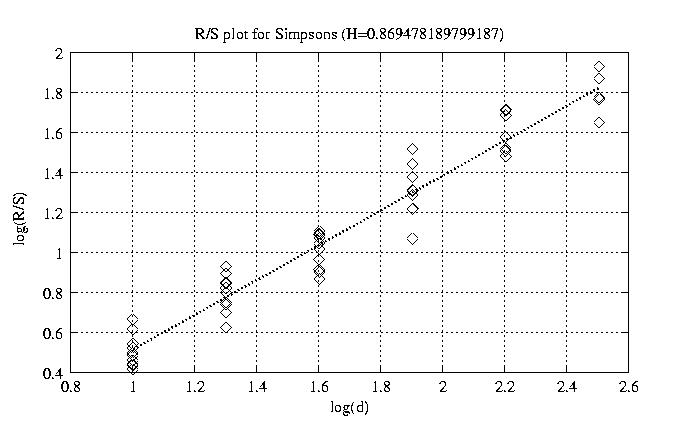

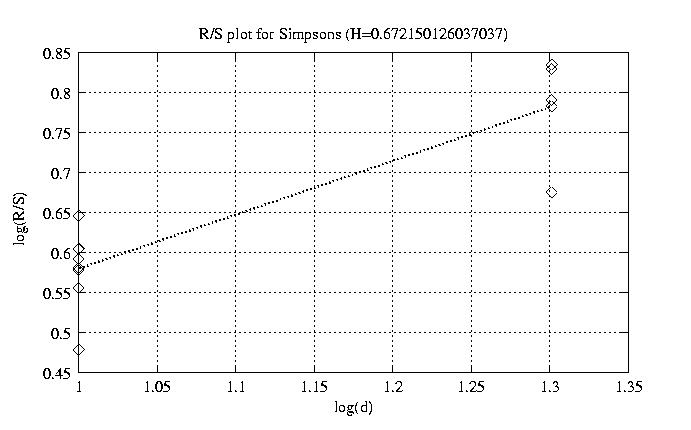

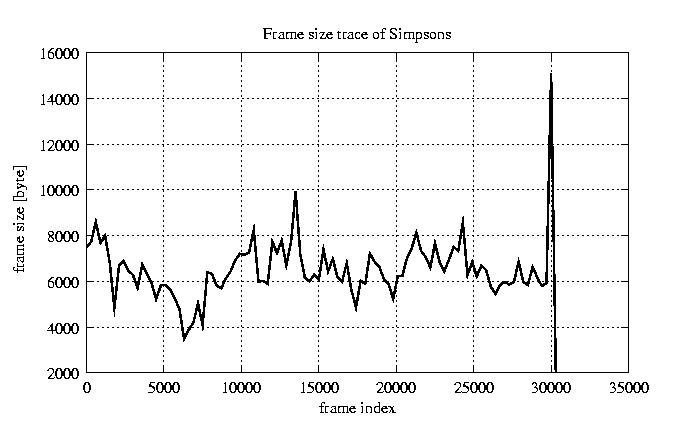

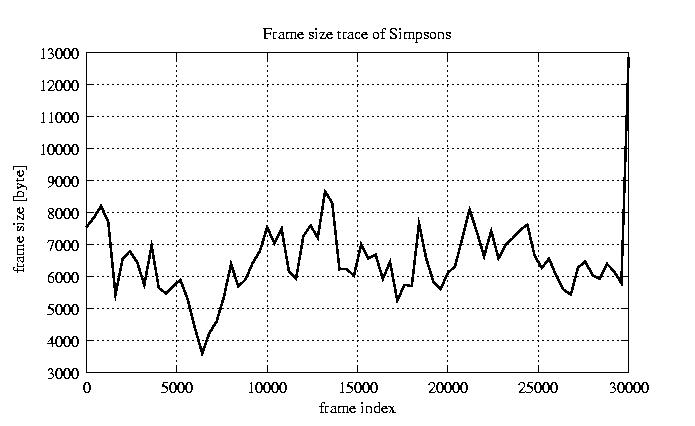

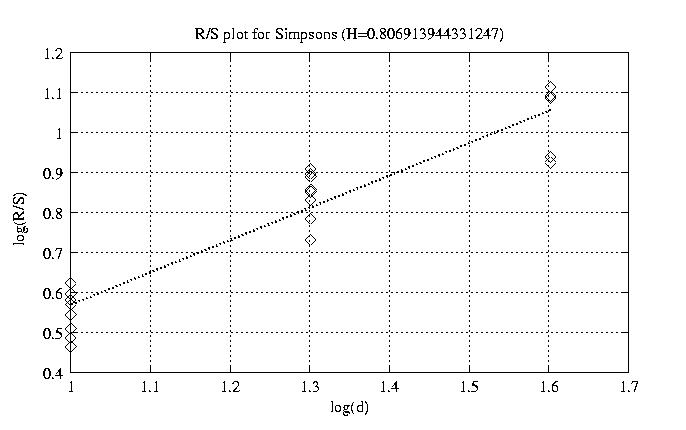

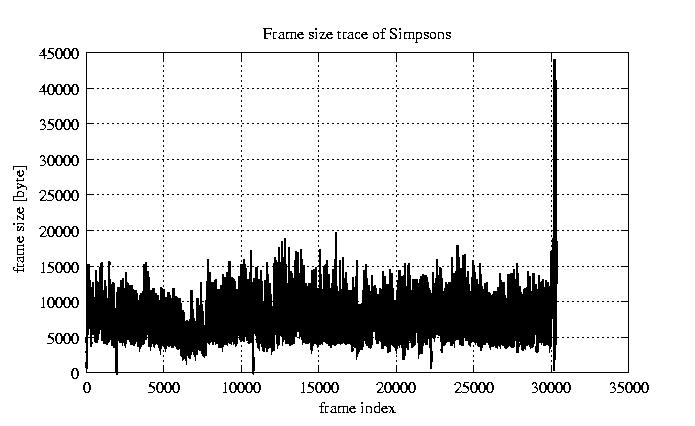

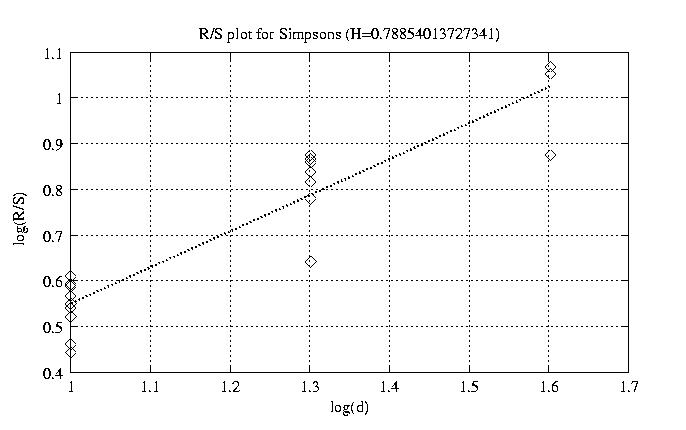

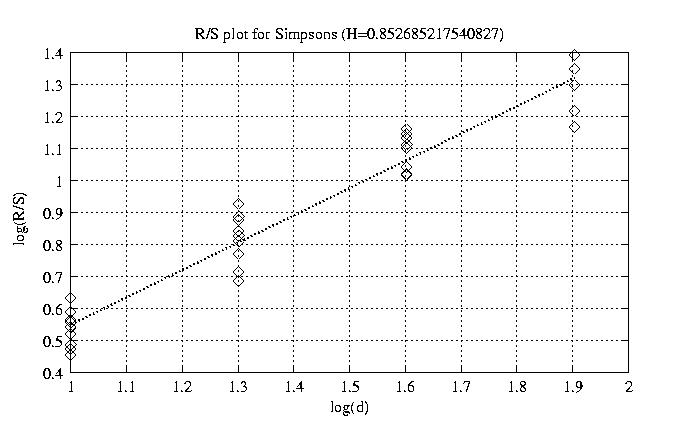

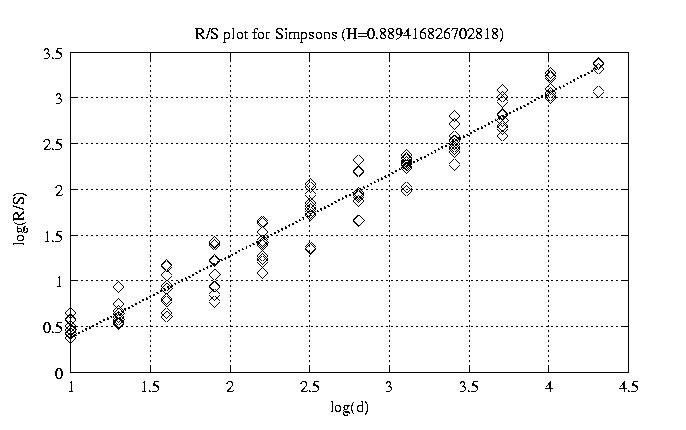

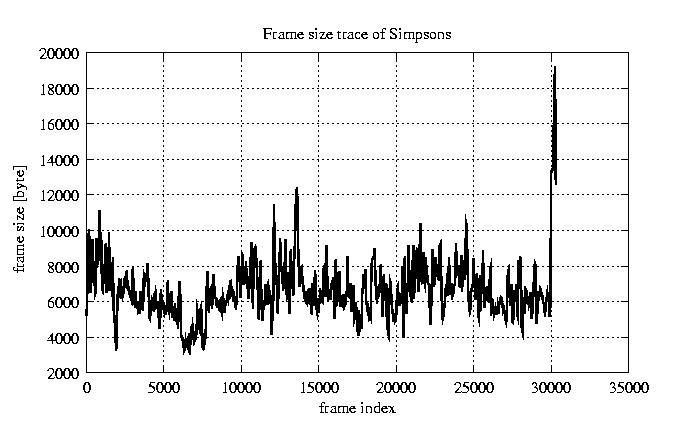

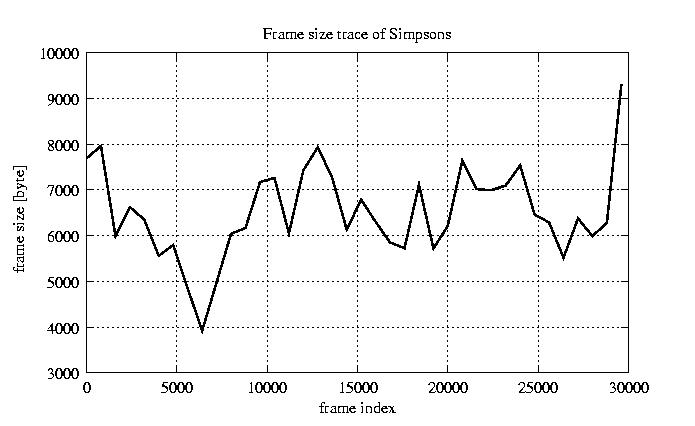

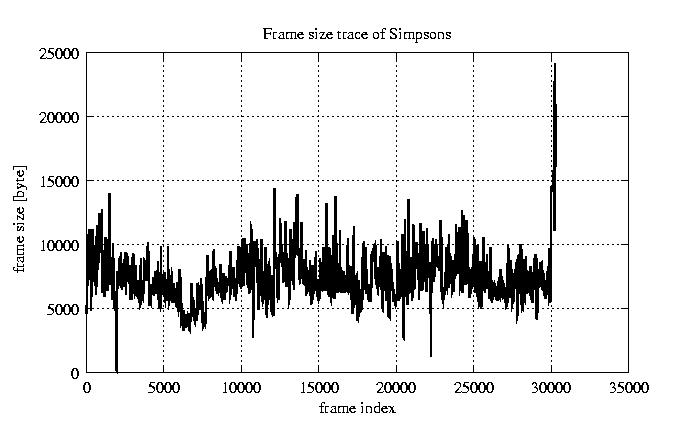

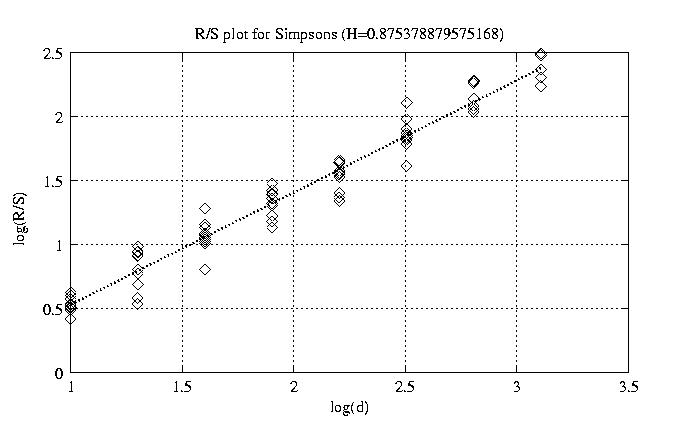

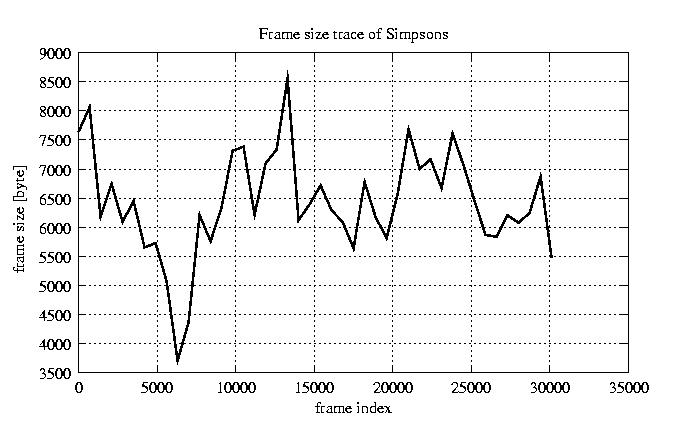

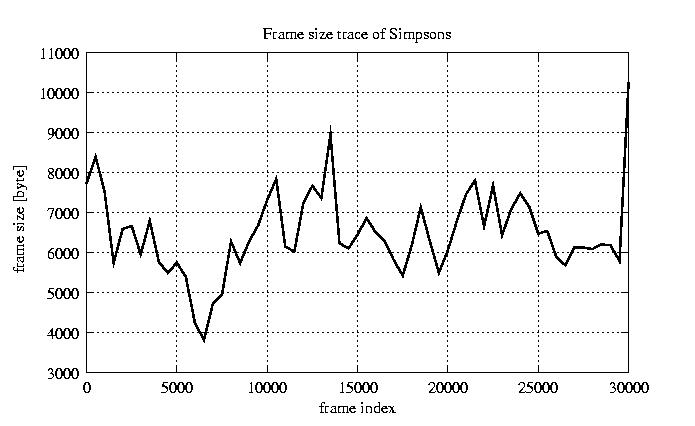

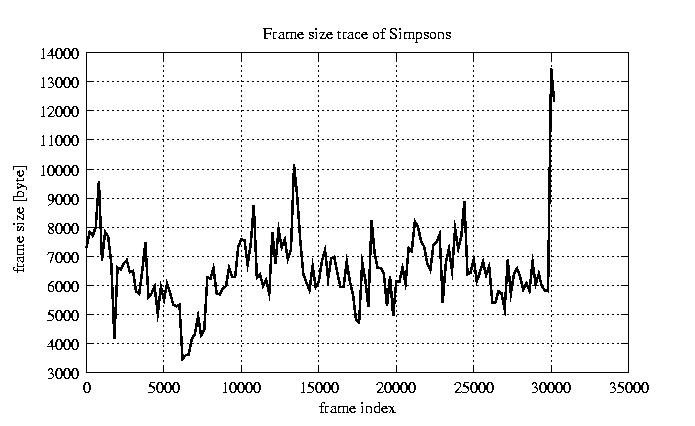

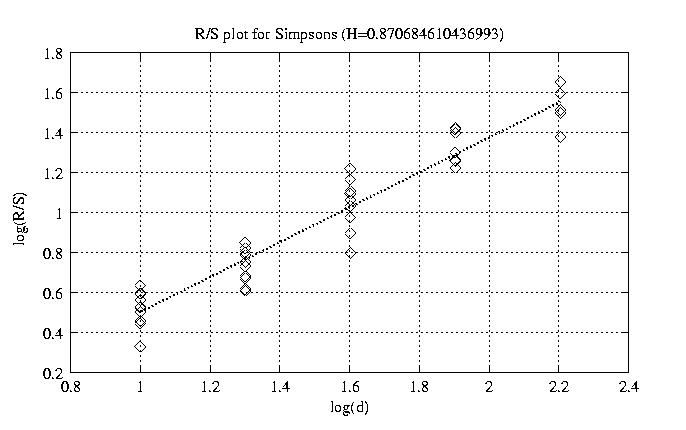

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.889 view view 12 0.875 view view 50 0.869 view view 100 0.871 view view 200 0.853 view view 300 0.770 view view 400 0.807 view view 500 0.782 view view 600 0.789 view view 700 0.820 view view 800 0.672 view view

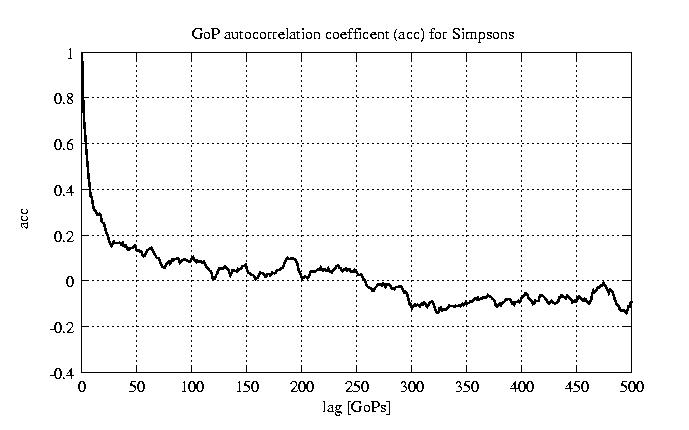

other plots	autocorrelation function of frames autocorrelation function of GoPs
