H263 - Star Wars IV
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.32 476.32 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90056.00 22047.00 mean frame size byte 79.81 326.02 var frame size - 29327.09 39525.59 CoV of frame size - 2.15 0.61 min frame size byte 0.00 19.00 max frame size byte 3691.00 3691.00 Peak/Mean frame - 46.24 11.32 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.7e+04 Peak/Mean of bit rate - 6.1 CoV of bit rate - 0.42 max inter frame space frames 1.00 64.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

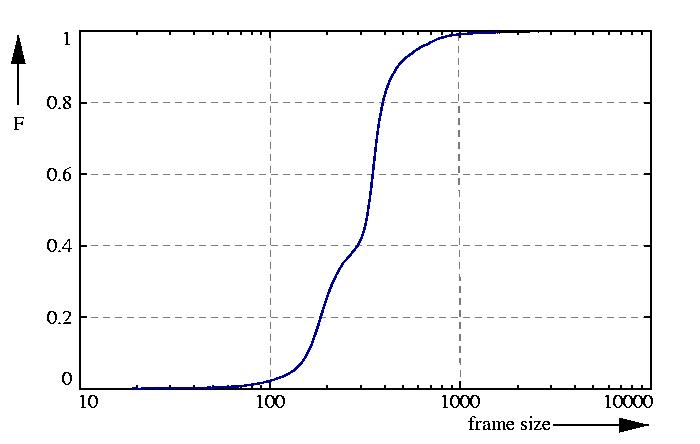

probability function F = sum p

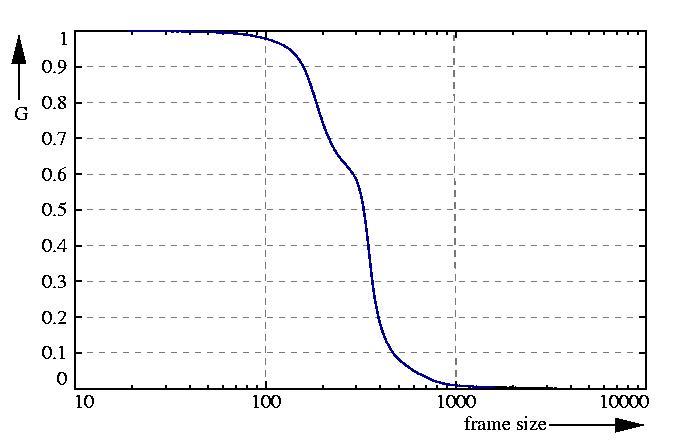

inverse probability function G = 1 - F

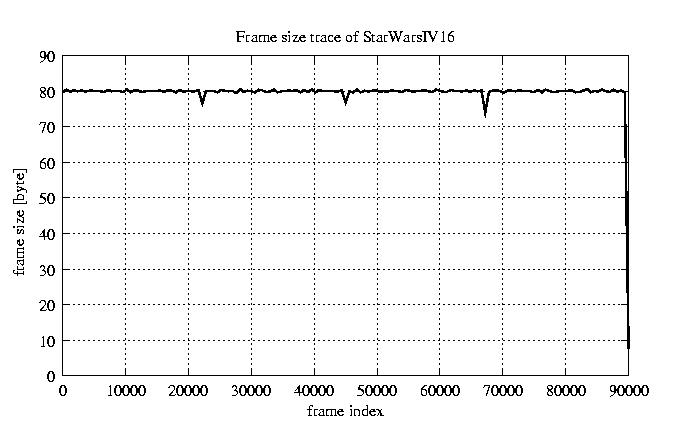

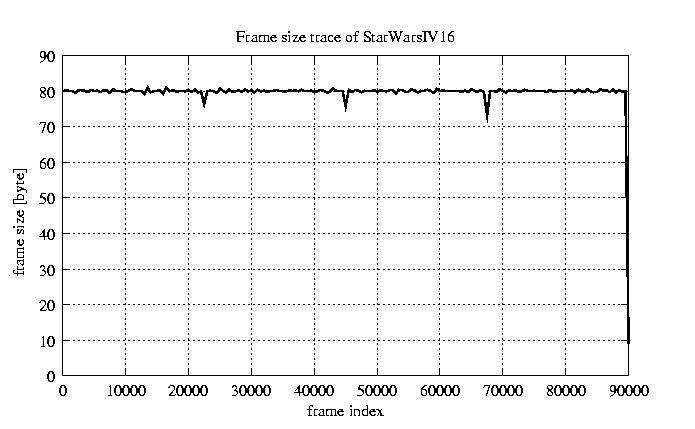

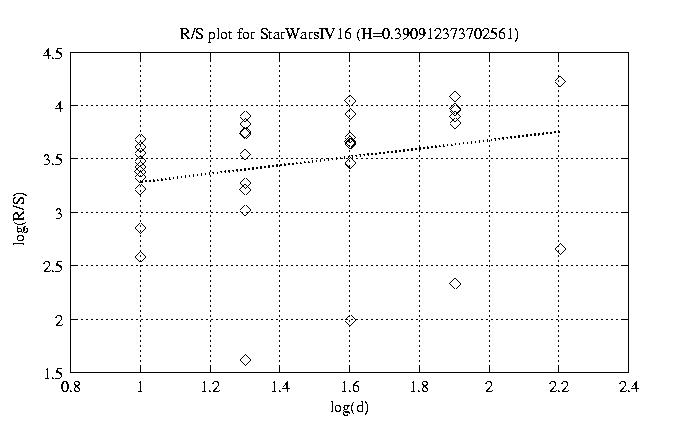

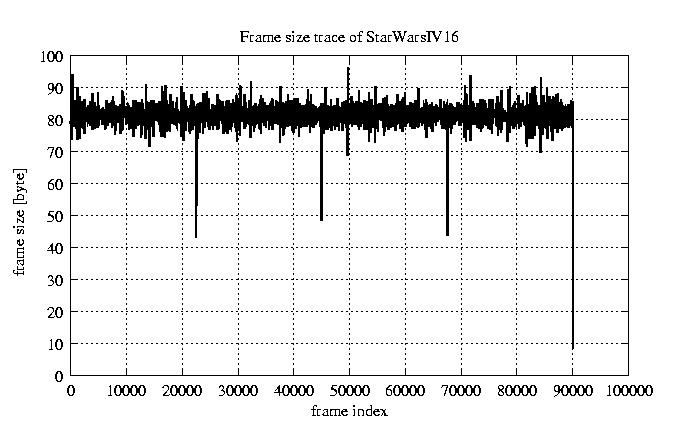

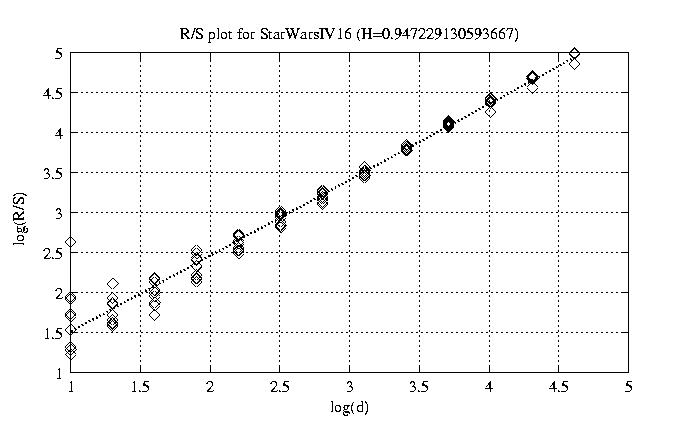

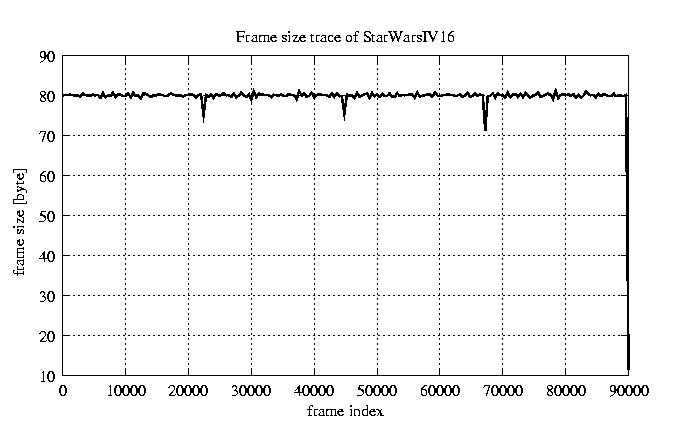

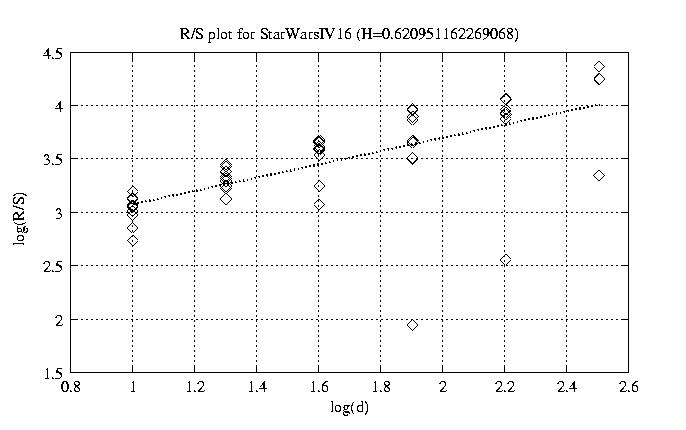

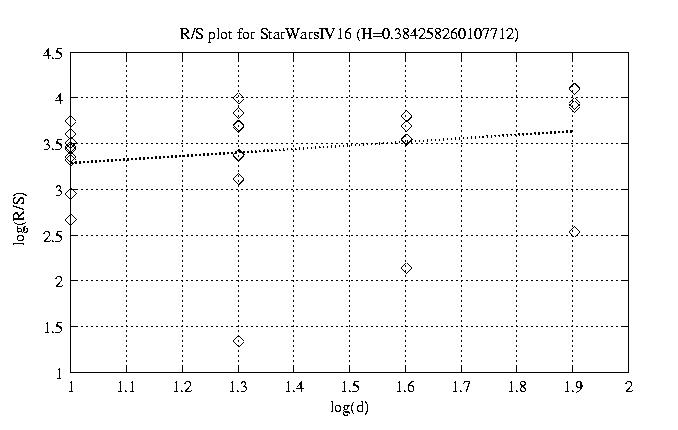

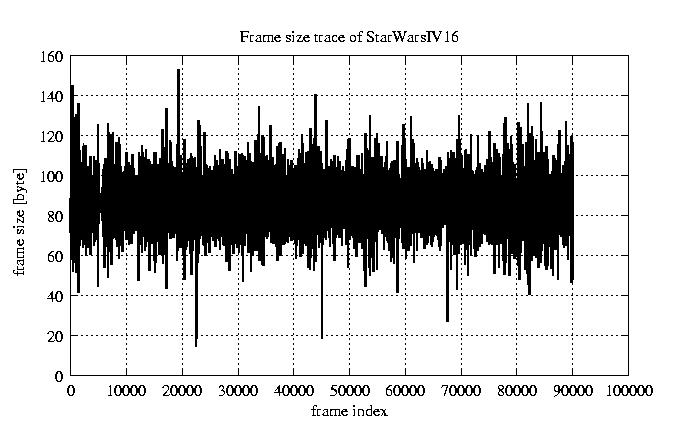

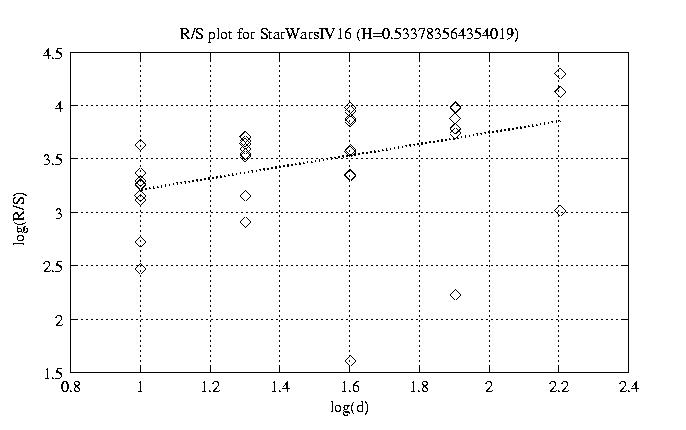

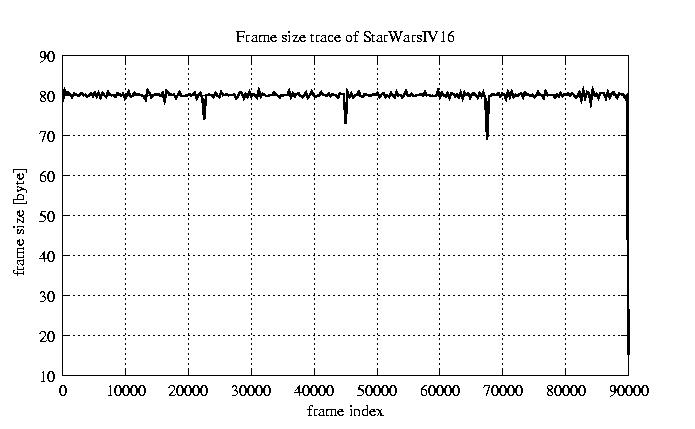

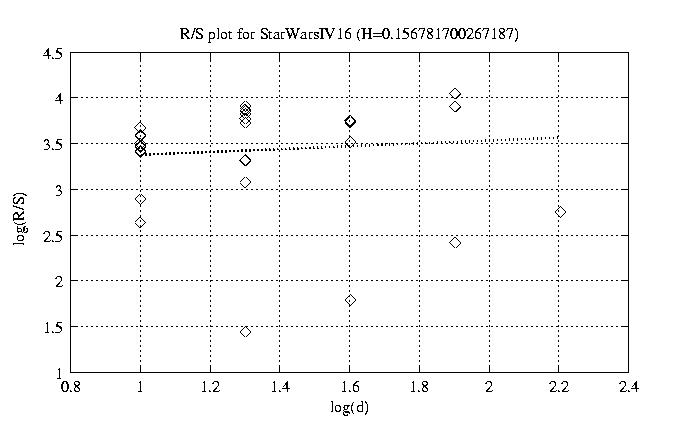

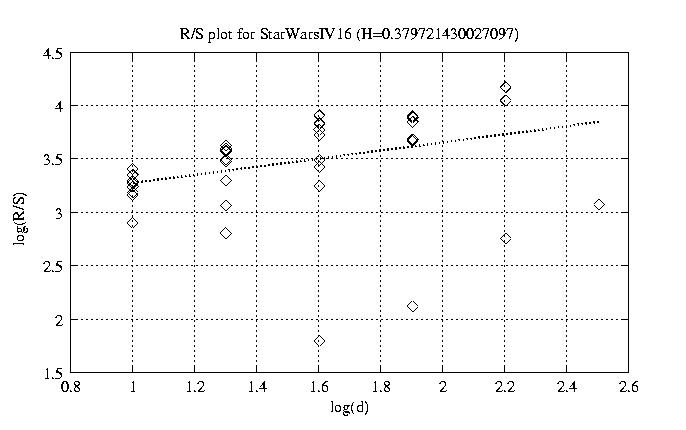

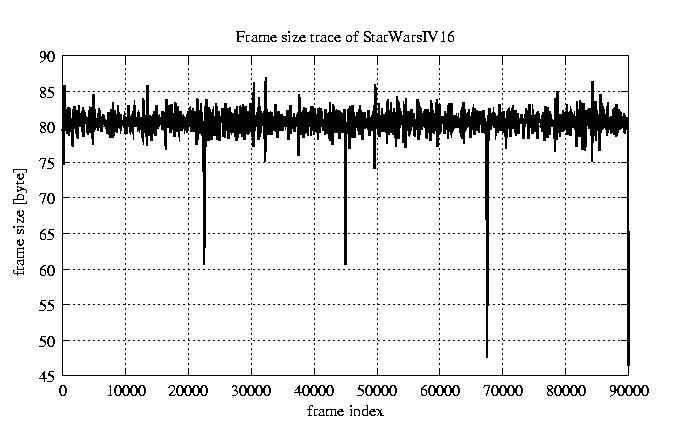

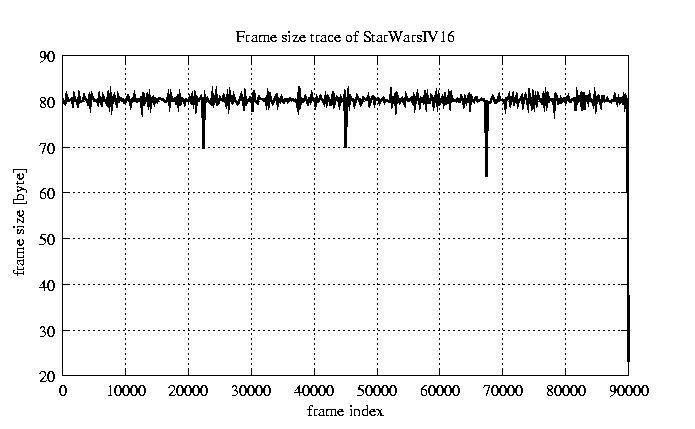

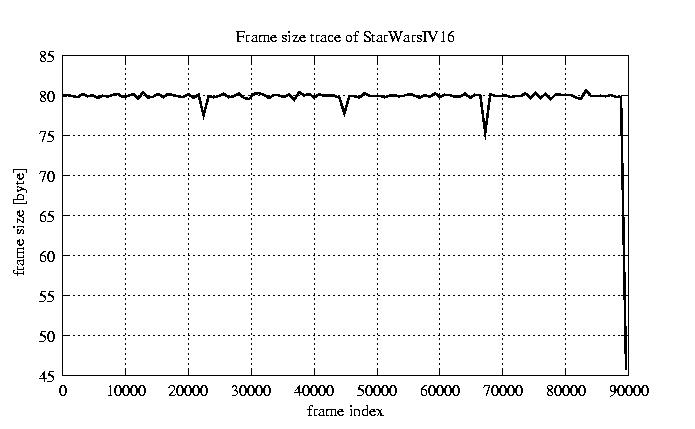

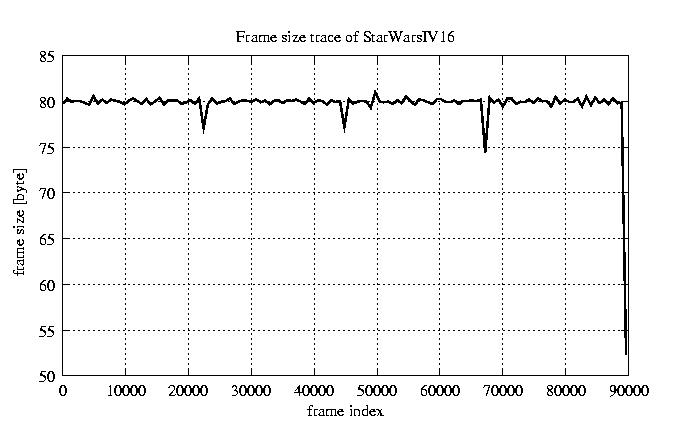

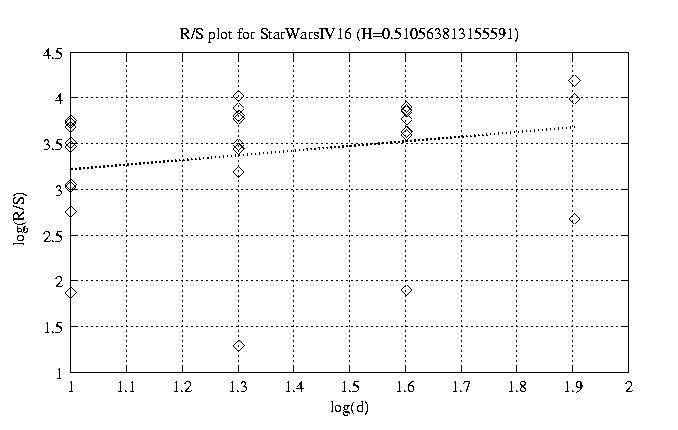

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.947 view view 12 0.944 view view 50 0.872 view view 100 0.762 view view 200 0.621 view view 300 0.380 view view 400 0.534 view view 500 0.391 view view 600 0.157 view view 700 0.384 view view 800 0.511 view view

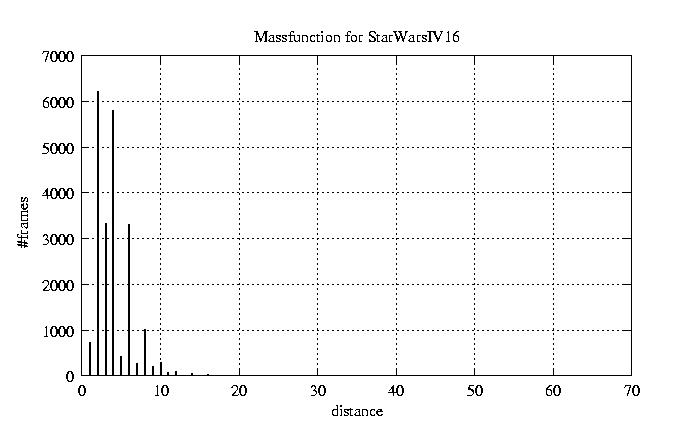

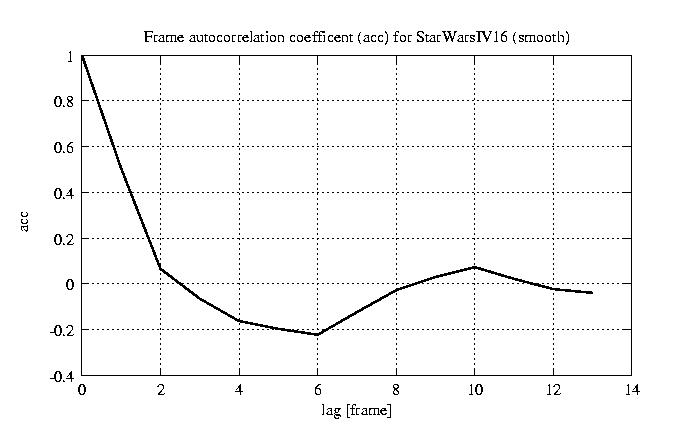

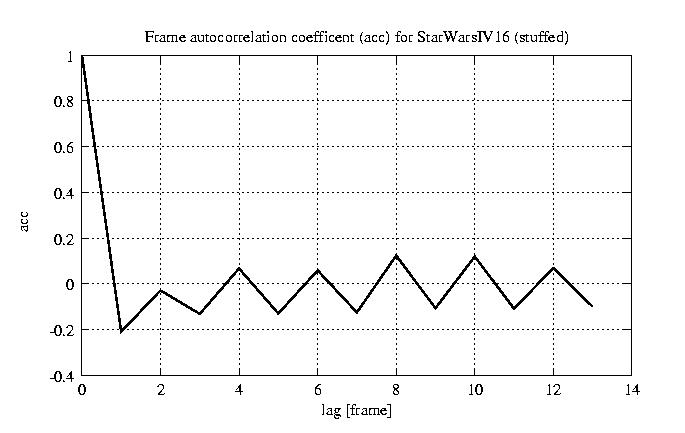

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
