MP4 - VIVA - Video Clips
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 7.35 File Size byte 4.7e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5.2e+03 var frame size - 6.2e+06 CoV of frame size - 0.48 min frame size byte 165 max frame size byte 18396 Mean bit rate bit/sec 1e+06 Peak bit rate bit/sec 3.7e+06 Peak/Mean of bit rate - 3.56 GoP statistics # of GoPs - 7499 mean GoP size byte 6.2e+04 var GoP size - 6.7e+08 CoV of GoP size - 0.42 min GoP size byte 3109 max GoP size byte 176087 Mean bit rate bit/sec 1e+06 Peak bit rate bit/sec 2.9e+06 Peak/Mean of bit rate - 2.84 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

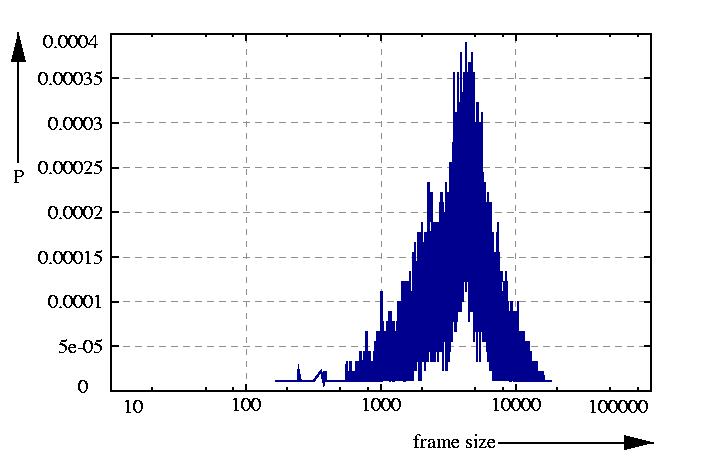

probability density function p

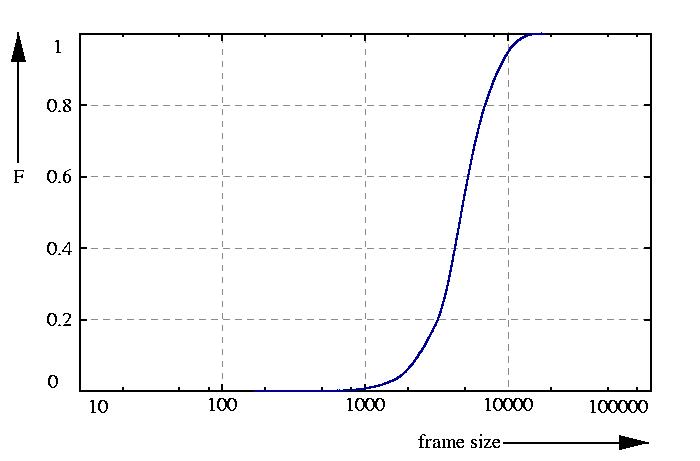

probability function F = sum p
inverse probability function G = 1 - F

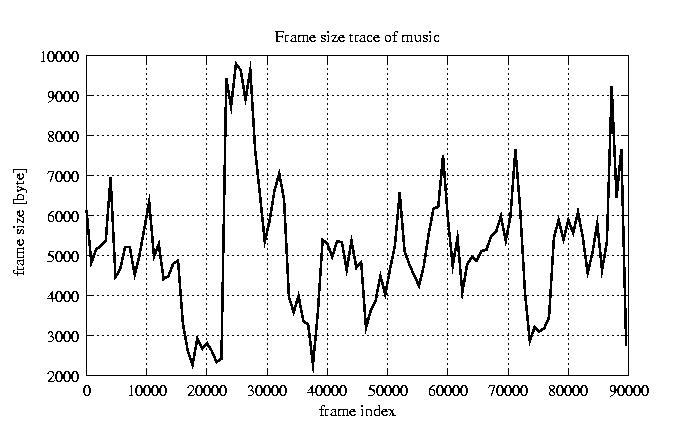

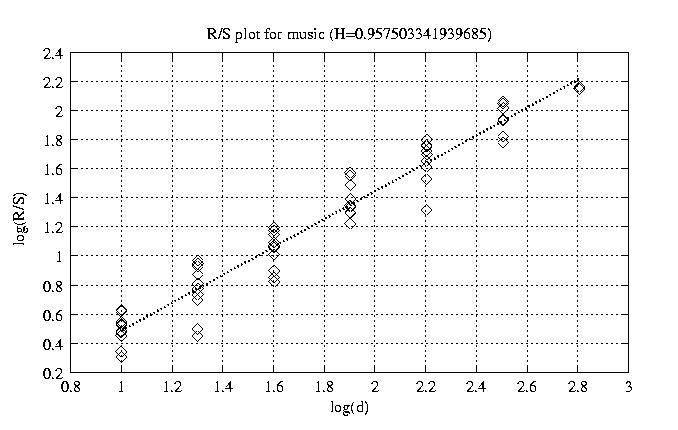

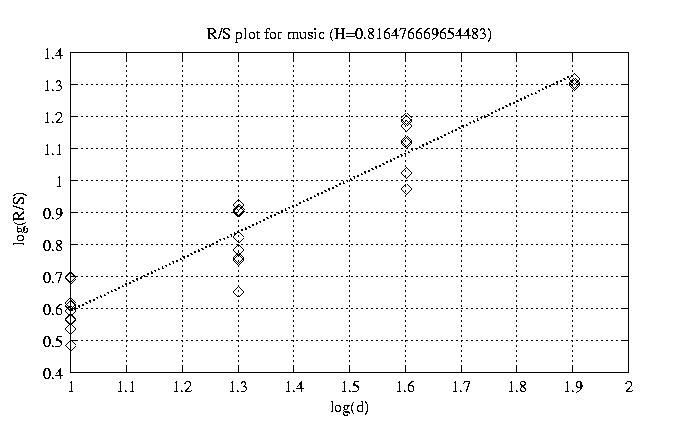

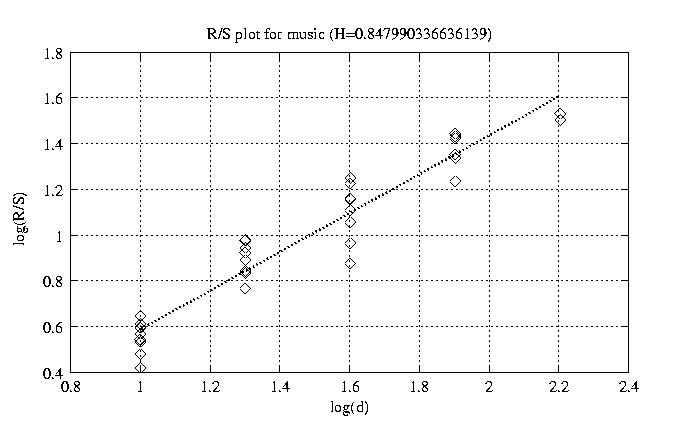

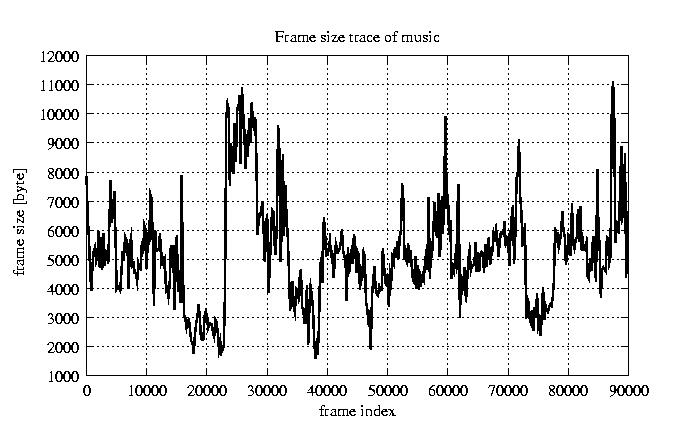

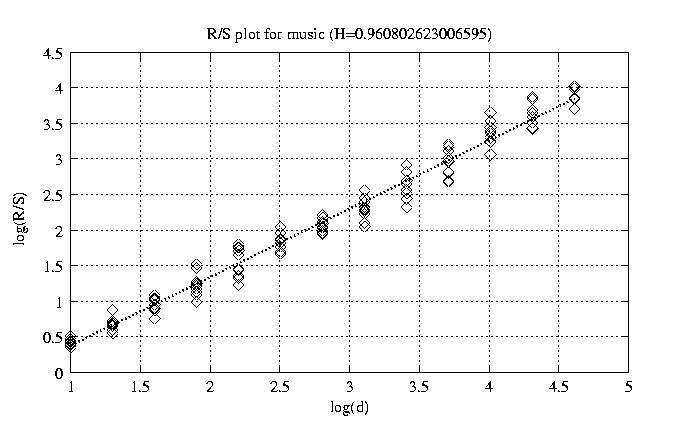

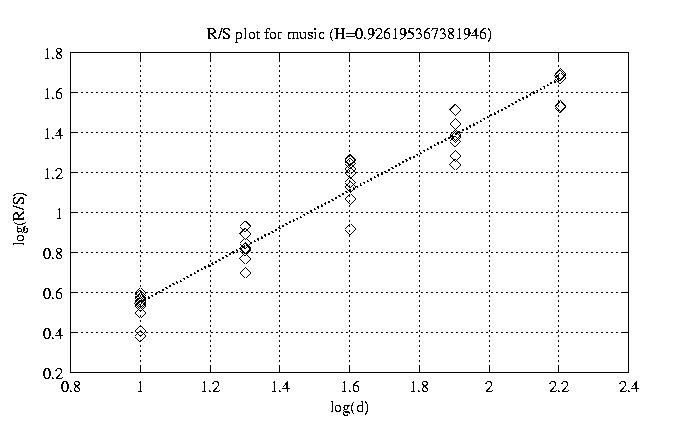

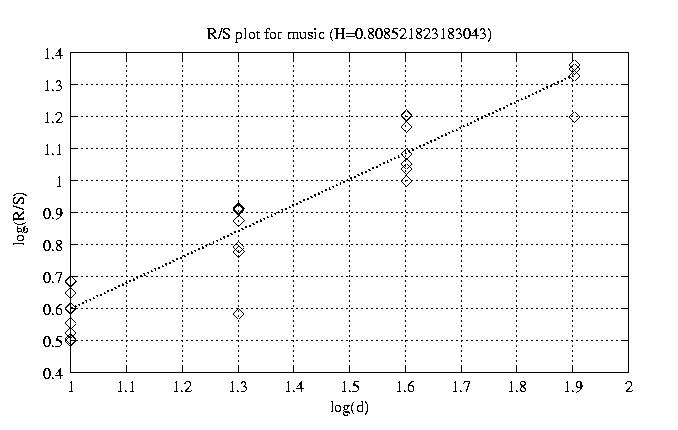

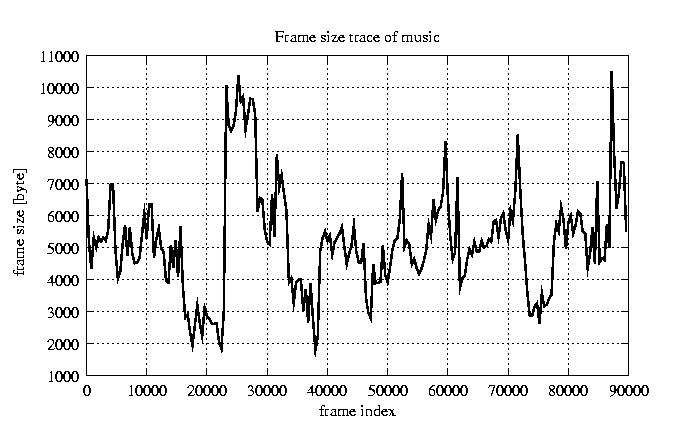

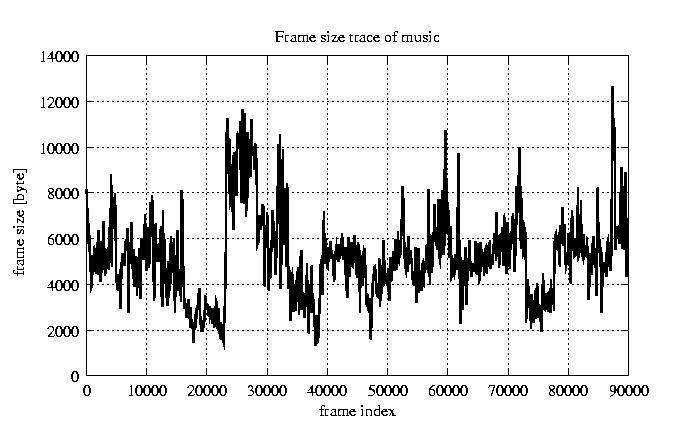

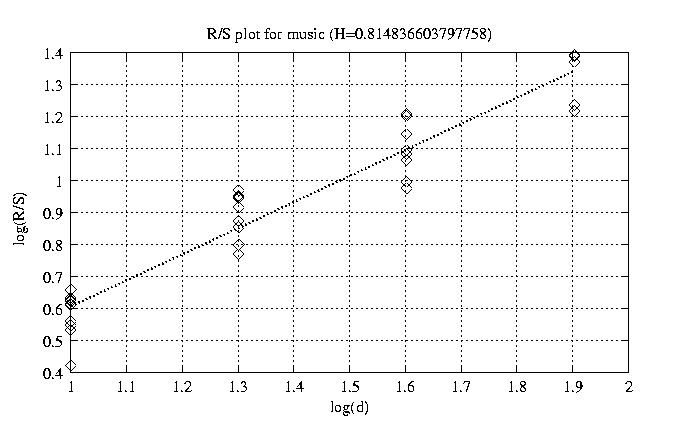

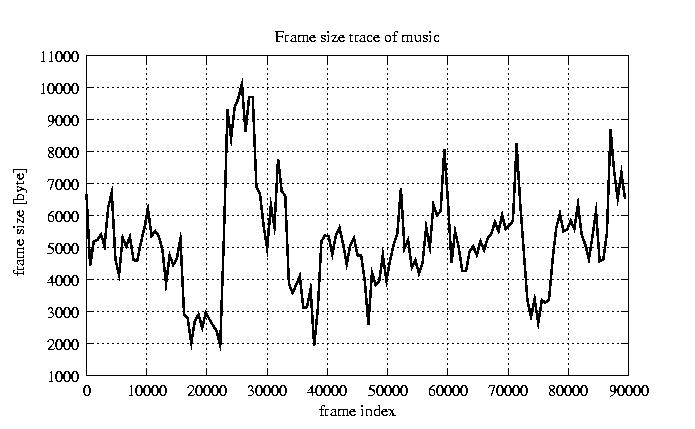

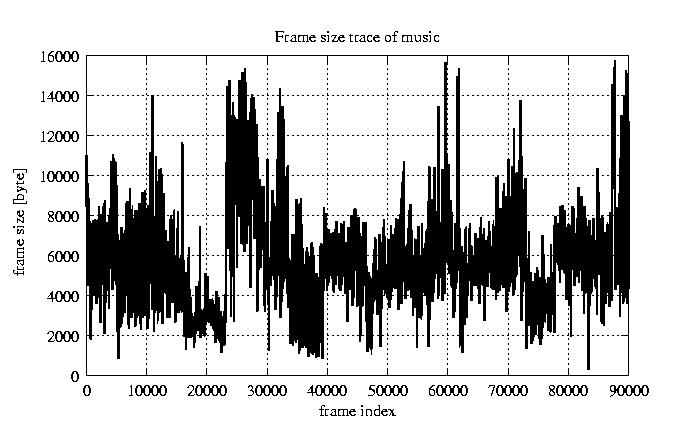

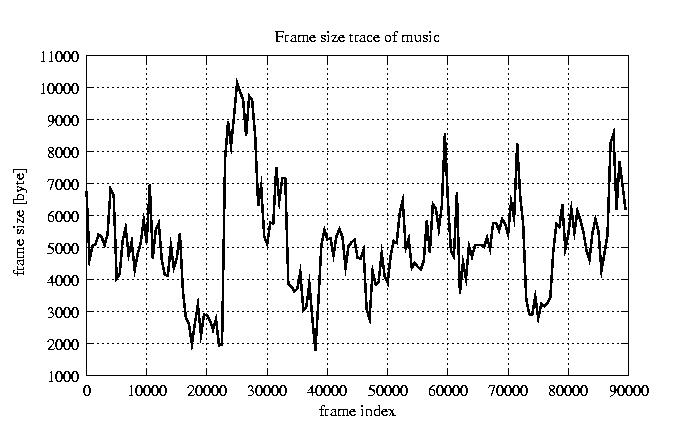

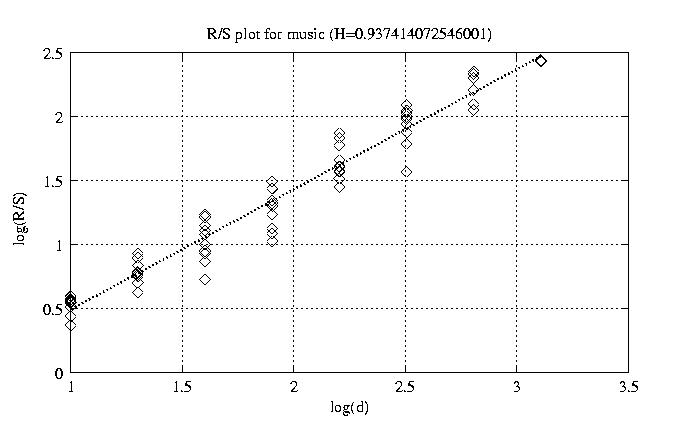

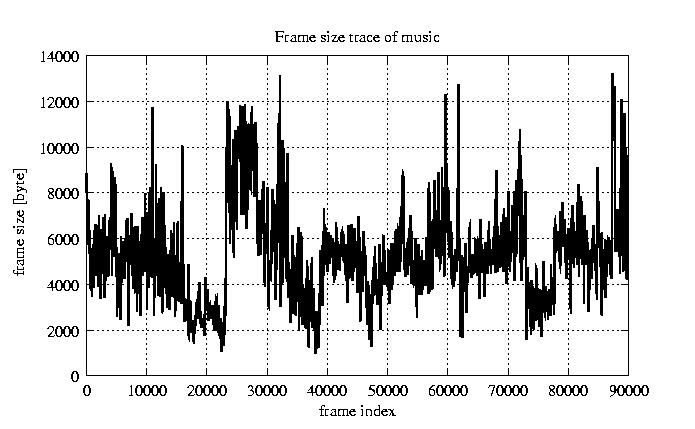

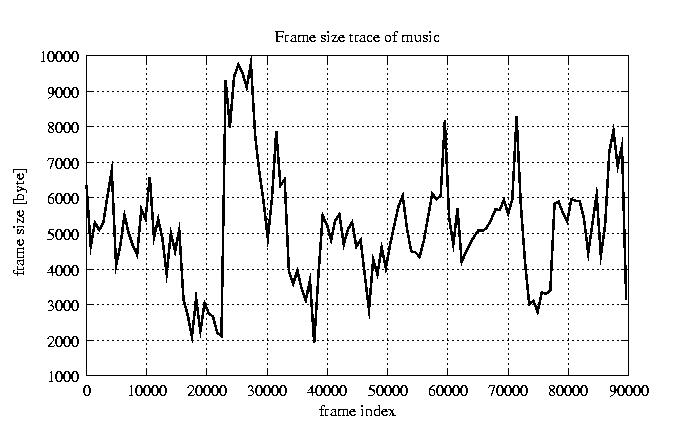

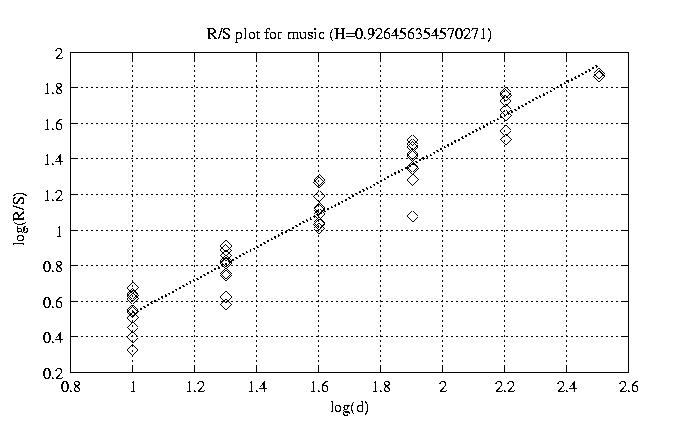

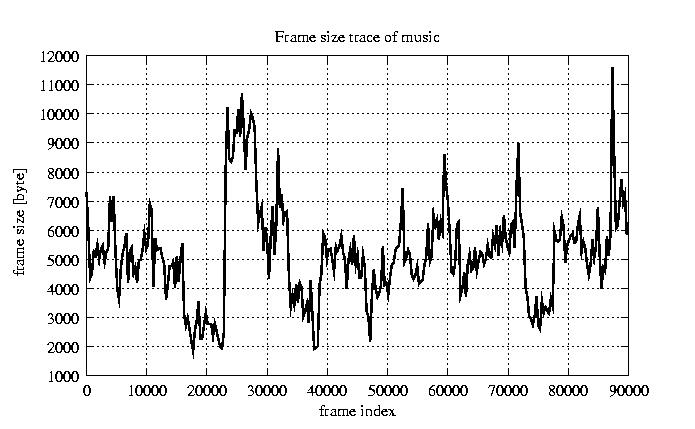

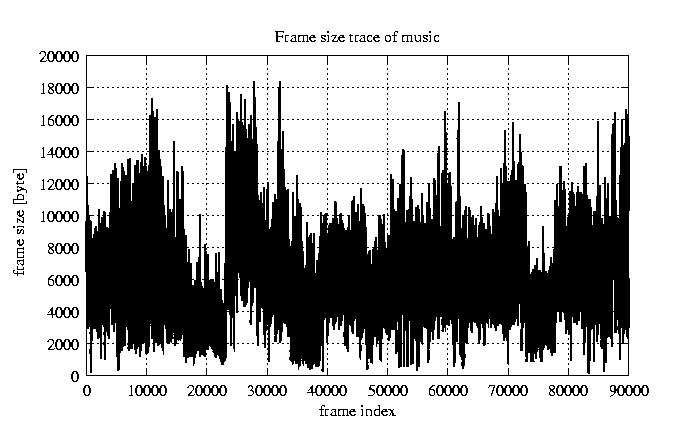

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.961 view view 12 0.913 view view 50 0.937 view view 100 0.958 view view 200 0.926 view view 300 0.926 view view 400 0.868 view view 500 0.848 view view 600 0.815 view view 700 0.809 view view 800 0.816 view view

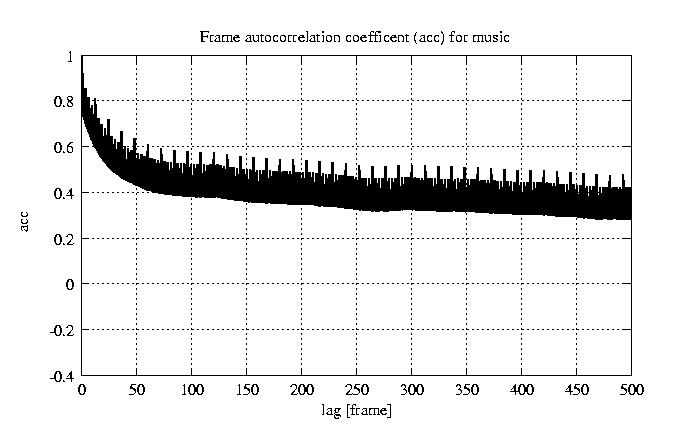

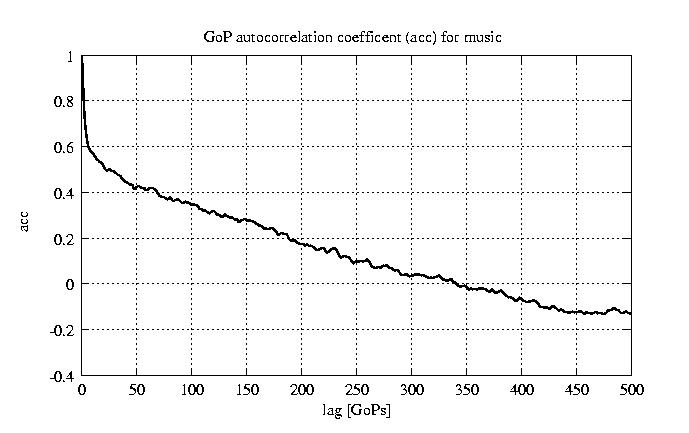

other plots	autocorrelation function of frames autocorrelation function of GoPs
