H263 - Parking Lot Cam
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.39 476.39 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90083.00 17167.00 mean frame size byte 79.80 418.76 var frame size - 30870.03 20046.03 CoV of frame size - 2.20 0.34 min frame size byte 0.00 19.00 max frame size byte 7501.00 7501.00 Peak/Mean frame - 93.99 17.91 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9.1e+04 Peak/Mean of bit rate - 5.7 CoV of bit rate - 0.5 max inter frame space frames 1.00 92.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

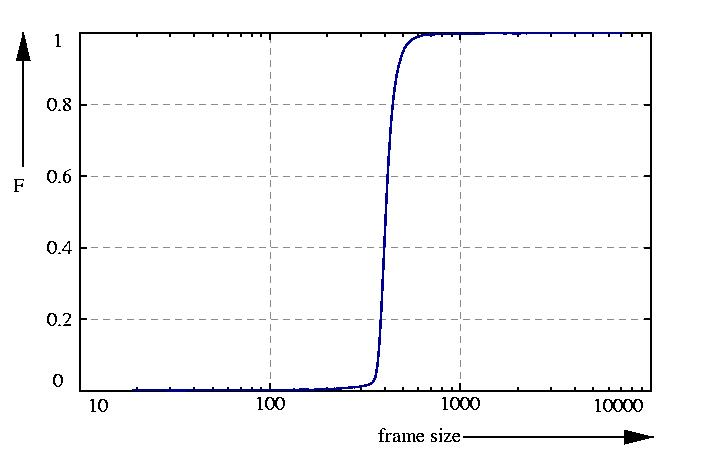

probability function F = sum p

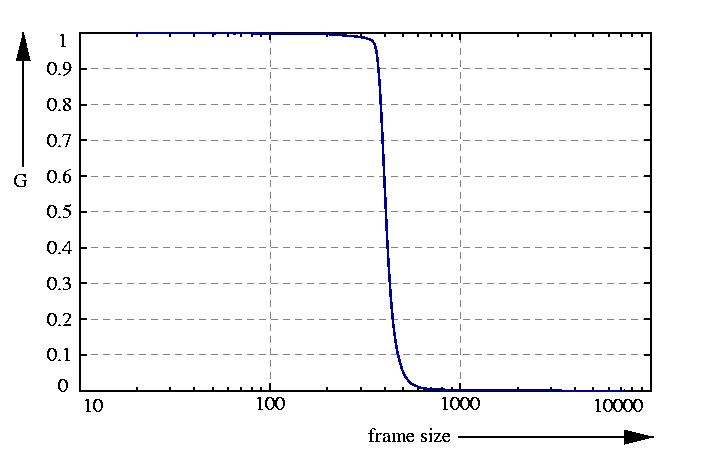

inverse probability function G = 1 - F

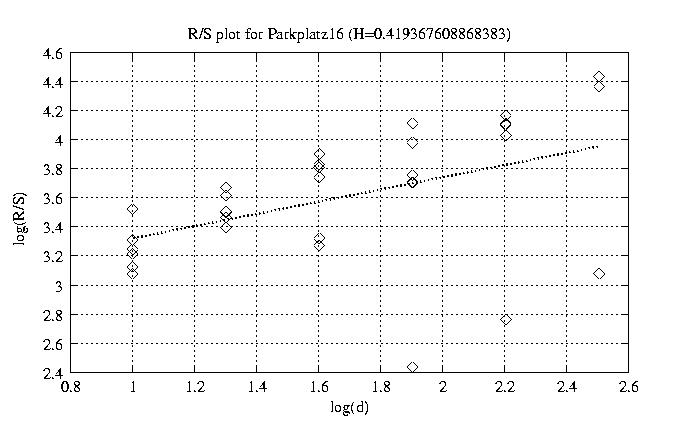

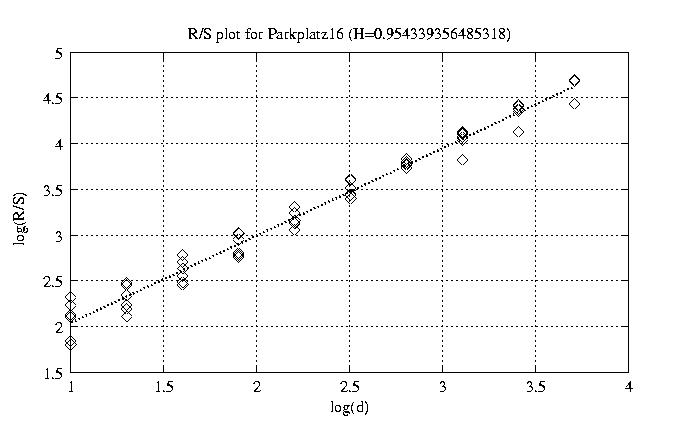

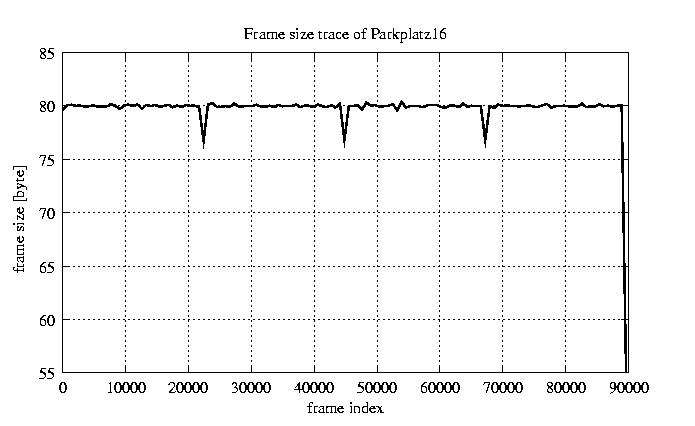

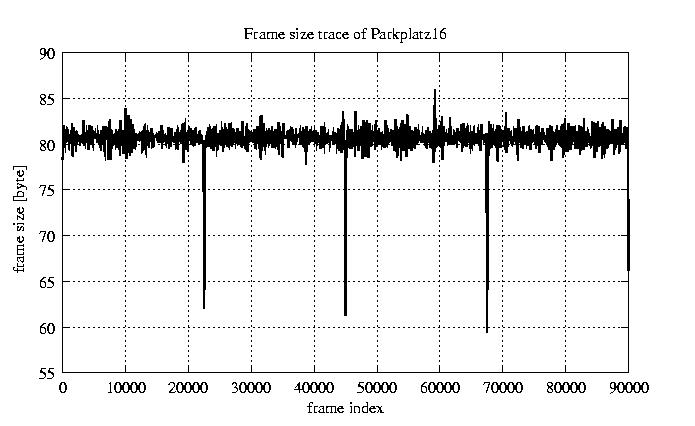

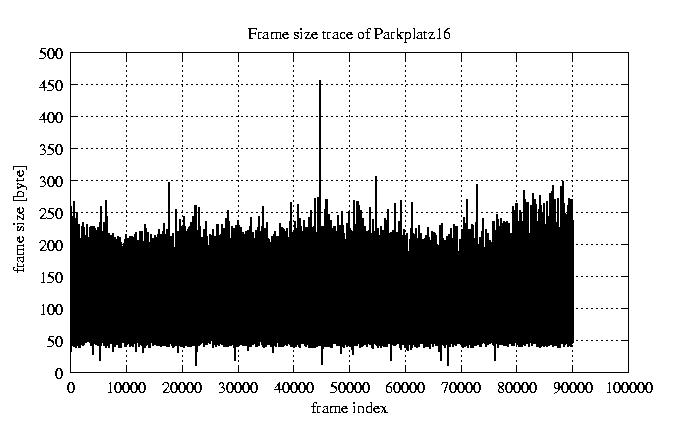

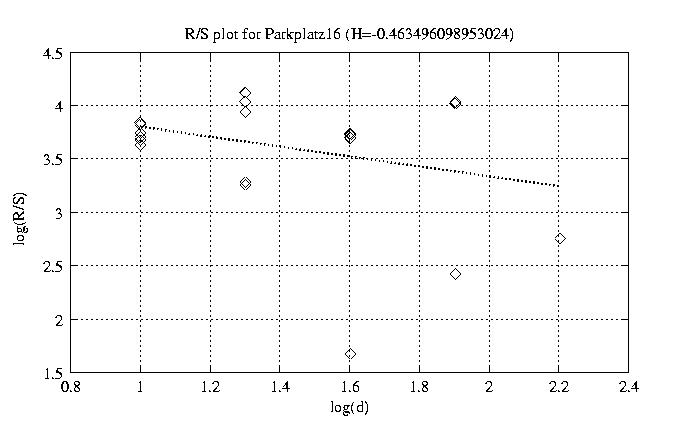

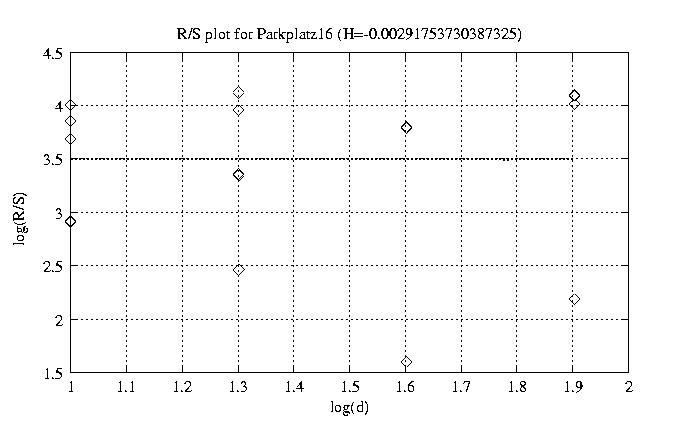

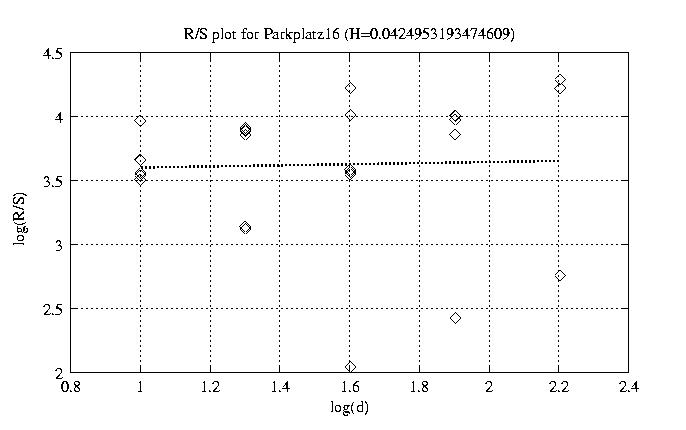

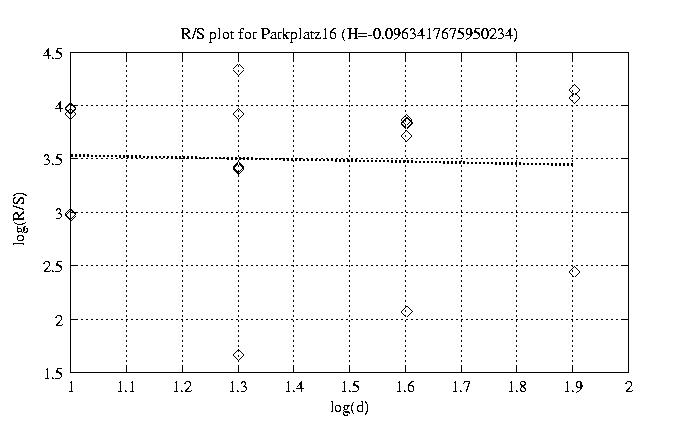

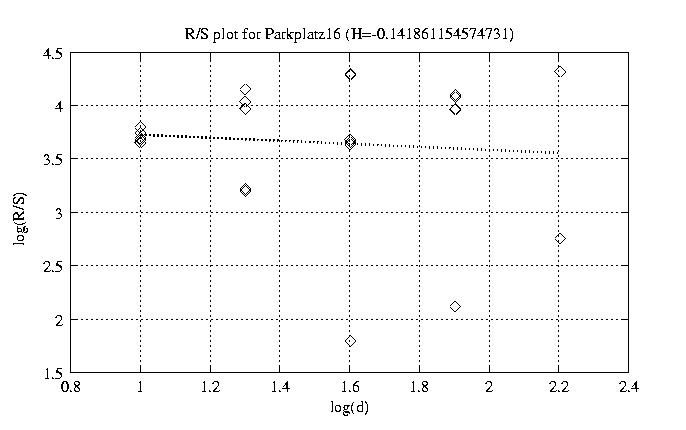

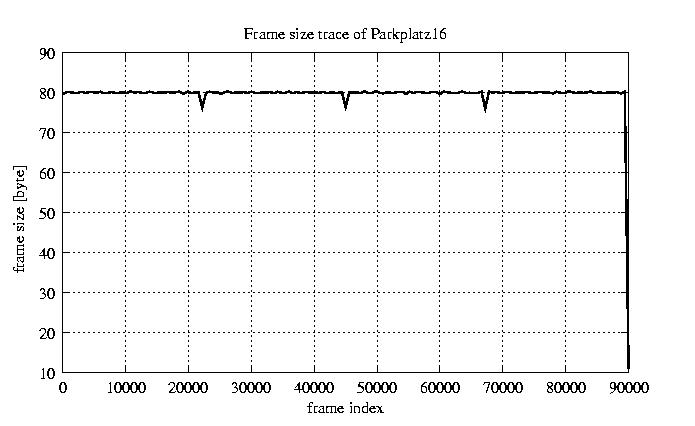

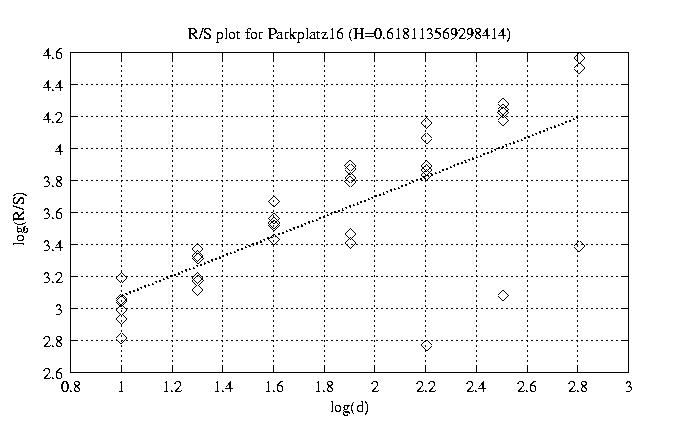

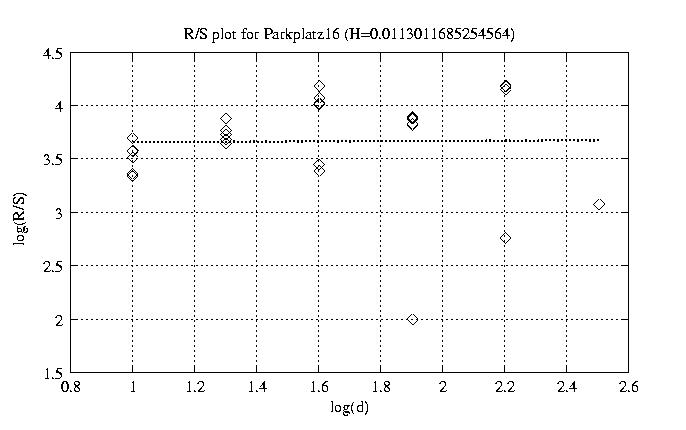

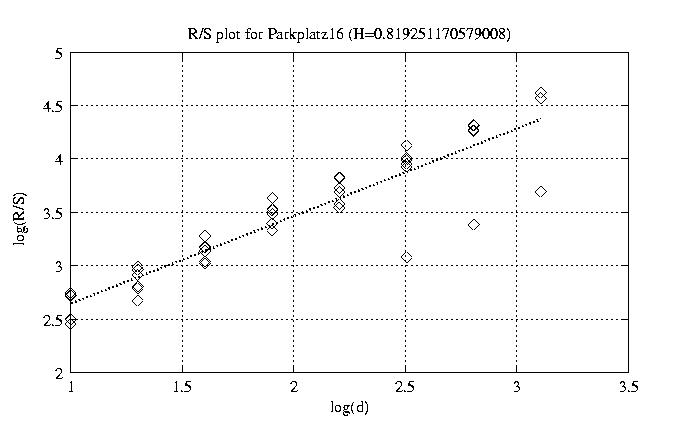

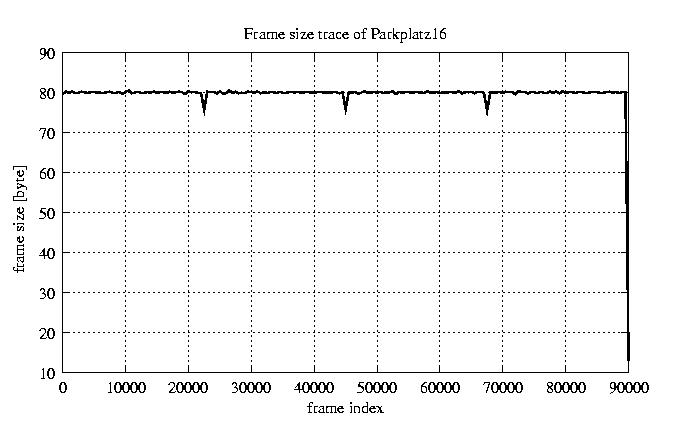

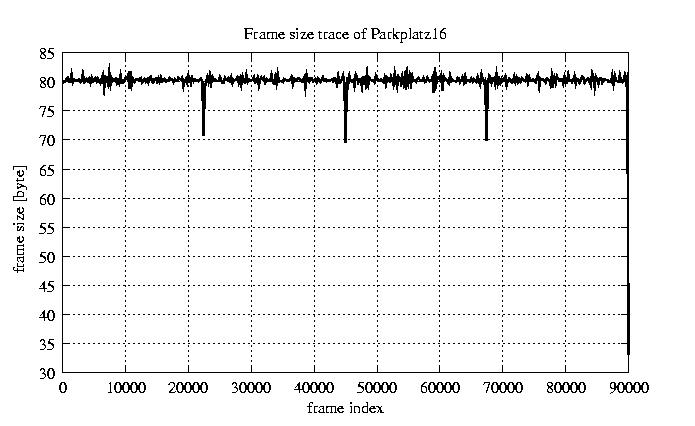

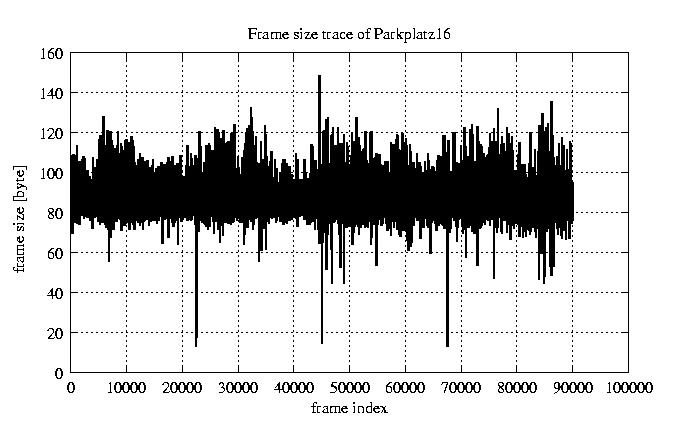

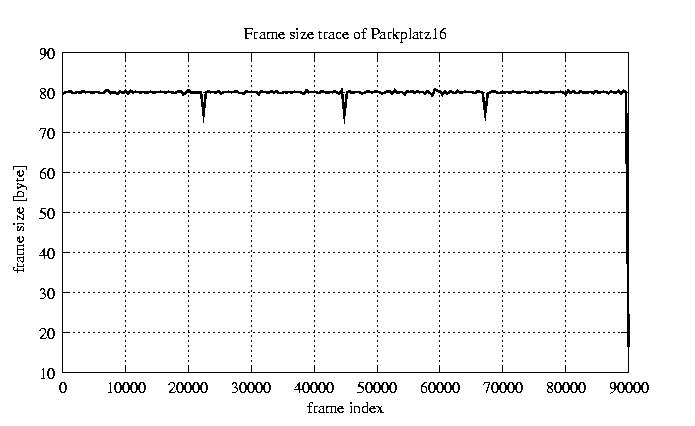

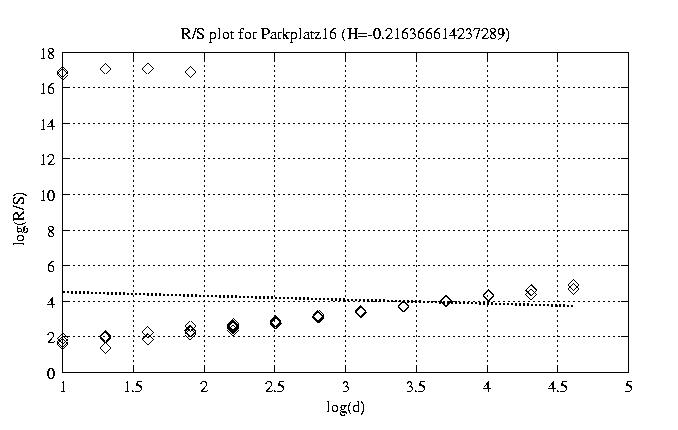

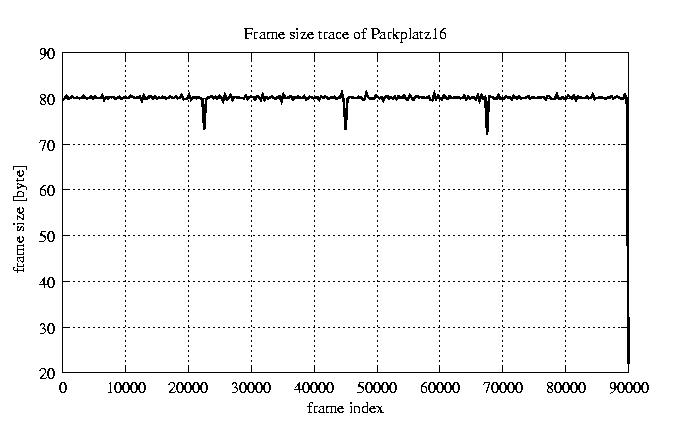

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 -0.216 view view 12 0.954 view view 50 0.819 view view 100 0.618 view view 200 0.419 view view 300 0.011 view view 400 0.042 view view 500 -0.142 view view 600 -0.463 view view 700 -0.003 view view 800 -0.096 view view

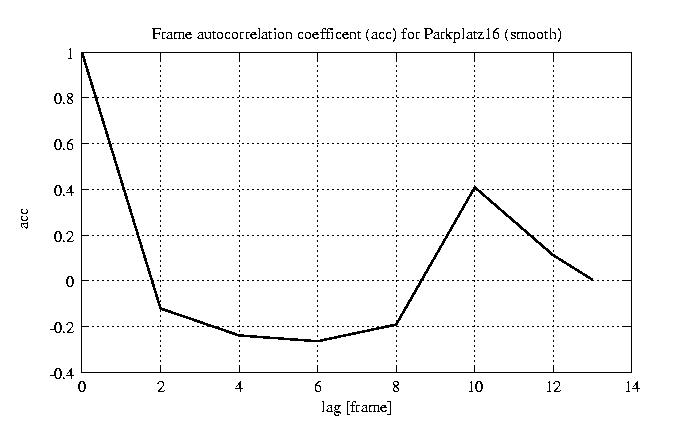

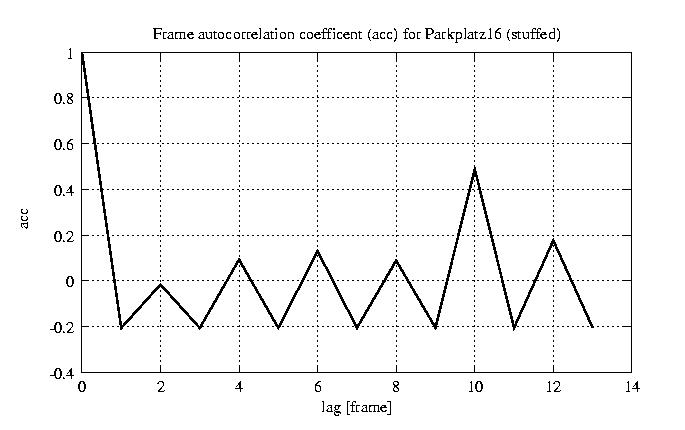

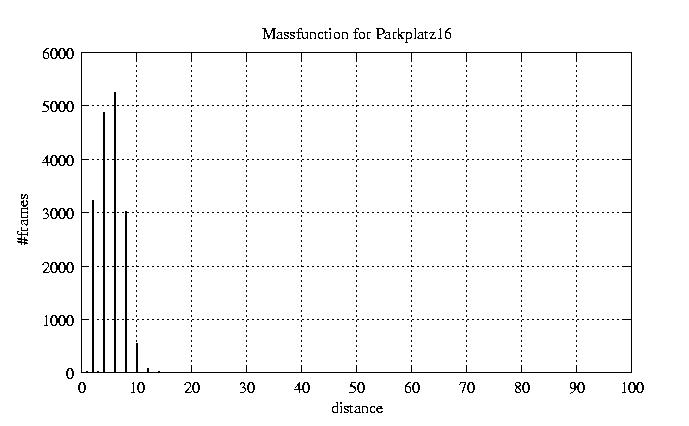

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
