MP4 - Silence of the lambs
low quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 72.01 File Size byte 4.8e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5.3e+02 var frame size - 7.7e+05 CoV of frame size - 1.66 min frame size byte 26 max frame size byte 11292 Mean bit rate bit/sec 1.1e+05 Peak bit rate bit/sec 2.3e+06 Peak/Mean of bit rate - 21.39 GoP statistics # of GoPs - 7499 mean GoP size byte 6.3e+03 var GoP size - 3.4e+07 CoV of GoP size - 0.92 min GoP size byte 1035 max GoP size byte 66374 Mean bit rate bit/sec 1.1e+05 Peak bit rate bit/sec 1.1e+06 Peak/Mean of bit rate - 10.48 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

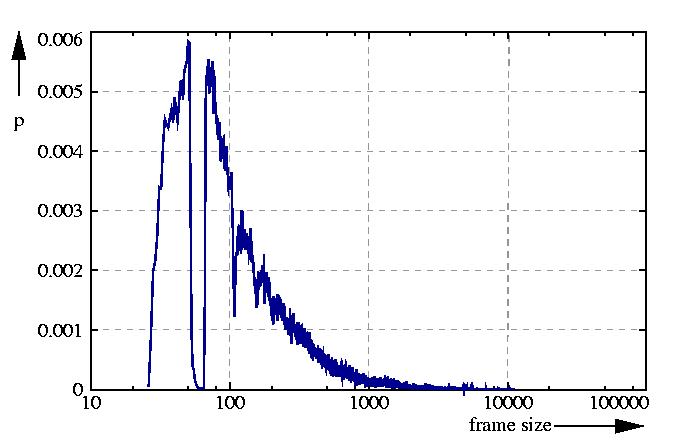

probability density function p

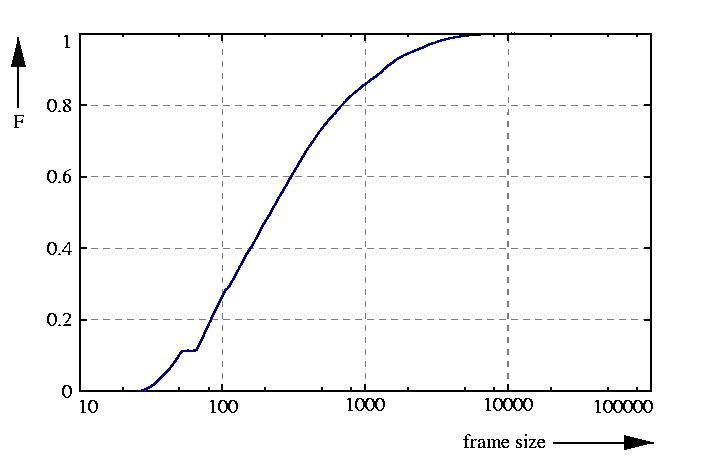

probability function F = sum p
inverse probability function G = 1 - F

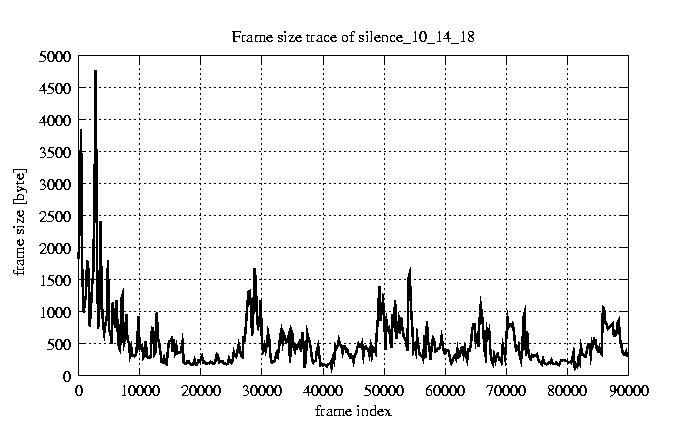

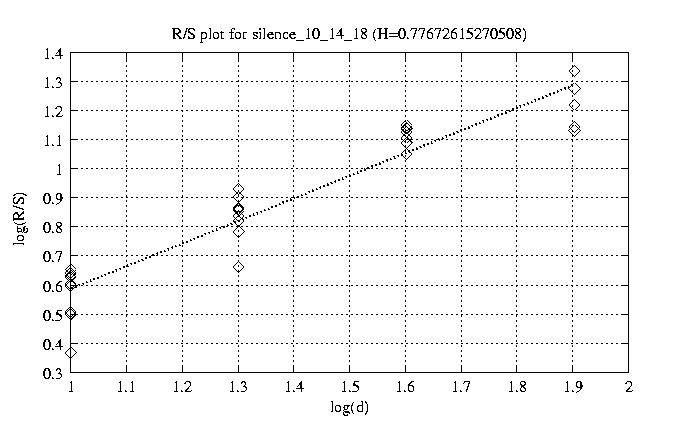

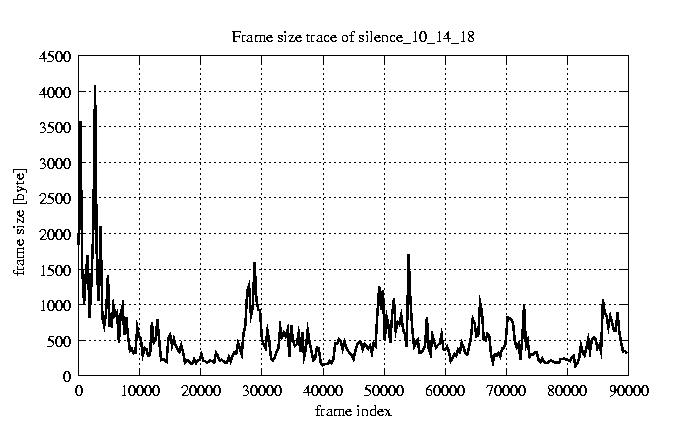

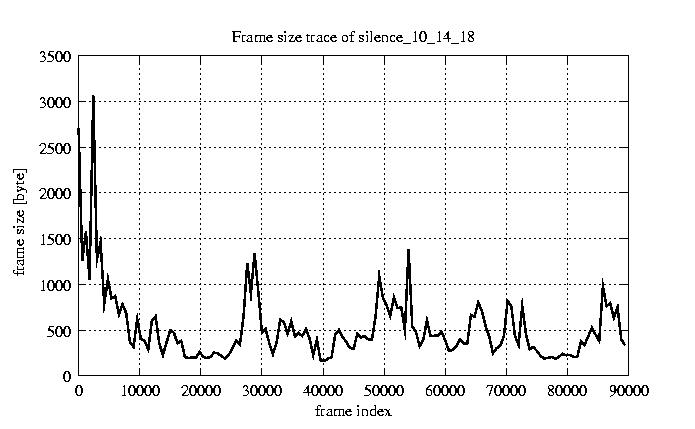

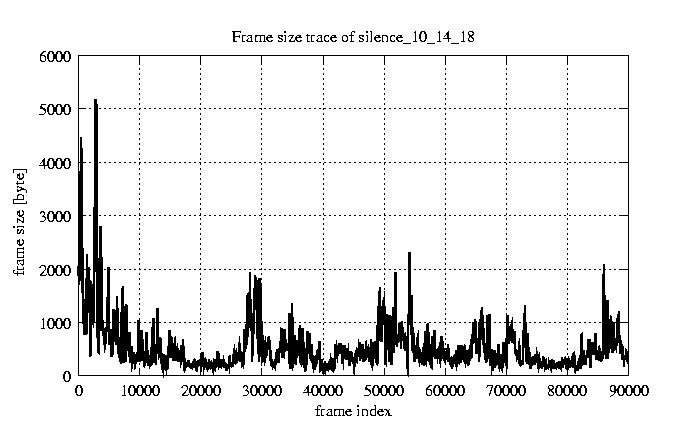

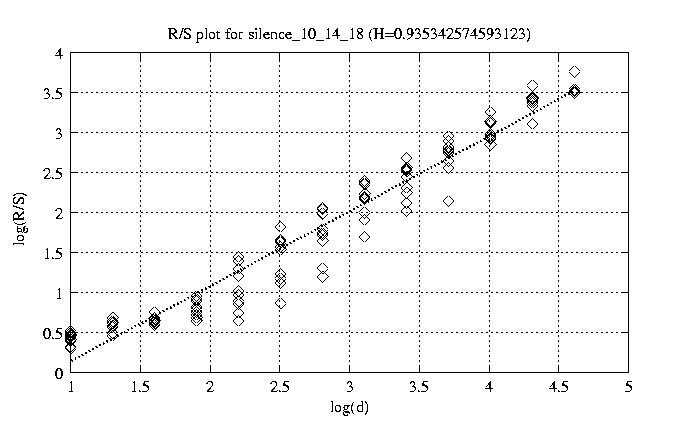

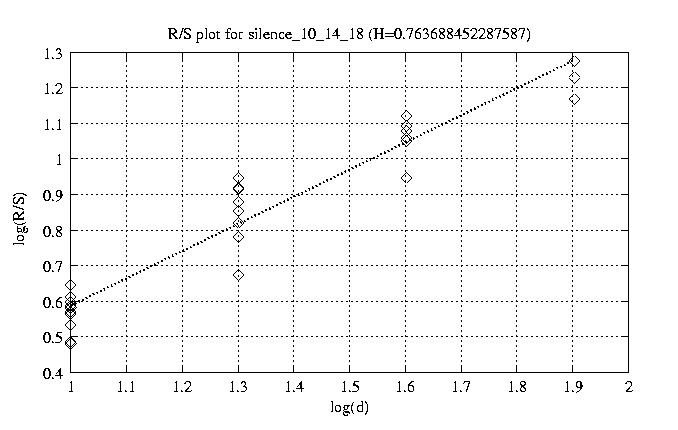

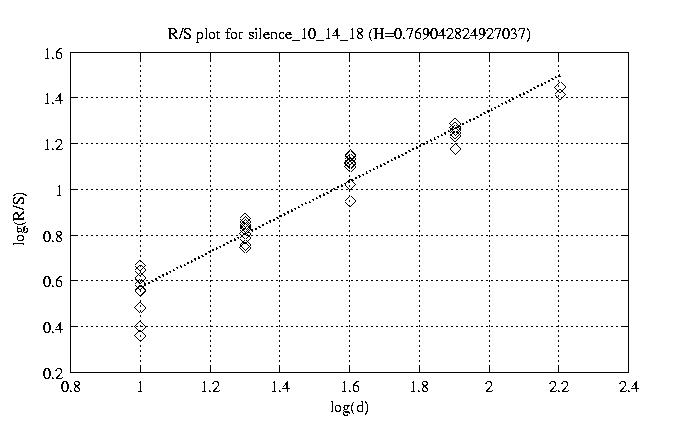

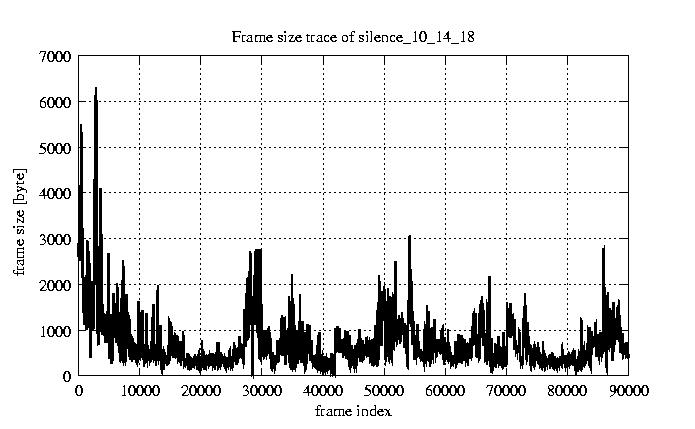

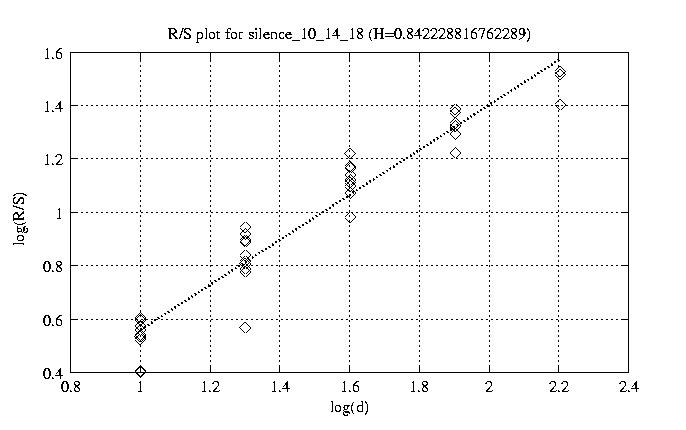

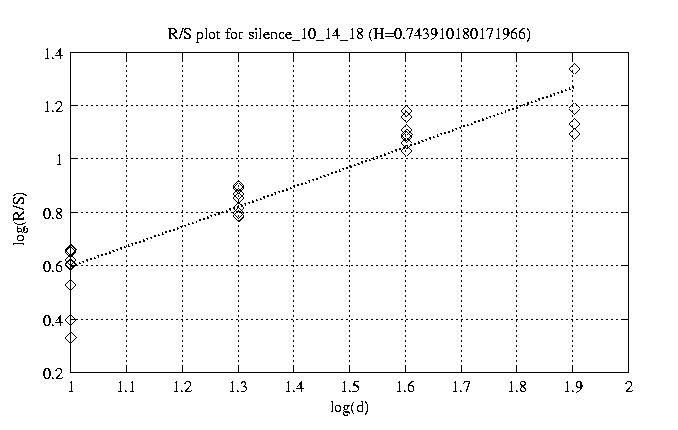

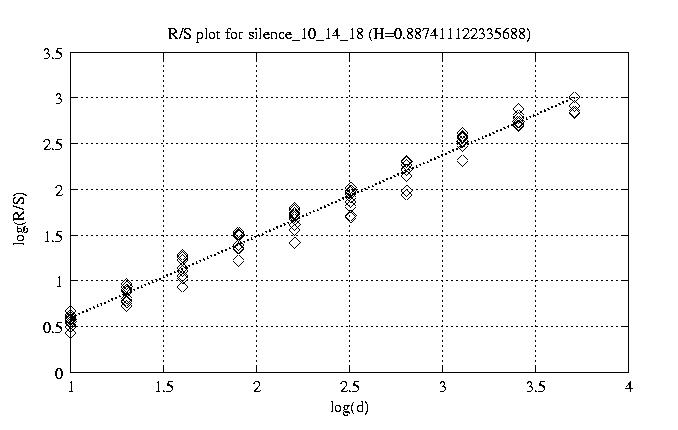

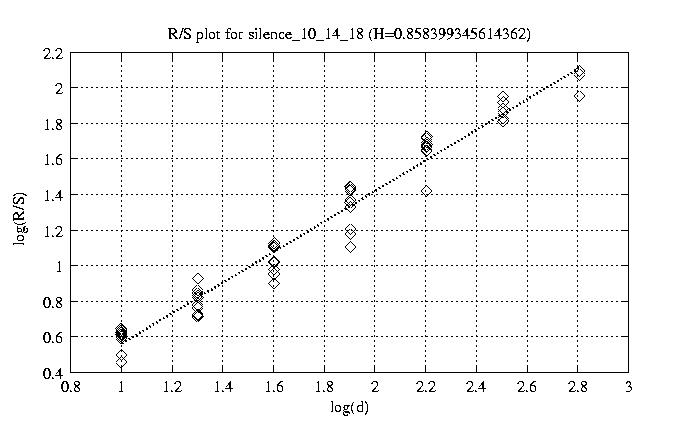

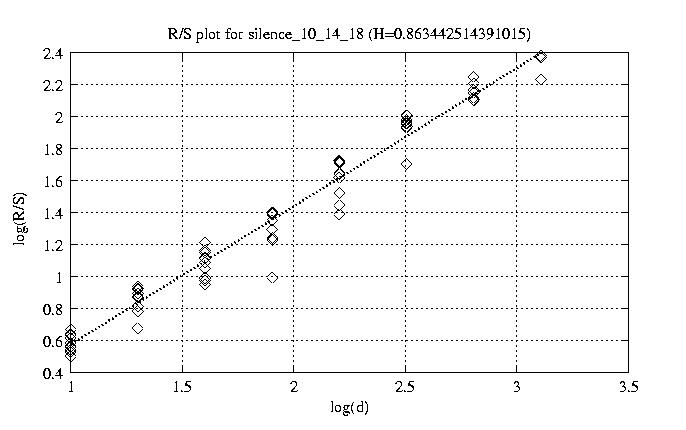

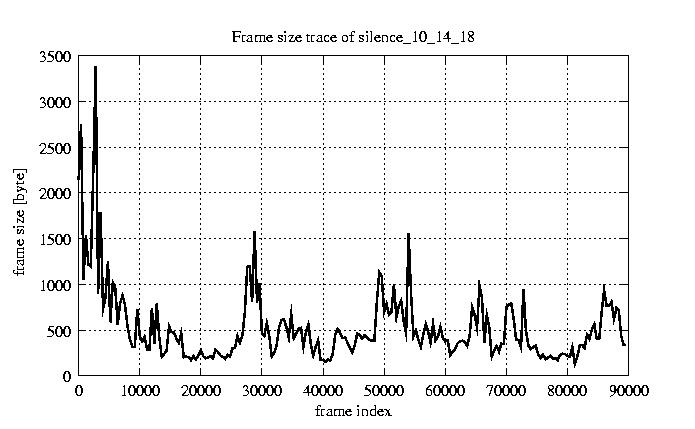

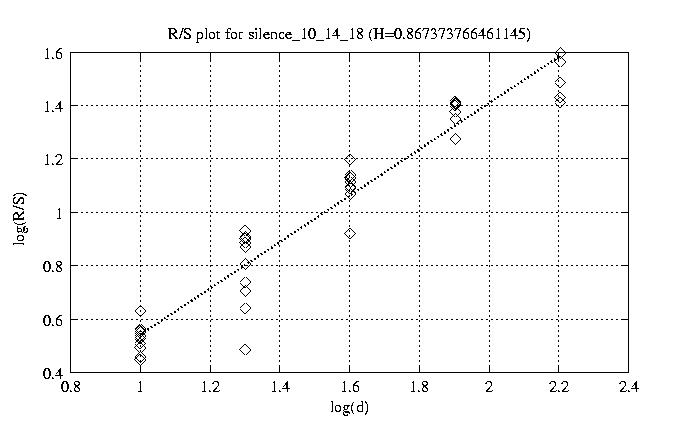

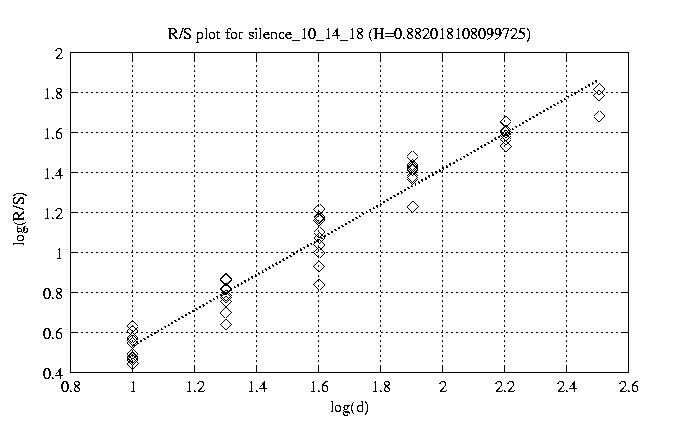

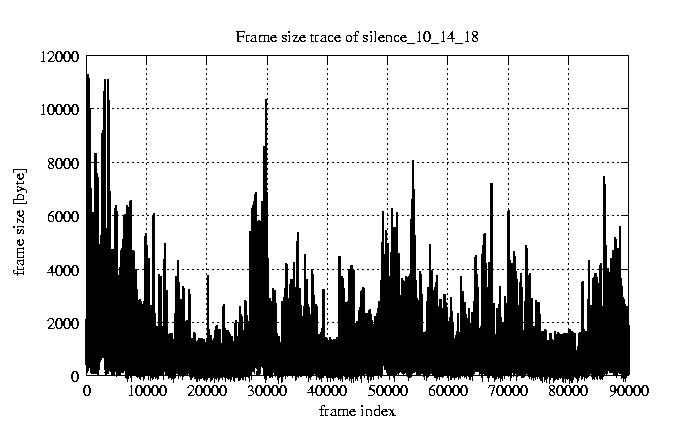

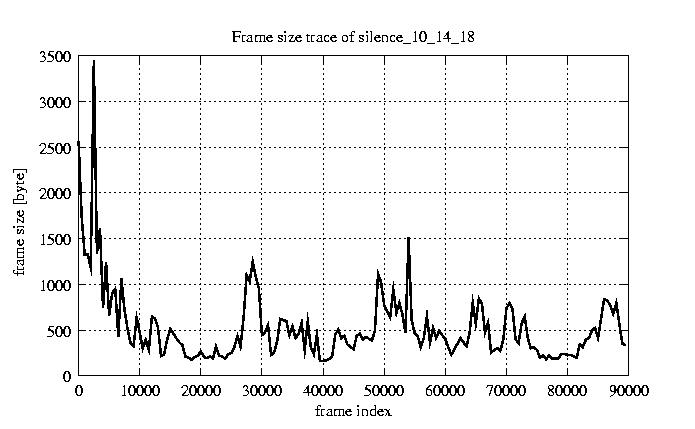

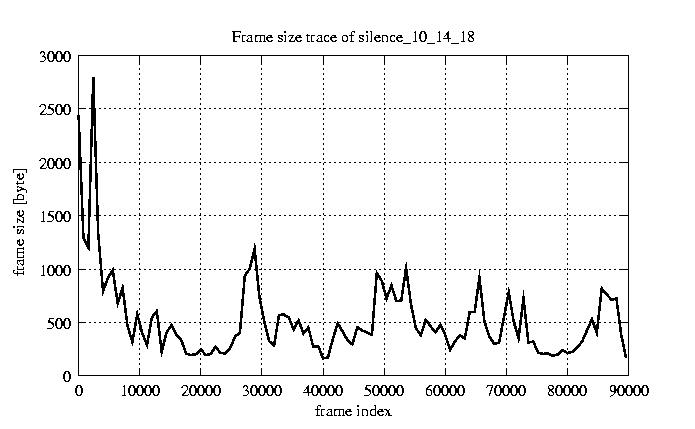

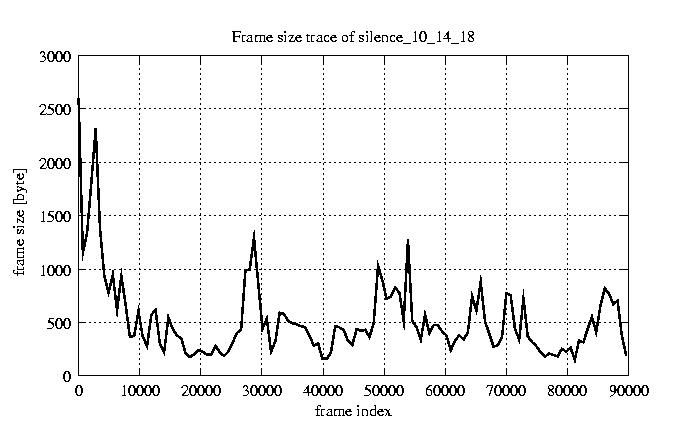

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.935 view view 12 0.887 view view 50 0.863 view view 100 0.858 view view 200 0.882 view view 300 0.867 view view 400 0.842 view view 500 0.769 view view 600 0.777 view view 700 0.744 view view 800 0.764 view view

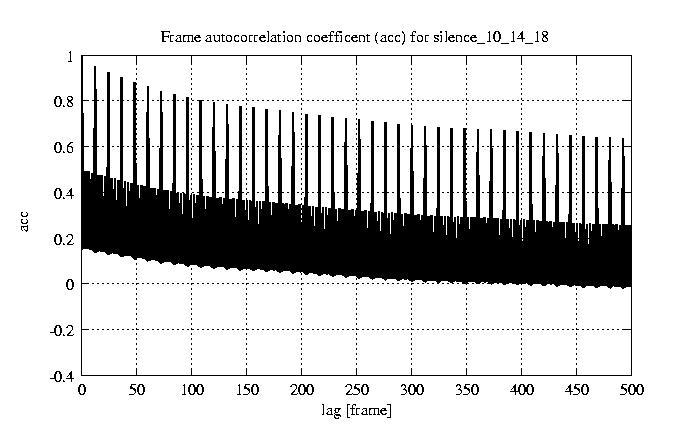

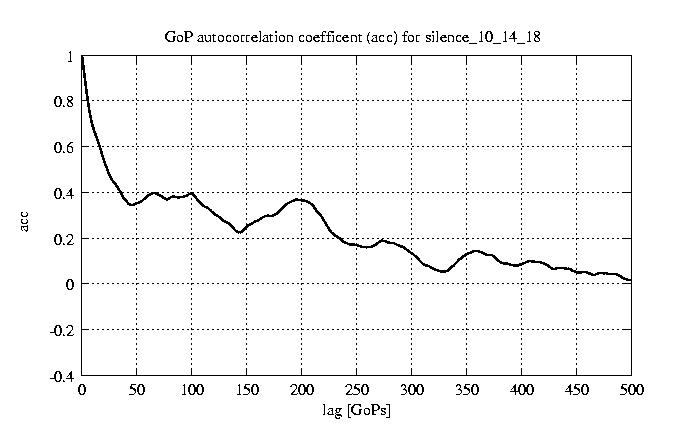

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
