H263 - ARD Talk
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.20 476.20 File size byte 5.4e+06 5.4e+06 Video run time msec 2.7e+06 2.7e+06 2.7e+06 # of Frames - 67552.00 15835.00 mean frame size byte 79.83 340.57 var frame size - 27751.04 29585.04 CoV of frame size - 2.09 0.51 min frame size byte 0.00 19.00 max frame size byte 3834.00 3834.00 Peak/Mean frame - 48.02 11.26 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 9e+04 Peak/Mean of bit rate - 5.7 CoV of bit rate - 0.41 max inter frame space frames 1.00 47.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

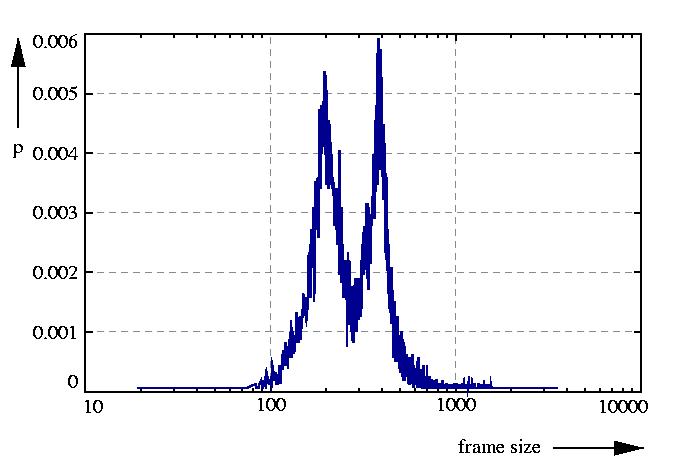

probability density function p

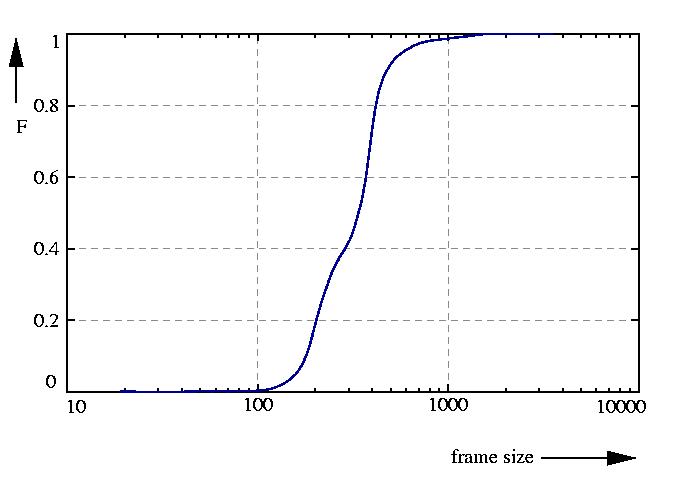

probability function F = sum p

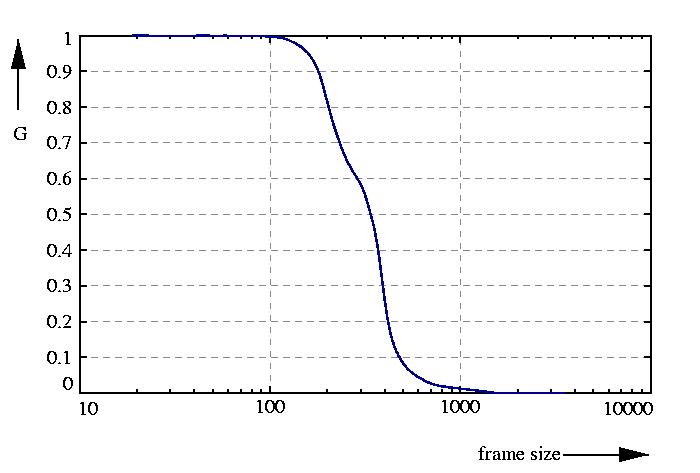

inverse probability function G = 1 - F

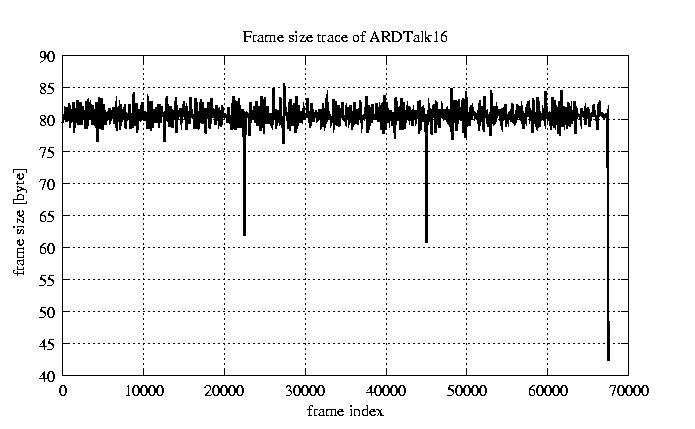

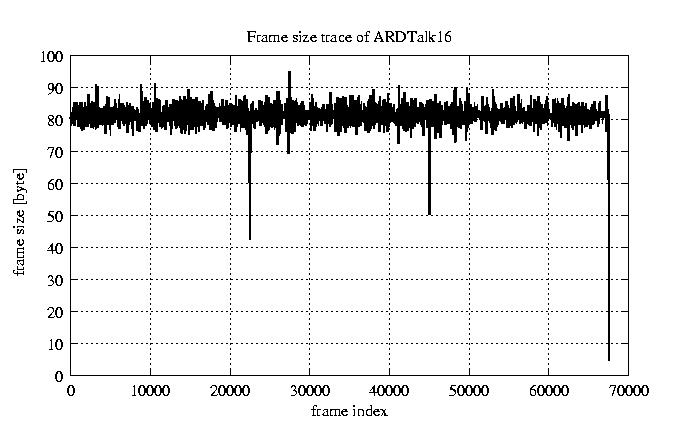

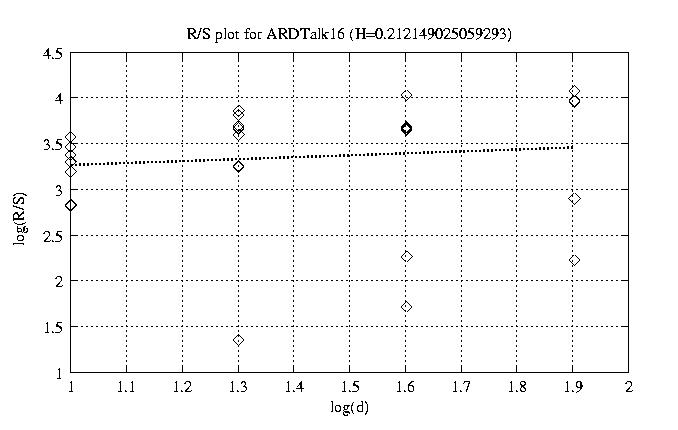

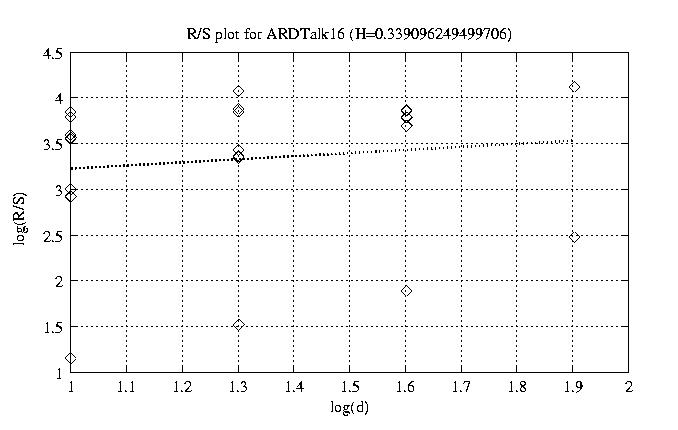

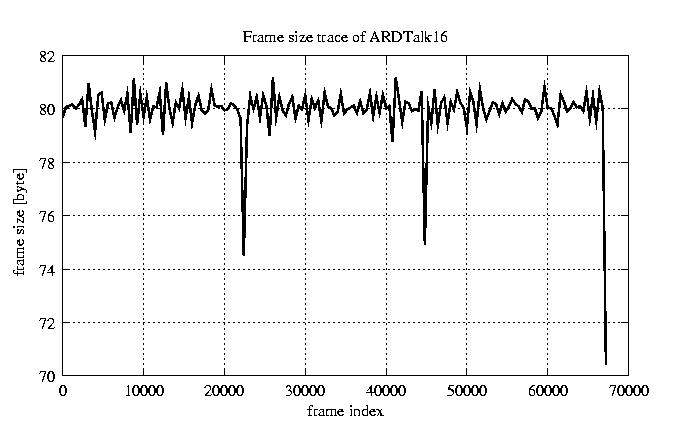

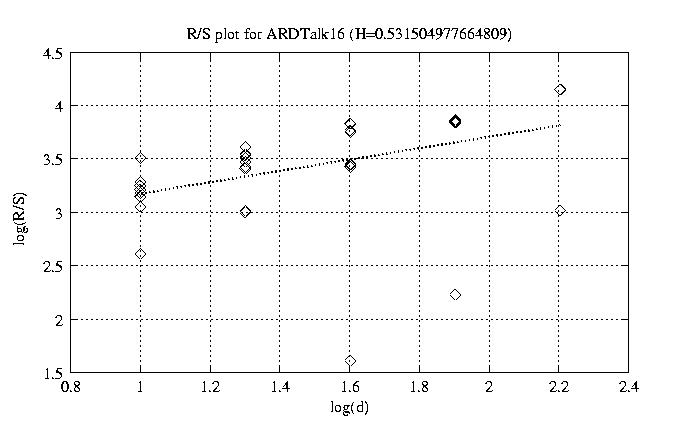

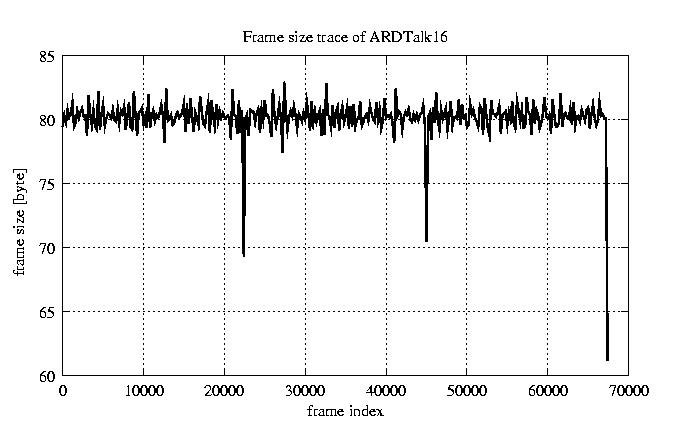

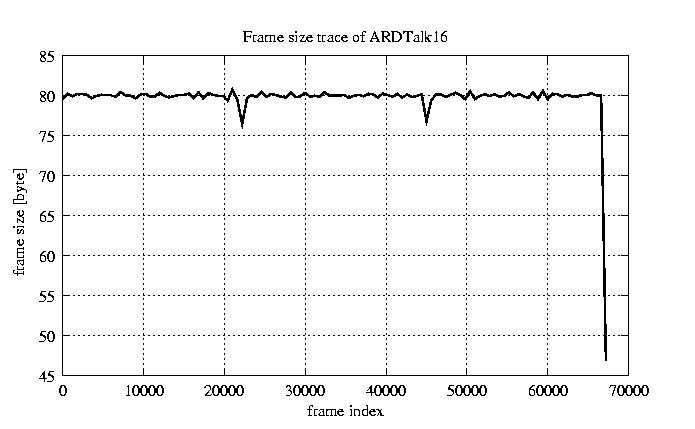

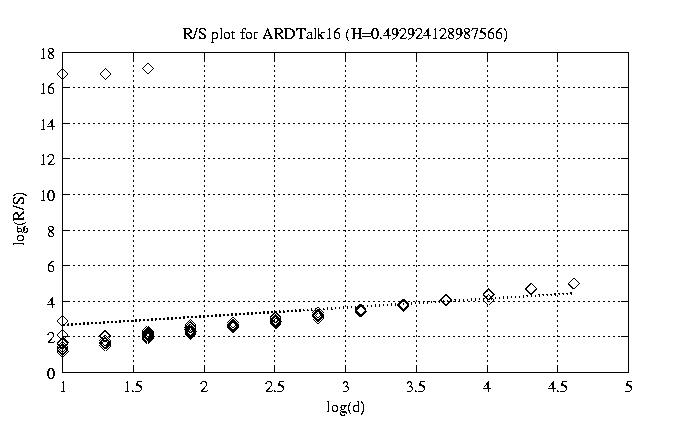

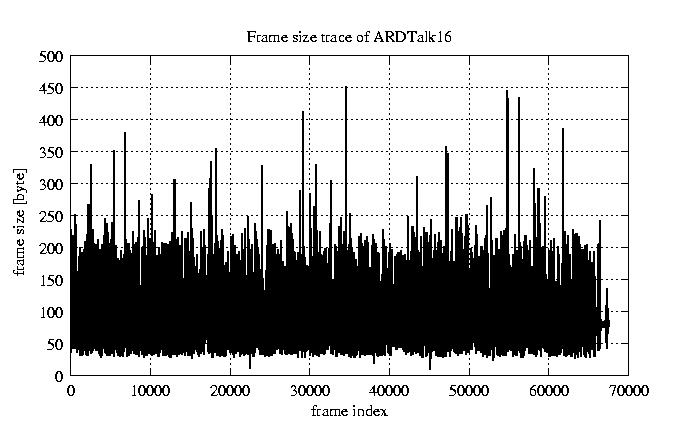

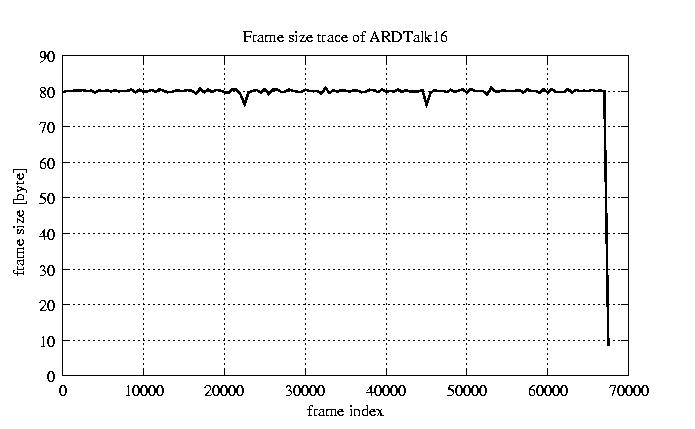

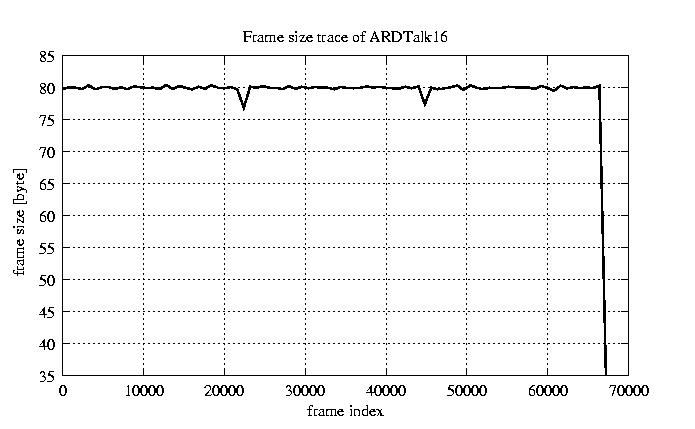

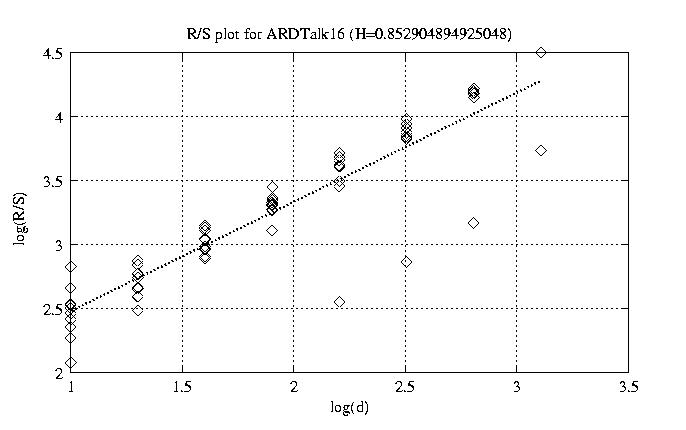

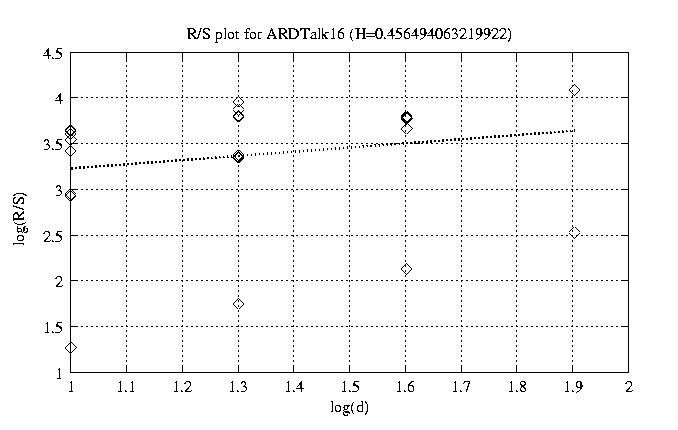

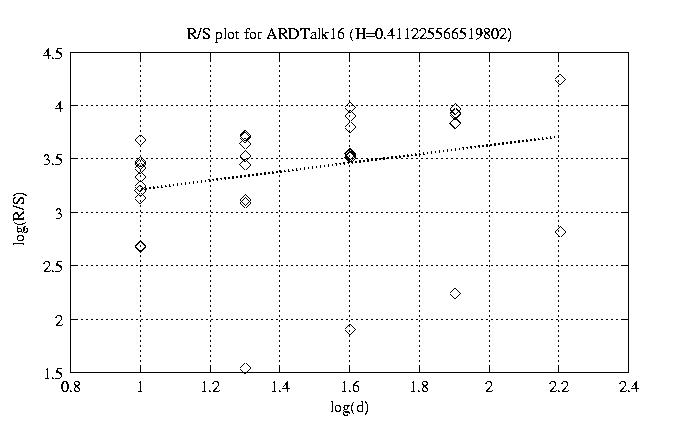

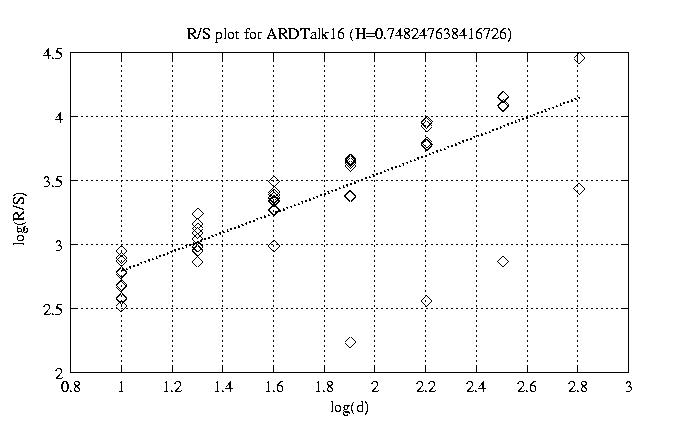

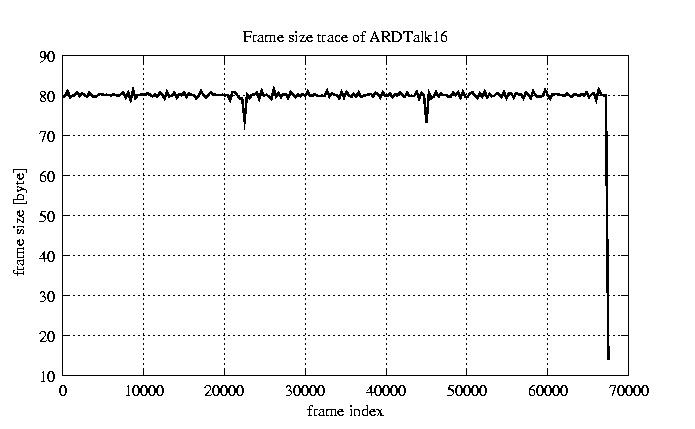

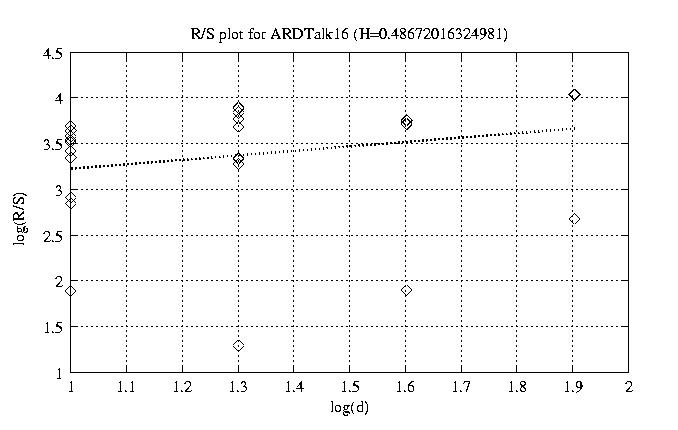

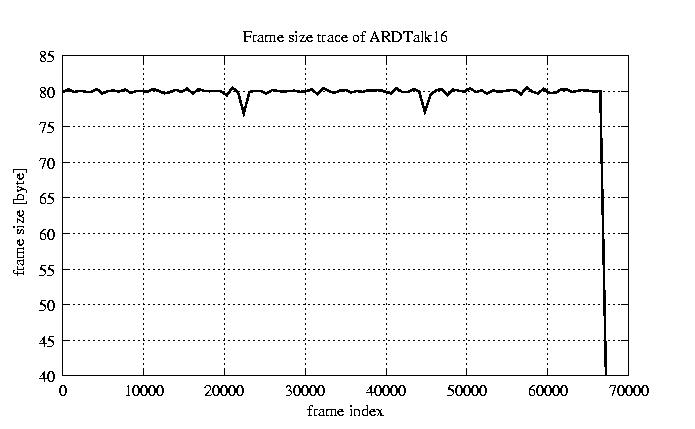

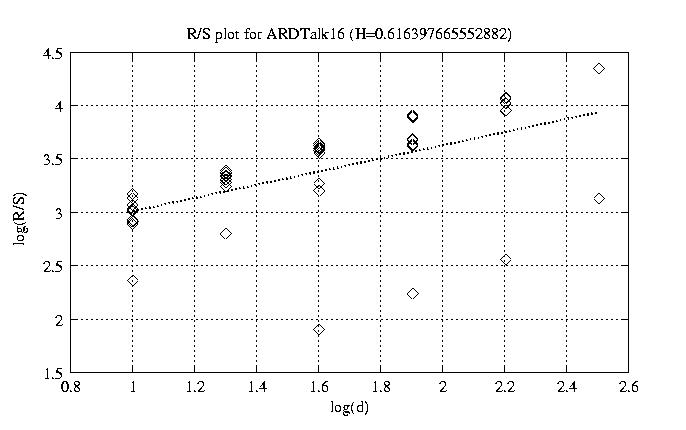

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.493 view view 12 0.923 view view 50 0.853 view view 100 0.748 view view 200 0.616 view view 300 0.532 view view 400 0.411 view view 500 0.212 view view 600 0.487 view view 700 0.456 view view 800 0.339 view view

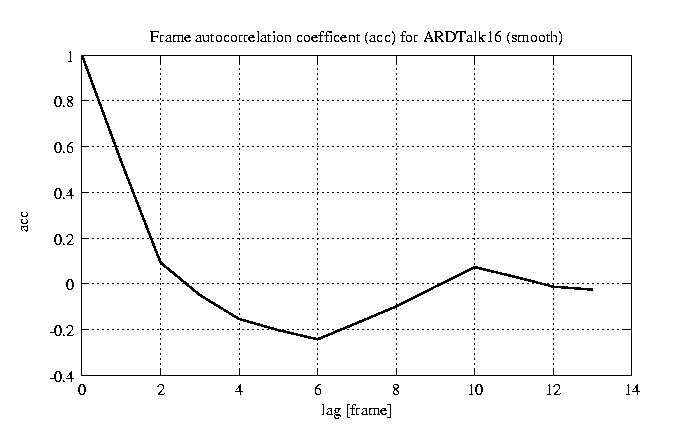

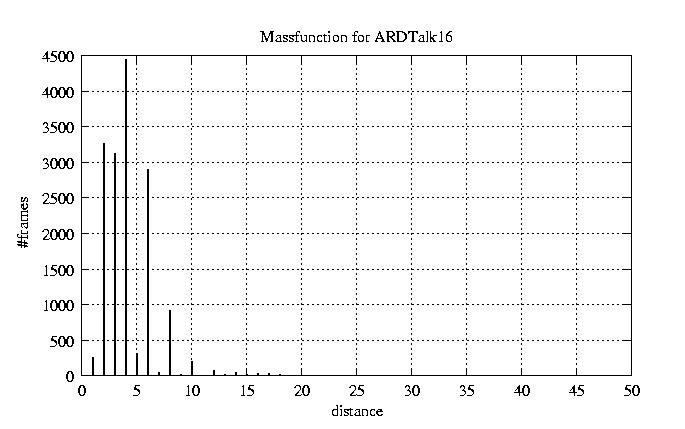

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
