H263 - Starship Troopers
64 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 118.96 118.96 File size byte 2.9e+07 2.9e+07 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90080.00 29267.00 mean frame size byte 319.58 983.62 var frame size - 260900.23 149853.22 CoV of frame size - 1.60 0.39 min frame size byte 0.00 60.00 max frame size byte 8022.00 8022.00 Peak/Mean frame - 25.10 8.16 Mean bit rate bit/sec 6.4e+04 Peak bit rate bit/sec 3.7e+05 Peak/Mean of bit rate - 5.7 CoV of bit rate - 0.36 max inter frame space frames 1.00 32.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

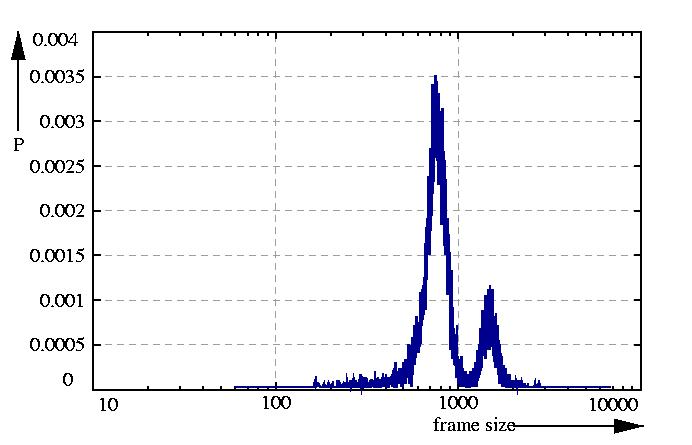

probability density function p

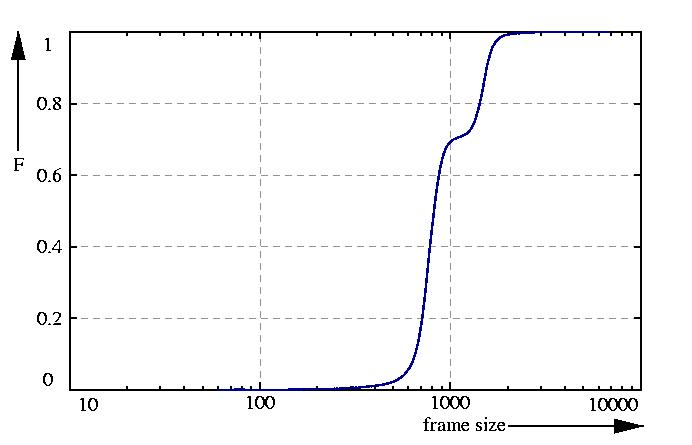

probability function F = sum p

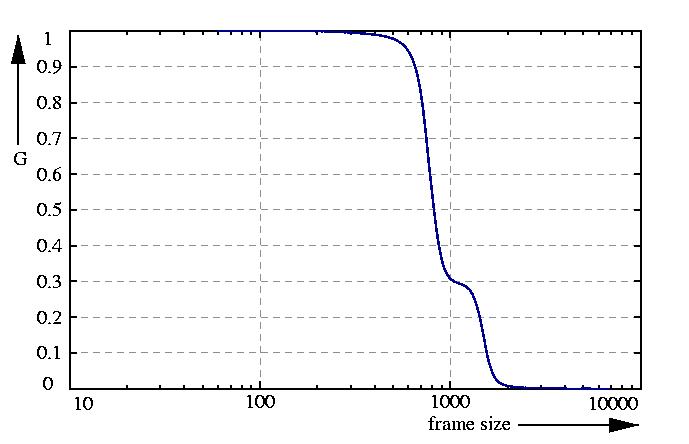

inverse probability function G = 1 - F

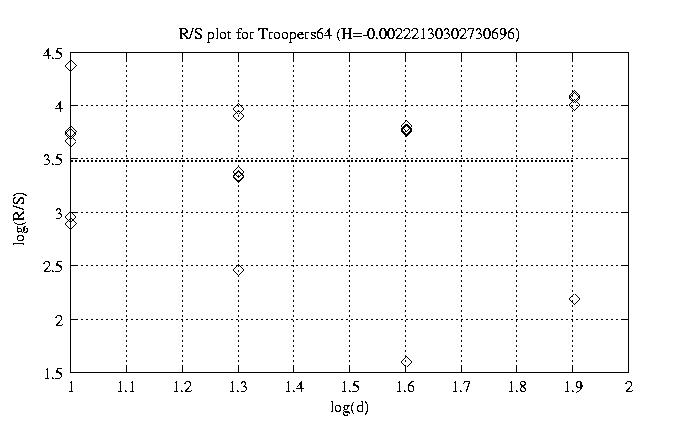

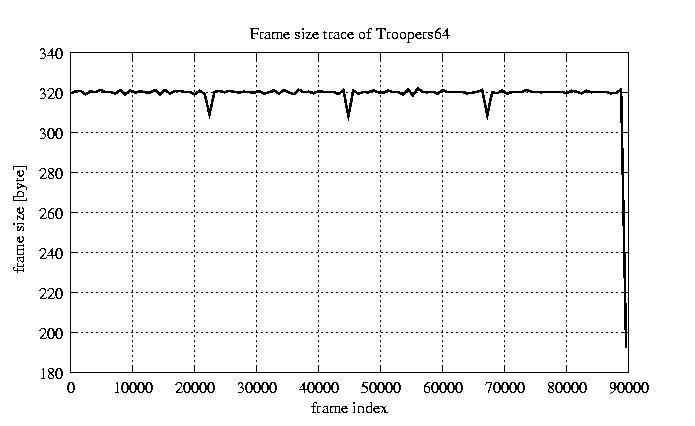

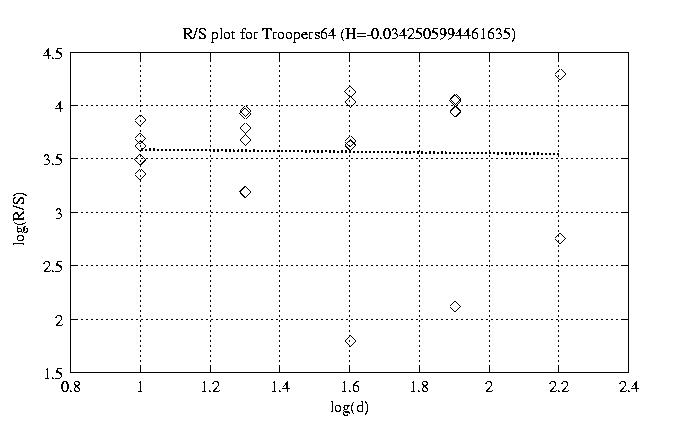

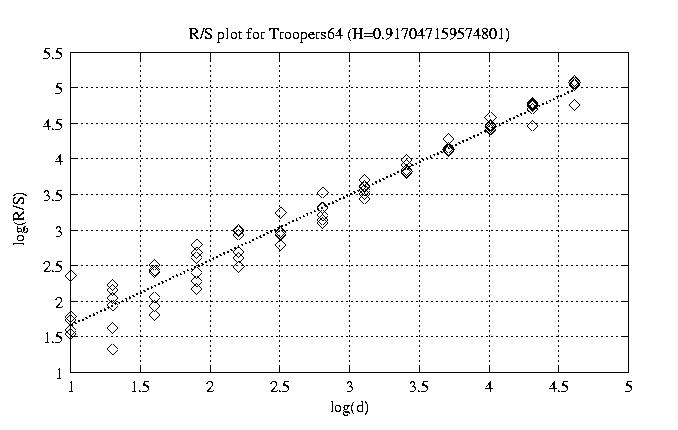

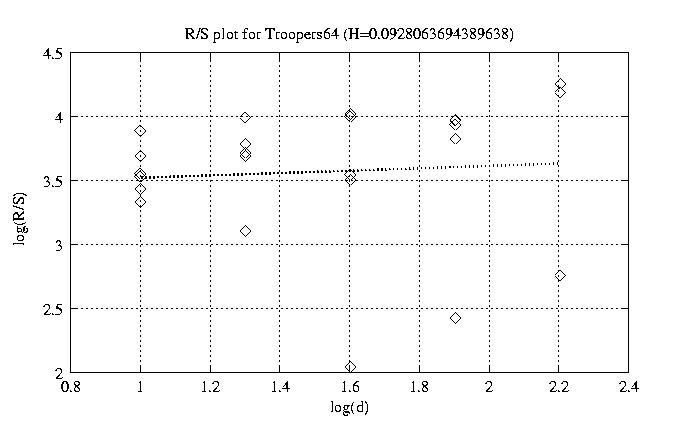

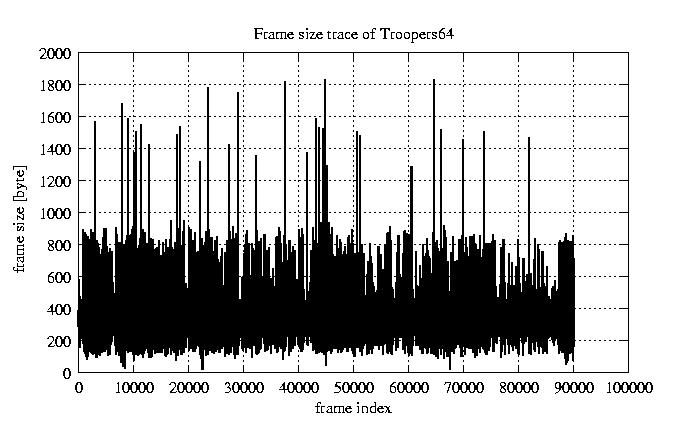

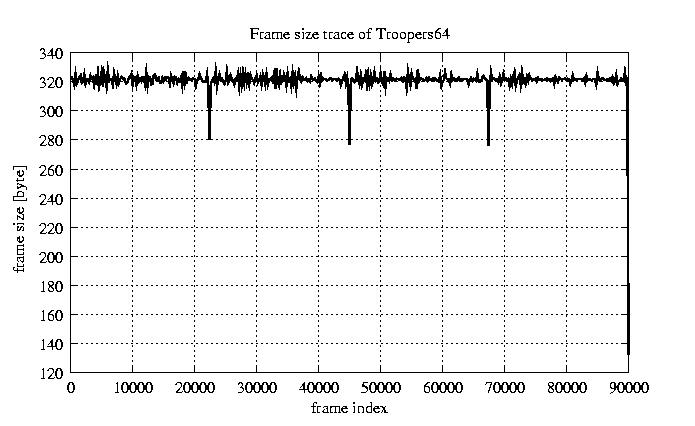

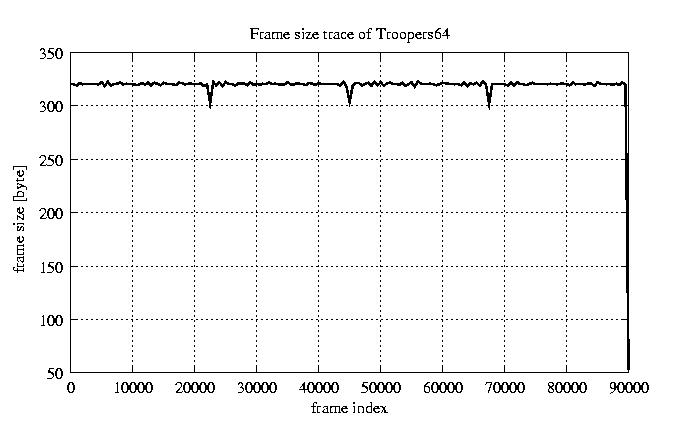

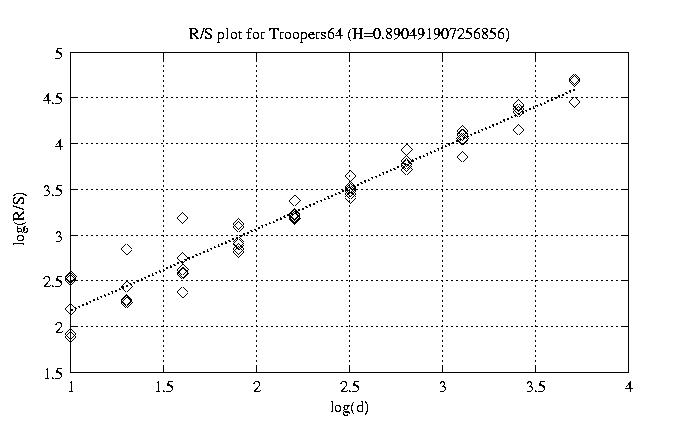

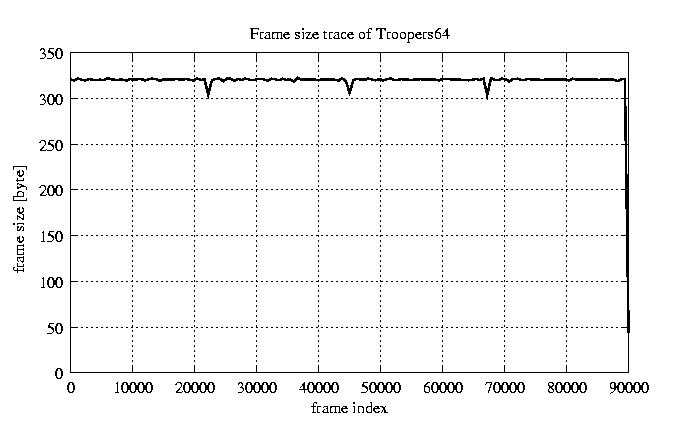

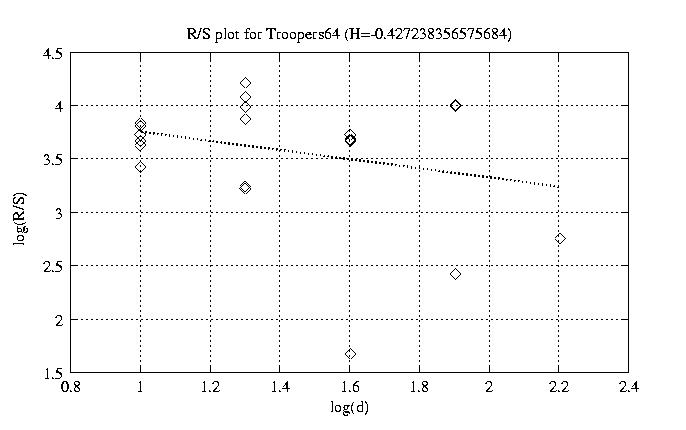

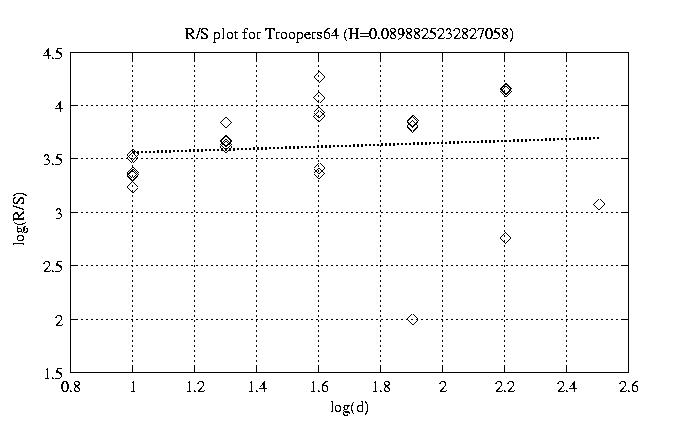

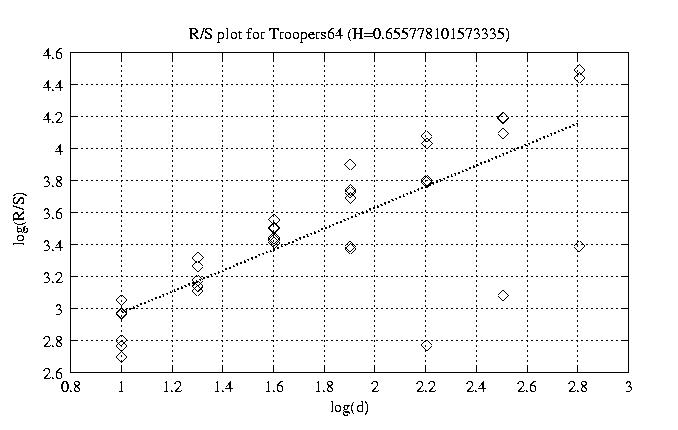

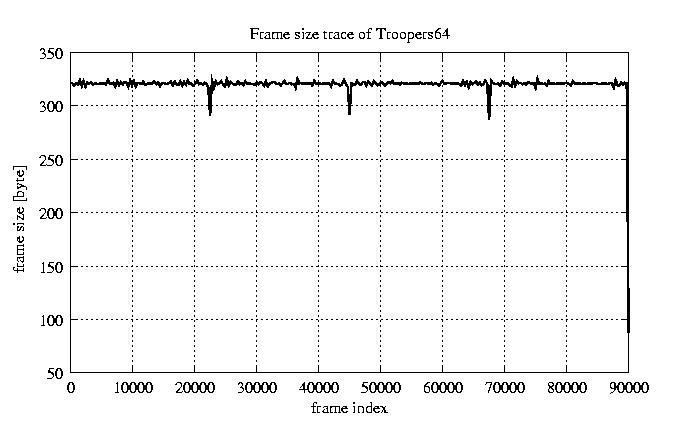

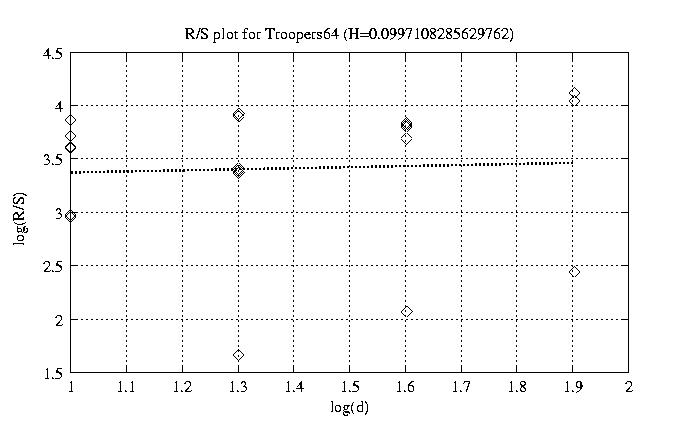

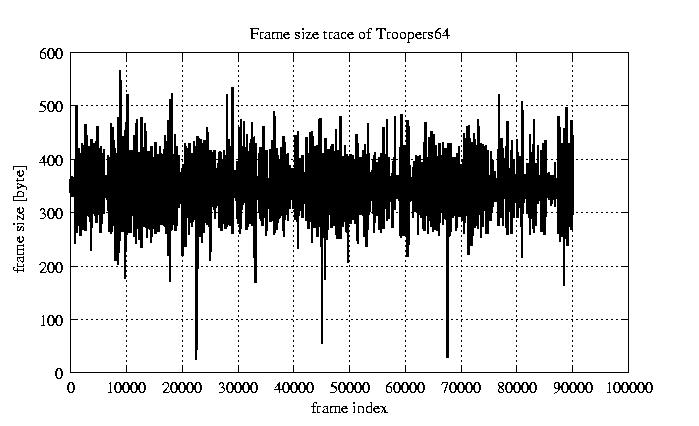

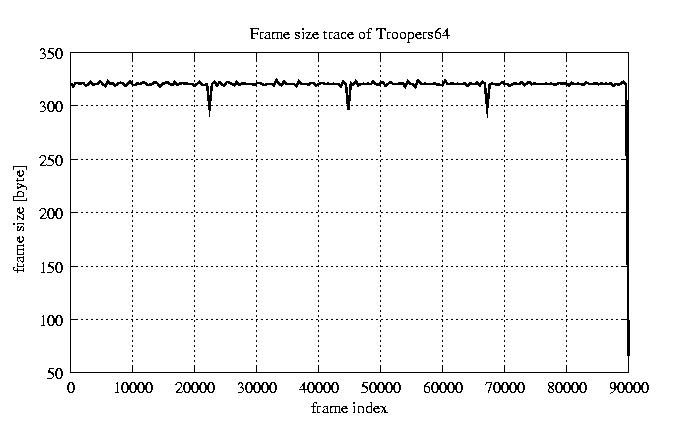

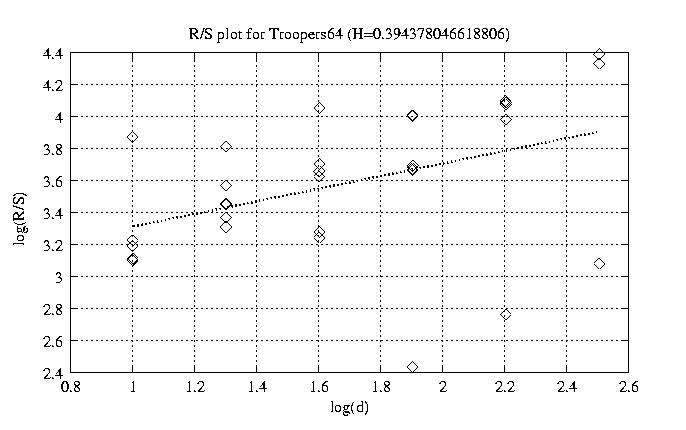

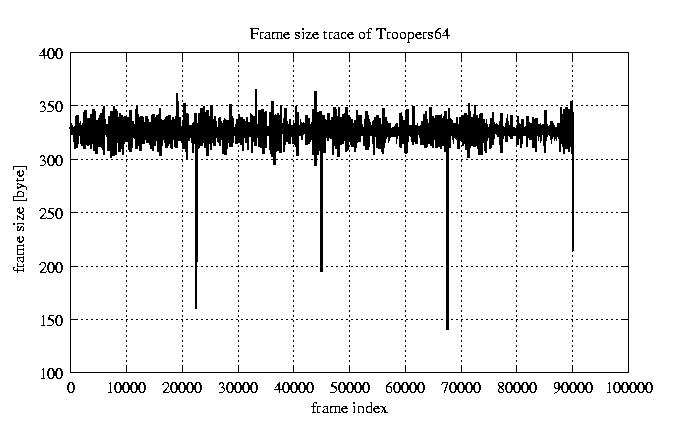

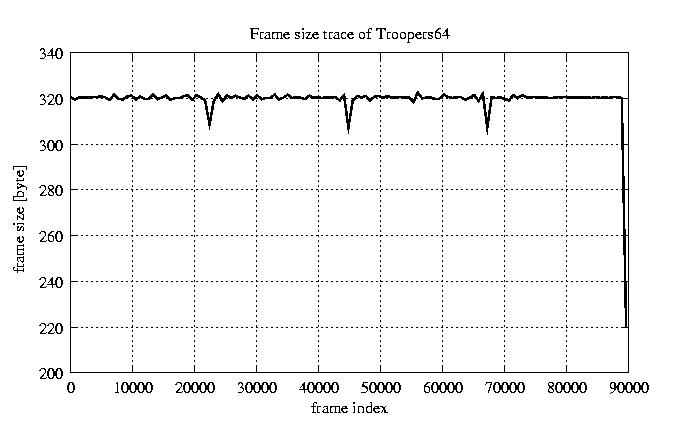

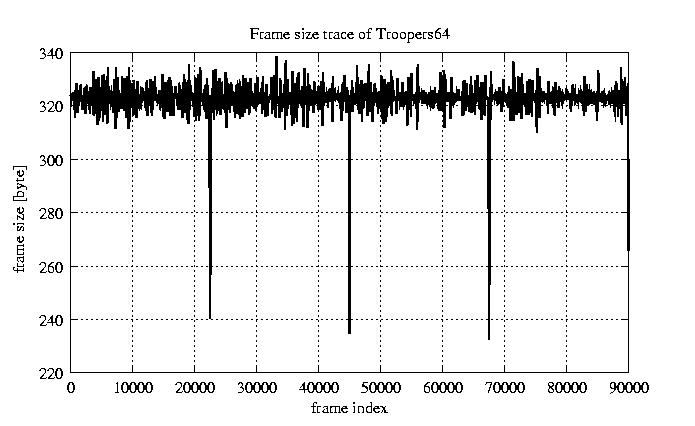

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.917 view view 12 0.890 view view 50 0.777 view view 100 0.656 view view 200 0.394 view view 300 0.090 view view 400 0.093 view view 500 -0.034 view view 600 -0.427 view view 700 -0.002 view view 800 0.100 view view

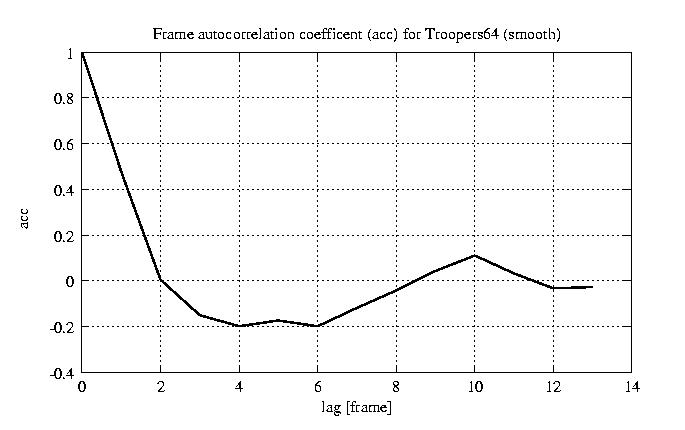

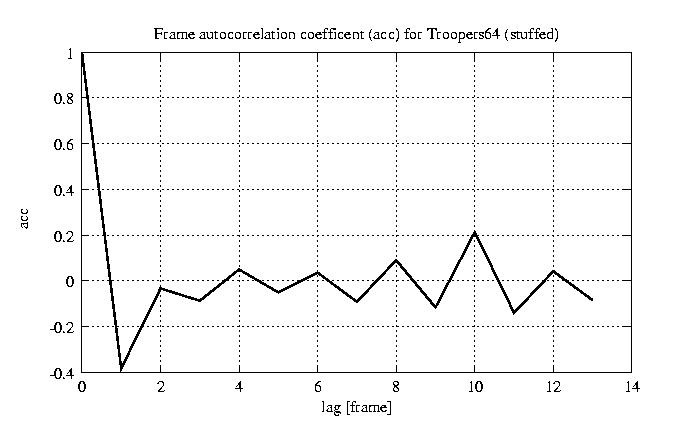

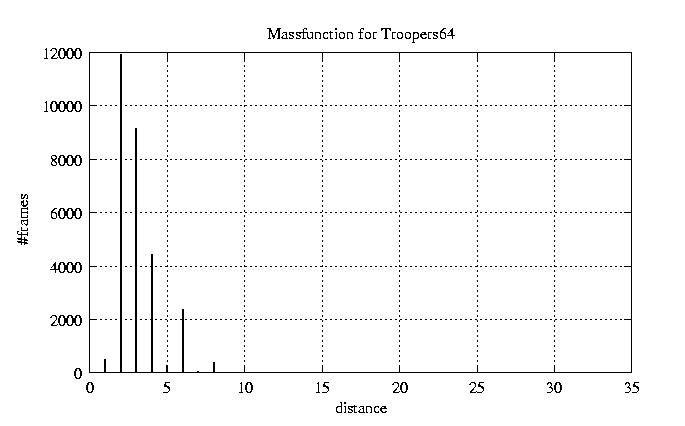

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
