MP4 - From Dusk Till Dawn
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 11.16 File Size byte 3.1e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 3.4e+03 var frame size - 4e+06 CoV of frame size - 0.58 min frame size byte 74 max frame size byte 15745 Mean bit rate bit/sec 6.8e+05 Peak bit rate bit/sec 3.1e+06 Peak/Mean of bit rate - 4.62 GoP statistics # of GoPs - 7499 mean GoP size byte 4.1e+04 var GoP size - 3.1e+08 CoV of GoP size - 0.43 min GoP size byte 1877 max GoP size byte 138843 Mean bit rate bit/sec 6.8e+05 Peak bit rate bit/sec 2.3e+06 Peak/Mean of bit rate - 3.40 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

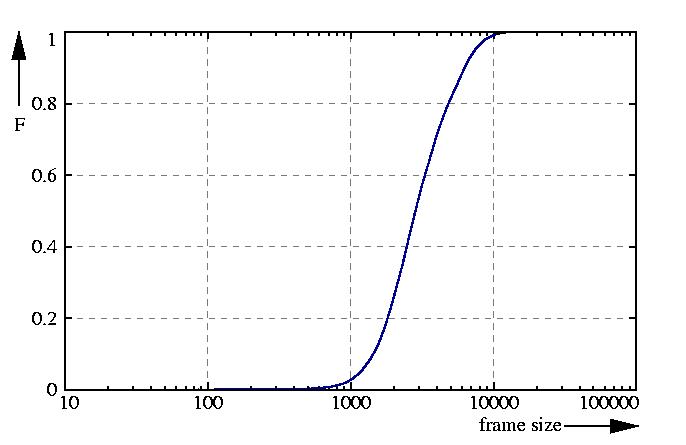

probability function F = sum p

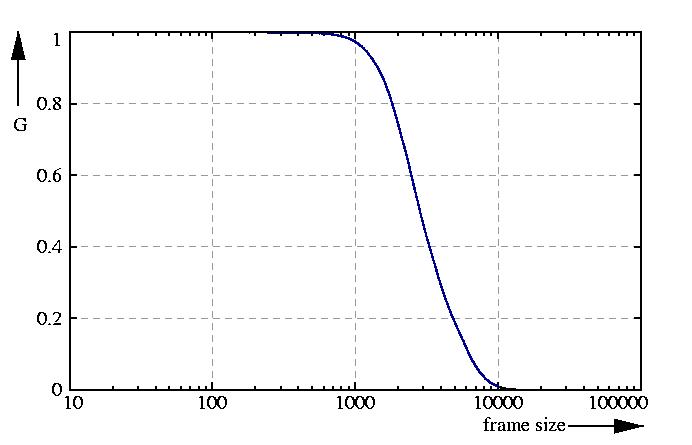

inverse probability function G = 1 - F

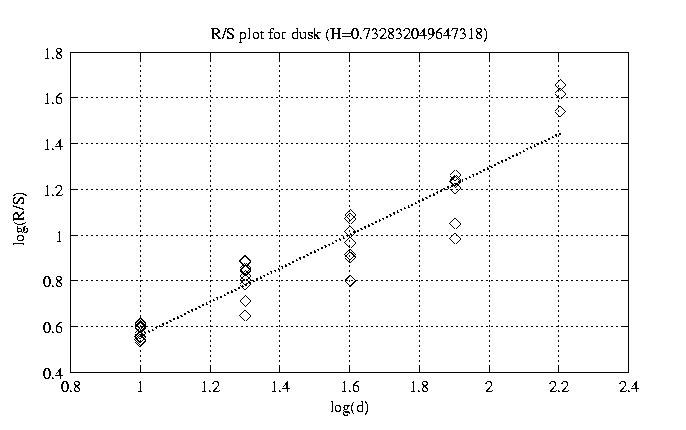

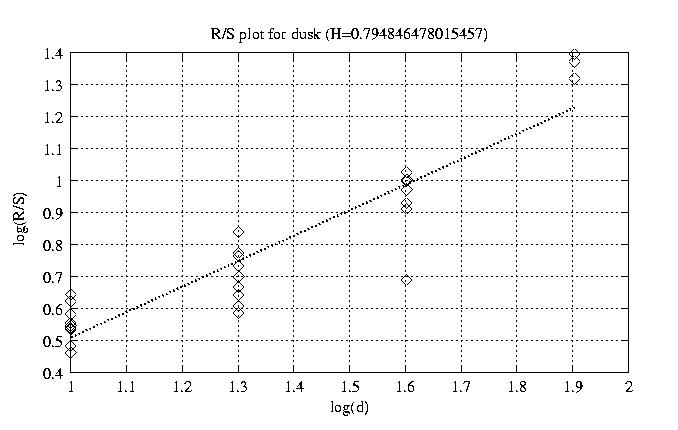

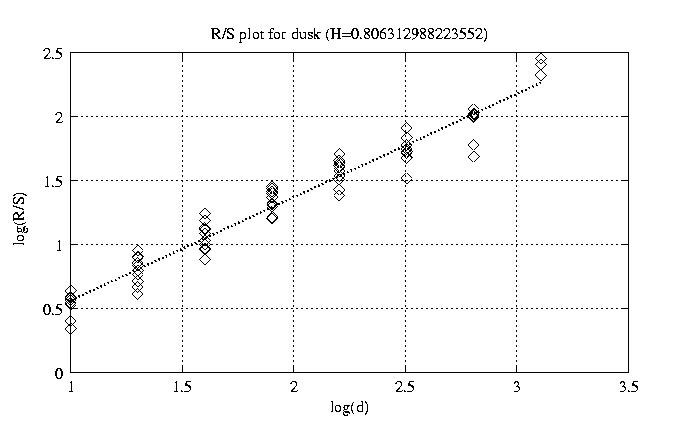

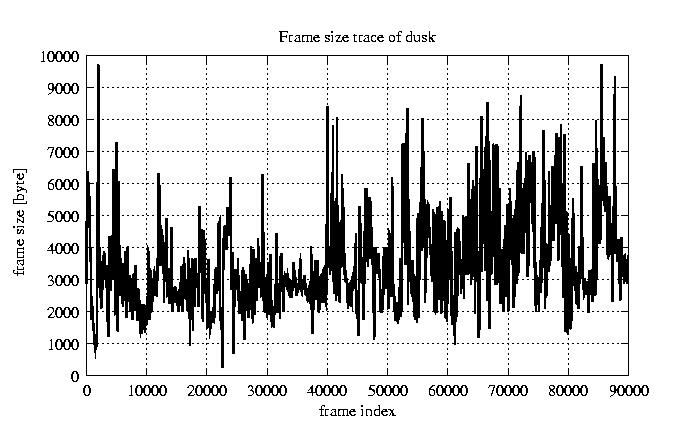

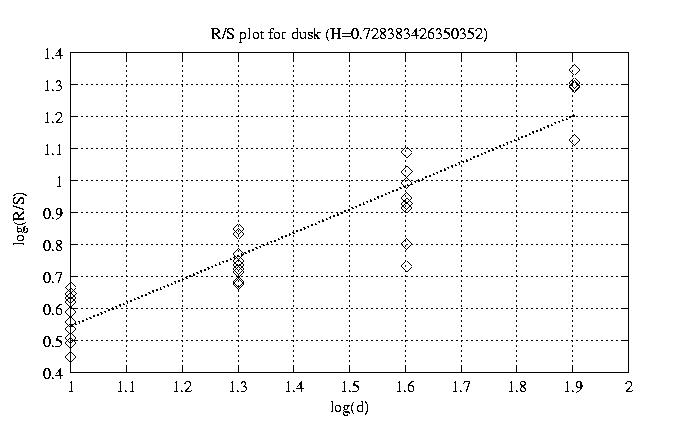

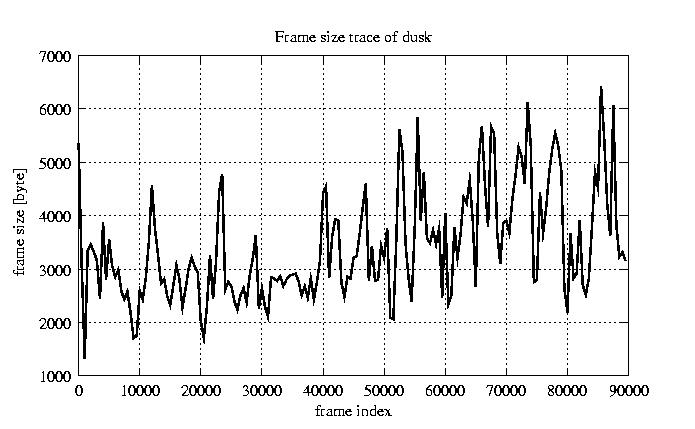

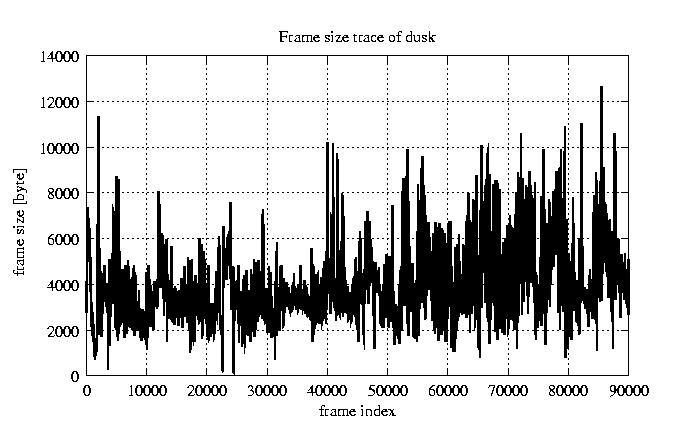

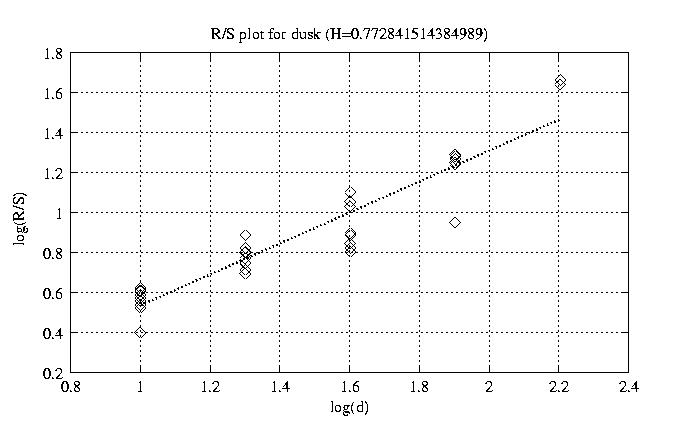

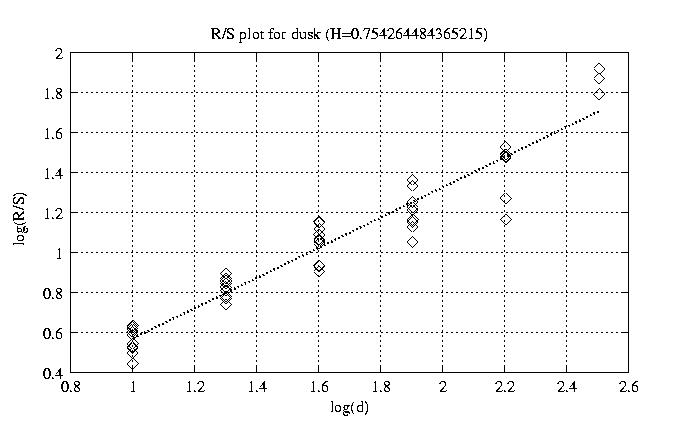

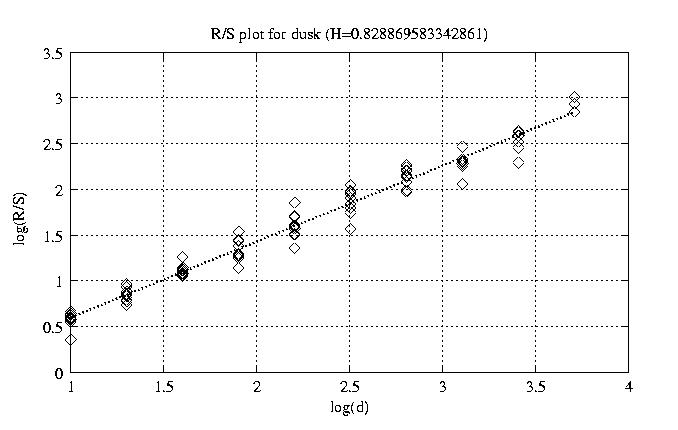

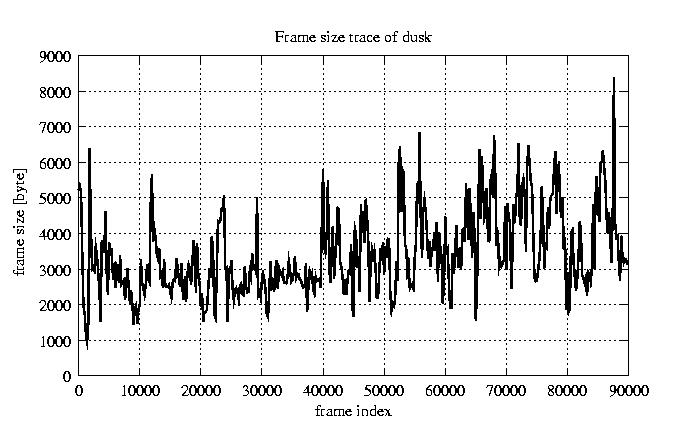

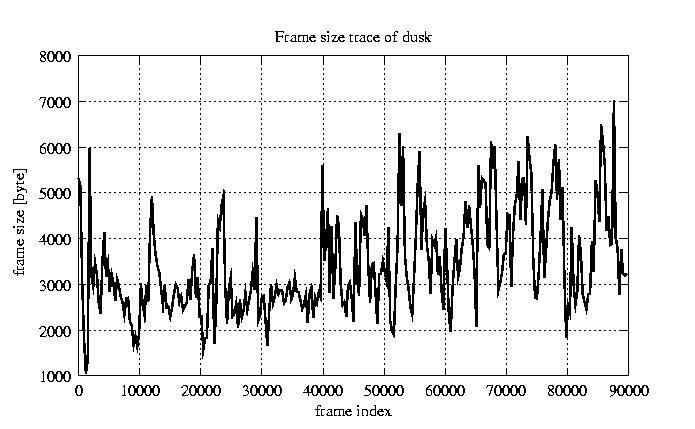

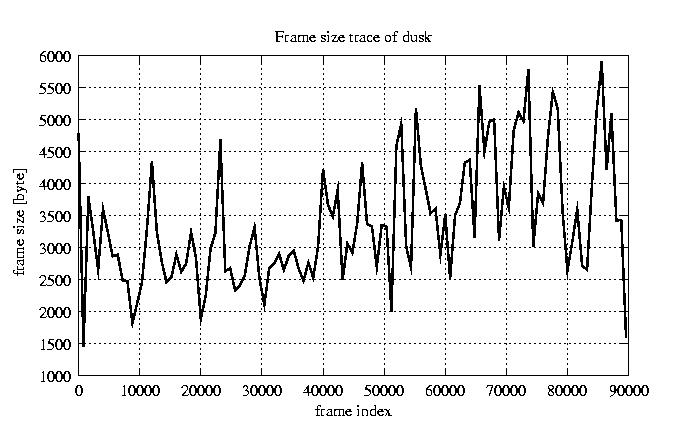

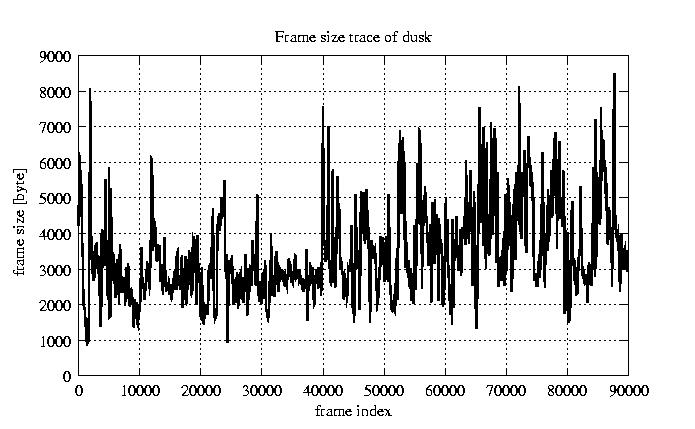

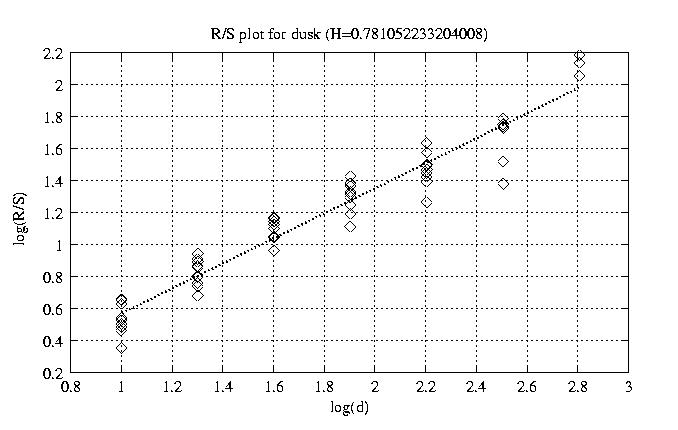

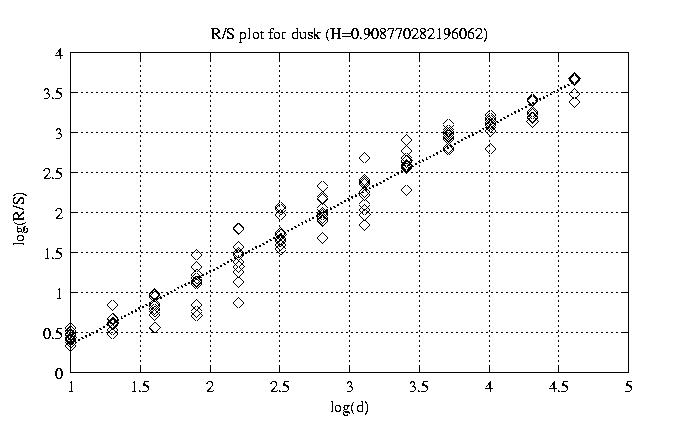

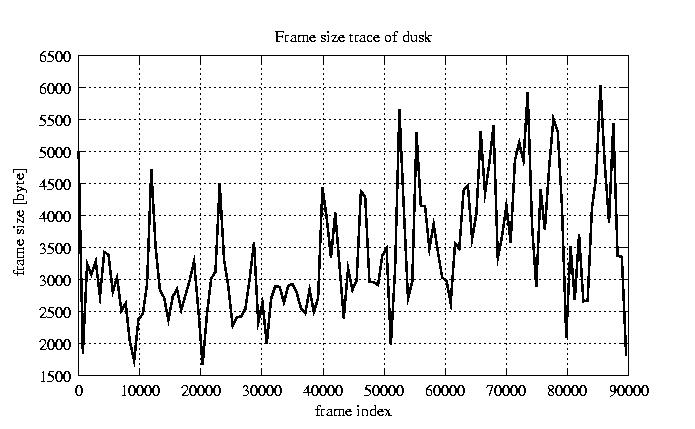

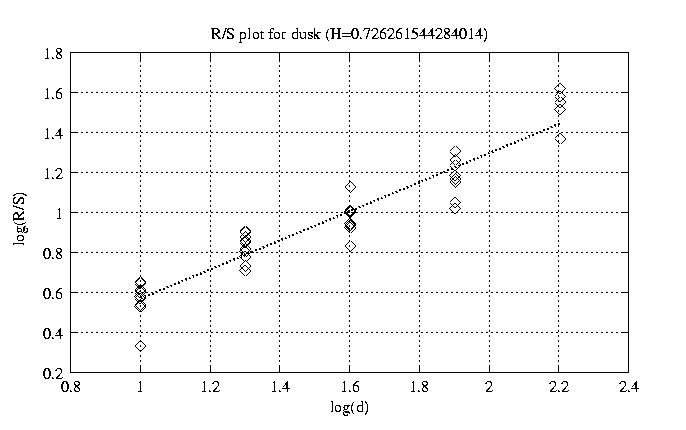

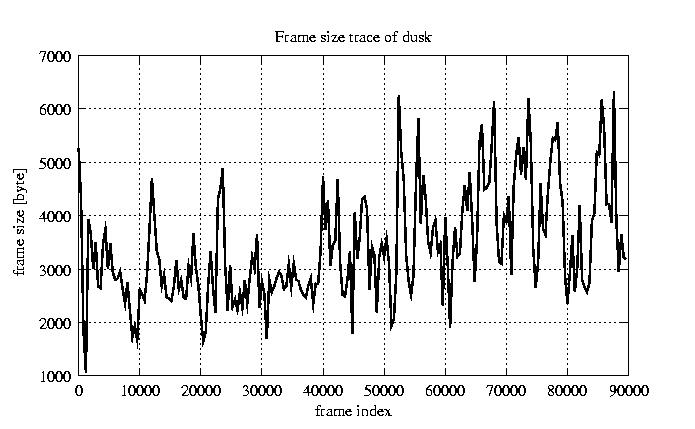

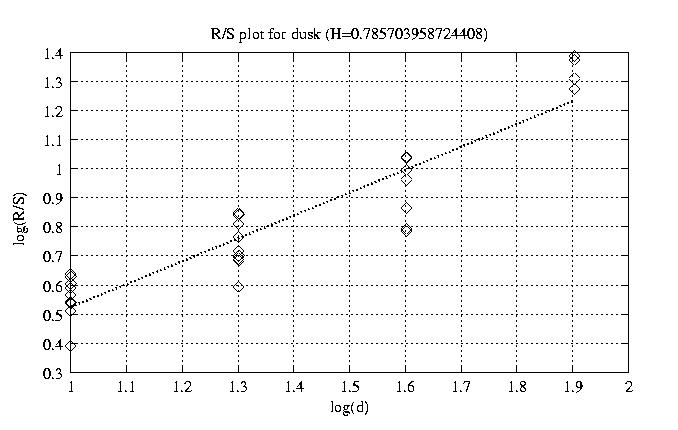

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.909 view view 12 0.829 view view 50 0.806 view view 100 0.781 view view 200 0.754 view view 300 0.726 view view 400 0.733 view view 500 0.773 view view 600 0.728 view view 700 0.786 view view 800 0.795 view view

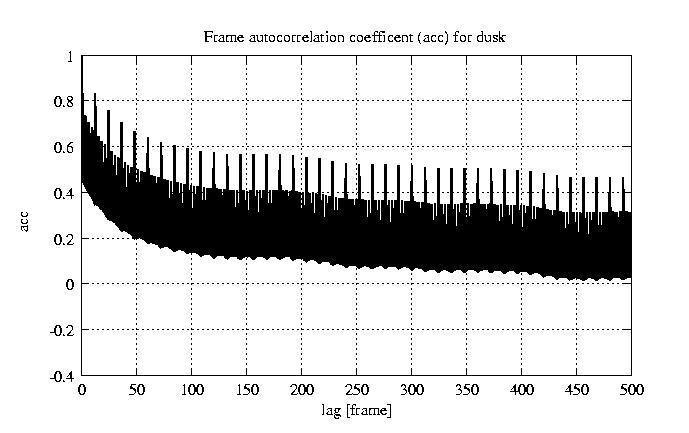

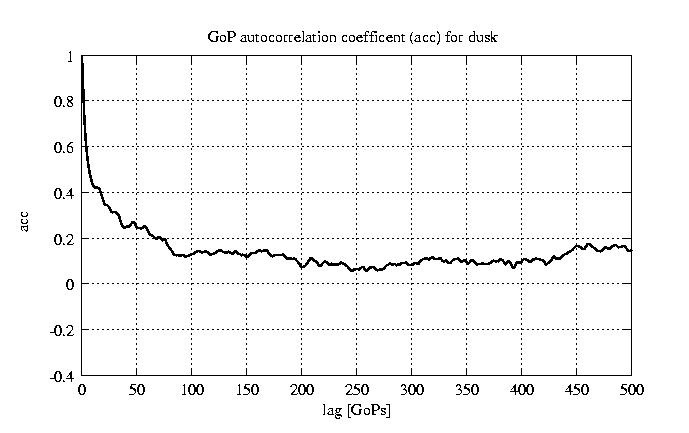

other plots	autocorrelation function of frames autocorrelation function of GoPs
