H263P - The Firm
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263P 133.73 133.73 File size byte 2.6e+07 2.6e+07 Video run time msec 3.7e+06 3.7e+06 3.7e+06 # of Frames - 92124.00 89590.00 mean frame size byte 284.29 292.33 var frame size - 24802.54 23153.49 CoV of frame size - 0.55 0.52 min frame size byte 0.00 9.00 max frame size byte 1290.00 1290.00 Peak/Mean frame - 4.54 4.41 Mean bit rate bit/sec 5.7e+04 Peak bit rate bit/sec 2.6e+05 Peak/Mean of bit rate - 4.5 CoV of bit rate - 0.55 max inter frame space frames 1.00 194.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

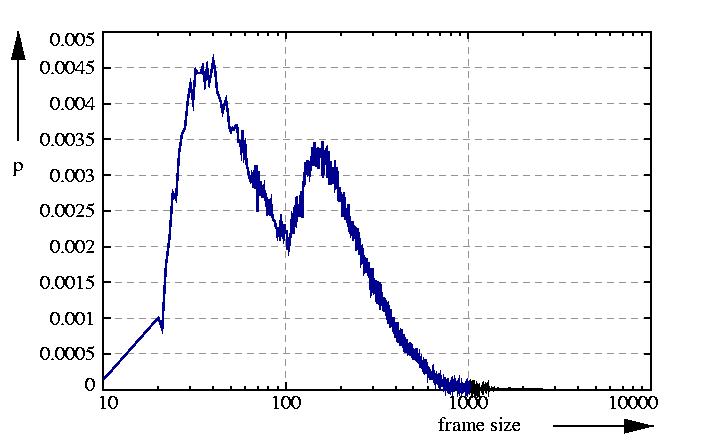

probability density function p

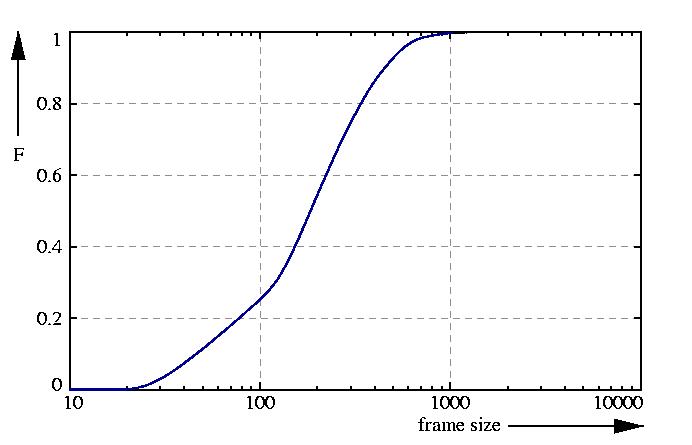

probability function F = sum p

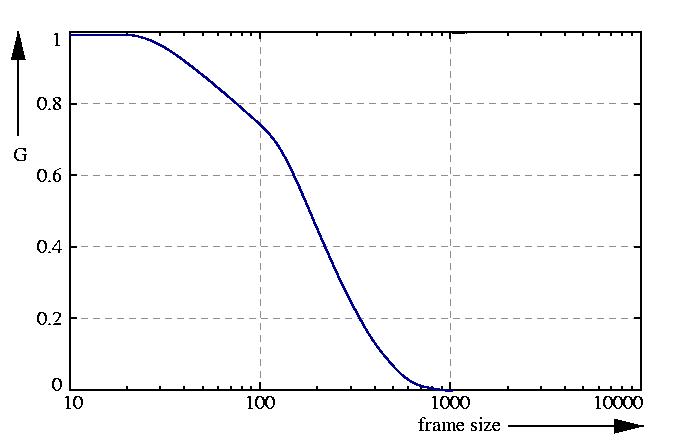

inverse probability function G = 1 - F

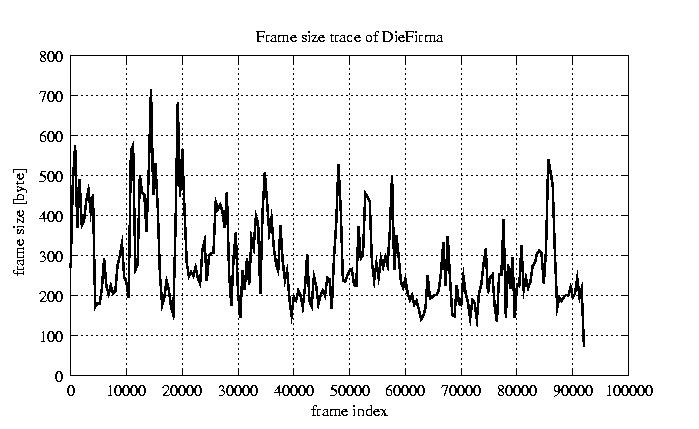

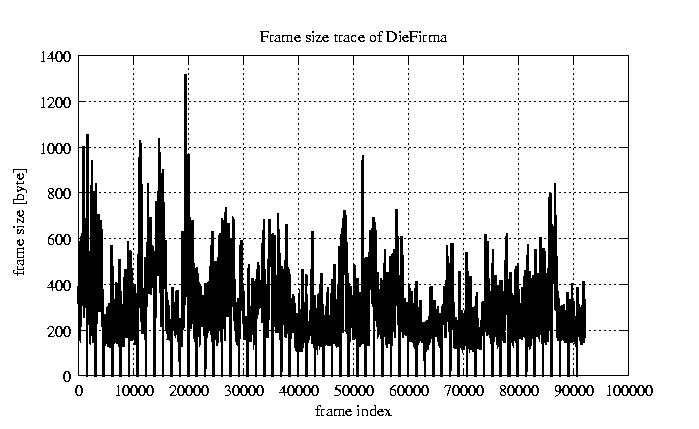

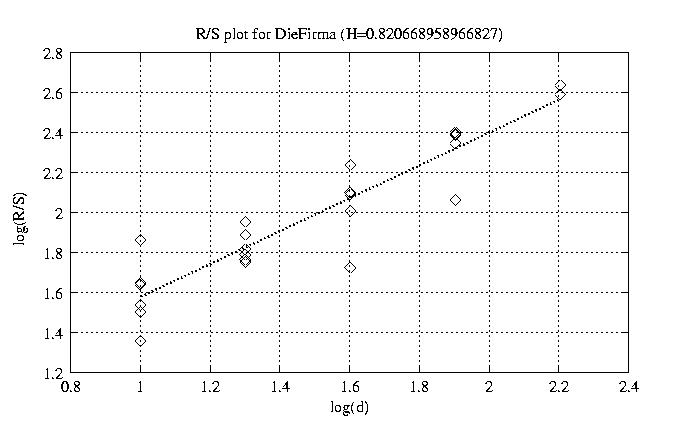

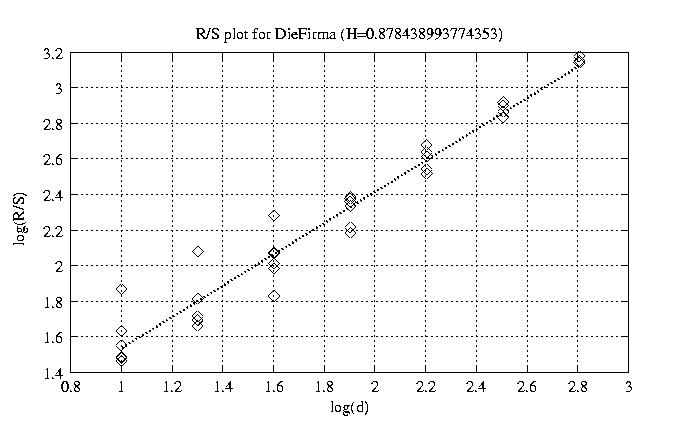

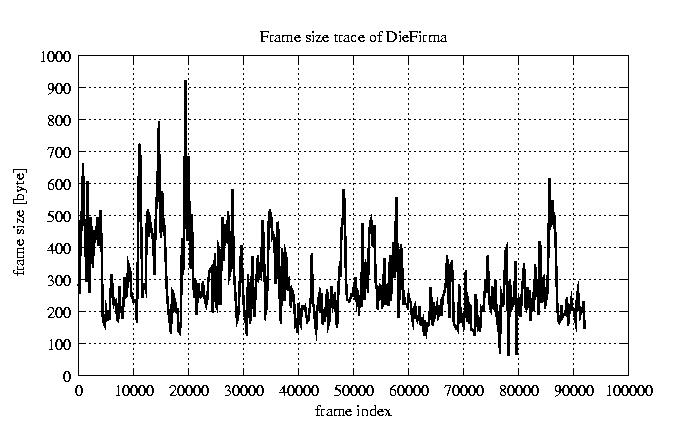

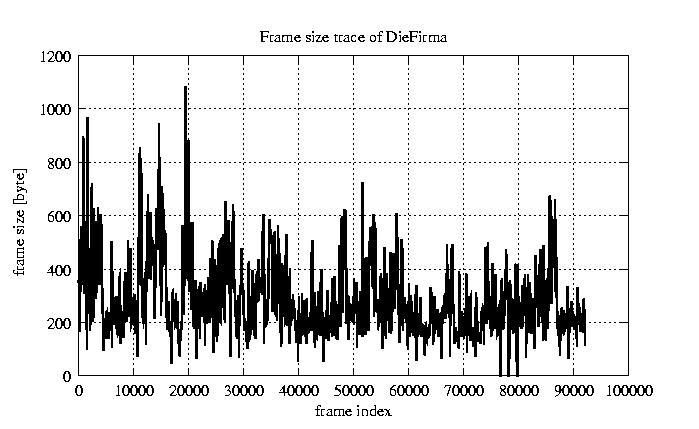

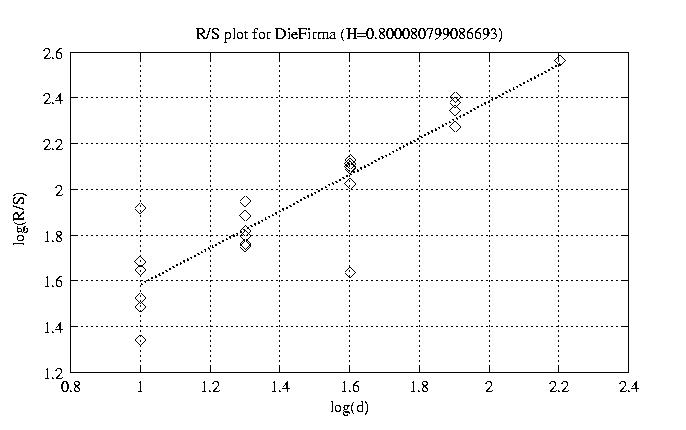

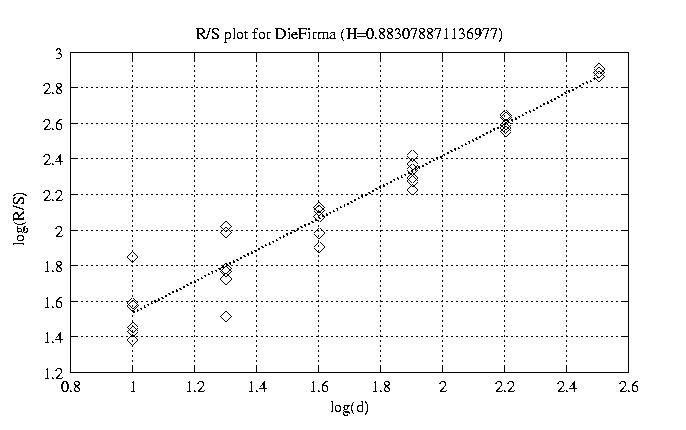

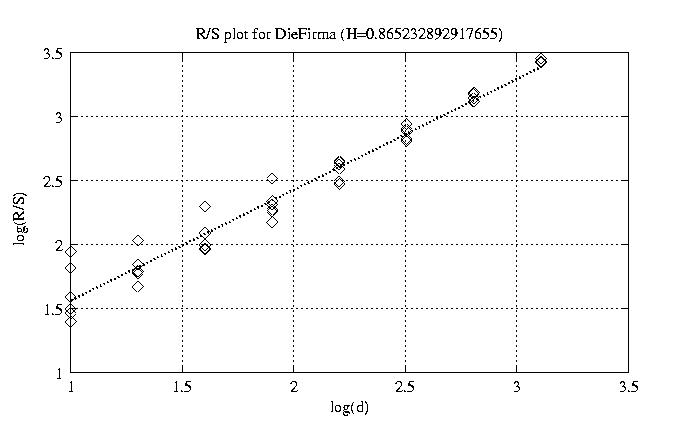

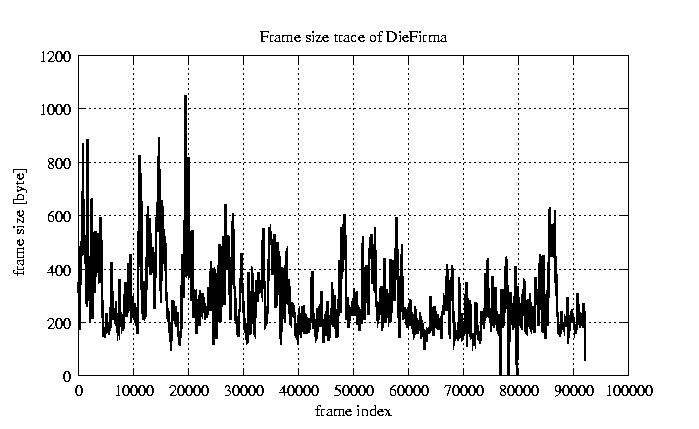

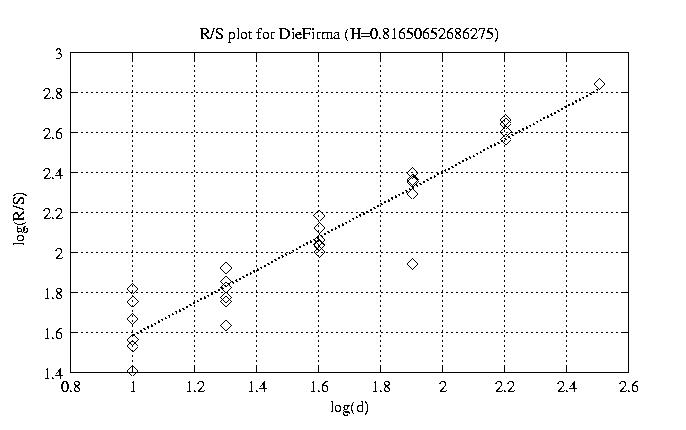

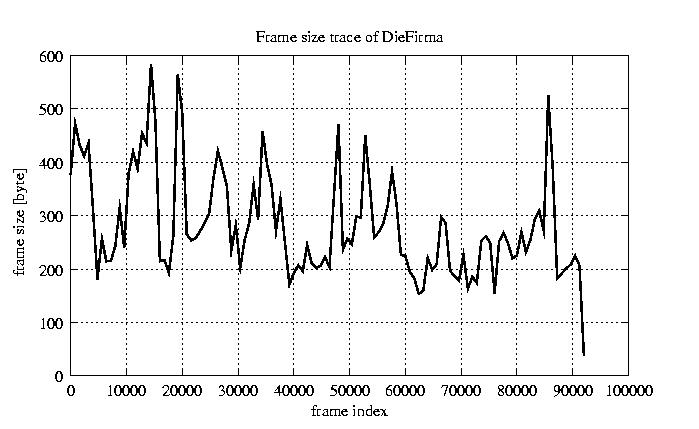

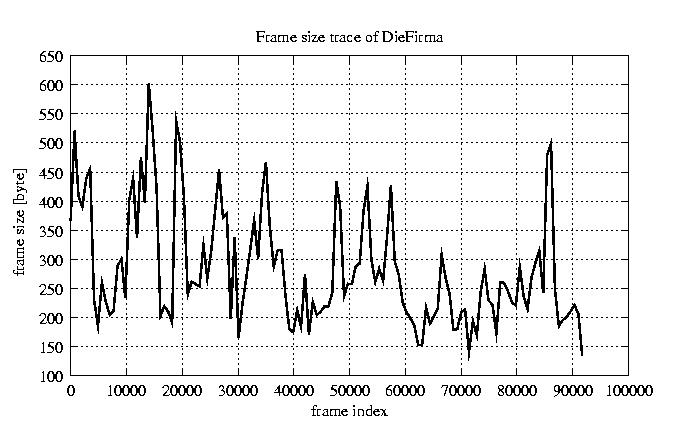

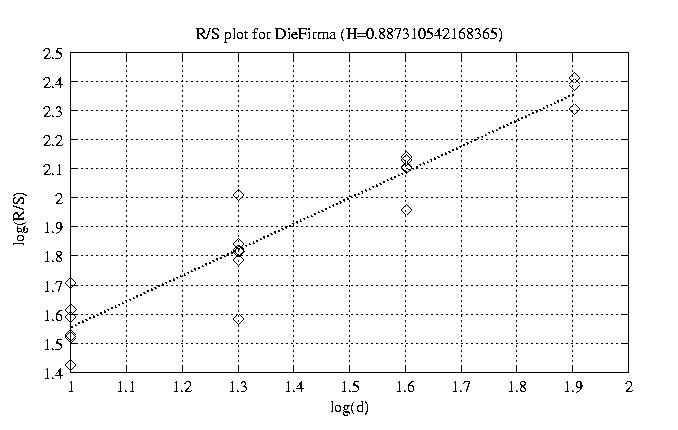

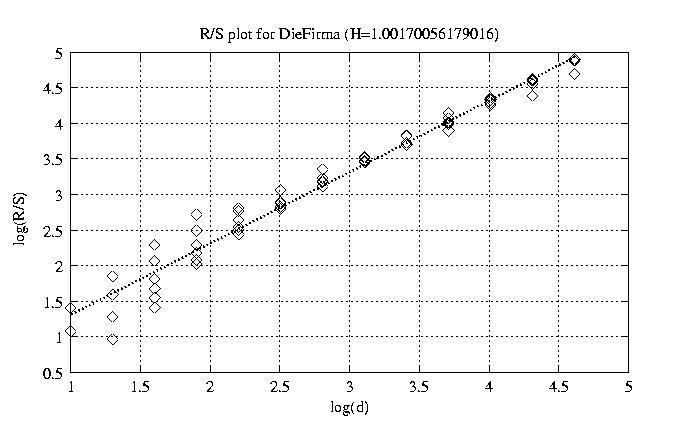

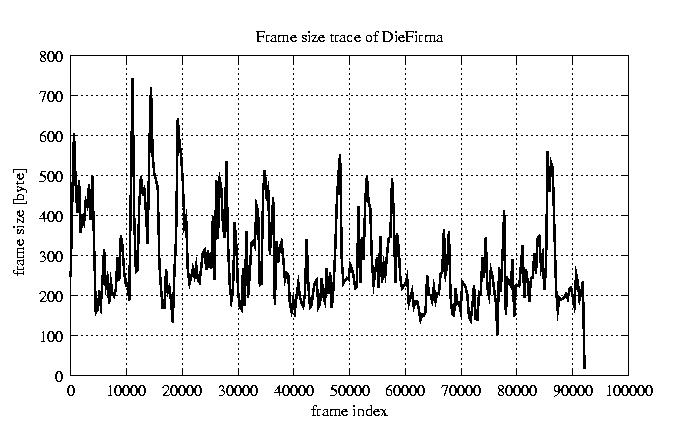

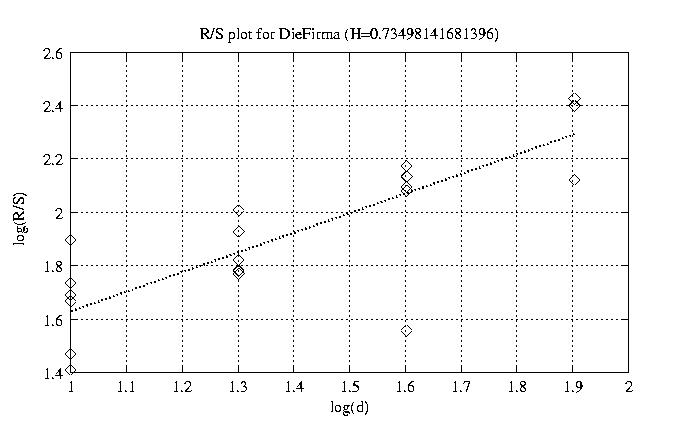

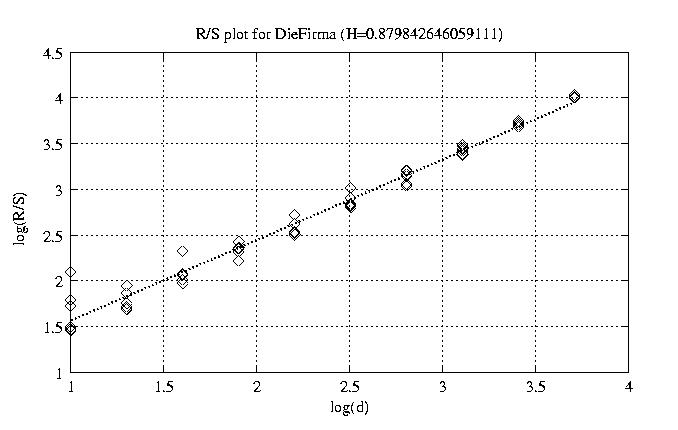

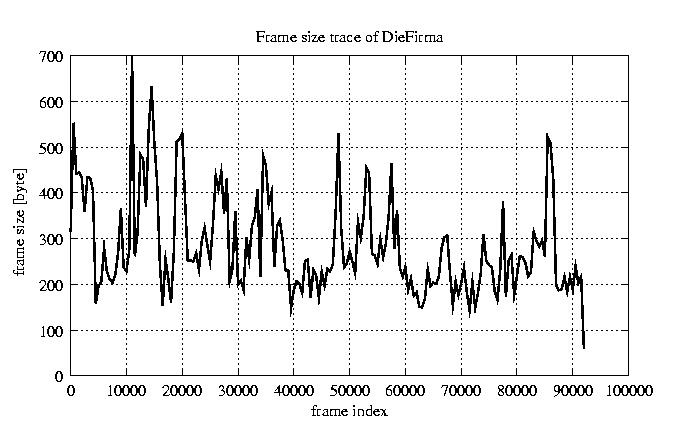

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 1.002 view view 12 0.880 view view 50 0.865 view view 100 0.878 view view 200 0.883 view view 300 0.817 view view 400 0.884 view view 500 0.821 view view 600 0.800 view view 700 0.735 view view 800 0.887 view view

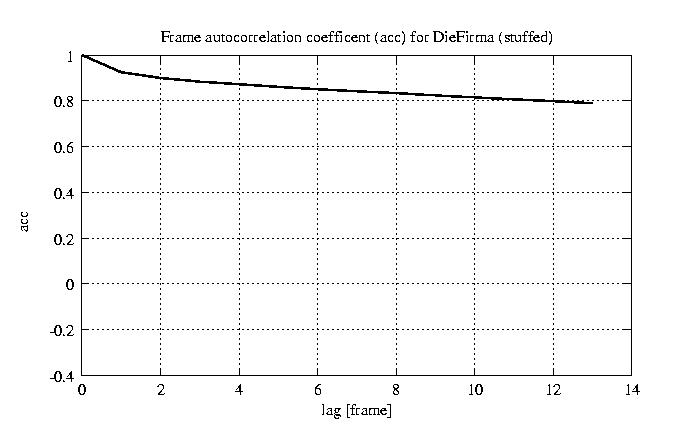

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
