H263 - VIVA - Video Clips
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 11.65 11.65 File size byte 2.9e+08 2.9e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 59534.00 mean frame size byte 3261.91 4935.77 var frame size - 10455464.57 7558893.81 CoV of frame size - 0.99 0.56 min frame size byte 0.00 93.00 max frame size byte 24782.00 24782.00 Peak/Mean frame - 7.60 5.02 Mean bit rate bit/sec 6.5e+05 Peak bit rate bit/sec 5e+06 Peak/Mean of bit rate - 7.6 CoV of bit rate - 0.66 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

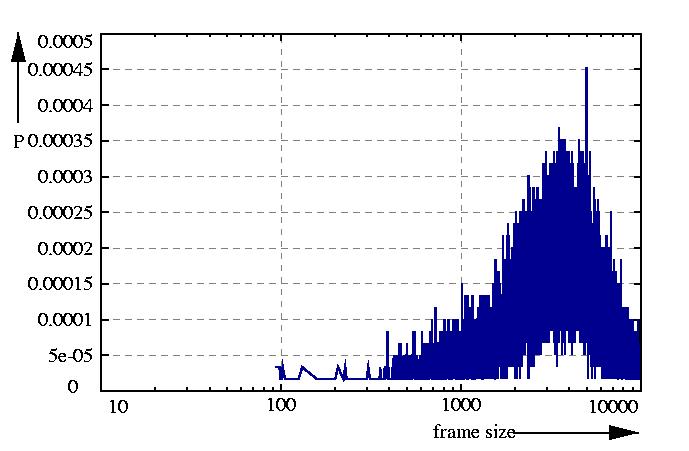

probability density function p

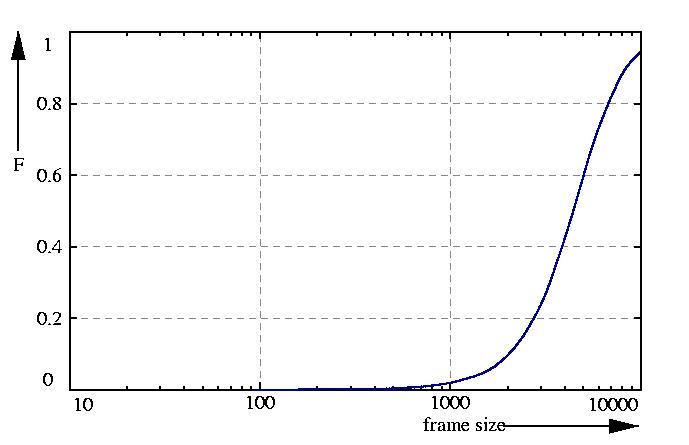

probability function F = sum p

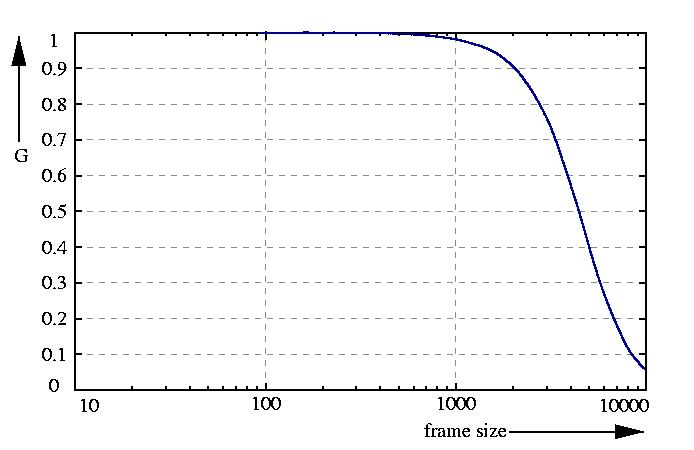

inverse probability function G = 1 - F

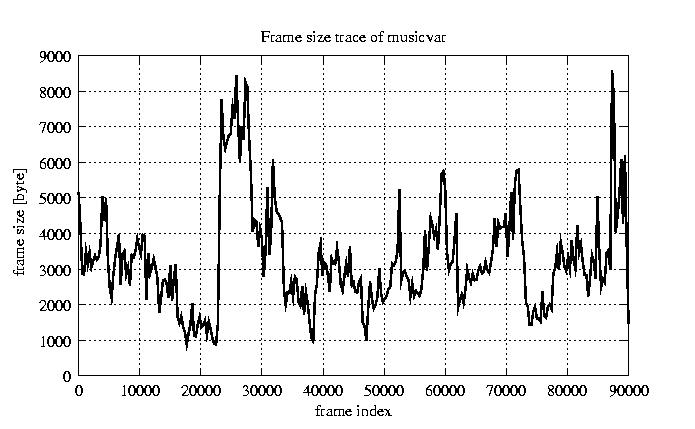

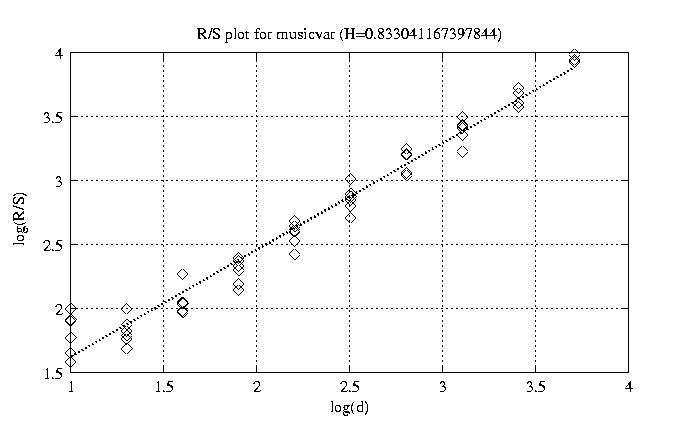

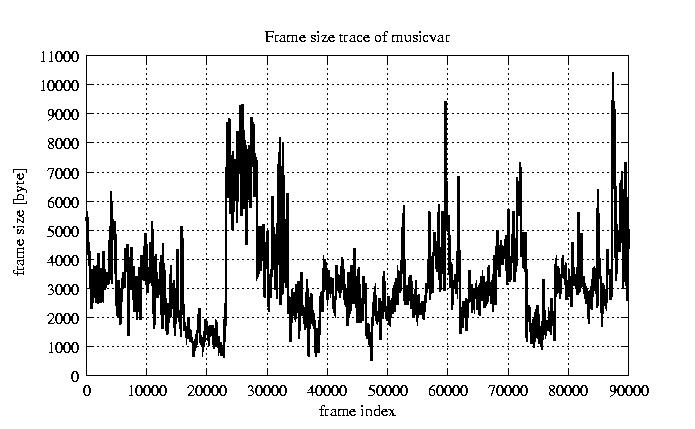

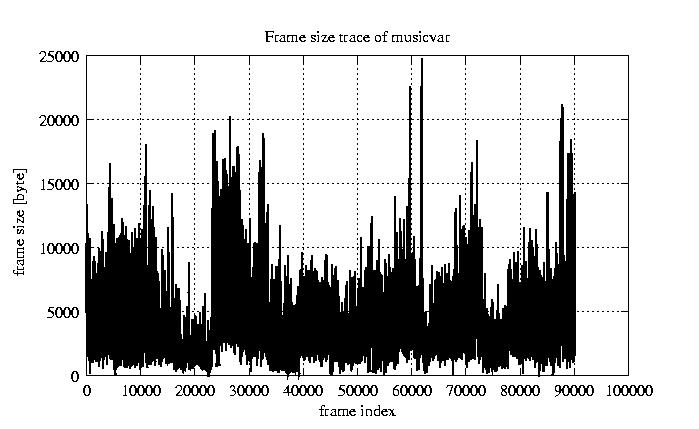

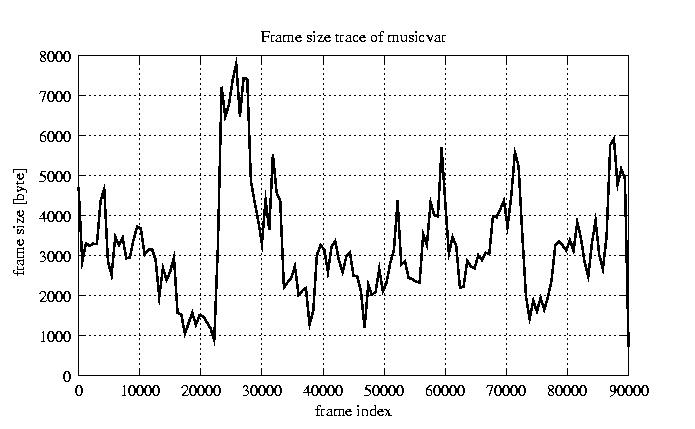

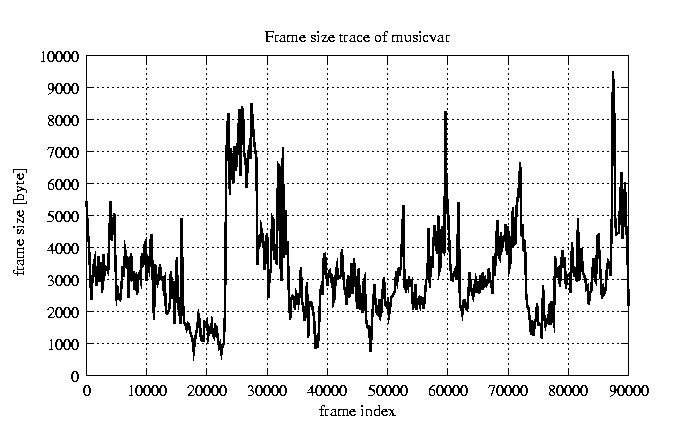

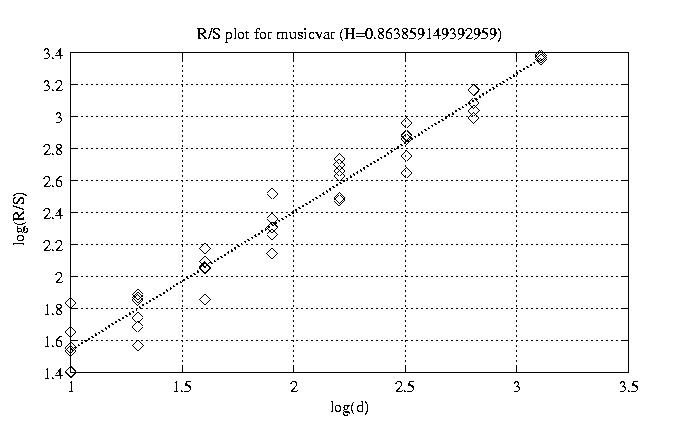

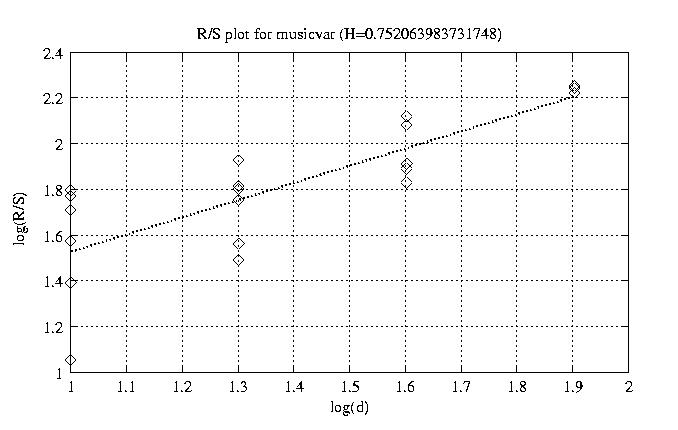

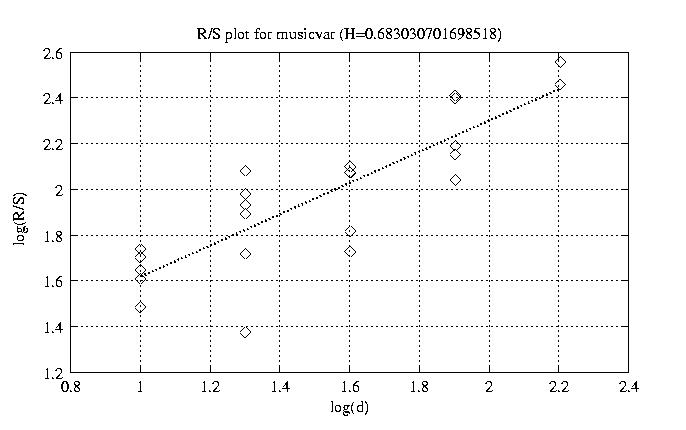

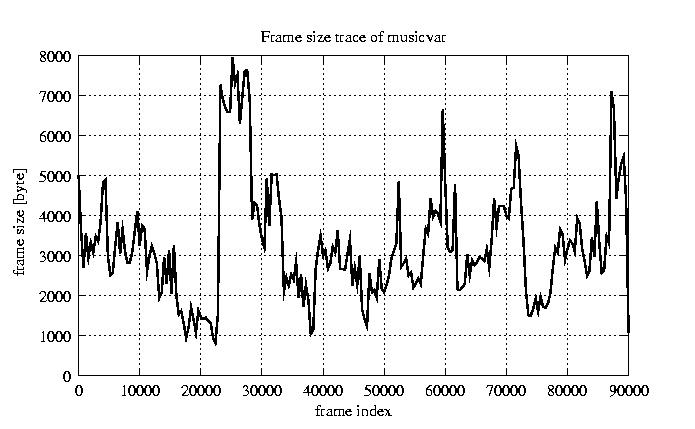

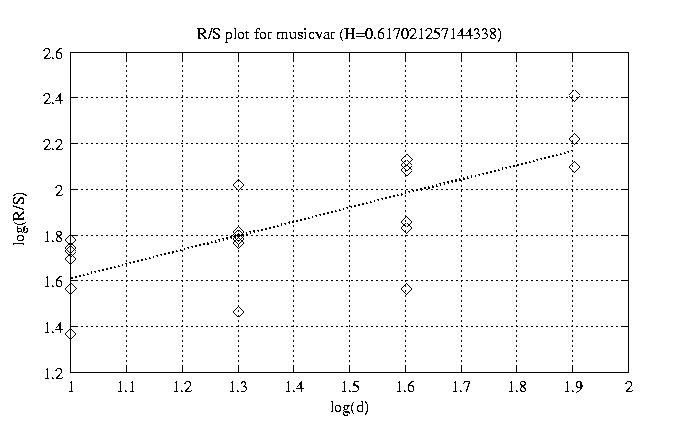

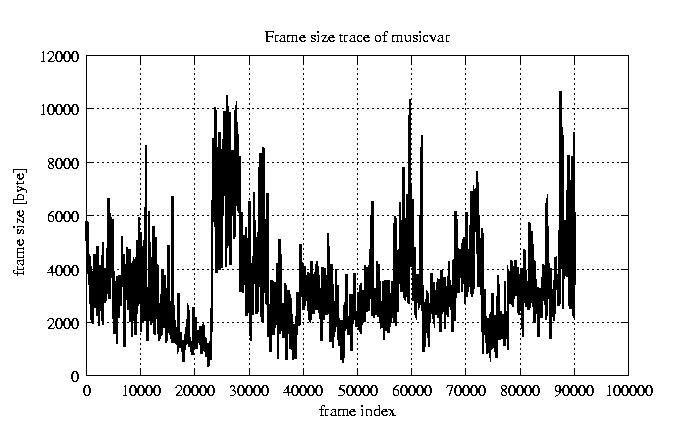

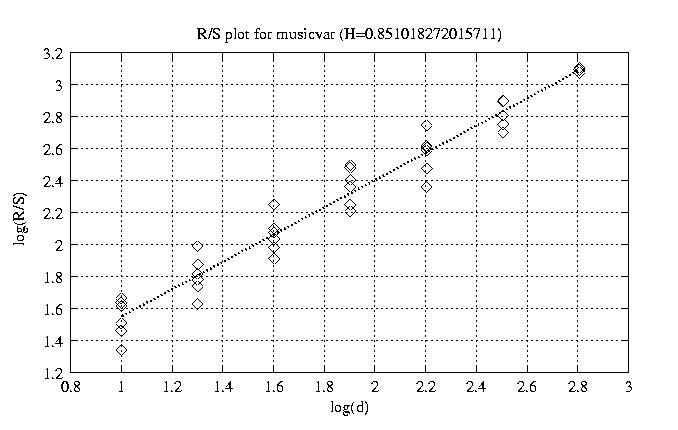

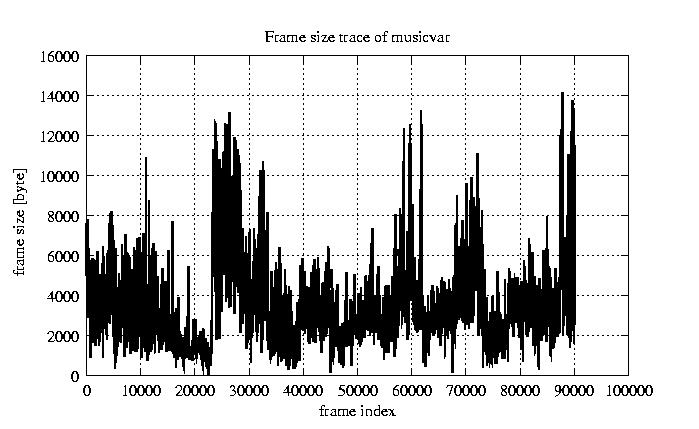

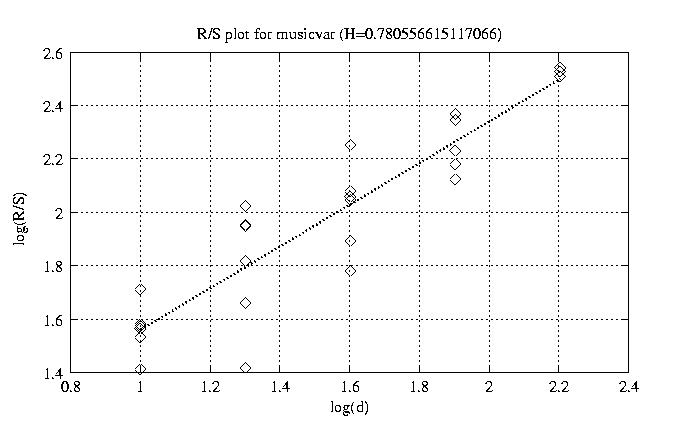

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.854 view view 12 0.833 view view 50 0.864 view view 100 0.851 view view 200 0.820 view view 300 0.701 view view 400 0.781 view view 500 0.683 view view 600 0.599 view view 700 0.617 view view 800 0.752 view view

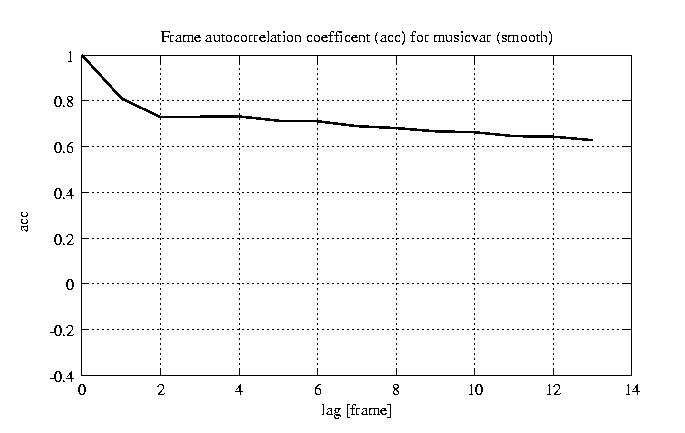

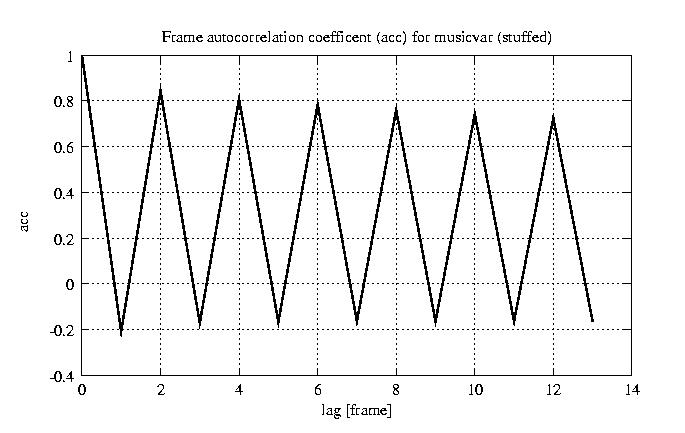

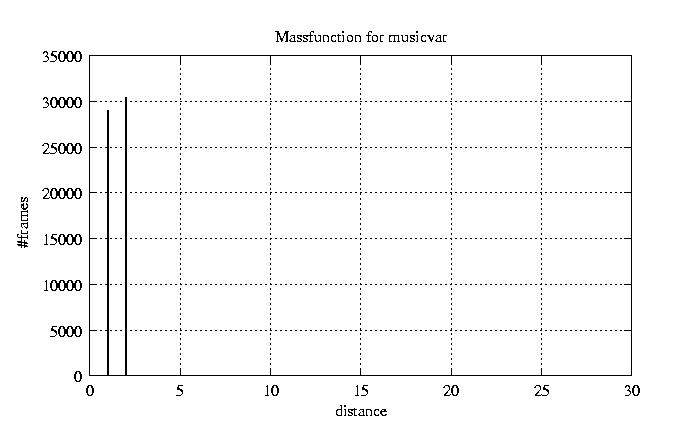

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
