H263 - N3Talk
unspecified target bitrate, VBR

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 27.96 27.96 File size byte 1.2e+08 1.2e+08 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90084.00 48120.00 mean frame size byte 1359.79 2545.62 var frame size - 2741561.90 2113706.88 CoV of frame size - 1.22 0.57 min frame size byte 0.00 63.00 max frame size byte 13956.00 13956.00 Peak/Mean frame - 10.26 5.48 Mean bit rate bit/sec 2.7e+05 Peak bit rate bit/sec 2.5e+06 Peak/Mean of bit rate - 9 CoV of bit rate - 0.62 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

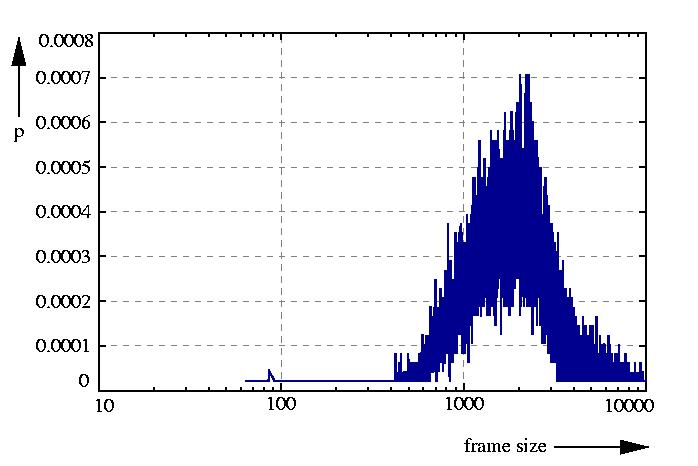

probability density function p

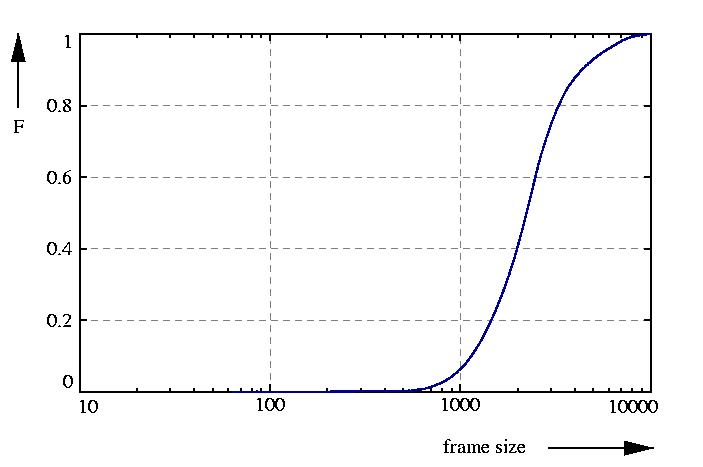

probability function F = sum p

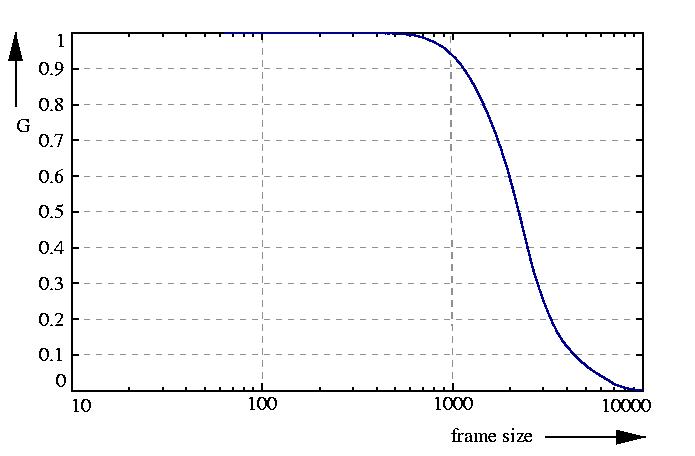

inverse probability function G = 1 - F

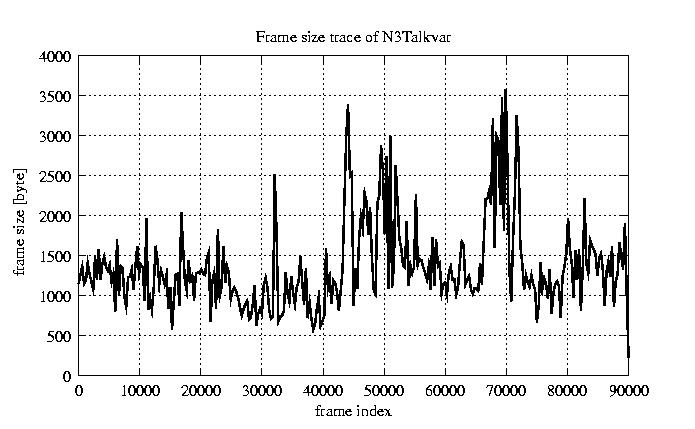

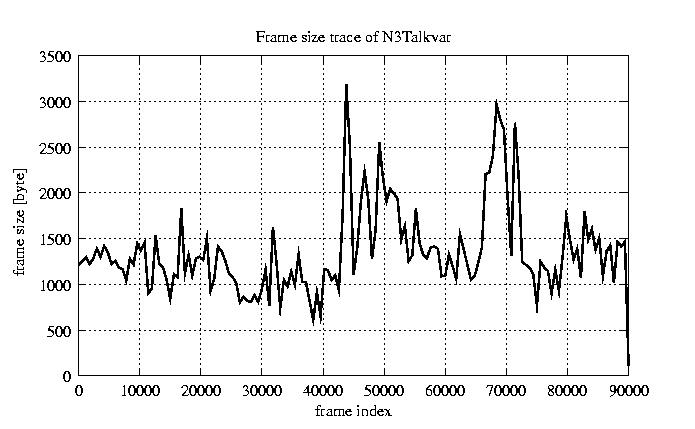

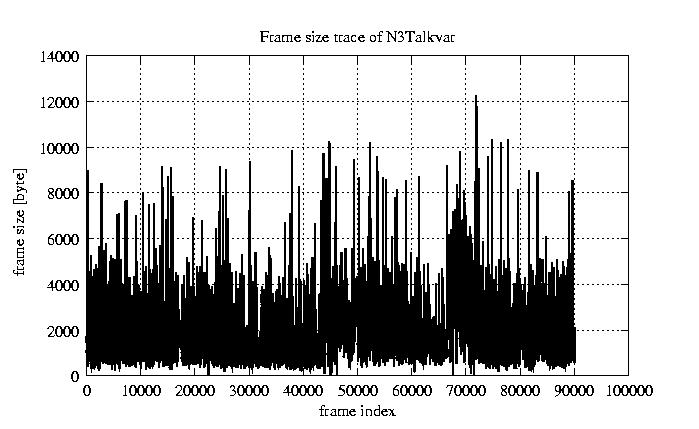

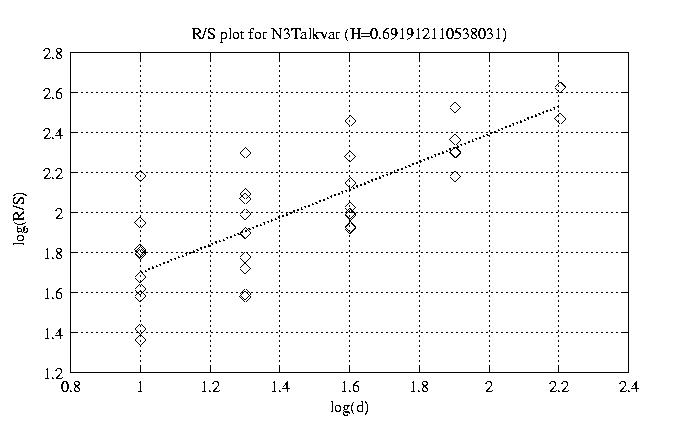

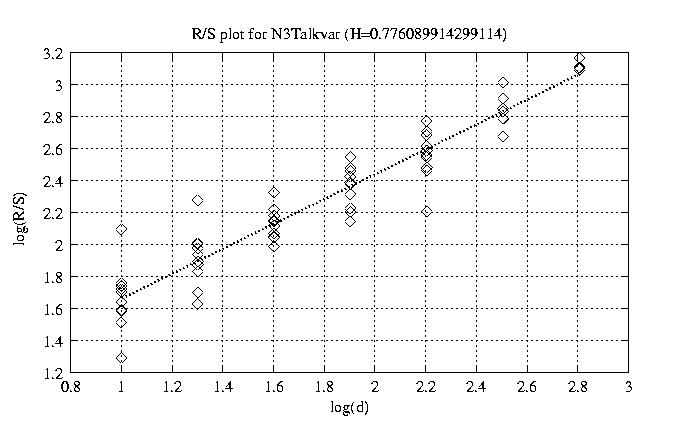

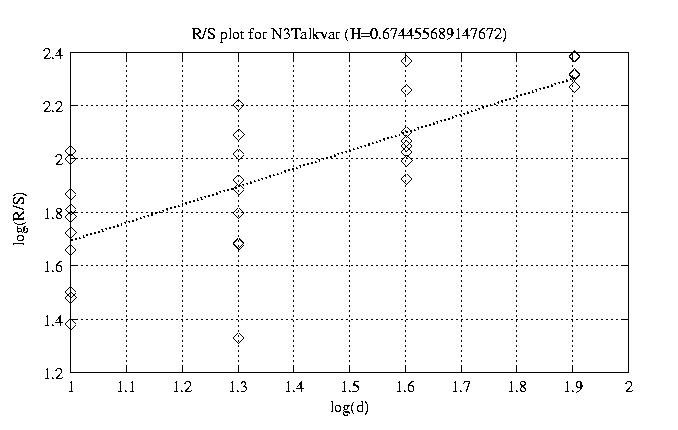

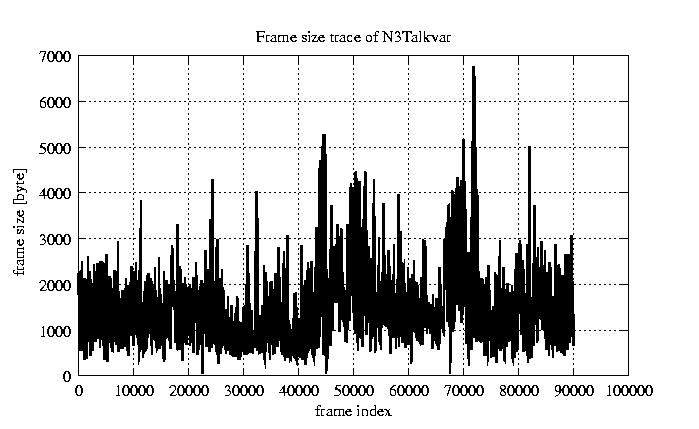

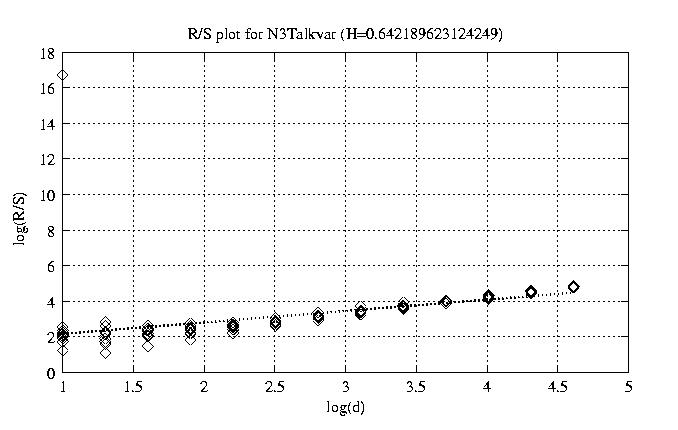

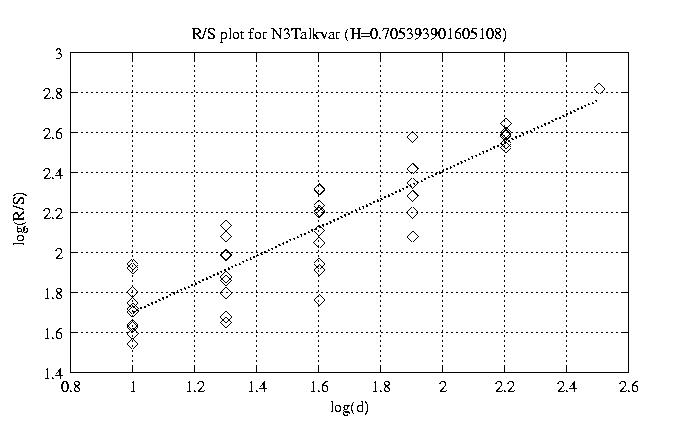

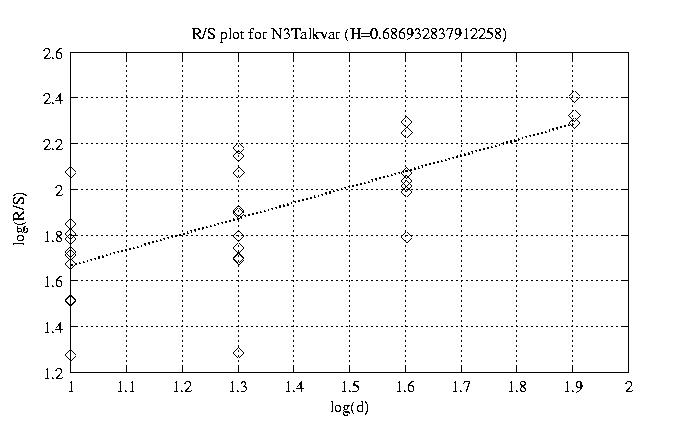

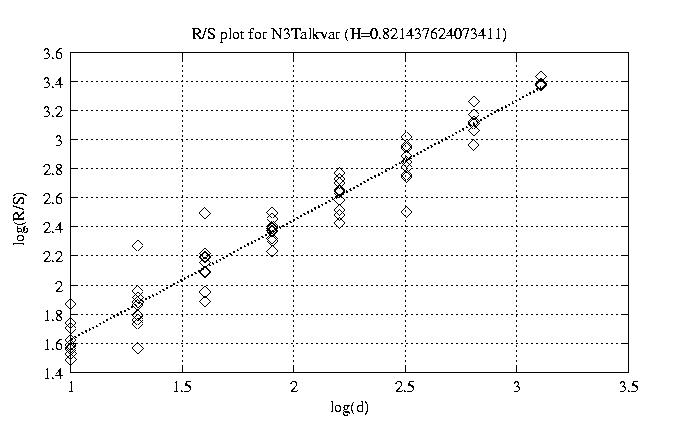

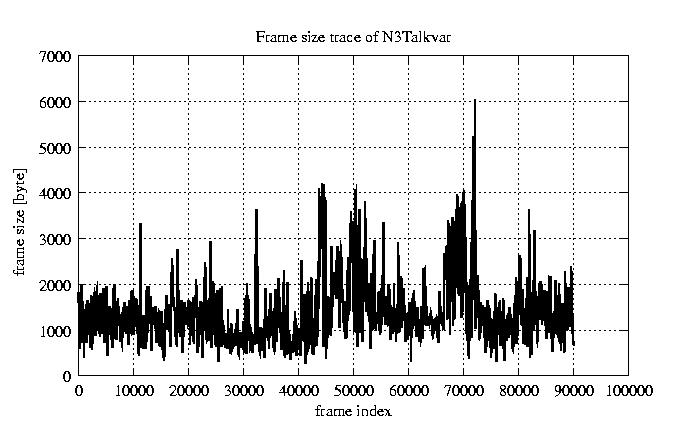

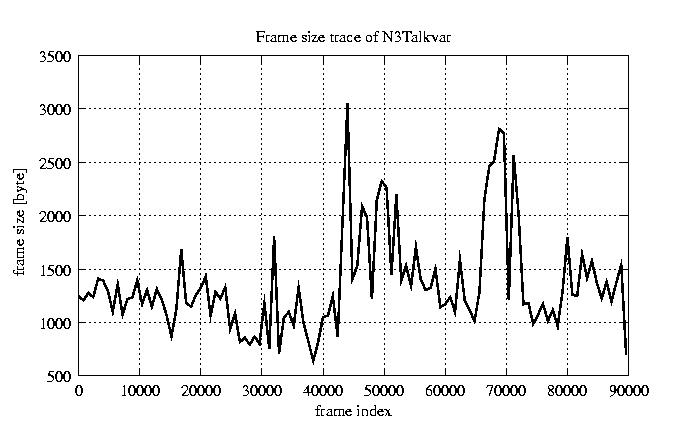

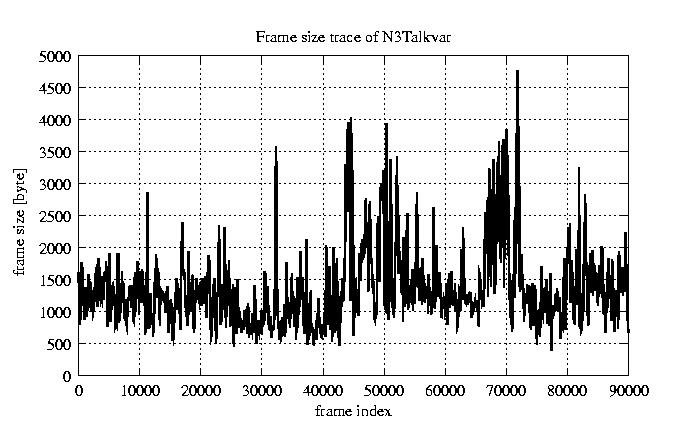

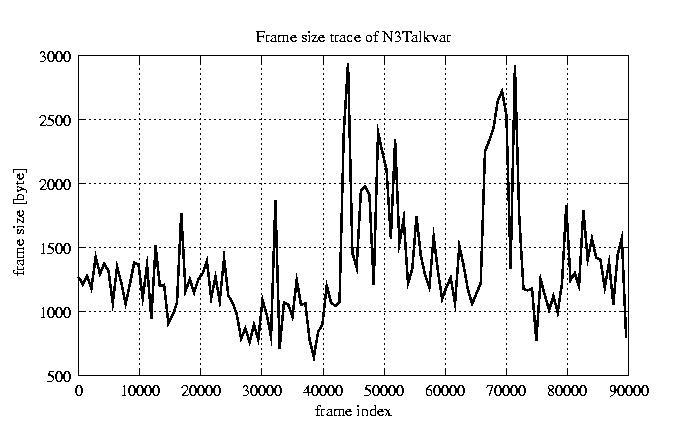

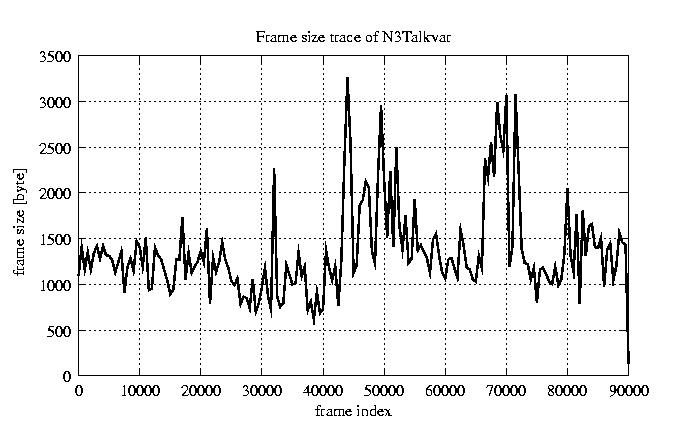

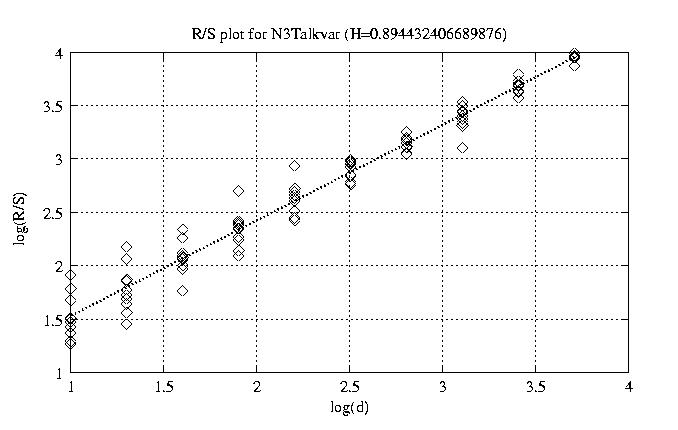

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.642 view view 12 0.894 view view 50 0.821 view view 100 0.776 view view 200 0.714 view view 300 0.705 view view 400 0.710 view view 500 0.692 view view 600 0.619 view view 700 0.674 view view 800 0.687 view view

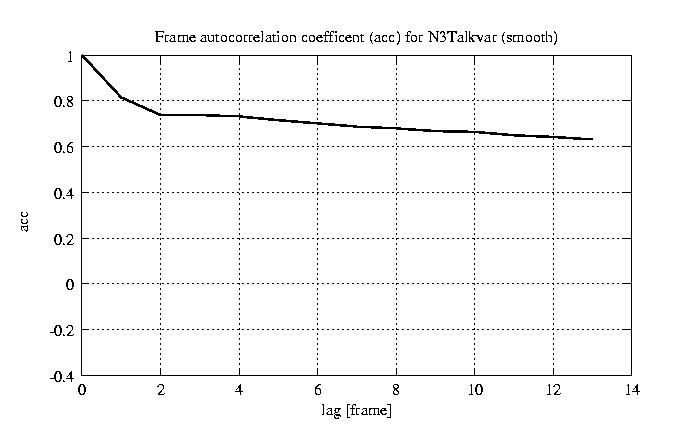

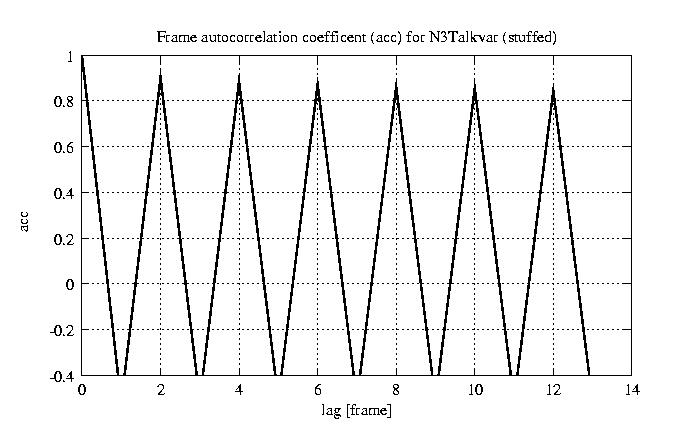

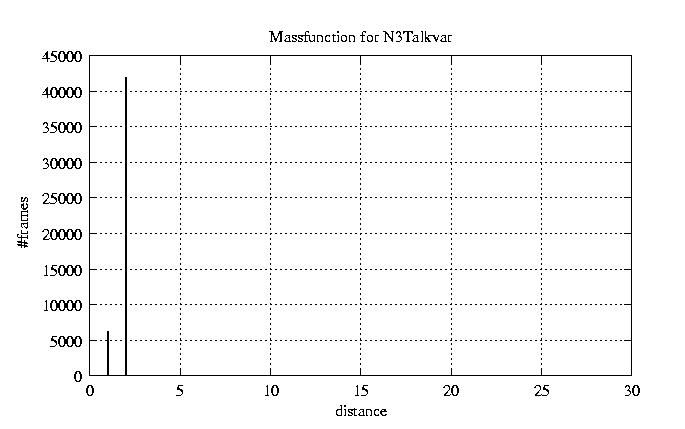

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
