H263 - South Park
256 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 29.73 29.73 File size byte 3.8e+07 3.8e+07 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30028.00 9140.00 mean frame size byte 1278.81 4201.31 var frame size - 4553492.38 2681209.41 CoV of frame size - 1.67 0.39 min frame size byte 0.00 664.00 max frame size byte 13077.00 13077.00 Peak/Mean frame - 10.23 3.11 Mean bit rate bit/sec 2.6e+05 Peak bit rate bit/sec 1.4e+06 Peak/Mean of bit rate - 5.6 CoV of bit rate - 0.46 max inter frame space frames 1.00 29.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

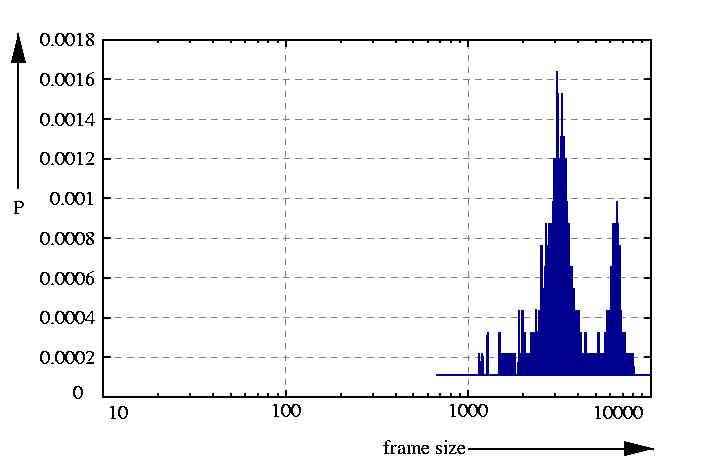

probability density function p

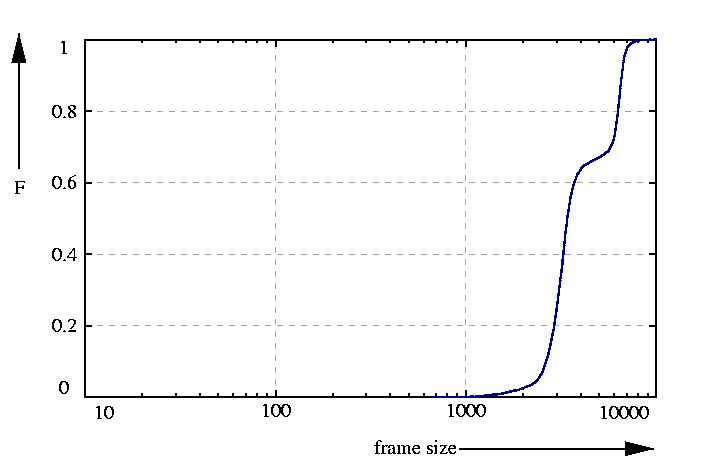

probability function F = sum p

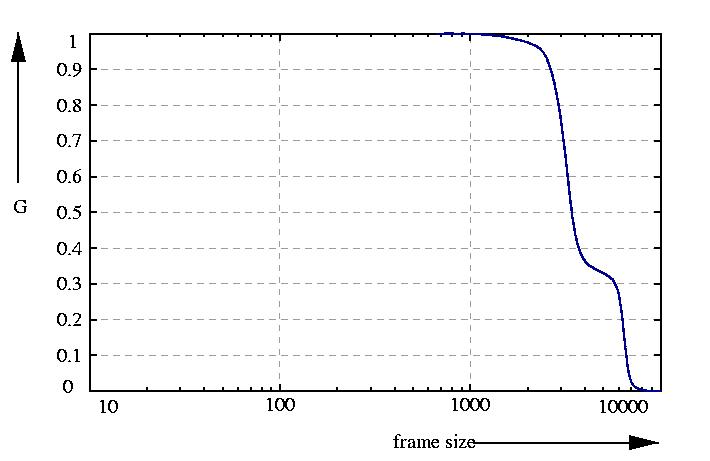

inverse probability function G = 1 - F

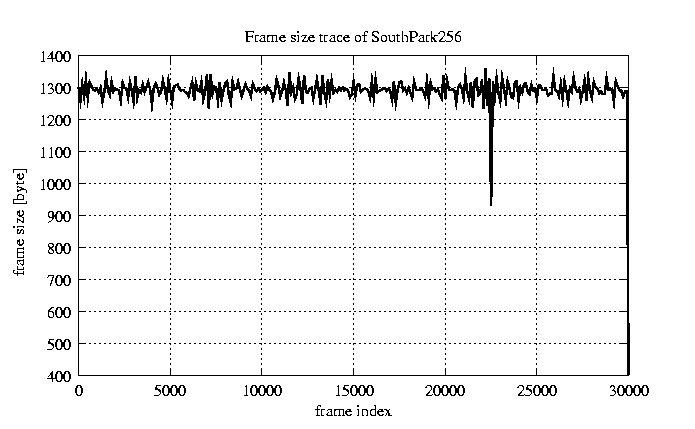

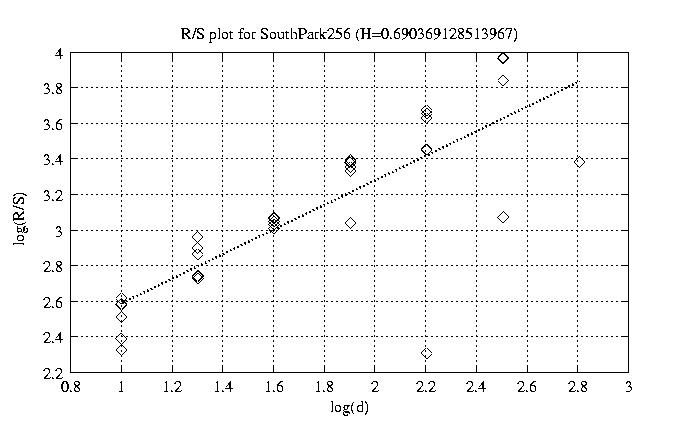

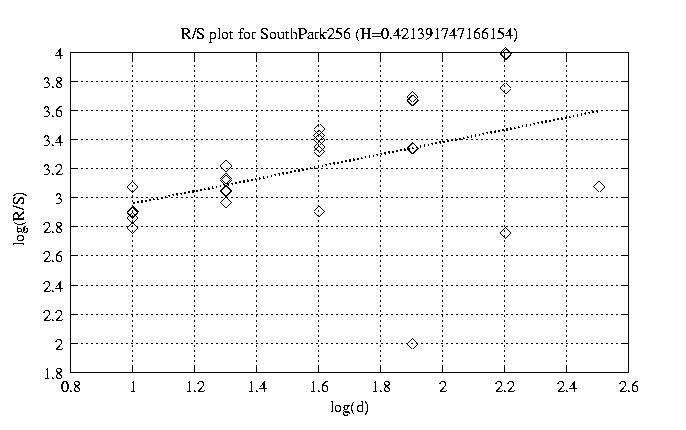

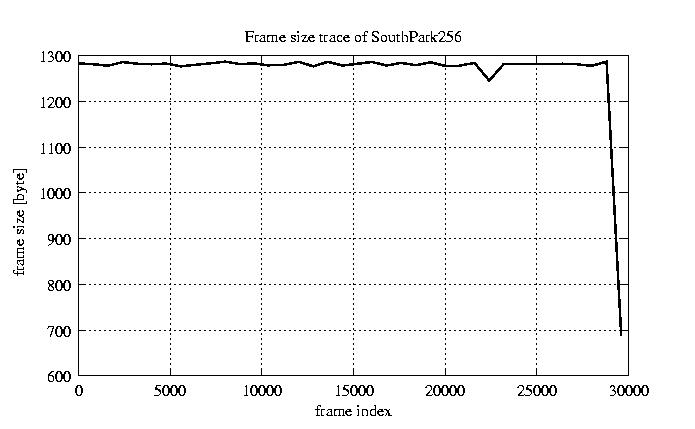

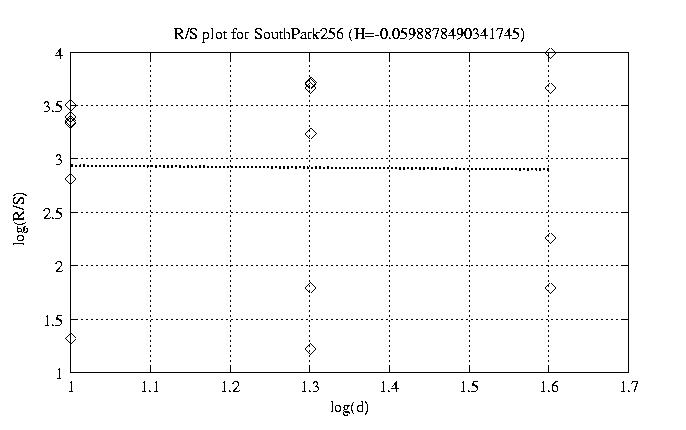

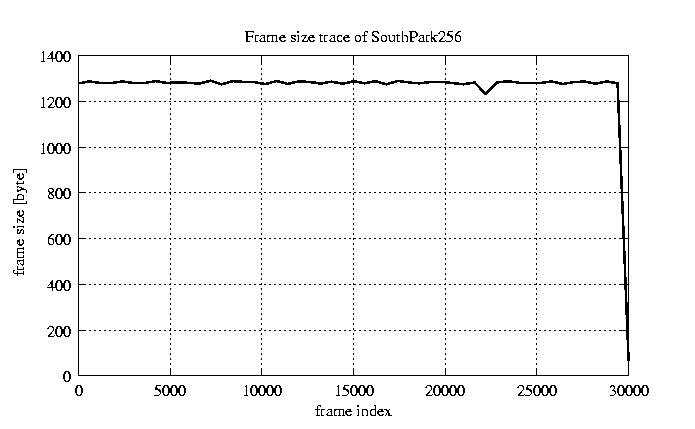

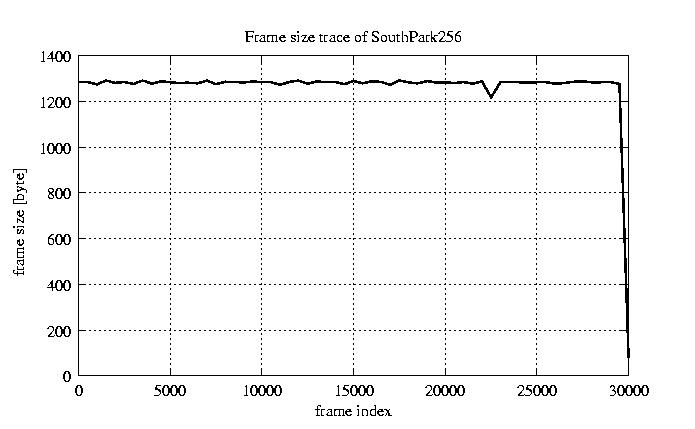

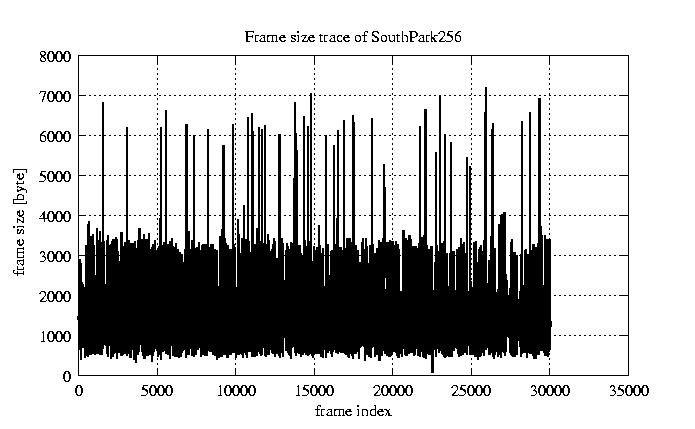

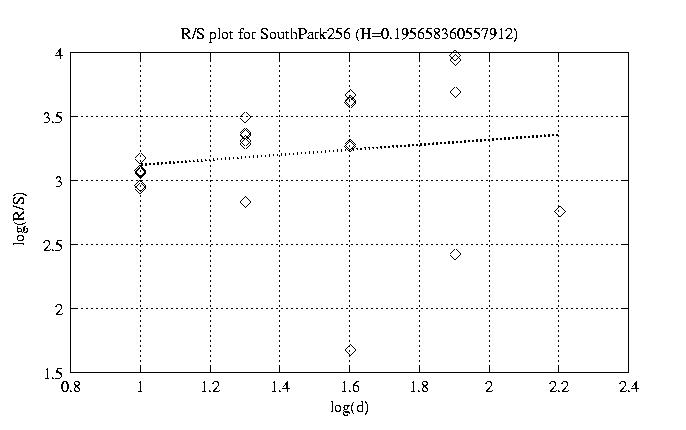

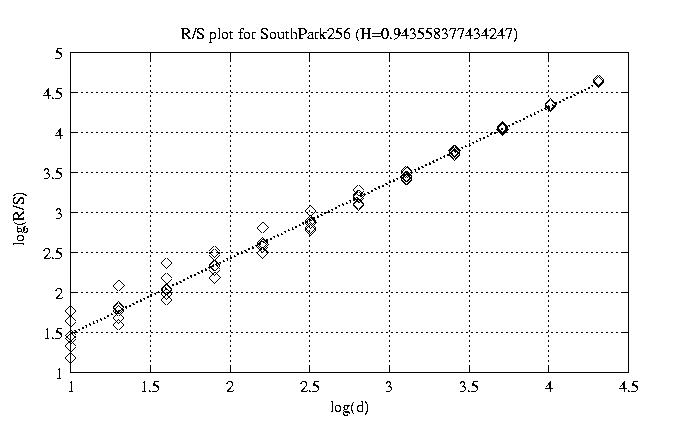

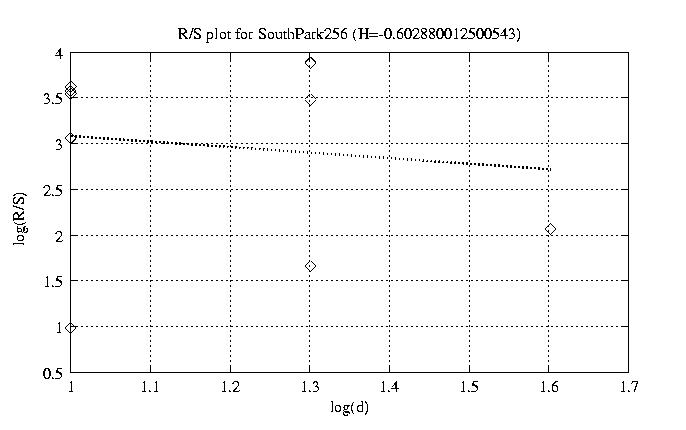

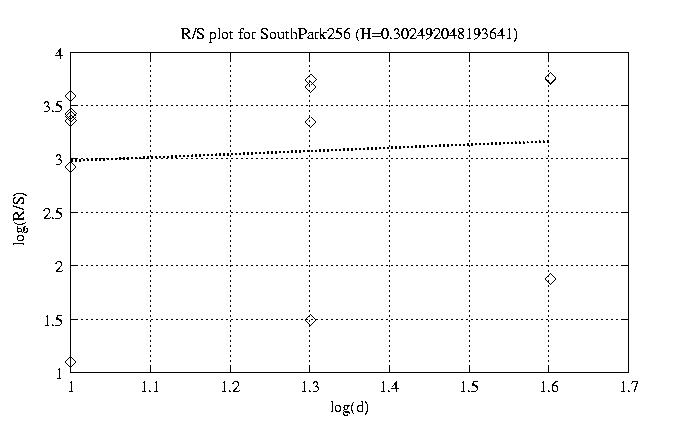

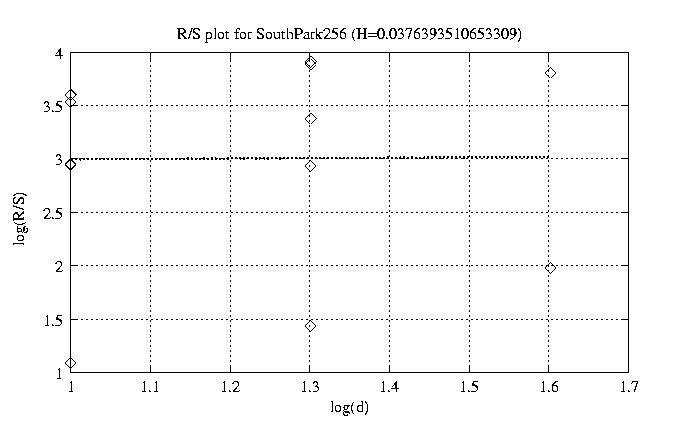

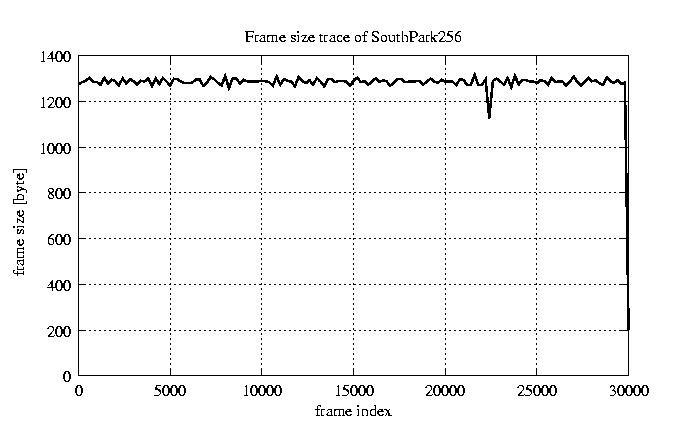

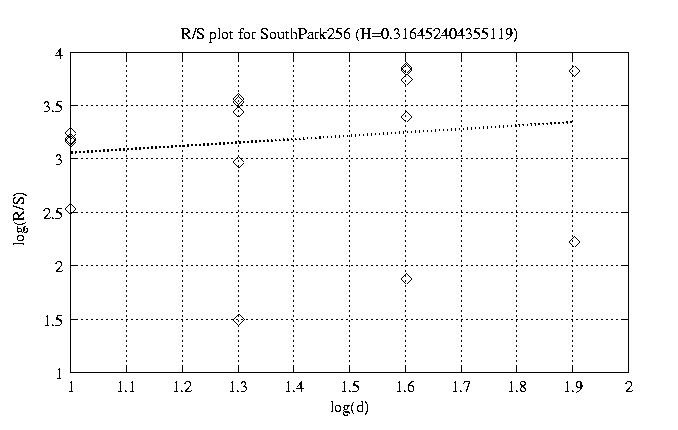

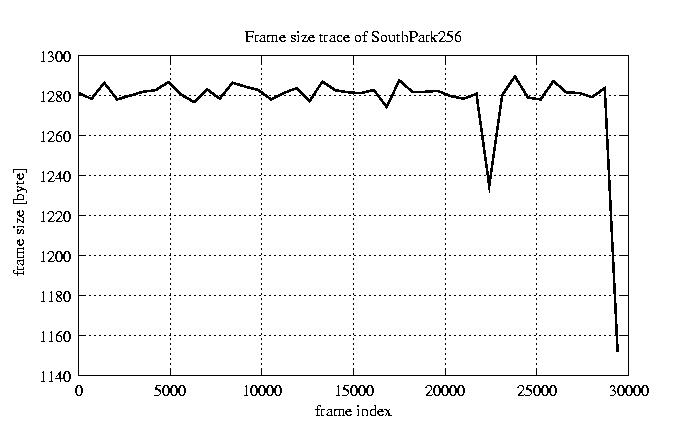

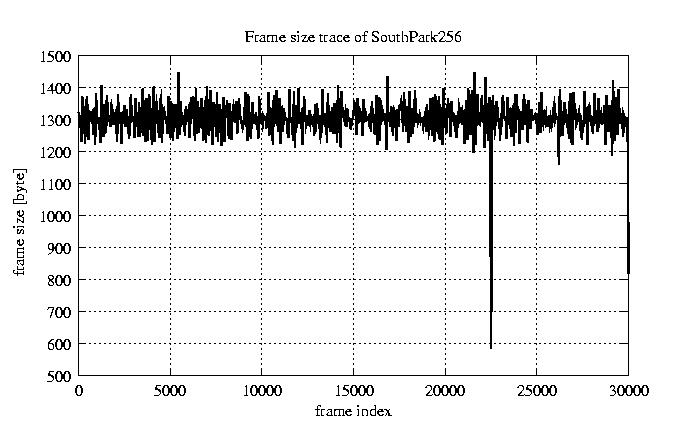

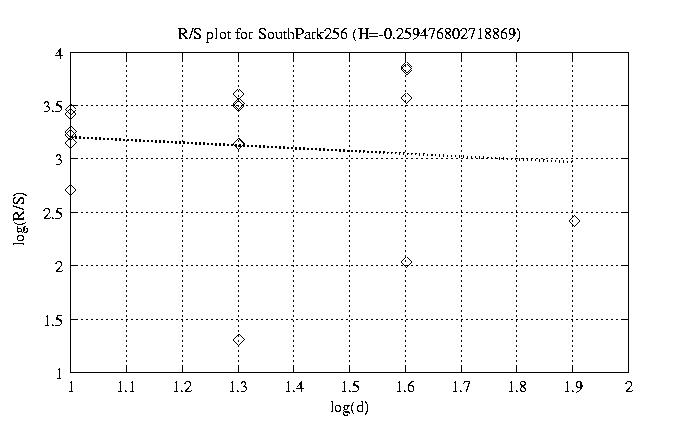

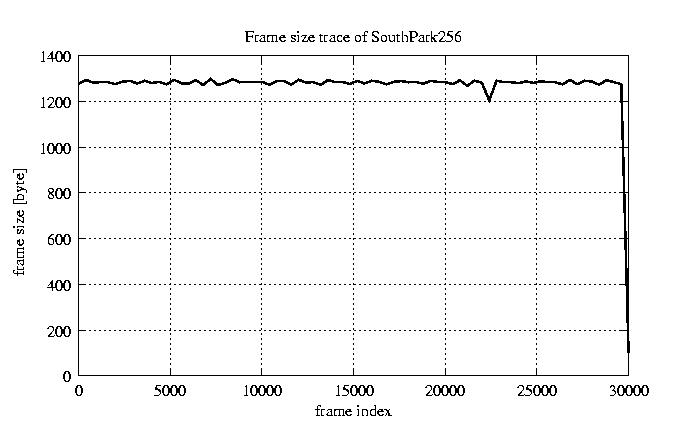

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.944 view view 12 0.918 view view 50 0.690 view view 100 0.421 view view 200 0.196 view view 300 0.316 view view 400 -0.259 view view 500 -0.060 view view 600 0.302 view view 700 0.038 view view 800 -0.603 view view

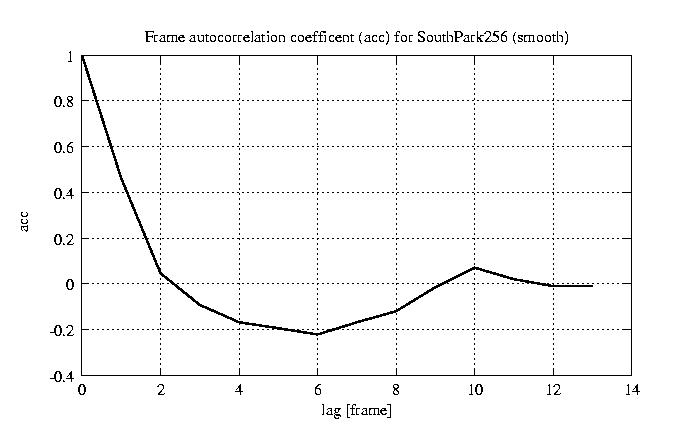

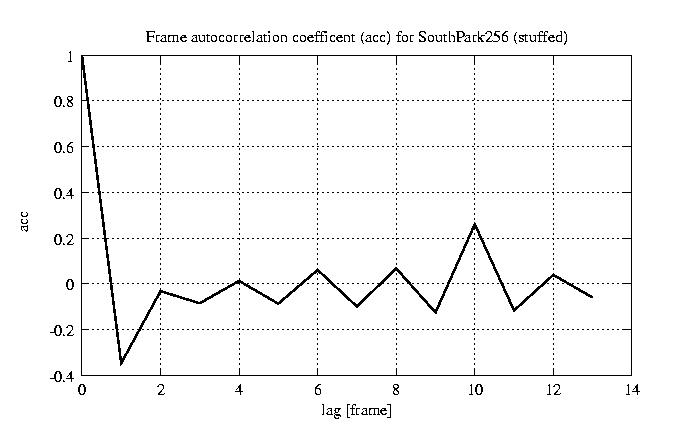

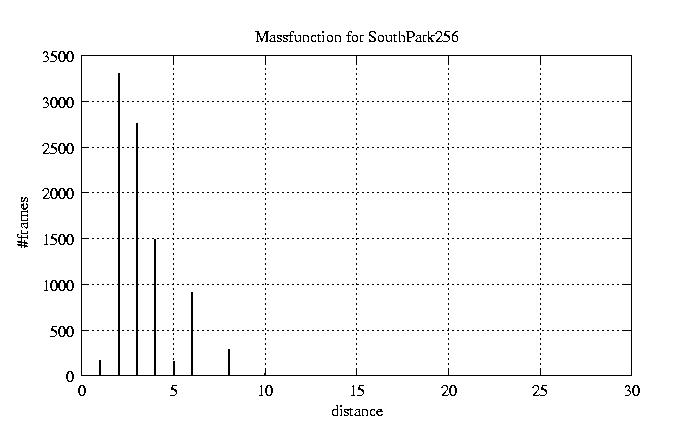

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
