MP4 - Susi und Strolch
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 65.06 File Size byte 5.3e+07 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5.8e+02 var frame size - 3.9e+05 CoV of frame size - 1.07 min frame size byte 26 max frame size byte 6300 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 1.3e+06 Peak/Mean of bit rate - 10.78 GoP statistics # of GoPs - 7499 mean GoP size byte 7e+03 var GoP size - 1.6e+07 CoV of GoP size - 0.58 min GoP size byte 828 max GoP size byte 64971 Mean bit rate bit/sec 1.2e+05 Peak bit rate bit/sec 1.1e+06 Peak/Mean of bit rate - 9.27 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p
probability function F = sum p
inverse probability function G = 1 - F

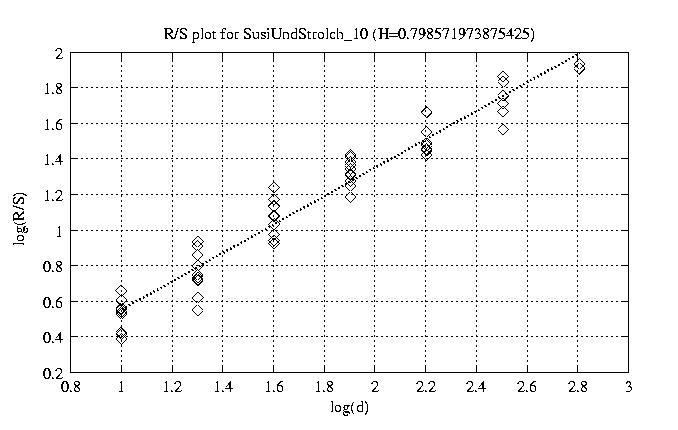

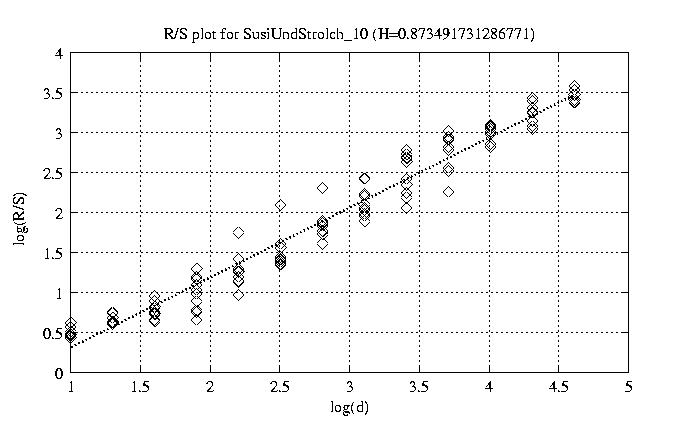

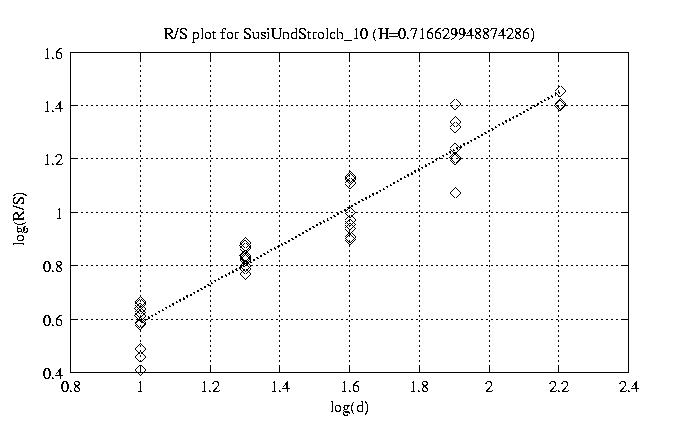

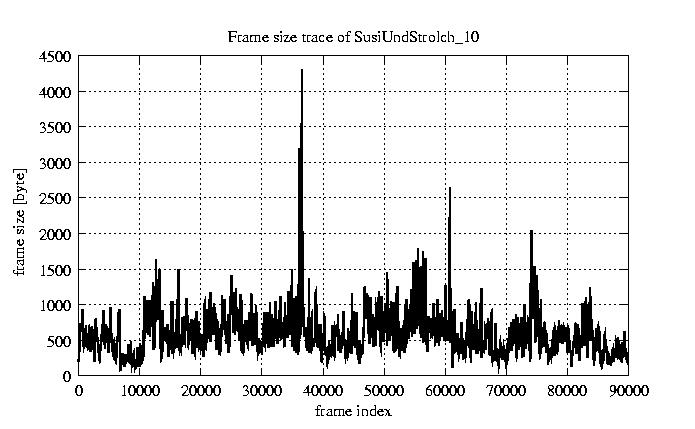

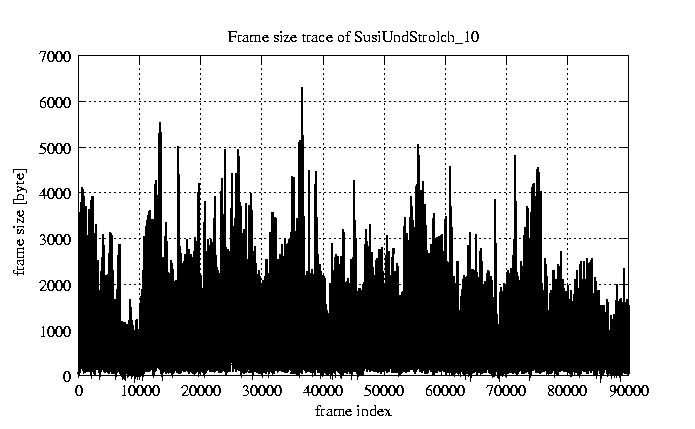

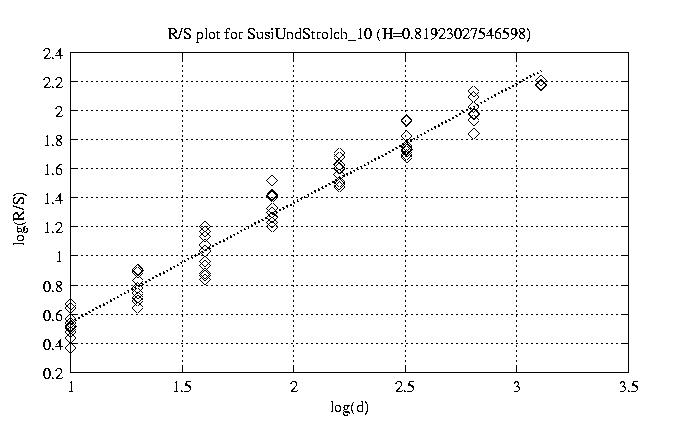

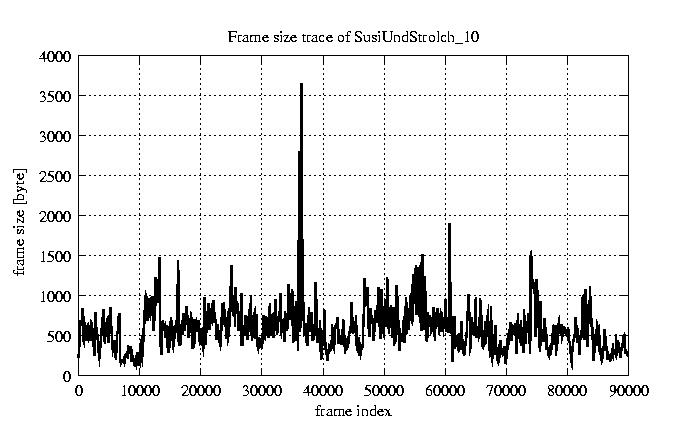

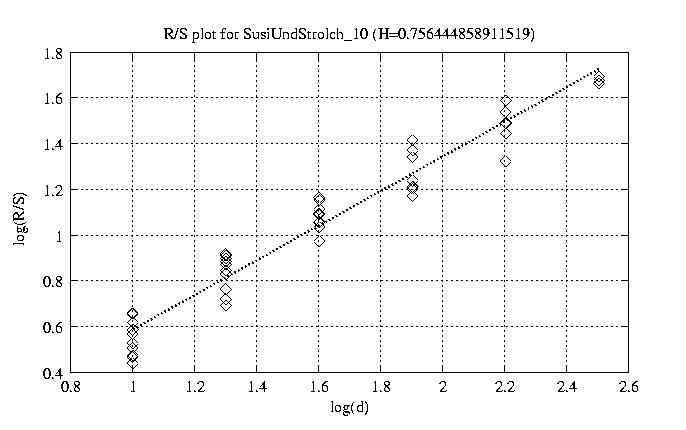

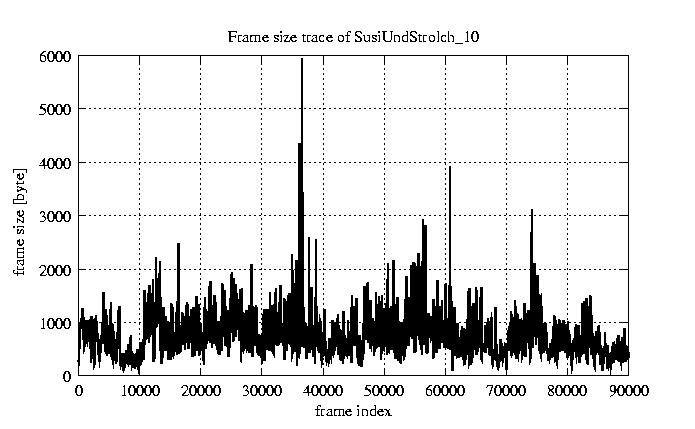

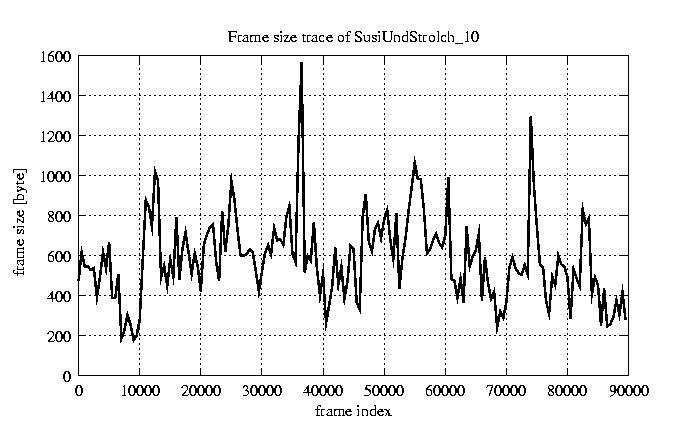

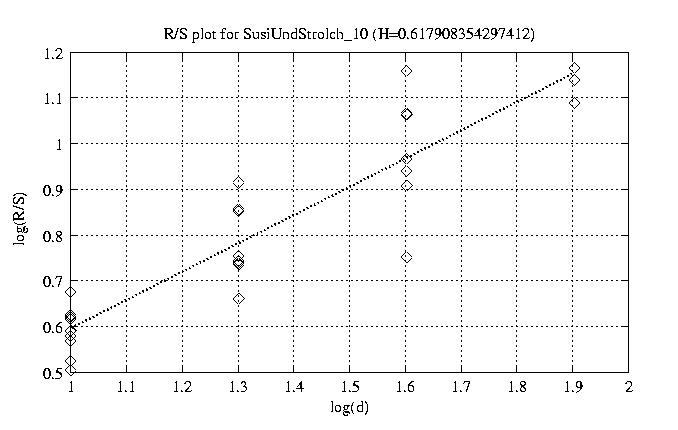

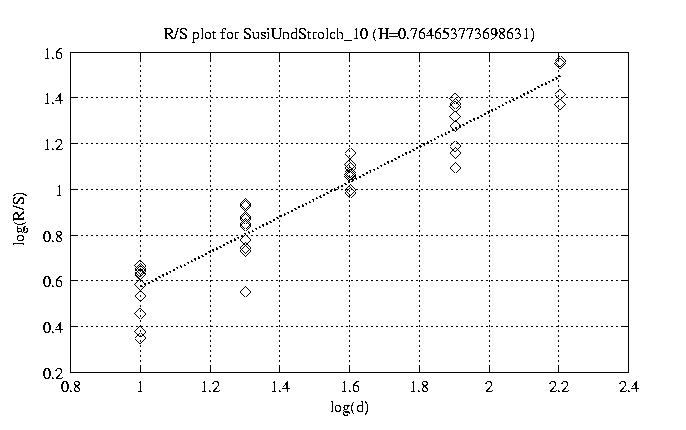

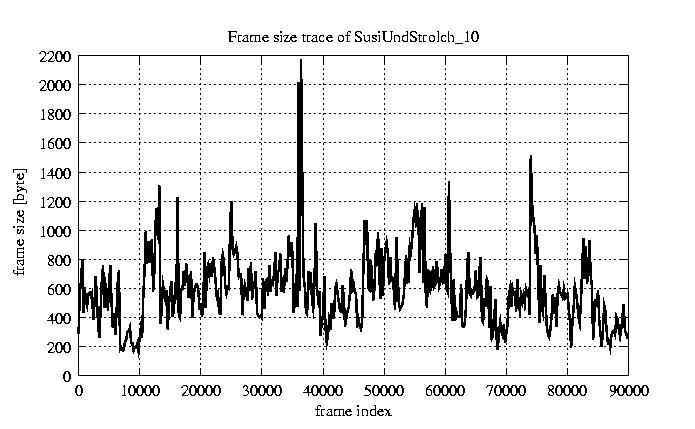

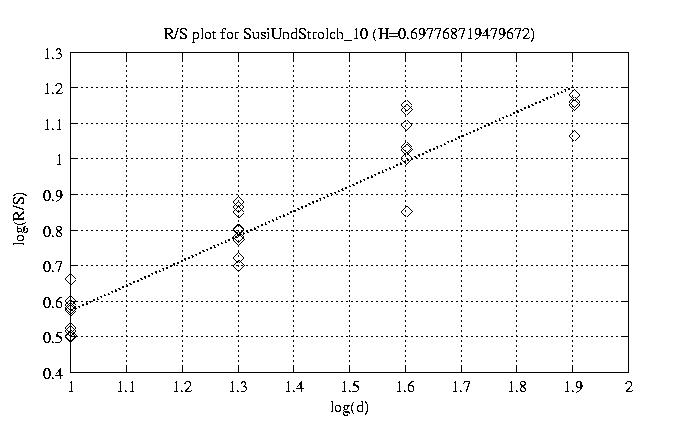

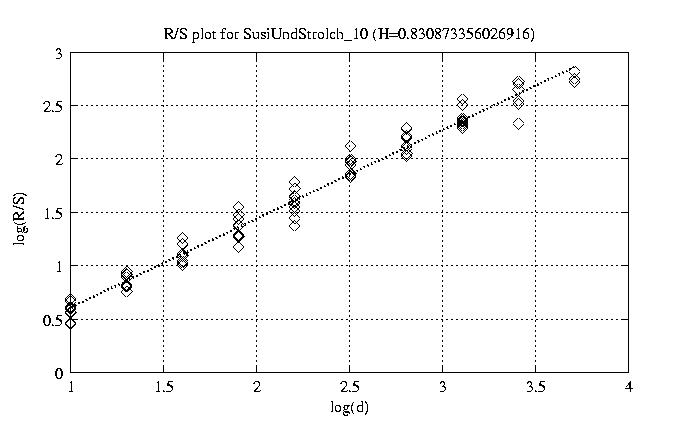

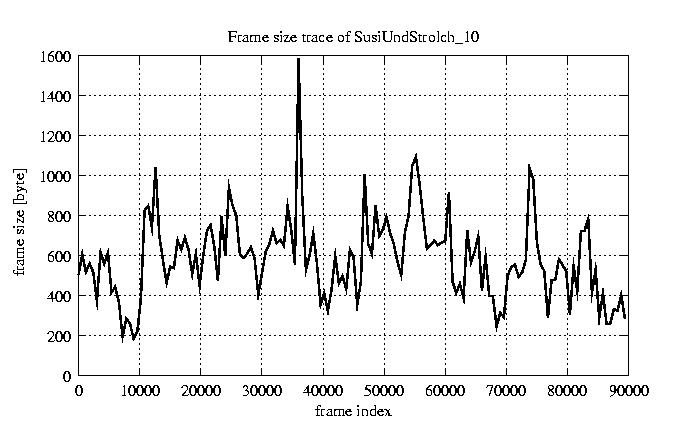

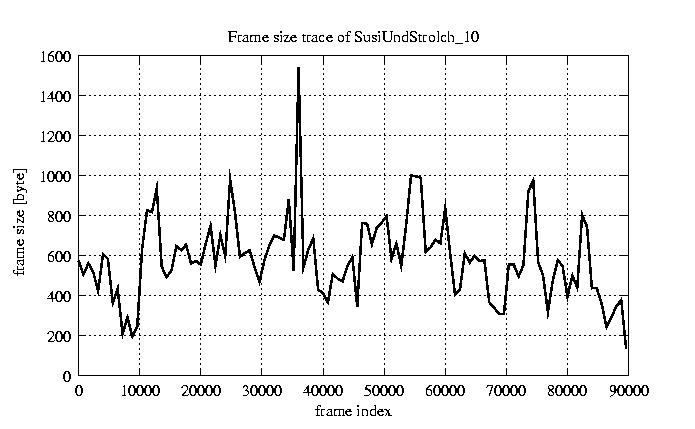

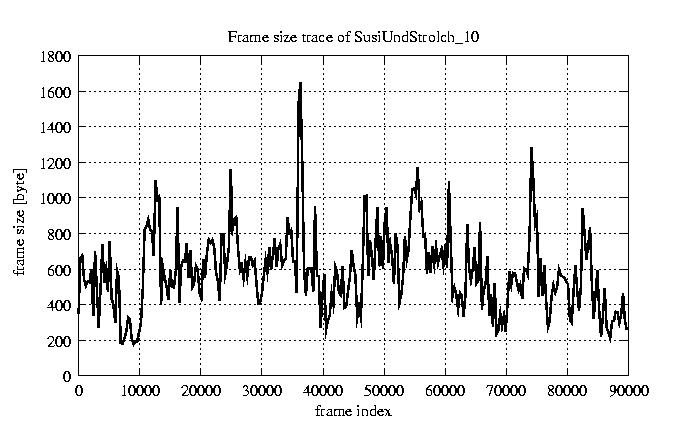

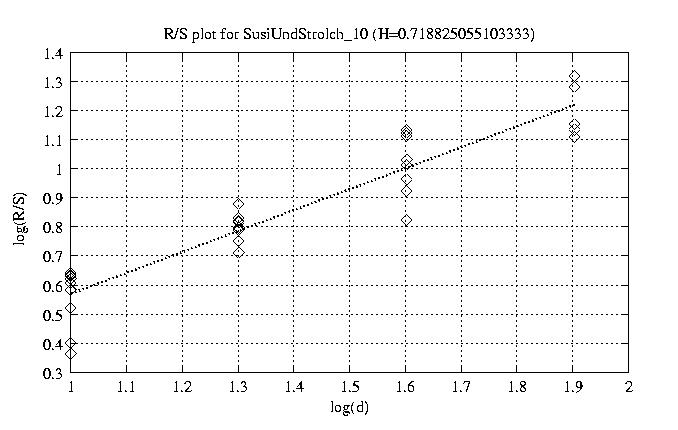

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.873 view view 12 0.831 view view 50 0.819 view view 100 0.799 view view 200 0.756 view view 300 0.765 view view 400 0.717 view view 500 0.766 view view 600 0.719 view view 700 0.698 view view 800 0.618 view view

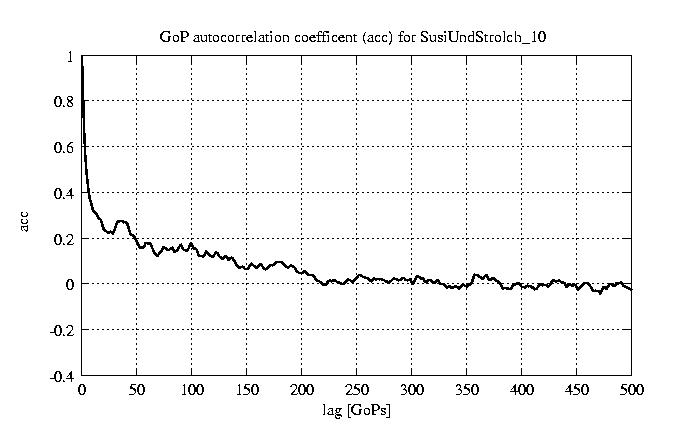

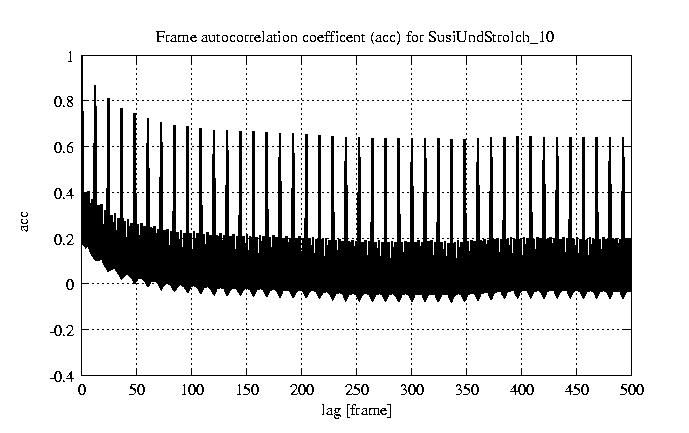

other plots	autocorrelation function of frames autocorrelation function of GoPs
	HOME BACK

Frank Fitzek
