H263 - South Park
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.27 476.27 File size byte 2.4e+06 2.4e+06 Video run time msec 1.2e+06 1.2e+06 1.2e+06 # of Frames - 30018.00 6843.00 mean frame size byte 79.82 350.15 var frame size - 44525.72 100674.60 CoV of frame size - 2.64 0.91 min frame size byte 0.00 31.00 max frame size byte 6870.00 6870.00 Peak/Mean frame - 86.07 19.62 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 1.3e+05 Peak/Mean of bit rate - 8.4 CoV of bit rate - 0.39 max inter frame space frames 1.00 84.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

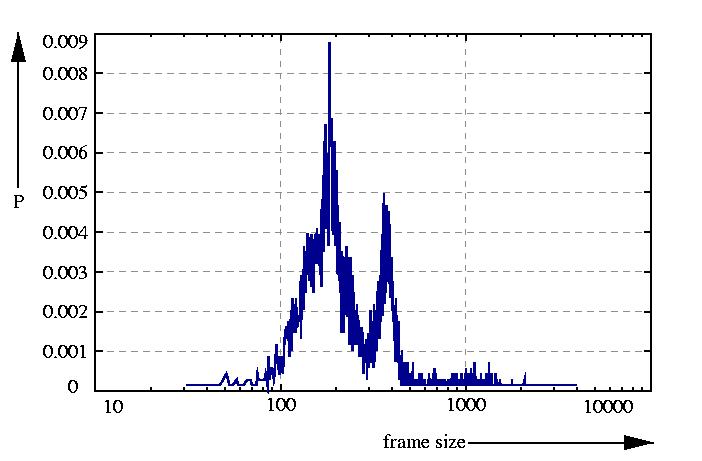

probability density function p

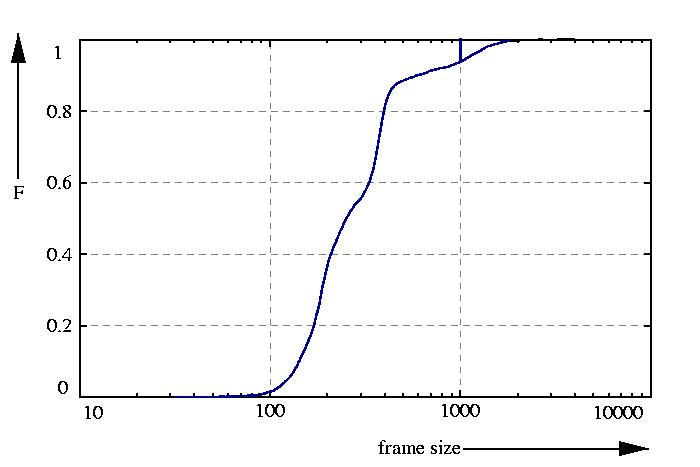

probability function F = sum p

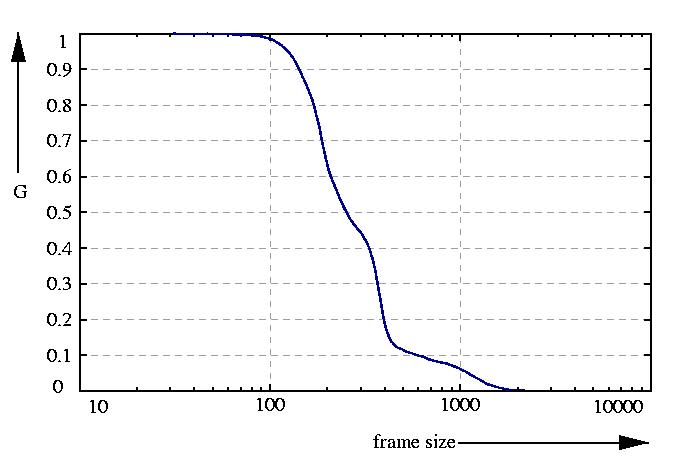

inverse probability function G = 1 - F

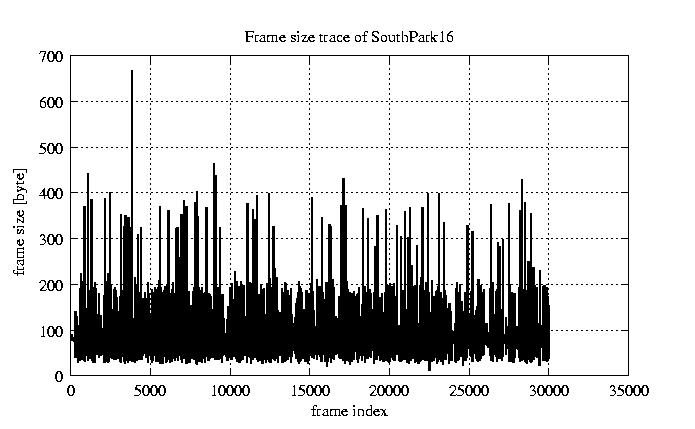

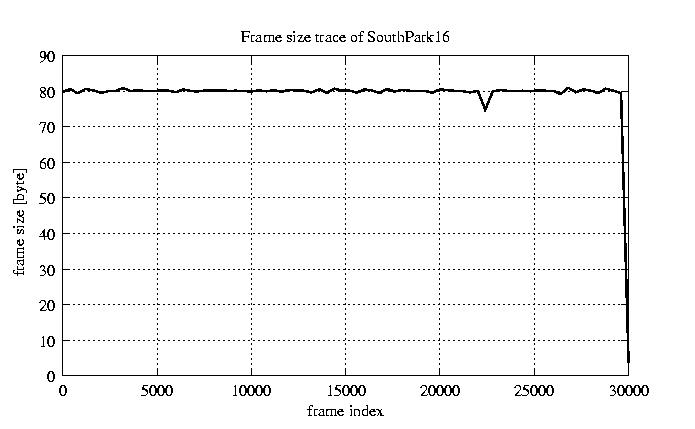

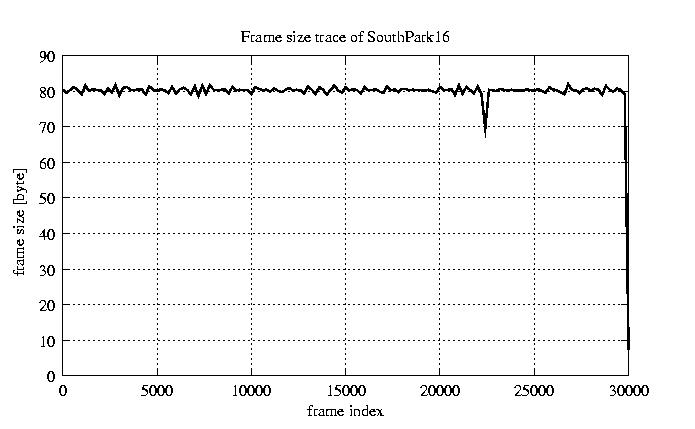

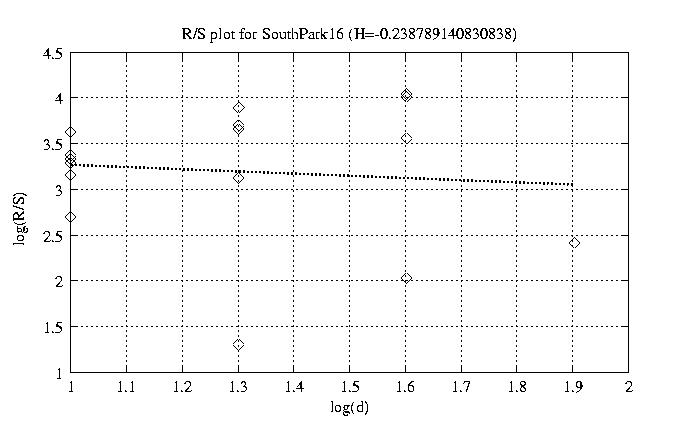

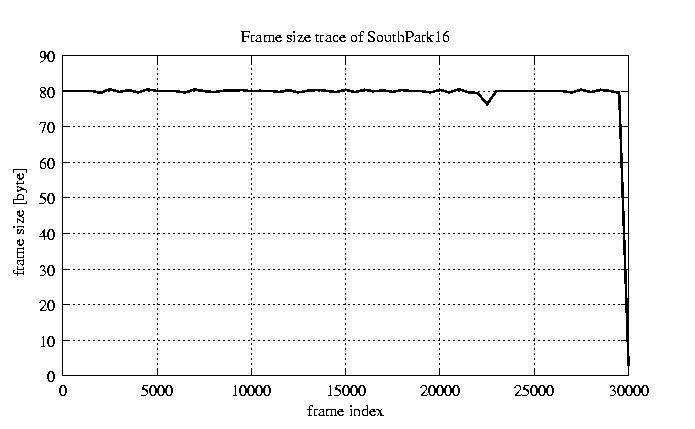

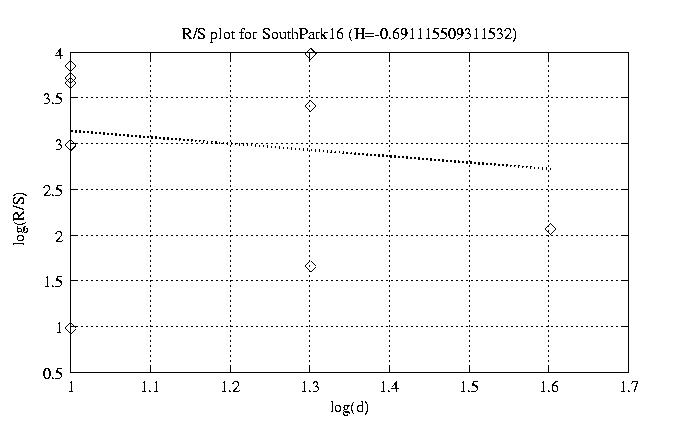

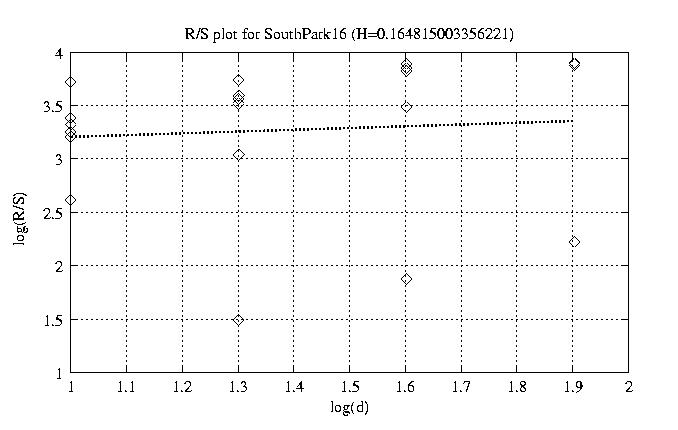

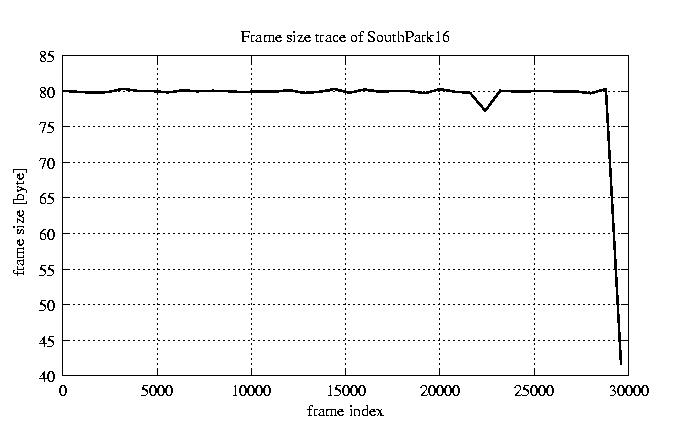

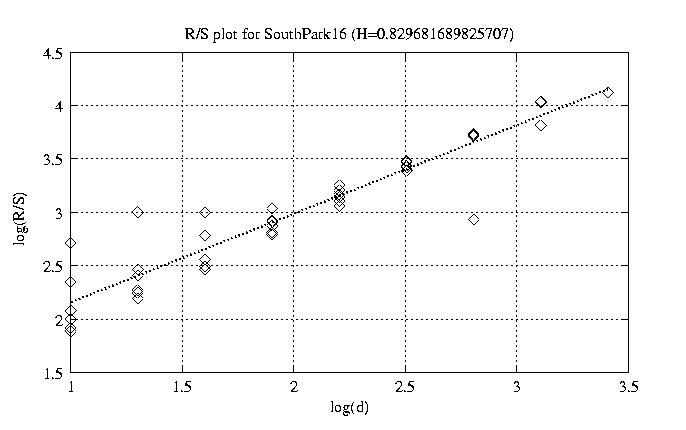

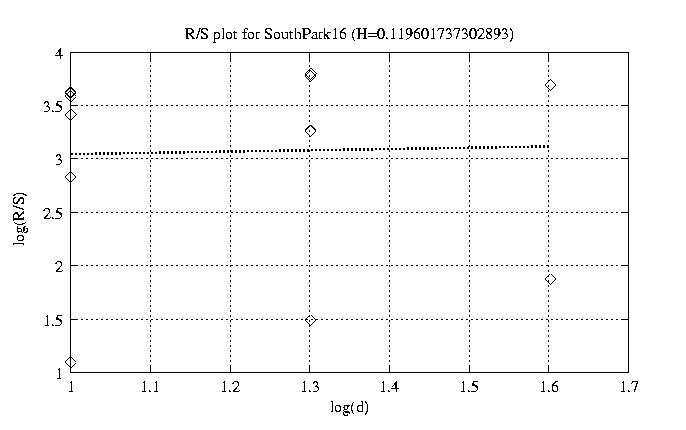

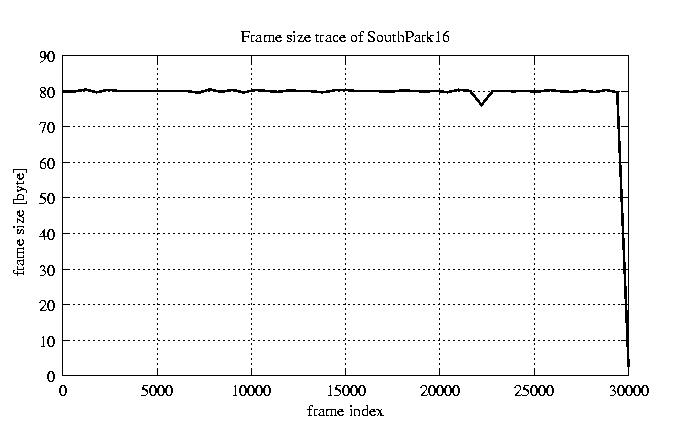

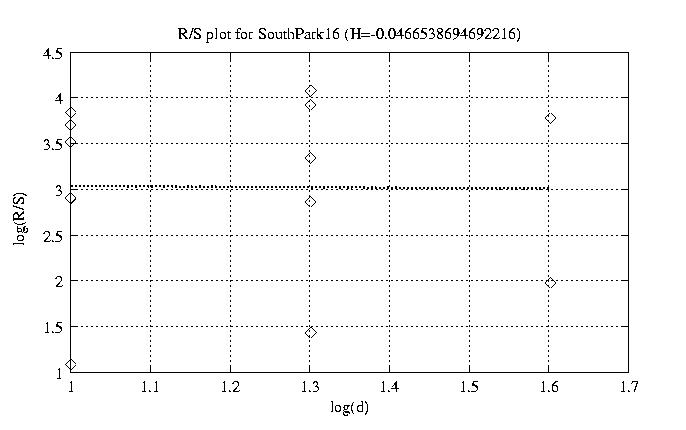

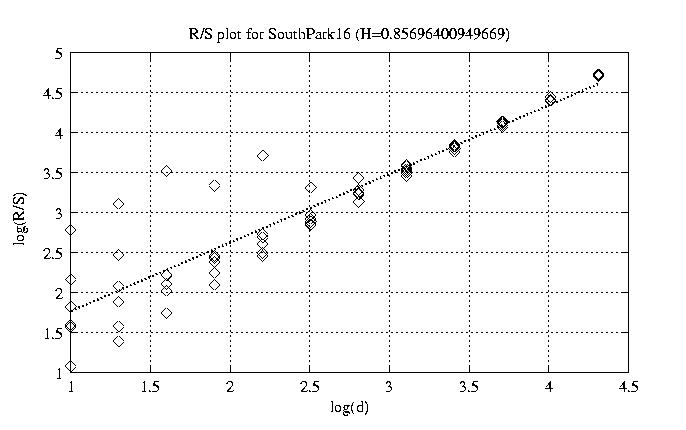

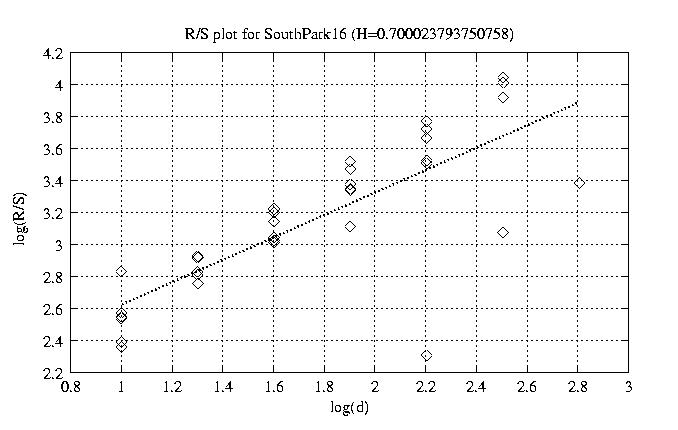

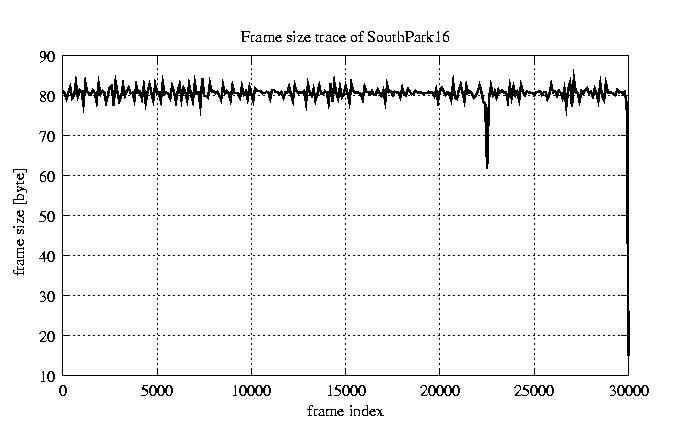

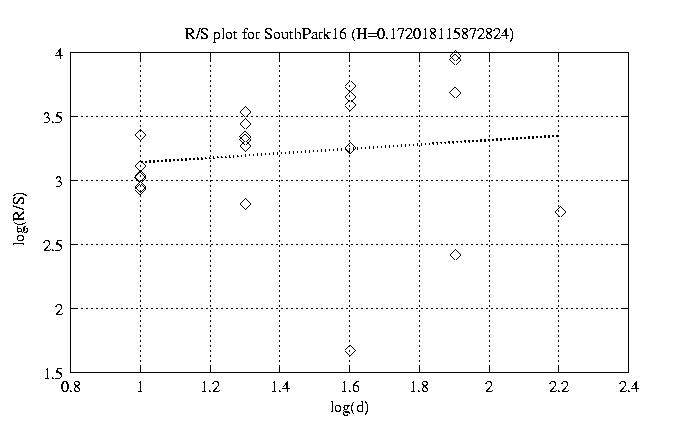

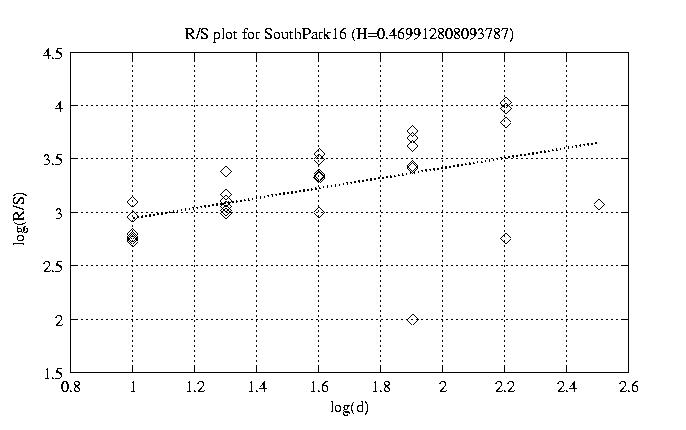

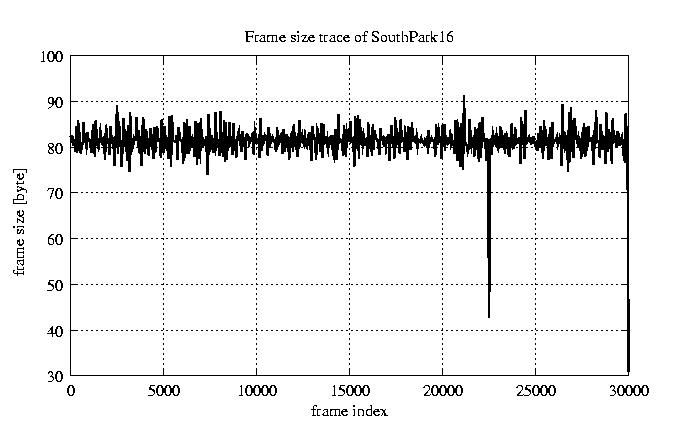

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.857 view view 12 0.830 view view 50 0.700 view view 100 0.470 view view 200 0.172 view view 300 0.165 view view 400 -0.239 view view 500 -0.086 view view 600 0.120 view view 700 -0.047 view view 800 -0.691 view view

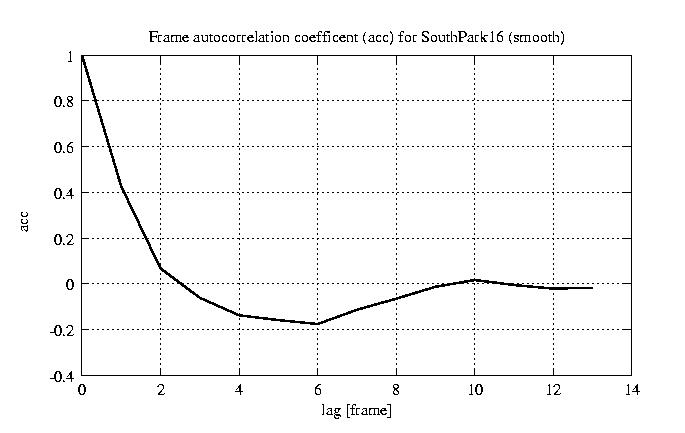

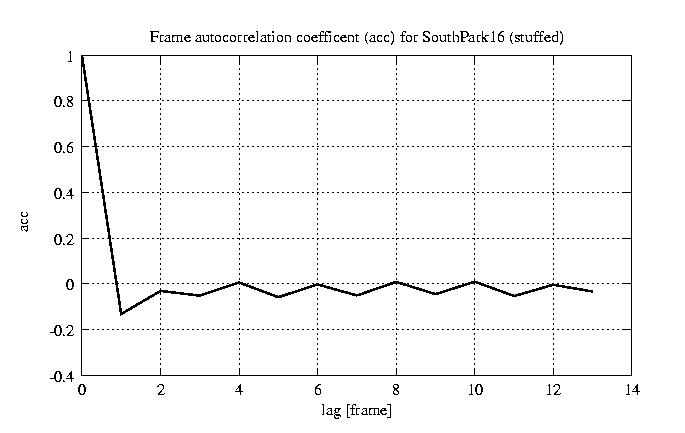

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
