MP4 - Simpsons
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 17.91 File Size byte 6.4e+07 Video run time msec 1.2e+06 # of Frames - 30335 mean frame size byte 2.1e+03 var frame size - 2.6e+06 CoV of frame size - 0.75 min frame size byte 0 max frame size byte 22188 Mean bit rate bit/sec 4.2e+05 Peak bit rate bit/sec 4.4e+06 Peak/Mean of bit rate - 10.45 GoP statistics # of GoPs - 2527 mean GoP size byte 2.5e+04 var GoP size - 1.2e+08 CoV of GoP size - 0.43 min GoP size byte 464 max GoP size byte 143550 Mean bit rate bit/sec 4.2e+05 Peak bit rate bit/sec 2.4e+06 Peak/Mean of bit rate - 5.63 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

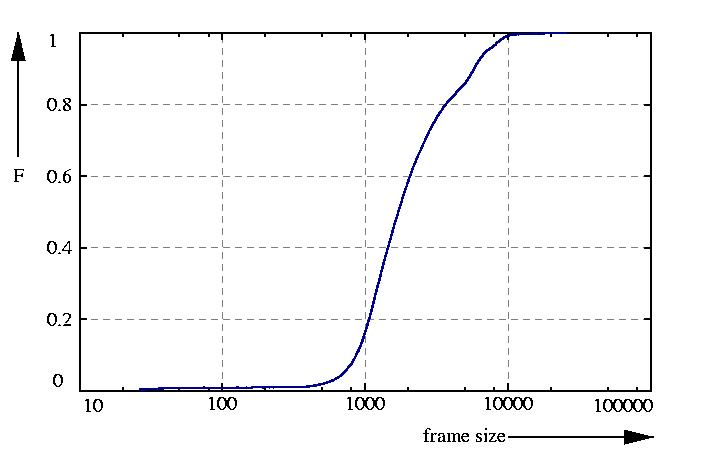

probability function F = sum p

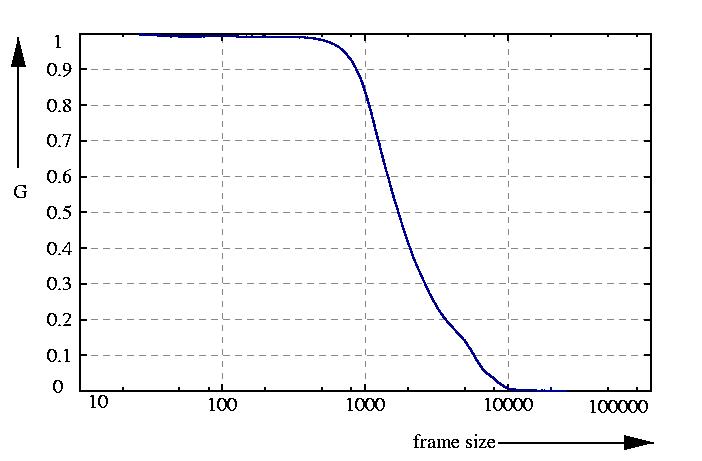

inverse probability function G = 1 - F

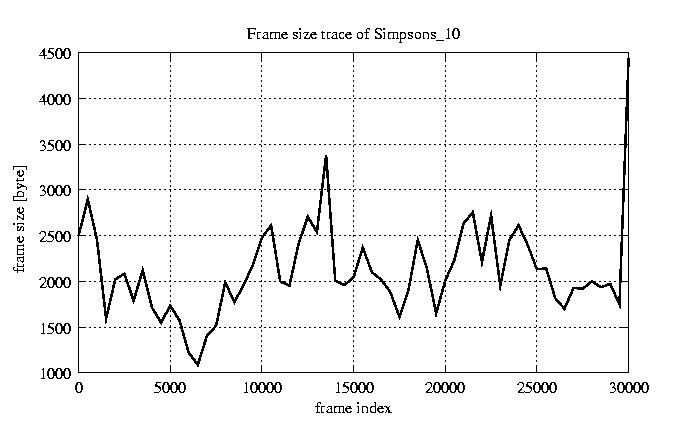

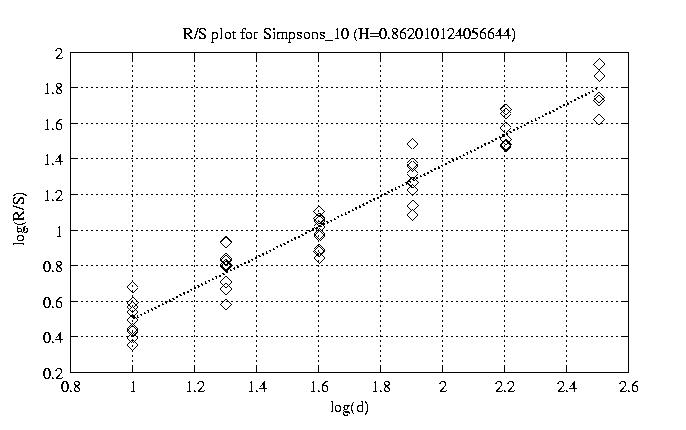

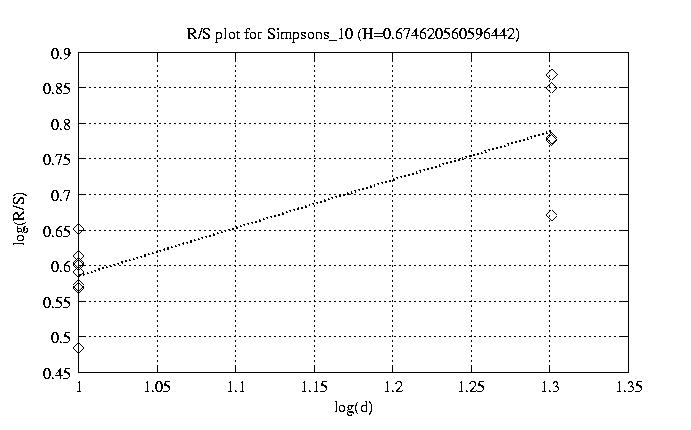

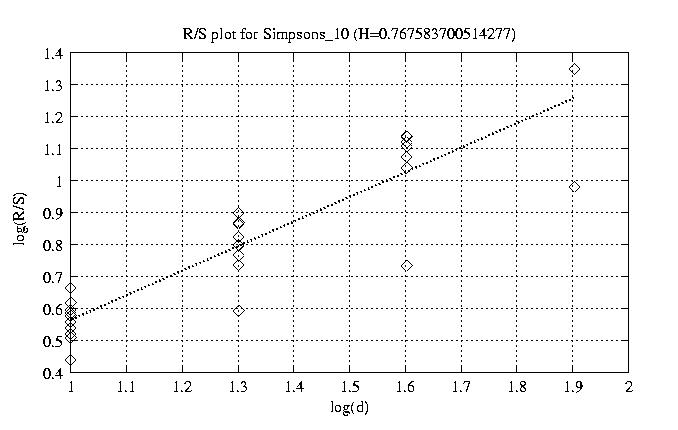

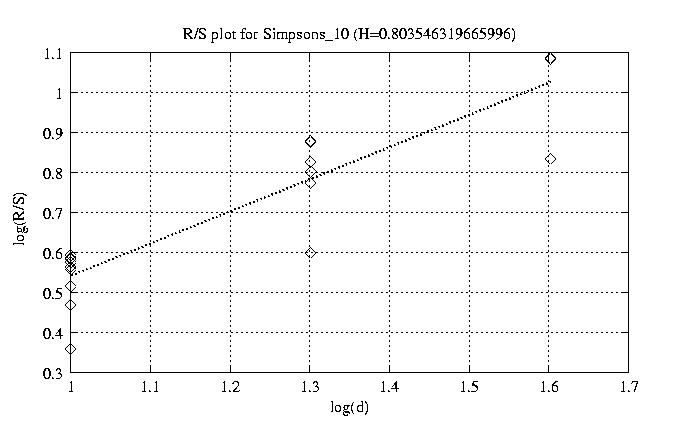

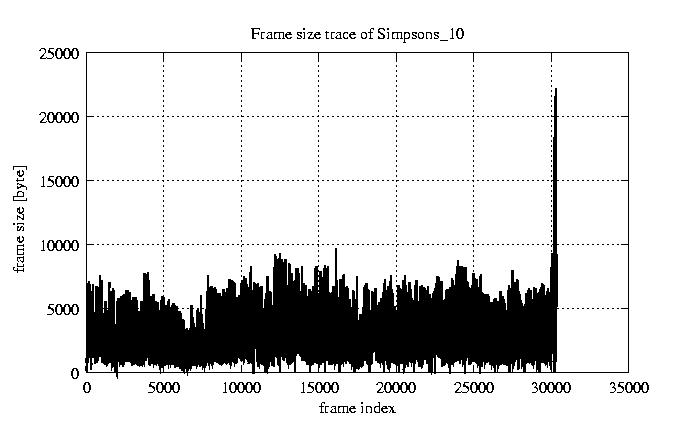

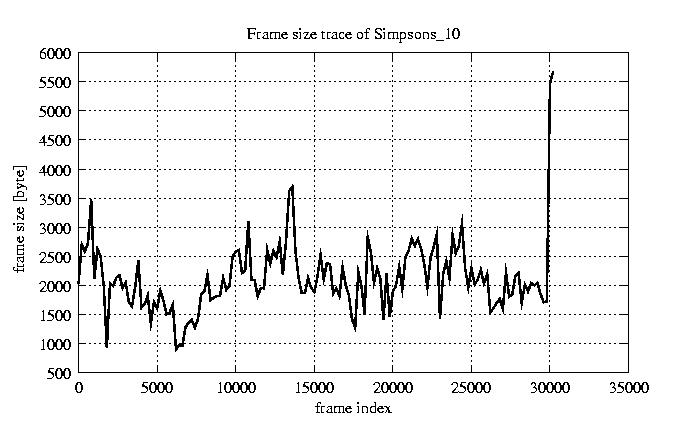

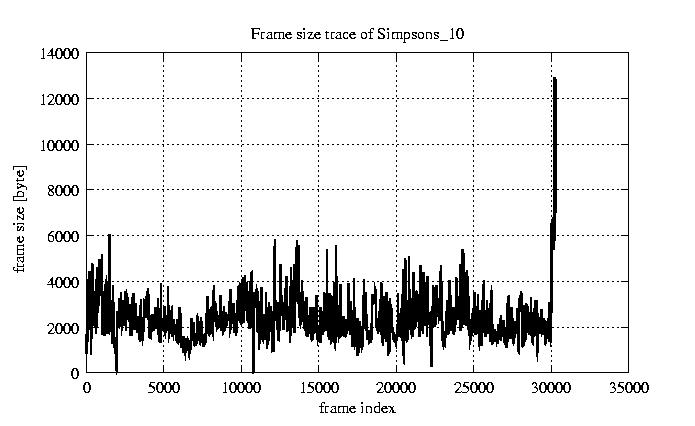

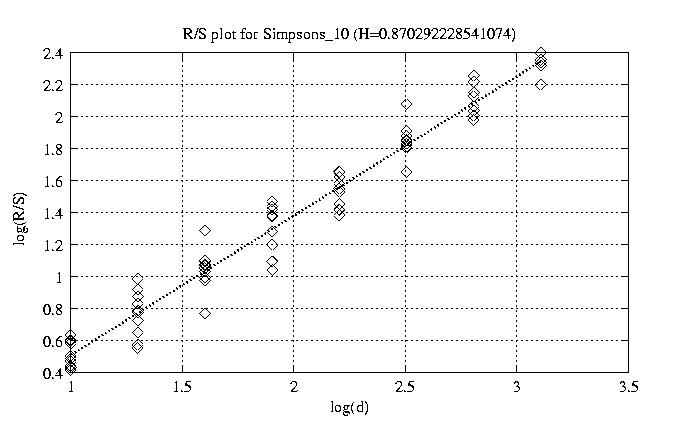

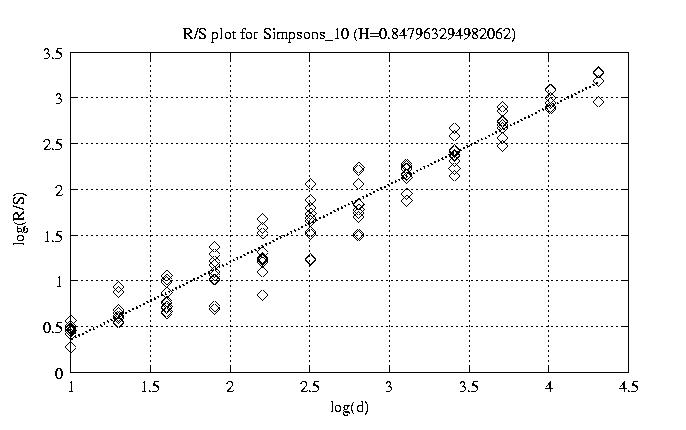

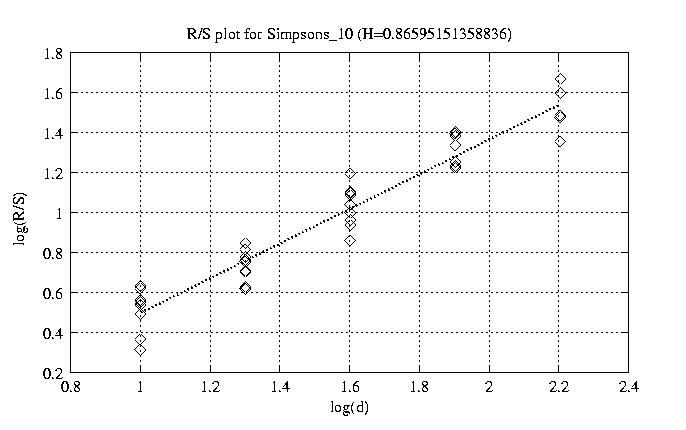

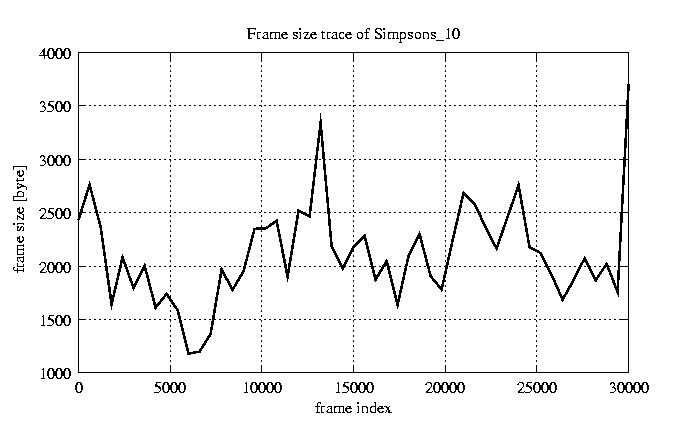

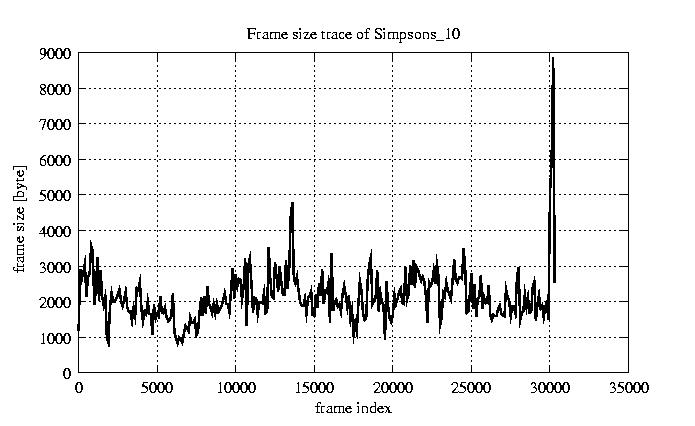

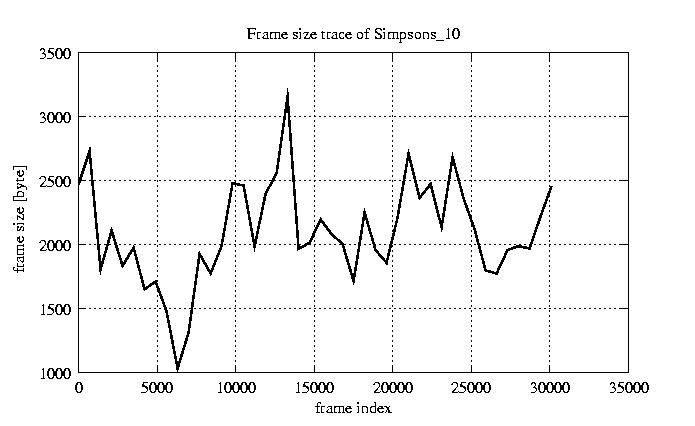

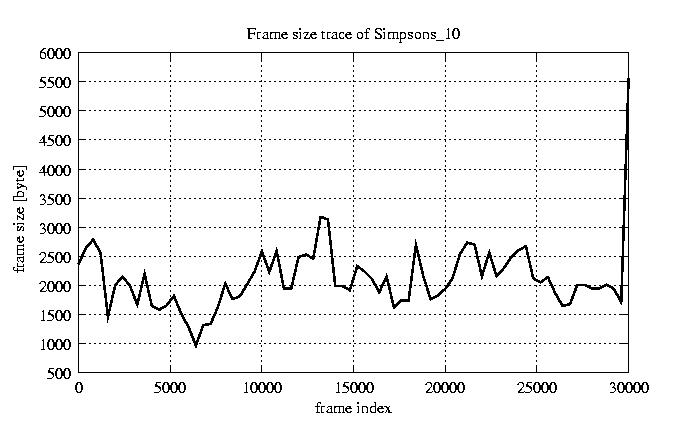

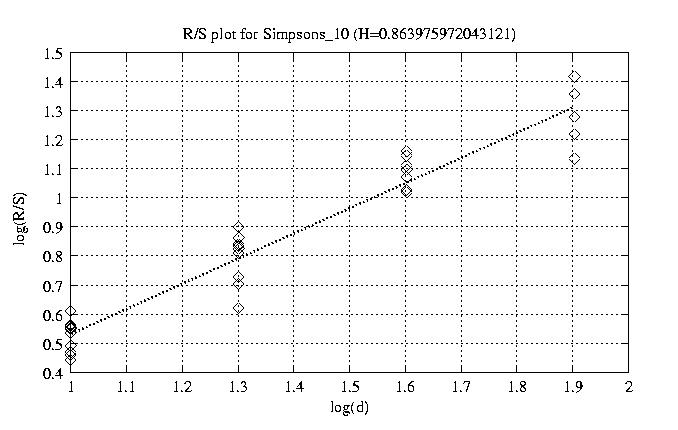

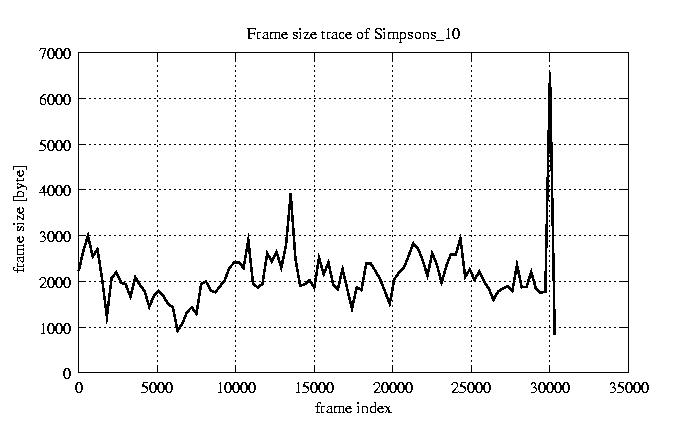

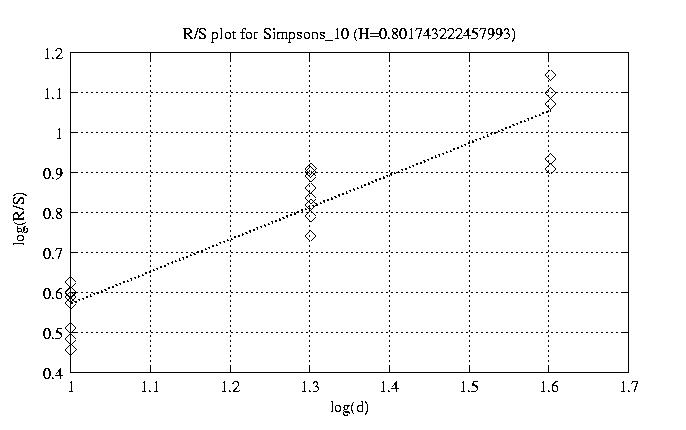

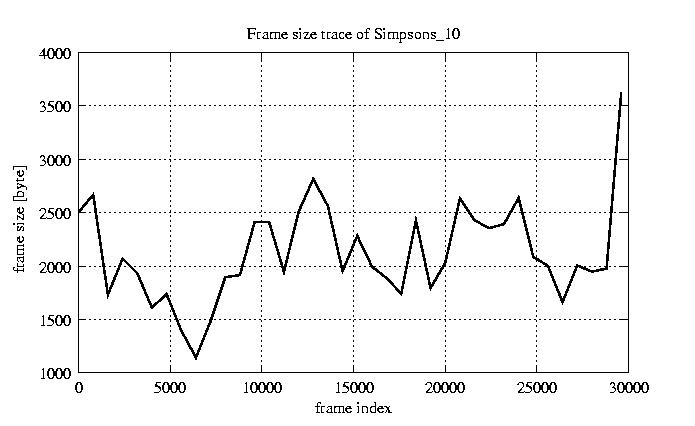

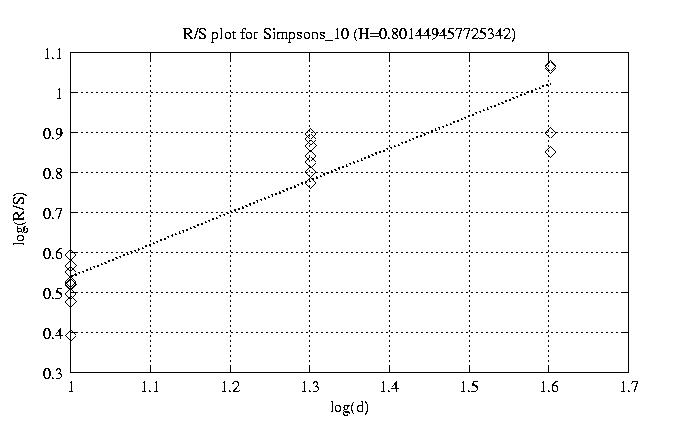

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.848 view view 12 0.870 view view 50 0.862 view view 100 0.866 view view 200 0.864 view view 300 0.768 view view 400 0.802 view view 500 0.801 view view 600 0.804 view view 700 0.845 view view 800 0.675 view view

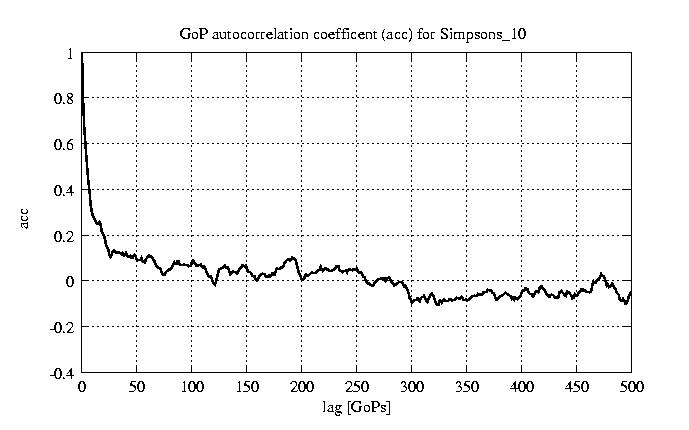

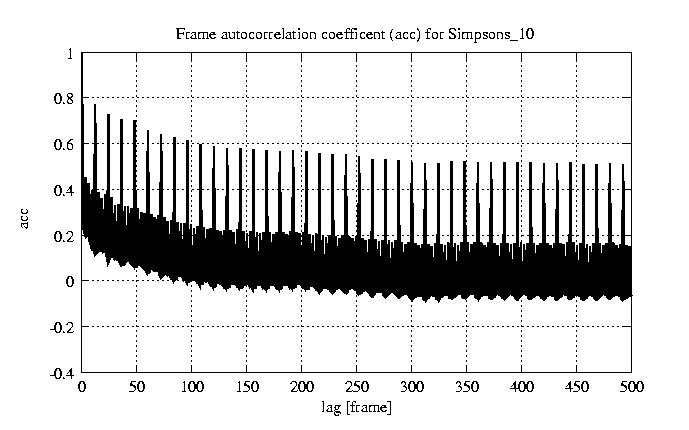

other plots	autocorrelation function of frames autocorrelation function of GoPs
