MP4 - Soccer
high quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 6.87 File Size byte 5e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 5.5e+03 var frame size - 5.2e+06 CoV of frame size - 0.41 min frame size byte 130 max frame size byte 17927 Mean bit rate bit/sec 1.1e+06 Peak bit rate bit/sec 3.6e+06 Peak/Mean of bit rate - 3.24 GoP statistics # of GoPs - 7499 mean GoP size byte 6.6e+04 var GoP size - 4.8e+08 CoV of GoP size - 0.33 min GoP size byte 16341 max GoP size byte 180510 Mean bit rate bit/sec 1.1e+06 Peak bit rate bit/sec 3e+06 Peak/Mean of bit rate - 2.72 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

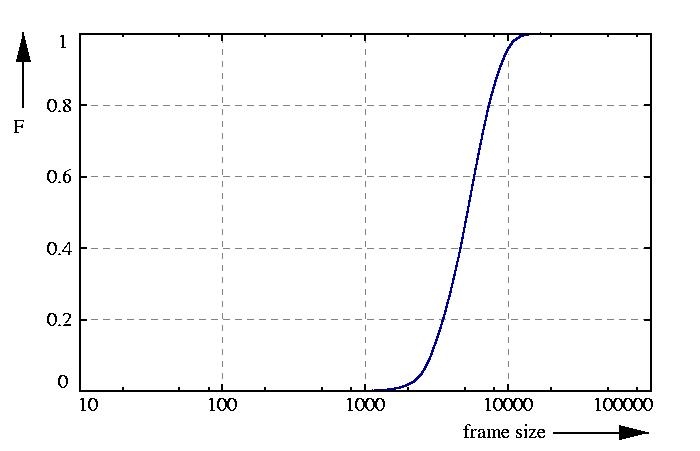

probability function F = sum p

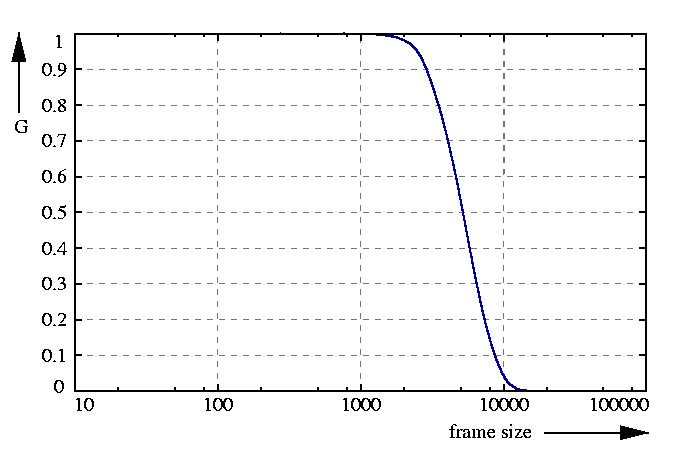

inverse probability function G = 1 - F

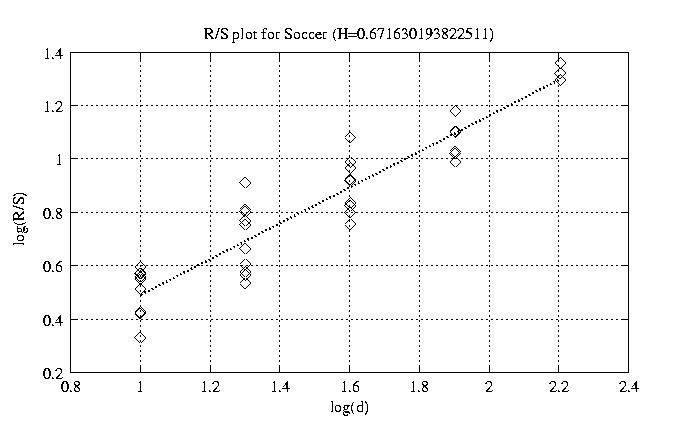

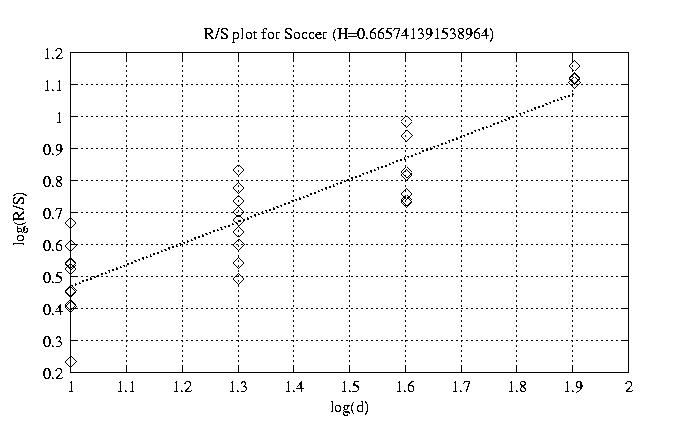

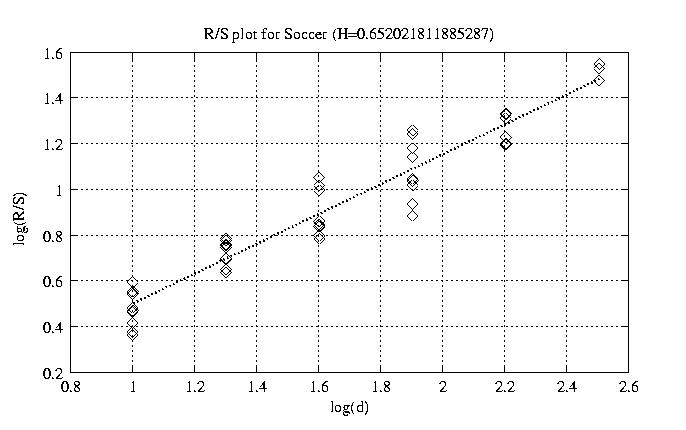

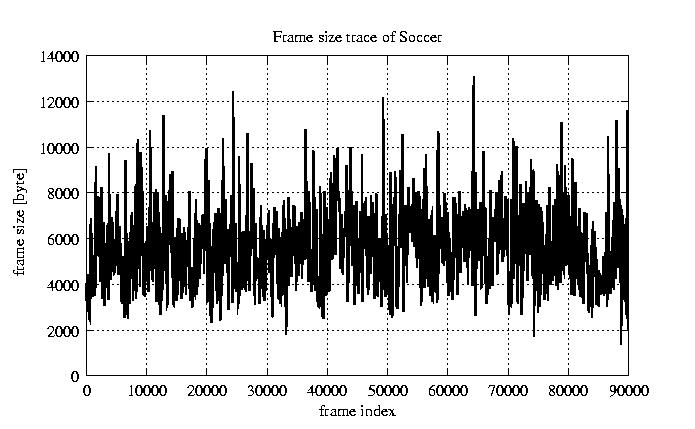

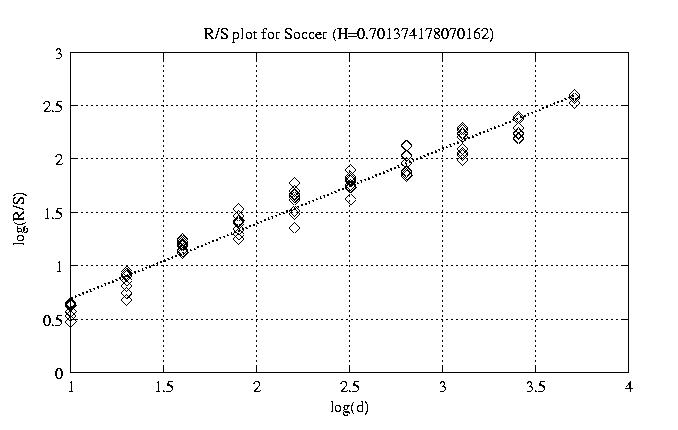

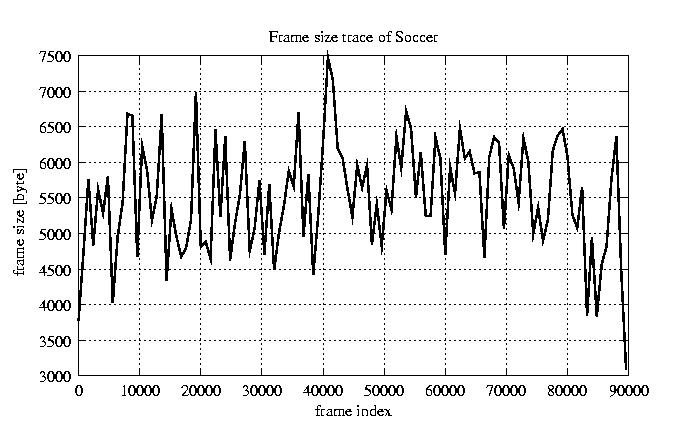

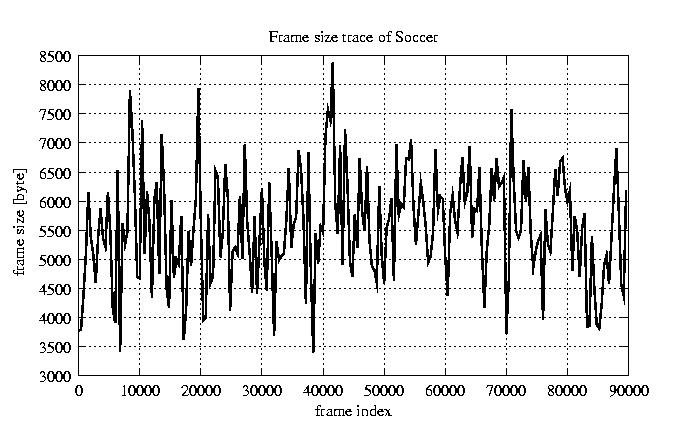

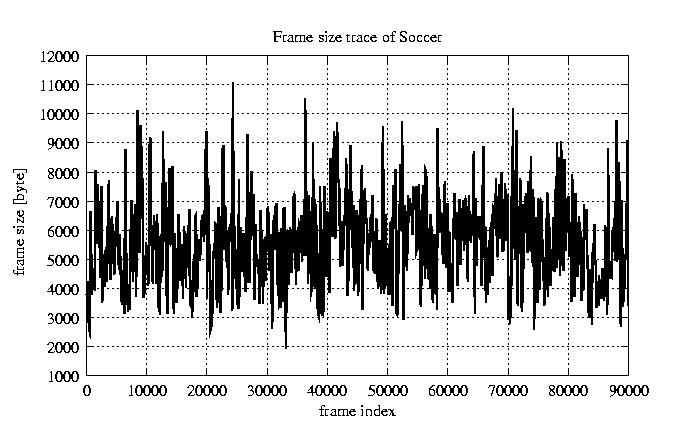

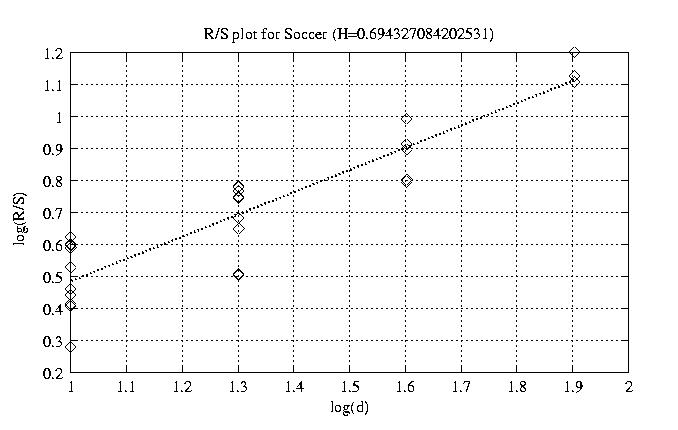

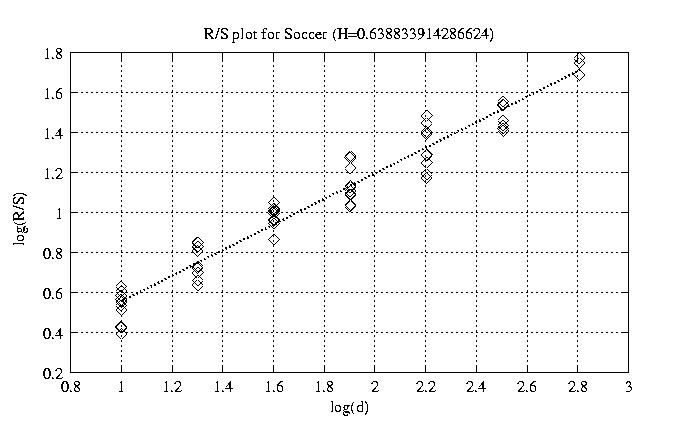

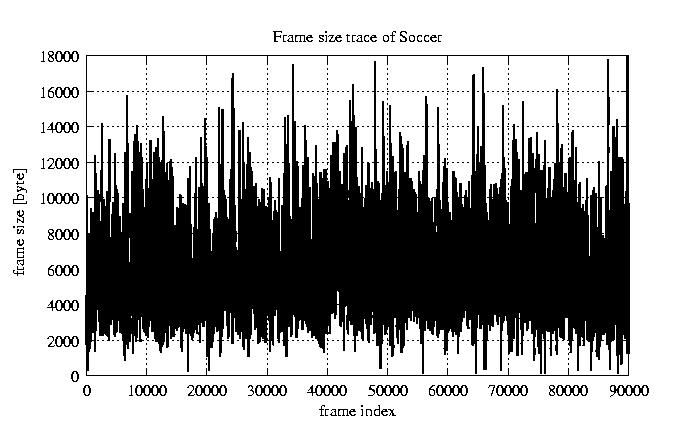

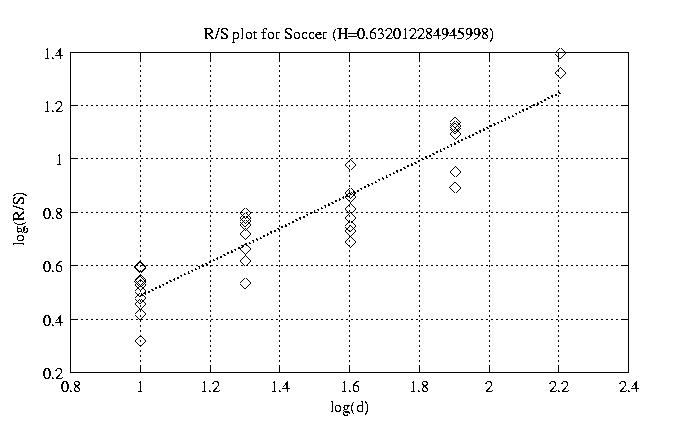

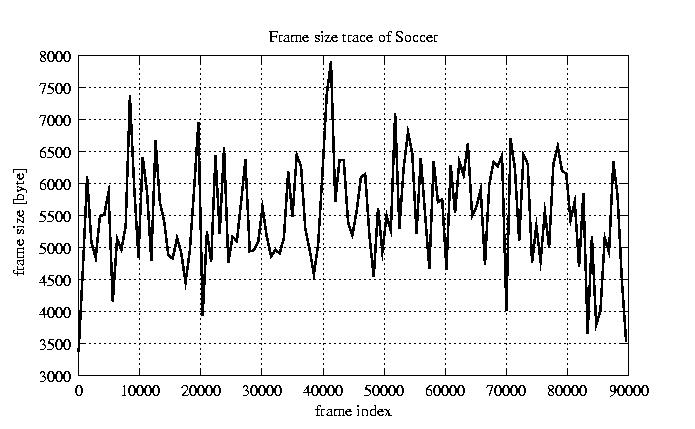

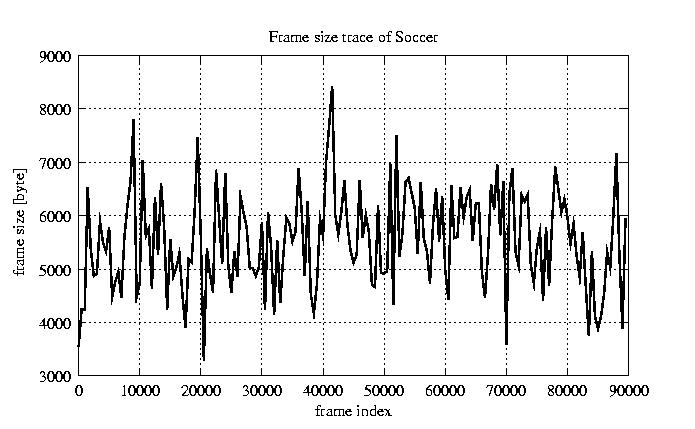

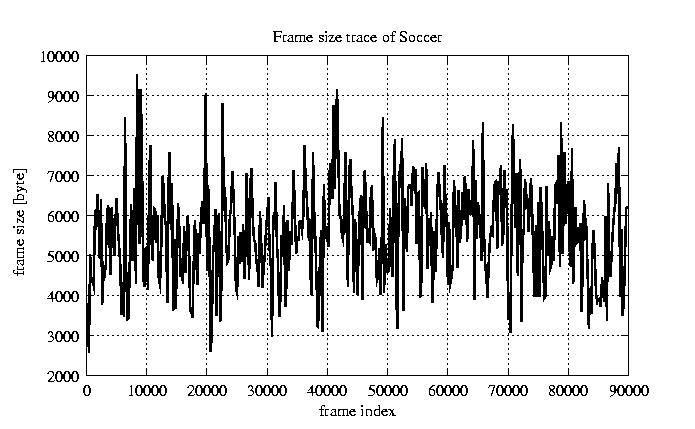

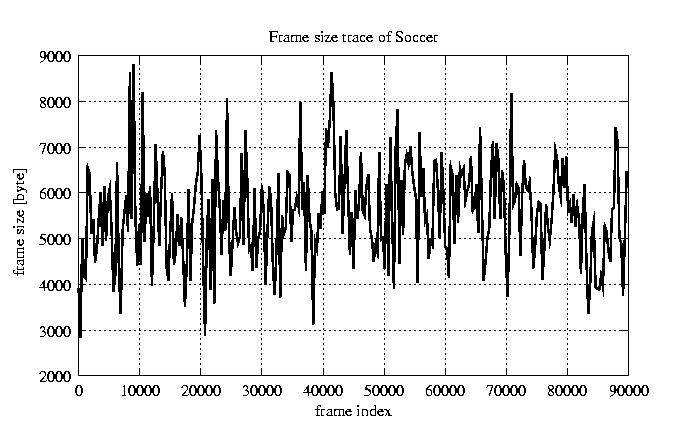

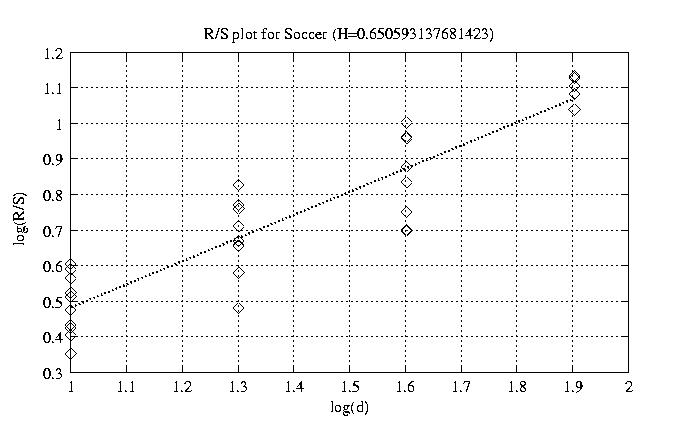

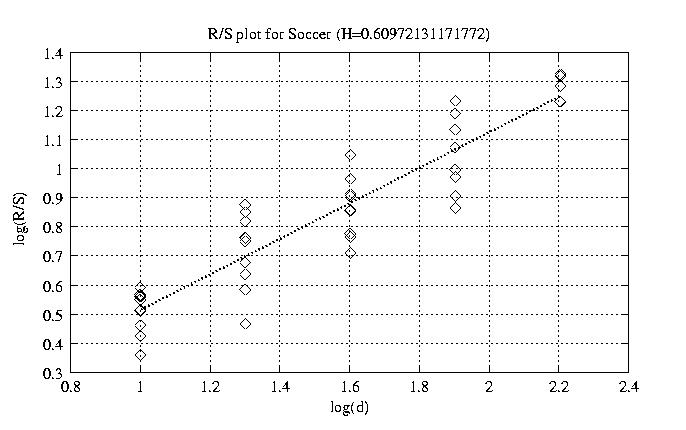

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.837 view view 12 0.701 view view 50 0.642 view view 100 0.639 view view 200 0.652 view view 300 0.610 view view 400 0.672 view view 500 0.632 view view 600 0.651 view view 700 0.666 view view 800 0.694 view view

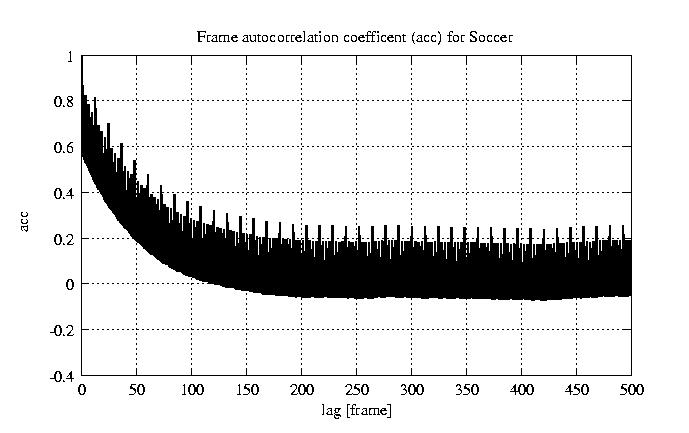

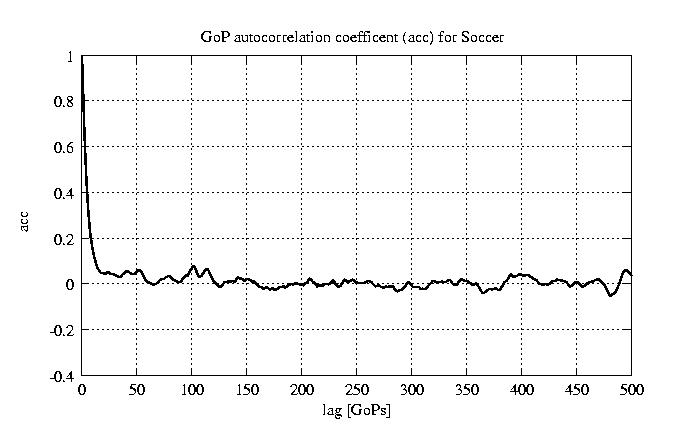

other plots	autocorrelation function of frames autocorrelation function of GoPs
