H263 - Aladdin
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.34 476.34 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90074.00 22067.00 mean frame size byte 79.81 325.78 var frame size - 31474.06 48341.52 CoV of frame size - 2.22 0.67 min frame size byte 0.00 22.00 max frame size byte 3880.00 3880.00 Peak/Mean frame - 48.61 11.91 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 1e+05 Peak/Mean of bit rate - 6.6 CoV of bit rate - 0.31 max inter frame space frames 1.00 46.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.
probability density function p

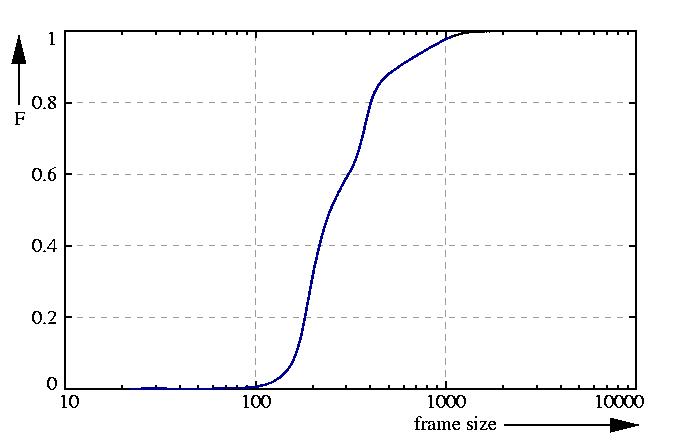

probability function F = sum p
inverse probability function G = 1 - F

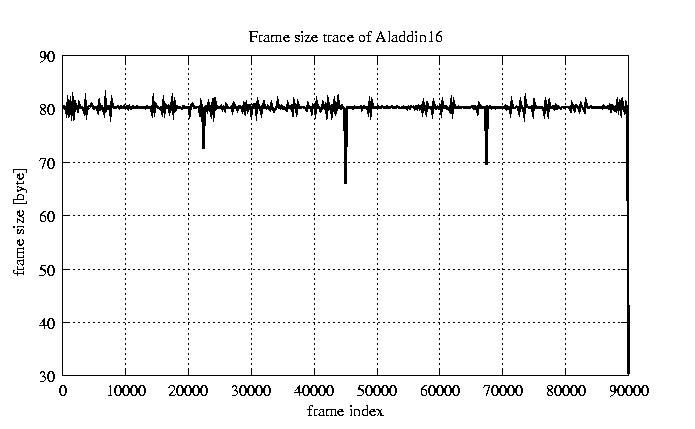

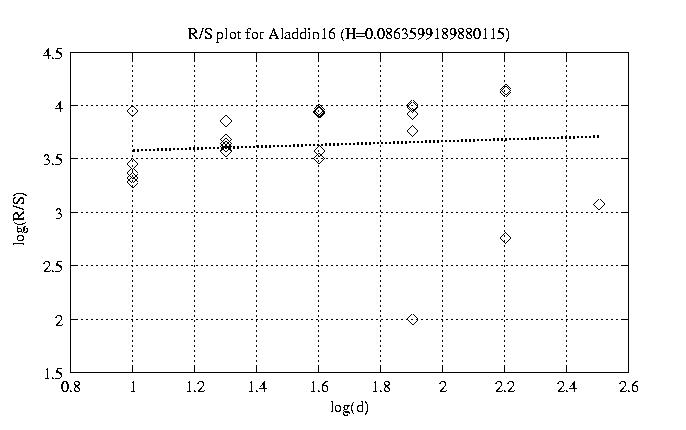

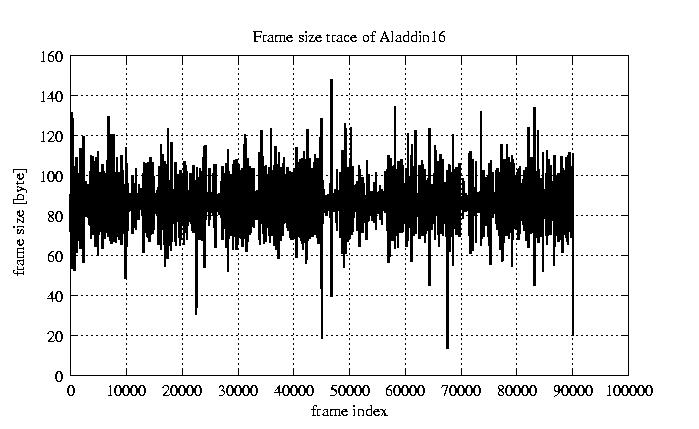

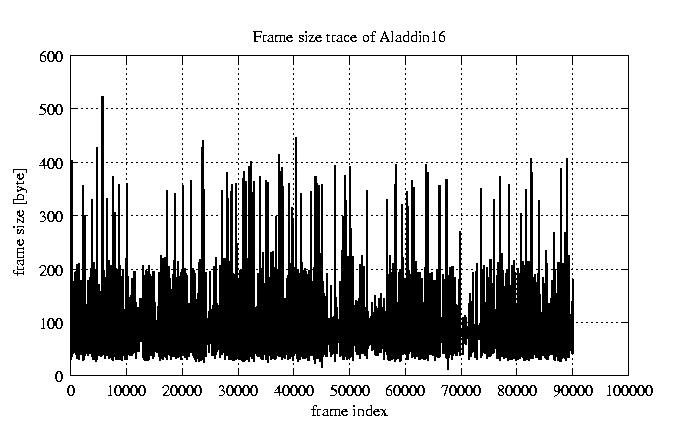

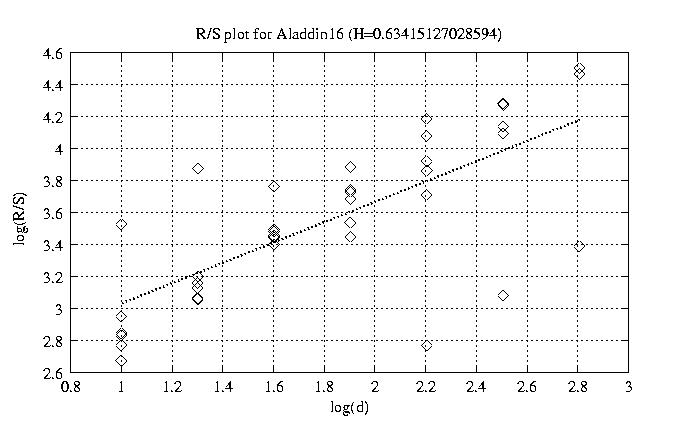

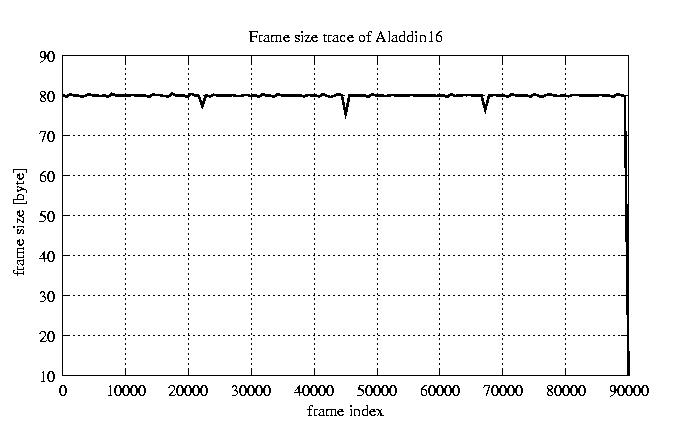

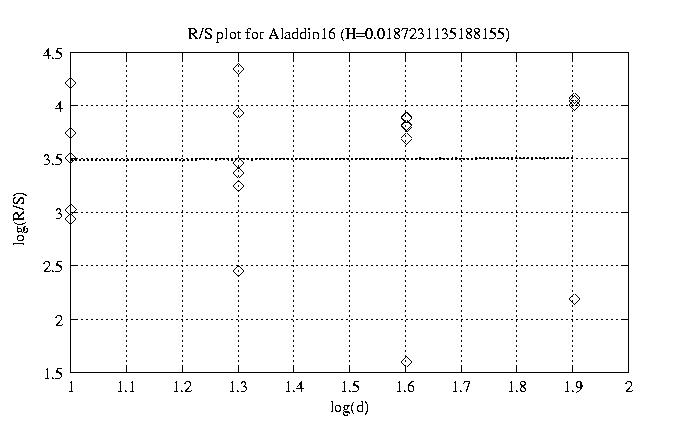

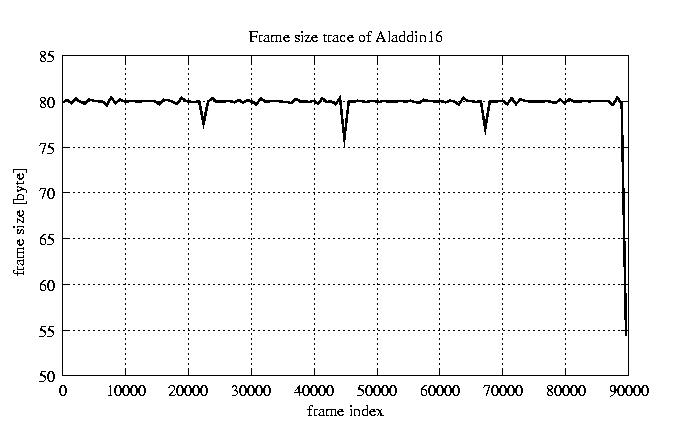

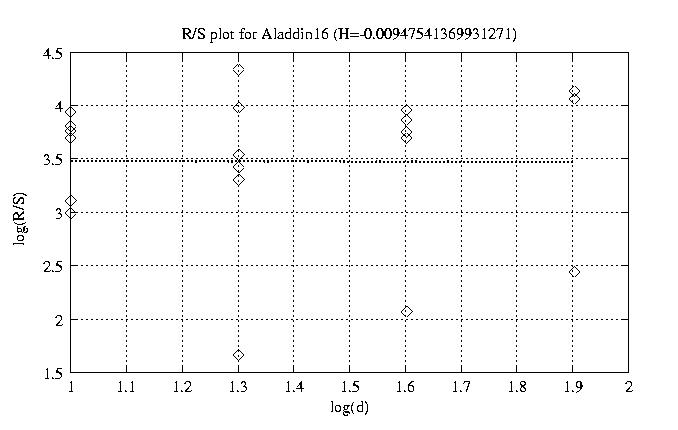

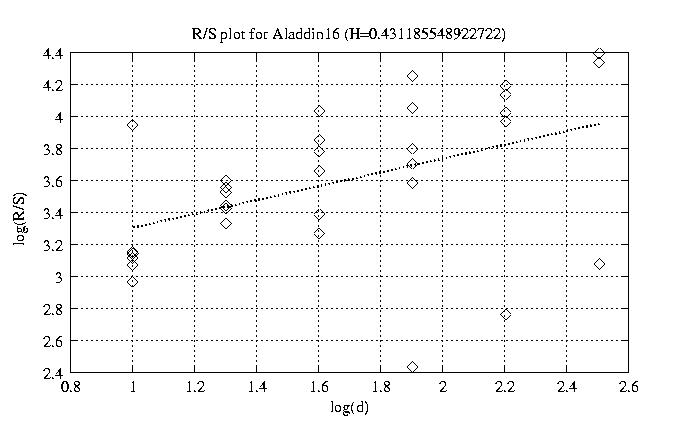

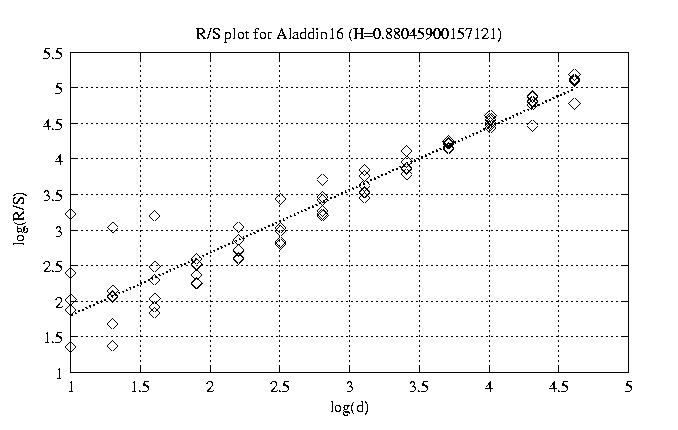

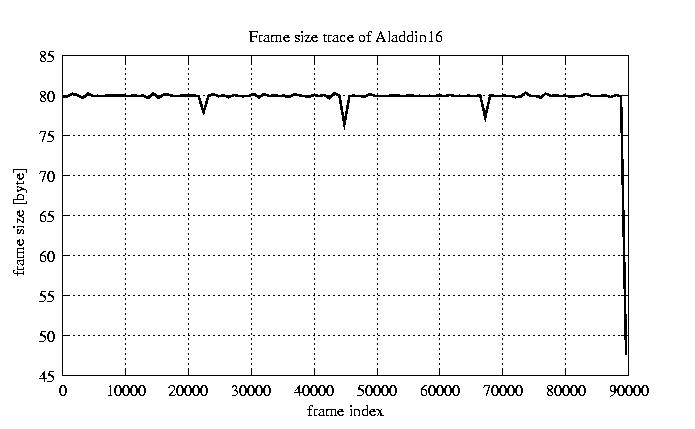

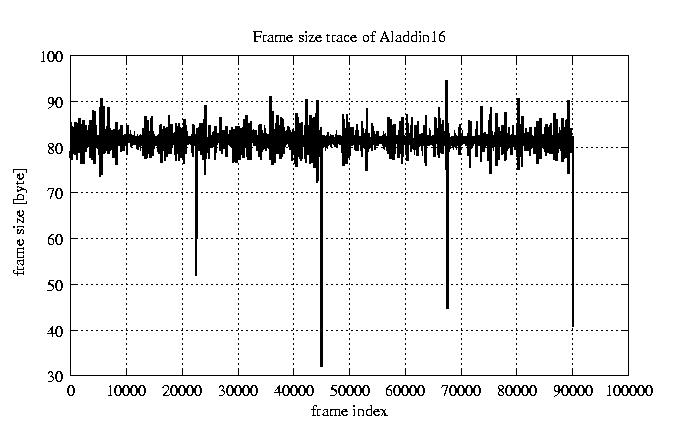

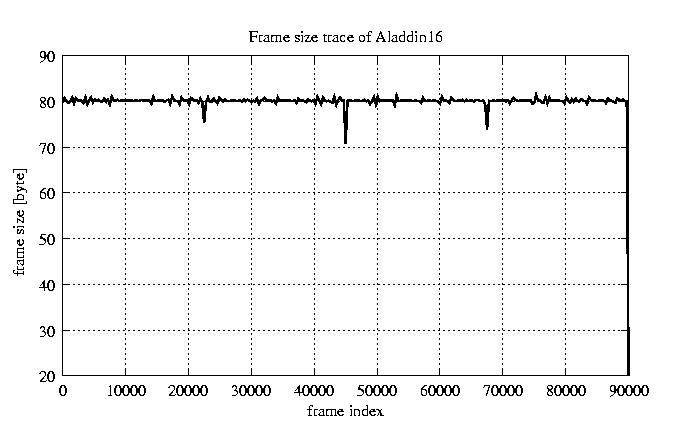

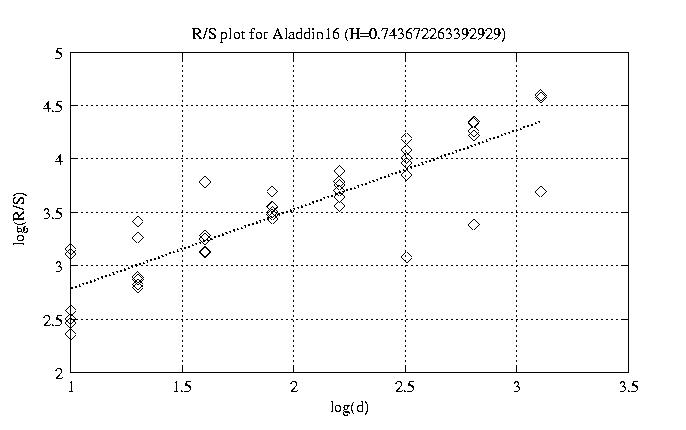

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.880 view view 12 0.926 view view 50 0.744 view view 100 0.634 view view 200 0.431 view view 300 0.086 view view 400 0.124 view view 500 -0.160 view view 600 -0.351 view view 700 0.019 view view 800 -0.009 view view

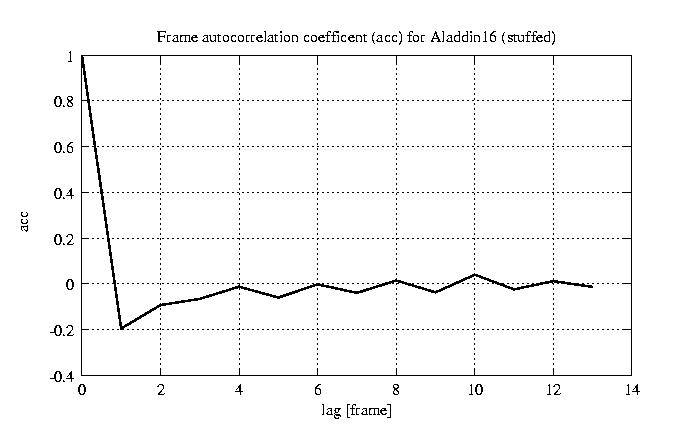

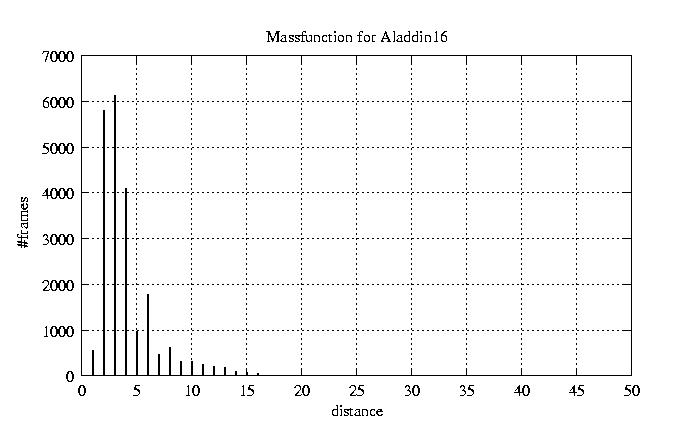

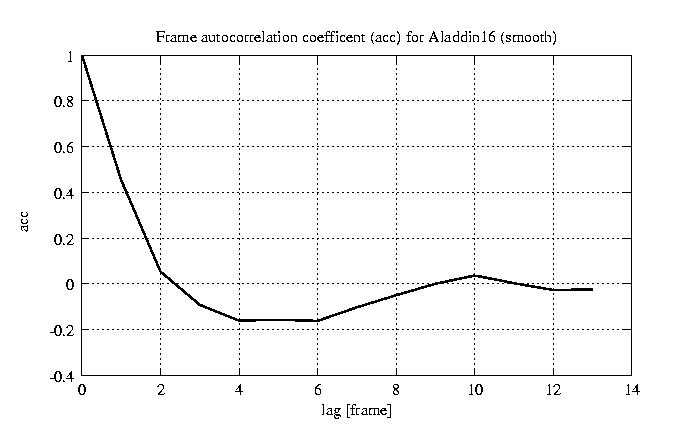

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
	HOME BACK

Frank Fitzek
