MP4 - Robin Hood
medium quality

frame statistics parameter list	Frame statistics compression ratio YUV:MP4 23.00 File Size byte 1.5e+08 Video run time msec 3.6e+06 # of Frames - 89998 mean frame size byte 1.7e+03 var frame size - 1.3e+06 CoV of frame size - 0.70 min frame size byte 26 max frame size byte 9927 Mean bit rate bit/sec 3.3e+05 Peak bit rate bit/sec 2e+06 Peak/Mean of bit rate - 6.01 GoP statistics # of GoPs - 7499 mean GoP size byte 2e+04 var GoP size - 6.6e+07 CoV of GoP size - 0.41 min GoP size byte 877 max GoP size byte 67170 Mean bit rate bit/sec 3.3e+05 Peak bit rate bit/sec 1.1e+06 Peak/Mean of bit rate - 3.39 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

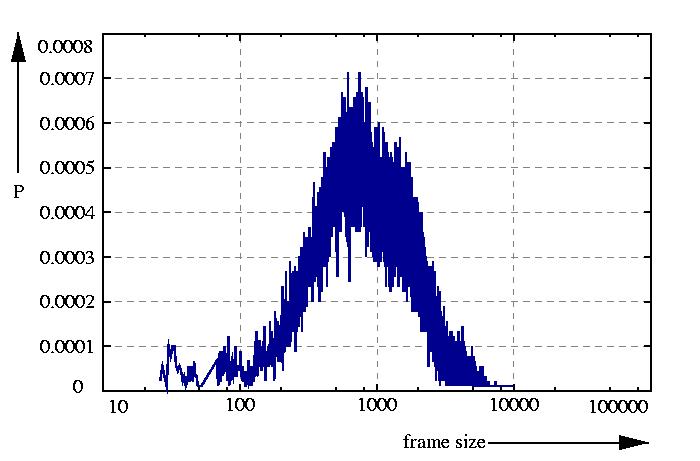

probability density function p

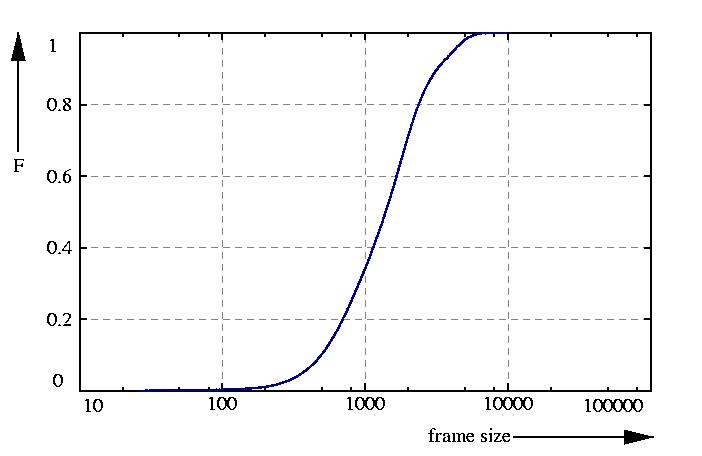

probability function F = sum p

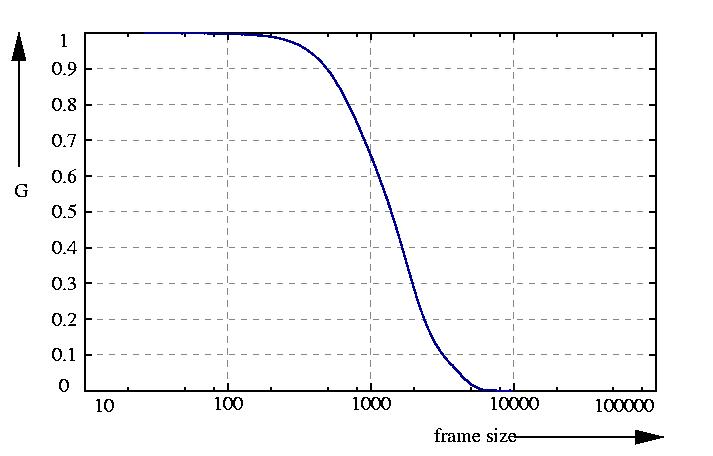

inverse probability function G = 1 - F

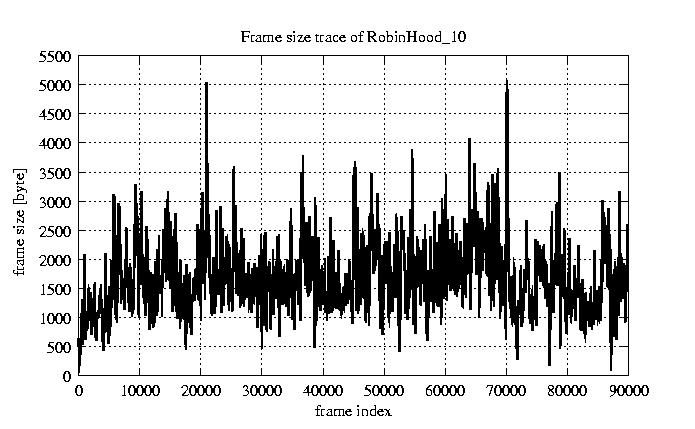

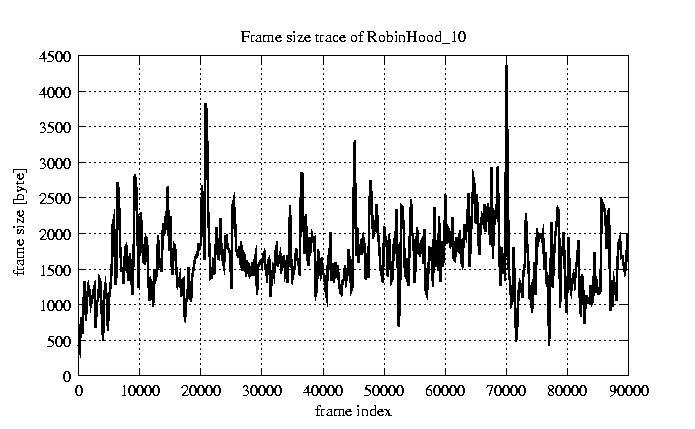

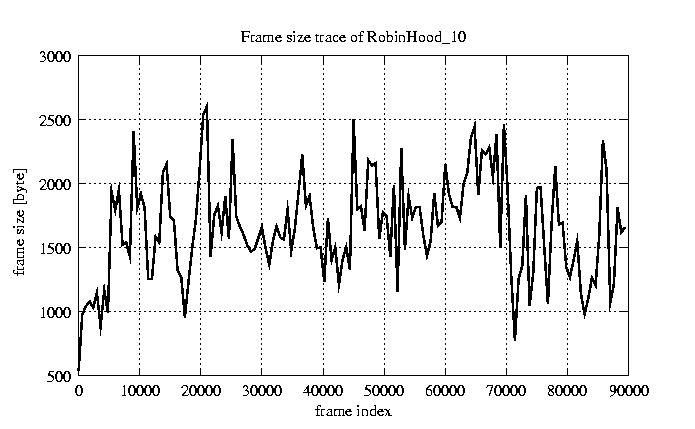

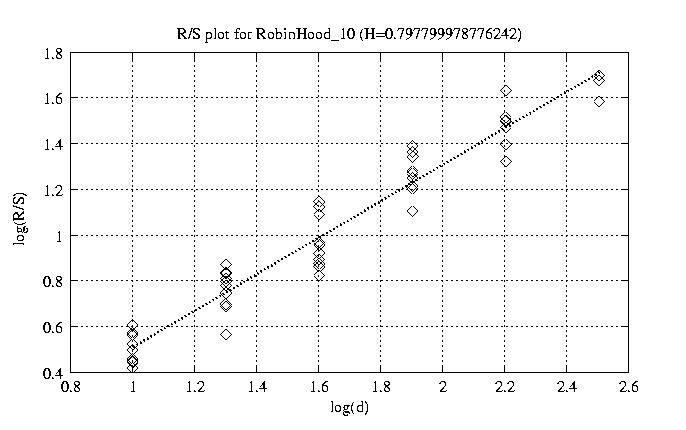

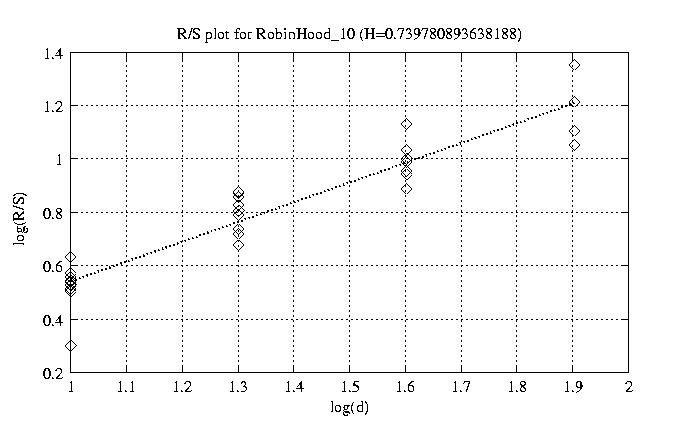

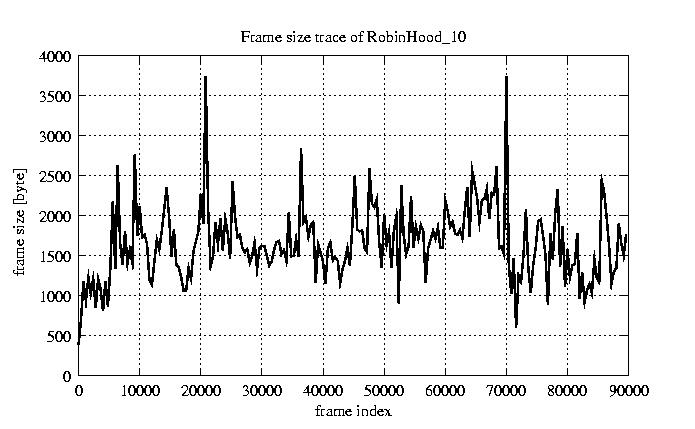

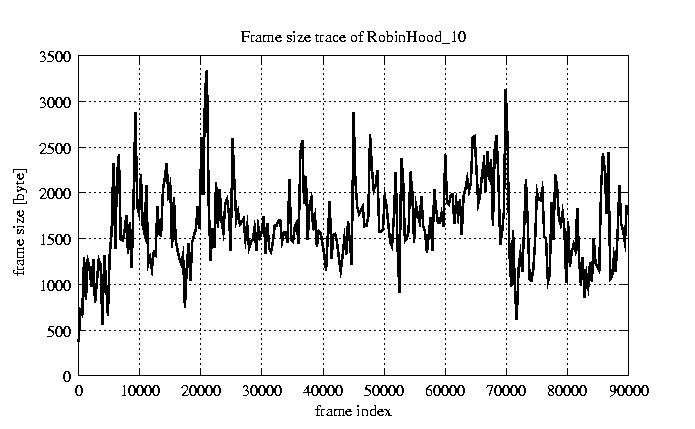

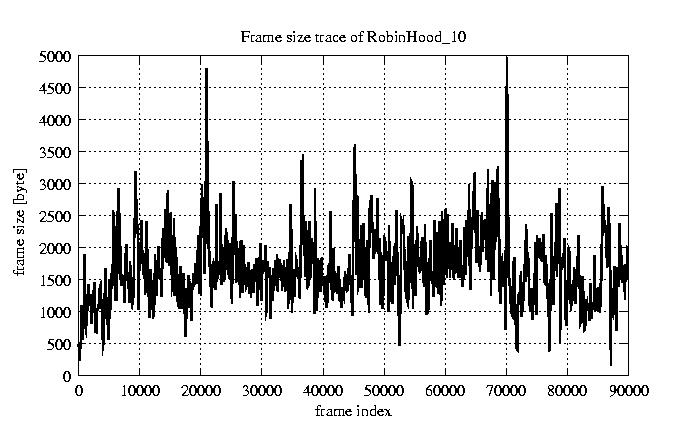

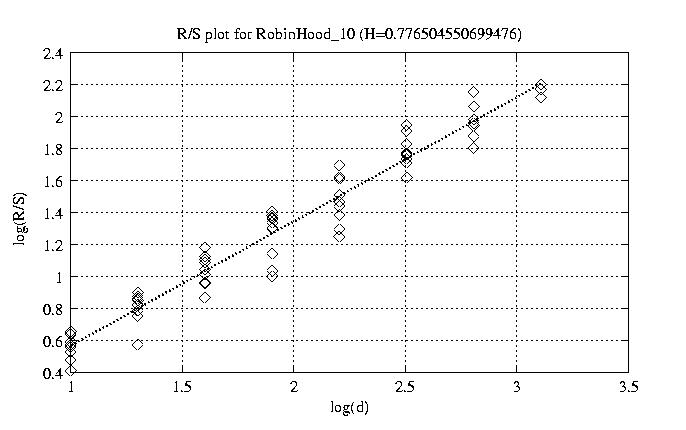

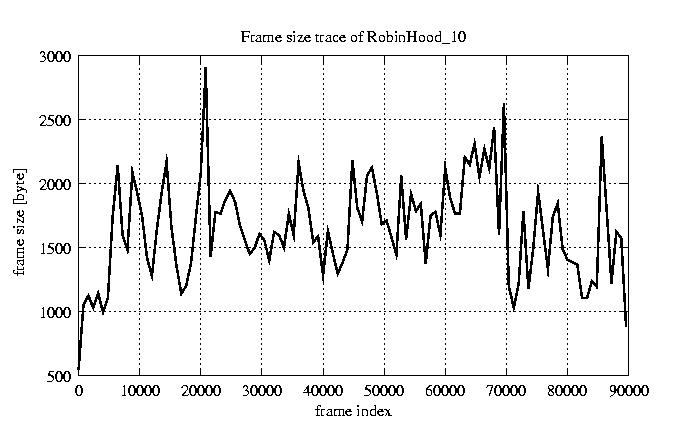

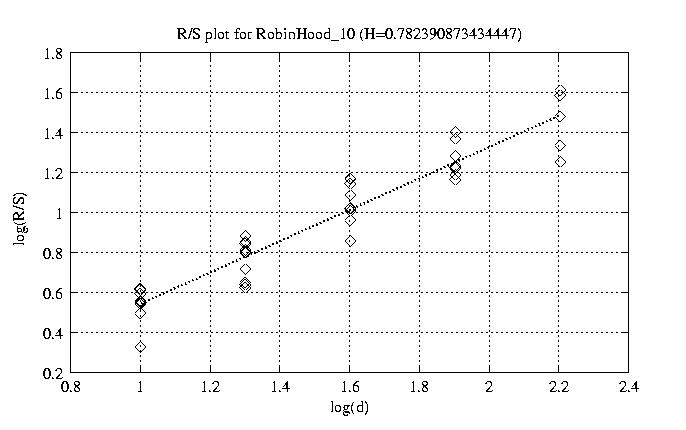

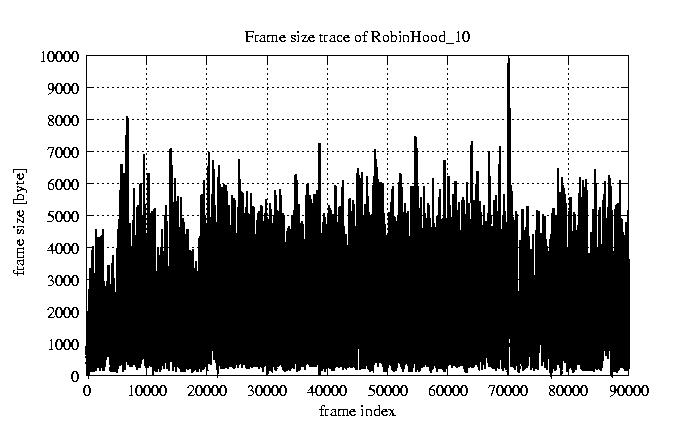

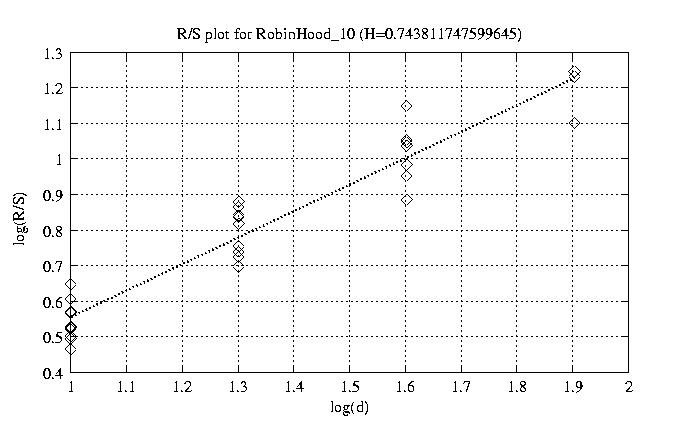

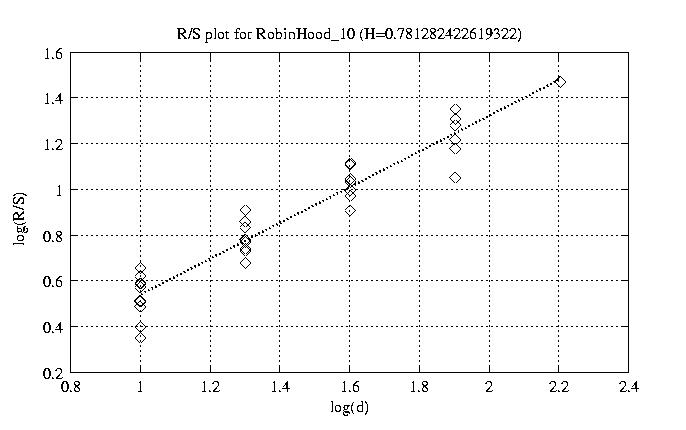

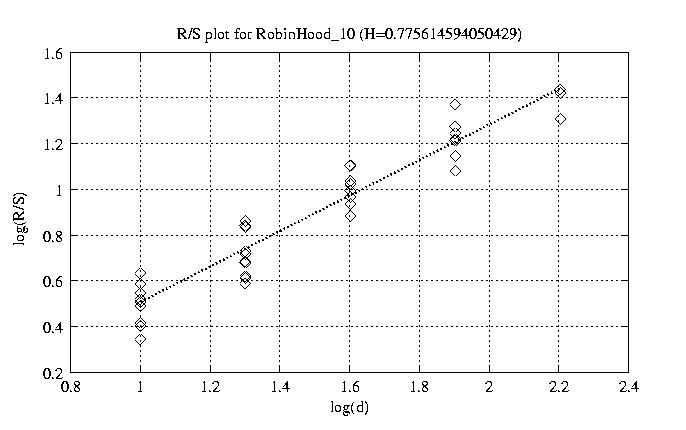

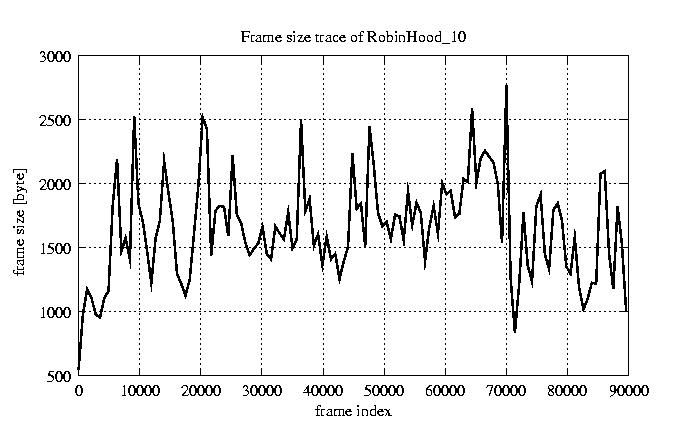

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.878 view view 12 0.810 view view 50 0.777 view view 100 0.770 view view 200 0.798 view view 300 0.782 view view 400 0.776 view view 500 0.781 view view 600 0.755 view view 700 0.740 view view 800 0.744 view view

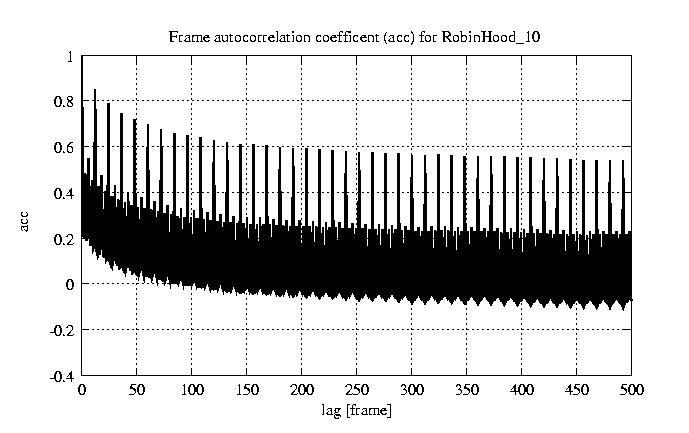

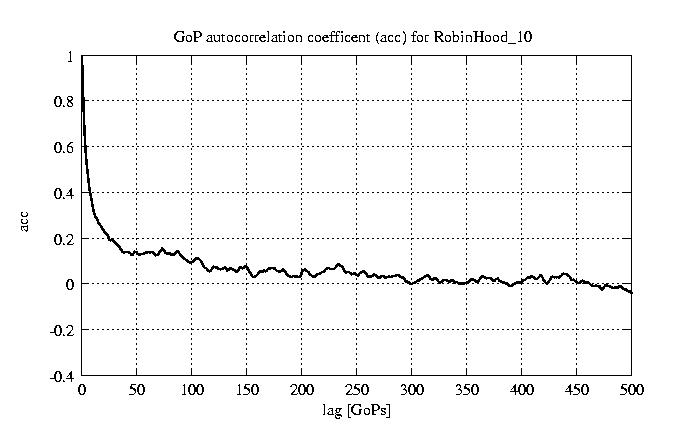

other plots	autocorrelation function of frames autocorrelation function of GoPs
