H263 - Starship Troopers
16 kbit/s target bit rate

frame statistics parameter list	Frames, stuffed Rates Frames, original compression ratio YUV:H263 476.36 476.36 File size byte 7.2e+06 7.2e+06 Video run time msec 3.6e+06 3.6e+06 3.6e+06 # of Frames - 90085.00 17878.00 mean frame size byte 79.81 402.14 var frame size - 37323.27 58444.04 CoV of frame size - 2.42 0.60 min frame size byte 0.00 20.00 max frame size byte 5178.00 5178.00 Peak/Mean frame - 64.88 12.88 Mean bit rate bit/sec 1.6e+04 Peak bit rate bit/sec 8.6e+04 Peak/Mean of bit rate - 5.4 CoV of bit rate - 0.29 max inter frame space frames 1.00 62.00 The following figures depict the probability density function p, the probability function F, and the inverse probability function G versus the encoded framelength in bytes.

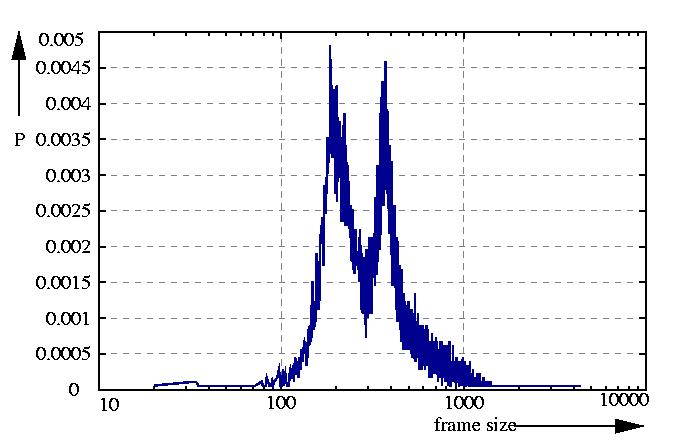

probability density function p

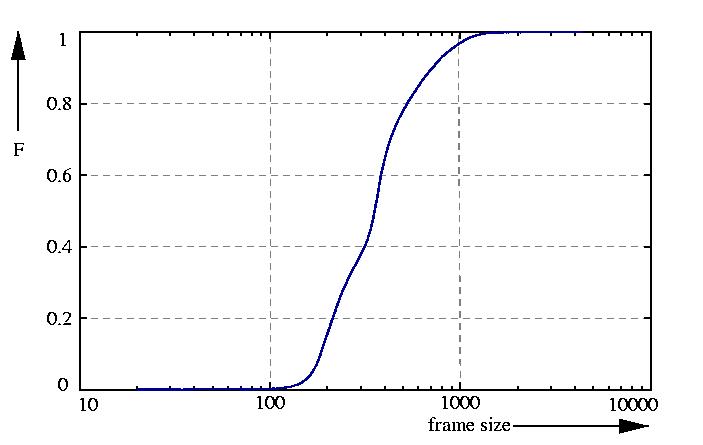

probability function F = sum p
inverse probability function G = 1 - F

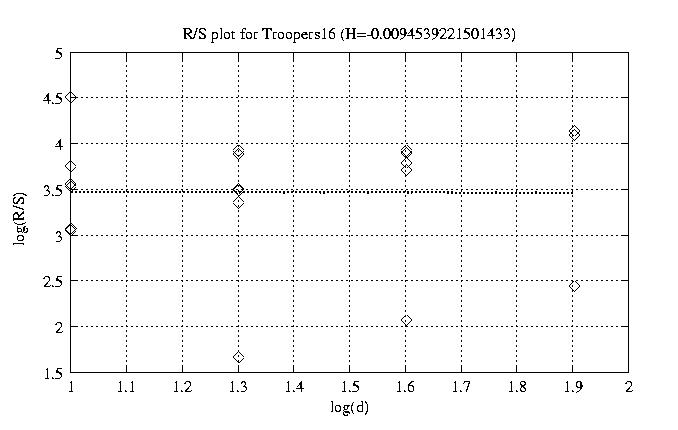

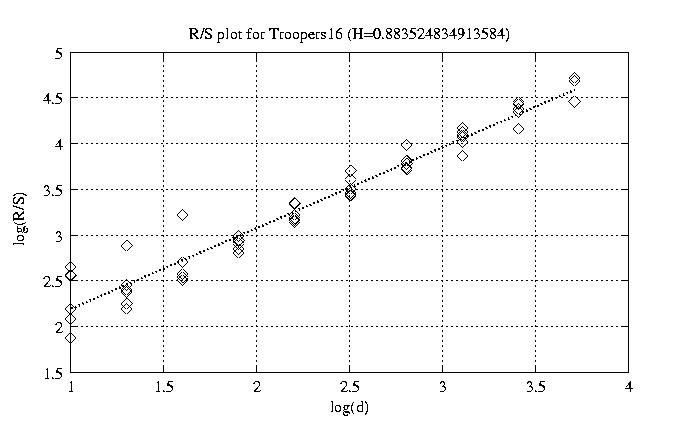

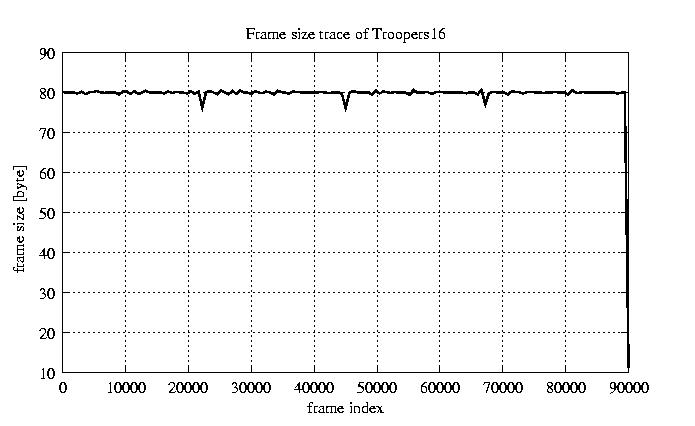

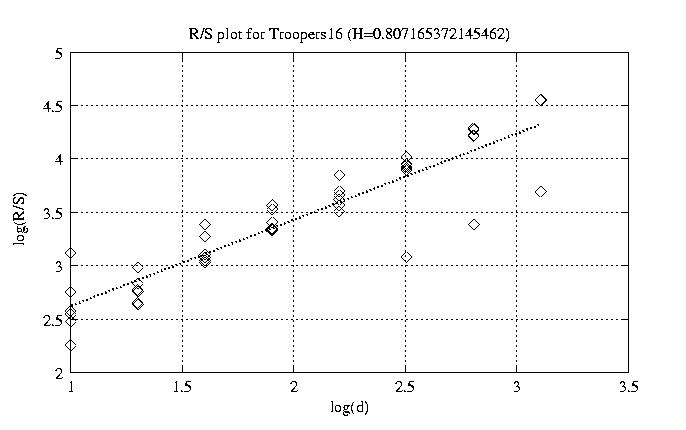

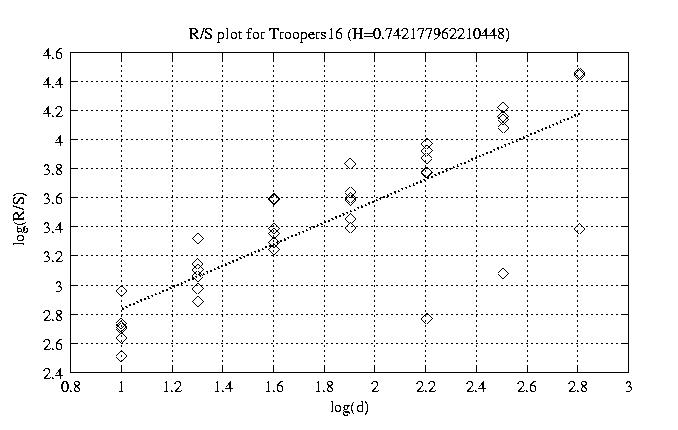

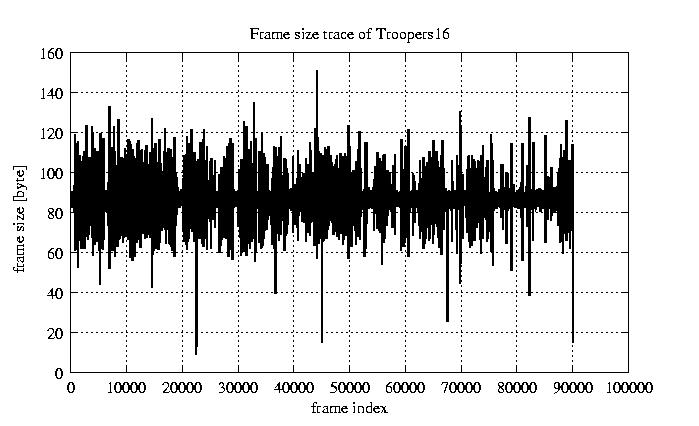

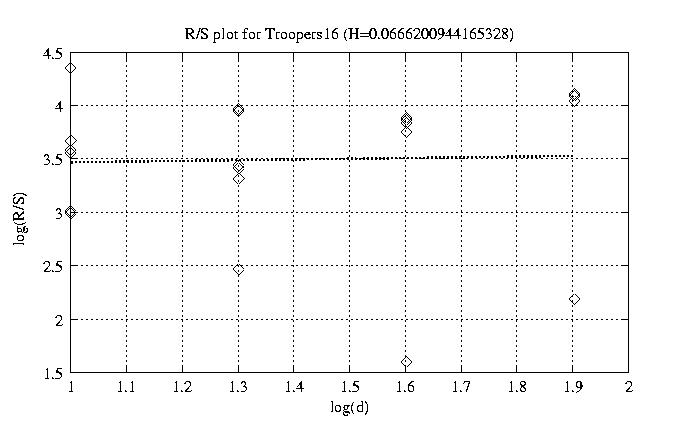

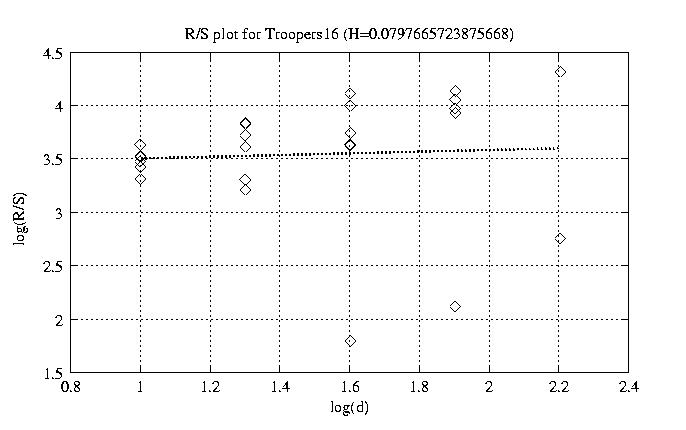

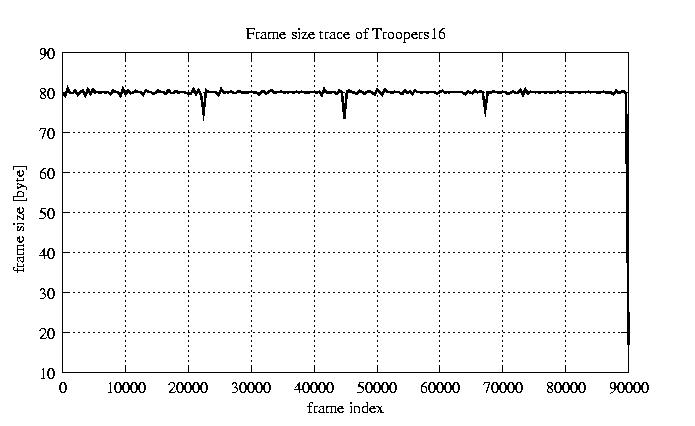

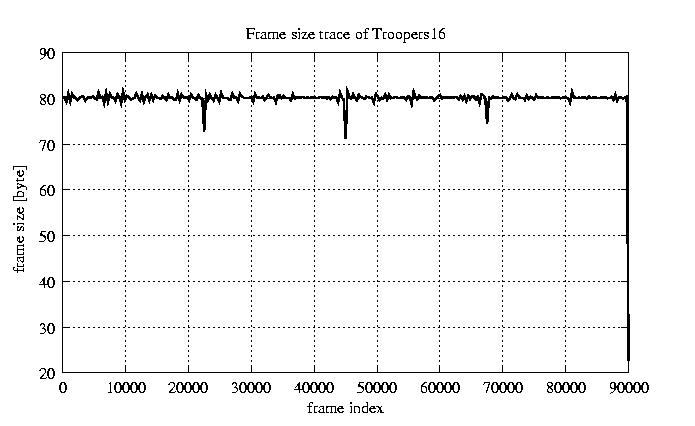

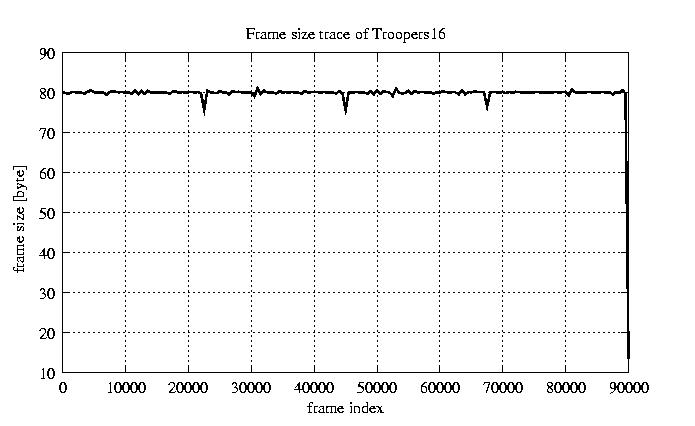

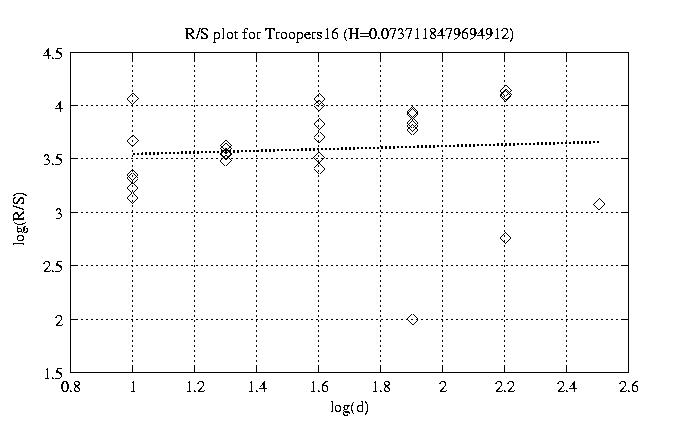

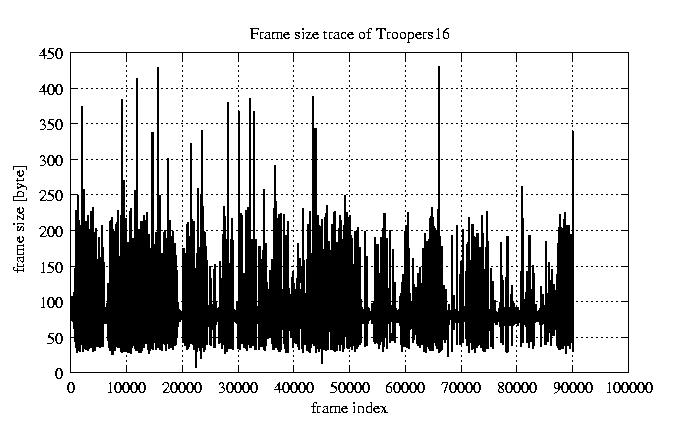

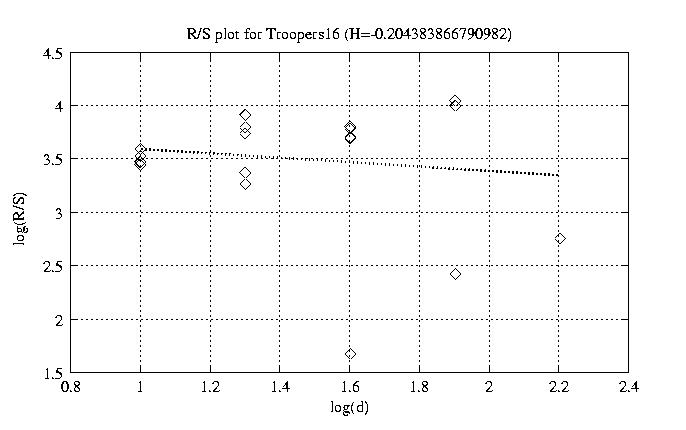

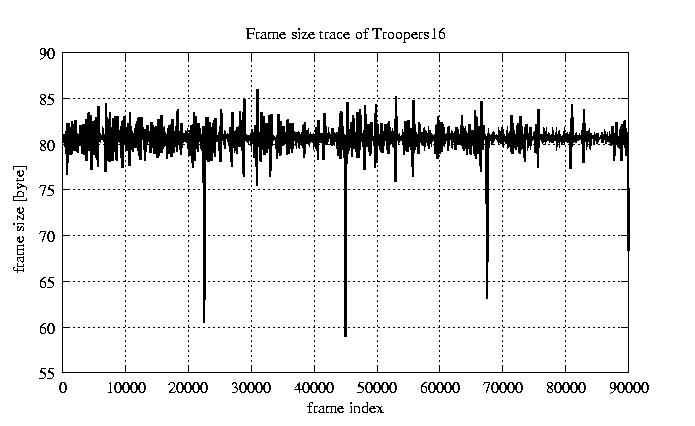

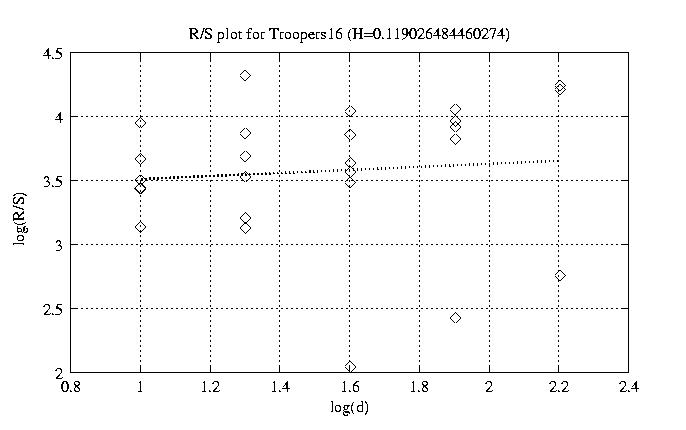

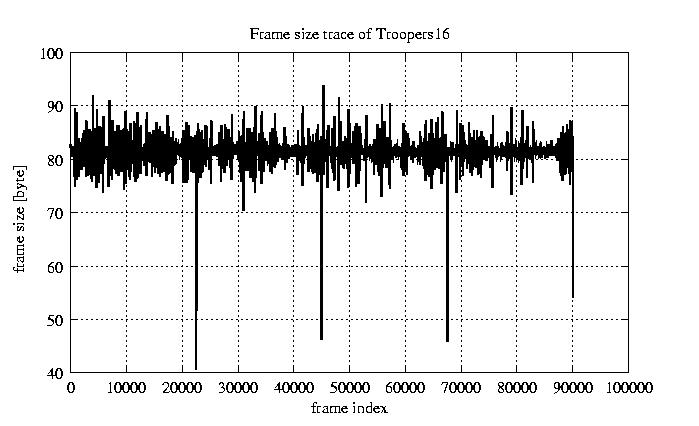

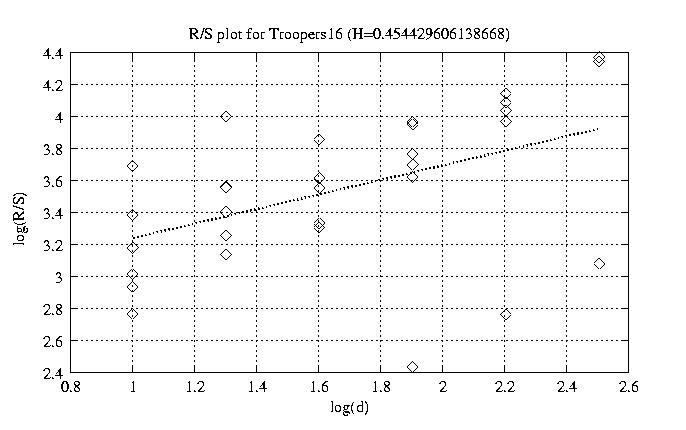

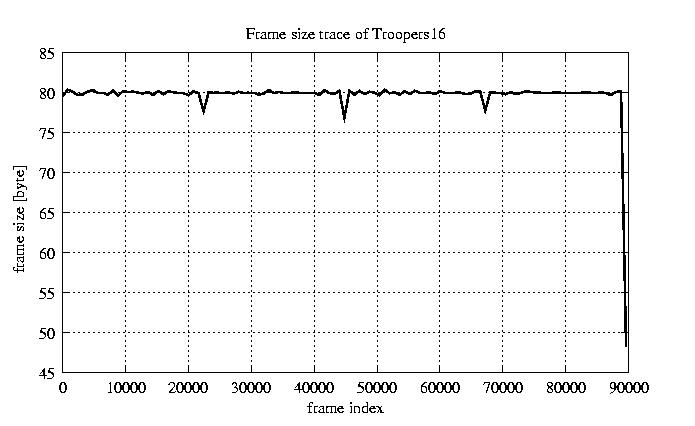

Hurst paramter with R/S plots and smoothed frame size trace	Aggregation level Hurst paramter RS plot bitrate plot 1 0.273 view view 12 0.884 view view 50 0.807 view view 100 0.742 view view 200 0.454 view view 300 0.074 view view 400 0.119 view view 500 0.080 view view 600 -0.204 view view 700 0.067 view view 800 -0.009 view view

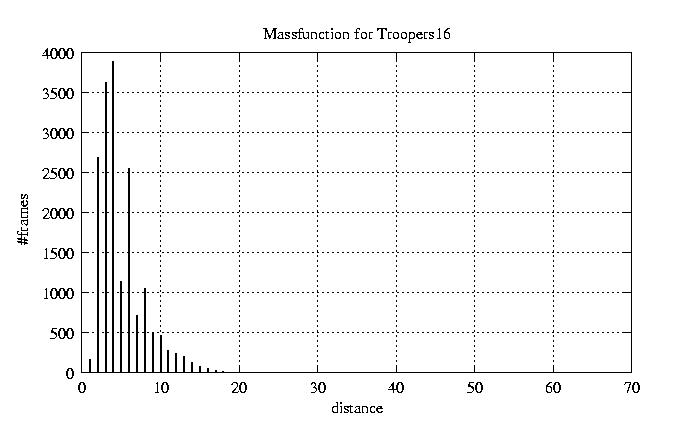

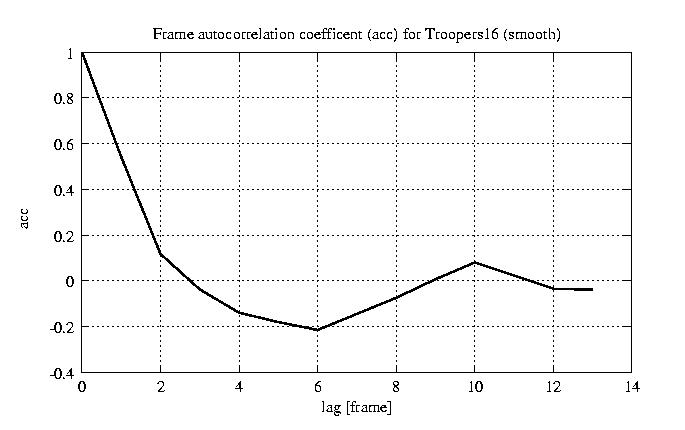

other plots	autocorrelation function of frames (stuffed Frames) autocorrelation function of frames (smoothed Frames) Mass function
